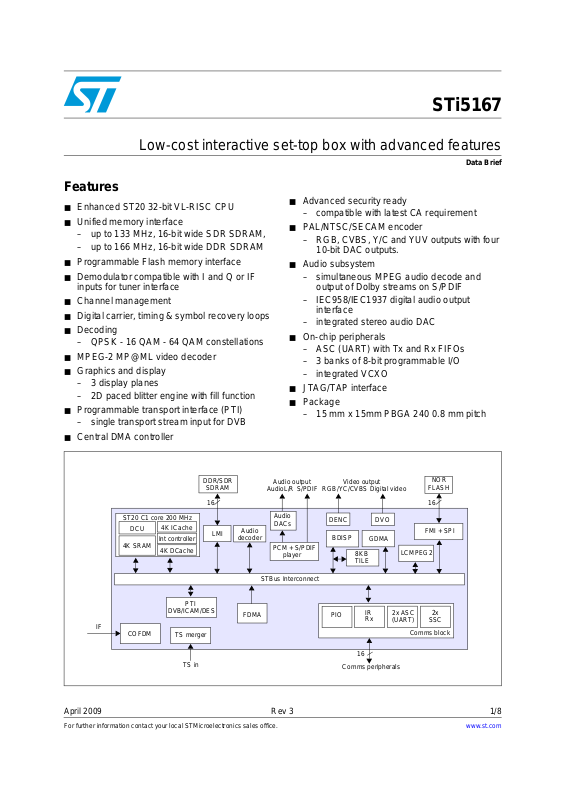

Low-cost interactive set-top box with advanced features
Features
■ Enhanced ST20 32-bit VL-RISC CPU
■ Unified memory interface
– up to 133 MHz, 16-bit wide SDR SDRAM,
– up to 166 MHz, 16-bit wide DDR SDRAM
■ Programmable Flash memory interface
■ Demodulator compatible with I and Q or IF
inputs for tuner interface
■ Channel management
■ Digital carrier, timing & symbol recovery loops
■ Decoding
– QPSK - 16 QAM - 64 QAM constellations
■ MPEG-2 MP@ML video decoder
■ Graphics and display
– 3 display planes
– 2D paced blitter engine with fill function
■ Programmable transport interface (PTI)
– single transport stream input for DVB
■ Central DMA controller
STi5167
Data Brief
■ Advanced security ready
– compatible with latest CA requirement
■ PAL/NTSC/SECAM encoder
– RGB, CVBS, Y/C and YUV outputs with four
10-bit DAC outputs.
■ Audio subsystem
– simultaneous MPEG audio decode and
output of Dolby streams on S/PDIF
– IEC958/IEC1937 digital audio output
interface
– inte grated stereo audio DAC
■ On-chip peripherals
– ASC (UART) with Tx and Rx FIFOs
– 3 banks of 8-bit programmable I/O
– integrated VCXO
■ JTAG/TAP interface
■ Package
– 15 mm x 15mm PBGA 240 0.8 mm pitch
NOR
FLASH
16
FMI + SPI
2x
SSC
Comms block
ST20 C1 core 200 MHz
DCU
4K SRAM
IF
COFDM
4K ICache
Int controller
4K DCache
PTI
DVB/ICAM/DES
TS merger
TS in
DDR/SDR
SDRAM
16
LMI
Audio
decoder
STBus Interconnect
FDMA
Audio output
AudioL/R
S/PDIF
Audio
DACs
PCM + S/PDIF
player
Video output
RGB/YC/CVBS
DENC DVO
BDISP
PIO
GDMA
8KB
TILE
IR
Rx
16
Comms peripherals
Digital video
LCMPEG2
2x ASC
(UART)
April 2009 Rev 3 1/8
For further information contact your local STMicroelectronics sales office.
www.st.com
8
Page 2
Description STi5167
1 Description
1.1 General
The STi5167 is the latest in the family of STBus set-top box ICs providing high-performance,
low-cost system-on-chip (SoC) for MPEG processing in digital terrestrial STBs. It is derived
from the STi5107, with the addition of a DVB-T COFDM demodulator and supports multiple
platforms using a unified architecture. STi5167 is compatible with the latest CA advanced
security specifications.
The STi5167 delivers enhanced performance with respect to previous devices. Main
memory is based upon a single 16-bit external SDR or DDR SDRAM.
The display architecture of the devices is based upon a high performance blitter engine that
supports CLUT8 and RGB16STi5167 formats for background, video and OSD/graphics
displays. It makes the porting of middleware easier with improved rendering.
1.2 Application
Figure 1. Terrestrial pay-TV receiver
IR Rx
SDR/
DDR
RGB or
YC+CVBS
Tuner
STi5167
DVB-T Rx
Smart
Card
Smart
Card
CVBS
VCR
Flash
The STi5167 is designed for CA applications with embedded HW security.
Its BGA package allows the use of a simple 2-layer PCB, with all signals and power supplies
being routed through the top PCB layer. This leaves the bottom PCB layer dedicated to the
ground plane and JTAG connections.
2/8
Page 3
STi5167 Description
To reduce the system pin complexity, the following conditions apply:
● either SDR and DDR SDRAM memory interface available
● serial or parallel Flash interfaces for program storage (HW selection for serial or
parallel Flash boot)
● FMI interface with NAND Flash support
● serial TS input port
● two UARTs
● two smart card interfaces
● HW secu rity support option
● digital video output port (exclusive with other features)
3/8
Page 4
Description STi5167
1.3 Main features
● Enhanced ST20 32-bit VL-RISC CPU
– 200 MHz, single cycle cache, 4 Kbyte instruction cache, 4 Kbyte data cache,
4 Kbyte SRAM
● Local memory interface
– up to 133 MHz, 16-bit wide SDR SDRAM,
– up to 166 MHz, 16-bit wide DDR SDRAM
● Programmable Flash memory interface
– 3 separately configurable banks, 8/16-bits wide
– SRAM, peripheral, Flash, SFlash™ support
● Demodulator compatible with I and Q or IF inputs for tuner interface
– wide range carrier tracking loop for offset recovery
– dual analog to digital conversion
– signal strength indicator dedicated ADC
– dual ΣΔ digital split AGC for RF and BB
● Channel management
– NorDig Unified Specification (v1.0.2) capable
– dynamic fading compatible
– channel reception quality indicator
– out of guard interval echo synchronization
– impulsive noise rejection capable
– flexible fully-integrated digital channel filter with outstanding adjacent channel
rejection capability
● Digital carrier, timing & symbol recovery loops
● Decoding
– 2 K, 4 K, 8 K FFT length
– 5, 6, 7 and 8 MHz channel bandwidth
– 1/4, 1/8, 1/16, 1/32 guard interval length
– QPSK - 16 QAM - 64 QAM constellations
– hierarchi c al capabi lity
– Viterbi soft decoder rate 1/2
– supports puncture rates 1/2, 2/3, 3/4, 5/6, 7/8
– Reed-Solomon decoder
– energy dispersal descrambler
● Programmable transport interface (PTI)
– single transport stream input
– support for DVB transport streams
– integrated DVB, ICAM descramblers
● MPEG-2 MP@ML video decoder
– fully programmable horizontal and vertical SRCs
4/8
Page 5
STi5167 Description
● Graphics and display
– three display plane s
– 8 bpp CLUT graphics, 256 x 30 bits (AYCbCr) CLUT entries. 16 bpp true color
graphics, RGB565, ARGB1555, ARGB4444 formats. Link-list control
– alpha blending, anti-aliasing, anti-flutter, anti-flicker filters
– 2D paced blitter engine with fill function
– blitter based display compositor
– digital video output: compliant with CCIR 656
● PAL/NTSC/SECAM encoder
– RGB, CVBS, Y/C and YUV outputs with four 10-bit DAC outputs. RGB/CVBS or
YUV/CVBS or YC/CVBS
– encoding of CGMS closed caption, Teletext, WSS and VPS
● Audio subsystem
– MPEG-1 layers I/II
– simultaneous MPEG audio decode and output of Dolby streams on S/PDIF
– IEC958/IEC1937 digital audio output interface
– integrated stereo audio DAC system
● NAND Flash support for basic timeshift and instant replay
● Central DMA controller
● On-chip peripherals
– two ASCs (UARTs) with Tx and Rx FIFOs
– three banks of 8-bit parallel I/O
– two smartcard interfaces and clock generator
– SPI for serial Flash support
–two SSCs for I
2
C/SPI master/slave interfaces
– infrared receiver
– integrated VCXO
– low-power/RTC/watchdog controller
– flexible clock generation to operate with 27 MHz or 30 MHz external reference
– GP ADC for key control
● Advanced security ready
– compatible with latest CA requirement
● JTAG/TAP interface
● Package
– 15 mm x 15 mm PBGA 240 0.8 mm pitch.
5/8
Page 6
Ordering information STi5167
2 Ordering information
Table 1. Ordering information
Order code Packaging
STi5167KBB
STi5167ZBB
15 mm x 15 mm PBGA 240 0.8 mm pitch
15 mm x 15 mm PBGA 240 0.8 mm pitch
6/8
Page 7
STi5167 Revision history
3 Revision history
Table 2. Document revision history
Date Revision Changes
05-March-2009 1 Initial release
01-Apr-2009 2 Memory interface values updated.
10-Apr-2009 3 Memory interface (SDR SDRAM) new update.
7/8
