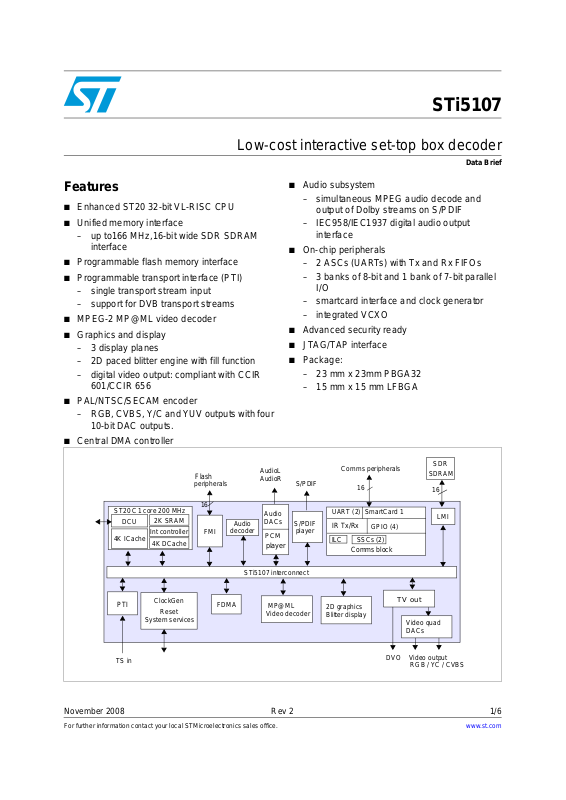

STi5107
Low-cost interactive set-top box decoder
Data Brief
Features
■ Enhanced ST20 32-bit VL-RISC CPU
■ Unified memory interface
– up to166 MHz,16-bit wide SDR SDRAM
interface
■ Programmable flash memory interface
■ Programmable transport interface (PTI)
– single transport stream input
– support for DVB transport streams
■ MPEG-2 MP@ML video decoder
■ Graphics and display
– 3 display planes
– 2D paced blitter engine with fill function
– digital video output: compliant with CCIR
601/CCIR 656
■ PAL/NTSC/SECAM encoder
– RGB, CVBS, Y/C and YUV outputs with four
10-bit DAC outputs.
■ Central DMA controller
■ Audio subsystem
– simultaneous MPEG audio decode and
output of Dolby streams on S/PDIF
– IEC958/IEC1937 digital audio output
interface
■ On-chip peripherals
– 2 ASCs (UARTs) with Tx and Rx FIFOs
– 3 banks of 8-bit and 1 bank of 7-bit parallel
I/O
– smartcard interface and clock generator
– integrated VCXO
■ Advanced security ready
■ JTAG/TAP interface
■ Package:
– 23 mm x 23mm PBGA32
– 15 mm x 15 mm LFBGA
SDR
SDRAM
16
LMI
Video quad
DACs
Video output
RGB / YC / CVBS
ST20 C1 core 200 MHz
DCU
4K ICache
PTI
TS in
2K SRAM
Int cont r o l ler
4K DCache
ClockGen
Reset
System services
Flash
peripherals
16
FMI
FDMA
AudioL
AudioR
Audio
Audio
decoder
DACs
PCM
player
STi5107 interconnect
MP@ML
Video dec oder
S/PDIF
S/PDIF
player
Comms peripherals
16
UART (2)
IR Tx/Rx
SSCs (2)ILC
Comms block
2D graphics
Blitter display
SmartCard 1
GPIO (4)
TV out
DVO
November 2008 Rev 2 1/6
For further information contact your local STMicroelectronics sales office.
www.st.com
6
Page 2
Description STi5107
1 Description
1.1 General
The STi5107 is the latest in the family of Omega2 set-top box ICs providing a highperformance, low-cost system-on-chip(SoC) for MPEG processing in cable, satellite or
digital terrestrial STBs. It is a pin compatible IC derived from the STi5105, that supports
multiple platform using a unified architecture. STi5107 is compatible with the latest CA
advanced security specifications.
The STi5107 delivers enhanced performance with respect to previous devices. Main
memory is based upon a single 16-bit external SDR SDRAM.
The display architecture of the device is based upon a high performance blitter engine that
supports CLUT8 and RGB16 formats for background, video and OSD/graphics displays. It
makes the porting of middleware easier with greater rendering.
1.2 Applications
Figure 1. Basic terrestrial pay TV
IR Tx/Rx
SDR
Tuner
STV0362
DV-T Rx
Transport
stream in
STi5107
Smart
Card
RGB or
YC+CVBS
CVBS
VCR
Flash
2/6
Page 3
STi5107 Description

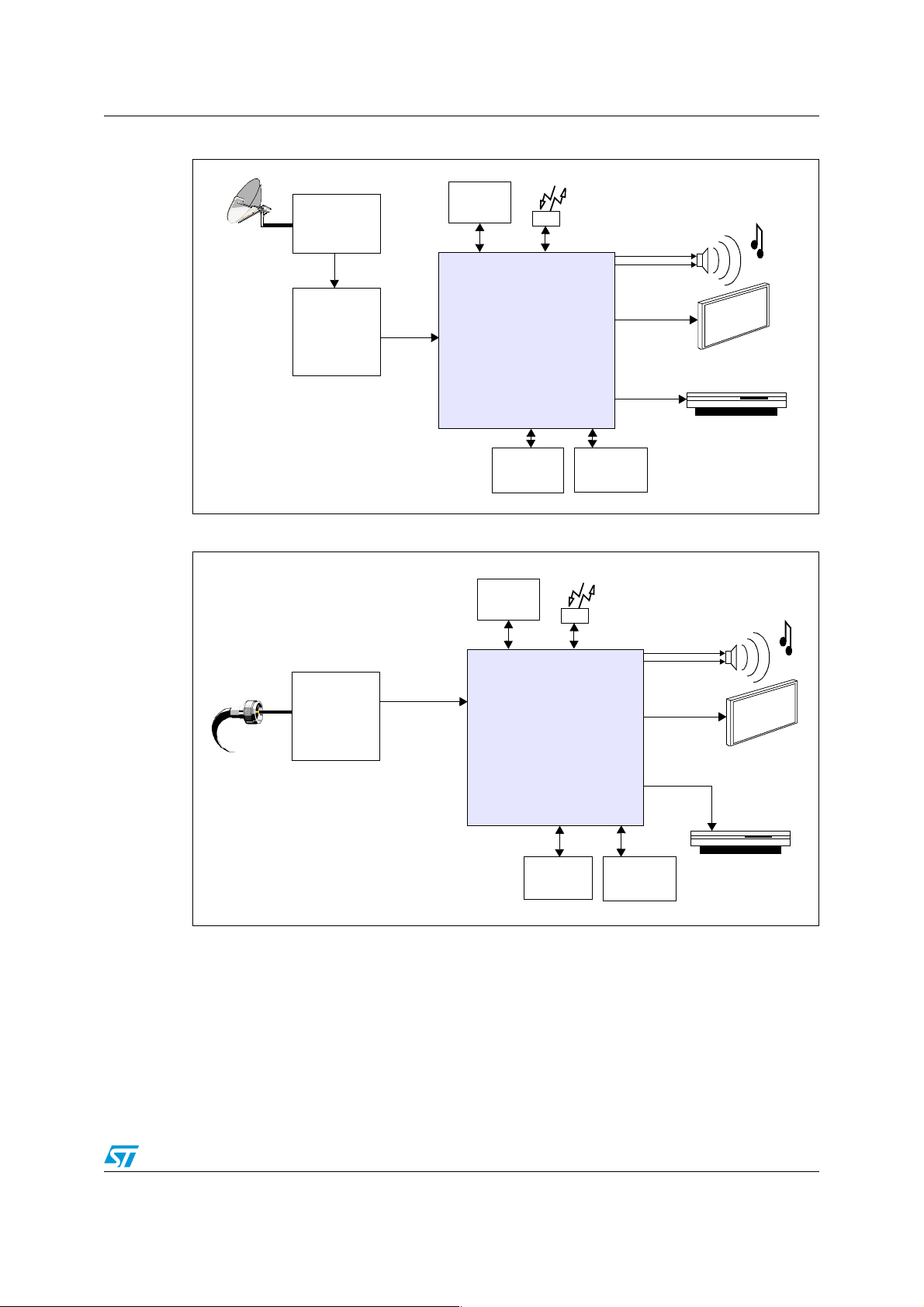

Figure 2. Basic satellite pay TV receiver
IR Tx/Rx
SDR
STV06110A
RGB or
YC+CVBS
STV0288
Transport
stream in
STi5107
QPSK ZIF Rx
Figure 3. Basic cable pay TV receiver
QAM demodulator
STV0297/J
Transport
stream in
Smart
Card
SDR
CVBS
VCR
Flash
IR Tx/Rx
RGB or
YC+CVBS
STi5107
CVBS
VCR
Smart
Card
Flash
3/6
Page 4
Ordering information STi5107
2 Ordering information
Table 1. Ordering information
Order code Packaging Description
STi5107ZBB LFBGA 15 x 15 mm Development version, all options
STi5107ZYB PBGA 23 x 23 mm Development version, all options
4/6
Page 5
STi5107 Revision history
3 Revision history
Table 2. Document revision history
Date Revision Changes
05-Dec-2006 1 Initial release
Simplified version (page 1, 2 and 3 only from previous version)
14-Nov-2008 2
LQFP216 24 x 24 mm replaced by LFBGA 15 x 15 mm
STV6000 replaced by STV6110A in Figure 2
5/6
