Page 1

查询SP6651AER供应商

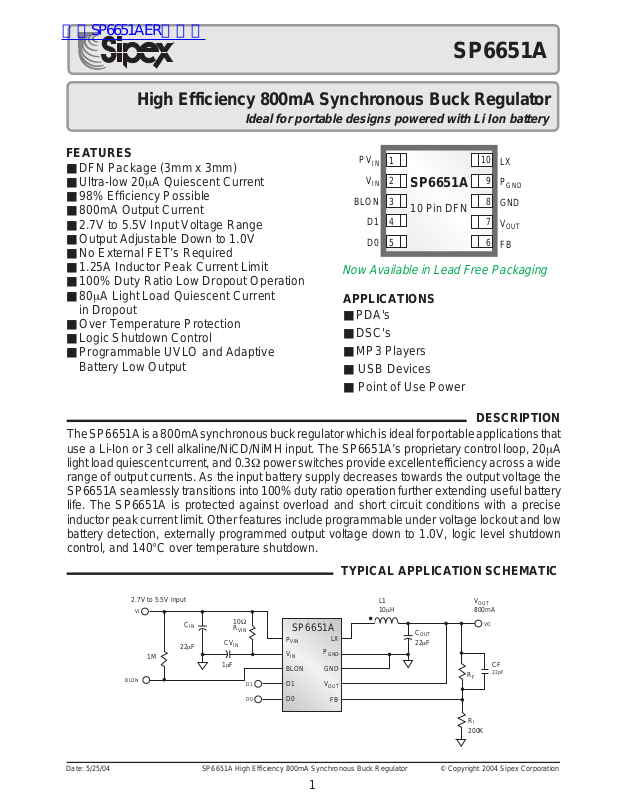

High Efficiency 800mA Synchronous Buc k Regulator

SP6651A

Ideal for portable designs powered with Li Ion battery

FEATURES

■ DFN Package (3mm x 3mm)

■ Ultra-low 20µA Quiescent Current

■ 98% Efficiency Possible

■ 800mA Output Current

■ 2.7V to 5.5V Input Voltage Range

■ Output Adjustable Down to 1.0V

■ No External FET’s Required

■ 1.25A Inductor Peak Current Limit

BLON

D1 D0

1 2

SP6651A

10 Pin DFN

4 5

GND

OUT

Now Available in Lead Free Packaging

■ 100% Duty Ratio Low Dropout Operation

■ 80µA Light Load Quiescent Current

in Dropout

■ Over Temperature Protection

■ Logic Shutdown Control

■ Programmable UVLO and Adaptive

Battery Low Output

APPLICATIONS

■ PDA's

■ DSC's

■ MP3 Players

■ USB Devices

■ Point of Use Power

DESCRIPTION

The SP6651A is a 800mA synchronous buck regulator which is ideal for portable applications that use a Li-Ion or 3 cell alkaline/NiCD/NiMH input. The SP6651A’s proprietary control loop, 20µA light load quiescent current, and 0.3Ω power switches provide excellent efficiency across a wide range of output currents. As the input battery supply decreases towards the output voltage the SP6651A seamlessly transitions into 100% duty ratio operation further extending useful battery life. The SP6651A is protected against overload and short circuit conditions with a precise inductor peak current limit. Other features include programmable under voltage lockout and low battery detection, externally programmed output voltage down to 1.0V, logic level shutdown control, and 140°C over temperature shutdown.

TYPICAL APPLICATION SCHEMATIC

2.7V to 5.5V Input

22µF

BLON

1µF

10Ω R

VIN

SP6651A

VIN

BLON D1 D0

GND

GND V

OUT

L1 10µH

OUT

22µF

200K

OUT

800mA

22pF

Page 2

ABSOLUTE MAXIMUM RATINGS

PVIN,VIN.............................................................................................. 6V

All other pins .............................................................. -0.3V to V

PVIN, P

, LX current ........................................................................ 2A

GND

Storage Temperature .................................................. -65 °C to 150 °C

Operating Temperature ................................................. -40°C to +85°C

Lead Temperature (Soldering, 10 sec) ....................................... 300 °C

Thermal Resistance øJA:

10-Pin MSOP....................................................................128°C/W

10-Pin DFN ........................................................................68°C/W

+0.3V

These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.

ELECTRICAL CHARACTERISTICS

VIN=UVIN=V

PARAMETER MIN TYP MAX UNITS CONDITIONS

Input Voltage Operating UVLO 5.5 V Result of IQ measurement at VIN=PVIN=5.5V Range

Minimum Output Voltage 1.0 V FB Set Voltage, Vr 0.784 0.800 0.816 V 25°C, IO=200mA Close Loop. LI = 10µH,

Overall Accuracy Measured at VIN=5.5V, no load and (-40°C to 85°C) ±5%VIN=3.6V, 200mA load, Close Loop (0°C to 70°C) ±4

On-Time Constant - K Min, TON=KON/(VIN-V

Off-Time Constant - K Min, T

Off-Time Blanking 100 ns PMOS Switch Resistance 0.3 0.6 Ω I NMOS Switch Resistance 0.3 0.6 Ω I Inductor Current Limit 1.0 1.25 1.50 A VFB=0.5V LX Leakage Current 0.01 3 µA D0=D1=0 Power Efficiency 96 % V

Minimum Guaranteed Load 800 900 mA Current

Quiescent Current 20 30 µAV

Shutdown Current 1 500 nA D1=D0=0V

Quiescent Current 2 5 µAV

OUT

Shutdown Current 1 500 nA D1=D0=0V

OUT

UVLO 2.55 2.70 2.85 D1=0V, D0=V Undervoltage Lockout 2.70 2.85 3.00 V D1=VIN, D0=0V Threshold, V

UVLO hysteresis 40 mV Battlo Trip Voltage, VIN falling 265 300 335 mV Measured as VIN-V Battlo Trip Voltage Hysteresis 9 mV BLON Low Output Voltage 0.4 V VIN=3.3V, I BLON Leakage Current 1 µAV Over-Temperature 140 °C

Rising Trip Point Over-Temperature Hysteresis 14 °C D1,D0 Leakage Current 1 500 nA D1,D0 Input Threshold Voltage 0.60 0.90 V High to Low Transition

FB Leakage Current 1 100 nA FB=1V

=3.6V, V

SDN

OFF=KOFF/VOUT

OUT

OFF

OUT=VFB

)

, IO = 0mA, T

= -40°C to +85°C, typical values at 27°C unless otherwise noted.

AMB

1.5 2.25 3.0 V*µs Close Loop, LI = 10µH,C

1.6 2.4 3.2 V*µs Inductor current limit tripped, VFB=0.5V

92 V

falling 2.85 3.00 3.15 D1=VIN, D0=V

1.25 1.8 V Low to High Transition

= 22µF

OUT

Measured at V

= 200mA

PMOS

= 200mA

NMOS

=2.5V, IO=200mA

OUT

=3.3V, IO=800mA

OUT

=3.3V, VIN=3.6V and VIN= 5.5V

OUT

= 3.3V

OUT

=3.6V

BLON

SINK

OUT

=1mA

= 2V

OUT

= 22µF

Page 3

PIN DESCRIPTION

PIN NUMBER PIN NAME DESCRIPTION

1PV 2V

3 BLON Open drain battery low output. (VIN-VO) less than 300mV pulls this

4D1Digital mode control input. See table I for definition. 5D0Digital mode control input. See table I for definition. 6FBExternal feedback network input connection. Connect a resistor from

OUT

8 GND Internal ground pin. Control circuitry returns current to this pin. 9P

GND

10 LX Inductor switching node. Inductor tied between this pin and the output

D1 D0

00Shutdown. All internal circuitry is disabled and the power switches are opened. 01Device enabled, falling UVLO threshold =2.70V 10Device enabled, falling UVLO threshold =2.85V 11Device enabled, falling UVLO threshold =3.00V

Table 1. Operating Mode Definition

Input voltage power pin. Inductor charging current passes through this pin. Internal supply voltage. Control circuitry powered from this pin.

node to ground. (VIN-VO) above threshold, this node is open.

FB to ground and FB to V regulates to the internal bandgap reference voltage of 0.8V.

to set the output voltage. This pin

OUT

Output voltage sense pin. Used by the timing circuit to set minimum on and off times.

Power ground pin. Synchronous rectifier current returns through this pin.

capacitor to create regulated output voltage.

FUNCTIONAL DIAGRAM

UVLO

OVR_I

ILIM/M

Zero_X

GND

BLON

GND

Vos

REF

RAMP

FB'

RST

DRVON

Ref

Block

TONOVER

REF'

UVLO

TSD

DRVON

VOLOW

REF

ILIM/M

MIN Ton

VOLOW

OVR_I

BLANK

DRVON

BLANK

BLANK = Tblank(=100ns) or Toff = Koff/Vout

Vin

Internal Supply

TONOVER

One-Shot

=100ns

OFF

OFF/VOUT

Min Ton

OUT

Min Ton =

OVR_IK

DRVON

)

OUT

DRIVER

300mV

OUT

Page 4

Refer to the typical application schematic, T

100

Efficiency (%)

1.0 10.0 100.0 1000.0 ILoad (mA)

Vi=3.6V Vi=3.9V Vi=4.2V

Vi=5.0V

TYPICAL PERFORMANCE CHARACTERISTICS

= +27°C

AMB

100

Efficiency (%)

0.1 1.0 10.0 100.0 1000.0 ILoad (mA)

Vi=3.6V Vi=3.9V Vi=4.2V

Vi=5.0V

Figure 1. Efficiency vs Load, V

3.40

3.35

3.30

Vout (V)

3.25

3.20 0 200 400 600 800 1000

ILoad (mA)

Figure 3. Line/Load Rejection, V

500

400

300

Iin (uA)

200

OUT

= 3.3V

OUT

Vi=3.6V Vi=3.9V Vi=4.2V

Vi=5.0V

Tamb = 85°C Tamb = 25°C Tamb = -40°C

Figure 2. Efficiency vs Load, V

1.55

1.53

1.51

Vout (V)

1.49

1.47

1.45 0 200 400 600 800 1000

ILoad (mA)

Figure 4. Line/Load Rejection, V

Iin (µA)

OUT

= 1.5V

Vi=3.6V Vi=3.9V Vi=4.2V

Vi=5.0V

= 1.5V

Tamb = 85°C Tamb = 25°C Tamb = -40°C

100

3.0 3.3 3.6 3.9 4.2

Vin (V)

Figure 5. No Load Battery Current, V

OUT

=3.3V

3.0 3.3 3.6 3.9 4.2

Vin (V)

Figure 6. No Load Battery Current, V

OUT

=1.5V

Page 5

TYPICAL PERFORMANCE CHARACTERISTICS: Continued

Refer to the typical application schematic, T

AMB

= +27°C

3.5

3.0

2.5

2.0

1.5

Kon (V*usec)

1.0

0.5

0.0

3.6 3.9 4.2 4.5 4.8 5.1 5.4

Figure 7. KON vs VIN, V

3.5

3.0

2.5

2.0

1.5

Koff (V*usec)

1.0

0.5

0.0

3.6 3.9 4.2 4.5 4.8 5.1 5.4

3.5

3.0

2.5

2.0

1.5

Kon (V*usec)

1.0

0.5

0.0

Vin (V)

=3.3V Figure 8. KON vs VIN, V

OUT

Vin (V)

3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.1 5.4

3.5

3.0

2.5

2.0

1.5

Koff (V*usec)

1.0

0.5

0.0

3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.1 5.4

OUT

Vin (V)

=1.5V

Vin (V)

Figure 9. K

Frequency (KHz)

Figure 11. Ripple Frequency vs. VIN, I V

=3.3V

OUT

vs VIN, V

OFF

700.0

600.0

500.0

400.0

300.0

200.0

100.0

0.0

3.5 4.0 4.5 5.0

OUT

=3.3V

Vin (V)

Vout = 3.3V Measured Vout = 3.3V Calculated

OUT

=600mA,

Figure 10. K

700.0

600.0

500.0

400.0

300.0

Frequency (KHz)

200.0

100.0

vs VIN, V

OFF

0.0

3.4 3.8 4.2 4.6 5.0

OUT

=1.5V

Vin (V)

Figure 12. Ripple Frequency vs. VIN, I V

=1.5V

OUT

Vout = 1.5V

Measured Vout = 1.5V Calculated

=600mA,

OUT

Page 6

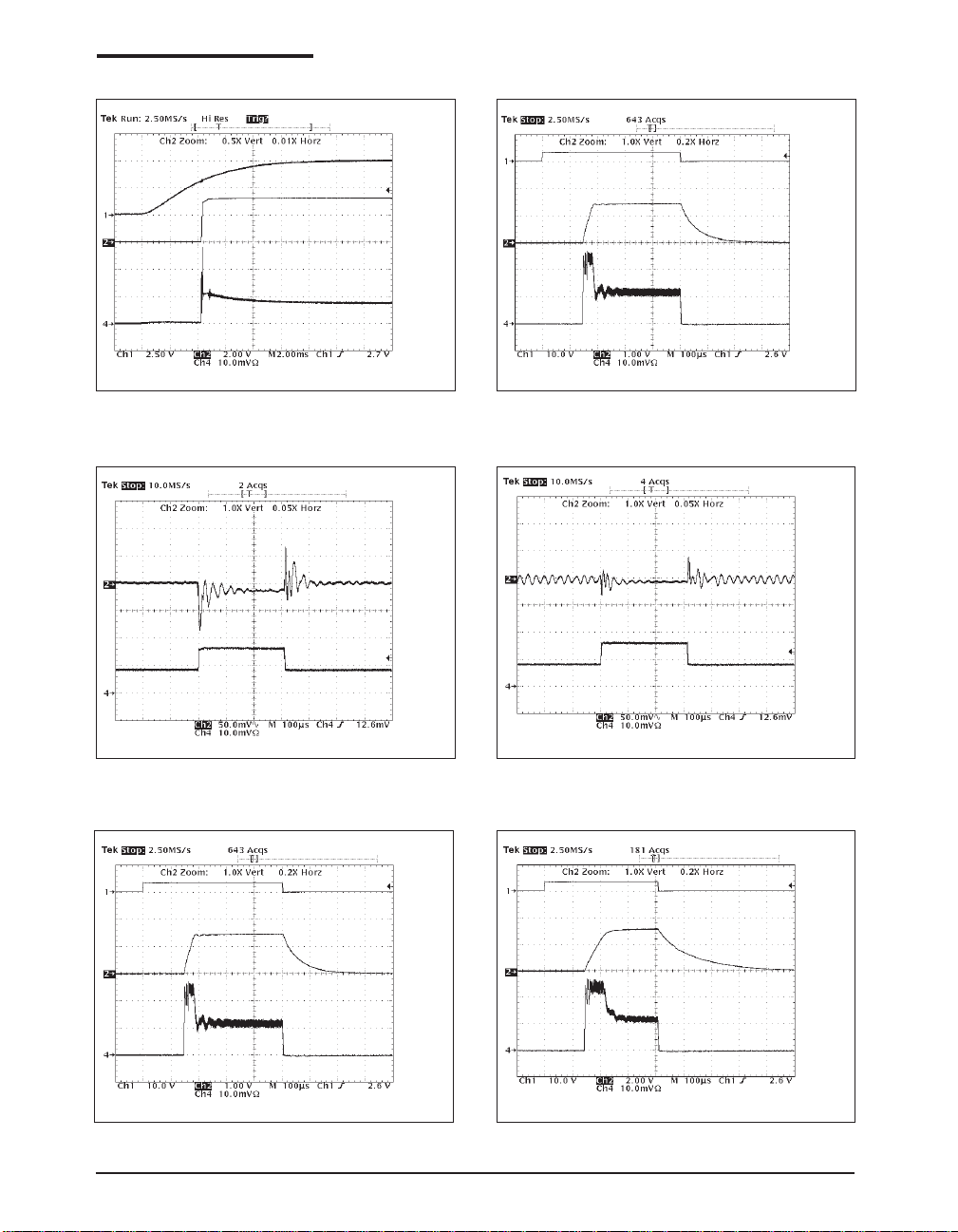

TYPICAL PERFORMANCE CHARACTERISTICS: Continued

Refer to the typical application schematic, T

CH.1=V

2.5V/div CH.2=V

2.0V/div

OUT

AMB

= +27°C

CH.1=V

2.5V/div CH.2=V

5.0V/div

OUT

Figure 13. VIN Start up, I

Figure 15. Load Step, I

=0.6A, V

OUT

=0.4A to 0.8A, V

OUT

=3.3V

OUT

CH.4=I

0.5A/div

CH.2=V 50mV/div. AC

CH.4=I

0.5A/div

=3.3V

CH.4=I

Figure 14. VIN Start up, I

OUT

Figure 16. Load Step, I

=0.6A, V

OUT

=0.4A to 0.8A, V

OUT

=1.5V

OUT

0.5A/div

CH.2=V 50mV/div. AC

CH.4=I

0.5A/div

=1.5V

OUT

Figure 17. Start up from SHDN, I

=0.6A, V

OUT

CH.1=V 10V/div.

CH.2=V 1V/div. AC

CH.4=ILx

0.5A/div

=3.3V

SHDN

OUT

Figure 18. Start up from SHDN, I

=0.6A, V

OUT

CH.1=V 10V/div.

CH.2=V 2V/div. AC

CH.4=ILx

0.5A/div

=1.5V

SHDN

OUT

Page 7

THEORY OF OPERATION

The SP6651A is a high efficiency synchronous buck regulator with an input voltage range of +2.7V to +5.5Vand an output that is adjustable between +1.0V and V

. The SP6651A features

a unique on-time control loop that runs in discontinuous conduction mode (DCM) or continuous conduction mode (CCM) using synchronous rectification. Other features include over-temperature shutdown, over-current protection, digitally controlled enable and undervoltage lockout, a battery low indicator, and an external feedback pin.

The SP6651A operates with a light load quiescent current of 20µA using a 0.3Ω PMOS main switch and a 0.3Ω NMOS synchronous switch. It operates with excellent efficiency across the entire load range, making it an ideal solution for battery powered applications and low current step-down conversions. The part smoothly transitions into a 100% duty cycle under heavy load/ low input voltage conditions.

On-Time Control - Charge Phase

The SP6651A uses a precision comparator and a minimum on-time to regulate the output voltage and control the inductor current under normal load conditions. As the feedback pin drops below the regulation point, the loop comparator output goes high and closes the main switch. The minimum on-timer is triggered, setting a logic high for the duration defined by:

TON =

VIN - V

OUT

where: KON = 2.25V*µsec constant VIN = VIN pin voltage V

OUT

= V

pin voltage

OUT

To accommodate the use of ceramic and other low ESR capacitors, an open loop ramp is added to the feedback signal to mimic the inductor current ripple. The following waveforms describe the ideal ramp operation in both CCM and DCM operation.

In either CCM or DCM, the negative going

RAMP: CCM OPERATION

DRVON

I(L1)

REF, FB

FB’

REF’

RAMP: DCM OPERATION

DRVON

I(L1) FB’

REF’

ramp voltage (V

in the functional diagram)

RAMP

REF, FB

is added to FB and this creates the FB's signal. This FB signal is applied to the negative terminal of the loop comparator. To the positive terminal of the loop comparator is applied the REF voltage of 0.8V plus an offset voltage Vos to compensate for the DC level of V

RAMP

applied to the negative terminal. The result is an internal ramp with enough negative going offset (approximately 50mV) to trip the loop comparator whenever FB falls below regulation.

The output of the loop comparator, a rising VOLOW, causes a SET if BLANK = 0 and OVR_I = 0. This starts inductor charging (DRVON = 1) and starts the minimum on-timer. The minimum on-timer times out and indicates DRVON can be reset if the voltage loop is satisfied. If V

is still below the regulation

OUT

Page 8

THEORY OF OPERATION : Continued

point RESET is held low until V regulation. Once RESET occurs T is reset, and the T

one-shot is triggered to

OFF

is above

OUT

minimum

blank the loop comparator from starting a new charge cycle for a minimum period. This blanking period occurs during the noisy LX transition to discharge, where spurious comparator states may occur. For T

OFF

> T

the loop is in a

BLANK

discharge or wait state until the loop comparator starts the next charge cycle by DRVON going high.

If an over current occurs during charge the loop is interrupted and DRVON is RESET. The offtime one-shot pulse width is widened to T K

/ V

OFF

, which holds the loop in discharge

OUT

OFF

for that time. At the end of the off-time the loop is released and controlled by VOLOW. In this manner maximum inductor current is controlled on a cycle-by-cycle basis. An assertion of UVLO (undervoltage lockout) or TSD (thermal shutdown) holds the loop in no-charge until the fault has ended.

On-Time Control - Discharge Phase

The discharge phase follows with the high side PMOS switch opening and the low side NMOS switch closing to provide a discharge path for the inductor current. The decreasing inductor current and the load current cause the output voltage to drop. Under normal load conditions when the inductor current is below the programmed limit, the off-time will continue until the output voltage falls below the regulation threshold, which initiates a new charge cycle via the loop comparator.

The inductor current “floats” in continuous conduction mode. During this mode the inductor peak current is below the programmed limit and the valley current is above zero. This is to satisfy load currents that are greater than half the minimum current ripple. The current ripple, ILR, is defined by the equation:

≈ KON * VIN - V

L VIN - V

OUT

- I

OUT

* R

where: L = Inductor value I

= Load current

OUT

RCH = PMOS on resistance, 0.3Ω typ. If the I

with (V

* RCH term is negligible compared

OUT

- V

), the above equation simplifies

OUT

to:

K ILR ≈ L

For most applications, the inductor current ripple controlled by the SP6651A is constant regard-

less of input and output voltage. Because the output voltage ripple is equal to:

(ripple) = I

OUT

* R

ESR

where: R

= ESR of the output capacitor

ESR

the output ripple of the SP6651A regulator is independent of the input and output voltages. For battery powered applications, where the battery voltage changes significantly, the SP6651A provides constant output voltage ripple through-out the battery lifetime. This greatly simplifies the LC filter design.

The maximum loop frequency in CCM is defined by the equation:

(VIN - V FLP ≈ KON * [VIN + I

OUT

) * (V

OUT

+ I

OUT

(RDC - RCH)]

* RDC)

where: FLP = CCM loop frequency RDC = NMOS on resistance, 0.3Ω typ. Ignoring conduction losses simplifies the loop

frequency to:

1 * V FLP ≈ KON V

OUT

* (VIN - V

OUT

)

AND’ing the loop comparator and the on-timer reduces the switching frequency for load currents below half the inductor ripple current. This increases light load efficiency. The minimum on-time insures that the inductor current ripple

Page 9

THEORY OF OPERATION: Continued

is a minimum of KON/L, more than the load current demands. The converter goes in to a standard pulse frequency modulation (PFM) mode where the switching frequency is proportional to the load current.

Low Dropout and Load Transient Operation

AND’ing the loop comparator also increases the duty ratio past the ideal D= V

OUT

up to and

including 100%. Under a light to heavy load transient, the loop comparator will hold the main switch on longer than the minimum on timer until the output is brought back into regulation.

Also, as the input voltage supply drops down close to the output voltage, the main MOSFET resistance loss will dictate a much higher duty ratio to regulate the output. Eventually as the input voltage drops low enough, the output voltage will follow, causing the loop comparator to hold the converter at 100% duty cycle.

This mode is critical in extending battery life when the output voltage is at or above the minimum usable input voltage. The dropout voltage is the minimum (VIN -V

OUT

) below which the output regulation cannot be maintained. The dropout voltage of SP6651A is equal to IL* (0.3Ω+ RL1) where 0.3Ω is the typical R

of the P-Channel MOSFET and RL is

DS(ON)

the DC resistance of the inductor. The SP6651A has been designed to operate in

dropout with a light load Iq of only 80µA. The on-time control circuit seamlessly operates the converter between CCM, DCM, and low dropout modes without the need for compensation. The converter’s transient response is quick since there is no compensated error amplifier in the loop.

Inductor Over-Current Protection

To reduce the light load dropout Iq, the SP6651A over-current system is only enabled when IL1 > 400mA. The inductor over-current protection circuitry is programmed to limit the peak inductor current to 1.25A. This is done during the ontime by comparing the source to drain voltage

drop of the PMOS passing the inductor current with a second voltage drop representing the maximum allowable inductor current. As the two voltages become equal, the over-current comparator triggers a minimum off-time one shot. The off-time one shot forces the loop into the discharge phase for a minimum T

OFF

time causing the inductor current to decrease. At the end of the off-time, loop control is handed back to the AND’d on-time signal. If the output voltage is still low, charging begins until the output is in regulation or the current limit has been reached again. During startup and overload conditions, the converter behaves like a current source at the programmed limit minus half the current ripple. The minimum T

OFF

controlled by the equation:

OFF (MIN)

Under-Voltage Lockout

OFF

OUT

The SP6651A is equipped with a programmable under-voltage lockout to protect the input battery source from excessive currents when substantially discharged. When the input supply is below the UVLO threshold both power switches are open to prevent inductor current from flowing. The three levels of falling input voltage UVLO threshold are shown in Table 1, with a typical hysteresis of 120mV to prevent chattering due to the impedance of the input source. During UVLO, BLON is forced low.

Under-Current Detection

The synchronous rectifier is comprised of an inductor discharge switch, a voltage comparator, and a driver latch. During the off-time, positive inductor current flows into the PGND pin 9 through the low side NMOS switch to LX pin 10, through the inductor and the output capacitor, and back to pin 9. The comparator monitors the voltage drop across the discharge NMOS. As the inductor current approaches zero, the channel voltage sign goes from negative to positive, causing the comparator to trigger the

Page 10

THEORY OF OPERATION: Continued

driver latch and open the switch to prevent inductor current reversal. This circuit along with the on-timer puts the converter into PFM mode and improves light load efficiency when the load current is less than half the inductor ripple current defined by KON/L.

Thermal Shutdown

The converter will open both power switches if the die junction temperature rises above 140°C. The die must cool down below 126°C before the regulator is re-enabled. This feature protects the SP6651A and surrounding circuitry from excessive power dissipation due to fault conditions.

Shutdown/Enable Control

The D0, D1 pins 4,5 of the device are logic level control pins that according to Table 1 shut down the converter when both are a logic low, or enables the converter when either are a logic high. When the converter is shut down, the power switches are opened and all circuit biasing is extinguished leaving only junction leakage currents on supply pins 1 and 2. After pins 4 or 5 are brought high to enable the converter, there is a turn on delay to allow the regulator

circuitry to re-establish itself. Power conversion begins with the assertion of the internal reference ready signal which occurs approximately 150µs after the enable signal is received.

Battery Low Indicator

The BLON function is a differential measurement of (VIN -V

) which causes the open

OUT

drain NMOS on pin 3 to sink current to ground when (VIN -V from pin 3 to VIN or V

) < 300mV. Tying a resistor

OUT

creates a logic level

OUT

battery low indicator. A low bandwidth comparator and 3% hysteresis filter the input voltage ripple to prevent noisy transitions at the thresh old. BLON is forced Low when in UVLO.

External Feedback Pin

The FB pin 6 is compared to an internal reference voltage of 0.8V to regulate the SP6651A output. The output voltage can be externally programmed within the range +1.0V to +5.0V by tying a resistor from FB to ground and FB to V

(pin7). See the applications section for

OUT

resistor selection information.

APPLICATION INFORMATION

Inductor Selection

The SP6651A uses a specially adapted minimum on-time control of regulation utilizing a precision comparator and bandgap reference. This adaptive minimum on-time control has the advantage of setting a constant current ripple for a given inductor size. From the operations section it has been shown:

Inductor Current Ripple, ILR ≈

and would be fairly constant for different input and output voltages, simplifying the selection of components for the SP6651A power circuit. Other inductor values could be selected, as shown in Table 2 Components Selection. Using a larger value than 10µH in an attempt to reduce output voltage ripple would reduce inductor current ripple and may not produce as stable an output ripple. For larger inductors with the SP6651A, which has a peak inductor current of 1.25A, most 15µH or 22µH inductors would have to be larger physical sizes, limiting their use in small por-

For the typical SP6651A application circuit with inductor size of 10µH, and KON of 2V*µsec, the SP6651A current ripple would be about 200mA,

table applications. Smaller values like 6.8µH would more easily meet the 1.25A limit and come in small case sizes, and the increased

Page 11

APPLICATION INFORMATION: Continued

inductor current ripple of almost 300mA would produce very stable regulation and fast load transient response at the expense of slightly reduced efficiency.

Other inductor parameters are important: the inductor current rating and the DC resistance. When the current through the inductor reaches the level of I

, the inductance drops to 70% of the

SAT

nominal value. This non-linear change can cause stability problems or excessive fluctuation in inductor current ripple. To avoid this, the inductor should be selected with saturation current at least equal to the maximum output current of the converter plus half the inductor current ripple. To provide the best performance in dynamic conditions such as start-up and load transients, inductors should be chosen with saturation current close to the SP6651A inductor current limit of 1.25A.

DC resistance, another important inductor characteristic, directly affects the efficiency of the converter, so inductors with minimum DC resistance should be chosen for high efficiency designs. Recommended inductors with low DC resistance are listed in table 2. Preferred inductors for on board power supplies with the SP6651A are magnetically shielded types to minimize radiated magnetic field emissions.

Capacitor Selection

The SP6651A has been designed to work with very low ESR output capacitors (listed in Table 2 Component Selection) which for the typical application circuit are 22µF ceramic, POSCAP or Aluminum Polymer. These capacitors combine small size, low ESR and good value. To regulate the output with low ESR capacitors of 0.01Ω or less, an internal ramp voltage V

has been added to

RAMP

the FB signal to reliably trip the loop comparator (as described in the Operations section).

Output ripple for a buck regulator is determined mostly by output capacitor ESR, which for the SP6651A with a constant inductor current ripple can be expressed as:

(ripple) = I

OUT

ESR

For the 22µF POSCAP with 0.04Ω ESR, and a 10µH inductor yielding 200mA inductor current ripple I

, the V

ripple would be 8mVpp.

OUT

Since 8mV is a very small signal level, the actual value would probably be larger due to noise and layout issues, but this illustrates that the SP6651A output ripple can be very low indeed. To improve stability, a small ceramic capacitor, C

= 22pF

should be paralleled with the feedback voltage divider RF, as shown on the typical application schematic on page 1. Another function of the output capacitance is to hold up the output voltage during the load transients and prevent excessive overshoot and undershoot. The typical performance characteristics curves show very good load step transient response for the SP6651A with the recommended output capacitance of 22µF ceramic.

The input capacitor will reduce the peak current drawn from the battery, improve efficiency and significantly reduce high frequency noises induced by a switching power supply. The typical input capacitor for the SP6651A is 22µF ceramic, POSCAP or Aluminum Polymer. These capacitors will provide good high frequency bypassing and their low ESR will reduce resistive losses for higher efficiency. An RC filter is recommended for the VIN pin 2 to effectively reduce the noise for the ICs analog supply rail which powers sensitive circuits. This time constant needs to be at least 5 times greater than the switching period, which is calculated as 1/FLP during the CCM mode. The typical application schematic uses the values of R

= 10Ω and C

VIN

= 1µF to meet these require-

VIN

ments.

Page 12

APPLICATION INFORMATION: Continued

INDUCTORS SURFACE MOUNT

Inductor Specification

Inductance Manufacturer/Part No. Series R Ω I

(µH) LxW(mm) Ht. (mm) Website

10 Sumida CDRH5D28-100 0.048 1.30 5.7 x 5.5 3.0 Shielded Ferrite Core sumida.com 10 TDK RLF5018T-100MR94 0.056 0.94 5.6 x 5.2 2.0 Shielded Ferrite Core tdk.com 10 Coilcraft DO1608C-103 0.160 1.10 6.6 x 4.5 2.9 Unshielded Ferrite Core coilcraft.com 10 Coilcraft LPO6013-103 0.300 0.70 6.0 x 5.4 1.3 Unshielded Ferrite Core coilcraft.com

6.8 Sumida CDRH5D28-6R8 0.081 1.12 4.7 x 4.5 3.0 Shielded Ferrite Core sumida.com

6.8 TDK RLF5018T-6R8M1R1 0.47 1.10 5.6 x 5.2 2.0 Shielded Ferrite Core tdk.com

6.8 Coilcraft DO1608C-682 0.130 1.20 6.6 x 4.5 2.9 Unshielded Ferrite Core coilcraft.com

6.8 Coilcraft LPO6013-103 0.200 0.60 6.0 x 5.4 1.3 Unshielded Ferrite Core coilcraft.com

CAPACITORS - SURFACE MOUNT

Capacitance Manufacturer/Part No. ESR RippleCurrent Size Voltage Capacitor Type Manufacturer

(µF) Ω (max) (A) @ 45°C LxW(mm) Ht. (mm) (V) Website

22 TDK C3216X5R0J226M 0.002 3.00 3.2 x 1.6 1.6 6.3 X5R Ceramic tdk.com 22 SANYO 6APA22M 0.040 1.90 7.3 x 4.3 2.0 6.3 POSCAP sanyovideo.com 47 TDK C3225X5R0J46M 0.002 4.00 3.2 x 1.6 1.6 6.3 X5R Ceramic tdk.com 47 SANYO 6TPA47M 0.040 1.90 6.0 x 3.2 2.8 6.3 POSCAP sanyovideo.com

Note: Components highlighted in bold are those used on the SP6651A Evaluation Board.

Table 2 Component Selection

(A) Size Inductor Type Manufacturer

SAT

Capacitor Specification

Output Voltage Program

The output voltage is programmed by the external divider, as shown in the typical application circuit on page 1. First pick a value for RI that is no larger than 300K. Too large a value of RI will reduce the AC voltage seen by the loop comparator since the internal FB pin capacitance can form a low pass filter with RF in parallel with RI. The formula for RF with a given RI and output voltage is:

RF = (

OUT

0.8V

- 1 ) • R

Output Voltage Ripple Frequency

An important consideration in a power supply application is the frequency value of the output ripple. Given the control technique of the SP6651A (as described in the operations section), the frequency of the output ripple will vary when in light to moderate load in the discontinuous or PFM mode. For moderate to heavy loads greater than about 100mA inductor

current ripple, (for the typical 10µH inductor application on 100mA is half the 200mA inductor current ripple), the output ripple frequency will be fairly constant. From the operations section, this maximum loop frequency in continuous conduction mode is:

FLP ≈

1 V K

OUT

- V

OUT

)

Data for loop frequency, as measured from output voltage ripple frequency, can be found in the typical performance curves.

Layout Considerations

Proper layout of the power and control circuits is necessary in a switching power supply to obtain good output regulation with stability and a minimum of output noise. The SP6651A application circuit can be made very small and reside close to the IC for best performance and solution size, as long as some layout techniques are taken into consideration. To avoid excessive interference

Page 13

APPLICATION INFORMATION: Continued

between the SP6651A high frequency converter and the other active components on the board, some rules should be followed. Refer to the typical application schematic on page 1 and the sample PCB layout shown in the following figures to illustrate how to layout a SP6651A power supply.

Avoid injecting noise into the sensitive part of circuit via the ground plane. Input and output capacitors conduct high frequency current through the ground plane. Separate the control and power grounds and connect them together at a single point. Power ground plane is shown in the figure titled PCB top sample layout and connects the ground of the C

capacitor to the ground of the

OUT

CIN capacitor and then to the PGND pin 10. The control ground plane connects from pin 9 GND to ground of the C

capacitor and the RI ground

VIN

return of the feedback resistor. These two separate control and power ground planes come together in the figure titled PCB top sample layout where

SP6651A pin 9 GND is connected to pin 10 PGND.

Power loops on the input and output of the converter should be laid out with the shortest and widest traces possible. The longer and narrower the trace, the higher the resistance and inductance it will have. The length of traces in series with the capacitors increases its ESR and ESL and reduces their effectiveness at high frequencies. Therefore, put the 1µF bypass capacitor as close to the V

and

GND pins of the converter as possible, the 22µF

close to the P

pin and the 22µF output

VIN

capacitor as close to the inductor as possible. The external voltage feedback network R

, RI and

feedforward capacitor CF should be placed very close to the FB pin. Any noise traces like the LX pin should be kept away from the voltage feedback network and separated from it by using power ground copper to minimize EMI.

Figure 19. SP6651A PCB Component Sample Layout Figure 20. SP6651A PCB Top Sample Layout

Figure 21. SP6651A PCB Bottom Sample Layout

Page 14

E/2

PACKAGE: 10 PIN MSOP

D e1

Ø1

Seating Plane

Pin #1 indentifier must be indicated within this shaded area (D/2 * E1/2)

10-PIN MSOP JEDEC MO-187 (BA) V ariation

A A1 A2

c D

E E1

e1 L L1 L2

N R R1 Ø

Ø1

Dimensions in (mm)

MIN NOM MAX

- - 1.10

0.00 - 0.15

0.75 0.85 0.95

0.17 - 0.27

0.08 - 0.23

3.00 BSC

4.90 BSC

3.00 BSC

0.50 BSC

2.00 BSC

0.4 0.60 0.80

0.95 REF

0.25 BSC 10

0.07 - -

0.07 - 0º - 8º 5º - 15º

WITH PLATING

Ø1

BASE METAL

(b)

Section B-B

Gauge Plane

0 0

10-PIN MSOP

Page 15

PACKAGE: 10 PIN DFN

Top View

D/2

E/2

Pin 1 identifier to be located within this shaded area.

Terminal #1 Index Area (D/2 * E/2)

Bottom View

K L

10 Pin DFN

(JEDEC MO-229,

VEED-5 VARIATION)

DIMENSIONS

(mm)

SYMBOL MIN NOM MAX

A A1 A3

b D D2 e E

0.80 0.90 1.00

0.02 0.05

0.20 REF

0.18

0.25 0.30

3.00 BSC

2.20

0.50

PITCH

2.70

3.00 BSC

1.40

1.75

0.20

0.30 0.40 0.50

Side View

10 PIN DFN

Page 16

ORDERING INFORMATION

Part Number Top Mark Operating Temperature Range Package Type

SP6651AEU..............6651AEU....................... -40°C to +85°C................................................... 10 Pin MSOP

SP6651AEU/TR........6651AEU............ ........... -40°C to +85°C ..................................................10 Pin MSOP

SP6651AER.............6651AER......................... -40°C to +85°C..................................................... 10 Pin DFN

SP6651AER/TR.......6651AER......................... -40°C to +85°C ..................................................... 10 Pin DFN

Available in lead free packaging. To order add "-L" suffix to part number. Example: SP6651AEU/TR = standard; SP6651AEU-L/TR = lead free

/TR = Tape and Reel Pack quantity is 2500 for MSOP and 3,000 for DFN.

Corporation

ANALOG EXCELLENCE

Sipex Corporation Headquarters and

Sales Office

233 South Hillview Drive Milpitas, CA 95035 TEL: (408) 934-7500 FAX: (408) 935-7600

Sipex Corporation reserves the right to make changes to any products described herein. Sipex does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others.

Datasheet SP6651A Datasheet (Sipex)

Specifications and Main Features

Frequently Asked Questions

User Manual
