Danfoss AMV 25 SD, AMV 25 SU Data sheet

Data sheet
Actuators for three point control
AMV 25 SD - safety function (spring down) AMV 25 SU - safety function (spring up)
Description
AMV 25 SD or SU electric actuators are used with valves gen.2009 type VRB, VRG, VF, VL with additional adapter (Code No. 065Z0311, not supplied) and VFS 2 valves up to DN 50 diameter.
The actuator automatically adapts its stroke to valve end positions which reduces commissioning time. Optional auxiliary switches, feedback potentiometer and valve stem heater are available.
The actuator has some special features:
• The advanced design incorporates load related 'switch-off' to ensure that actuators and valves are not exposed to overload;
• Digitale feedback end position indication signal for valve end position is available by terminal 4 or 5;
• Low weight and robust;
• Safety function versions:
- SD (spring down)
- SU (spring up).
Main data:
• Nominal voltage:
- 24 VAC, 50 Hz/60 Hz
- 230 VAC, 50 Hz/60 Hz
• Control input signal:
3 point
• Force: 450 N
• Stroke: 15 mm
• Speed: 15 s /mm
• Max. medium temperature: 15 0 °C
• End-position signals
Ordering Actuator
Typ e Supply voltage Code No.
AMV 25 SD (spring down)
AMV 25 SU (spring up)
AMV 25 SD (spring down)
AMV 25 SU (spring up)
24 V~ 082H3036
24 V~ 082H3039
230 V~ 082H3037
230 V~ 082H3040
Accessories
Typ e Code No.
Additional switches (2×) 082H7 015
Additional switches (2×) and potentiometer (10 kΩ)
Additional switches (2×) and potentiometer (1 kΩ)
Adapter for VFS 2 valve DN 15-50 (for media temp. over 150 °C)
Adapter for VRB/VRG/VF/VL valves (gen.2009) DN 15-50
Stem heater for VFS 2 valve DN 15-50 06 5B2171
Clutch AMV(E) 25, AMV(E) 35
* Need to be orde red separately.
082 H7016
08 2H7017
065Z 7548
06 5Z03 11*
003G6396
© Danfoss | 2020.11 AI106286476127en-010403 | 1
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU
Technical data
Safety function
Power supply V 24, 230 AC
Power consumption VA 12
Frequency Hz 50/60
Control input 3-point
Close of force N 450
Max. stroke mm 15
Speed s/mm 15
Max. medium temperature
Ambient temperature 0…55
Storage and transport temp. –40 … 70
Protection code IP 54
Weight kg 2,3
- marking in accordance with standards
°C
EMC Directive 89/336/EEC, 92/31/EEC, 93/68/EEC, EN 50081-1 and EN 50082-1 Low Voltage Directive 73/23/EEC and 93/68/EEC, EN 60730/2/14
150 (200 - for VFS valve with adapter)
The safety function will fully open or close the valve by power failure, depending upon the chosen safety action (SD/SU). Valve selection will also affect the safety action.
or
The safety function unit is factory fitted to the rear of the actuator.
• not in accordance to DIN EN 14597
Valve t ype
VRG, VRB SU SD
VL (DN 15-50) SU SD
VF (DN 15-50) SU SD
VFS 2 (DN 15-50) SD SU
Spring action selection will
Close port A-AB Open port A-AB
SD
VFS 2
SU
=SUor
SD
VF 2, VL 2
SU
SD
SD
VL 3, VF 3, VRG 3,
VRB 3
SU
Safety function activation
(AMV 25 SD only)
Disposal The actuator must be dismantled and the
elements sorted into various material groups before disposal.
VFS 2
VF 2, VL 2
VL 3, VF 3, VRG 3,
VRB 3
2 | AI106286476127en-010403 © Danfoss | 2020.11
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU
Installation
T
T
≤150°C for AMV 25 SD / SU
max
and VRB, VRG, VF and VL
T
= 200°C for AMV 25 SD / SU
max
and VFS
≤150°C for AMV 25 SD / SU
max
and VFS
o
5
Mechanical
Use 4 mm Allan key (not part of actuator delivery) to mount actuator on the valve. Installation of the valve with the actuator is allowed in horizontal position or upwards. Installation downwards is not allowed.
The actuator must not be installed in an explosive atmosphere, at ambient temperature lower than 0 °C or at ambient temperature higher than 55 °C. It must not be subject to steam jets, water jets or dripping liquid as well.
Adapter for VFS (Code No.065Z7548)
o
5
Electrical
Electrical connections can be accessed by removing the actuator cover. Two cable gland entries with thread (M20 x 1.5 and M16 x 1.5) are prepared for cable glands.
Note: Cable and cable gland used must not compromise the actuator’s IP rating, and must ensure the connectors are fully strain relieved. Please observe local rules and regulations as well.
Note: the actuator may be rotated up to 360° with respect to the valve stem by loosening the retaining fixture. Once the actuator is placed, retighten the fixture.
AI106286476127en-010403 | 3© Danfoss | 2020.11
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU
Wiring
230 VAC version:
Do not touch anything on the PCB! Do not remove the cover before the power supply is fully switched off.
Terminals 1, 3:
Control voltage input from the controller.
Terminals 4, 5:
Output used for position indication or monitoring.
L
Power supply 24 or 230 V~
N
Common (0 V)
Accessories
Additional switches (2×)
230V
Additional switches (2×) and potentiometer
Commissioning
Manual override
Complete the mechanical and electrical installation and perform the necessary checks and tests:
- Turn on the power.
- Set the appropriate control signal and check that the valve stem direction is correct for the application.
The unit is now fully commissioned.
AMV 25SD
AMV 25SU
5mm
Manual override is done by means of positioning spindle inside the actuator:
• Disconnect power signal
• Remove the actuator cover
• Insert 5 mm Allan key (not part of actuator delivery) into the top of the positioning spindle
• Turn the key against the spring (observe the rotation direction)
To hold a manual override position, the key must be wedged.
After manual override is not needed:
• Restore power signal.
4 | AI106286476127en-010403 © Danfoss | 2020.11
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU

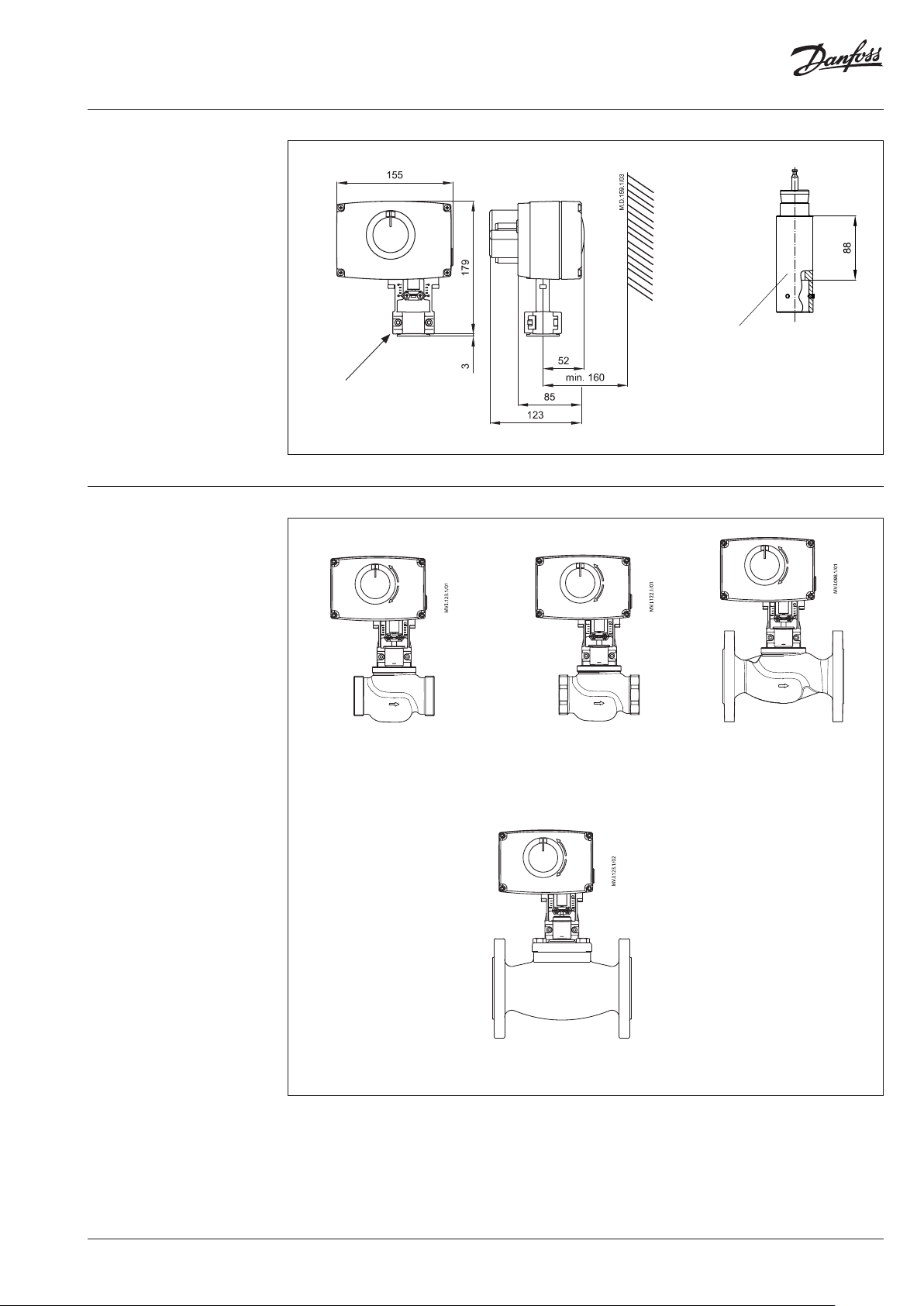

Dimensions
Adapter 065Z0311
for VRG, VRB, VF, VL (DN 15-50)
Actuator - valve combinations
Adapter 065Z7548
for VFS (DN 15-50) for media temperatures over 150 oC
AMV 25 SD/SU +
Adapter (065Z0311)
VRB 2, VRB 3 ext. thread (DN 15-50)
VRG 2, VRG 3 ext. thread (DN 15-50)
AMV 25 SD/SU +
Adapter (065Z0311)
VRB 2, VRB 3 Int. thread
(DN 15-50)
AMV 25 SD/SU + VFS 2 (DN 15-50)
AMV 25 SD/SU + Adapter (065Z0311) VF 2, VF 3 (DN 15-50) VL 2, VL 3 (DN 15-50)
AI106286476127en-010403 | 5© Danfoss | 2020.11
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU
6 | AI106286476127en-010403 © Danfoss | 2020.11
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU
AI106286476127en-010403 | 7© Danfoss | 2020.11
Data sheet Actuators for three point control AMV 25 SD, AMV 25 SU
