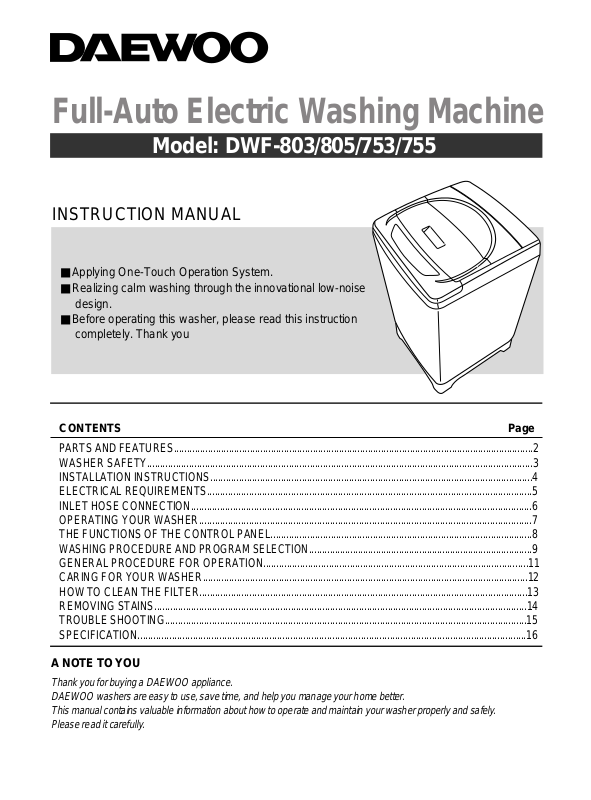

Daewoo DWF-803 User Manual

Full-Auto Electric Washing Machine

Model: DWF-803/805/753/755

INSTRUCTION MANUAL

■Applying One-Touch Operation System.

■Realizing calm washing through the innovational low-noise design.

■Before operating this washer, please read this instruction

completely. Thank you

CONTENTS	Page
PARTS AND FEATURES.........................................................................................................................................	2
WASHER SAFETY...................................................................................................................................................	3
INSTALLATION INSTRUCTIONS...........................................................................................................................	4
ELECTRICAL REQUIREMENTS............................................................................................................................	5

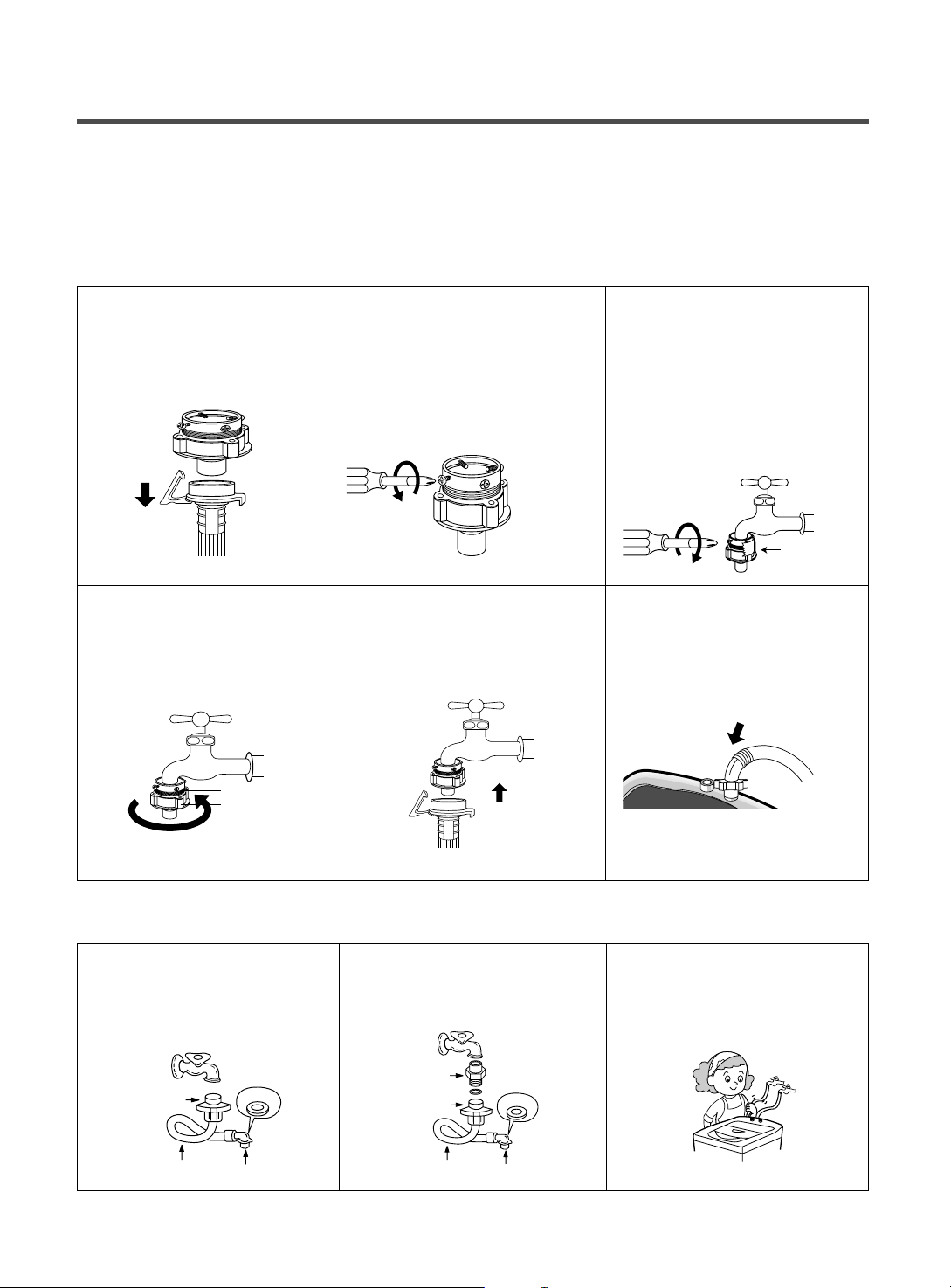

INLET HOSE CONNECTION..................................................................................................................................	6
OPERATING YOUR WASHER...............................................................................................................................	7

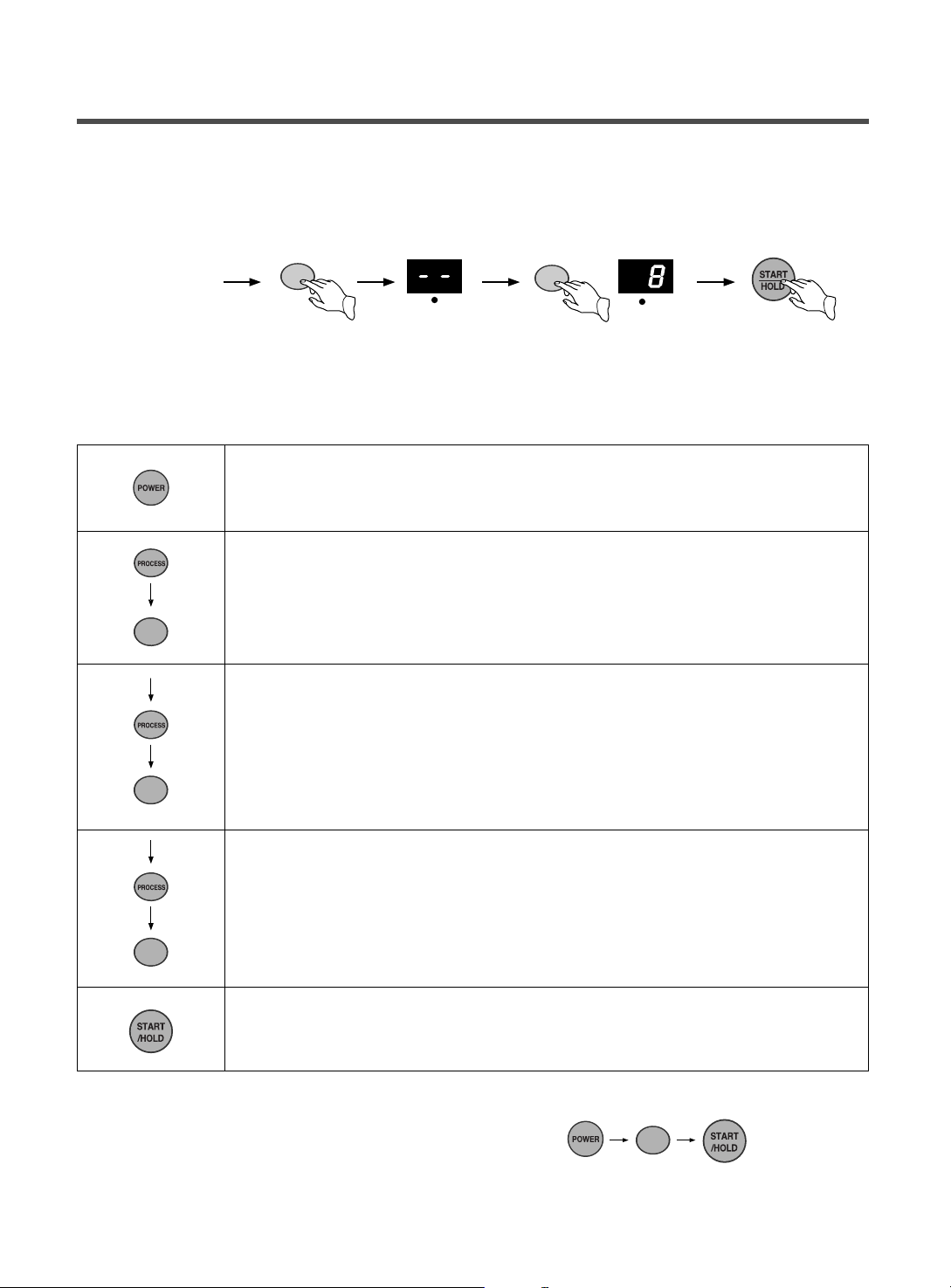

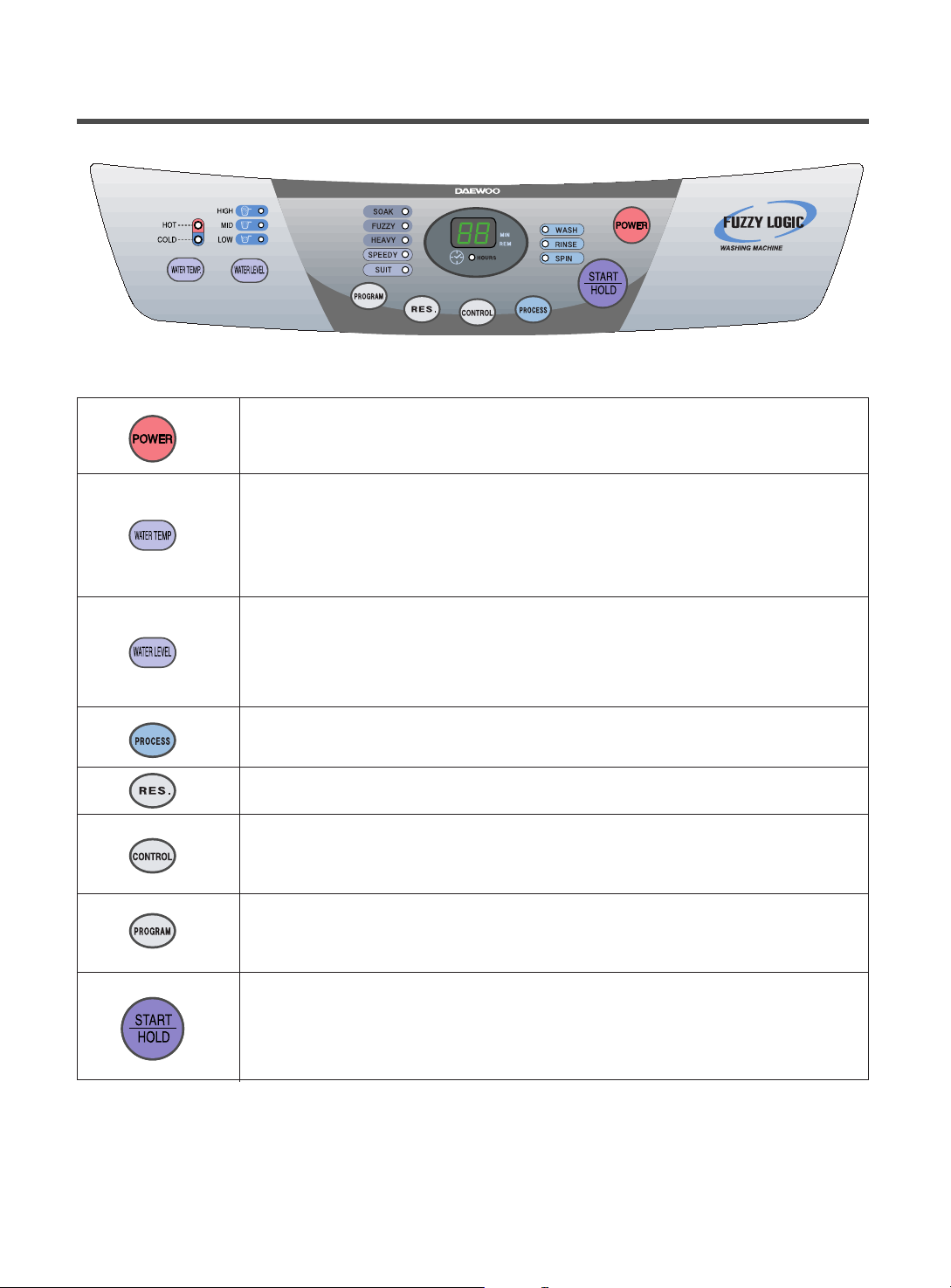

THE FUNCTIONS OF THE CONTROL PANEL....................................................................................................	8
WASHING PROCEDURE AND PROGRAM SELECTION.......................................................................................	9
GENERAL PROCEDURE FOR OPERATION.....................................................................................................	11

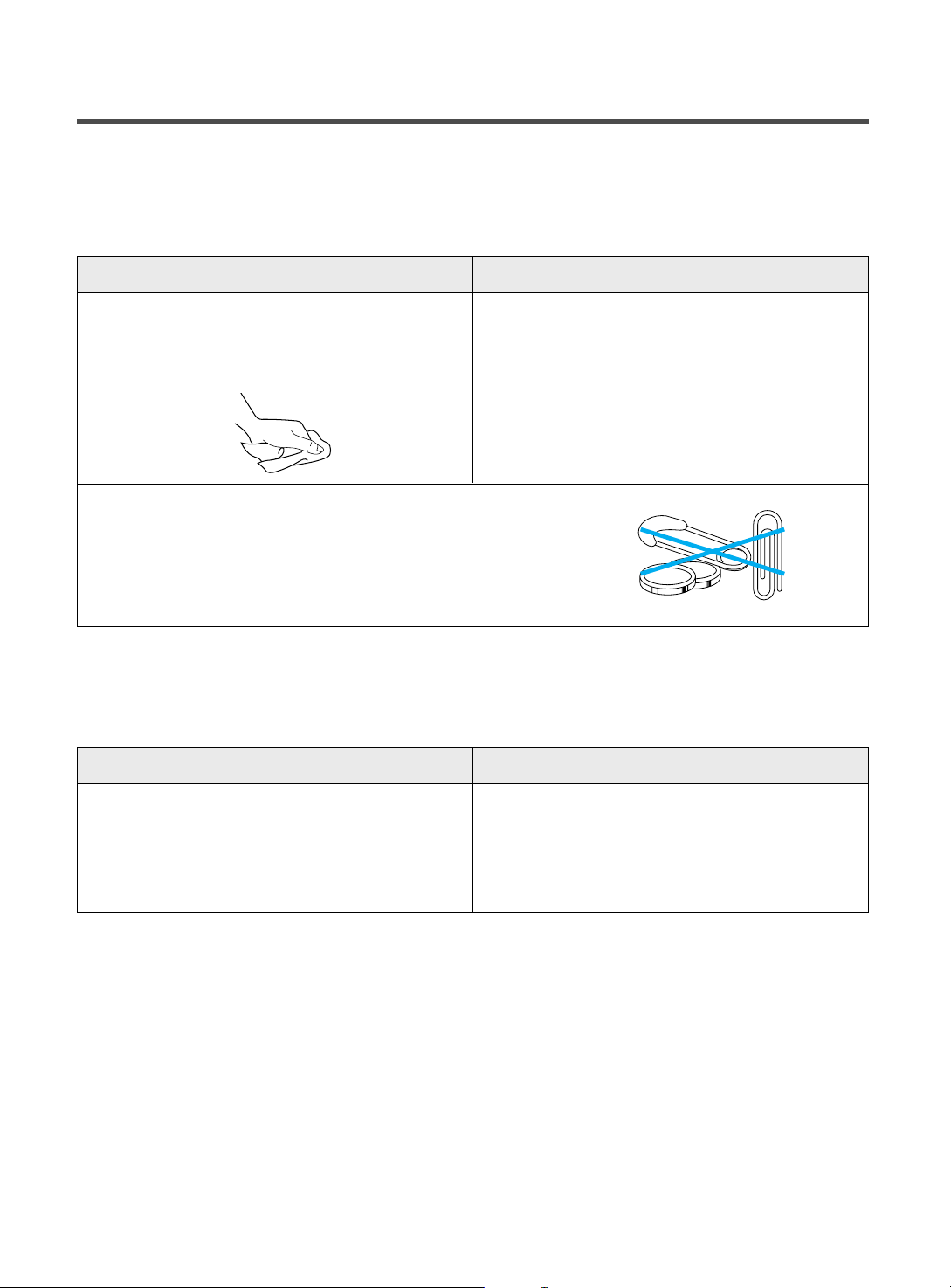

CARING FOR YOUR WASHER............................................................................................................................	12

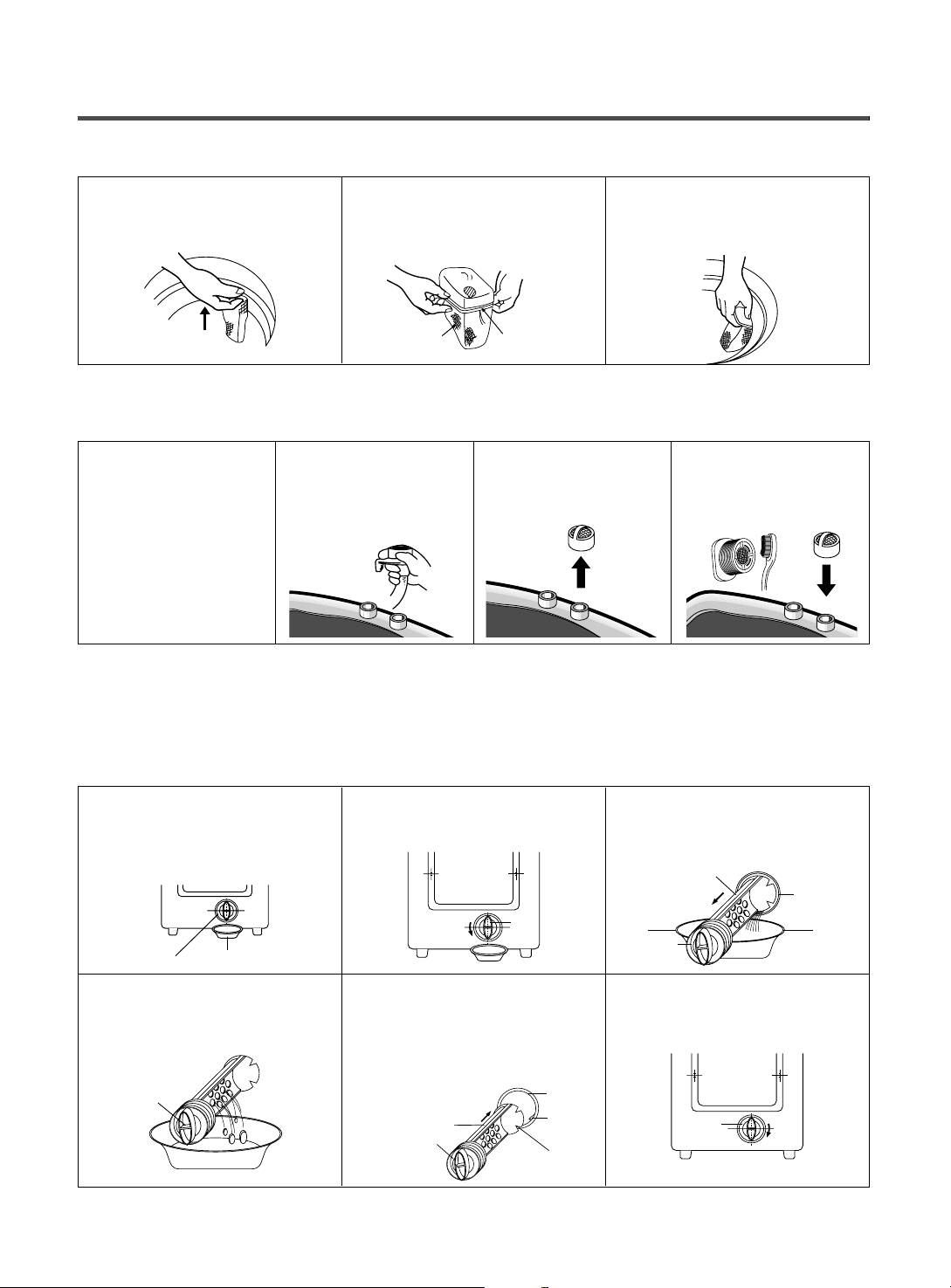

HOW TO CLEAN THE FILTER.............................................................................................................................	13
REMOVING STAINS..............................................................................................................................................	14
TROUBLE SHOOTING..........................................................................................................................................	15
SPECIFICATION....................................................................................................................................................	16

A NOTE TO YOU

Thank you for buying a DAEWOO appliance.

DAEWOO washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely. Please read it carefully.

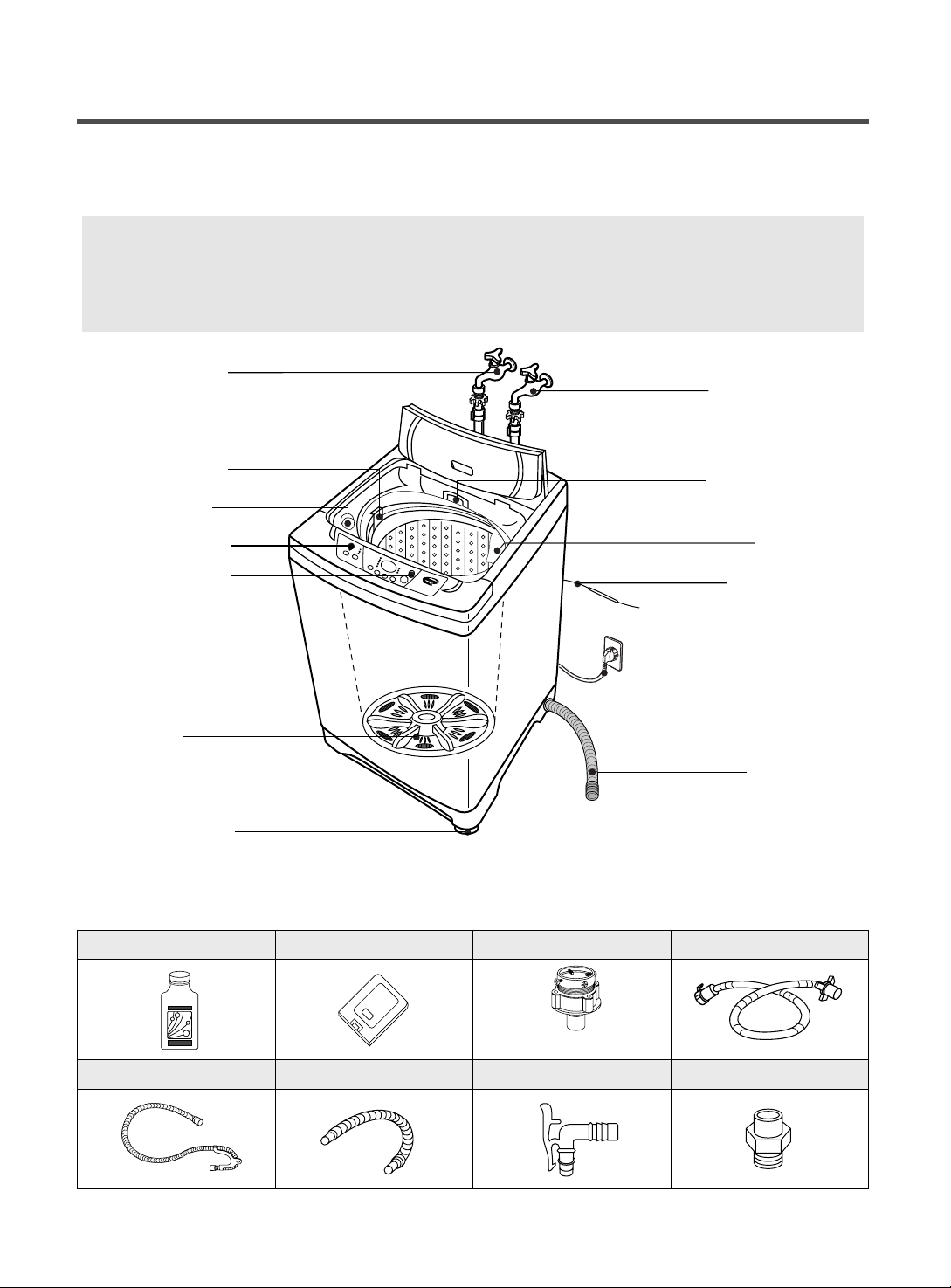

PARTS AND FEATURES

The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer.

NOTE

•The drawings in this book may vary from your washer model.

They are designed to show the different features of all models covered by this book, Your model may not include all features.

•HOT WATER TAP

After using the washer, close the water tap.

In case of the single valve model, there is no hot water valve.

• SOFTENER INLET

• BLEACH INLET

•CONTROL PANEL

•POWER SWITCH

• COLD WATER TAP After using the washer, close the water tap

• DETERGENT CASE

• LINT FILTER

• GROUND WIRE In case of 3-wire power cord, ground wire will not be

provided

• POWER CORD

• PULSATOR

• DRAIN HOSE

• ADJUSTABLE LEG

ACCESSORIES (Full Option)

DRYTEN	COVER UNDER	WATER TAP ADAPTER	INLET HOSE
DRYTEN
	UP
		In case of screw-shaped inlet hoses, water tap
		adapters will not be provided.
HOSE DRAIN (FOR PUMP)	HOSE DRAIN (FOR NON-PUMP)	HOSE CONNECTOR	CONNECTOR INLET

2

WASHER SAFETY

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the following basic precautions.

Read all instructions before using your washer

• Flammable fluids (dry-cleaning solvents,	Please ...
kerosene, gasoline, etc.) should not be	• Have only a qualified person install, repair,
used or stored in or near your washer.	or replace parts on washer.
Do not add flammable fluids to your wash	• Maintain washer properly.
water. These substances give off vapours	• Protect washer from the weather and keep
that can create a fire hazard or explosion.	it where the temperature will not fall below
• After starting a cycle, do not reach into the	freezing.
spin basket until all motion stops.	• Do not install the washer at a place of
• Do not tamper with the controls.	extremely high humidity. It could cause an
• The appliance is not intended for use by	electric shock or a short circuit.
young children or infirm persons without	• Connect washer to the correct outlet, electrical
supervision.	supply, water supply, and drain supply.
• Young children should be supervised to ensure	• Ground washer properly.
that they do not play with the appliance.
• If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice
agent or a similarly qualified person in order
to avoid a hazard.
• If the appliance is supplied from a cord extension
set or electrical portable outlet device it should be
positioned so it is not subjected to splashing or
ingress of moisture.

Understanding your responsibilities

•Do not use chlorine bleach and ammonia or acid (such as vinegar or rust remover) in the same wash. Hazardous fumes can form.

•Unplug power supply cord before attempting to service your washer.

•Do not wash fiberglass materials.

Small particles can stick to fabrics washed in following loads and cause skin irritation.

•Do not use hot water if standard temperature is over 50˚C (122˚F). It could cause a deformation of plastic parts.

•Do not spray water on the control panel and back cover of the washer. It could cause fire or an electric shock.

•In case of the dual valve model, if you connect only cold water inlet valve, while water temperature is selected as hot or warm, there can be water leakage from unconnected water inlet valve.

3

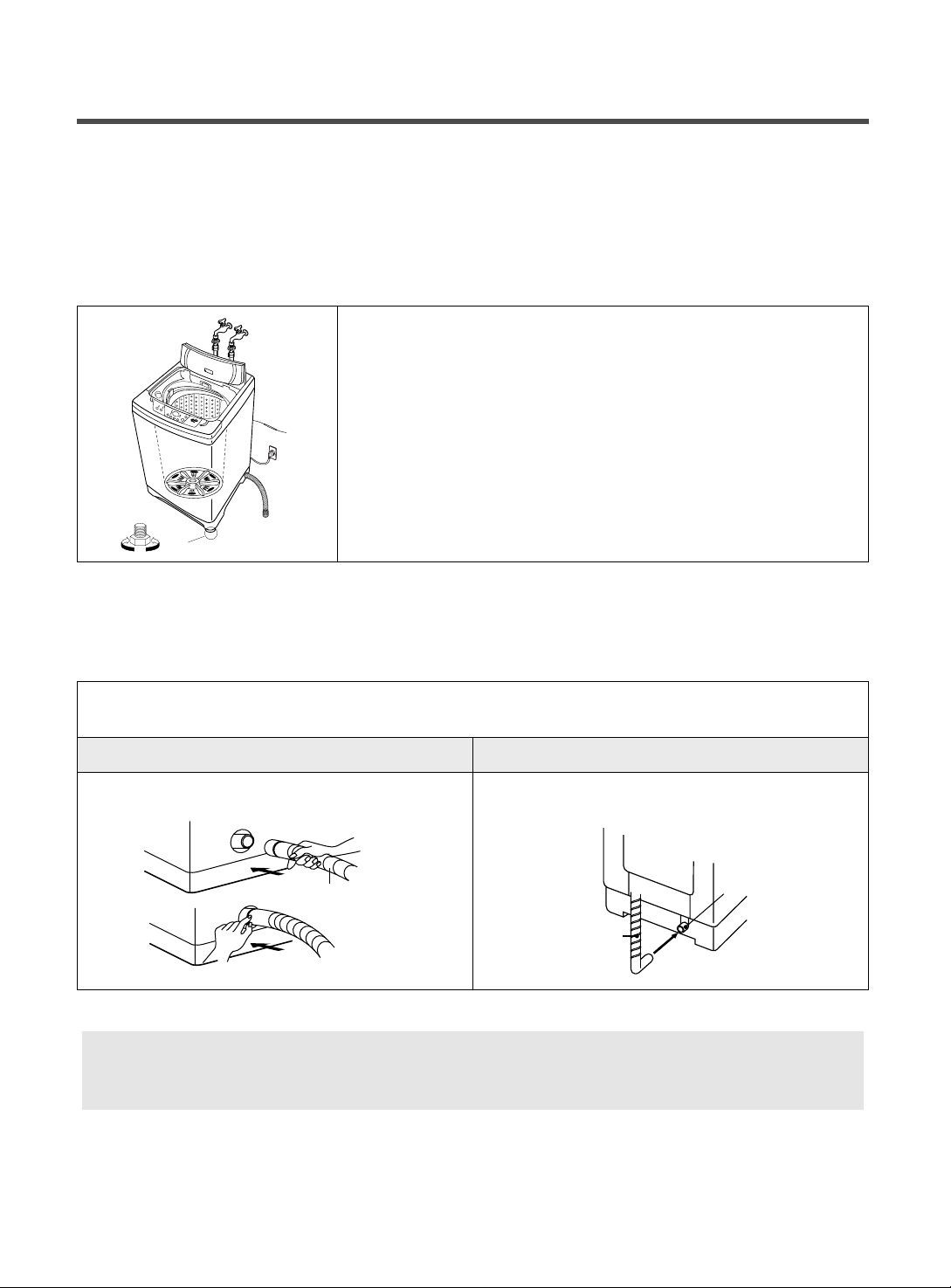

INSTALLATION INSTRUCTIONS

Location of washer

Check location where washer will be installed. Make sure you have everything necessary for correct installation.

Proper installation is your responsibility.

•Do not place or store your washer below 0 °C (32°F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

C

If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate and cause a malfunction. If washer is not level, adjust the front leg(A) up or down for horizontal setting.

	B	•Earthed electrical outlet(B) is required with 20cm of
		bottom back of washer cabinet.
		•Hot and cold water faucets (C) must be within 1m of the
		upper back of the washer cabinet and provide water
A		pressure 0.3kgf/cm 2-8kgf/cm 2 (2.94N/cm 2-78.4N/cm 2).

UP

DOWN

Drain system

Never forget to install drain hose before operating your washer.

The packing box is opened, there are a drain hose.

• Connect the drain hose to the drain outlet at the back side of the washer.

Non-Pump Model	Pump Model

Drain Outlet

Drain hose

Drain hose

NOTES

•The opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

4

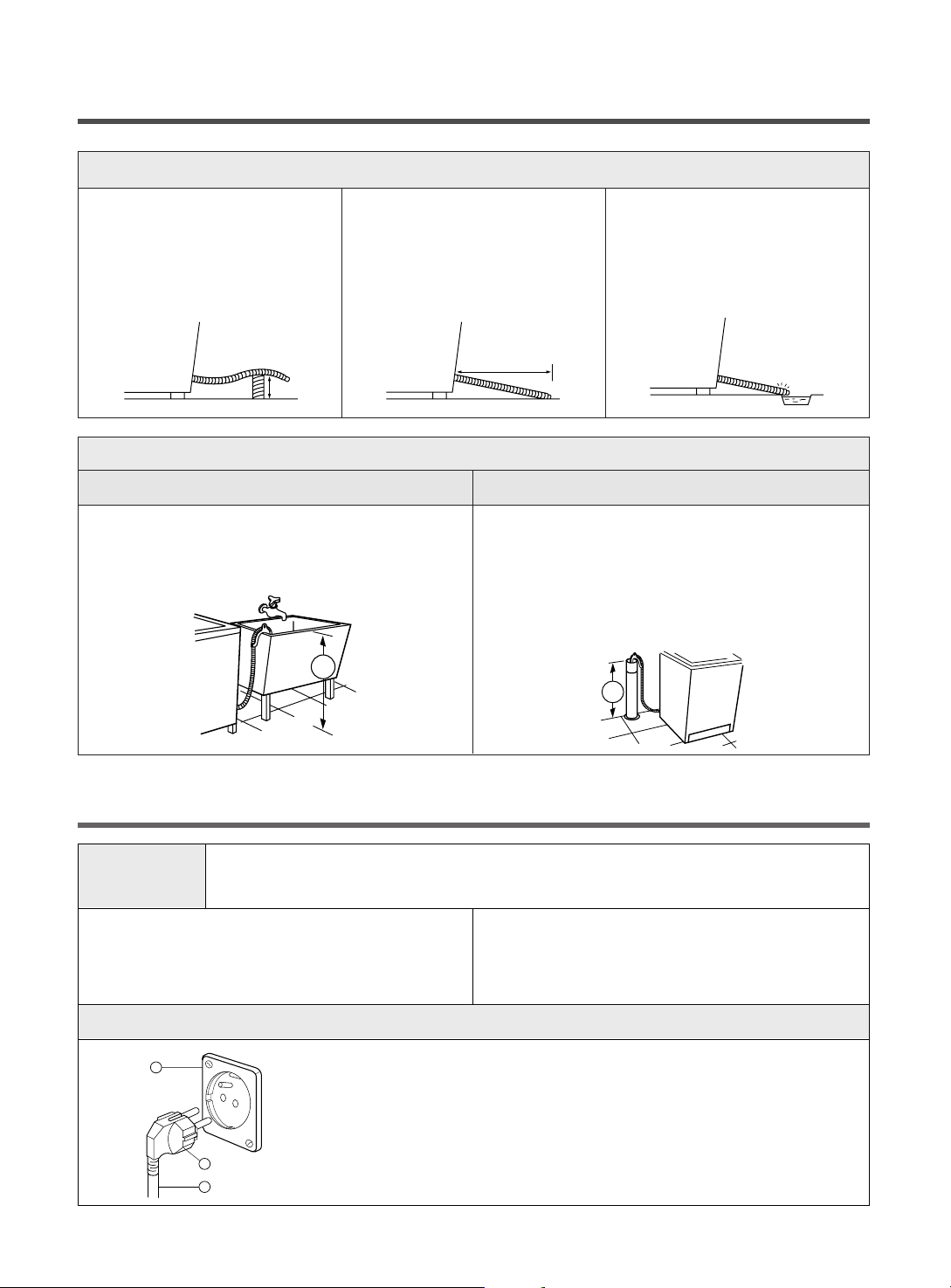

Non-Pump Model

1In case that it goes over a door sill.

Don’t let the height of the drain hose exceed 20cm from the bottom of washer.

20Cm

2In case of extending the drain hose.

Don’t let the total length exceed 3m.

3m

3Be careful that the end of the drain hose is not immersed in water.

Pump Model

Laundry tub drain system	Standpipe drain system
• Top of tub must be at least 86cm	• Needs a 3cm minimum diameter
(34inches) high and no higher than 130cm	standpipe with minimum carry away
from bottom of washer (A)	capacity of 30liters per minute.
	• Top of tub must be at least 86cm
	(34inches) high and no higher than 130cm
	from bottom of washer (B)
A
	B

ELECTRICAL REQUIREMENTS

	WARNING	electrical shock hazard:failure to follow these instructions could result in
		death or serious injury.

•Electrical earth is required on this washer

•If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

•Don’t earth to a gas pipe

•Don’t change the power supply cord plug.

•Check with a qualified electrician if you are not sure the washer is properly earthed.

Recommended earthing method

C

B

A

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord (A) having a earthing plug (B). To minimize possible shock hazard, the cord must be plugged into a mating earthing-type wall receptacle (C).

If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have the proper earthed wall receptacle installed by a qualified electrician.

5
