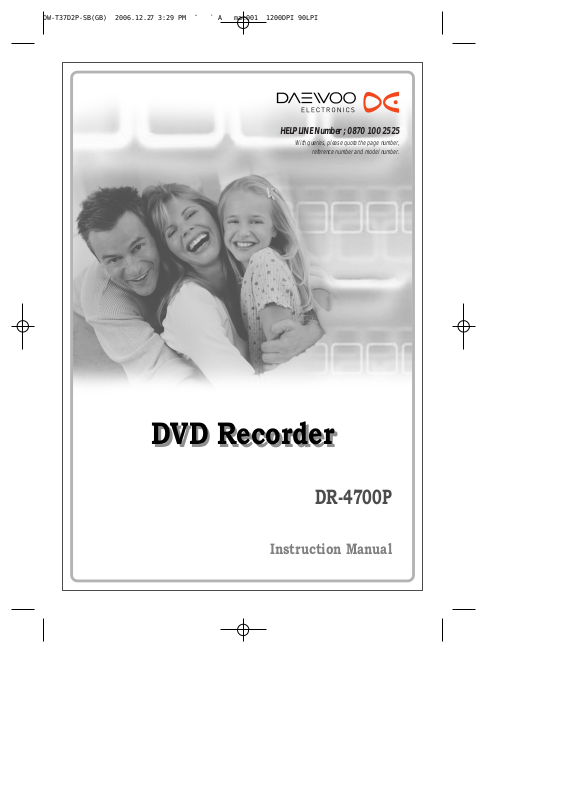

Daewoo DR-4700P User Manual

Download

HELP LINE Number ; 0870 100 2525

With queries, please quote the page number,

reference number and model number.

DVD Recorder

DR-4700P

Instruction Manual

Safety Instructions

Please keep the DVD Recorder’s guarantee sheet and receipt in a safe place.

Precautions

• Read this booklet carefully.

• Make sure the rating of your household electricity supply matches that shown on the back of your DVD Recorder.

• Read this page and chapter ‘Setting up your DVD Recorder’ to help you set up and adjust your product correctly.

• Do not put the DVD Recorder in a hot or humid place.

• Do not open the DVD Recorder. Get a qualified technician to carry out any repairs.

• Do not connect the DVD Recorder to the power supply if you have just moved it from a cold environment to a warm room. This can lead to condensation inside the DVD Recorder, which can damage it. Wait for approx. 2 hrs for it to reach room temperature.

• Make sure the DVD Recorder is placed at least 10 cm apart from other home appliances or obstacles to ensure sufficient ventilation.

• The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on top of the recorder.

• Before a storm and/or lightning, unplug the DVD Recorder from the mains supply and aerial.

• Put the recorder on a steady flat surface.

• Only clean the recorder with a soft, lint-free cloth. Do not use harsh or alcohol- based cleaning agents.

INTRODUCTION

For your own Safety

• There are no components in this product you can service or repair yourself.

• Do not open the case of the DVD Recorder. Only allow a qualified engineer to repair or service your DVD Recorder.

• This DVD Recorder is designed to work continuously. Switching it off (standby mode) does not disconnect it from the mains. To disconnect it from the mains you have to unplug it.

Important Safeguards

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

WARNING

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

IMPORTANT FOR LASER PRODUCTS LASER

DANGER

CAUTION

This Digital Video Disc Player employs a Laser System. To ensure proper use of this product please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location - see service procedure.

Use of control adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser radiation when open and interlocks defeated. DO NOT STARE INTO THE BEAM.

Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage‘ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

CAUTION

Any changes or modification in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• Make sure the unit should be placed at least 8cm apart from the other home appliances or the obstacles to get sufficient ventilation.

• This unit shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on this unit.

• Switching it off does not disconnect it from the mains (stand-by). To disconnect it from the mains, you have to unplug it.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

1 READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2 RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3 HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4 FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5 CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6 ATTACHMENTS

Do not use attachments unless recommended by the unit’s manufacturer as they may cause hazards.

7 WATER AND MOISTURE

Do not use this unit near water- for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.

8 ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or adult as well as serious damage to the unit. Use this unit only with a cart, stand , tripod, bracket, or table recommended by the manufacturer.

A unit and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

PORTABLE CART WARNING (symbol provided by RETAC)

9 VENTILATION

Slots and openings in the case are provided for

Important Safeguards

INTRODUCTION

ventilation to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. These openings must not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat radiator. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10 POWER SOURCES

This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11 POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

12 LIGHTNING

For added protection for this unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

13 DISC TRAY

Keep your fingers well clear of the disc as it is closing. It may cause serious personal injury.

14 OVERLOADING

Do not overload wall outlets of extension cords as this can result in a risk of fire or electric shock.

15 OBJECT AND LIQUID ENTRY

Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or ‘short-out’ parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

16 BURDEN

Do not place a heavy object on or step on the product. The object may fall, causing serious

iii

Important Safeguards

personal injury and serious damage to the product.

17 DISC

Do not use a cracked, deformed or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

18 SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19 DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the

following conditions. A. When the power-supply cord or plug is damaged. B. If liquid has been spilled, or objects have fallen

into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not operate normally by following

the operating instructions. Adjust only those

controls that are covered by the operating

instructions. Improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the unit to its normal operation. E. If the unit has been dropped or the cabinet has

been damaged. F. When the unit exhibits a distinct change in

performance-this indicates a need for service.

20 REPLACEMENT PARTS

When replacement parts are required, have the

service technician verify that the replacements he

uses have the same safety characteristics as the

original parts. Use of replacements specified by

the unit manufacturer can prevent fire, electric

shock, or other hazards.

21 SAFETY CHECK

Upon completion of any service or repairs to this

unit, ask the service technician to perform safety

checks recommended by the manufacturer to

determine that the unit is in safe operating

condition.

22 WALL OR CEILING MOUNTING

The product should be mounted to a wall or

ceiling only as recommended by the

manufacturer.

23 HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

To prevent battery electrolyte leakage, which may result in injury and damage to the unit or other objects, observe the following precautions;

A. All batteries must be installed with the proper

polarity. B. Do not mix new with old or used batteries. C. Only use batteries of the same type and brand. D. Remove the batteries when they are not to be

used for a long period time. E. When the batteries have become discharged,

they must be disposed of in a safe manner which complies with all applicable laws.

25 WEEE (Waste Electrical and Electronic Equipment)

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipment waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Table of Contents

INTRODUCTION

RECORDING

Overview______________________________________2 Identification of Controls_______________________6

CONNECTIONS

Connecting Antenna/Cable ____________________11 Connecting a TV _______________________________12 Connecting an Amplifier/Receiver _____________13 Connecting Optional Equipment ______________14 Connecting a Digital Camcorder ______________14

Basic Recording________________________________38

Recording from TV 38 One Touch Record (OTR) 39 Checking the Recording Time 39 To Pause the Recording 39

Timer Recording _______________________________40 Recording from an External Input _____________43

DISC OPERATION

Disc Initialize __________________________________44 Disc Operation in DVD±RW disc _______________44 Disc Operation in DVD±R, DVD-RW disc _______46

SETUP

Initial Installation ______________________________15 Initial Setup____________________________________17

Setup Menu Overview 17 ‘Installation’ Settings 17 ‘Recording Options’ Settings 21 ‘Languages’ Settings 22 ‘Preferences’ / Video Settings 23 ‘Preferences’ / Audio Settings 24 ‘Preferences’ / Parental Controls 25 Various ‘Preferences’ Settings 27 System Information 28 Restore Defaults 28

On-Screen Display Overview __________________29

DISC EDIT

Title Menu _____________________________________47

REFERENCE

Troubleshooting _______________________________50 Technical Specifications________________________53

PLAYBACK

DVD Playback _________________________________32 Other Disc Playback __________________________36

Overview

DVD, DVD+R, DVD+RW?

What is a DVD?

DVD (Digital Versatile Disc) is a storage medium that combines the convenience of the compact disc with the latest digital video technology. DVD video uses modern MPEG2 data compression technology that enables an entire feature film to be stored on a single five inch disc.

How good is the resolution of DVD compared with VHS?

The razor-sharp digital images have more than 500 lines of resolution at 720 pixels per line. This is more than twice as high as VHS and even better than laser disc quality. DVD picture quality is easily comparable to the digital masters produced in recording studios.

What is a DVD+RW?

DVD+ReWritable uses ‘phase change‘ media, the same technology on which rewritable CDs are based. A highperformance laser is used to change the reflective properties of the recording layer; this process can be repeated more than a thousand times.

What is a DVD+R?

Unlike a DVD+RW disc, a DVD+R (write-once DVD) can only be written to once. If it is not finalized after a recording, further recordings can be added to it. Old recordings can be deleted but they can no longer be overwritten. The deleted recordings (titles) are marked 'deleted title'.

Before a DVD+R can be played in a DVD player, it must be finalized in the DVD Recorder. Once this process is complete, no further recordings can be added.

What can I do with my DVD Recorder?

Your DVD Recorder is a machine for recording and playing back digital video discs with ‘two-way‘ compatibility with the universal DVD video standard. This means:

• existing DVD video discs can be played on the recorder.

• recordings made on your DVD Recorder can be played on other DVD video players and DVD-ROM drives.

Dual Media

Supporting Disc Recording Format Finalise After finalize other DVD playback Consumer Remark :

A DVD Recorder that supports ‘dual media’ recording allows DVD+RW format recording (+VR) on either DVD-R, DVD-RW, DVD+R or DVD+RW media. Any editing feature that is available with the +RW logical format is available on any of the media types. This system allows the flexibility for the consumer to use any of the above media formats for recording in the same system. Since the +VR format is DVD-Video compatible, the consumer can take any disk recorded on this platform and should be capable of playing it back on the majority of DVD players on the market.

±RW / ±R ±Disc + VR format

-RW, -R, +R All disc can playback Does not need selection (recording format)

Regional code

If the region number on your DVD disc does not correspond to the region number of this player, the disc cannot be played.

ALL

Which discs you can use

The following discs can be used in your DVD Recorder:

Playback and recording

DVD+RW (Digital Versatile Disc + ReWritable) DVD-RW (DVD-Rerecordable) DVD+R (Digital Versatile Disc + Recordable) DVD-R (DVD-Recordable)

Playback only

DVD Video (Digital Versatile Disc) VCD (Video CD) Audio CD (Compact Disc Digital Audio) CD-R (CD recordable) Audio/ CD-RW (CD rewritable) Audio Video Format : JPEG Audio Format : CDDA / MP3

Overview

INTRODUCTION

Not all recordable CDs may be played by your player.

Disc-related Terms

Title (DVD only)

The main film, accompanying feature content, or music album. Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a movie or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a number to enable you to easily locate the chapter you want. Depending on the disc, chapters may not be labeled.

Track (Audio CD only)

Sections of a movie or a musical piece on an audio CD. Each track is assigned a number, enabling you to easily locate the track you want.

About DVD Recording

Notes on Recording

• The recording times shown are not exact because the DVD Recorder uses variable bit-rate video compression. This means that the exact recording time will depend on the material being recorded.

• When recording a TV broadcast, if the reception is poor or the picture contains interference, the recording times may be shorter.

• Discs recorded at high speeds (equal to or greater than 2X) may not be recognized.

• If you record still pictures or audio only, the recording time may be longer.

• The displayed times for recording and time remaining may not always add up to the exact length of the disc.

• The available recording time may decrease if you heavily edit a disc.

• When using a DVD+R disc, you can keep recording until the disc is full, or until you finalize the disc. Before you start a recording session, check the amount of recording time left on the disc.

Recording TV Audio Channels

The DVD Recorder can record one or two channel audio. For TV broadcasts, this usually means mono or stereo, but some programs are broadcast in bilingual audio channel. You can record either BIL I, BIL II or both.

Restrictions on Video Recording

• You cannot record copy-protected video using this DVD Recorder. Copy-protected video includes DVD-Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording will pause or stop automatically and an error message will be displayed on-screen.

• Video that is ‘copy-once only’ can only be recorded using DVD+RW discs with CPRM.

• Audio and video recordings you make using the DVD Recorder are for your personal use only. You may not sell, lend, or rent them to other people.

• This product incorporates copyright protection technology that is protected by method claims of certain U.S.patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision corporation. Reverse engineering or disassembly is prohibited.

Overview

Precautions

Handling the Unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packaged at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Cleaning the Unit

AAA

NoYes

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVD Recorder is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons. Distance: Within 23 ft (7 m) of the remote sensor. Angle: Within 30° in each direction of the remote sensor.

Remote Control Battery Installation

Detach the battery cover on the rear of the remote control, and insert two AAA batteries. Make sure the polarities (+ and -) are aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Overview

INTRODUCTION

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct

sunlight, as there may be a considerable temperature increase inside the car.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center outward.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the Symbol

‘ ‘ may appear on the TV screen during operation. This icon means the function explained in this User's Guide is not available on that specific disc.

Identification of Controls

Front Panel

! @

STANDBY/ON

Turns the DVD Recorder on and off.

Disc Tray (DVD deck)

Insert a disc here.

Front Panel Display

Shows the current status of the DVD Recorder.

PR+/–

Scans up or down through memorized channels. Also moves up and down in DVD navigation menus.

OPEN/CLOSE

Opens or closes the disc tray.

REC

Starts recording. Press repeatedly to set the recording time.

$%^

# & (*

PLAY/PAUSE

Starts playback of a disc. Pauses playback or recording temporarily.

STOP

Stops playback.

(

Skips to previous chapter.

)

Skips to next chapter.

AVF (VIDEO, L-AUDIO-R)

Connects to the audio/video output of an external source (VCR, Camcorder, etc.).

)

Front Panel Display

Channel

PR10

Input mode

AV-1

TV Channel

AV1 input

CC23

AV-2

Identification of Controls

INTRODUCTION

CATV Channel

AV2 input

F-AV

Recording on disc

11:15

RECP

Others

SAFE

Front AV input

Indicates a DVD Timer recording is set. Indicates the DVD is recording.

Recording Pause mode

Indicates when the DVD Recorder is locked. Indicates the DVD Recorder is in TV mode. Indicates the dts title is playing.

11:15

0:30

Indicates a DVD Timer Recording is in standby mode.

OTR Recording mode

Remote Control

Identification of Controls

- Turns the DVD Recorder on and off.

- Lock/Unlock the front panel by pressing and holding it over 5 seconds. Opens and closes the disc tray in DVD mode.

Switches between the DVD Recorder tuner and your TV tuner. Displays a disc’s Title menu, if available. Switches the DVD Recorder input to Tuner, AV1, AV2 or AVF.

- Selects numbered options in menus.

- Selects TV channels.

Displays the edit menu for DVD+RW/+R discs or sets a chapter marker. Accesses DVD disc menus.

Displays or exits the Setup menu. Displays the Timer Recording menu.

Displays information about the currently loaded disc or TV channel.

- œ √…† : Selects menu options.

- PR(+/–) : Selects channels.

Confirms menu selections. Starts recording. Press repeatedly to set the recording time. For more

details, Refer to One Touch Record (OTR) on page 39. Selects Recording mode: Approx 1 Hour (HQ mode), 2 Hours (SP mode), 4

Hours (EP mode), 8 Hours (SEP mode) Repeats the current chapter, track, title or the entire disc.

Repeats playback between two points (A and B).

- Starts playback.

- Pauses playback or recording temporarily. Press again to exit Pause mode.

Searches backward/forward.

Stops playback or recording.

Identification of Controls

Skips to the next or previous chapter/track.

Selects a subtitle language, if available.

Selects an audio language (DVD), audio channel (CD) or audio type (TV).

Increases or decreases the slow motion speed when playing a DVD. Displays the finalize menu for DVD±R, DVD-RW discs.

Enlarges the DVD video image.

Displays the digest menu.

Selects a DVD camera angle, if available.

Progressive Scan Mode

• If your TV supports Progressive Scan, you can view high quality video by setting the DVD Recorder to Progressive Scan mode. If your TV does not support Progressive Scan, do NOT change to Progressive Scan mode.

• When video output mode is changed from RGB to Interlace or Progressive (Scart 1) must not be correct color for Component video.

• As component outputs have their own Jacks on the back side, change the TV input into Component input, after connecting the component cables from the DVD Recorder to TV.

• Changing from Interlace or Progressive to RGB, should be the opposite of above.

INTRODUCTION

Rear panel

Identification of Controls

! @ *$

ANT OUT (TO TV)

Connect to a TV with an RF coaxial input.

ANT IN (FROM ANT.)

Connect to your antenna or cable TV outlet.

Scart socket 2

Connection of an additional device (satellite receiver, set-top box, video recorder, camcorder, etc.)

Scart socket 1

Connection of a TV set. Composite-output and RGB-output.

AUDIO OUT (L-AUDIO-R)

Connect to other equipment with audio inputs.

Caution

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the DVD Recorder.

# ^% &

COMPONENT/PROGRESSIVE VIDEO OUT (Y Pb Pr)

Connect to a TV with Component Video (Y Pb Pr) inputs.

COAXIAL (Digital Audio Out)

Connect to an amplifier with a coaxial digital audio input.

AC Power Cord

Plug into a power outlet.

Connections

Antenna Antenna

Flat Wire

(300 ohm)

300/75 ohm

Adaptor

(Not supplied)

Cable TV Wall Jack

OR OR

Connections

• There are a variety of ways to connect the DVD Recorder to your TV and other equipment. Use only one of the connections described below. Whichever TV connection you use will work with all input sources.

• Please refer to the manuals for your TV, VCR, stereo system, or other devices as necessary to make the best connections.

• For better sound reproduction, connect the DVD Recorder’s AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo, or audio/video equipment. See ‘Connecting an Amplifier/Receiver‘ on page 13.

Caution

• Make sure the DVD Recorder is connected directly to the TV, and the TV is set to the correct video input.

• Do not connect the DVD Recorder’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.

• Do not connect the DVD Recorder via your VCR. The DVD image could be distorted by the copy protection system.

Connecting Antenna/Cable

Disconnect the antenna/cable from the rear of your TV.

Connect this cable to the jack marked ANT IN (FROM ANT.) on the rear panel of the DVD Recorder.

300/75ohm Adapter

Flat Wire (300ohm)

(Not supplied)

Antenna

or or

Cable TV Wall Jack

INTRODUCTION

CONNECTIONS

Rear of DVD Recorder

If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your TV and attach it to the ANT IN (FROM ANT.) jack on the rear panel of the DVD Recorder.

Use the supplied coaxial cable to connect between the DVD Recorder’s OUT (TO TV) jack and the antenna input jack on your TV. With this connection, you can receive all midband, superband, and hyperband channels (all cable channels).

Connecting a TV

Choose one of the following TV connections, depending on the capabilities of your equipment.

RF Connection

Connect the ANT OUT (TO TV) jack on the DVD Recorder to the antenna in jack on your TV using the supplied 75-ohm RF cable (R).

This set doesn’t apply the modulator output. However, still apply the RF through Output.

Scart Connection

Plug a scart cable into the scart socket

EURO AV1 at the back of the DVD Recorder and the corresponding scart socket at the back of the TV set. (V)

Plug a scart cable into the blue scart socket EURO AV2/DECODER at the back of the DVD Recorder and the corresponding scart socket at the back of the Decoder.

Progressive Scan Connection

• If your television is a high-definition or ‘digital ready‘ television, you may take advantage of the DVD Recorder’s Progressive Scan output for the highest video resolution possible.

• If your TV does not accept the Progressive Scan format, the picture will appear scrambled.

Connect the COMPONENT/PROGRESSIVE VIDEO OUT jacks on the DVD Recorder to the corresponding in jacks on your TV using an optional Y Pb Pr cable (C) if the Component Video jacks (Y, Pb, Pr) are available on your TV.

Connect the Left and Right AUDIO OUT jacks from the DVD Recorder to the left/right audio in jacks on your TV using the supplied audio cables.

Rear of TV

ANTENNA

INPUT

Rear of DVD Recorder

COMPONENT/PROGRESSIVE VIDEO INPUT

Connections

S-VIDEO

INPUT

Connections

AUDIO INPUT DIGITAL INPUT

COAXIAL

A X

Connecting an Amplifier/Receiver

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/Pro Logic

Connect the Left and Right AUDIO OUT jacks on the DVD Recorder to the left and right audio in jacks on your amplifier, receiver, or stereo system, using the audio cables (A).

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

Connect the DVD Recorder’s DIGITAL AUDIO OUT jack (COAXIAL) to the corresponding in jack on your amplifier. Use an optional digital coaxial audio cable.

You will need to activate the DVD Recorder’s digital output; see ‘AUDIO Settings‘ on page 24.

Digital Multi-Channel Sound?

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio/video receiver that supports one or more of the audio formats supported by your DVD Recorder (MPEG 2, Dolby Digital, and DTS). Check the receiver manual and the logos on the front of the receiver.

• Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

• 5.1 channel digital surround sound via the digital connection can only be obtained if your receiver is equipped with a digital multi-channel decoder.

• To see the audio format of the current DVD on the on-screen display, press [AUDIO].

CONNECTIONS

The DVD Recorder does not perform internal (2- channel) decoding of DTS sound tracks. To enjoy DTS multi-channel surround, you must connect the DVD Recorder to a DTS compatible receiver via one of the DVD Recorder’s digital audio outputs.

Rear of DVD Recorder

Amplifier (Receiver)

Connecting Optional Equipment

To receive audio/video signals from other equipment, connect the AV1 (Scart 1), AV2 (Scart 2) or Front In jacks on the DVD Recorder to the audio/video out jacks on your external component, using optional audio/video cables.

Connections

Jack Panel of Accessory Component

(VCR, Camcorder, etc.)

Front of DVD Recorder

Initial Installation

After successfully connecting your DVD Recorder to your TV and other devices, this chapter will show you how to complete the initial installation.

You must follow the initial installation process to set the time, date, channels, and language preferences for the DVD Recorder.

‘Initial Setup Wizard‘ is displayed on the screen. Make sure the RF cable from your antenna or cable TV jack is connected. Press [ENTER] to begin initial installation.

'OSD Lang' message is displayed on the screen. Select the desired language for the on screen menu using […†]. Press [ENTER] to confirm.

'Country Setting' message is displayed on the screen. Select the desired country using […†]. Press [ENTER] to confirm.

Initial Setup Wizard 1/7

Before using your recorder Please complete this setup

ENTER OK

OSD Lang 2/7

√

English

Spanish

French

…† Choose ENTER OK

Back

Country Setting 3/7

√

Australia

Belgium

Denmark

Back

CONNECTIONS SETUP

'Auto Scan' message is displayed on the screen. The DVD Recorder detects channels automatically and stores them in memory.

'Clock Set' message is displayed on the screen. Set the clock. Use [œ√] to move left/right and use […†] to change the settings. After setting the clock, press [ENTER] to confirm. If you cancel the process

during Initial Installation, you should repeat this procedure.

'Adjust channels' message is displayed on the screen. Press [ENTER] to confirm.

Auto Scan

5 CHs found

Back Cancel

œ √ Choose ENTER OK

Clock Set

…

1 / 1 / 2005 00 : 00

†

Adjust channels

NO. NAME

PR1 BBC PR2 P-02 PR3 P-03

Back

…

†

…† Choose ENTER OK

œ √ Choose ENTER OK

4/7

Antenna

5/7

6/7

Cancel

Back

Initial Installation

'Complete' message is displayed on the screen. 'Initial Installation' process is finished.

Complete

Setup has been completed Enjoy using your recorder

Back Finish

ENTER OK

Re-Installation

This set is equipped with the multi-tuner for receiving many countries' broadcasting. In order to receive broadcasting of different countries, follow as below.

œ√

1 Press [SETUP] and select the 'Restore Defaults' using [

]. Then, RESET the set. (see page 28) 2 Power On, then you see the 'Initial Installation'. 3 Select the country which you want to (on page 26), then repeat the steps 4~10 on page 17~18.

7/7

Initial Setup

Setup Menu Overview

The DVD Recorder Setup menu includes four categories, including: Initial Setup, Disc Operation, Disc Edit and Timer Recording. Press [SETUP], [œ√] and [ENTER] on the remote control to view the first and second levels of the Setup menu.

1. Initial Setup Screen 2. Disc Operation Screen

go to page 17~28. go to page 44~46.

DVD Recorder Init Setup ➞

Init Setup

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

DVD Recorder Init Setup ➞

Disc Oper

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

3. Disc Edit Screen 4. Timer Recording Screen

go to page 47~49. go to page 40~42.

DVD Recorder Init Setup ➞

Disc Edit

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

DVD Recorder Init Setup ➞

Timer Rec

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

‘Installation’ Settings

Manual Setting

To complete the set-up of your DVD Recorder when the auto set has not stored all of the channels or when you wish to store a new channel.

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Installation‘.

While ‘Installation‘ is selected, press [†] to select ‘Manual Set‘.

Press [ENTER]. The ‘Manual Set’ menu appears.

Select ‘Standard‘ using [œ√]. Use […†] to select the desired ‘Standard’ (PAL BG, PAL DK or PAL II),

then press [ENTER].

Installation

•Manual Set Auto Scan Clock Set Adjust channels

…

œ √

†

Choose OK Exit

Manual Set

Standard

Reception

…

PAL II

Aerial

†

Decoder

Off

ENTER SETUP

Auto Search

Store Channel

PR No. NAME

4 - - - - Store

SETUP

Fine Tune

Cancel

You can search broadcasting of other countries. If the set can not search the channels, please Re-Install. (see page 19.)

Initial Setup

Select ‘Reception‘ using [œ√]. Use […†] to select the desired broadcast system (Aerial or Cable),

then press [ENTER].

Aerial:

If you are using a standard antenna to receive channels.

Cable:

If you are using basic cable to receive channels.

Select ‘Auto Search‘ using [œ√]. Search the real channel number by pressing […†].

Select ‘Fine Tune‘ using [œ√]. You can adjust the fine tuning by pressing […†].

Select ‘Decoder‘ using [œ√]. When the program is encoded (and you have a decoder connected to

socket EURO AV2), press […†] to select ‘On’ and press [ENTER] to confirm.

Select ‘PR No.‘ using [œ√]. Use […†] or digit key [0~9] to select program number to store.

Select ‘NAME‘ using [œ√]. Press [ENTER] to move to the second level. If your DVD Recorder is showing no station name or is showing a station name incorrectly, you can correct this.

Either select the name from the stored list or you create the station name and enter a 4-digit name. Change the letters with the [ENTER], move the next letter with the […†œ √].

Manual Set

Standard

PAL II

Decoder

Manual Set

Standard

PAL II

Decoder

Manual Set

Standard

PAL II

Decoder

Manual Set

Standard

PAL II

Decoder

Manual Set

Standard

PAL II

Decoder

Manual Set

Standard

PAL II

Decoder

Reception

Auto Search

…

Aerial

†

Store Channel

PR No. NAME

Off

…

Off

†

Off

4 - - - - Store

Reception

Auto Search

Aerial

Store Channel

PR No. NAME

4 - - - - Store

Reception

Auto Search

Aerial

Store Channel

PR No. NAME

4 - - - - Store

Reception

Auto Search

Aerial

Store Channel

PR No. NAME

4 - - - - Store

Reception

Auto Search

Aerial

Store Channel

PR No. NAME

…

4 - - - -

†

Reception

Auto Search

Aerial

Store Channel

PR No. NAME

4 - - - -

Fine Tune

Cancel

Fine Tune

…

†

Cancel

Fine Tune

…

†

Cancel

Fine Tune

Cancel

Fine Tune

Store

Cancel

Fine Tune

Store

Cancel

Program Name

P-04 A B C D E F G H I J K L M N O P Q R S T U

V W X Y Z

Clear Space

OK Cancel

Auto Scan

The DVD Recorder has a frequency synthesized tuner capable of receiving up to 119 channels. These include VHF channels 2-20, 74-80, UHF channels 21-69 and CATV channels 1-41.

Preparation:

Connect the DVD Recorder to the desired type of antenna or cable TV system, as shown in ‘Connecting Antenna/Cable‘ on page 11.

Follow steps 1-2 as shown under ‘Manual Set’.

While ‘Installation‘ is selected, press […†] to select ‘Auto Scan‘.

Press [ENTER] to begin the channel search. The tuner will automatically search for all available channels in your area

and place them in the tuner’s memory.

• After Auto Scan is complete, follow the instructions above to make sure that Tuning Band is set correctly.

Installation

Manual Set

•Auto Scan Clock Set Adjust channels

…

œ √

†

Choose OK Exit

Clock Setting

Follow steps 1-2 as shown under ‘Manual Set’.

1 2

Use […†] to select ‘Clock Set‘.

Installation

Manual Set Auto Scan

•Clock Set Adjust channels

Initial Setup

ENTER SETUP

Auto Scan TV

1 CHs found

Cancel

SETUP

Press [ENTER]. The ‘Clock Set’ menu appears.

Enter the date and time. [œ√] (left/right): Moves the cursor to the previous or next column. […†] (up/down): Changes the setting at the current cursor position. [0~9] (digit key): Changes the setting directly at the current cursor position.

Press [ENTER] to confirm your setting, then press [SETUP] to exit the Setup menu.

…

œ √

†

ENTER SETUP

Choose OK Exit

Clock Set

…

1 1 2010 00 40

†

Adjust Channels

Follow steps 1-2 as shown under ‘Manual Set’.

1 2

Use […†] to select ‘Adjust Channels‘.

Press [ENTER]. The ‘Adjust channels’ menu appears.

Use […†] to select the PR number you want to adjust. Then press [ENTER].

Delete

After tuning TV stations into your DVD Recorder, you may wish to delete a station.

Press [œ]. The selected PR will be deleted.

Select ‘OK’ and press [ENTER] to confirm.

Edit

After tuning TV stations into your DVD Recorder, you may wish to put a name into any channel you want to.

Press [●]. Then keyboard menu will be displayed. Use […†œ √] to select a character or function and press [ENTER].

After the new channel name is complete, select ‘OK’ and press [ENTER] to confirm. The ‘Adjust channels’ menu appears again.

Select ‘OK’ and press [ENTER] to confirm.

Move

After tuning TV stations into your DVD Recorder, you may wish to change the order of PR's you have in your set, as your preference.

Press […†] to select the PR number you want to move to.

Press [ENTER]. The selected PR will be moved to the new PR number.

Select ‘OK’ and press [ENTER] to confirm.

Installation

Manual Set Auto Scan Clock Set

•Adjust channels

…

œ √

†

- - - -

a b c d e f g h i j k l m n o p q r

Space s t u v w

x y z _ - Backspace

A a Symbol

0-9

Input digits Backspace Select Prev Page Next Page

§ ∞

ENTER SETUP

Choose OK Exit

Adjust channels

NO. NAME

PR 1 - - - PR 2 - - - PR 3 - - - PR 4 - - - PR 5 - PR 6 - -

ENTER

Select Move

Adjust channels

NO. NAME

PR 1 - - - PR 2 - - - PR 3 - - - PR 4 - - - PR 5 - PR 6 - -

Delete Edit

…†

Move Confirm

Label

œœ

Adjust channels

NO. NAME

PR 1 - - - PR 2 - - - PR 3 - - - PR 4 BBC1 PR 5 - PR 6 - -

ENTER

Exit with save

…

œ √

†

Move

Initial Setup

…

Cancel

†

…

œ √

†

…

Cancel

†

●

ENTER

Clear

Cancel

…

œ √

†

…

Cancel

†

‘Recording Options’ Settings

DVD Quality

You can set the default DVD recording quality to: HQ (High Quality - 1 hr/disc), SP (Standard Play - 2 hrs/disc), EP (Extended Play - 4 hrs/disc) or SEP (Super Extended Play - 8 hrs/disc).

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Recording Options ‘.

While ‘Recording Options ‘ is selected, press [†] to select ‘DVD Quality‘.

Press [√] to move to the second level.

Use […†] to to select the desired Record Quality (HQ, SP, EPor

Press [ENTER] to confirm your selection, then press [SETUP] to exit the menu.

Auto Chapter

During recording, chapter markers are added automatically at fixed intervals.

You can set this interval to But when you set DVD Record quality “SEP”, Auto Chapter interval could be

set only ‘10 min’ or ‘15 min’. To turn off automatic chapter marking, select ‘ Follow the same procedure as ‘DVD Quality’.

5 min, 10 min

15 min

Off

‘.

SEP

Recording Options

•DVD Quality HQ

Recording Options

•Auto Chapter Off

Auto Chapter SP Overwrite EP

œ √

DVD Quality Overwrite 05 min

œ √

SEP

… †

ENTER SETUP

Choose OK Exit

10 min 15 min

ENTER SETUP

Choose OK Exit

Initial Setup

SETUP

Overwrite

Immediately begins recording over the currently selected title.

Recording Options

DVD Quality Auto Chapter

•Overwrite On

œ √

Off

… †

ENTER SETUP

Choose OK Exit

‘Languages’ Settings

OSD Language

Select a language for the DVD Recorder Setup menu and on-screen displays.

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ] and [√] to select ‘Languages ‘.

While ‘Languages‘ is selected, press [†] to select ‘OSD Lang‘.

Press [√] to move to the second level.

Use […†] to select the desired language.

Press [ENTER] to confirm your selection, then press [SETUP] to exit the menu.

Menu/Subtitle/Audio Language

Select your preferred language for Disc Menus, Subtitles, and Audio soundtracks.

Follow the same procedure as the OSD Language.

Languages

•OSD Lang Disc Menu Subtitle Audio

œ √

Languages

OSD Lang

•Disc Menu Subtitle Audio

œ √

English

Français Español Português Italiano Deutsch Nederlands Magyar

… †

ENTER SETUP

Choose OK Exit

Auto

English French Spanish Portuguese Italian German Dutch

ENTER SETUP

Choose OK Exit

Initial Setup

†† ††

Languages

OSD Lang Disc Menu

•Subtitle Audio

Languages

OSD Lang Disc Menu Subtitle

•Audio

œ √

Off

English French Spanish Portuguese Italian German Dutch

… †

ENTER SETUP

Choose OK Exit

Auto

English French Spanish Portuguese Italian German Dutch

ENTER SETUP

Choose OK Exit

†† ††

‘Preferences’ / Video Settings

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Preferences ‘.

While ‘Preferences ‘ is selected, press [†] to select ‘Video‘.

Press [√]. The ‘Video‘ submenu is displayed.

TV Aspect Ratio

Use […†] to select ‘TV Aspect‘ while the ‘Video‘ submenu is

displayed.

Press [√] to go to the second level.

Use […†] to select the desired TV Aspect.

Press [ENTER] to confirm your selection.

Press [SETUP] to exit the menu.

4:3 PS :

Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both

sides of the picture are cut off.

4:3 LB :

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and

below the picture.

16:9 :

Select when a 16:9 wide screen TV is connected.

Preferences

•Video TV Aspect PS Audio Video Output Interlace Parental Ctrl Auto Settings

…

œ √

†

Choose OK Exit

Preferences

Video • TV Aspect 4:3 PS Audio Video Output 4:3 LB Parental Ctrl 16:9 Auto Settings

…

œ √

†

Choose OK Exit

Initial Setup

ENTER SETUP

SETUP

ENTER SETUP

Video Output

Progressive Scan Video provides the highest picture quality with reduced flickering.

Interlace or Progressive :

If you connect the DVD Recorder to a digital television (DTV) or Monitor using the COMPONENT jacks, set Video Output to ‘Interlace’ or ‘Progressive’.

RGB :

If you connect the DVD Recorder to a analog television using the

SCART jacks, set Video Output to ‘RGB’. Follow the same procedure as TV Aspect Ratio to change the Video Output.

Caution

Once the Progressive Scan setting is entered, an image will only be visible on a Progressive Scan compatible TV or monitor.

Preferences

Video TV Aspect Audio •Video Output Interlace Parental Ctrl Progressive Auto Settings RGB

…

œ √

†

ENTER SETUP

Choose OK Exit

Initial Setup

‘Preferences’ / Audio Settings

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Preferences ‘.

While ‘Preferences ‘ is selected, press [†] to select ‘Audio‘.

Press [√]. The ‘Audio‘ submenu is displayed.

Digital Output

Use […†] to select ‘Digital Output‘ while the Audio submenu is

displayed.

Press [√] to go to the second level.

Use […†] to select the desired digital output type.

Press [ENTER] to confirm your selection.

Press [SETUP] to exit the menu.

Off

No signal will be output from the Digital Audio Out jacks.

Bitstream

Select when connected to a Dolby Digital or DTS decoder (or an amplifier or other equipment with a Dolby Digital or DTS decoder).

LPCM

Select when connected to a digital amplifier. The DVD Recorder's digital audio signal will be output in the PCM format when you play a DVD recorded with a Dolby Digital (only for DVD) or MPEG soundtrack. If the DVD is recorded with a DTS sound track then no sound will be heard.

Preferences

Video

•Audio Digital Output BItstream Parental Ctrl Dynamic Range Auto Settings

…

œ √

†

Preferences

Video Audio •Digital Output Off Parental Ctrl Dynamic Range Bitstream Auto Settings LPCM

…

œ √

†

ENTER SETUP

Choose OK Exit

ENTER SETUP

Choose OK Exit

Dynamic Range

While watching DVD movies, you may wish to compress the dynamic range of the audio output (the difference between the loudest and quietest passages). This allows you to listen to a movie at a lower volume without losing clarity of sound.

Set 'Dynamic Range' to any mode you want for this effect. Follow the same procedure as ‘Digital Output‘ to set the Dynamic Range.

Preferences

Video Audio Digital Output Parental Ctrl Dynamic Range – – FULL Auto Settings – –

…

œ √

†

ENTER SETUP

Choose OK Exit

– – 1/2 – – – – OFF

Initial Setup

‘Preferences’ / Parental Controls

Set Parental Level

The Parental Controls feature allows you to prevent DVDs from being played based on their ratings or to have certain discs played with alternative scenes. You can set the parental level from ‘Adult’ to ‘Kid safe’.

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Preferences ‘.

While ‘Preferences ‘ is selected, press [†] to select ‘Parental Ctrl‘.

Press [√] to select ‘Parental’. Then press [√] again to change parental level.

Use […†] to select the desired parental level and press [ENTER] to confirm.

‘Adult’ to ‘Kid safe’ :

Some discs contain scenes not suitable for children. If you set a rating for the DVD Recorder, all scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.

The Password Input dialog will appear. Enter a 4-digit password using the [0-9] buttons.

After setting the password, select ‘OK’ and press [ENTER].

The initial password is ‘3308‘. You must enter this password before you can change the Parental Level.

Preferences

Video Audio

•Parental Ctrl Parental Auto Settings Password

…

œ √

†

Preferences

Video Audio Parental Ctrl •Parental Auto Settings Password

…

œ √

†

Preferences

Video Audio Parental Ctrl Parental Auto Settings Password

…

œ √

†

ENTER SETUP

Choose OK Exit

ENTER SETUP

Choose OK Exit

ENTER SETUP

Choose OK Exit

Input Password

œ √

1 Kid safe

2 G 3 PG 4 PG-13 5 PGR 6 R 7 NC-17 8 Adult

•8 Adult

Password

OK Cancel

0-9

Input digits

… †

Select OK

1 Kid safe

2 G 3 PG 4 PG-13 5 PGR 6 R 7 NC-17

SETUP

ENTER

Press [SETUP] to exit the menu.

Preferences

Video Audio Parental Ctrl Parental Auto Settings Password

…

œ √

†

ENTER SETUP

Choose OK Exit

1 Kid safe 2 G 3 PG 4 PG-13 5 PGR 6 R 7 NC-17

•8 Adult

Change Password

While ‘Preferences ‘ is selected, press [†] to select ‘Parental

Ctrl‘.

Press [√] to select ‘Password‘.

Press [√] to select ‘Change’. Then press [ENTER].

The ‘Input Password’ submenu appears. Enter your current 4-digit password.

Enter a new 4-digit password. Re-enter the new password.

Select ‘OK’ and press [ENTER] to confirm.

•

Master Password :

• Set the new password to something other than '0000'.

If you forget your password, press 3,3,0,8 on the remote control and then press [ENTER].

Initial Setup

Preferences

Video Audio Parental Ctrl Parental Auto Settings • Password Change

…

œ √

†

ENTER SETUP

Choose OK Exit

Input Password

Old Password New Password Confirm PWD

OK Cancel

0-9

Input digits

…

œ √

†

Select OK

ENTER

Various ‘Preferences’ Settings

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Preferences ‘.

While ‘Preferences ‘ is selected, press [†] to select ‘Auto Settings‘.

Press [√]. The ‘Auto Settings‘ submenu is displayed.

Initial Setup

Preferences

Video Audio Parental Ctrl

•Auto Settings Auto Clock Set Off

œ √

VPS/PDC Off

… †

ENTER SETUP

Choose OK Exit

Auto Clock Set

Auto Clock enables the DVD Recorder to set the clock automatically whenever it is in Standby mode (plugged in but powered off).

Auto Clock is only available for models with the VPS/PDC function. Some broadcasting stations may send the time and date along with the VPS/PDC

data. The video will automatically use this time and date during the initial setting up procedure during normal use, and every time you switch the video off at the mains. If you find that this time and date is incorrect you can remove this feature by following the steps below changing it to the OFF mode, you will then have to manually set the time and date, see above.

Use […†] to select 'Auto Clock Set' and press [√].

Use […†] to change the 'Auto Clock Set' status, and press [ENTER] to confirm.

VPS/PDC

VPS/PDC is a service provided by some stations to enable you to perform timer recordings precisely even if the broadcaster delays the start time of the programme slightly. The time you enter is the VPS/PDC time so this must be correct. Not all stations offer VPS/PDC, in which case the player will start at the time you enter and not the actual start time of the programme.

If you wish to start recording at a specific time without it being adjusted by the VPS/PDC system in the event of a delay, switch VPS/PDC off otherwise the player will not record.

Follow the same procedure as ‘Auto Clock Set’ to set the ‘VPS/PDC’ status.

• "VPS/PDC" and "Auto Clock Set" are not provided for some countries.

Preferences

Video Audio Parental Ctrl Auto Settings •Auto Clock Set On

œ √

Preferences

Video Audio Parental Ctrl Auto Settings Auto Clock Set

œ √

VPS/PDC Off

… †

ENTER SETUP

Choose OK Exit

•VPS/PDC On

ENTER SETUP

Choose OK Exit

SETUP

Off

System Information

System Information helps service personnel identify key firmware information about your DVD Recorder in case service is required.

System Info

Version WP3000000FQ-050813 Loader Version AA003 A100 Micom Software 1.0.6 DivX (R) VIdeo On Demand

Your registration code is : - - - - - - - to learn more visit www.divx.com/vod

…

œ √

†

ENTER SETUP

Choose OK Exit

Restore Defaults

If you wish, you can reset the DVD Recorder to its original factory settings.

Press [SETUP]. The Setup menu appears. While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup

page.

Use [œ√] to select ‘Restore Defaults ‘.

Press [†].

Use [√] to select ‘Reset‘ and press [ENTER].

• Some options cannot be reset, including Parental Controls, Password, and Country Code.

• After Restoring Defaults the unit reboots automatically and the Installation menu appears. You must set the country, language, channel, and clock settings again.

Restore Defaults

• Default Reset

…

œ √

†

ENTER SETUP

Choose OK Exit

Initial Setup

On-Screen Display Overview

The On-Screen Display provides feedback on the status of the DVD Recorder and/or the currently loaded disc. To access the On-Screen Display (or OSD), press the [DISPLAY] button.

Displaying DVD Information

During disc playback, press [DISPLAY] to show information about the current disc.

Changing menu options in display menu 1

Press [DISPLAY] during playback. The on-screen display appears on the TV screen.

Use [œ √] to select the desired icon on the on-screen display.

Use […†] to change the numbers. Press [ENTER] to confirm.

• Displaying icons on DVD disc Title :

02/17

001/002

0:00:26

Off

Shows the current title number and total number of titles, and skips to the desired title

number.

Chapter :

desired chapter number.

Time Elapsed : Audio :

and changes the setting; AC3 5.1 CH English or AC3 2 CH English

Subtitle :

Repeat :

Shows the current chapter number and total number of chapters, and skips to the

Shows the elapsed playing time, and skips to the desired time.

Shows the current audio soundtrack language, encoding method, and channel number,

Shows the current subtitle language, and changes the setting

Shows the current repeat mode, and changes the setting; Chapter, Title, All or Off

√√

SETUP

A-B Repeat :

Off

Random Repeat :

Off

OSD Language :

Shows the current A-B repeat mode, and changes the setting; A-, A-B or Off

Shows the current random repeat mode, and changes the setting; On or Off

Shows the current OSD language, and changes the setting

• Displaying icons on CDDA disc

Shows the current track number and total number of tracks, and skips to the desired

Track :

01/16

track number.

On-Screen Display Overview

0:00:41

Off

Time Elapsed : Audio Effect :

Sound Effect :

Shows the elapsed playing time, and skips to the desired time.

Shows the current audio effect, and changes the setting; Stereo or Mix-Mono

Shows the current sound effect, and changes the setting; Off, Concert, Living

Room, Hall, Bathroom, Cave, Area or Church

Repeat :

Shows the current repeat mode, and changes the setting; Track, All or Off

A-B Repeat :

Random Repeat :

OSD Language :

Shows the current A-B repeat mode, and changes the setting; A-, A-B or Off

Shows the current random repeat mode, and changes the setting; On or Off

Shows the current OSD language, and changes the setting

Displaying TV Information

On-Screen Display Overview

While watching TV, press [DISPLAY] to display/remove the on-screen display. If no rewritable DVD disc is inserted, you would see a screen like the following: If a DVD+R or DVD+RW disc is inserted, the disc information is displayed at the

first button press. If you press [DISPLAY] again then the TV information is

PR 1 : - - - -

STEREO

12:30

PDC

displayed.

Changing the TV Audio Channel

You can change the TV audio using the [AUDIO] button.

Press [AUDIO] repeatedly to change the TV audio, according to the Broadcast audio signal as shown below.

• STEREO Audio Signal :

• MONO Audio Signal :

• BIL Audio Signal :

The current audio channel is displayed on-screen.

• If the sound is poor quality when set to Stereo, you can often improve it by changing to Mono.

• When an external input is selected, the audio channel can be switched only to Stereo.

Stereo ➝ Mono ➝ Stereo

Mono

BIL1 ➝ BIL2 ➝ BIL1

PLAYBACK

Changing TV Channels

If no disc is playing, you can change TV channels using the [0-9] or [PR+/-] buttons on the remote control or [PR+/–] buttons on the front panel.

DVD Playback

Playing a DVD/VCD

Press [OPEN/CLOSE] to open the disc tray.

Load your disc in the tray with the playback side down (label side up).

Press [OPEN/CLOSE] to close the tray.

‘LOAD’ appears on the front panel display, and playback starts automatically. If playback does not start, press [PLAY (

√

)]. In some cases, the Disc menu might appear instead.

Playing a DVD+R (+RW, -R, -RW)

When a DVD+RW or unfinalized DVD+R (-R, -RW)is inserted, no title is played automatically but the current TV channel displays on the screen.

If you want to play a title on the DVD+R (+RW, -R, -RW), you must press [MENU] or [PLAY] to display the disc menu of a thumbnail index for each recorded title on the disc.

The index picture screen of the title will be displayed. Also title information (name of recording, recorded day, time, recording quality) will be displayed.

Select a title to play using [

If a Disc menu is displayed

• A Disc menu may be displayed when you load a DVD. Use the [œ √…†] buttons to select the title/chapter you

want to view, then press [PLAY] or [ENTER] to start playback. Press [TITLE] or [MENU] to return to the Disc menu.

• If the Parental Level feature is set and the disc is below the current Parental Level setting, the 4-digit code must be entered and/or the disc must be authorized; see ‘Set Parental Level‘ on page 25.

• The DVD Recorder will not play discs with Region codes different from the DVD Recorder. The Region code for this DVD Recorder is 2 (two).

• Unless stated otherwise, all operations described below use the remote control. Some features may also be available in the Setup menu.

• A disc which is recorded by computer at high speeds (greater than or equal to 2x) may not be recognized.

• A disc which is recorded with unauthorized movie material may not be played.

• A disc which is recorded by other recorder or not recorded correctly may not be recognized or played.

…†œ √

] then press [ENTER] or [PLAY].

DVD Playback

Still Picture and Frame-by-Frame Playback

Press [PLAY/PAUSE] during playback. The DVD Recorder will go into Pause mode.

1 2

You can back up or advance the picture frame-by-frame by pressing [FF (√√ )] repeatedly during Pause mode.

Fast Forward/Backward

Press [REW (œœ )] or [FF (√√ )] during playback. The DVD Recorder will go into Search mode.

1 2

Press [REW] or [FF] to select the desired speed: √√ X2, √√ X4, √√ X8, √√ X16, √√ X32, √(forward) or œ

, œœ X2, œœ X4, œœ X8, œœ X16, œœ X32 (backward).

Slow Motion

Press [SLOW+] or [SLOW–] to enter Slow Motion mode. The default speed is 1/2. When you press [SLOW+] or [SLOW–] repeatedly, the speed will be set to 1/4, 1/8, 1/16, and normal speed.

Changing the Audio Language (DVD)

Press [AUDIO] and then press [AUDIO]repeatedly during playback to hear a different audio language or audio track.

Subtitles (DVD)

Press [SUBTITLE] and then press [SUBTITLE]repeatedly during playback to select among all available subtitle languages.

Camera Angle (DVD)

If a DVD contains scenes recorded at different camera angles, angle icon displays automatically. You can select among these angles during playback.

Press [ANGLE] and then press The number of the current angle appears on the TV screen.

The Camera Angle icon is displayed on the TV screen when alternate angles are available.

repeatedly during playback to select the desired angle.

PLAYBACK

Zoom

The Zoom function allows you to magnify the video image and scroll around the enlarged image.

Press [ZOOM] during Play mode to activate the Zoom function. Each press of the [ZOOM] button changes the Zoom level as follows: X1 (normal size) ➝X2 ➝ X3 ➝ X4 ➝

X1/2 ➝ X1/3 ➝ X1/4 ➝ X1 (normal size)

Use the

[œ √…†]

To resume normal playback, press [ZOOM] repeatedly until the X1 (normal picture) appears.

• The Zoom function may not work on some DVDs.

buttons to scroll around the zoomed picture.

DVD Playback

Repeat

To repeat the currently playing chapter, press [REPEAT]. REPEAT CHAPTER appears on the TV screen.

1 2

To repeat the currently playing title, press [REPEAT] a second time. REPEAT TITLE appears on the TV screen.

To repeat the whole disc, press [REPEAT] a third time. REPEAT DISC appears on the TV screen.

You can repeat a scene that starts when ‘Repeat A-‘ displays on the screen. To mark the end point, press [A-B]. Press [A-B] again to repeat the scene.

A-B

You can repeat a scene between two points (A and B):

Press [PLAY/PAUSE] play to the start of the desired scene.

Press [A-B] to mark the start point.

Use [FF], [NEXT] to search the end point.

Press [A-B] to mark the end point.

The marked scenes are repeated continuously until you stop the repeat by pressing [A-B] button again.

Selecting Titles

When a disc has more than one title, you can select among all available titles as follows:

Press [DISPLAY] and use [œ √] to select the Title icon. Use […†] or [0~9] to select the desired title number and press [ENTER] to confirm.

Selecting Chapters

When a title on a disc has more than one chapter, you can select among all available chapters as follows:

Press [PREV (§)] or [NEXT (∞)] briefly during playback to select the next or previous chapter.

To skip directly to any chapter during playback, press [DISPLAY] and use [œ √] to select the Chapter icon. Use […†] or [0~9] to select the desired chapter number and press [ENTER] to confirm.

DVD Playback

Disc Menus

Many DVDs contain Disc menus that allow you to access special features. To open a Disc menu, press [MENU]. Then use the [0-9] buttons to directly select the desired options, or use the […†] buttons to highlight your desired selection and press [ENTER].

Press [MENU]. The Disc menu is displayed.

To exit the Disc menu, press [STOP].

Title Menus

Press [TITLE]. If the current title has a menu, the Title menu will appear on the TV screen. Otherwise, the

Disc menu may appear.

The Title menu may contain camera angles, spoken languages and subtitle options, as well as the chapters for the title.

Digest

For displaying the Digest menu for DVD and VCD discs.

Press [DIGEST]. The Digest menu is displayed.

To exit the Digest menu, press [STOP].

Digest

Title Digest Chapter Digest Title Interval Chapter Interval

…† Select ■ Exit

••• DVD •••

Digest

Track Digest Disc Interval Track Interval

…† Select ■ Exit

••• VCD •••

PLAYBACK

Other Disc Playback

Audio CD/MP3 Playback

The DVD Recorder can play audio CDs and MP3 files.

Insert the disc and close the tray. The Audio CD or MP3 disc menu appears on the TV screen after a few moments to load the disc.

Use […†] to select a track or a file, then press [PLAY] or [ENTER]. During playback, the current track's elapsed playing time will appear on

the menu. Playback will stop at the end of the disc.

On the MP3 disc menu, you can display the folders on the disc. Use […†œ √] to select the folder icon on the MP3 disc menu then press

[ENTER] or [PLAY]. You can also display just the tracks in the folders. Use […†œ √] to select a folder then press [ENTER].

While playing an Audio CD, use [FF] or [REW] for 2X, 4X, 8X, 16X, 32X speed playback.

Use [PLAY/PAUSE] to pause playback while the disc is playing.

To stop playback at any time, press [STOP].

• Press [REPEAT] to repeat a track (file) and press again to repeat the whole disc.

••• MP3 •••

JPEG CD Playback

The DVD Recorder can display JPEG files.

Insert your disc and close the tray. The JPEG disc folder tree appears.

If there are folders which contain JPEG files, select the desired folder using [

…†œ √

Select the thumbnail you want to display using [ [ENTER].

The full size image will be displayed and a slide show starts automatically with a time interval of 10 seconds.

] and press [ENTER].

…†œ √

] and press

Press [NEXT] or [PREV] to manually skip to the next or previous image.

Press [√] (or [œ]) to rotate the image (counter) clockwise.

Press [STOP] to exit the slideshow.

• The DVD Recorder can playback up to 1000 files per disc.

• MP3 files encoded below 64kbps are not supported.

Playing MP3 Files During a Slide Show

You can enjoy a slide show while listening to MP3 music files.

Prepare a disc which includes both MP3 and JPEG files.

Insert the disc and play an MP3 file.

Select an image file and press [ENTER] to start the slide show.

The MP3 file you selected continues to play during the JPEG slide show.

Other Disc Playback

PLAYBACK

Basic Recording

Recording from TV

Follow the instructions below to record a TV program.

Turn on the DVD Recorder and load a recordable disc.

Make sure your TV input is set to view the DVD Recorder.

Set the desired Recording mode by pressing [REC MODE] repeatedly.

HQ (High Quality - 1 hr/disc), SP (Standard Play - 2 hrs/disc), EP (Extended Play - 4 hrs/disc), or SEP (Super Extended Play - 8 hrs/disc).

If your DVD Recorder does not show a TV program, press [INPUT] on the remote control. Use [PR +/–] to select the TV channel you wish to record.

Press [AUDIO] to select the audio channel to record (Stereo, BIL, or Mono).

The table below shows what audio channel will be recorded with different settings and different types of broadcasts.

The last column (Monitor Audio) shows what you will hear during recording. For example, if the TV broadcast is in Stereo, then setting the DVD Recorder to Stereo will record the broadcast in Stereo, and the Monitor Audio will also be in Stereo.

TV Broadcast

MONO MONO MONO MONO MONO

STEREO

BIL

Press [REC (●)] once.

Recording will start. The REC indicator lights on the front panel display. Recording continues until you press [STOP] or the disc is full. To record for a fixed length of time, see One Touch Record on the next page.

Press [STOP (■)] to stop recording.

• The maximum number of DVD titles per disc is 49. If the DVD Recorder is powered off during DVD recording, the recording will not be saved.

• If a DVD+RW or unfinalized DVD+R (-R, -RW) disc is inserted in the tray, no title is played automatically after loading is finished.

• If you are recording to a blank DVD+R (+RW, -R, -RW) disc, it may take up to 7 minutes for initial processing after disc loading. Also, it may take up to 5 minutes for post processing after recording.

Selected Audio

STEREO L R STEREO

MONO MONO MONO MONO

BIL I BIL I BIL I BIL I

BIL II BIL II BIL II BIL II

Broadcast Audio Monitor

L Ch R Ch Audio

Basic Recording

One Touch Record (OTR)

One Touch Recording allows you add recording time in fixed increments at the touch of a button.

Follow steps 1-4 under Recording from TV.

Press [REC (●)] repeatedly to set the length of the recording.

Recording starts after the first press. Each subsequent press increases the recording time by 30 minutes within the available space. The recording time is displayed on the front panel display.

Checking the Recording Time

Recorded time and remaining time are displayed on the TV screen after pressing [DISPLAY] during recording.

To Pause the Recording

Press [PLAY/PAUSE] to pause the disc during recording.

When you want to continue recording, press [PLAY/PAUSE] or [REC (●)].

Note

• To quit One Touch Recording, press [STOP].

• The DVD Recorder will automatically power off when One Touch Recording ends.

RECORDING

Timer Recording

Timer Recording using Manual Set Record Screen

The Timer Recording function allows you to record up to 8 programs within a period of one month.

Insert recordable media such as DVD±R ,DVD±RW.

Press [TIMER].

Press [SETUP] and select ‘Timer Rec’. Then press [ENTER].

The ‘Timer Recording’ menu appears.

Select ‘Manual’ with […†] and confirm with [ENTER].

If you did not set the clock on the DVD Recorder, you must do so before programming a timer recording.

DVD Recorder Init Setup ➞

Timer Rec

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

Timer Recording

Move

…†

Confirm

ENTER

Manual

ShowVIew

Enter the necessary information for your Timer Recording(s).

• PR No. – Choose the desired channel, or one of the external inputs from

Timer Recording

PR No Date Start Stop Media Repeat Mode

1/1 1:00AM 2:00AM CH2 DVD Once SP

New Input

01/01 00:13:23

which to record.

• Date – Choose a date up to 1 month in advance, or select a daily or weekly program.

■

• Start – Set the recording start time.

• Stop – Set the recording end time.

• Repeat – Choose frequency of the recording. Once, Daily, Weekly, Weekday.

• Title - Enter into title edit mode pressing [●].

• Mode – Choose a Record mode. HQ, SP, EP or SEP

[œ √] – Moves the cursor left/right.

PR No. Date Start Stop Repeat

PR 4 1 / 1 00 : 14 01 : 14 Once

Media Title Mode

DVD TITLE PR 4 SP

SETUP

[…†] – Changes the setting at the current cursor position. Press [SETUP] to exit the Timer Record menu. Press [ENTER] after filling in all the program information. Press [TIMER] to display the Timer Record List.

Press [ENTER] to save the program.

The Timer Record List will appear.

Press [SETUP] or [TIMER] to exit the Timer Record List.

Timer indicator will light or blinking. Power Off the DVD Recorder to start the Timer Recording.

PR No. Date Start Stop Repeat

PR 4 1 / 1 00 : 14 01 : 14 Once

Media Title Mode

DVD TITLE PR 4 SP

ENTER SETUP

ENTER TIMER

Delete Edit Exit Prev Page Next Page

0-9 ENTER

∞

Timer Recording

…

†

Sat

Input digits Confirm Exit

Timer Recording

Sat

Confirm Edit Exit

●

01/01 00:13:23

Timer Recording

• The Timer indicator lights on the front panel display when the DVD Recorder is ready for the Timer Recording.

• The DVD Recorder will record the audio according to the current TV tuner setting (Stereo, Mono or BIL). Use the [AUDIO] button to set the audio before switching the DVD Recorder to Standby mode.

• The DVD Recorder will automatically power off when the Timer Recording ends.

• There is a short delay when a timer recording finishes to confirm the recorded program. If two timer recordings are set to record sequentially (one right after the other), the very beginning of the later program may not be recorded.

Timer Recording using ShowVIew system

Thanks to this programming system, you no longer need to tediously enter the date, programme number, start and end time. All the information needed by the DVD recorder for programming is contained in the ShowVIew programming number. This ShowVIew number is found in most TV listings.

Insert recordable media such as DVD±R ,DVD±RW.

Press [TIMER].

Press [SETUP] and select ‘Timer Rec’. Then press [ENTER].

The ‘Timer Recording’ menu appears.

Select ‘ShowVIew’ with [

…†

] and confirm with [ENTER].

…†

ENTER

The ‘ShowVIew’ menu appears. Enter the entire ‘ShowVIew’ number. This number is up to 9 digits long and

can be found next to the start time of the TV programme in your TV listings magazine.

e.g.: 5-234-89 or 5 234 89 Enter 523489 for the ‘ShowVIew’ number. If you make a mistake, you can clear it with [STOP].

Press [ENTER] to confirm.

The decoded information appears after confirmation. You can go back at any time to change the information by pressing [ENTER]. Select the appropriate input field using […†]. If required, change the information using […†].

If all the information is correct, press the [ENTER] button. The programming information is stored in a TIMER block.

Press [SETUP] to exit the Timer Record List.

Timer indicator will light or blinking. Power Off the DVD Recorder to start the Timer Recording.

PR No Date Start Stop Media Repeat Mode

PR 1 16/1 11:02 12:00 DVD Once SP

ShowVIew is not available for some countries.

Timer Recording

Manual

ShowVIew

Move Confirm

Timer Recording

Code 1111

Media DVD

Mode SP

Repeat Once

0-9 ENTER

Input digits Confirm

SETUP

PR No Date Start Stop Repeat PR 1 16 / 1 11 : 00 12 : 00 Once

Media Title Mode

DVD TITLE PR 1 SP

0-9 ENTER

SETUP

■

Exit Clear All

Timer Recording

…

†

Sun

Input digits Confirm Exit

Timer Recording

New Input

01/01 00:13:23

RECORDING

01/01 00:13:23

■

ENTER TIMER

Delete Edit Exit Prev Page Next Page

∞

Timer Recording

Canceling a Timer Recording

You can clear a Timer Recording any time before the recording actually starts.

• Use […†] to select the program you want to erase on the Timer Recorder List. Press [■STOP] to delete the program.

Stopping a Timer Recording in Progress

After a Timer Recording has started, you can still cancel the program by pressing [■STOP].

Timer Recording Troubleshooting

Even if a Timer Recording is set, the DVD Recorder will not record if:

• No disc is loaded.

• A non-recordable disc is loaded.

• Disc is protected in the ‘Disc Operation’ menu; see page 44.

• There are already 49 titles recorded on the disc.

You cannot enter a Timer Recording if:

• A recording is already under way.

• The start time has already passed.

• Eight Timer Recordings have already been set.

If two or more Timer Recordings overlap:

• You should set only one Timer Recording.

• You can choose replace old Timer Recording or not.

• Only one Timer recording will work.

Confirmation is not possible when:

• Disc is protected in the ‘Disc Operation’ menu; see page 44.

• There are already 49 titles recorded on the disc.

Timer Recording Recording time is overlapped with existing entry.

OK Cancel

If the disc is damaged, the recording may not complete successfully, even if the Check field shows ‘Rec. OK‘.

Recording from an External Input

Recording from External Components

You can record from an external component, such as a camcorder or VCR, connected to any of the DVD Recorder’s external inputs.

Make sure the component you want to record from is connected properly to the DVD Recorder; see pages 11 and 14.

Use [PR+/–] or [INPUT] to select the external input to record from.

• Tuner : Built-in tuner

• F-AV : Audio/Video on front panel

• AV1, AV2 : Audio/Video Input on back panel

• DV : DV input on front panel.

Load a recordable disc.

Set the desired Recording mode by pressing [REC MODE] repeatedly.

HQ (High Quality - 1 hr/disc), SP (Standard Play - 2 hrs/disc), EP (Extended Play - 4 hrs/disc), or SEP (Super Extended Play - 8 hrs/disc).

Press [REC (●)] once.

Recording will start. The REC indicator lights on the front panel display. Recording continues until you press [STOP] or the disc is full. To record for a fixed length of time, see ‘One Touch Record‘ on page 39.

Press [STOP (■)] to stop recording.

Note

If your source is copy-protected, you will not be able to record it using the DVD Recorder. See ‘Copyright Notice‘ on page 4 for more details.

RECORDING

Disc Operation

Disc Initialize

• If you load a blank DVD±R (±RW) disc, it will be initialized (formatted to enable recording).

• Do not start recording until disc initialization is complete.

• If you load a DVD±RW that has already been used you can record a program immediately.

Disc Operation in DVD±RW disc

For recordable DVD media, such as DVD±R and DVD±RW discs, you can manage the disc using the Disc Menu. The DVD±RW Disc Menu allows you to erase, lock, or unlock your disc. You can also make it compatible with

most other DVD players.

At first, go to Disc Operation mode.

Press [SETUP]. The Setup menu appears.

While ‘Disc Oper‘ is selected, press [ENTER] to go to the Disc Operation page.

Erase the disc (DVD±RW)

Use […†] to select the ‘Erase’ menu.

3 4

If you want to erase the whole disc, press [ENTER].

To confirm, select ‘OK‘. To cancel, select ‘Cancel‘. If you select ‘OK‘ and press [ENTER], all the contents of the disc will

be lost.

DVD Recorder Init Setup ➞

Disc Oper

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

Erase Finalise Protect Make Comp Adapt Disc Info

_ Exit

Disc Oper

Erase

…†

ENTER SETUP

OK Cancel

Select OK Exit

Erase this disc?

Protect Disc (DVD±R, DVD±RW)

If you want to protect a disc from accidental recording, editing, or erasing, you can lock the disc. Later, if you change your mind, you can unprotect the disc.

Use […†] to select ‘Protect’ menu.

If you want to protect the whole disc, press [ENTER].

To confirm, select ‘OK‘. To cancel, select ‘Cancel‘. If you select ‘OK‘ and press [ENTER], all the contents of the disc will be protected.

Erase Finalise Protect Make Comp Adapt Disc Info

_ Exit

Disc Oper

Protect

…†

Select

ENTER

SETUP

Exit

Protect this disc?

OK Cancel

Make Compatible (DVD±RW)

'Make Compatible' for a DVD±RW will automatically create a menu screen for navigating the disc. This menu screen is accessible by pressing [MENU] or [TITLE].

Press […†] to select ‘Make Compatible‘.

If you want to make the disc compatible, press [ENTER].

To confirm, select ‘OK‘. To cancel, select ‘Cancel‘. If you select ‘OK‘ and press [ENTER], your disc will be make compatible.

Erase Finalise Protect Make Comp Adapt Disc Info

_ Exit

Disc Oper

Make Comp

…†

ENTER SETUP

OK Cancel

• ‘Make Compatible’ can take up to 3-4 minutes depending on the type of disc, how much is recorded on the disc, and the number of titles on the disc.

• If you do not make your DVD±RW disc compatible, your edits will not be recognized by other DVD players.

Adapt

DVD recorder from different manufacturer has its unique Disc menu structure. When recordable DVD disc is recorded in other brand DVD recorder, the Disc has different Disc menu structure from DAEWOO DVD recorder. So, the Disc menu should be changed to DAEWOO Disc menu to be compatible with DAEWOO DVD Recorder. It is called Adapt function. After Adapt function is completed, recorded title contents are exactly same, but only Disc menu is changed.

Use […†] to select ‘Adapt’ menu.

If you want to adapt the whole disc, press [ENTER].

To confirm, select ‘OK‘. To cancel, select ‘Cancel‘. If you select ‘OK‘ and press [ENTER], the disc will be adapted.

Erase Finalise Protect Make Comp Adapt Disc Info

_ Exit

Disc Oper

Adapt?

…†

ENTER SETUP

OK Cancel

Disc Operation

Select OK Exit

Make compatible?

Select OK Exit

Adapt this disc?

Information

Press […†] to select ‘Disc Info’.

3 4

The Disc Info Menu shows you disc information, such as disc type, number of recordings, total titles, free space, etc.

Erase Finalise Protect Make Comp Adapt Disc Info

_ Exit

MY_DVD 4

Label

DVD - RW

Media

Recordable (PAL)

Status

Title NO.

Disc Oper

…†

ENTER SETUP

Disc Info

Select OK Exit

80/4423MB

Remainder

HQ : 62 (M) SP : 121 (M) EP : 243 (M) SEP : 478 (M)

DISC OPERATION&EDIT

Disc Operation

Disc Operation in DVD±R, DVD-RW disc

For recordable DVD media, such as DVD±R and DVD±RW discs, you can manage the disc using the Disc Menu. The DVD±R, DVD-RW Disc Menu allows you to rename your disc or finalize it so it will be compatible with most

other DVD players.

At first, go to Disc Operation mode.

Press [SETUP]. The Setup menu appears.

While ‘Disc Oper‘ is selected, press [ENTER] to go to the Disc Operation page.

Finalise (DVD±R, DVD-RW)

Finalizing a DVD±R, DVD-RW ‘locks’ its recordings in place so the disc can be played on most standard DVD players or computers equipped with DVD-ROM drives.

Use […†] to select ‘Finalise’ menu.

If you want to finalize the whole disc, press [ENTER].

To confirm, select ‘OK‘. To cancel, select ‘Cancel‘. If you select ‘OK‘ and press [ENTER], the disc will be finalized.

• Once you have finalized a DVD±R, DVD-RW disc, you cannot edit or record anything else on that disc.

• It may take over 7 minutes for finalizing the edited disk, you'd better wait till the set finish the finalizing operation.

• ‘Finalise’ can take up to 3-4 minutes depending on the type of disc, how much is recorded on the disc, and the number of titles on the disc.

Erase Finalise Protect Make Comp Adapt Disc Info

_ Exit

Disc Oper

Finalise

…†

Select

ENTER

SETUP

Exit

Finalise this disc?

OK Cancel

Disc Edit

Title Menu

You can manage the titles on your DVD±R/±RW discs using the Title menu.

At first, go to Disc Edit mode.

Press [SETUP]. The Setup menu appears.

While ‘Disc Edit‘ is selected, press [ENTER] to go to the Disc Edit page.

Label a Title

To change the name of a title:

Select the title to be labeled using [ENTER].

Select ‘Label’ using [

Press [ENTER] to change the title name.

The Keyboard Menu will be displayed. Use [ character or function and press [ENTER].

After the new title name is complete, select ‘OK’ and press [ENTER].

Erase a Title

Select the title to be erased using [ENTER].

3 4

Then select ‘Erase‘ using [

Press [ENTER] to erase the title.

Select 'OK' and press [ENTER] to confirm.

The Erase Title progress bar will be displayed. This may takes several seconds.

After erasing is complete, the erased title remains as an empty title.

You can erase titles on DVD±RW discs only.

œ √…†

] .

œ √…†

] to select a

DVD Recorder Init Setup ➞

Disc Edit

œ √

Select

Init Setup Disc Oper Disc Edit Timer Rec

Edit

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

…

œ √

†

SETUP

Select Exit Confirm Prev Page Next Page

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

œ √

TITLE PR 3

a b c d e f g h i j k l m n o p q r

x y z _ - Backspace

0-9

§ ∞

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

œ √

∞

Edit

… †

SETUP

Select Exit Confirm Prev Page Next Page

∞

Label

Space s t u v w

A a Symbol

Input digits Backspace Select

œœ

Prev Page Next Page

Edit

… †

SETUP

Select Exit Confirm Prev Page Next Page

∞

Erase

ENTER

œ √

ENTER

Erase the title(s)?

OK Cancel

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

Clear

Cancel

… †

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

DISC OPERATION&EDIT

Divide (DVD±RW)

This feature allows you to divide a title into two titles.

Select the title to be divided using [ENTER].

Select ‘Divide’ using [

Press [ENTER] to divide the title.

œ √…†

] .

Then Divide title menu is displayed and selected title is played.

Select 'No. 02' and press [ENTER] to divide.

Select 'Divide' and press [ENTER] to confirm.

It may take a few minutes to divide the title.

Protect

If you want to protect a title from accidental recording, editing, or erasing, you can lock the title. Later, if you change your mind, you can unprotect the title.

Select the title to be protected using [ENTER].

Select ‘Protect’ using [

Press [ENTER] to protect the title.

Select 'OK' and press [ENTER] to confirm.

The Protect Title progress bar will be displayed. This may takes several seconds. Protect icon ‘ ’ will appear in front of Title name.

œ √…†

] .

Edit

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

…

œ √

†

SETUP

Select Exit Confirm Prev Page Next Page

Title No. 01 Title No. 02

œ √

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

œ √

∞

Divide title

√

TITLE PR 3 01:22

≈

… †

EDIT

Select Exit

Please wait....

Edit

… †

SETUP

Select Exit Confirm Prev Page Next Page

∞

Protect

OK Cancel

Please wait....

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

ENTER

Divide

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

ENTER

Protect the title(s)?

Protect

Disc Edit

00:00:16

No. 01

No. 02

Divide

Finish

Edit

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

…

œ √

†

SETUP

Select Exit Confirm Prev Page Next Page

∞

Label Erase Divide Unprotect Chap Edit Index Pic

_ Exit

ENTER

Edit Chapters

Select the title to be edited using [ENTER].

3 4

Select ‘Chap Edit’ using [

Press [ENTER] to edit the chapters.

The Chapter Edit Menu will be displayed. Use [

œ √…†

] .

œ √…†

] to select one of the various chapter marker functions (Add Mark, Del Mark, or Hide).

Press [SETUP] to exit. Or select ‘Exit’ and press [ENTER].

Add/Delete a Marker

You can add a chapter marker anywhere in a title during playback. Once the chapter is marked, you can use the chapter search feature as

described above. You can add/delete chapter markers or delete all chapter markers in a

title.

Hide Chapters

This feature allows you to hide or unhide a chapter. After hiding a chapter, the chapter is not deleted but only hidden. If a chapter is hidden then it shows ‘Unhide‘ and vice versa.

Change Index Picture

Each title displayed in the Playlist menu is represented by a thumbnail picture taken from the start of that title or chapter. If you prefer, you can select a different still picture from within the title.

Select the title to be edited using [ENTER].

Select ‘Index Pic’ using [

Press [ENTER] to change the index picture.

Press [REC] when the preferred picture is on your TV screen.

œ √…†

] .

Edit

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

…

œ √

†

SETUP

Select Exit Confirm Prev Page Next Page

1 Hide

œ √

TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 3 01:22 01 / 01 / 06 SP TITLE PR 4 01:25 01 / 01 / 06 SP

œ √

∞

Chap Edit

… †

SETUP

Select Exit Confirm Prev Page Next Page

∞

Chap Edit

… †

SETUP

Select Exit Confirm Prev Page Next Page

∞

Edit

… †

SETUP

Select Exit Confirm Prev Page Next Page

∞

ENTER

Disc Edit

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

Title

Play

Add Mark

Del Mark Unhide

_ Exit

Title Play Add Mark

Del Mark

Hide

_ Exit

Label Erase Divide Protect Chap Edit Index Pic

_ Exit

DISC OPERATION&EDIT

Edit

●■

Cancel Set index picture

TT : 03 CH : 01 Time 00:00:07

Troubleshooting

Check the following guide for the possible cause of a problem before contacting customer support.

Symptom Cause Solution

No power.

No picture.

No sound.

Playback picture is poor. DVD Recorder does not start playback.

Picture from external input is distorted.

Some channels are skipped over when using [PR+/–]. Picture or sound of broadcasting channel is weak or missing. Camcorder image not shown. Camcorder image via A/V input to DVD Recorder is not shown on TV screen.

The power cord is disconnected.

The TV is not set to receive DVD Recorder signal output.

The video cable is not connected securely. The TV power is turned off. The equipment connected with the audio cable is not set to receive DVD Recorder signal output. The audio cables are not connected securely. The power on the equipment connected with the audio cable is turned off. The audio cables are damaged. The disc is dirty. No disc is inserted.

An unplayable disc is inserted.

The disc is placed upside down.

The disc is not placed within the guide. The disc is dirty. The Parental Control level is set.

The video signal from the external component is copy-protected.

The skipped channels were deleted with the ‘Adjust Channels’ menu. Antenna or cables are loose. Wrong Tuning Band is selected in the DVD Recorder Setup menu. Camcorder is off. DVD Recorder’s source is not set to AV1, AV2, AVF, or DV.

Plug the power cord into the wall outlet securely. Select the appropriate video input on the TV so the picture from the DVD Recorder appears on the TV screen. Connect the video cable securely.

Turn on the TV. Select the correct input mode on the audio receiver so you can listen to the sound from the DVD Recorder. Connect the audio cables securely.

Turn on the equipment connected with the audio cable.

Replace with new ones. Clean the disc. Insert a disc. (Check that the disc indicator on the front panel display is lit.) Insert a playable disc. (Check the disc type, color system, and regional code.) Place the disc with the playback side down. Place the disc on the disc tray correctly inside the guide. Clean the disc. Cancel the Parental Control function or change the rating level. You cannot connect via the DVD Recorder. Connect the component directly to your TV. Use the ‘Auto Scan’ menu to restore channels. See ‘Auto Scan‘ on page 19. Tighten connections or replace cable. Try all ‘Tuning Band‘ options; see page 17 for details. Turn camcorder on and operate properly. Use [INPUT] to select AV input channel (AV1, AV2, AVF, or DV).

Symptom Cause Solution

Can’t play disc recorded on this DVD Recorder on another DVD player.

Cannot record or did not record successfully.

Timer Recording not possible.

Stereo Audio Record and/or Playback not present.

Remote control does not work properly.

The disc was not finalized (or not made compatible if using a DVD+RW). Some players will not play even a finalized disc. Discs recorded with copy-once material cannot be played on other players. The remaining blank space on the disc is insufficient. The source you are trying to record is copy-protected. When setting the recording channel, the channel is tuned on your TV’s tuner. Clock in DVD Recorder is not set to correct time. Timer has been programmed incorrectly. TIMER indicator light does not appear after programming timer. TV is not Stereo-compatible. Broadcast program is not in stereo format. DVD Recorder A/V Out jacks are not connected to TV A/V In jacks.

DVD Recorder Audio/Video Out is not selected for viewing at the TV. DVD Recorder’s TV audio channel is set to BIL or MONO. The remote control is not pointed at the remote sensor of the DVD Recorder. The remote control is too far from the DVD Recorder. There is an obstacle in the path of the remote control and the DVD Recorder. The batteries in the remote control are dead.

Finalise the disc; see page 46.

No solution.

Use another disc.

You cannot record the source.

Select the channel on the DVD Recorder’s built-in TV tuner.

Set clock to correct time. See ‘Set Clock‘ on page 19. Reprogram Timer. See ‘Timer Recording‘ on page 40~42. Reprogram Timer.

No solution. No solution.

Make A/V connections. Stereo is available only via A/V output from DVD Recorder. Select AUX or A/V source as TV input. Set TV audio channel mode to Stereo. See ‘Changing the TV Audio Channel‘ on page 31. Point the remote control at the remote sensor of the DVD Recorder.

Operate the remote control within 23 ft (7m). Remove the obstacle.

Replace the batteries.

Troubleshooting

REFERENCE

Troubleshooting

Moisture Condensation

Moisture condensation can occur: In locations where moisture condensation may occur:

When the DVD Recorder is moved from a cold place to a warm place.

Under extremely humid conditions.

Keep the DVD Recorder plugged into an AC power outlet with the power on. This will help prevent condensation.

When condensation has occurred, wait a few hours for the DVD Recorder to dry before using it.

Technical Specifications

General

Power requirements 100–240V~, 50/60 Hz

Power consumption Maximum 23W

Dimensions (approx.) 420*50*319 mm (w*h*d)

Mass (approx.) Net : 3.27kg, Gross : 4.17kg

Operating temperature 5°C to 35°C

Operating humidity 5% to 90%

Signal system PAL

Recording

Recording formats DVD Video Recording, DVD-VIDEO

Recordable discs DVD+R, DVD+RW, DVD-R, DVD-RW

Recordable time Approx 1 Hour (HQ mode), 2 Hours (SP mode), 4 Hours (EP mode),

Video recording format Audio recording format

8 Hours (SEP mode) Sampling frequency : 27MHz, Compression format : MPEG 2 Sampling frequency : 48kHz, Compression format : MPEG1 Layer2

DVD Specifications

Laser system Semiconductor laser, wavelength 650 nm

Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz

Signal-to-noise ratio More than 90 dB ❚ Harmonic distortion Less than 0.06%

Dynamic range More than 90 dB

Inputs

ANTENNA IN Antenna or CATV input, 75Ω

VIDEO IN 1.0 Vp-p, 75Ω, sync negative, RCA jack x 1, SCART jack x 2

AUDIO IN -8.8 dBm, More than 47k, RCA jack (L, R) x 1, SCART jack (L, R) x 2

DV IN 4 pin (i.LINK/IEEE 1394 standard)

Outputs

VIDEO OUT 1.0 Vp-p, 75Ω, sync negative, SCART jack x 1

COMPONENT VIDEO OUT (Y) 1.0 Vp-p, 75Ω, negative sync, RCA jack (Y) x 1

(Progressive Scan) (Pb)/(Pr) 0.7 Vp-p, 75Ω, RCA jack (Pb, Pr) x 1

AUDIO OUT Digital audio : (Coaxial) 0.5 Vp-p, 75Ω, RCA jack x 1

Analog audio : 1.1 Vrms (1kHz, -6dB), 600Ω, RCA jack (L, R) x 1

Accessories

RF Coaxial Cable ..................................... 1

Remote control ....................................... 1

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

DTS and DTS Digital Out are registered trademarks of Digital Theater Systems, Inc.

Batteries ................................................. 2

Design and specifications are subject to change without notice.

REFERENCE

IMPORTANT

’

EAR

ANUFACTURER

OUR

UARANTEE

SERIAL No.

Please keep this with your purchase receipt, which

will be required if service is needed on this product

during the guarantee period.

MODEL No.

KEEP THIS SECTION FOR FUTURE REFERENCE

DATE OF PURCHASE

TEAR

OFF HERE

TODAY

AND RETURN

DAE REG / 295

GUARANTEE REGISTRATION

REGISTERING YOUR NEW DAEWOO PRODUCT

INITIALS

SURNAME

TOWN

To register you product for its 12 month guarantee please complete and return the section below.

NUMBER/HOUSE NAME/STREET

MRS

DATE OF PURCHASE

POSTCODE

PRODUCT DETAILS

COUNTRY

PRODUCT VALUE

SERIAL No.

MODEL No.

PRODUCT DESCRIPTION

details writes to Domestic & General Insurance Co.

NAME OF RETAILER

On the expiry date of the manufacturer’s guarantee you will be sent details of our annual insurance plan but if you have already bought an extended warranty

for this product from your retailer please tick box

The information provided will be held on computer by the DAEWOO Registration Department of Domestic & General Insurance Co. Limited for the provision

of warranty insurance or product related purposes.

The information will not be disclosed to third parties, should you prefer not to receive product related

Limited, on the address overleaf.

bulbs.

The product must be correctly installed and operated in accordance

with the instructions contained in the manual. It must be used solely

for domestic purposes. For further information regarding your

guarantee please see the section at the rear of your user manual.

The guarantee will be rendered invalid if the product is resold or has

been damaged by inexpert repair.

DAEWOO disclaims any liability for incidental or consequential

damages.

The guarantee is in addition to and does not diminish your statutory

or legal rights.

In the event of a breakdown please refer to your instruction manual

and check all plugs, fuses and electricity supply.

In the event of there being no breakdown you will be charged for

the repair.

DAEWOO GUARANTEE CONDITIONS

This product is guaranteed for 12 months from the date of original

purchase. Any defect that arises due to faulty materials or

workmanship will be repaired free of charge during this period by

the dealer from whom you purchased the unit. The guarantee is

subject to the following provisions.

The guarantee does not cover accidental damage, misuse, cabinet

parts, knobs or consumable items such as batteries, drive belts or

DAEWOO GUARANTEE DEPARTMENT

Leicester House

17, Leicester Street

Bedworth

Nuneaton

Warwickshire CV12 8JP

STAMP

HERE

AFFIX

Daewoo DR-4700P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
