Daelim DELFINO User Manual

OWNER'S MANUAL

SPECIFICATION
OPERATION INSTRUCTION

Safety Precautions

Prior to Starting Vehicle

Correct Attire

Operation

Cargo

Modification

Muffler

Parts Location

Meter Reading and Usage

Meter

Warning and Indicator Lamps

Switch Operation

Main Switch

Starter Button

Headlight

Winker Switch

Horn Button

Equipment Usage

Handle Bar Lock

Seat Lock

Front Under Cover

Trunk

Document Storage Area

Bag Holder

Brake Lock Lever

Correct Driving Operation

Starting the Engine

If Engine cannot be Started

After Starting Engine

Proper Driving Methods

Stopping

Self Inspections before Operation

Inspection of Concerned Area

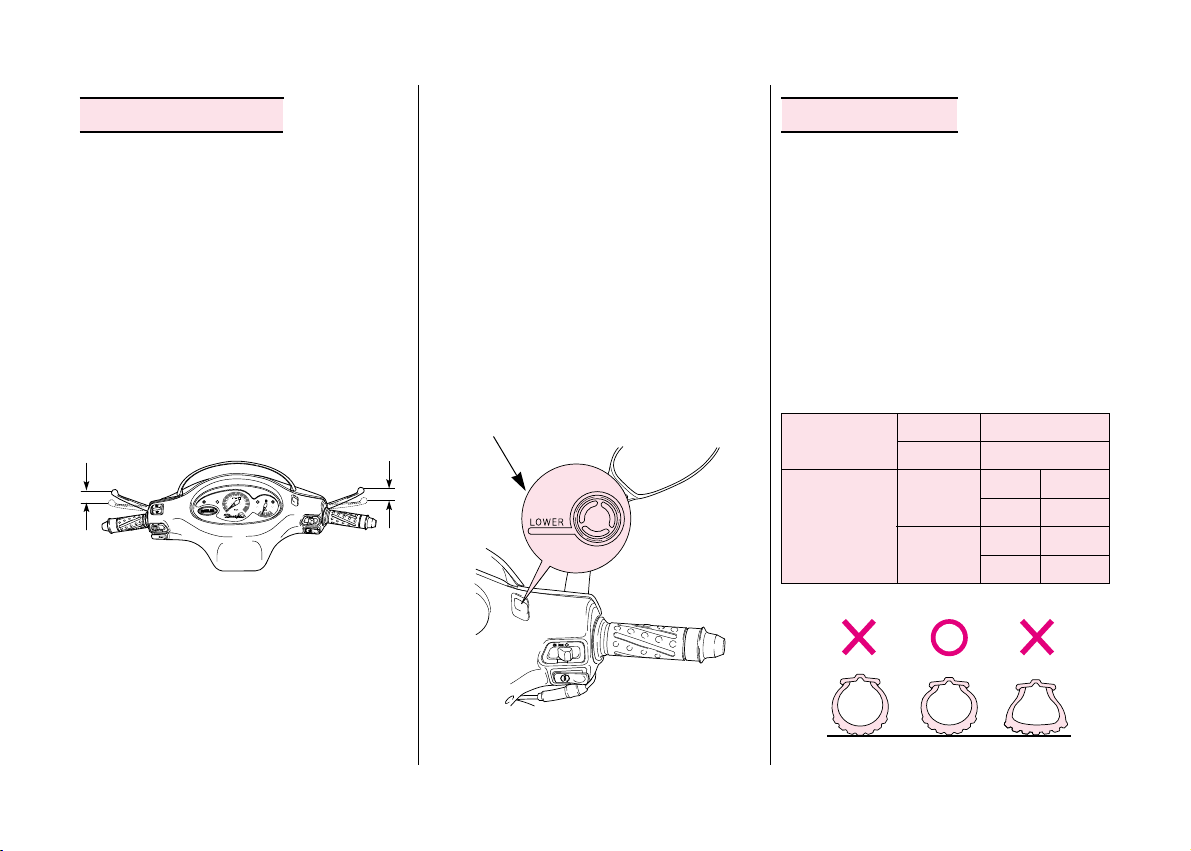

Brake Inspection

Tire Inspection

Fuel Check

Engine Oil Check

Lights and Winker Inspection

Back Mirror Inspection

Fuel Leak Inspection

1

CONTENTS

3

4

4

5

5

6

6

7

7

8

10

10

10

11

11

11

12

12

13

13

13

14

14

15

16

16

16

17

18

20

20

21

23

24

25

26

26

28

29

29

29

29

2

License Plate Inspection

Regular Inspection

Regular Inspection Times

Simple Maintenance

Brake Lever Adjustment

Rear Brake Shoe Inspection

Replenishing Brake Fluid

Brake Hose, Pipe Leakage, Damage, Assembly State

Brake Pad Inspection

Replenishing Engine Oil

Transmission Oil Inspection

Wheel Removal

Bulb Replacement

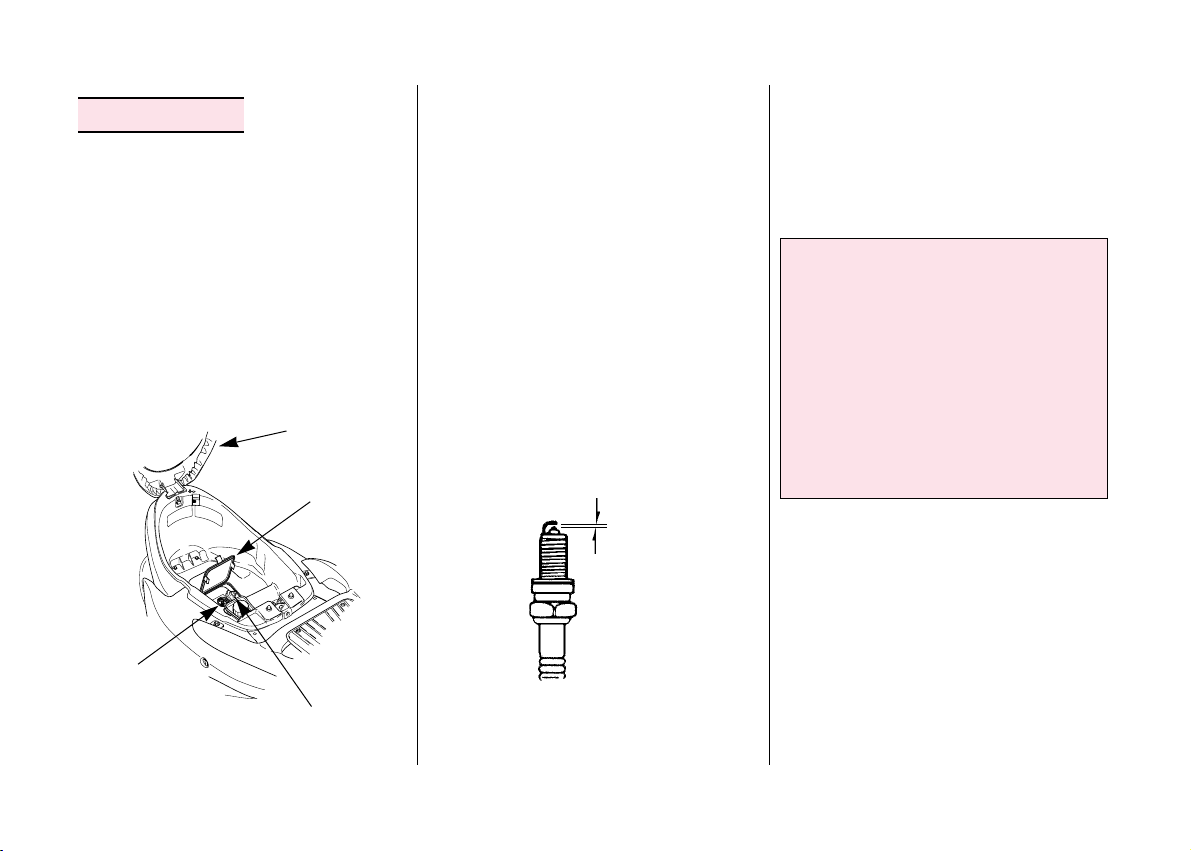

Spark Plug

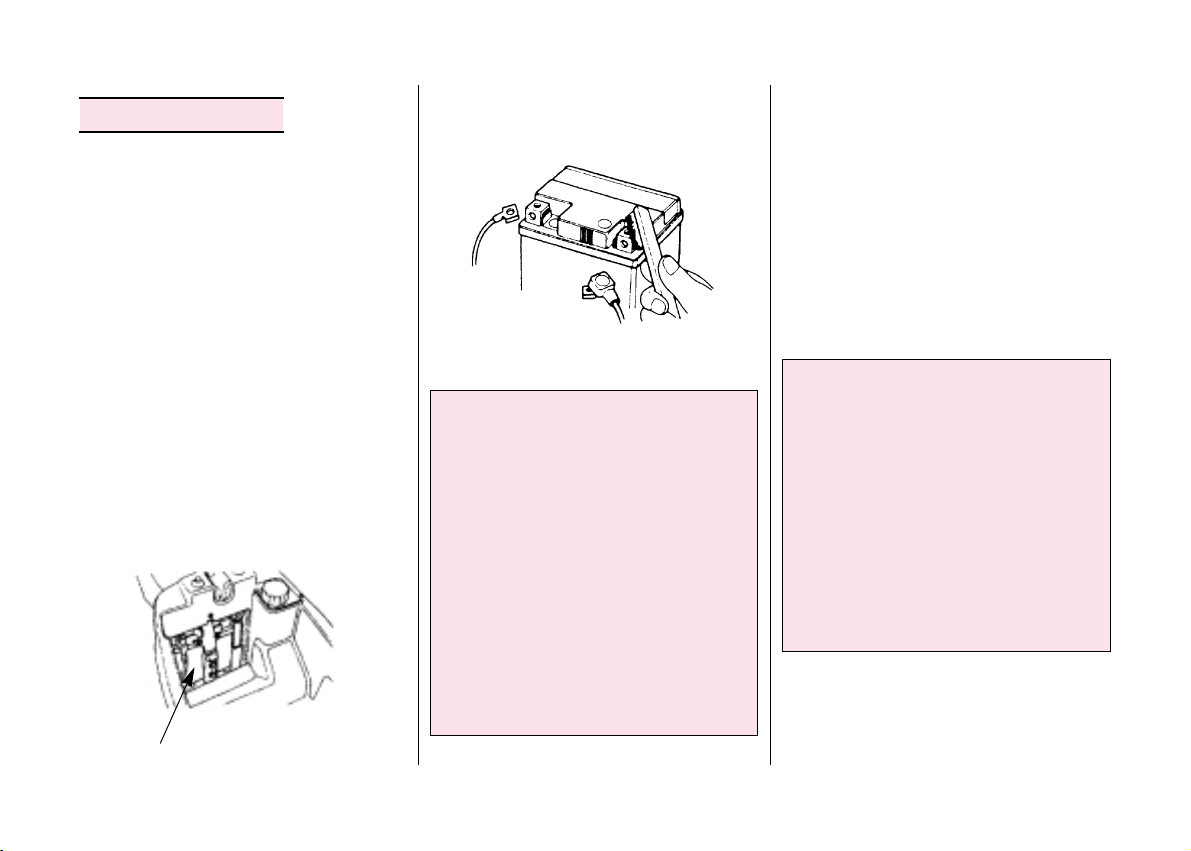

Battery Inspection

Changing Fuse

Air Cleaner Element Inspection

Inspection of Cable Rubber Part

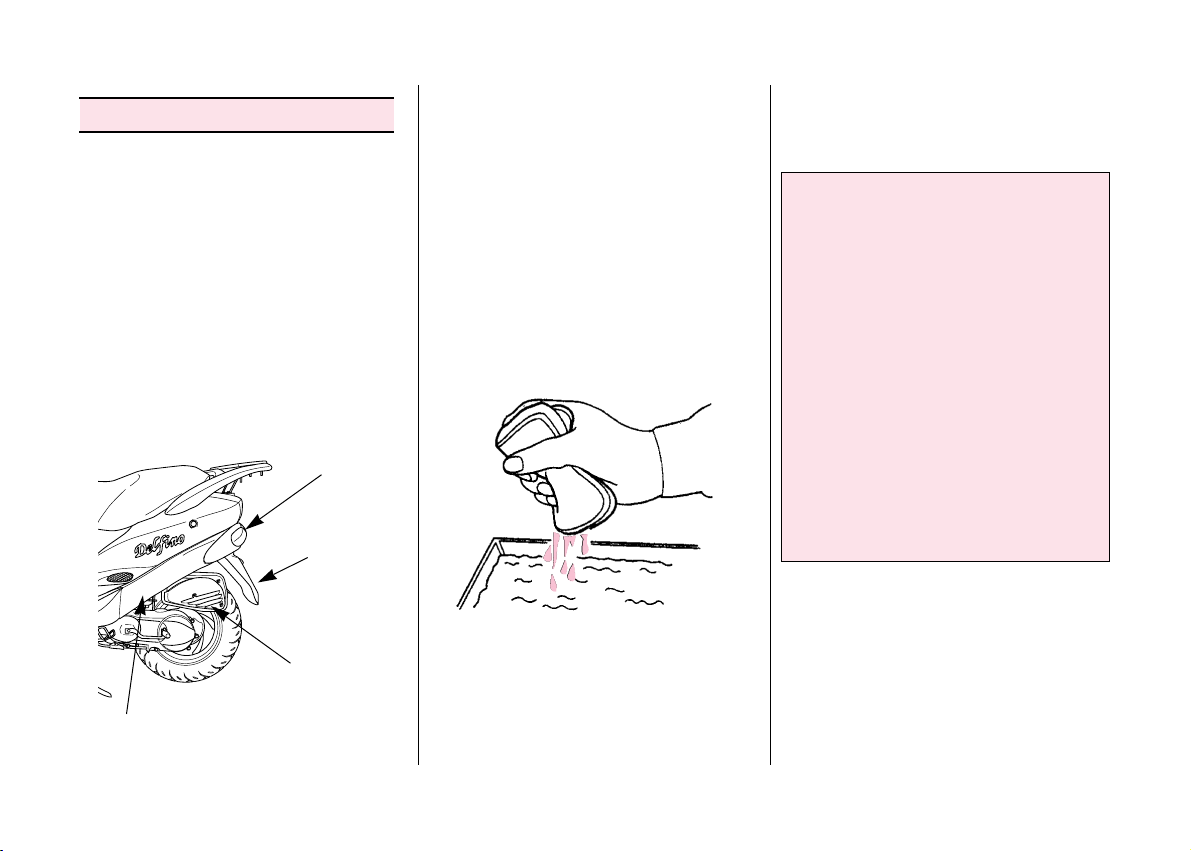

Notables for Car Washing

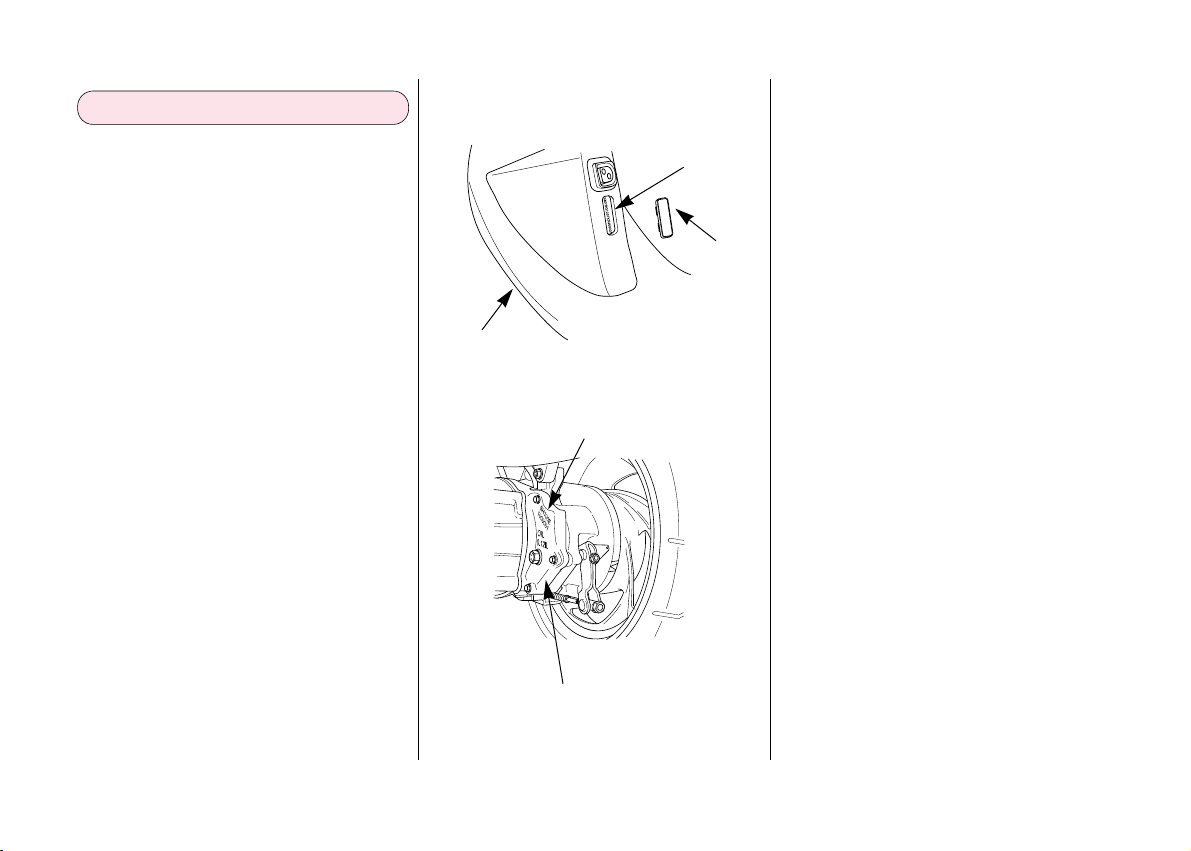

Frame and Engine Number

29

30

30

32

32

33

33

34

34

35

36

37

38

41

42

43

44

45

45

46

3

SPECIFICATION

LENGTH×WIDTH×HEIGHT(mm)

WHEEL BASE(mm)

GROUND CLEARANCE(mm)

SEAT HEIGHT(mm)

DRY WEIGHT(kgf)

PASSENGER

ENGINE TYPE

PISTON DISPLACEMENT(cc)

BORE AND STROKE(mm)

STARTING SYSTEM

TRANSMISSION TYPE

1,810×720×1,130

1,290

110

760

85

2

AIR COOLED

2 STROKE

99.7

50.6×49.6

START MOTOR / KICK

V - MATIC

IGNITION SYSTEM

BATTERY CAPACITY

FUEL CAPACITY(ℓ)

OIL CAPACITY(ℓ)

C.D.I

12V3AH(MF TYPE)

7.2

1.2

100 / 90 - 10 56J

100 / 90 - 10 56J

TELESCOPIC

UNIT SWING OIL DAMPER

HYDRAULIC DISK

DRUM BRAKE

BR8HS

7

ITEM DATA ITEM DATA

FR.

RR.

FR.

RR.

FR.

RR.

SPARK PLUG

FUSE(A)

TIRE SIZE

SUSPENSION

BRAKE

This manual describes matters pertaining to correct operation,
safe operation and simple maintenance of the vehicle you
purchased.
To ensure more comfortable and safer operation, make sure to
read this manual carefully prior to operation.

●The photographs and drawings shown in this manual may

differ from those of actual vehicles due to changes in vehicle
specifications and modifications made.

●This vehicle is designed for 2 riders including the operator.

Caution

●Do not use polluted gasoline.

Using polluted gasoline will cause rust inside the fuel
tank, and will close the supply of fuel to the carburetor,
leading to an improper engine starting or may cause
serious damage to an engine.

●Do not use polluted or low-grade oil.

Always use genuine oil to protect and extend vehicle
performance and its life span.

●If any failure occurs due to the use of polluted gasoline

or oil, such failure will be excluded from being eligible
for repairs under the warranty.

●Careful driving and the wearing of proper attire and safety

equipment are the most important factors in the safe
operation of the delfino scooter. Please obey traffic
regulations and do not be hurried and careless.

●Many new vehicle owners operate their newly purchased

vehicles with great care and attention to safety factors.
However, after becoming accustomed to the operations are
often discarded, which can lead to accidents. Please don't let
this happen to you and always approach the operation of your
vehicle with the safety considerations needed.
When operating the vehicle, always keep in mind and obey
the notes of precaution printed on the “Safety Precaution
Label”attached to the vehicle.

4

OPERATION INSTRUCTION

Safety Precautions

●Always wear helmet.

●Observe posted speed limits.

●Park vehicle away from people(especially children) as

the muffler can get very hot.

●For safety, do not illegally modify the vehicle.

●If exposed to direct sunlight for a long period of time,

the visual display panel may temporailly be fogged.

●Regularly conduct specified maintenance inspections.

<Maintenance Inspection Points>
Brakes, Tires, Oil, Lights, Horn, Instruments

●Read user's manual carefully.

●Conduct maintenance checks prior to operation.

●Always maintain vehicle in clean status and carry out

specified maintenance checks.

●Make sure to stop engine and stay away from fire when

fueling.

●Exhaust gas contains harmful substance such as carbon

monoxide. Start engine in well-ventilated places.

●Always make sure to wear helmet for safety. Wear gloves

and safety goggles.

●Do not wear uniforms which might hinder operation. It is

dangerous if the uniform is caught by brake lever.

A helmet should always be
worn and the helmet chin
strap should be securely
fastened.

Correct shirts or jackets
with tight-fitting sleeves
should be worn,

Shoes should fit properly, and shoes having
little or no heel should be worn.

5

Prior to starting vehicle

Correct Attire

6

When carrying cargo, you must keep in mind that operating the
vehicle, especially when turning, will be different.
Make sure not to overload the vehicle with goods as this can
make the vehicle unstable during operation.

REAR CARRIER MAXIMUM LOAD : 3kg

TRUNK MAXIMUM LOAD : 10kg

FRONT UNDER COVER
MAXIMUM LOAD : 1.5kg

●Operators should naturally fix bodies to keep smooth driving.

●Please check whether or not you are unnaturally strained and

strung up.

●Driving pose has a great influence on safe operation.

Please always maintain the center of your body in the middle
of seat.
Especially do not sit at the rear seat because it may lessen the
weight of front wheel and cause trembling steering wheel.

●Passengers should accurately fix bodies using both hands and

put both feet on floor panel.

Operation Cargo

7

Caution

●Only load cargo in or on designated areas as placing or

fastening cargo to other areas can cause damage to the
vehicle.

●Do not place articles between the frame body cover and

engine as this can burn the goods.

Modification of vehicle structure or function deteriorates
manipulability or causes exhaust noise to become louder
shortening the vehicle life. These modifications are not only
prohibited by law but also are the acts harmful to other people.
Modifications are not covered by warranty.

●Pay particular attention to fellow passenger so that he/she

can prevent getting burnt by the hot muffler during travel.

Modification

Muffler

8

Parts Location

OIL TANK LID

FUEL TANK LID

BATTERY

MAIN SWITCH

FRONT BRAKE LEVER

9

FRONT UNDER
COVER

REAR BRAKE LEVER

LUGGAGE BOX

BAG HOLDER

SIDE STAND

MAIN STAND

KICK START PEDAL

SEAT LOCK

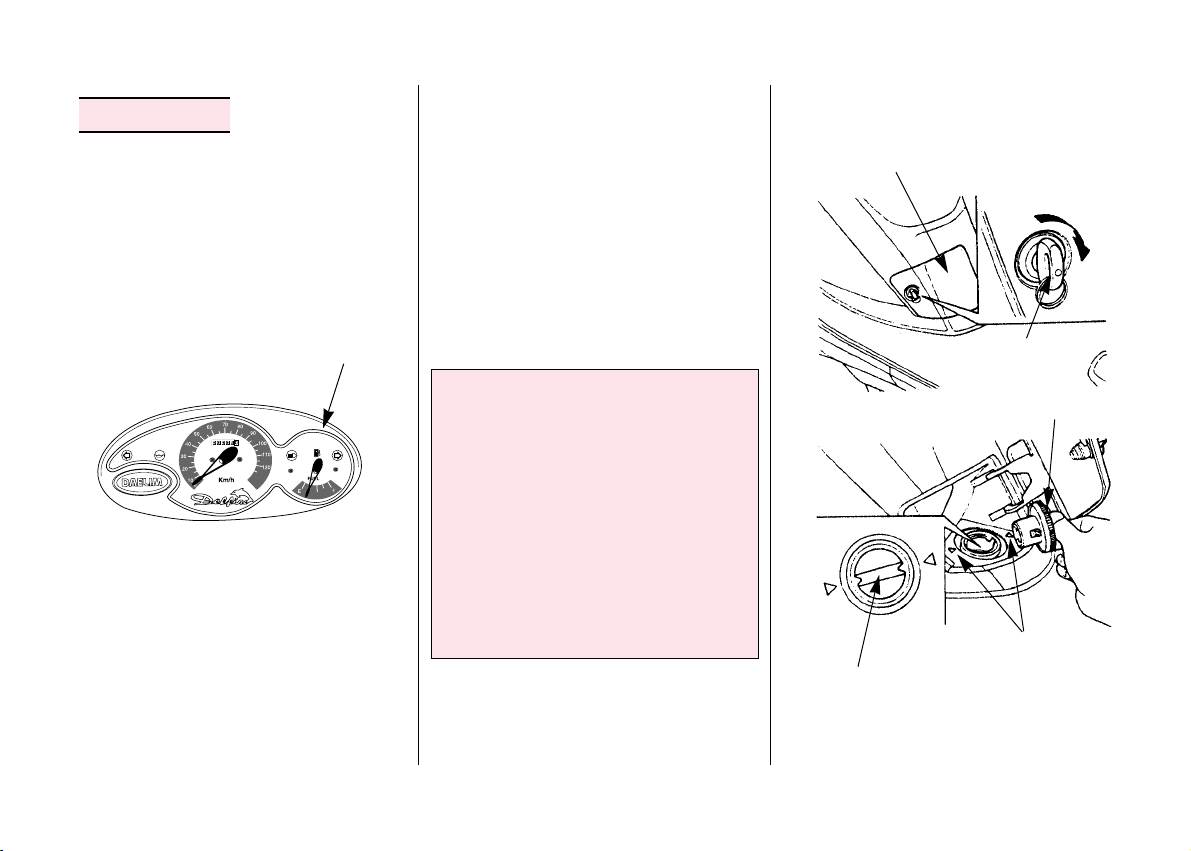

[Speedometer]

Indicates driving speed. Maintain legal
speed limits to ensure safe operation.

[Odometer]

Indicates total distance in kilometers
travelled by the vehicle.

[Fuel gauge]

The fuel gauge indicates the gasoline
level inside the fuel tank.
Gasoline should be put in the fuel tank as
soon as possible if the needle is resting in
the red area. When the needle is resting in
the E mark(red zone).

●Fuel Capacity : 7.2ℓ

●Reserve fuel capacity : 1.9ℓ

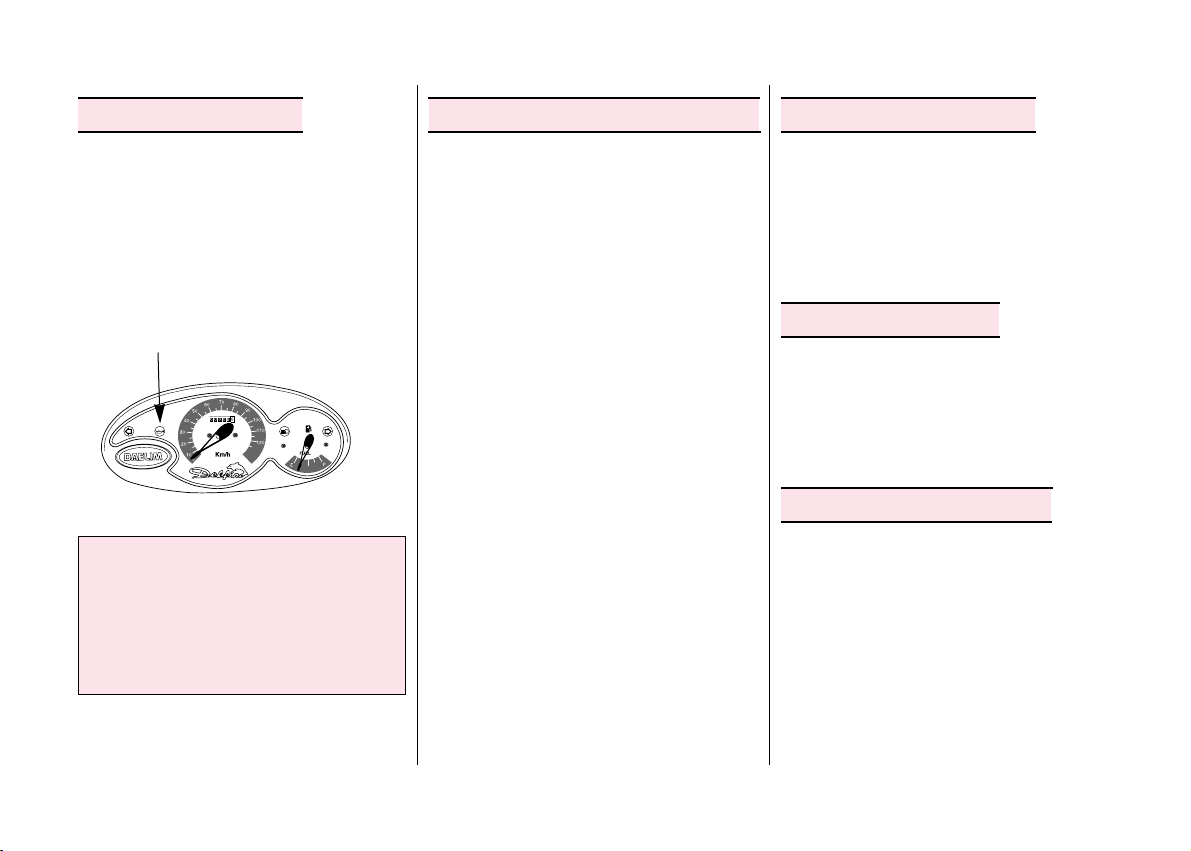

[Oil Warning Indicator]

When oil in the oil tank is low, the oil
warning indicator turns on.
When this happens, fill the oil tank with
pure oil.

[Winker Indicator]

If the winker switch is operated,
the winker indicator flashes in union
with the flashing of the turn signals.

10

SPEEDOMETER

WINKER
INDICATOR WINKER

INDICATOR

OIL WARNING
INDICATOR

FUEL GAUGE

HEADLIGHT
INDICATOR

ODOMETER

Meter Reading and Usage

Meter Warning and Indicator Lamp

Caution

●If the oil warning indicator turns

on after the main switch is placed
to an “ON” position, quickly fill
the oil tank using pure oil

11

1. On.... Starts engine. Key can not be

pulled out.

2. OFF....Stops engine. Key can be

placed in or taken out of the
main switch.

3. LOCK....Locks handle bars. Key can be

placed in or taken out of the
main switch.

The engine is started pressing this button
when pressed in a state where the main
switch key is placed to an ON position and
the brake lever is pulled.

Switch Operation

Main Switch

Starter Button

Caution

●The engine will not start if the

brake lever is not pulled.

Caution

●Do not manipulate main switch key

during operation. If the main switch
key is placed on “Off” or “Lock”
position, all electrical system will
not function. Never operate the
main switch key during travel as it
might cause unexpected accidents,
If it is necessary to remove the
main switch key, stop the vehicle
first prior to removing.

●When you park the delfino and

leave it, please lock handle bars
and take out the key.

●If the key is left in “ON”position

without starting engine, battery is
discharged.

●Do not use a number of keys

together with a metal key holder.
The keys and the key holder may
cause scratches or other damage
to the cover while operating the
vehicle.
(Recommend cloth or leather key

holders)

STARTER BUTTON

KEY

MAIN SWITCH

[Turning on headlight]

Put main switch key in “ON” position and
turn on headlight switch.

<Lighting>

To light headlight, turn the rightside light­switch-button to the side of “󳢬” mark.

<Extinguishing>

To extinguish headlight, turn the right­side light-switch-button to the side of
“○” mark.

[Headlight high/low beam switch]

High beam or low beam can be operated
by the use of high/low beam switch.

High Beam

...... used when needing extra

light.

Low Beam

...... used when other vehicles are

present, in the city, etc.

If this switch is turned on when the main
switch is in an ON position, the winker will
operate.

󳫻 (R)....used when making a right turn.

󳫺 (L)....used when making a left turn.

12

Headlight Winker Switch

Caution

●The winker switch does not auto-

matically turn back to its original
position after completing the turn.
Please set the switch back to its
center position after turning.

HEADLIGHT HIGH/LOW
BEAM SWITCH

WINKER SWITCH

(HI)

D

(LO)

D

HEADLIGHT SWITCH

The horn is sounded if the horn button is
pressed when the main switch is in an ON
position.

When parking, make sure to lock handle
bars to prevent theft of the vehicle.

<Locking>

Turn the handle bars all the way to the left,
and while pushing on the main switch key,
turn the main switch to the LOCK postion.

<Unlocking>

Unlocking is accomplished by simply
turning the main switch to the OFF
position.

13

Horn Button

Handle Bar Lock

HORN BUTTON

Equipment Usage

Caution

●Check to see that the handle bars

have been securely locked by
lightly moving the handle bars to
the left and right.

●Make sure to park the vehicle in a

location where traffic and always
are not blocked.

HANDLE
BAR LOCK

<Locking>

●The seat automatically locks when the

seat is pushed in its downward position,

●Lightly pull upward on the seat to make

sure the seat has been properly locked.

<Unlocking>

●Turn the seat lock switch to the right

using the main switch key.

The main switch key is used to open and
close the front under cover.

<Locking>

●Turn the front under cover switch to the

right using the main switch key. In this
state, close the cover, turn the key to the
left and then remove the key.

14

Seat Lock Front Under Cover

Caution

●As the seat automatically locks, take

special care not to accidently leave
the key in the trunk.

●Driving with unlocked seat lock may

cause danger.

SEAT LOCK

FRONT UNDERR

COVER

<Unlocking>

●Turn the front under cover switch to the

right using the main switch key and the
front under cover will easily open.

●There is a trunk under the seat.

●The seat is opened to gain access to the

trunk by using the main switch key on
the seat lock.

●The lamp inside the trunk will be turned

on if the seat is opened.

Trunk maximum load:10kg

15

Trunk

Caution

●Do not place valuable of fragile

goods in the inner box.

●Make sure to remove important

items out of front under cover when
washing the vehicle as water can
enter the inner box.

Caution

●Make sure that the seat is securely

locked after closing the seat.

●An unlocked seat can hinder the

operation of the vehicle.

●The temperature inside the trunk

rises due to heat from the engine.
Do not place foodstuffs and other
articles that can be damaged easily
by heat. Also do not place flamm­able materials in the trunk.

●Do not place valuable or fragile

goods in trunk.

●As water can enter the trunk when

washing, make sure to remove
articles that can be damaged by
water.

●Do not load uncloseable size of

helmet and thing in the trunk,
otherwise, the battery can be
discharged with the trunk lamp on.

TRUNK

SEAT LOCK

There is a document storage area on the
bottom of the seat. Store the owner’s
manual and the maintenance notebook in
this area.

●For ease in carrying bags and similar

items, they should be hung from the bag
holder which is fitted for this purpose.

●When using the bag holder, place it in

the open position and return it to the
normal position when not in use.

●Do not attempt to carry very heavy or

bulky loads since this would affect the
stability and steering characteristics of
the scooter.

16

Document Storage Area Bag Holder

DOCUMENT STORAGE AREA

BAG HOLDER

Brake Lock Lever

Caution

●If the rear brake is not adjusted

properly, it will not be able to lock.
Please refer to page 33 for instruc­tions on rear brake adjustment.

BRAKE LOCK LEVER

<Setting>

① Squeeze tightly on the rear brake lever.
② Move the brake lock lever in the

direction of the arrow in the drawing
and place it in the groove of the brake
lever.

③ Release your hand from the rear brake

lever and the rear wheel will be locked.

<Releasing>

① Squeeze tightly on the rear brake lever

and the lock lever will be automatically
released.

② Release your hand from the rear brake

lever and the rear wheel will be
unlocked.

●Make sure to check the oil, gasoline, etc.,

before starting the engine.

●Please ensure that the main stand is in a

down position when starting the engine.

●Drive with care for both safety reasons

and longer vehicle life.

●For 1 month (or 1,000km) after pur-

chasing the vehicle, drive moderatly
avoiding fast starts and fast acceleration.

17

Caution

●Make sure that the rear wheel is

locked when starting the engine to
prevent an unexpected quick start
of the vehicle.

●Locking is not possible if the rear

wheel brake is not adjusted correctly.

Correct Driving Operation

󳠿 Lock the rear wheel.(see p. 18) 󳡀 Turn the main switch to an ON position.

󳡁 Start engine with cell or kick.

<Using the electric start(cell)>

●Press the starter button without rotating

the starter grip (opening the throttle).

●If the engine is hot and does not start

after pressing the starter button for 3~4
seconds, rotate the throttle grip to
1/8~1/4 of a rotation and try again. This
will allow easy starting.

18

Starting the Engine

Caution

●If the oil warning indicator turns on

after the main switch is placed to an
“ON” position, quickly fill the oil
tank using pure oil.

Caution

●Immediately release the starter

button as soon as the vehicle has
started.

●Do not press the starter button when

the engine is running.

This can damage the engine.

19

●It is possible that starting will be more

difficult if the vehicle has not been used
for a long period of time or if the fuel
hole is plugged up(starting problems
even when there is sufficient fuel in the
fuel tank may be an indication of a
plugged fuel hole).
When this happens, do not rotate the
throttle grip and try the starter button a
few times.

●To prevent the battery from losing its

charge, do not keep the starter button
pressed for more than 5 seconds at a
time. If the engine does not start after
pressing the starter button for 5 seconds,
wait 10 seconds and try again.

<Without electric start(kick)>

●Erect main stand and hold rear brake

lever and then step kick starter pedal
strongly.

󳡂 When the engine is cold, let the engine

idle for a short period allow the engine
to warm up.

Caution

●Make sure to place kick starter in

its original position after the engine
has been started.

●Be sure to erect main stand and side

stand when starting.

●Do not use the starter button and the

kick-starter pedal simultaneously.

Caution

●Keep holding rear brake until start.

●Exhaust has contains harmful subs-

tance such as carbon monoxide.
Start engine in well-ventilated places.

If engine cannot be started or vehicle does
not move, check the followings.

●Is there fuel in fuel tank?

●Are you operating in accordance with the

instructions given in owner’s manual?

●Is fuse not cut?

●Is starter motor running?

●If starter motor is not running due to

battery consumption, try starting motor
by using kick start technique.

󳠿 Fold the main stand.

●Push the vehicle forward to fold the

main stand and make sure that the brake
lever does not become released during
this operation.

󳡀 Get on the vehicle.

●Mounting should be done from the left

side, and you should sit squarely on the
seat. Leave either one foot or both feet
planted on the ground.

20

Caution

●Do not excessively open the throttle

until you actually start the driving
operation of the vehicle.

If Engine cannot be Started After Starting Engine

Caution

●Keep holding rear brake lever

before starting.

󳡁 Squeeze tightly on the rear brake lever

and the lock lever will be
automatically released.

󳡂 Release the squeezing tension on the

rear brake lever and slowly begin to
rotate the throttle grip to allow for a
slow and easy start. ●Before entering traffic, use the correct

turn signal to foreward other drivers of
your intentions.

21

Caution

●Do not rapidly trun the throttle grip

when you release the rear brake
lock. The vehicle may spring out,
causing injury or damage.

Caution

●A quick rotating of the throttle grip

will cause the vehicle to move
suddenly forward.

Proper Driving Methods

Speed is controlled by the operation of
the throttle grip.

●

If the throttle grip is rotated........

The speed of the vehicle increases.
Please rotate the throttle grip slowly.
When climbing a hill, the throttle grip
need to be rotated further to give the
vehicle more power.

●

If the throttle grip is allowed to

rotate back........

Speed decreases. This can be done
slowly or quickly, depending on how
quickly you need to decelerate.

Work the front and rear brakes
together.

●Allow the throttle grip to rotate back to

its beginning position and then squeeze
the brake levers.

●If is best to operate the brakes by first

lightly squeezing the brake levers and
then changing to a more firm squeeze.

The brakes should never be suddenly
applied and the handle bars should
never be suddenly turned.

●Sudden braking or turning can cause the

vehicle to slide and tip over.

●It is especially dangerous to perform

sudden braking on wet roads or in rainy
weather as the tires can lose traction and
slip easily.

22

Caution

●If only one of the brakes is used, it

is possible for the vehicle to
experience sliding.

ROTATE

BACK ROTATE

RR. BRAKE

FR. BRAKE

23

Special care in driving should be
taken during rainy weather.

●More braking distance is needed when

driving on wet roads or in the rain.
Reduce speed and be sure to initiate the
braking operation sooner than when
driving in normal conditions.

●On downgrades, allow the throttle grip

to rotate back to its initial position to
reduce speed, and apply the brakes and
drive slowly down the hill.

●It is possible for the brakes to

temporarily lose operative ability after
driving through a puddle or when
driving in the rain. To ensure that the
brakes are operating properly, slow
down(after checking for other vehicles)
and while driving slowly, lightly apply
the brakes to rid the brakes of any
excess water and to dry them.

●Be extremely careful when driving in

the snow or on icy roads.
When driving in these conditions, both
the tires lose much of their traction and
the rear tire can slip when opening the
throttle.

󳠿 When approaching the desired

stopping area.

●Activate the proper winker, and after

checking for other vehicles, slowly turn
into the area in which you want to stop.

●Allow the throttle grip to rotate compl-

etely back and apply the front and rear
brakes. The brake light will shine to
alert vehicles in back of you that you are
stopping.

󳡀 After the vehicle has come to a

complete stop.

●Return the winker switch to the center

position and turn the main switch to
OFF. This will turn the engine off.

Stopping

Caution

●Do not rotate the main switch key

while driving. If the main switch is
turned to an OFF or LOCK
position, the electrical system will
not operate. Operating the main
switch key while driving can be
very hazardous. Only turn the main
switch key to OFF or LOCK
positions after completing stopping
the vehicle.

RR. BRAKE

FR. BRAKE

24

󳡁 Dismount on the left side and lower the

main stand on a flat surface.

●Be sure to park in an area that is free of

traffic. Also, the vehicle can tip over if
the main stand is not placed on a stable
and flat surface.

●The main stand is lowered by grasping

the handle bars with the left hand,
holding the rear carrier with the right
hand, and stepping firmly on the stand
with the right foot. In this position, lift
the rear carrier upward, which will
secure the main stand.

󳡂 To prevent theft, be sure to lock handle

bars when parking.

Self inspect the vehicle and have regular
maintenance inspections for increased
safety and the prevention of accidents.
Regular maintenance inspections should
be performed even if the vehicle has not
been used for a long period of time.

Self inspections before operation should be
performed on a daily basis prior to
operating the vehicle.

●Inspections of concerned Area

●Brake inspection

●Tire inspection

●Fuel check

●Engine oil check

●Lights and winker inspection

●Back mirror inspection

●Fuel leak inspection

●License plate inspection

Caution

●Park in a safe area that will not

block traffic. When you parked the
vehicle after driving, make sure
foot the vehicle beyond man’s
reach because engine and muffler
are still hot.

Self Inspections before Operation

25

Check areas which caused for concern
when last operating the vehicle.

Inspection of concerned Area

Caution

Observe safety rules when conducting
inspections.

●Exhaust gas contains harmful

substance such as carbon mono­xide. Do not carry out inspections
on vehicle in closed places, or in
poorly ventilated places, with
engine running.

●Conduct inspections on flat, solid

ground with the stand erected.

●Be careful of burns when conducting

inspections immediately after engine
is stopped because the engine and
muffler are hot.

●Stop engine and remove the key

prior to the vehicle maintenance
service.

●Use appropriate types of tools.

●If you are unable to correct trouble

even after you make adjustment or
correction, contact authorized
maintenance shops, dealers or
designated repair shops for
necessary inspection and repairs.

[Brake Lever Free play]

Lightly squeeze the brake levers until
tension is felt to check for an appropriate
amount of free play. No free play in the
brake levers or overly loose brake levers
are indication of a problem in the brake
system.

Brake lever Free play: 10~20mm

[Check of Brake Fluid]

This is checked by placing the vehicle on
its main stand on a flat surface. Make sure
that the handle bars are at a horizontal
level. Check to see if the fluid is below the
LOWER level.
If brake fluid is significantly low, this may
indicate that there is leakage in the brake
system. Inspect the brake hose to check for
leaks.

[Air Pressure Check]

Check for an appropriate level of air
pressure by examining how the tire sits on
the ground. If you notice any abnormalities
in the shape of the tire with regard to the
area contacting the ground, use a tire
gauge to check tire pressure and adjust the
tire pressure to the appropriate level.

<Tire Pressure>

26

Brake Inspection

LOWER LEVEL

FREE PLAY FREE PLAY

Tire Inspection

Size

Air Pressure

(kgf/

㎠)

1 person

riding

Front 1.50

100/90-10 56J

100/90-10 56J

1.75

1.50

2.25

Rear

Rear

Front

Front

Rear

2 person

riding

[Cracks/Damage]

Check tire tread and sides for cracks and
damage.

[Abnormal Wear]

Check tire tread for signs of abnormal
wear.

[Foreign Materials]

Check tire tread and sides for nails, rocks,
etc. That might have become wedged in
the tire.

[Tread Depth]

●Check the wear indicator (wear limit

marking) to see if there is an insufficient
amount of tread remaining.

●If the indicators are visible, replace tire

with a new one.

27

Caution

●If air pressure is inadequate or if there

are cracks, damage or abnormal wear
on tires, it may cause trembling
steering wheel and flat tire.

●This vehicle is equipped with

tubeless tires. If you have flat tires,
please contact authorised maint­enance shops for inspection.

CRACKS

DAMAGE

ABNORMAL
WEAR

WEAR INDICATOR
(WEAR LIMIT MARKING)

WEAR INDICATOR
LOCATION MARKING

28

Fuel Check

[Check]

Check gasoline to see if there is a sufficient
amount of gasoline to reach your destination.

●If the fuel gauge needle indicates E

mark (red portion), fill fuel tank with
gasoline as soon as possible.

[Refueling]

●Use the main switch key to open the

fuel tank lid(the key must be turned to
the right).

●Turn the fuel tank cap counterclock-

wise, and remove it.

●Fill the tank with gasoline until it

reaches the bottom of the level plate.

●Turn the fuel tank clockwise until the
“△”mark on the fuel tank cap is alined
with the “△”mark located above the
fuel tank opening.

Caution

●Make sure to stop engine and stay

away from fire when refueling.

●Do not fill gasoline past the level

plate. Gasoline may leak out of the
fuel tank when replacing the fuel
tank cap if too much gasoline is put
in the fuel tank.

●Don’t fill low grade gasoline.

Using it can cause damage (bending,
getting worn, etc.) to combustion
chamber and parts of fuel.

FUEL TANK CAP

LEVEL PLATE

‘’

△‘’MARK

FUEL TANK LID

MAIN SWITCH

FUEL GAUGE

[Check]

If the oil is low, the oil warning indicator
will turn on. Turn the main switch to ON
in order to check whether the oil warning
indicator switches on. If it does, put oil in
the oil tank.

[Headlight, Taillight]

Start the engine and make sure the lights
turn on. Also check to see if the lights are
damaged or if there is dirt on them.

[Brake Light Check]

Turn the main switch to ON.
While separately operating the front and
rear brakes, check to see if the brake light
turns on. Also check to see if there is any
damage to the lens or if there is dirt on the
brake light.

[Winker Check]

Turn the main switch to ON.
Check to see if all the winker in the front
and rear of the vehicle(including left and
right sides) are flashing properly. At the
same time, check to make sure that the
automatic sound signal of the winker is
working. Check also to see if any of the
lens are damaged or dirty.

Sit squarely on the seat and check to see if
you have a good view behind the vehicle
by looking at the back mirrors. Also check
for dirt and damage on the back mirrors.

Check to see if there is any leaking fuel by
thoroughly checking the fuel tank, hose,
carburetor, etc.

Check to see if there is any dirt or damage
to the license plate.
Also check to see if the license plate is
firmly secured to the vehicle.

29

Caution

●Do not allow the engine to stay at a

low level. The engine will become
severely damaged if the vehicle is
driven while the oil warning
indicator is on.

Lights and Winker InspectionEngine Oil Check Back Mirror Inspection

License Plate Inspection

Fuel Leak Inspection

OIL WARNING INDICATOR

30

Carry out the self inspections before operation as described in this owner’s manual at each regular maintenance time.
I: Inspect and, if necessary, clean, adjust, lubricate or replace parts.
R: Replace L: Lubricate C: Clean

1

,000km 4,000km 8,000km 12,000km

Fuel line I I I I

Throttle Operation I I I I

Air Cleaner Caution 2

Spark Plug I I R I

Carbon Removal C

Carburetor Idle I I I I

Oil pump, Oil line I I I

Transmission Oil I R

Brake Fluid I I I R Caution 3

Item

★

★

★

★★

★

★

Travel Distance

Travel Distance(Caution 1)

C (per 1,000km)

Remark

Regular Inspection Times

Regular Inspection

31

1,000km 4,000km 8,000km 12,000km

Brake Shoe / Pad Wear I I I

Brake System I I I I

Brake Light Switch

Headlight Adjustment I I I I

Suspension I I I

Bolt and Nut Tightness I I

Wheels / Tires I I I

Steering Handle Bearing I I

Drive Belt I I I

Weight Roller I I

Slide Piece I I

Part

★

★

★

★

★

★★

★★

★★

★★

★★

Travel Distance

Travel Distance(Caution 1)

Remark

I (Per 1,000km)

Caution

1. After 12,000km, start from the beginning of the above chart and repeat maintenance inspections at the specified times.

2. If the vehicle is operated in area having high humidity or a large amount of dust, maintenance and inspections will need to be
performed more frequently.

3. Replace every two years. These parts must be replaced every two years.

★ If you do not have the appropriate tools or information to conduct maintenance, or if you feel you are not capable to perform

maintenance on this vehicle, contact authorized dealers or repair shops for maintenance and repairs.

★★To ensure safety, inspections and maintenance of these parts must be carried out by dealers, or repair centers.

The following is an explanation of correct
inspection methods, cleaning and parts
replacing. Please always refer to this
section when wanting to inspect or repair
your vehicle.

Brake lever free play is adjusted by
rotating the adjuster of the brake arm.

After adjustment, check the brake lever to
ensure that the clearance is not above or
under the prescribed amount.

Brake Lever Free Play : 10~20mm

32

Simple Maintenance Brake Lever Adjustment

Caution

●Always observe safety rules when

performing maintenance on the
vehicle.

●Choose a flat surface and make

sure the main stand is in a secure
down position.

●Use correct tools.

●Conduct engine maintenance with

the engine key out of the ignition.

●Be careful around the engine and

muffler when performing mainte­nance as these areas can become
extremely hot.

Caution

●After adjusting the brake, make

sure that “󳤆” part of the adjuster
contacts the pin as in the drawing
below. Brake clearance can change
when driving if this is not done.

●It is not necessary to adjust the

front brake.

ADJUSTER

■ Rear Brake

INCREASE
FREE PLAY

DECREASE
FREE PLAY

PIN

ADJUSTER

After adjusting the brakes, check the wear
of the brake shoe. While tightly squeezing
the rear brake lever, if the “△” mark of
the brake arm is alined with the “△” mark
of the brake panel, this indicates that the
brake shoe is worn. Please take the vehicle
to a service center for repair.

1. Remove the screw rivet and take the
brake fluid maintenance lid off.

2. Clean dust and other foreign materials

around reserve tank to prevent foreign
materials from falling inside tank.

3. Remove the screws and take oil cup cap,
diaphragm plate, diaphragm off.

4. Replenish recommended brake oil to the
upper level inside reserve tank.

Recommended brake oil is
DOT 3 or DOT 4

5. Reinstall the diaphragm, diaphragm
plate, and oil cup cap.

6. Tighten the screws securely.

7. Install the brake fluid maintenance lid.

●Check the brake pads for wear when

refilling with brake fluid.

●A low fluid level may be due to wear of

the brake pads.

●If the brake pads are not worn and the

fluid level is low, check for leakage.

33

Rear Brake Shoe Inspection Replenishing Brake Fluid

“△”MARK

“△”MARK

RESERVE

TANK

SCREW RIVET

BRAKE FLUID

MAINTENANCE LID

SCREW

OIL CUP CAP

DIAPHRAGM
PLATE

DIAPHRAGM

Visually check for fluid leaks or damage
and, using a spanner, check joints and
clamps for clearance.
Also, check hose and pipe protective parts
to see if they contact other parts when
turning the handle bars or due to vibration
when driving.

Operate the brake lever to check the wear
of the brake pad.
While looking at the brake caliper, if the
wear limit line is not visible, the pads need
to be replaced.

34

Brake Hose, Pipe Leakage,

Damage, Assembly State

Brake Pad Inspection

Caution

●When adding brake fluid, be very

careful not to allow foreign
materials to enter the reserve tank.

Foreign materials can clog the
system, causing a reduction or
complete loss of braking ability.

●Do not fill past upper level.

This can cause brake fluid to leak
out of the reserve tank.

●Do not let brake fluid contact

vehicle parts as this damages
painted areas. If oil contacts parts,
quickly clean the fluid off using a
dry cloth.

●Use recommended brake fluid as

other types can undergo chemical
changes.

●If brake fluid is exceedingly low,

this can be indication of damage to
the brake system.

●A leak in the brake system can lead

to reduced braking efficiency and
possible loss of braking ability.

WEAR LIMIT LINE

35

<Inspection>

If the oil is low, the oil warning indicator
will turn on. Turn the main switch to ON
in order to check whether the oil warning
indicator switches on. If it does, put oil in
the oil tank.

<Replenishing>

1. Set vehicle on main stand in upright
position on level ground.

2. Open the seat.

3. Turn the oil cap counterclockwise, and
remove it.

4. Fill the oil tank to the fill level.

5. Turn the oil cap clockwise, and install it.

6. Close the Seat. Check to see if the seat
lock has latched.

<Recommended Oil>

If oil sold on markets or privately ma­nufactured oil (oil-grade) is used, engine
life is adversely affected, and the privilege
of warranty repairs cannot be guaranteed.

Replenishing Engine Oil

Caution

●Do not fill past the fill level. Oil

will leak out if this is done.

●Immediately replace oil cap after

filling oil tank with oil.

●Make sure that foreign materials do

not enter the oil tank.

●Do not use other manufacturers oil

and do not use low quality oil.

FILL LEVEL

OIL CAP

<Oil Level>

●Park vehicle and lower main stand on a

flat surface. Wait at least 2~3 minutes
after engine has been turned off remove
the oil check bolt and make sure that the
oil level is up to the lower edge of the
bolt hole.

●Refill to the lower edge of the oil level

check bolt hole with the recommended
oil if the level is low.

●Securely fix the check bolt.

<Recommended Oil>

Pure 4-Cycle Engine Oil

<Fluid Leak>

Check to see if transmission oil leaks out
of the transmission case.

36

Transmission Oil Inspection

Caution

●Pay special attention not to let

rubber etc., enter the check bolt
hole.

●When draining the oil, make sure

that all of the oil is removed.

●The engine can be harmed if there

is too much or not enough oil.

●Do not use other manufacturers oil

or low-quality oil. These oils can
change quality overtime and can
cause damage.

OIL CHECK BOLT

CHECK BOLT HOLE

37

[Front Wheel Removal]

① Raise the front wheel off the ground by

placing a support block under the
engine.

② Loosen the oval screw and remove the

speedometer cable.

③ Remove the front caliper assembly

from the front fork by removing the
fixing bolts.

④ Loosen the axle nut.
⑤ Withdraw the front wheel axle and

remove the front wheel.

⑥ Install in the reverse order of removal.

󳢯Fit the caliper over the disc, taking care

not to damage the brake pads. Install the
caliper fixing bolts, and tighten to a
torque of : 2.7kgf··m

󳢯Tighten the front axle nut to the specified

torque.

Front axle nut torque : 5.0~7.0kgf··m

⑦ After assembling, operate brake for a

number of times and see if wheel is
turning smoothly without getting
interruption.

FRONT

CALIPER

AXLE NUT

Wheel Removal

Caution

●Do not operate brake lever after the

front wheel is removed. It will
make wheel assembling difficult.

Caution

●When installing the wheel, care-

fully fit the left brake disk between
the brake pads to avoid damaging
the pads.

Caution

●If a torque wrench was not used for

installation, see your authorized
dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss
of braking capacity.

SPEEDOMETER

CABLE

OVAL SCREW

FRONT WHEEL AXLE

FIXING BOLT

[Rear Wheel Removal]

① Set vehicle on main stand in upright

position on level ground.

② Loosen the rear brake adjuster nut and

remove the brake cable.

③ Loosen the brake arm setting bolt, and

remove the spring.

④ Remove the muffler.
⑤ Loosen the rear wheel axle nut.
⑥ Remove the lock washer and the rear

wheel.

⑦ Install in the reverse order of removal.

Rear axle nut torque : 6.0~8.0kgf··m

󳢯Be sure to turn the ignition switch OFF

when replacing the bulb.

󳢯Do not use bulbs other than that

specified.

󳢯After installing a new bulb, check that

the light operates properly.

38

Caution

●If a torque wrench was not used for

installation, see your authorized
dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss
of braking capacity.

REAR BRAKE ARM

MUFFLER

AXLE NET

ADJUST NUT

Caution

●The light bulb becomes very hot

while the light is ON, and remain
hot for a while after it is turned
OFF. Be sure to let it cool down
before servicing.

●Do not put finger prints on the

headlight bulb, as they may create
hot spots on the bulb and cause it to
break. Wear clean gloves while
replacing the bulb.
If you touch the bulb with your
bare hands, clean it with a cloth
moistened with alcohol to prevent
its early failure.

Bulb Replacement

[Headlight Bulb]

① Turn the front under cover switch to

the right using the main switch key and
the front under cover will easily open.

② Remove the headlight maintance lid.

③ Remove the rubber cover.
④ Turn the socket clockwise, and remove

it.

⑤ Slightly press down on the bulb and

turn it counterclockwise.

⑥ Install a new bulb in the reverse order

of removal.

[Tail/ stoplight Bulb]

① Loosen the pan screws and remove the

rear combination light lens.

② Loosen the tapping screw and remove

the tail/stop lens.

③ Slightly press down on the bulb and

turn it counterclockwise.

④ Install a new bulb in the reverse order

of removal.

39

MAIN SWITCH
KEY

FRONT UNDER
COVER

HEADLIGHT
MAINTANCE LID

RUBBER COVER

BULB

SOCKET

BULB

REAR COMBINATION LENS

TAPPING SCREW

TAIL & STOP LENS

PAN SCREW

[Winker Bulb]

<Front winker bulb>

① Remove the right/left back mirrior.
② Loosen the tapping screws and remove

the wind screen.

③ Loosen the washer screw and the

tapping screws.

④ Pull the front handle cover foward, and

remove the wiring.

⑤ Remove the front handle cover.

⑥ Loosen the screws and remove the

sockets.

⑦ Slightly press down on the bulbs and

turn it counterclockwise.

⑧ Install a new bulbs in the reverse order

of removal.

<Rear Winker bulb>

① Loosen the pan screws and remove the

rear combination light lens.

② Loosen the tapping screws and remove

the winker lens.

③ Slightly press down on the bulbs and

turn it counterclockwise.

④ Install a new bulbs in the reverse order

of removal.

40

RIGHT BACK MIRROR

LEFT BACK

MIRROR

WINKER

BULB

SOCKET

MARKER LIGHT

BULB

SOCKET

SCREW

SCREW

FRONT HANDLE

COVER

FRONT HANDLE

COVER

WIND SCREEN

WASHER

SCREW

WINKER

LENS

BULB

REAR COMBINATION LENS

TAPPING

SCREW

WINKER LENS

PAN SCREW

WINKER

BULB

If electrode is stained or clearance is not
right, satisfactory spark is not produced.
Clean and make adjustment.

① Turn the seat lock switch to the right

using the main switch key.

② Remove the plug maintenance cover.
③ Remove the spark plug cap.
④ Clean around the plug.
⑤ Using a plug wrench, remove the plug.

⑥ Clean plug with plug cleaner.
⑦ Check electrode for wear and corro-

sion.

⑧

Check the plug gap using a feeler gauge.

Plug Gap : 0.8~0.9mm

⑨ Tighten with hands until the plug

washer touches cylinder head.

Standard plug: BR8HS

⑩ If new plug is installed, turn 1/2 and

tighten using a plug wrench.
If plug is reused, turn 1/3~1/4 and
tighten.

⑪ Install in the reverse order of removal.

41

Spark Plug

Caution

●If plug of different maker or different

heat value is used, it causes
unsatisfactory engine starting,
inadequate engine revolution and
output deterioration.

●The spark plug must be securely

tightened. An improperly tightened
plug can become very hot and
possibly damage the engine.

PLUG GAP

SEAT

PLUG MAINTENANCE

COVER

SPARK PLUG CAP

SPARK PLUG

[Cleaning Battery Terminals]

① Turn the seat lock switch to the right

using the main switch key.

② Loosen the washer screw and remove

the battery cover.

③ Loosen the tapping screw and remove

the battery holder.

④ If the battery terminal is polluted, or in

rust, separate battery and clean it.

⑤ Battery terminal in rust with white

powder should be cleaned with warm
water.

⑥ In case of serious rust of battery ter-

minal, disassemble the battery cord
and grind it with wirebrush or
sandpaper.

[Replenishing Battery Water]

This vehicle doesn’t need either reple­nishing or checking battery water because
of the equipment of enclosed MF battery.
In case battery needs a checking, it should
be cared of by service center.

42

Battery Inspection

Caution

●Be careful not to disassemble in-

jection part of enclosed battery.

●When not using vehicle during a

long time, take off the battery from
the vehicle to keep from self­discharge and electric discharge.
Put the battery in a well ventilated
place after charging fully. In case it
isn’t available to take battery off
from the vehicle, disconnect “-”
terminal.

BATTERY

Caution

●Turn the ignition switch OFF

before disconnecting the terminal
from the battery.

●When cleaning battery, do not

disassemble the battery cap to
prevent foreign materials from
falling inside battery.

●Remove the negative pole 󳤕 side
cord first and the positive pole 󳤔
side cord next.

●Make sure, at this time, that 󳤔
side cord is connected first,
followed by 󳤕 side cord.

Turn off the main switch to see if the fuse
is severed. If the fuse is severed, exchange
the fuse into 7A fuse.

●To change a fuse, first take off battery

cover. Then, disconnect a “fuse
connector” after opening a “fuse
holder.”

●If the fuse immediately becomes

severed after being changed with the
new one, check another problem of the
electric system.

43

Caution

●When disassemble fuse, make sure

that fuse holder isn’t separated.

●After assembling fuse in the part of

connector, check if fuse moves
easily to a line. If fuse moves eas­ily, it may cause an accident at
heating.

●Do not use a fuse having a larger

voltage as the wire can become
overheated and damaged.
When replacing any of the electri­cal parts (lights and gauges), be
sure to replace them with the reco­mmended parts. Using different
parts can lead to the fuses burning
out or damage to the battery.

●When washing the vehicle, take

special care not to allow to be
splashed in the area of the fuses.

<DISASSEMBLY> <ASSEMBLY>

FUSE CONNECTOR

CORD

Changing Fuse

SPARE FUSE

FUSE HOLDER

[Removal]

① Loosen the pan screws and remove the

rear combination light.

② Loosen the washer screws and remove

the rear mudguard.

③ Loosen the body cover clip and

remove the left side cover.

④ Loosen the washer screws and remove

the air cleaner case cover.

[Cleaning]

●Clean the air cleaner element in clean

oil, squeeze excess oil, and then, wra­pping it in a dry cloth, squeeze it again.

●Make sure all excess oil removed and

reassemble the air cleaner element.

Oil : 4 CYCLE GEAR OIL

⑤ Install in the reverse order of removal.

44

AIR CLEANER CASE

COVER

Air Cleaner Element Inspection

Caution

●Do not use gasoline or other ma-

terials having a low ignition point
as this can be a fire hazard.

●If the air cleaner element is in-

adequately assembled, dust and
other waste materials can directly
enter the engine. This results in
increased cylinder wear and redu­ced power, and reduced durability
of the engine.

●When washing the vehicle, be

careful not to allow water to get
into the air cleaner.
Difficulties in starting the engine
may result if this happens.

LEFT SIDE COVER

REAR MUDGUARD

REAR COMBINATION LIGHT

45

A rubber part is assembled on the cable to
protect the inner cable.
Make sure that this part is placed firmly
around the correct part of the cable. When
washing the car, do not directly spray
water on to the rubber part is dirty, use a
dry cloth to clean this area.

●Make sure to stop the engine prior to car

washing.

●Be careful not to allow water to enter

the muffler during the washing.
Water inside the muffler may cause an
improper engine starting or rust occurr­ence.

●Do not let water get inside the braking

system during the washing, as water
inside the brake system may weaken the
braking power. Upon completion of
washing, select a safe place where there
is no traffic obstruction, and start the
vehicle.
Lightly apply the brake while driving at
a slow speed and check the braking
power.
If the braking power has been weak­ened, apply brake lightly while driving
at a slow speed to dry up the brake
system.

●Take precautions when waxing the

vehicle.
Excessive polish of the painted section
and/or the resin part with compound
wax might damage the painted section
causing discoloration of the affected
area.

Inspection of Cable Rubber Part

Notables for Car Washing

INSPECTION

PART

RUBBER

INSPECTION

PART

46

Frame and Engine Number

●The frame number is stamped on the

front central part of the frame.

●The engine number is stamped on the

rear face of the left crankcase.

●The frame and engine numbers will be

used as the basis of recovering the
vehicle when is stolen.

●Record the frame and engine numbers

along with the vehicle license plate
numbers and keep them separately from
the vehicle.

ENGINE

NUMBER

LEFT CRANKCASE

FRAME

NUMBER

INNER BOX

NUMBERING CAP
