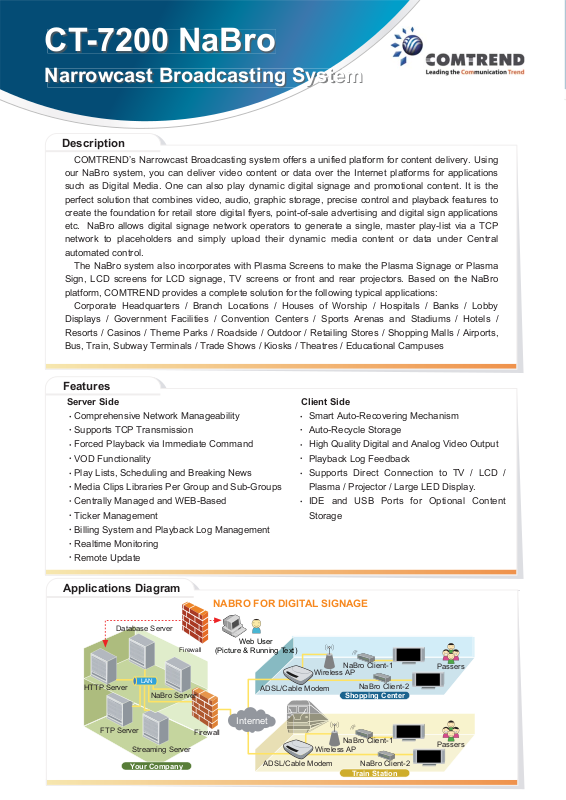

CT-7200 NaBro

Narrowcast Broadcasting System

Description

COMTREND’s Narrowcast Broadcasting system offers a unified platform for content delivery. Using
our NaBro system, you can deliver video content or data over the Internet platforms for applications
such as Digital Media. One can also play dynamic digital signage and promotional content. It is the
perfect solution that combines video, audio, graphic storage, precise control and playback features to
create the foundation for retail store digital flyers, point-of-sale advertising and digital sign applications
etc. NaBro allows digital signage network operators to generate a single, master play-list via a TCP
network to placeholders and simply upload their dynamic media content or data under Central
automated control.

The NaBro system also incorporates with Plasma Screens to make the Plasma Signage or Plasma
Sign, LCD screens for LCD signage, TV screens or front and rear projectors. Based on the NaBro
platform, COMTREND provides a complete solution for the following typical applications:

Corporate Headquarters / Branch Locations / Houses of Worship / Hospitals / Banks / Lobby
Displays / Government Facilities / Convention Centers / Sports Arenas and Stadiums / Hotels /
Resorts / Casinos / Theme Parks / Roadside / Outdoor / Retailing Stores / Shopping Malls / Airports,
Bus, Train, Subway Terminals / Trade Shows / Kiosks / Theatres / Educational Campuses

Features

Server Side

Comprehensive Network Manageability

Supports TCP Transmission

Forced Playback via Immediate Command

VOD Functionality

Play Lists, Scheduling and Breaking News

Media Clips Libraries Per Group and Sub-Groups

Centrally Managed and WEB-Based

Ticker Management

Billing System and Playback Log Management

Realtime Monitoring

Remote Update

Applications Diagram

NABRO FOR DIGITAL SIGNAGE

Database Server

Web User

(Picture & Running Text)

HTTP Server

Firewall

LAN

NaBro Server

Client Side

Smart Auto-Recovering Mechanism

Auto-Recycle Storage

High Quality Digital and Analog Video Output

Playback Log Feedback

Supports Direct Connection to TV / LCD /

Plasma / Projector / Large LED Display.

IDE and USB Ports for Optional Content

Storage

Wireless AP

ADSL/Cable Modem

NaBro Client-1

NaBro Client-2

Shopping Center

Passers

FTP Server

Your Company

Streaming Server

Firewall

Internet

ADSL/Cable Modem

NaBro Client-1

Wireless AP

Passers

NaBro Client-2

Train Station

CT-7200 NaBro

Narrowcast Broadcasting System

Applications Diagram

Database Server

NABRO FOR VIDEO ON DEMAND

HTTP Server

FTP Server

Specifications

Function

OS / Package
CPU
RAM
Hard Disk
Network
Video Output

Audio Output
Video Decoders

LAN

NaBro Server

Internet

Firewall

Streaming Server

Your Company

NaBro Client

Advertisement point and information

center (IP-STB Based).

XPe

AMD 1.0G, 1.4GHz or same grade

512MB

80GB ~ 160GB

100Mbps or 802.11 b/g

Support DirectX 9.0 (c) or later / 3D

accelerator / D-Sub

Stereo

WMV / MPEG-1

IP-STB

LAN

ADSL Modem

IP-STB

Residential Area / Hotel

NaBro Server

Central management

center

XP Professional

P4 2.8GHz

512MB

160GB

100Mbps

DVI / D-Sub

-

WMV / MPEG-1 / MPEG-2

/ Microsoft MPEG-4 / ASF

IP-STB

IP-STB

IP-STB

IP-STB

*Database Server

Data storage

PostgreSQL 8.0 or later

P4 2.8GHz

512MB

200GB

100Mbps

DVI / D-Sub

-

-

Auxiliary Server

Function

OS / Package
CPU
RAM
Hard Disk
Network
Accessories

* These servers (i.e. computers) will not be included in the shipment.

Taiwan:
3F-1, No.10, Lane 609, Chung Hsin Road Section 5, San Chung,

Taipei, Taiwan 24159
Tel: [phone]
Fax: [phone]

China:
Room 102, No. 8, LiJing Garden, Yushan Town, Kunshan City,

Jiangsu Province ,China
Tel: [phone]
Fax: [phone]

*Streaming Server

Real-time content streaming

Microsoft Windows 2003 Server

P4 2.8GHz (equivalent)

512MB

160GB

1Gbps

Hardware TV tuner card x 1

UK:
566 Chiswick High Road Building 3, Chiswick Park Chiswick - London,

W4 5YA UK
Tel: [phone]
Fax: [phone]
Spain:
Edif. América II C/Prócion,7 portal 3 bajo H 28023 Madrid, Spain
Tel: [phone]
Fax: [phone]

France:
87, Rue du Gouverneur Général Félix Eboué 92130

Issy-les-Moulineaux, France
Tel: [phone]
Fax: [phone]

Czech Republic:
TOKOVO Jankovcova 1518/2, 170 00, Prague 7, Czech Republic
Tel: [phone]
Fax: [phone]

*Web Server

Receives NaBro client feedback data

Publishes NaBro client realtime information

Linux with Apache

P4 2.8GHz

256MB

160GB

100Mbps

*FTP Server

Data storage

Linux

P4 2.8GHz

256MB

200GB

1Gbps
