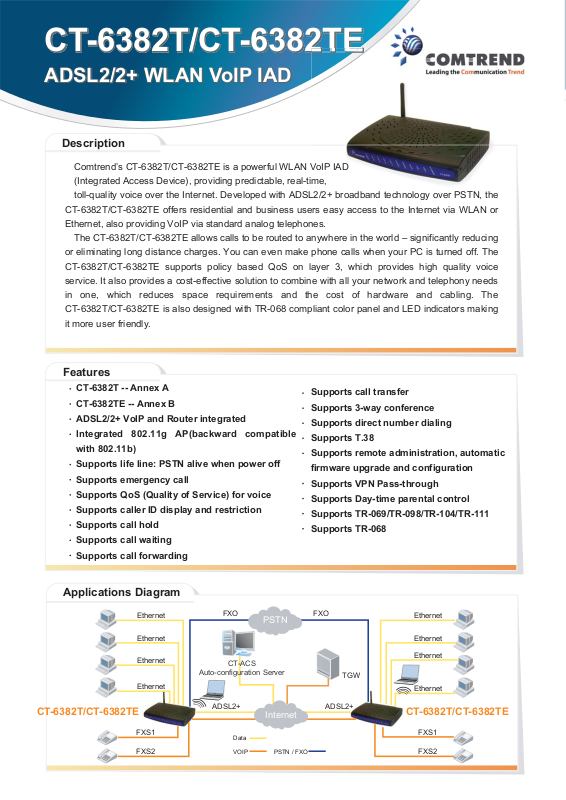

Comtrend CT-6382T, CT-6382TE DATASHEET

ADSL2/2+ WLAN VoIP IAD

CT-6382T/CT-6382TE

CT-6382T/CT-6382TE

ADSL2/2+ WLAN VoIP IAD

ADSL2/2+ WLAN VoIP IAD

Description

Comtrend’s CT-6382T/CT-6382TE is a powerful WLAN VoIP IAD

(Integrated Access Device), providing predictable, real-time,

toll-quality voice over the Internet. Developed with ADSL2/2+ broadband technology over PSTN, the

CT-6382T/CT-6382TE offers residential and business users easy access to the Internet via WLAN or

Ethernet, also providing VoIP via standard analog telephones.

The CT-6382T/CT-6382TE allows calls to be routed to anywhere in the world – significantly reducing

or eliminating long distance charges. You can even make phone calls when your PC is turned off. The

CT-6382T/CT-6382TE supports policy based QoS on layer 3, which provides high quality voice

service. It also provides a cost-effective solution to combine with all your network and telephony needs

in one, which reduces space requirements and the cost of hardware and cabling. The

CT-6382T/CT-6382TE is also designed with TR-068 compliant color panel and LED indicators making

it more user friendly.

Features

CT-6382T -- Annex A

CT-6382TE -- Annex B

ADSL2/2+ VoIP and Router integrated

Integrated 802.11g AP(backward compatible

with 802.11b)

Supports life line: PSTN alive when power off

Supports emergency call

Supports QoS (Quality of Service) for voice

Supports caller ID display and restriction

Supports call hold

Supports call waiting

Supports call forwarding

Applications Diagram

Ethernet

Ethernet

FXO

PSTN

Supports call transfer

Supports 3-way conference

Supports direct number dialing

Supports T.38

Supports remote administration, automatic

firmware upgrade and configuration

Supports VPN Pass-through

Supports Day-time parental control

Supports TR-069/TR-098/TR-104/TR-111

Supports TR-068

FXO

Ethernet

Ethernet

Ethernet

Auto-configuration Server

Ethernet

CT-6382T/CT-6382TE CT-6382T/CT-6382TE

FXS1

FXS2

CT-ACS

ADSL2+

Data

VOIP PSTN / FXO

TGW

ADSL2+

Internet

Ethernet

Ethernet

FXS1

FXS2

CT-6382T/CT-6382TE

ADSL2/2+ WLAN VoIP IAD

CT-6382T/CT-6382TE

CT-6382T/CT-6382TE

ADSL2/2+ WLAN VoIP IAD

ADSL2/2+ WLAN VoIP IAD

Specifications

Hardware Interface

FXSx2, FXOx1, RJ11x1 for ADSL2+, RJ-45 x4 for LAN, Reset Button x1, Power switch x1, USB host, (USB device)

WAN Interface

ADSL Standard
ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ITU-T G.992.2, ANSI T1.413 Issue 2
G.992.3 (ADSL2) Downstream: Up to 12 Mbps Upstream: 1.3 Mbps
G.992.5 (ADSL2+) Downstream: Up to 24 Mbps Upstream: 1.3 Mbps
AnnexM

LAN Interface

Standard IEEE 802.3, IEEE 802.3u
10/100 BaseT Auto-sense
MDI/MDX support Yes

WLAN Interface

Standard IEEE802.11g, Backward compatible with 802.11b
Encryption 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
Channels 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
Data rate Up to 54Mbps
MAC address filtering, WEP, WPA, IEEE 802.1x
10, 25, 50, 100mW @ 22MHz channel bandwidth output power level can be selected according to the environment

ATM Attributes

RFC 2364, RFC 2684 (RFC 1483) Bridge; RFC 2684 (RFC 1483) Route; RFC 2516; RFC 1577
VCs 8
AAL type AAL5
ATM service class UBR/CBR/VBR
ATM UNI support UNI3.1/4.0
OAM F4/F5 Yes

Management

TR-069/ TR-098/ TR-104/ TR-111, SNMP, Telnet, Web-based management, Configuration backup and restoration
Software upgrade via HTTP, TFTP client and server, or FTP server

Bridge Functions

Transparent bridging and learning IEEE 802.1d
IGMP proxy Yes
IGMP snooping Yes

Routing Functions

Static route, RIP, and RIP v1, v2, NAT/PAT, DHCP Client/Server/Relay, DNS, ARP

Security Functions

Authentication protocols PAP, CHAP
VPN PPTP/L2TP/IpSec pass-through
Stateful packet inspection, Packet filtering, Denial of service protection, Traffic conditioning, WFQ-based bandwidth
Management, HTTP proxy

QoS

L3 policy-based QoS, IP QoS , ToS

Voice Functions

SIP RFC 3261
MGCP (optional) RFC 3435
Codec G.711, G.723.1, G.726, G.729ab
RTP RFC 1889
SDP RFC 2327
Caller ID ETSI based
Life line/Emergency call Yes
Echo cancellation G.168
Silence suppression Yes

Power

External power adapter Input: AC100-240V, Output: DC15V / 1.6A

Environmental Conditions

Operating temperature 0 ~ 50 degrees Celsius
Relative humidity 5 ~ 95% (non-condensing)

Dimensions

205 mm (W) x 47 mm (H) x 145 mm (D)

Kit Weight (1*CT-6382T/TE, 1*RJ45 cable, 2*RJ11 cable, 1*power adapter, 1* CD-ROM)

0.96 KG

Specifications are subject to change without notice.
