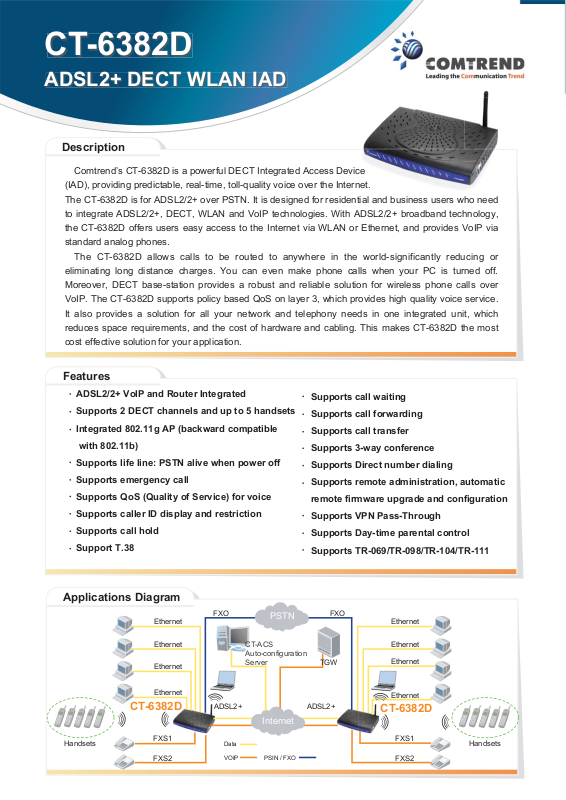

Comtrend CT-6382D DATASHEET

CT-6382D

ADSL2+ DECT WLAN IAD

Description

Comtrend’s CT-6382D is a powerful DECT Integrated Access Device

(IAD), providing predictable, real-time, toll-quality voice over the Internet.

The CT-6382D is for ADSL2/2+ over PSTN. It is designed for residential and business users who need

to integrate ADSL2/2+, DECT, WLAN and VoIP technologies. With ADSL2/2+ broadband technology,

the CT-6382D offers users easy access to the Internet via WLAN or Ethernet, and provides VoIP via

standard analog phones.

The CT-6382D allows calls to be routed to anywhere in the world-significantly reducing or

eliminating long distance charges. You can even make phone calls when your PC is turned off.

Moreover, DECT base-station provides a robust and reliable solution for wireless phone calls over

VoIP. The CT-6382D supports policy based QoS on layer 3, which provides high quality voice service.

It also provides a solution for all your network and telephony needs in one integrated unit, which

reduces space requirements, and the cost of hardware and cabling. This makes CT-6382D the most

cost effective solution for your application.

Features

ADSL2/2+ VoIP and Router Integrated

Supports 2 DECT channels and up to 5 handsets

Integrated 802.11g AP (backward compatible

with 802.11b)

Supports life line: PSTN alive when power off

Supports emergency call

Supports QoS (Quality of Service) for voice

Supports caller ID display and restriction

Supports call hold

Support T.38

Applications Diagram

Ethernet

Ethernet

Ethernet

FXO

CT-ACS
Auto-configuration
Server

PSTN

Supports call waiting

Supports call forwarding

Supports call transfer

Supports 3-way conference

Supports Direct number dialing

Supports remote administration, automatic

remote firmware upgrade and configuration

Supports VPN Pass-Through

Supports Day-time parental control

Supports TR-069/TR-098/TR-104/TR-111

FXO

TGW

Ethernet

Ethernet

Ethernet

Ethernet

CT-6382D

Handsets Handsets

FXS1

FXS2

ADSL2+

Internet

Data

VOIP PSIN / FXO

ADSL2+

Ethernet

CT-6382D

FXS1

FXS2

CT-6382D

ADSL2+ DECT WLAN IAD

Specifications

Hardware Interface

FXSx2, FXOx1, RJ11x1 for ADSL2+, RJ-45x4 for LAN, Reset Button x1, Power switch x1, USB host/device

WAN Interface

ADSL Standard
ITU-T G.992.5, ITU-T G.992.3, ITU-T G.992.1, ITU-T G.992.2, ANSI T1.413 Issue 2
G.992.3(ADSL2) Downstream: Up to 12 Mbps Upstream: 1.3 Mbps
G.992.5(ADSL2+) Downstream: Up to 24 Mbps Upstream: 1.3 Mbps

LAN Interface

Standard IEEE 802.3, IEEE 802.3u
10/100 BaseT Auto-sense
MDI/MDX support Yes

WLAN Interface

Standard IEEE802.11g, backward compatible with 802.11b
Encryption 64, 128-bit Wired Equivalent Privacy (WEP) Data Encryption
Channels 11 Channels (US, Canada)/ 13 Channels (Europe)/ 14 Channels (Japan)
Data Rate Up to 54Mbps
MAC Address Filtering, WEP, WPA, IEEE 802.1x
10, 25, 50, 100mW @ 22MHz channel bandwidth output power level can be selected according to the environment

DECT Interface

2 DECT phone channels support up to 5 handsets

ATM Attributes

RFC 2364, RFC 2684 (RFC 1483) Bridge; RFC 2684 (RFC 1483) Route; RFC 2516; RFC 1577

VCs 8
AAL type AAL5
ATM service class UBR/CBR/VBR
ATM UNI support UNI 3.1/4.0
OAM F4/F5 Yes

Management

TR-069/ TR-098/ TR-104/ TR-111, SNTP, Telnet, Web-based management, Configuration backup and restoration
Software upgrade via HTTP, TFTP client and server, or FTP server

Bridge Functions

Transparent bridging and learning IEEE 802.1d
IGMP Proxy Yes
IGMP Snooping Yes

Routing Functions

Static route, RIP, and RIP v1,v2, NAT/PAT, DHCP Client/Server/Relay, DNS, ARP

Security Functions

Authentication protocols PAP, CHAP
VPN PPTP/L2TP/IpSec pass-through
Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Traffic Conditioning, WFQ-based Bandwidth
Management, HTTP proxy

QoS

L3 policy-based QoS, IP QoS , ToS

Voice Functions

SIP RFC 3261
MGCP(optional) RFC 3435
Codec G.711, G.723.1, G.726, G.729ab
RTP RFC 1889
SDP RFC 2327
Caller ID ETSI based
Life line/Emergency call Yes
Echo cancellation G.168
Silence suppression Yes

Power Supply

External power adapter 100-240Vac to 15Vdc /1.6A

Environmental Conditions

Operating temperature 0 ~ 50 degrees Celsius
Relative humidity 5 ~ 90% (non-condensing)

Dimensions

205 mm (W) x 47 mm (H) x 145 mm (D)

Kit Weight (1*CT-6382D, 1* RJ-11 cable, 1* RJ-45 cable, 1* USB cable, 1* Power Adapter, 1* CD-ROM)

1.05 KG

Note: Specifications are subject to change without notice.
