Comtrend CT-5611T User Manual
CT-5611T
ADSL2+ Combo Router
User Manual
Version A1.4, October 3, 2007
261070-011
Preface
This manual provides information related to the installation, operation, and
application of this device. The individual reading this manual is presumed to have a
basic understanding of telecommunications terminology and concepts.
If you find the product to be inoperable or malfunctioning, please contact technical
support for immediate service by email at INT-support@comtrend.com
For product update, new product release, manual revision, or software upgrades,
please visit our website at http://www.comtrend.com
Important Safety Instructions
With reference to unpacking, installation, use and maintenance of your electronic
device, the following basic guidelines are recommended:
• Do not use or install this product near water, to avoid fire or shock hazard. For
example, near a bathtub, kitchen sink or laundry tub, or near a swimming pool.
Also, do not expose the equipment to rain or damp areas (e.g. a wet basement).
• Do not connect the power supply cord on elevated surfaces. Allow it to lie freely.
There should be no obstructions in its path and no heavy items should be placed
on the cord. In addition, do not walk on, step on or mistreat the cord.
• Use only the power cord and adapter that are shipped with this device.
• To safeguard the equipment against overheating, make sure that all openings in
the unit that offer exposure to air are not blocked.
• Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightening. Also, do not use
the telephone to report a gas leak in the vicinity of the leak.
• Never install telephone wiring during stormy weather conditions.
CAUTION:
• To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line
cord.
• Always disconnect all telephone lines from the wall outlet before servicing or
disassembling this equipment.
WARNING
Disconnect the power line from the device before servicing.
Power supply specifications are clearly stated in Appendix B.
Copyright
Copyright©2008 Comtrend Corporation. All rights reserved. The information
contained herein is proprietary to Comtrend Corporation. No part of this document
may be translated, transcribed, reproduced, in any form, or by any means without
prior written consent of Comtrend Corporation.
NOTE: This document is subject to change without notice.
1
Table of Contents
CHAPTER 1 INTRODUCTION................................................................................. 4
1.1 FEATURES ............................................................................................................ 4
1.2 A
1.3 F
CHAPTER 2 INSTALLATION.................................................................................. 8
2.1 HARDWARE INSTALLATION.................................................................................. 8
2.2 USB DEVICE DRIVER AUTO-RUN INSTALLATION ................................................ 9
2.3 USB DRIVER MANUAL INSTALLATION(64BIT OS) ............................................ 11
2.4 UN-INSTALLING THE USB DRIVER .................................................................... 17
CHAPTER 3 LOGIN VIA THE WEB BROWSER................................................ 21
3.1 IP ADDRESS ....................................................................................................... 21
3.2 LOGIN PROCEDURE ............................................................................................ 22
3.3 DEFAULT SETTINGS ........................................................................................... 24
CHAPTER 4 QUICK SETUP...................................................................................25
4.1 WAN................................................................................................................. 26
4.2 STATISTICS ........................................................................................................ 27
4.2.1 LAN Statistics............................................................................................ 28
4.2.2 WAN Statistics........................................................................................... 29

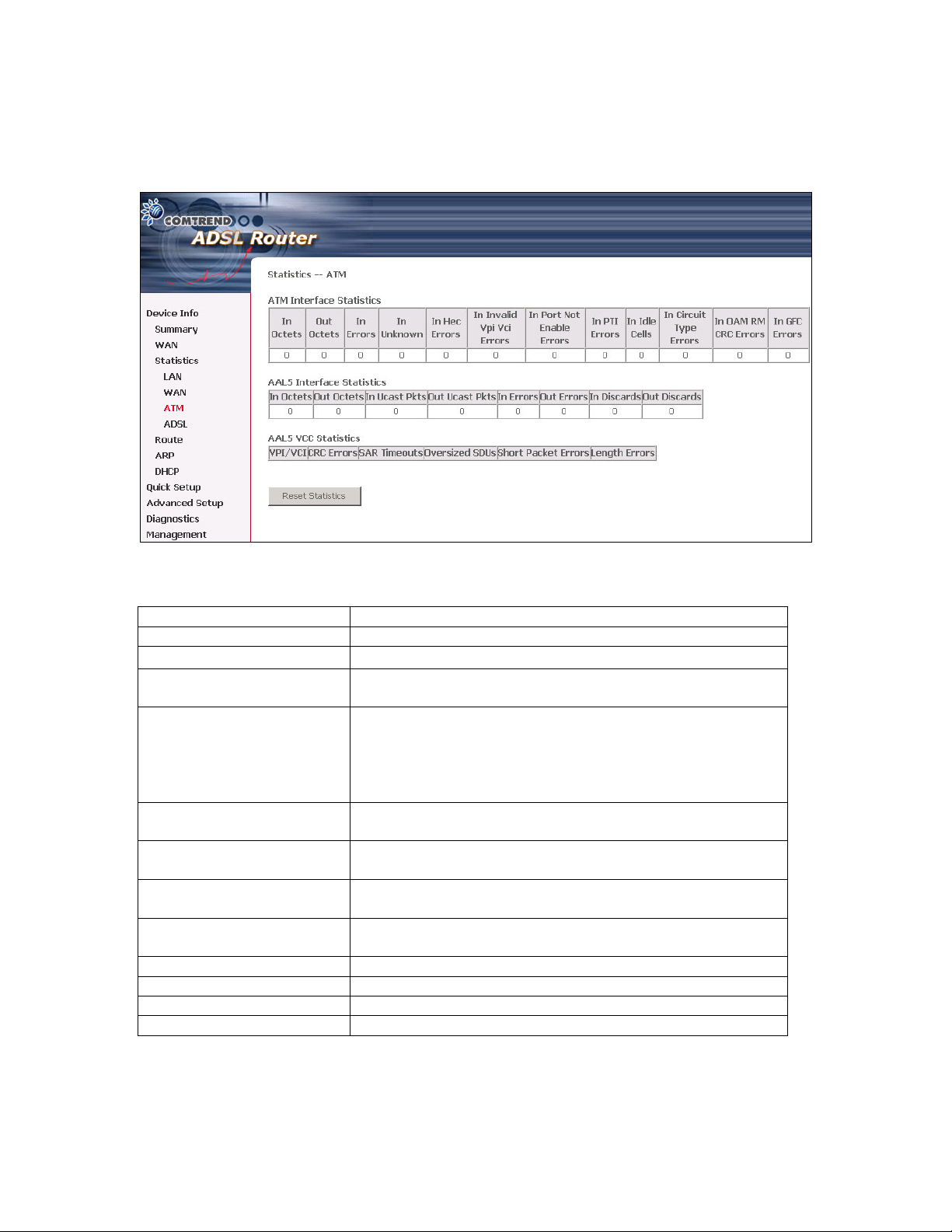

4.2.3 ATM statistics............................................................................................ 30

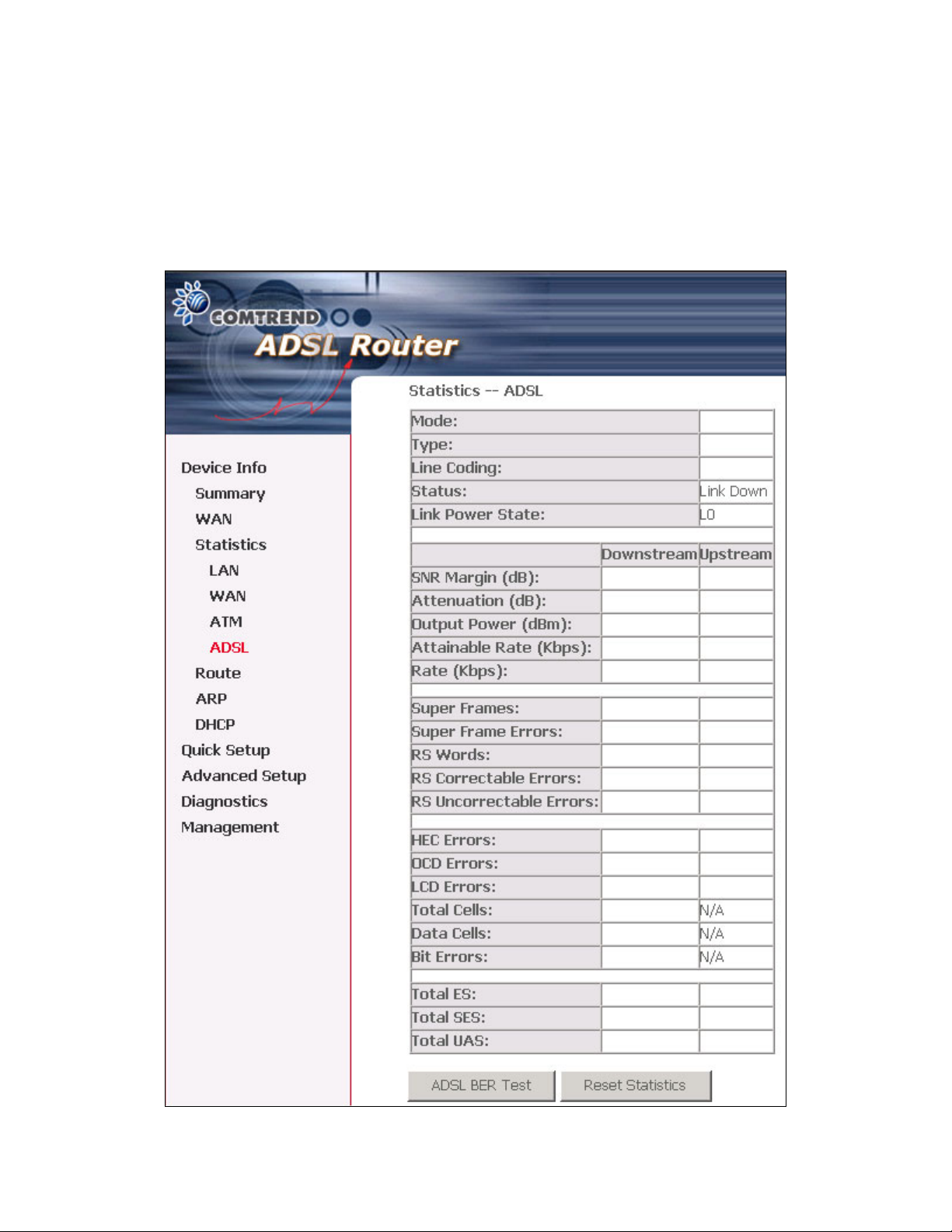

4.2.4 ADSL Statistics.......................................................................................... 32

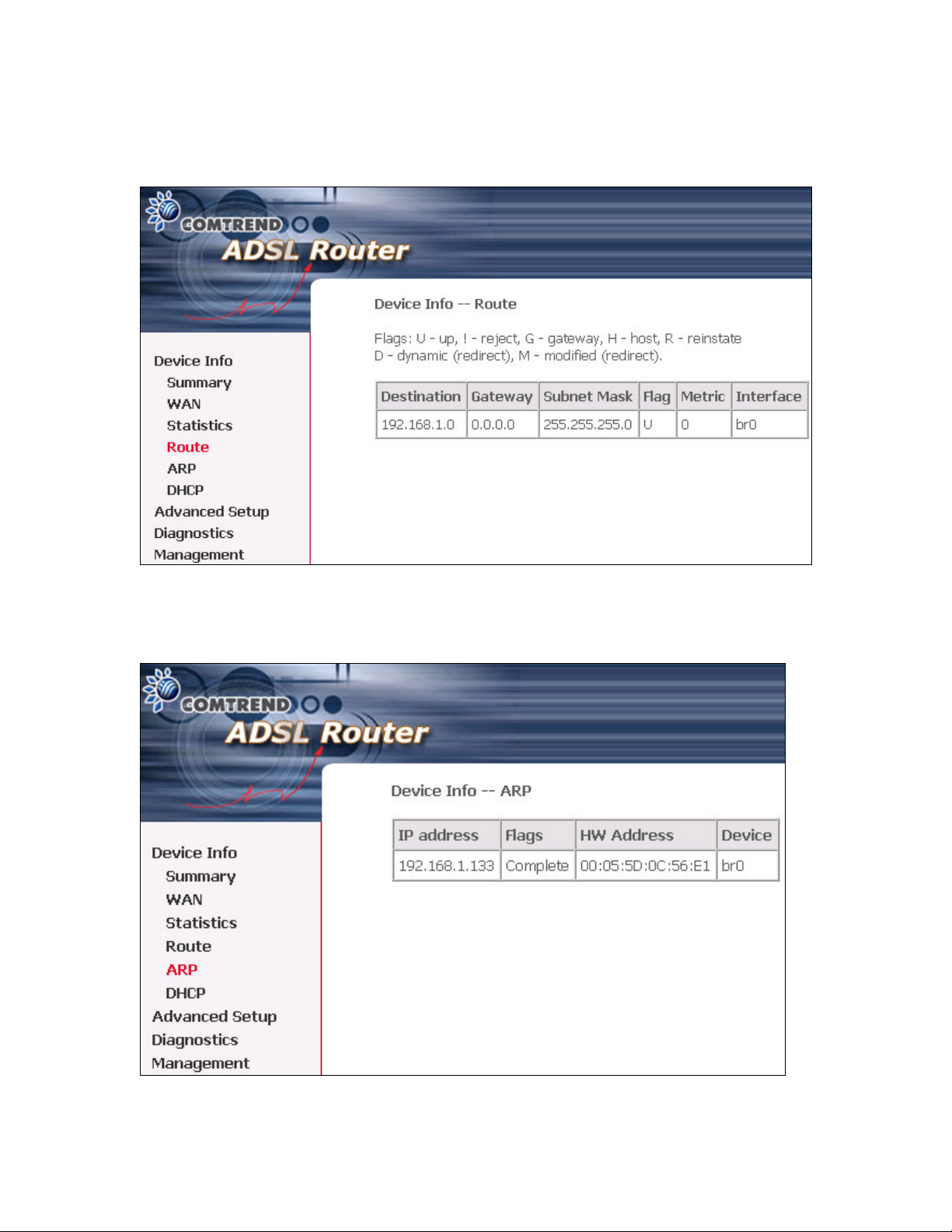

4.3 ROUTE ............................................................................................................... 34
4.4 ARP................................................................................................................... 34

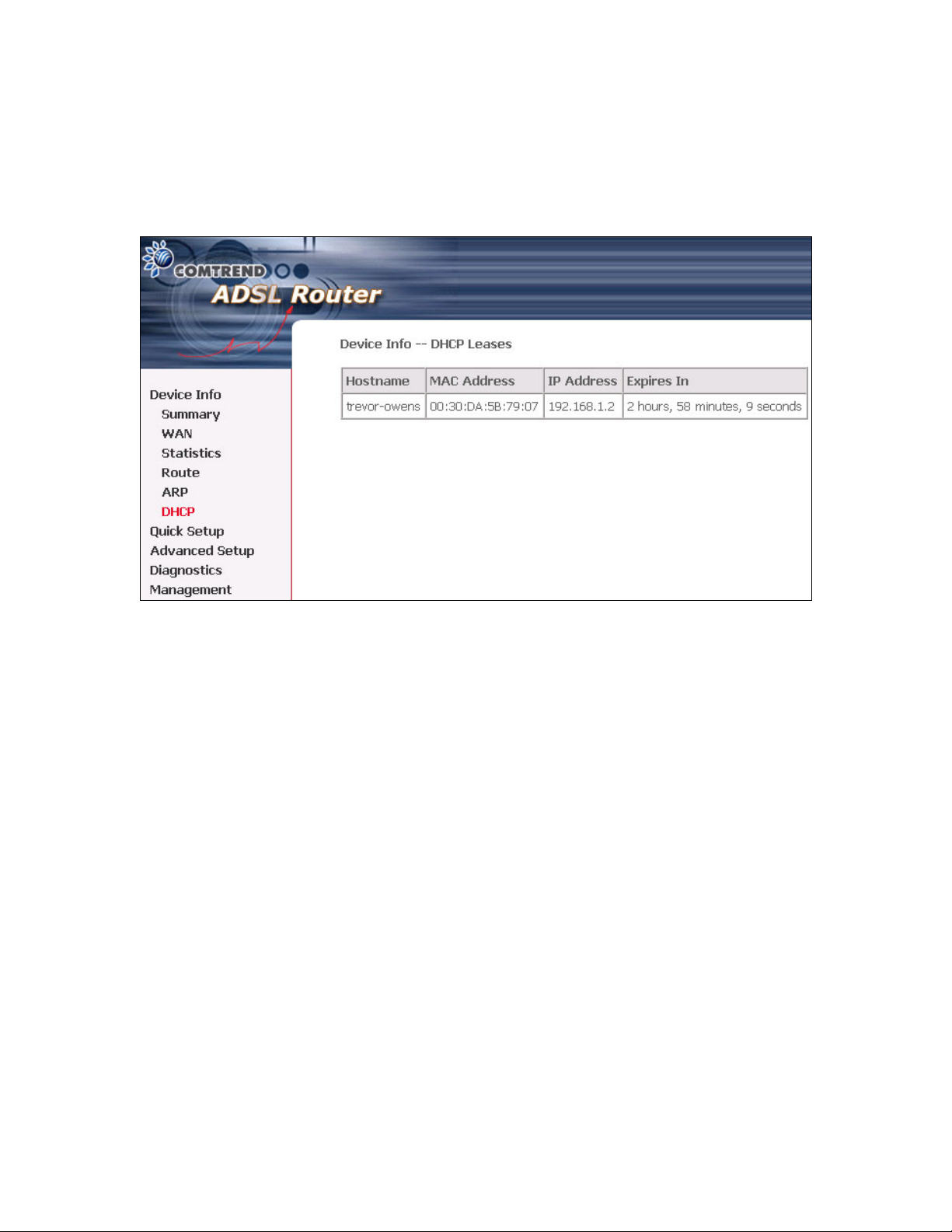

4.5 DHCP................................................................................................................ 35
PPLICATION ....................................................................................................... 5
RONT PANEL LED INDICATORS ......................................................................... 6
CHAPTER 5 QUICK SETUP...................................................................................36

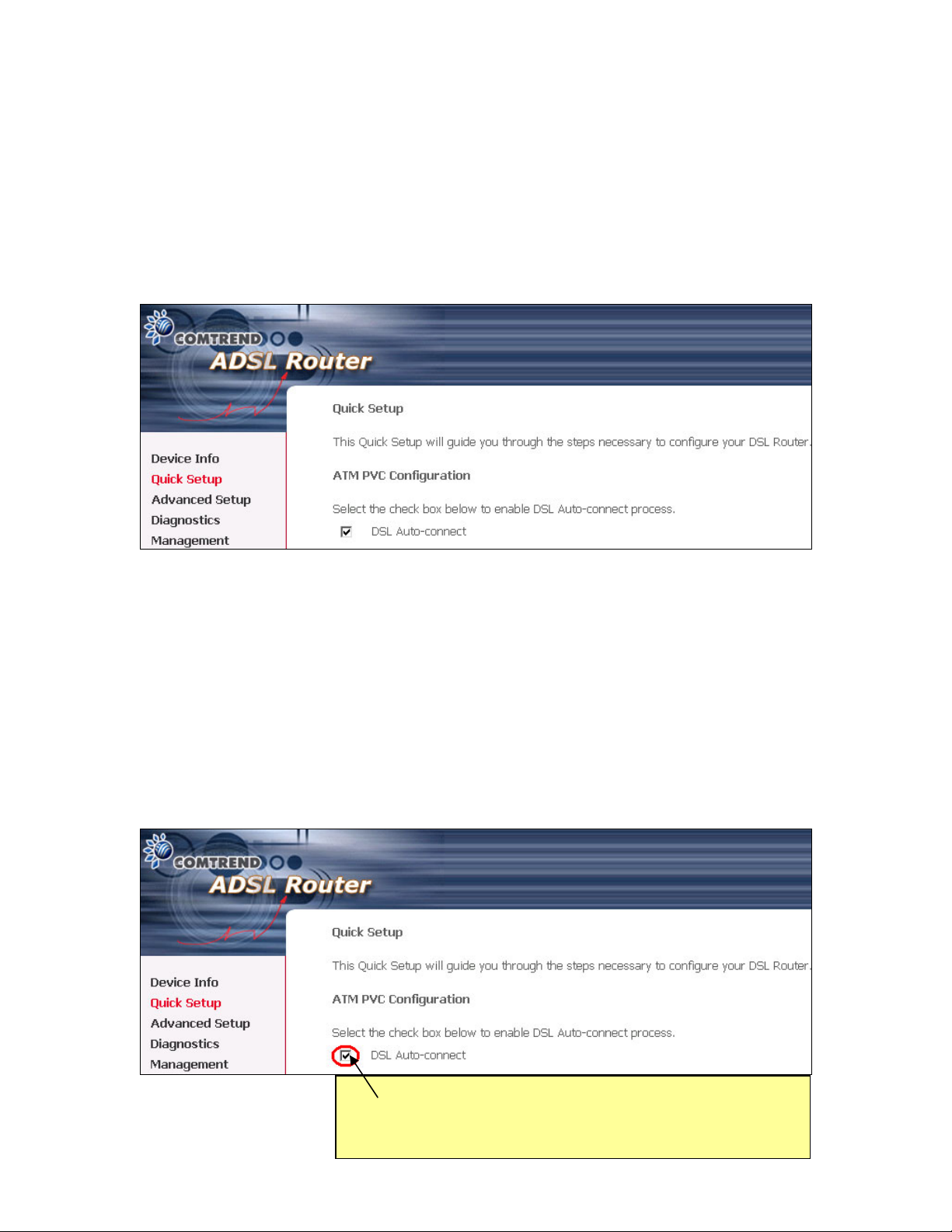

5.1 AUTO QUICK SETUP........................................................................................... 37
5.2 M
ANUAL QUICK SETUP...................................................................................... 37

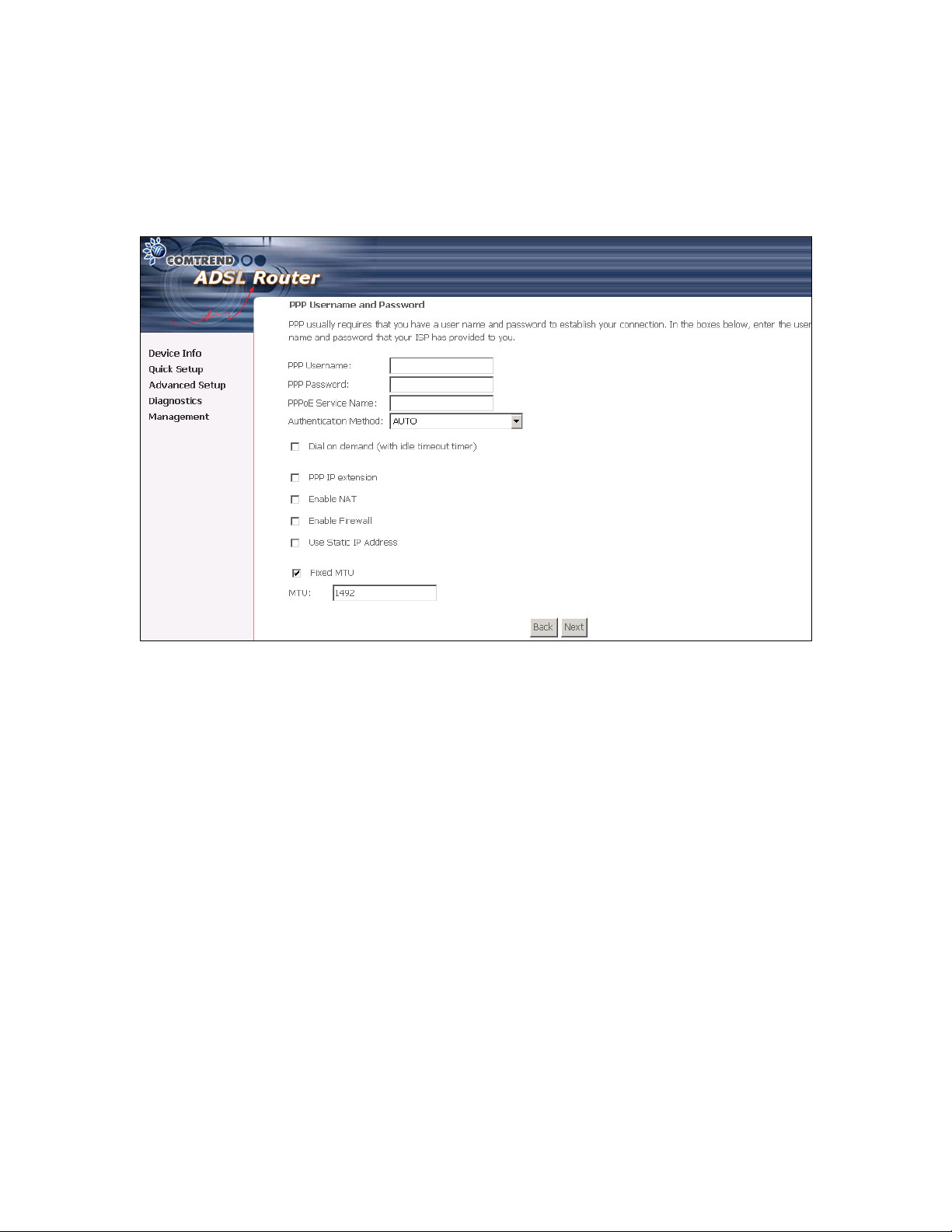

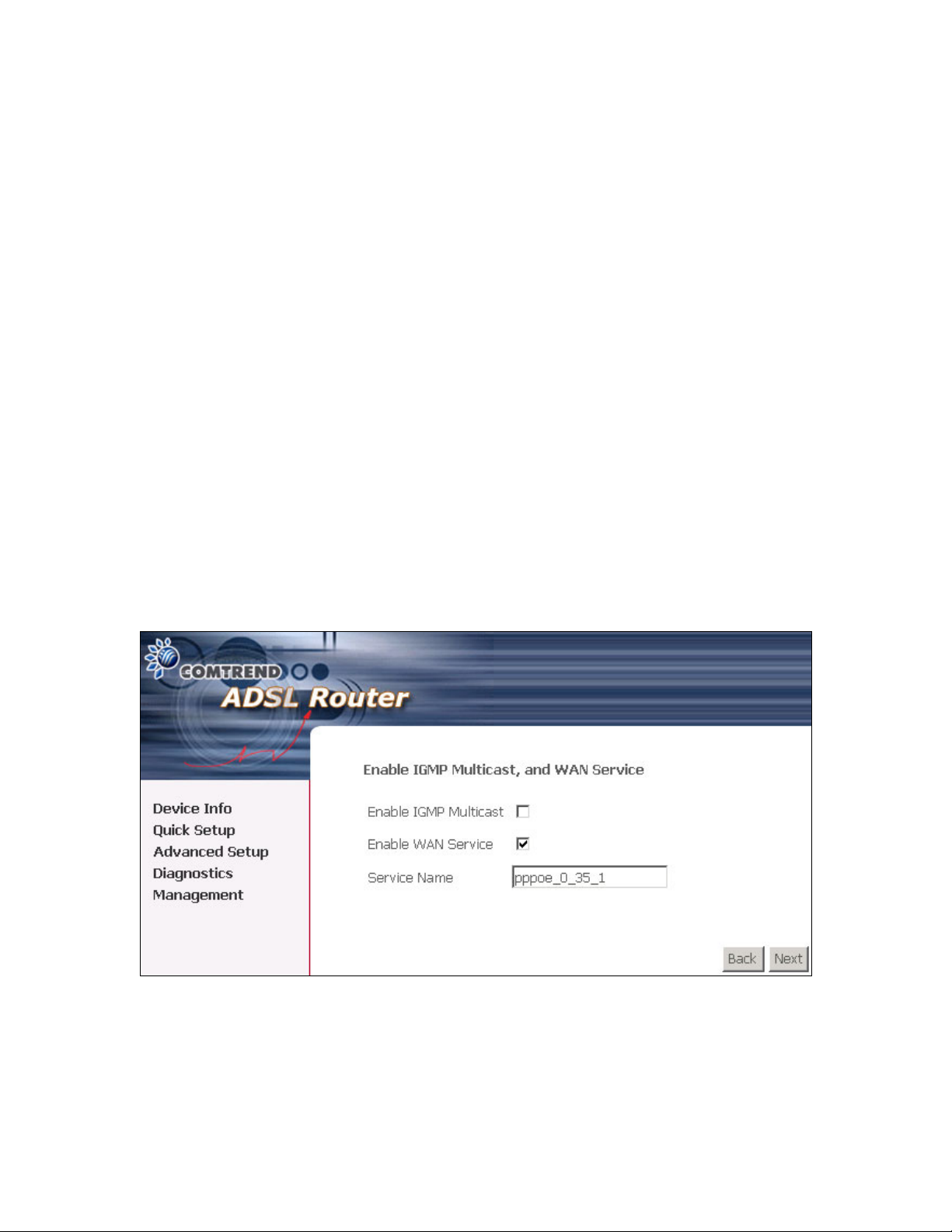

5.2.1 PPP over ATM (PPPoA) and PPP over Ethernet (PPPoE)..................... 39

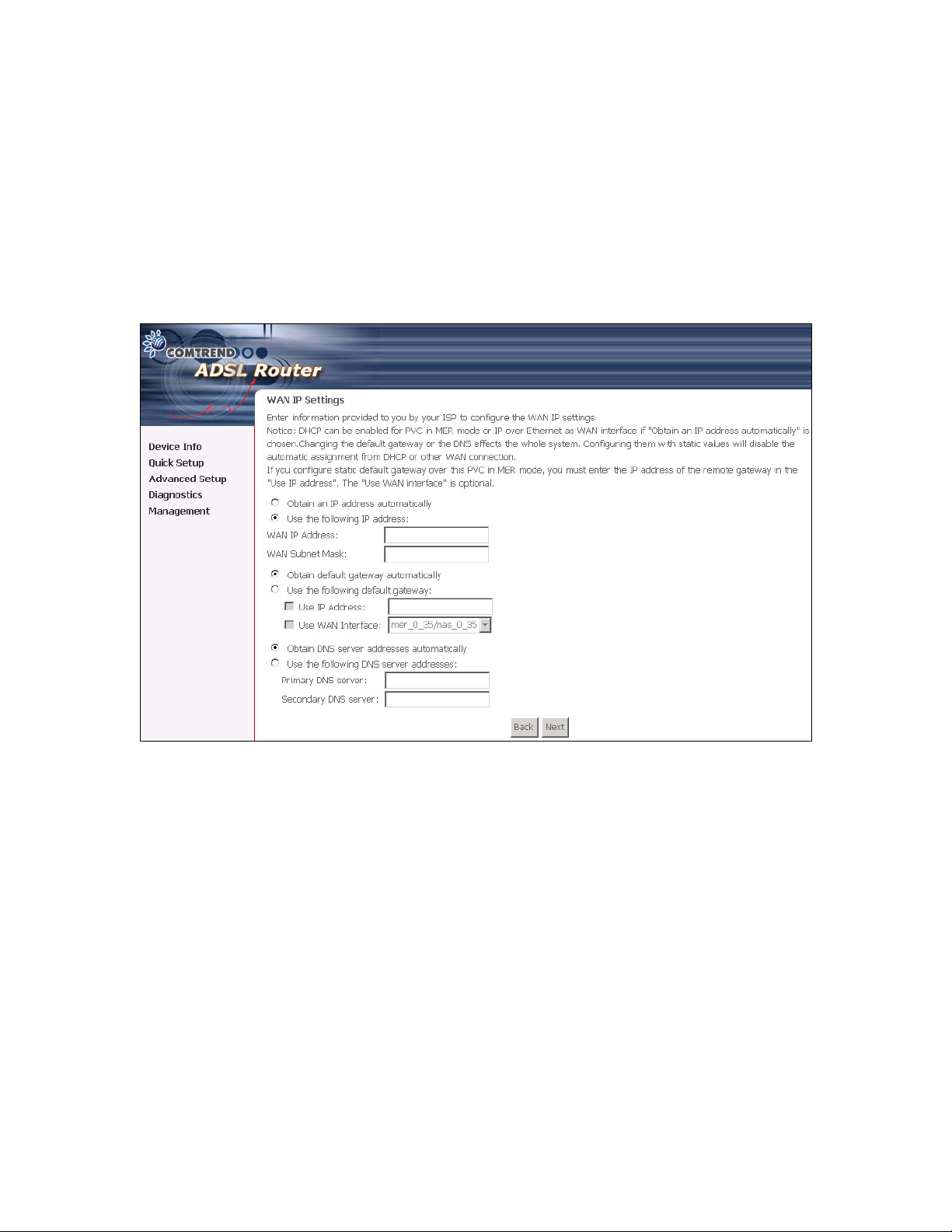

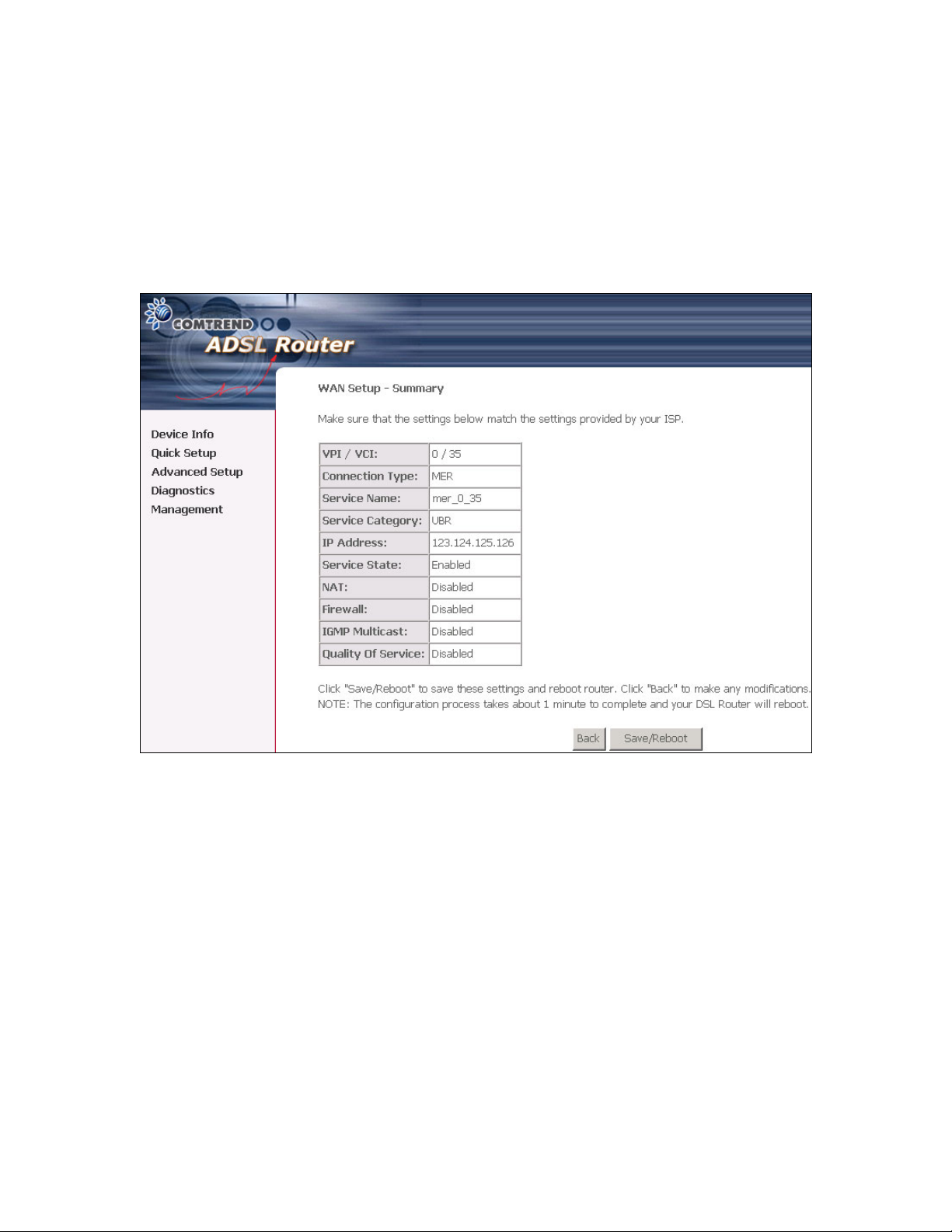

5.2.2 MAC Encapsulation Routing (MER) ........................................................ 44

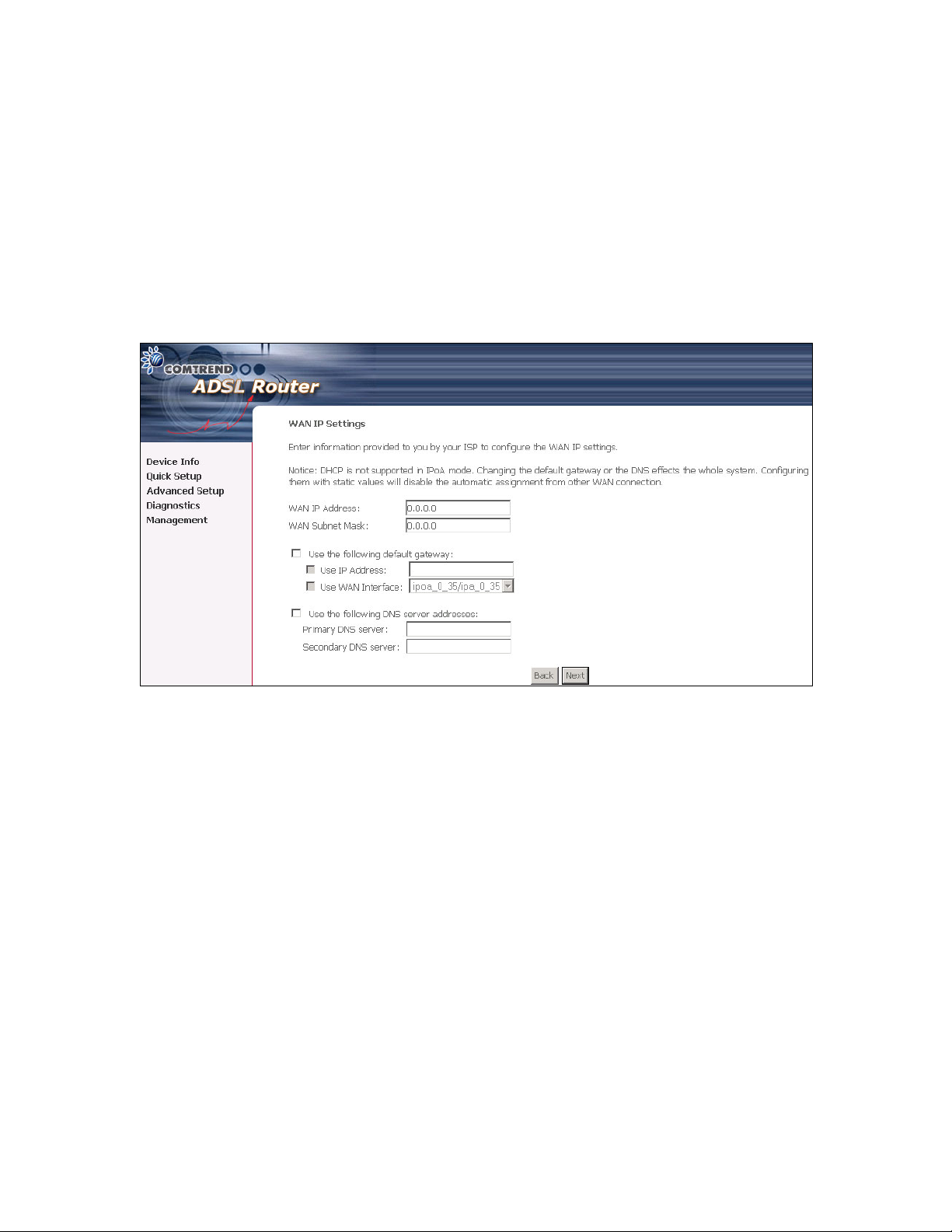

5.2.3 IP Over ATM............................................................................................. 48

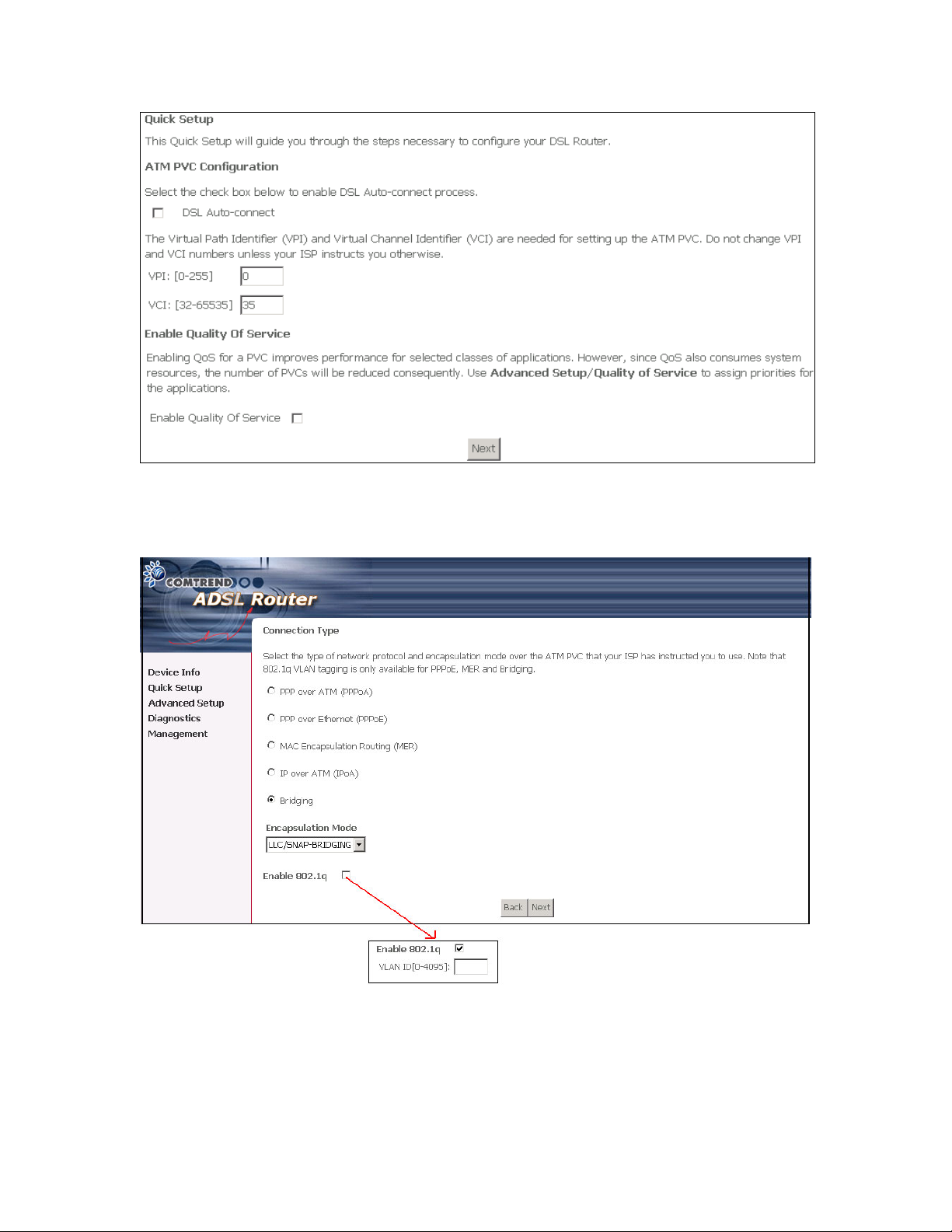

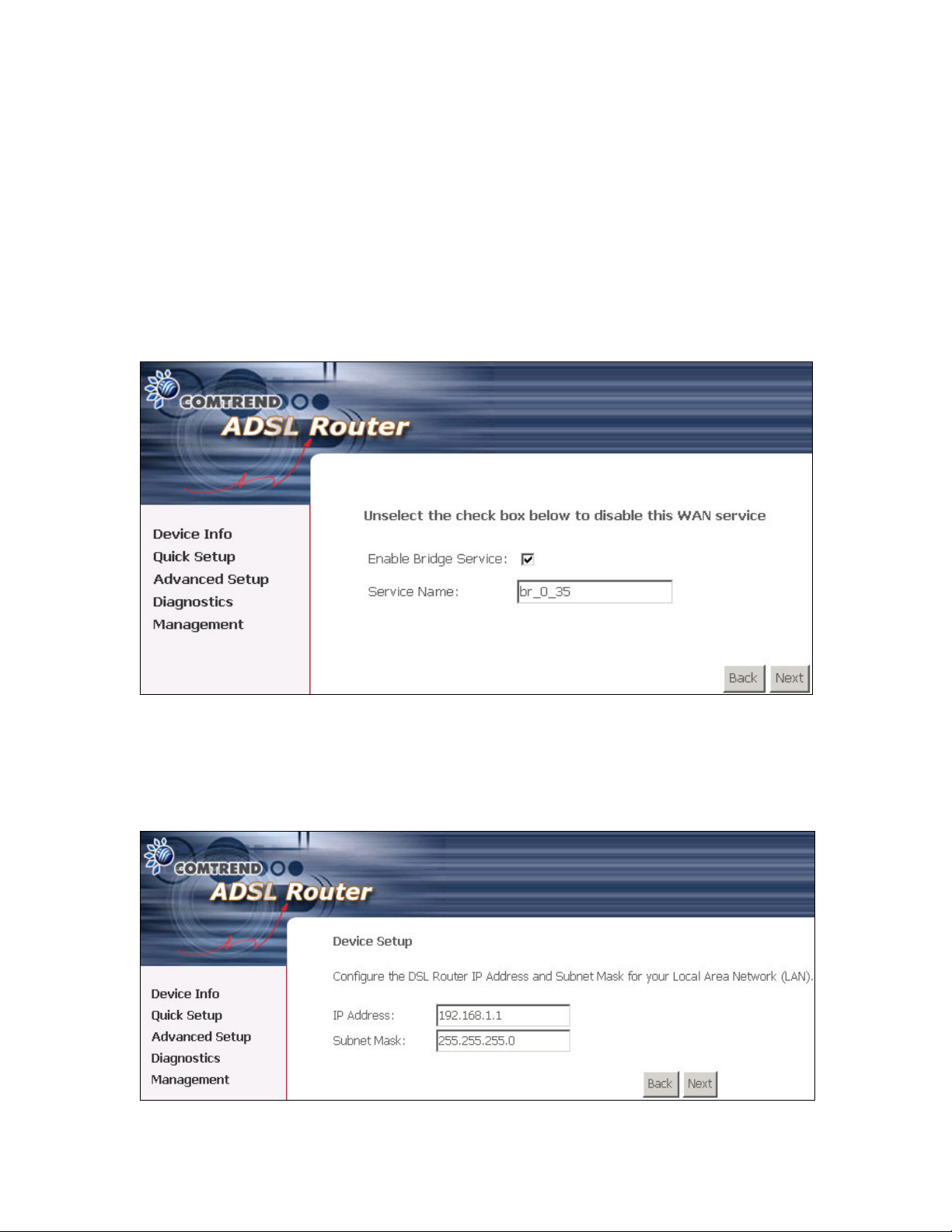

5.2.4 Bridging .................................................................................................... 52
CHAPTER 6 ADVANCED SETUP.......................................................................... 54

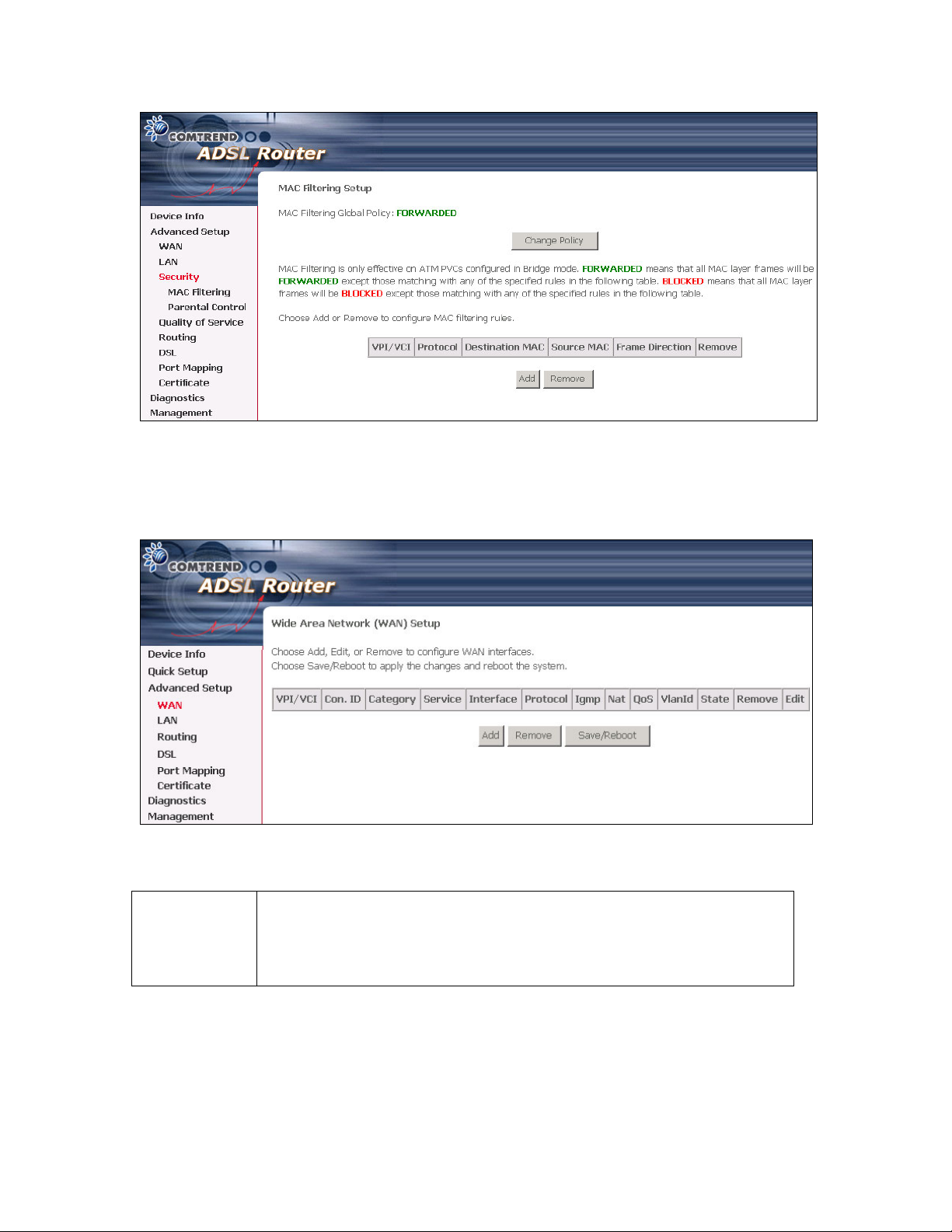

6.1 WAN................................................................................................................. 55

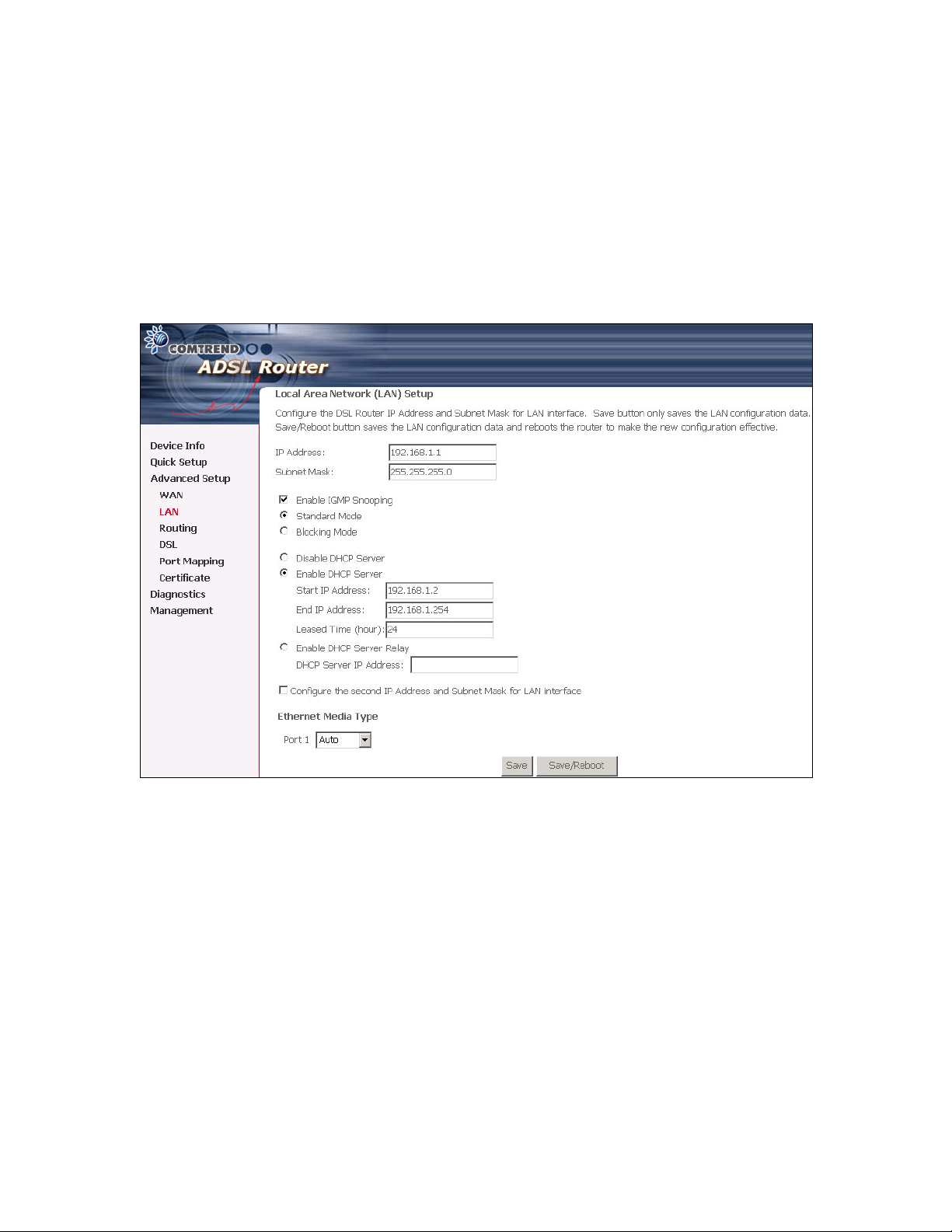

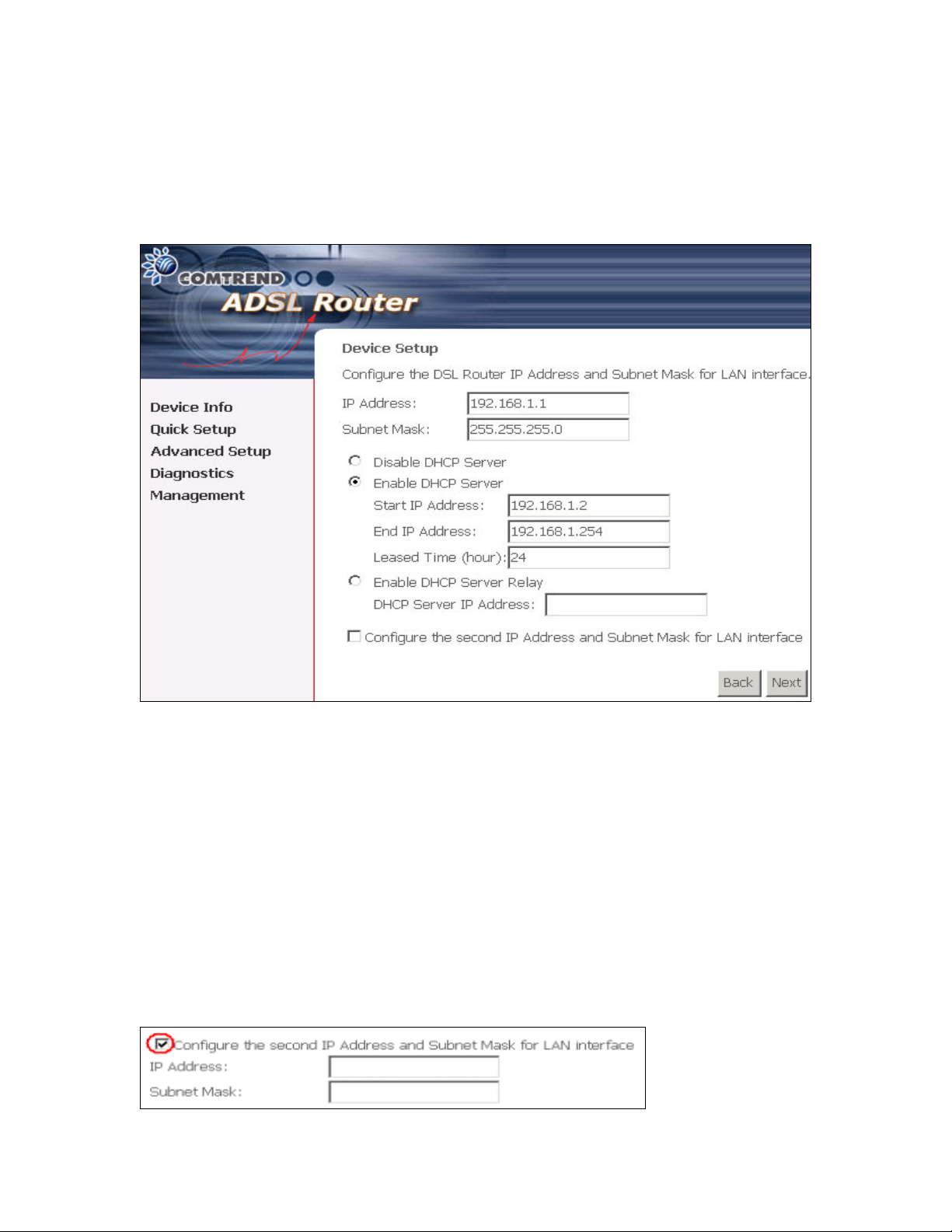

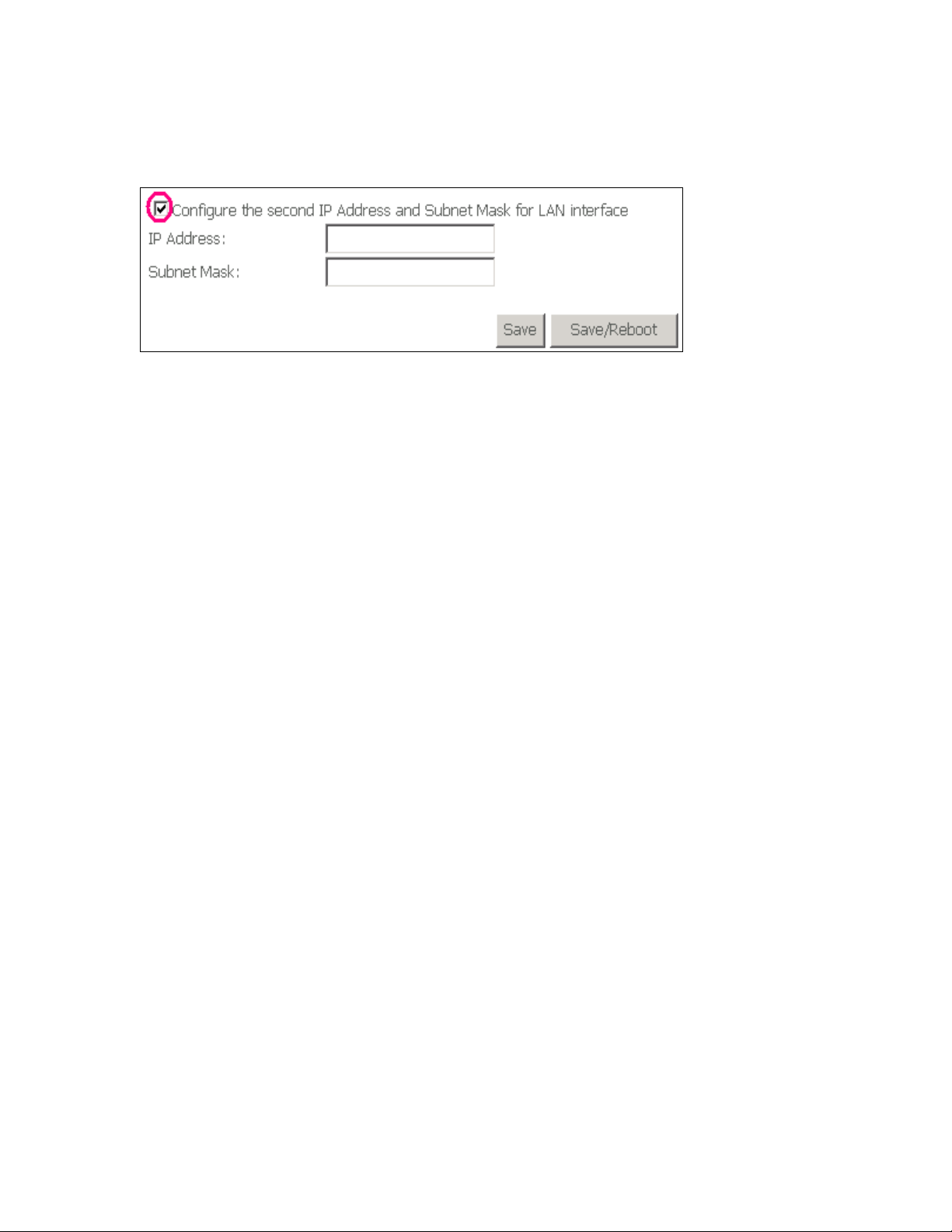

6.2 LAN .................................................................................................................. 56

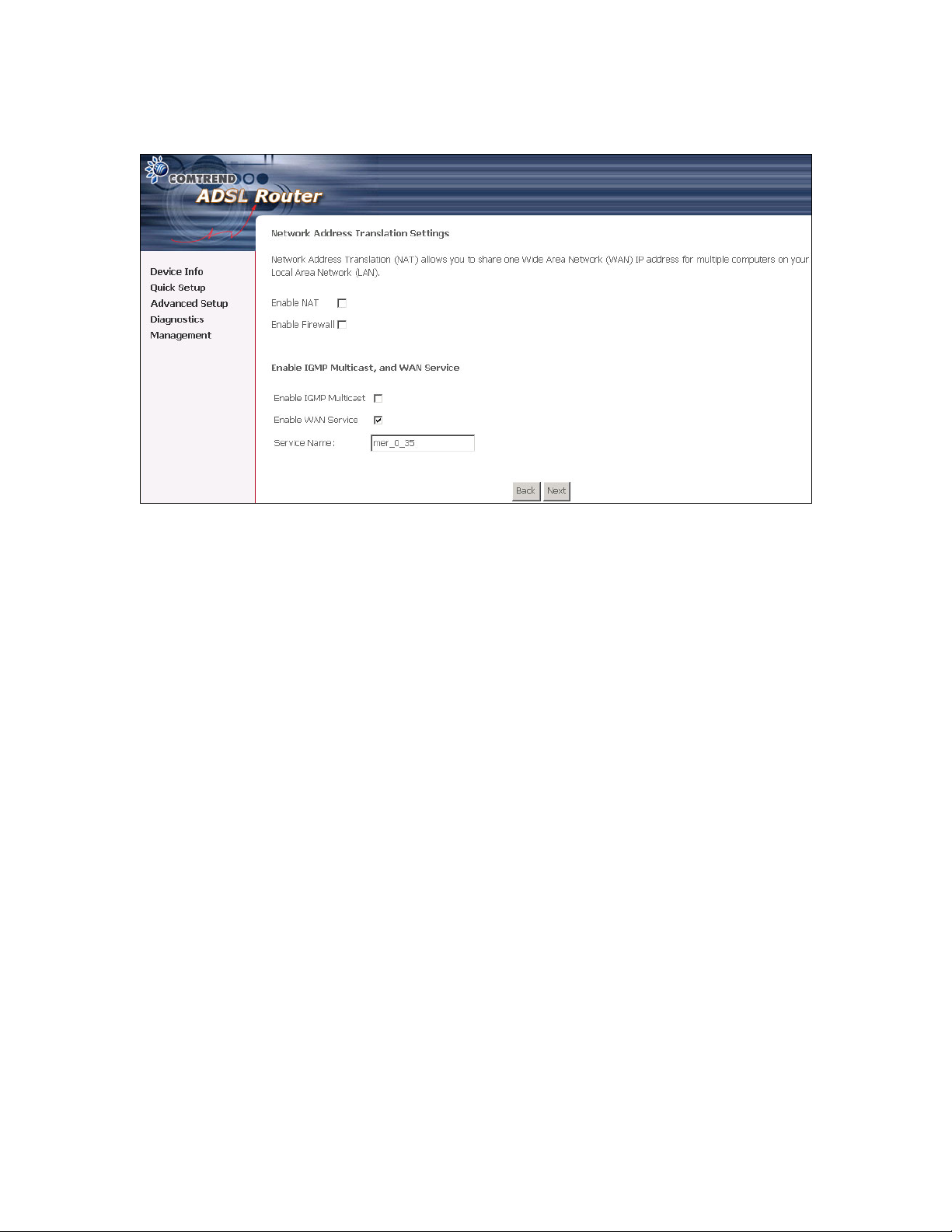

6.3 NAT .................................................................................................................. 58

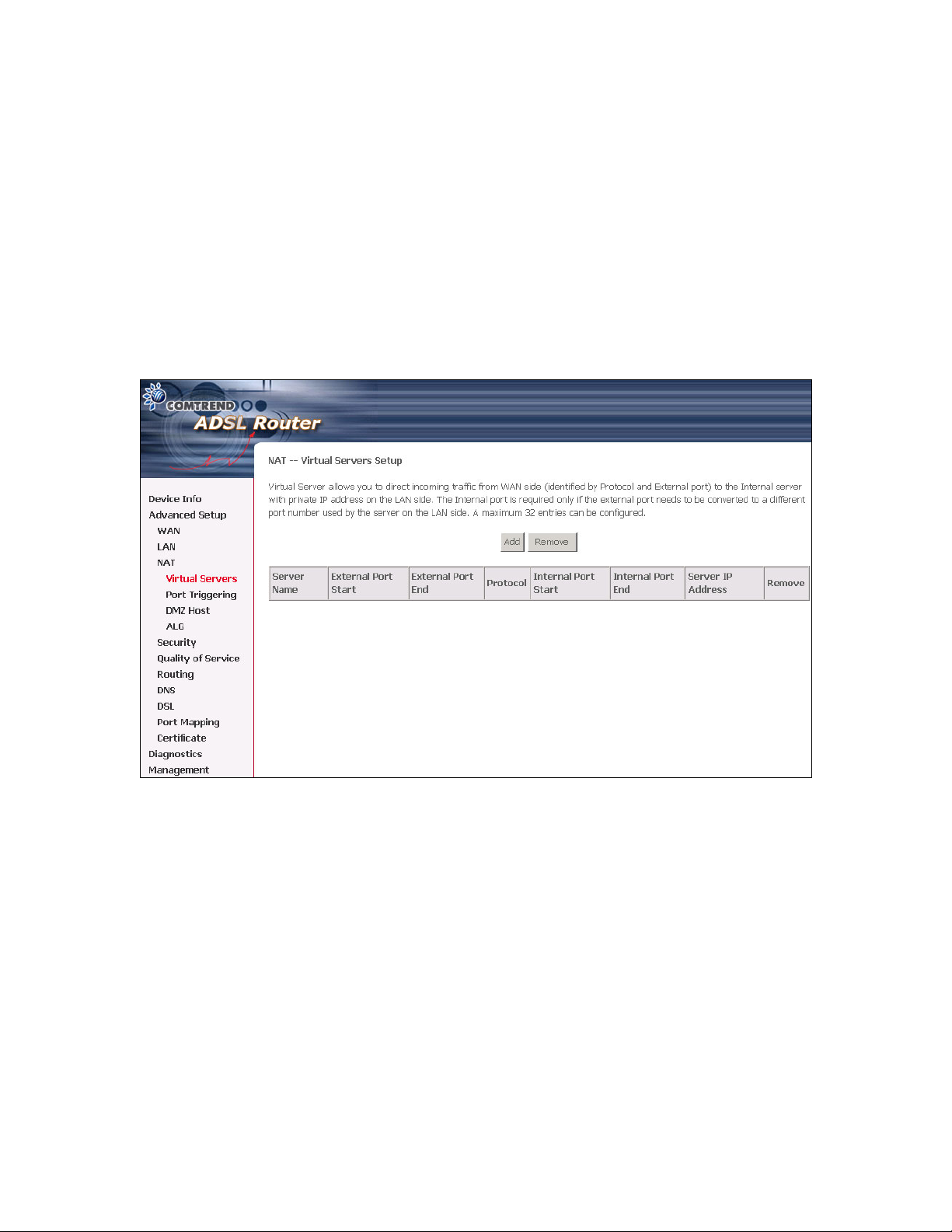

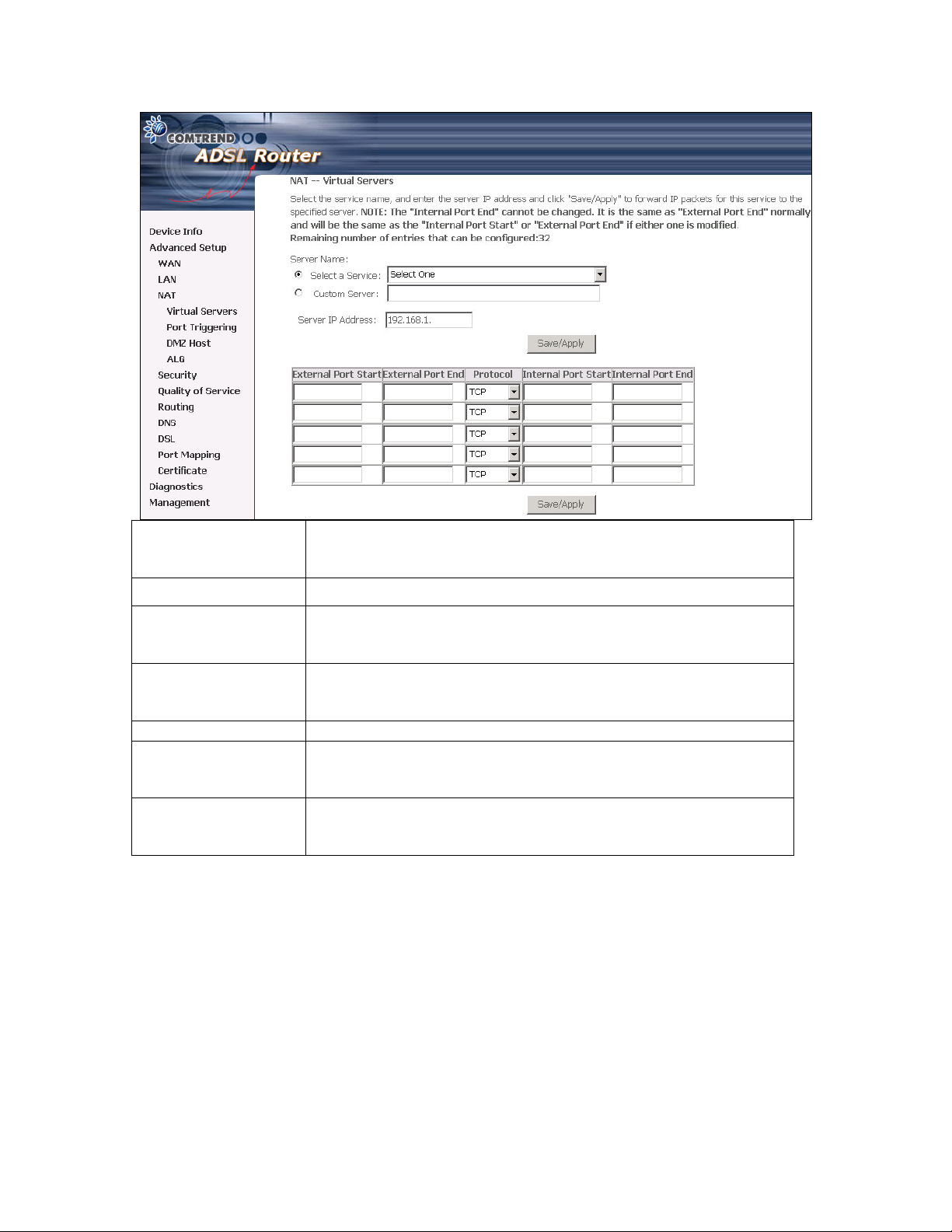

6.3.1 Virtual Servers.......................................................................................... 58

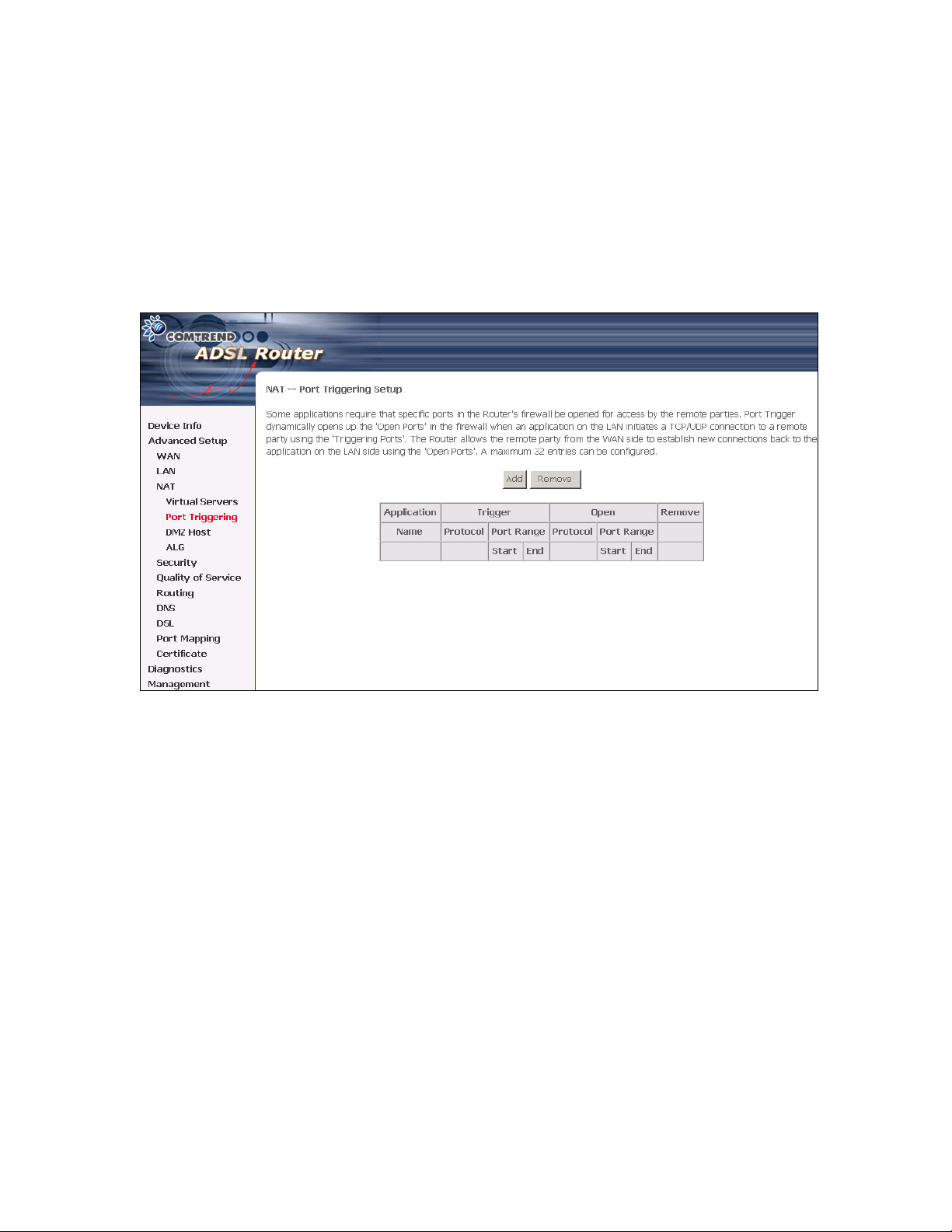

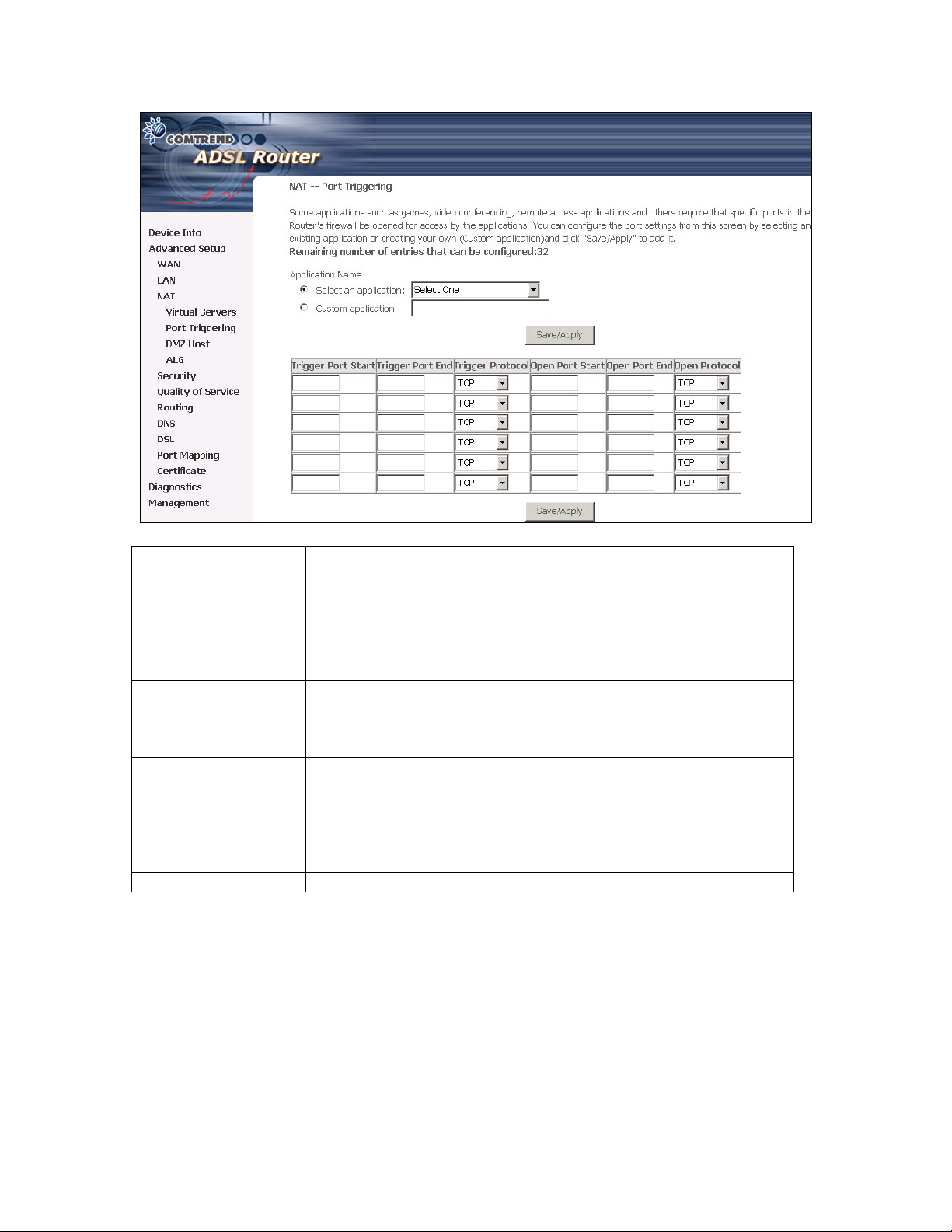

6.3.2 Port Triggering......................................................................................... 60

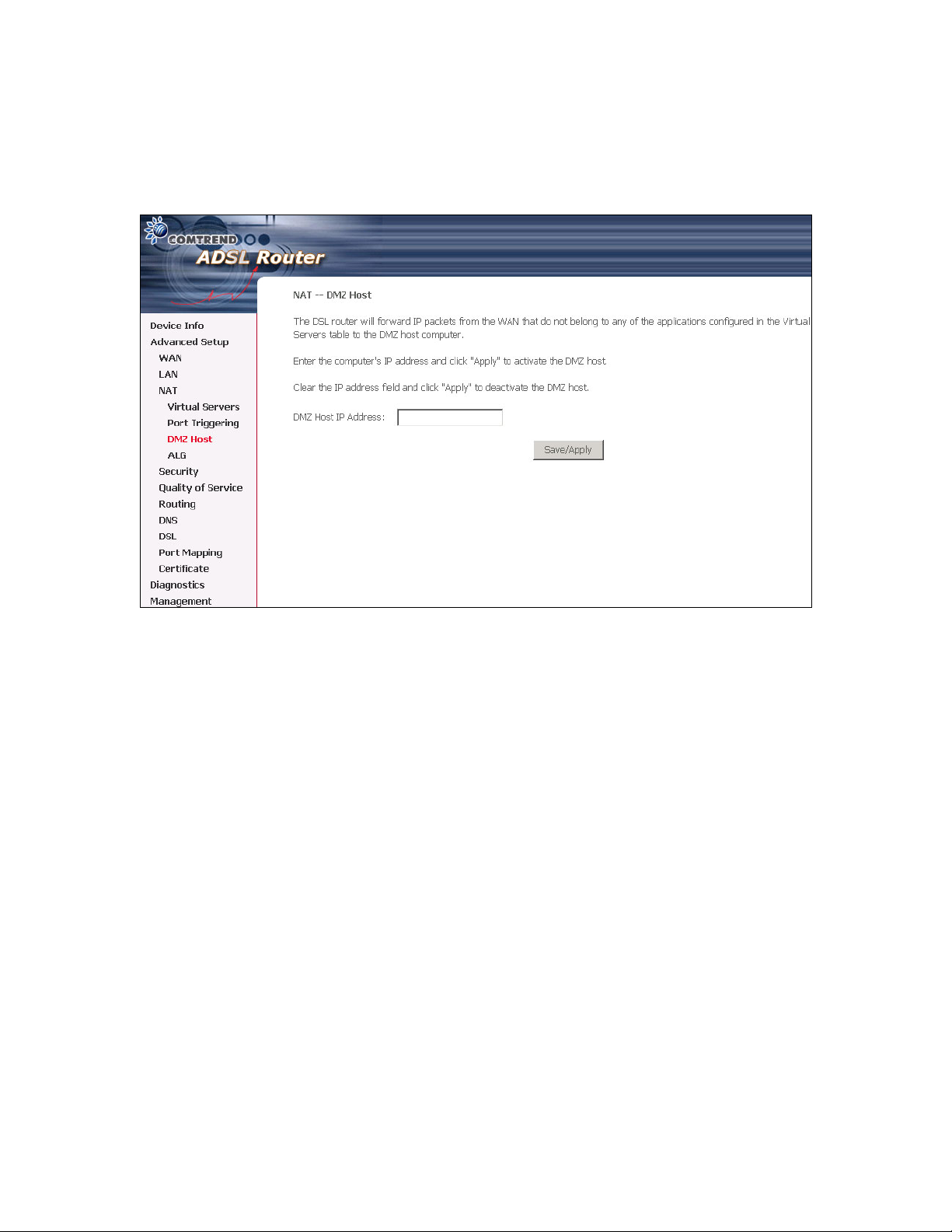

6.3.3 DMZ Host.................................................................................................. 62

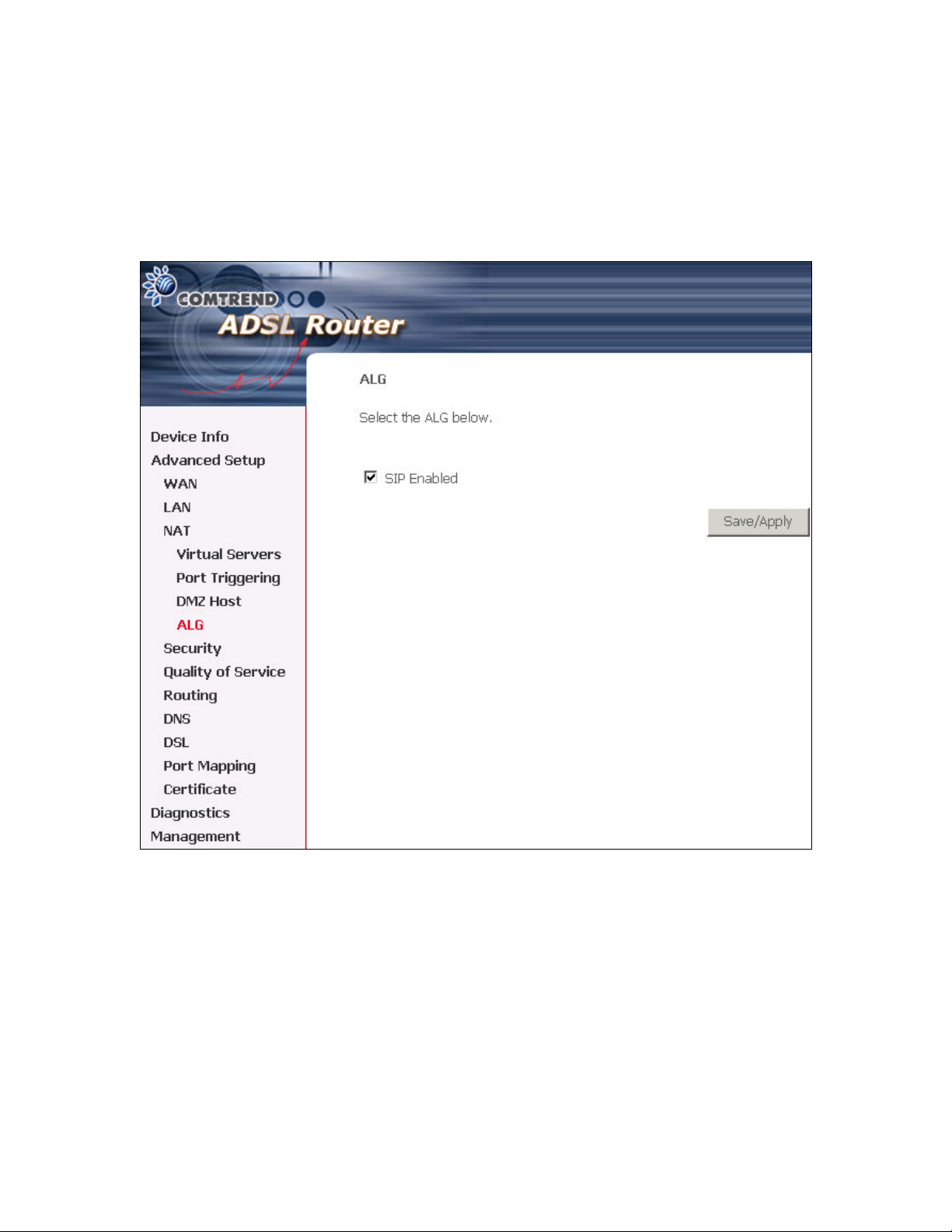

6.3.4 ALG........................................................................................................... 63
6.4 S
ECURITY........................................................................................................... 64

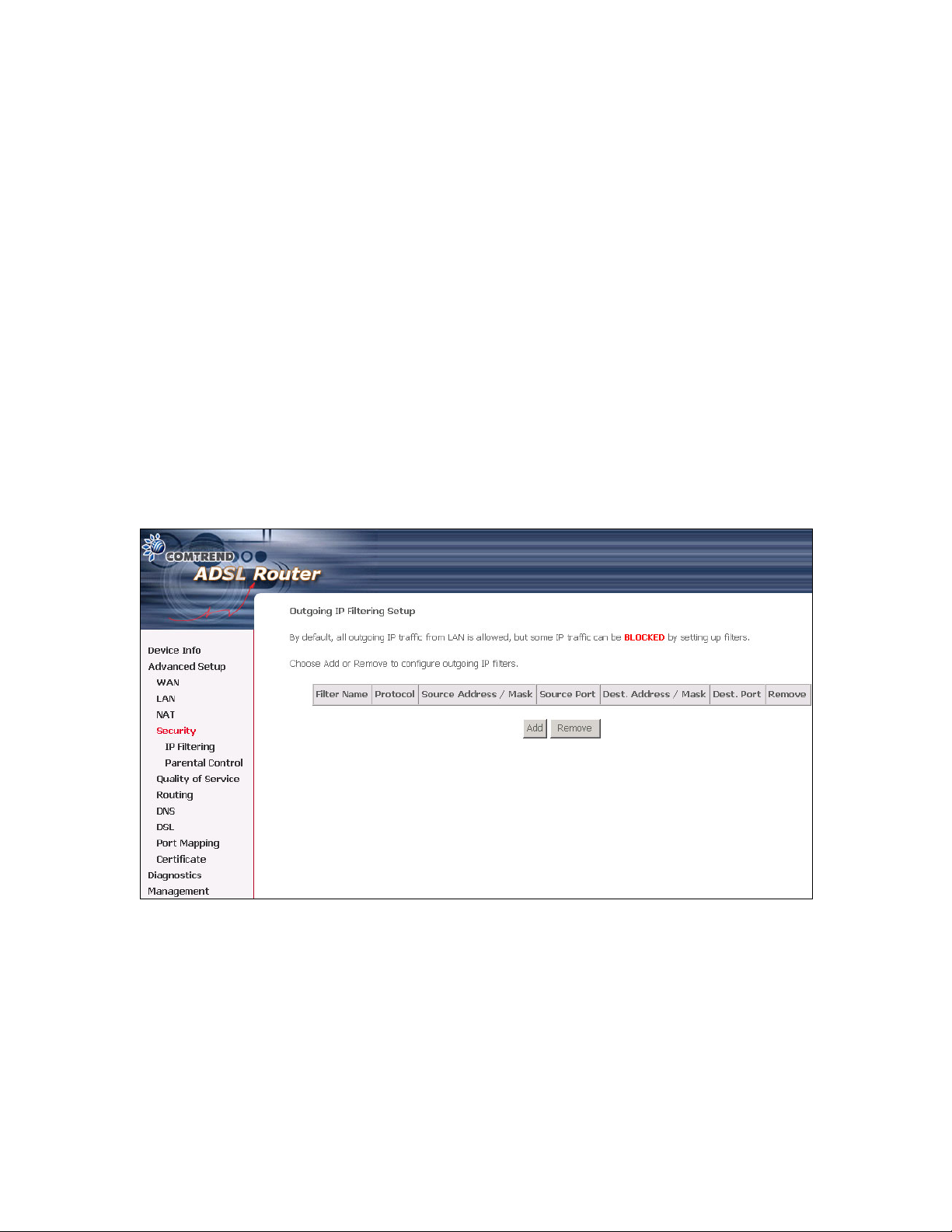

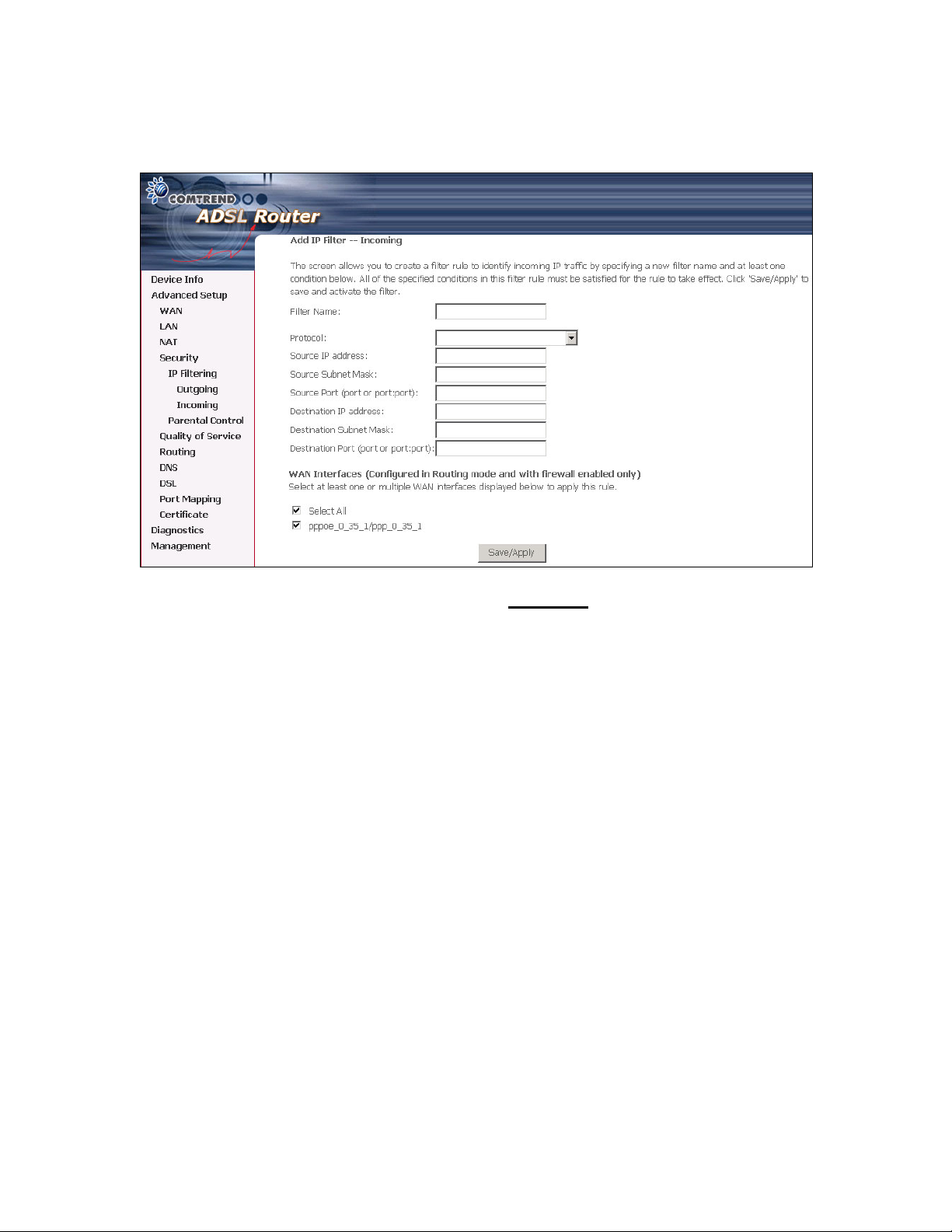

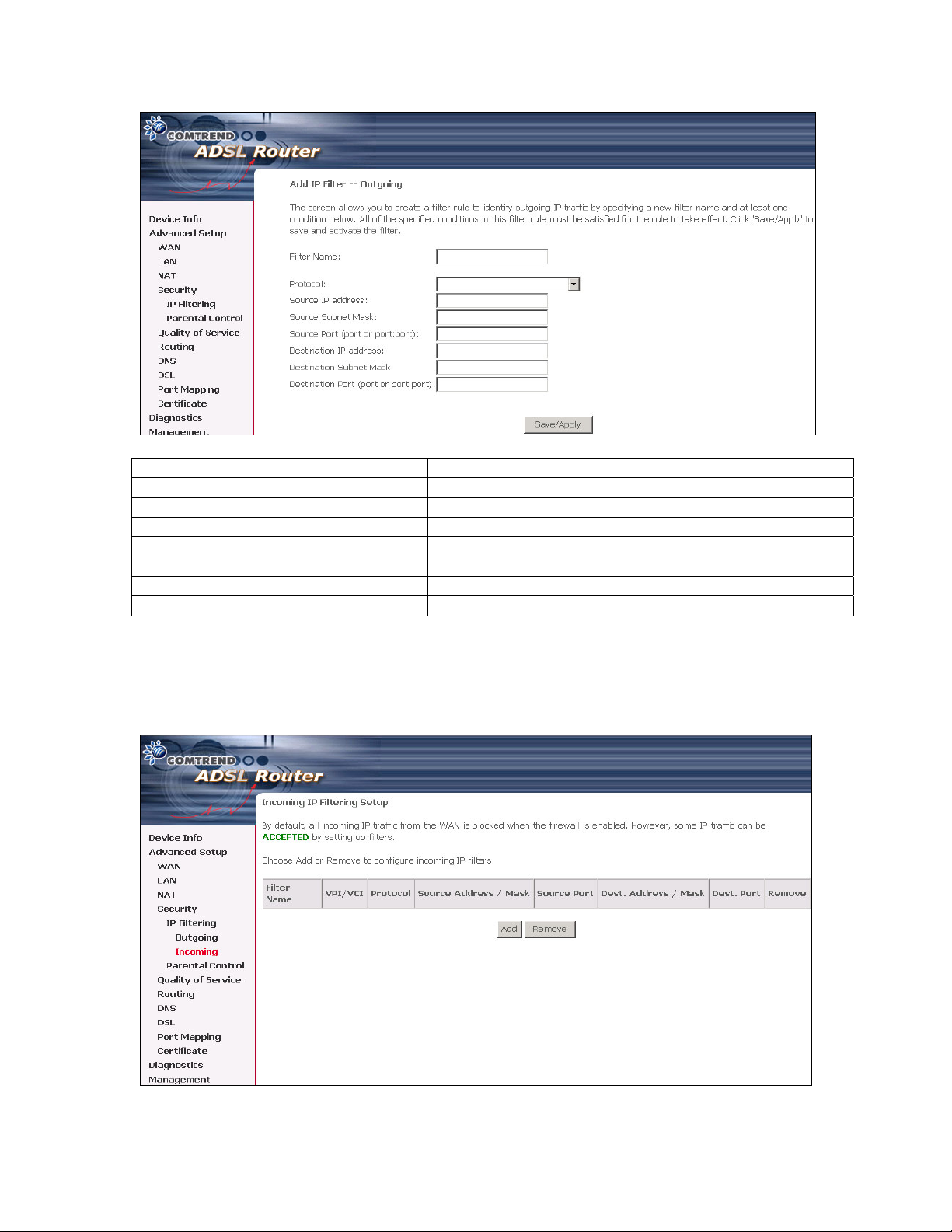

6.4.1 IP Filtering................................................................................................ 64
2

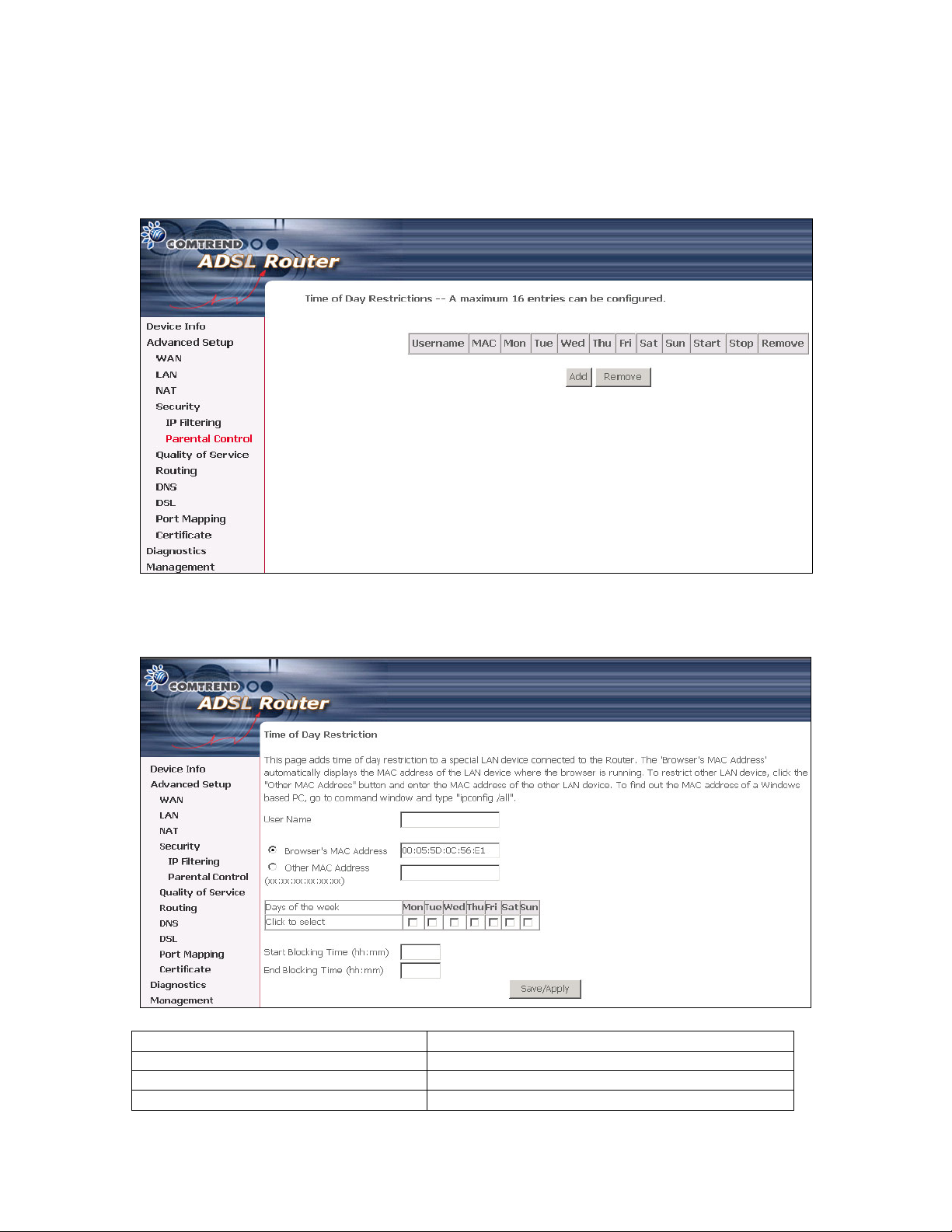

6.4.2 Parental Control....................................................................................... 67

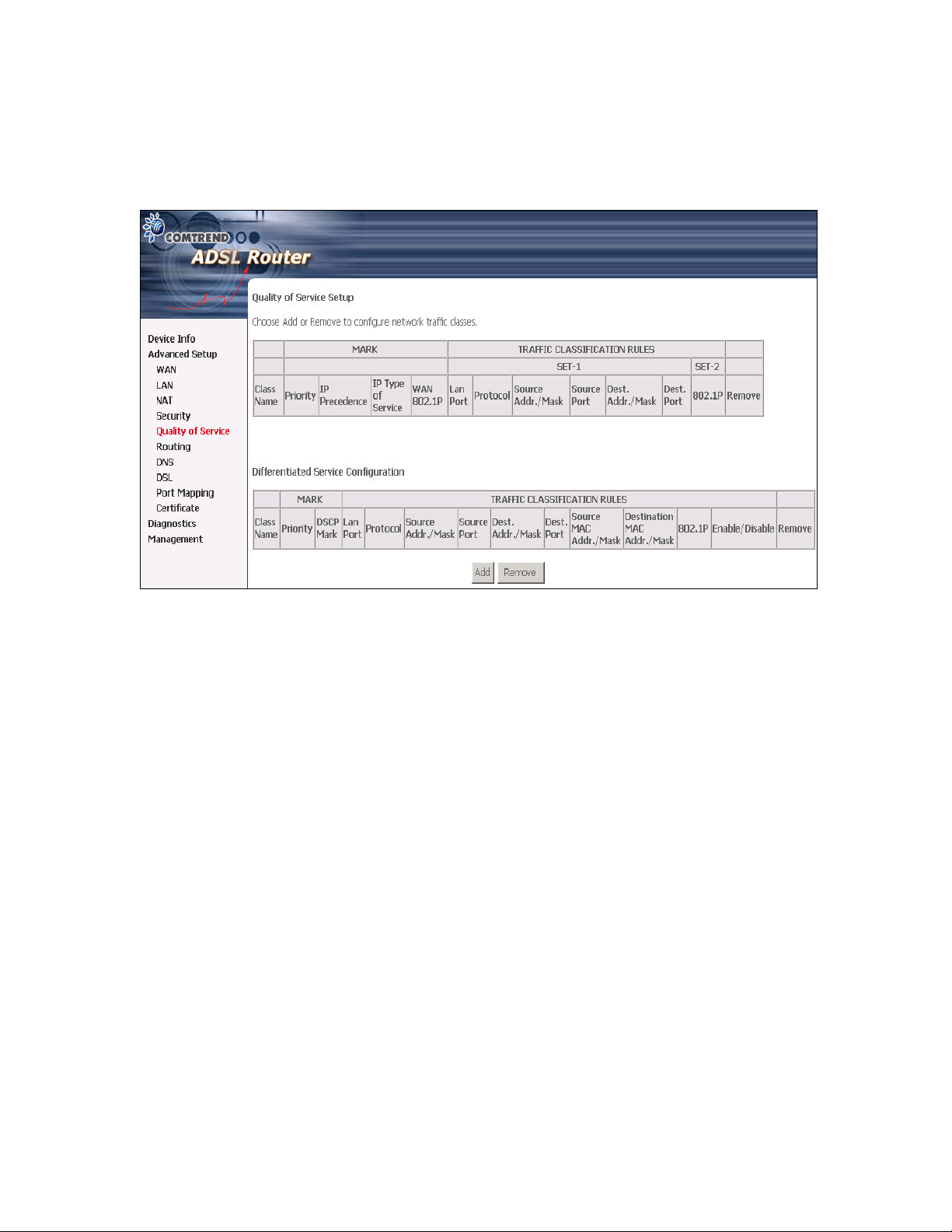

6.5 QUALITY OF SERVICE......................................................................................... 68
6.6 ROUTING............................................................................................................ 70

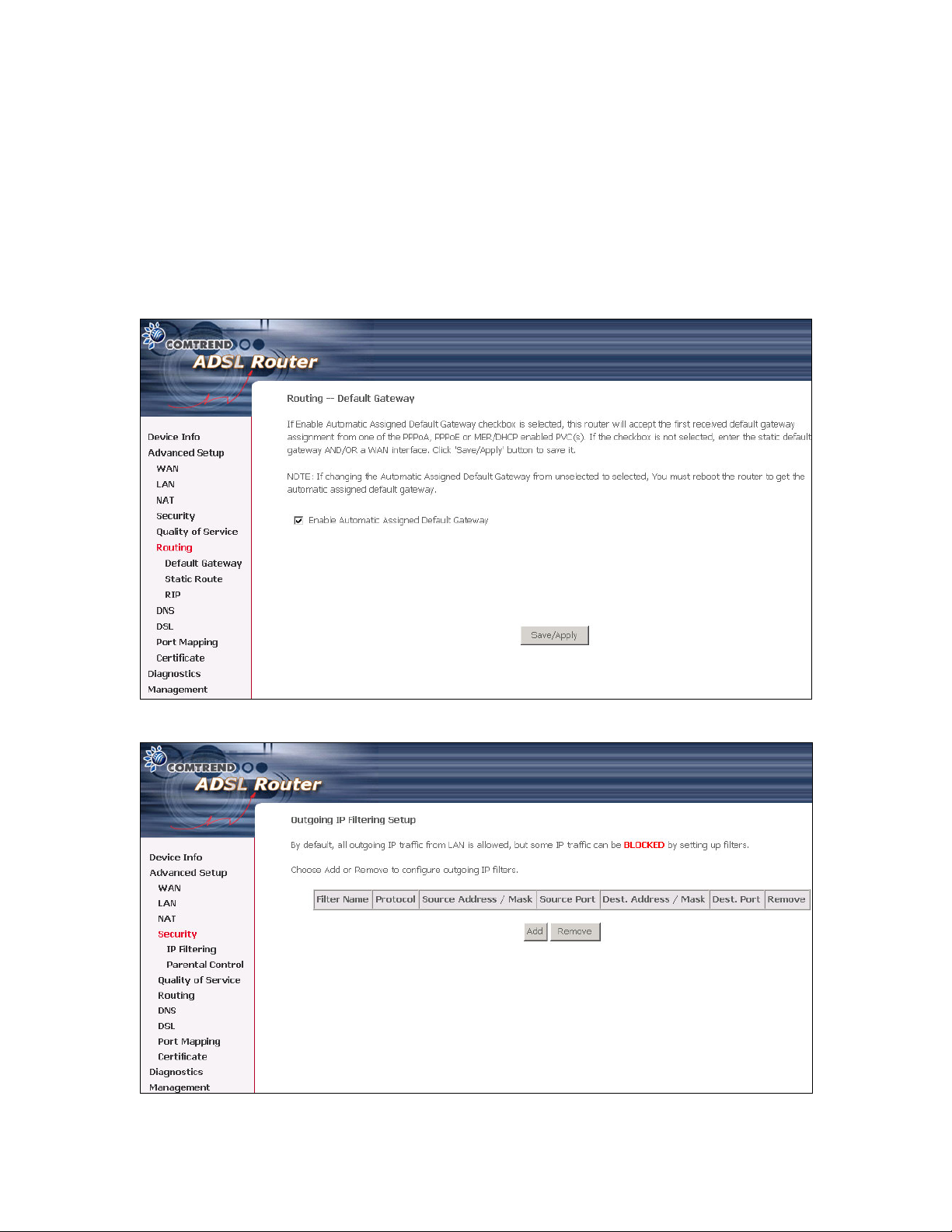

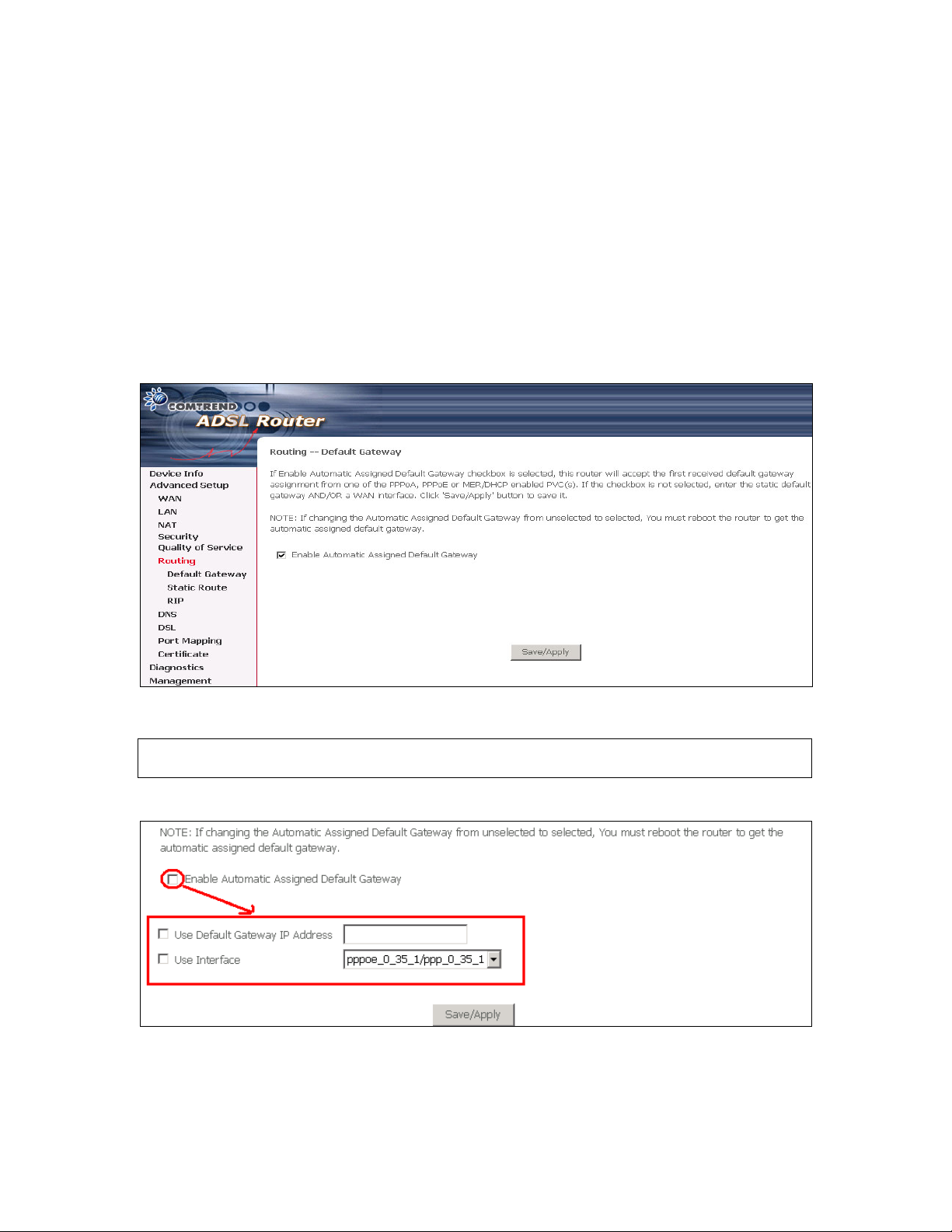

6.6.1 Default Gateway ....................................................................................... 70

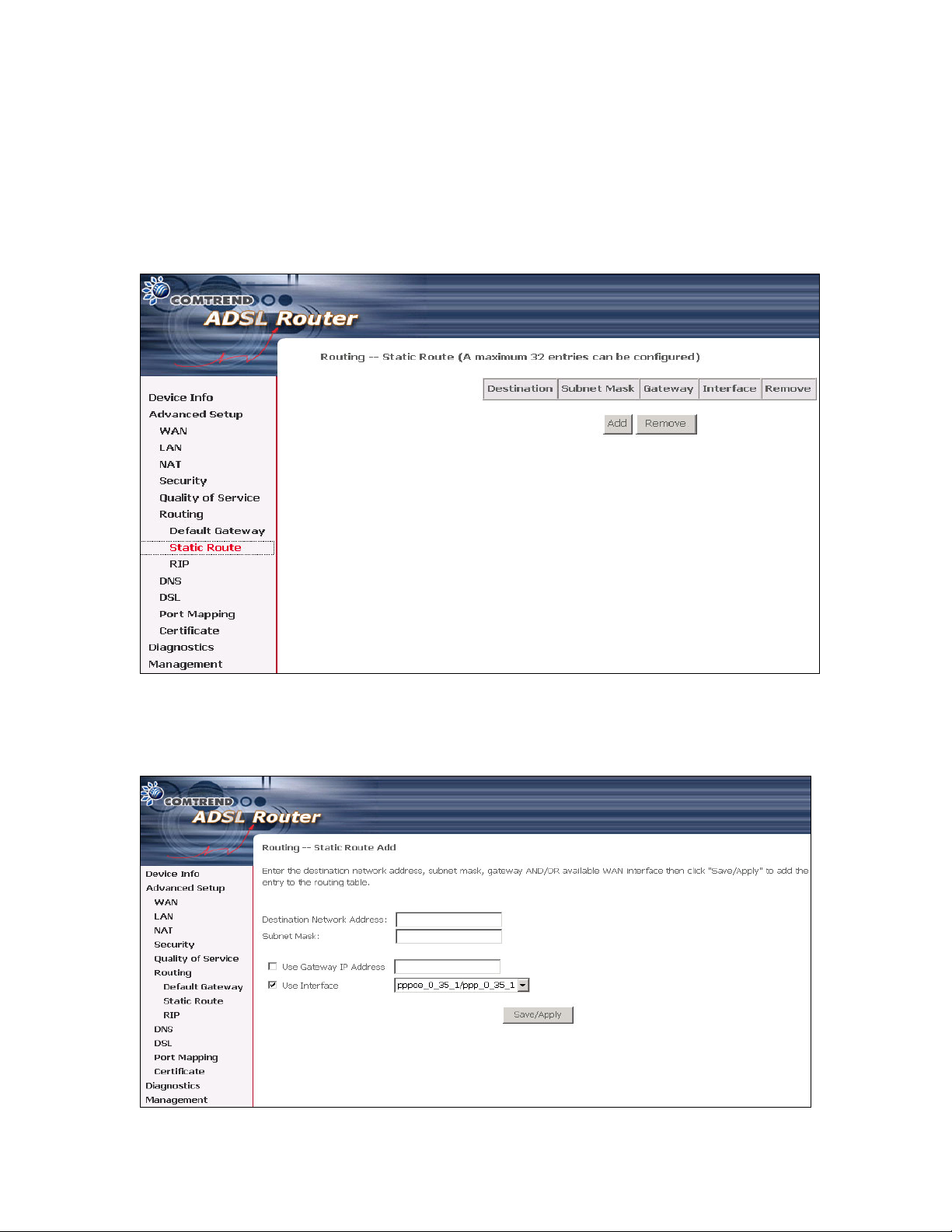

6.6.2 Static Route............................................................................................... 71
6.7 DNS................................................................................................................... 72

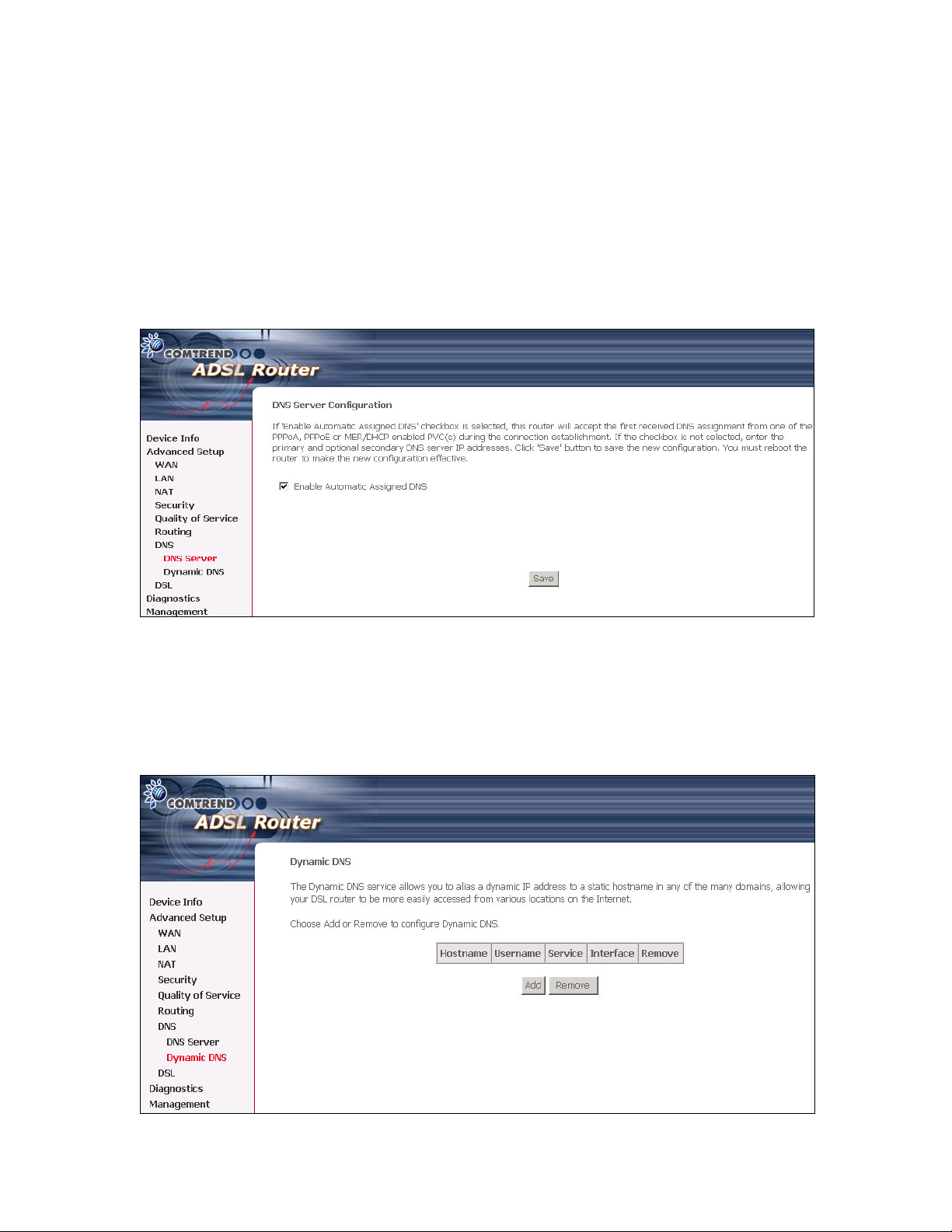

6.7.1 DNS Server................................................................................................ 72

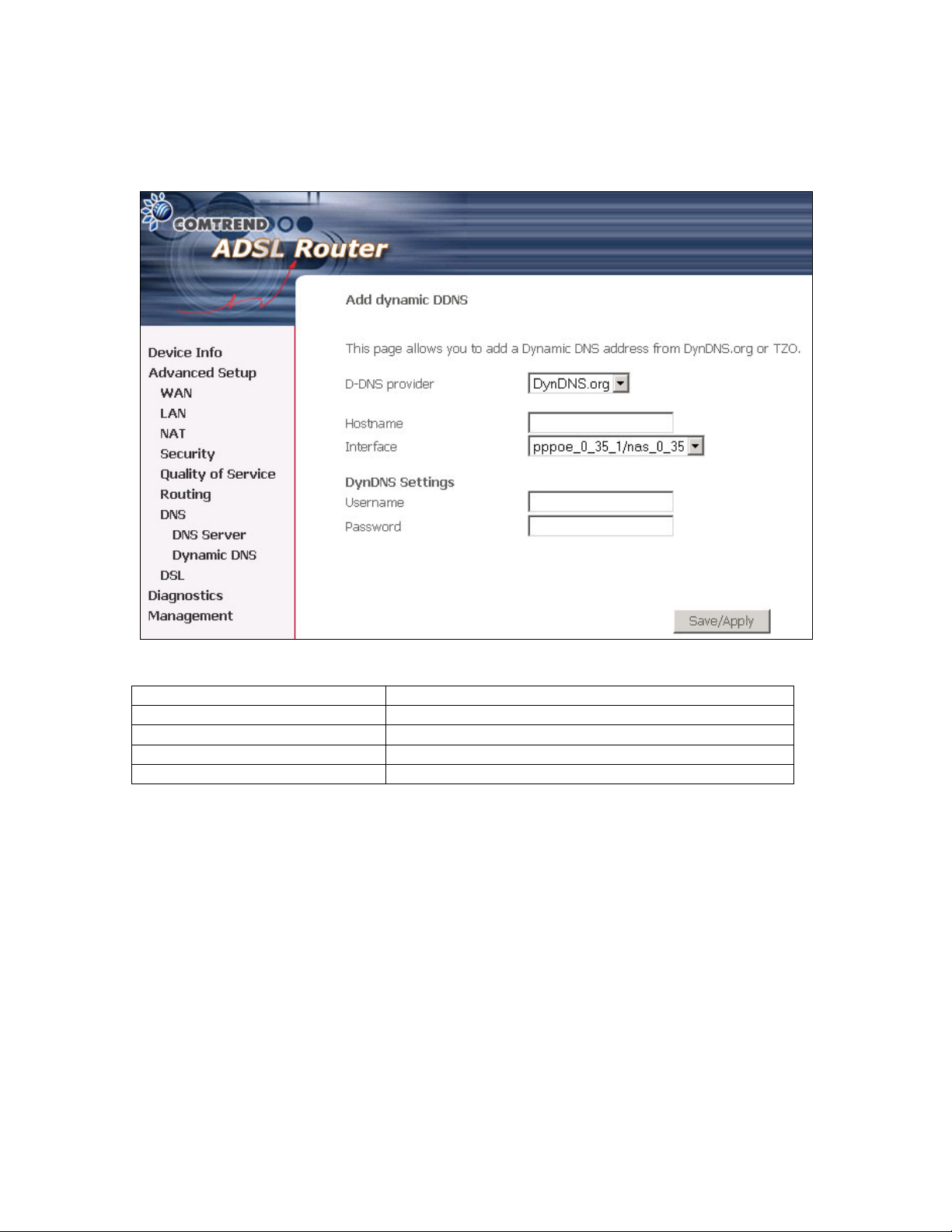

6.7.2 Dynamic DNS............................................................................................ 72

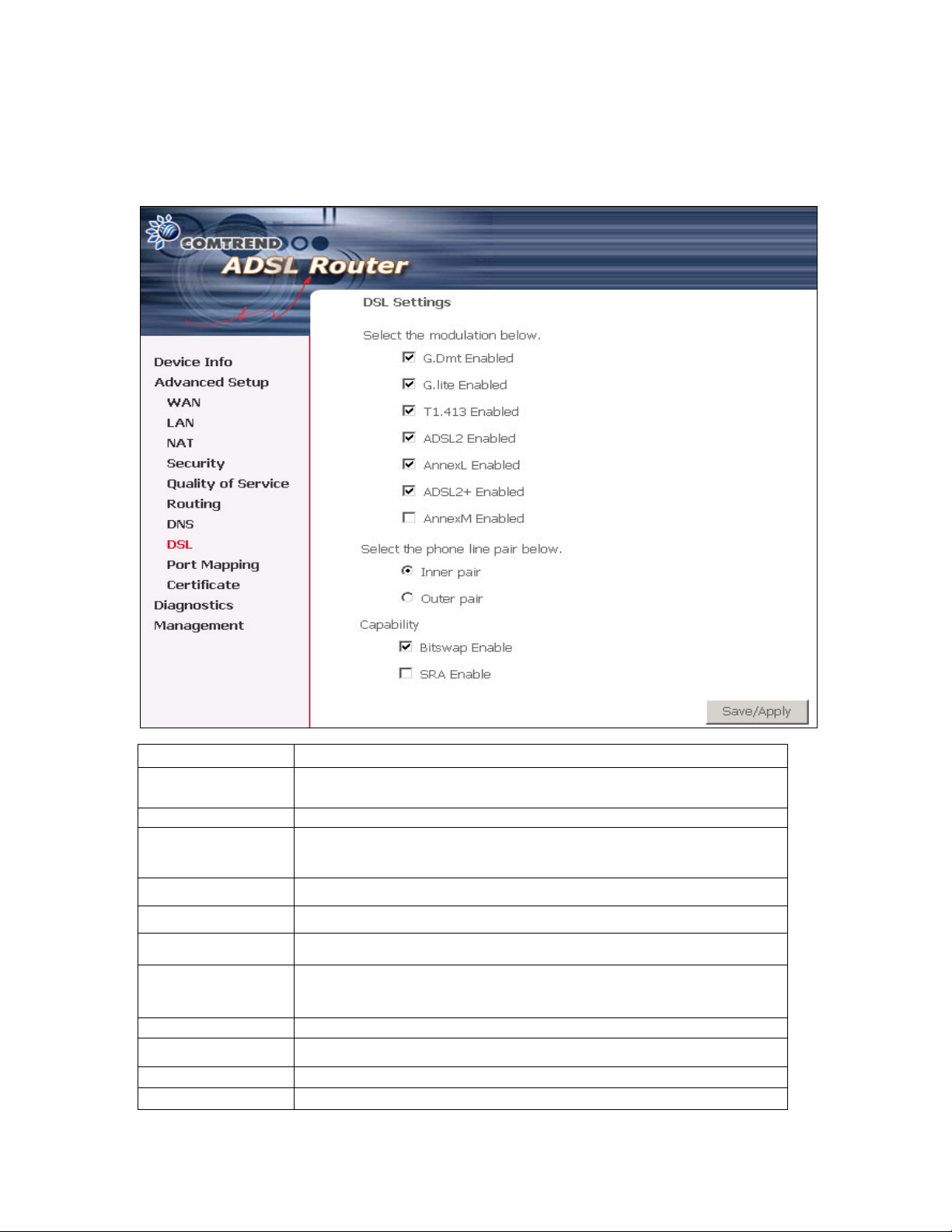

6.8 DSL................................................................................................................... 74

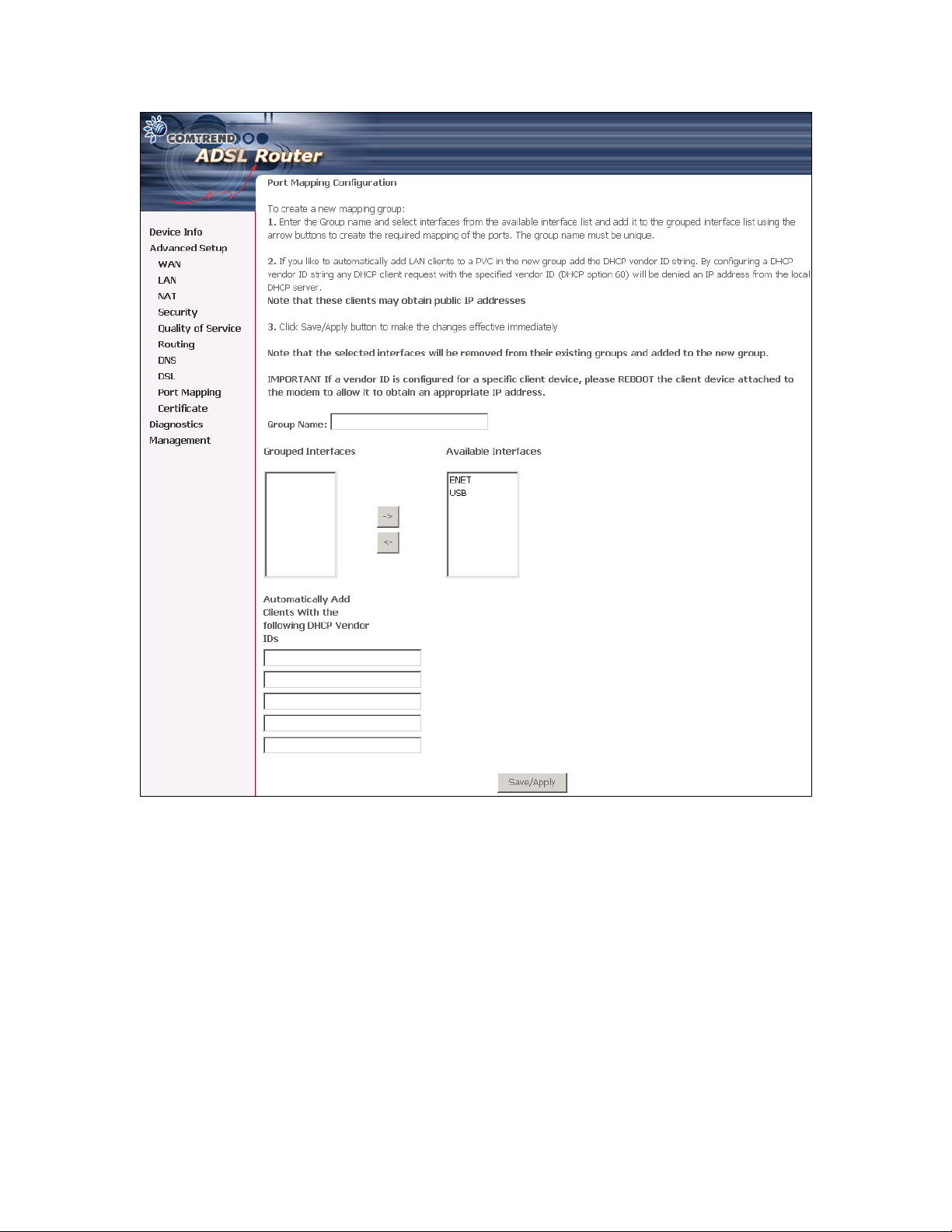

6.9 PORT MAPPING .................................................................................................. 75

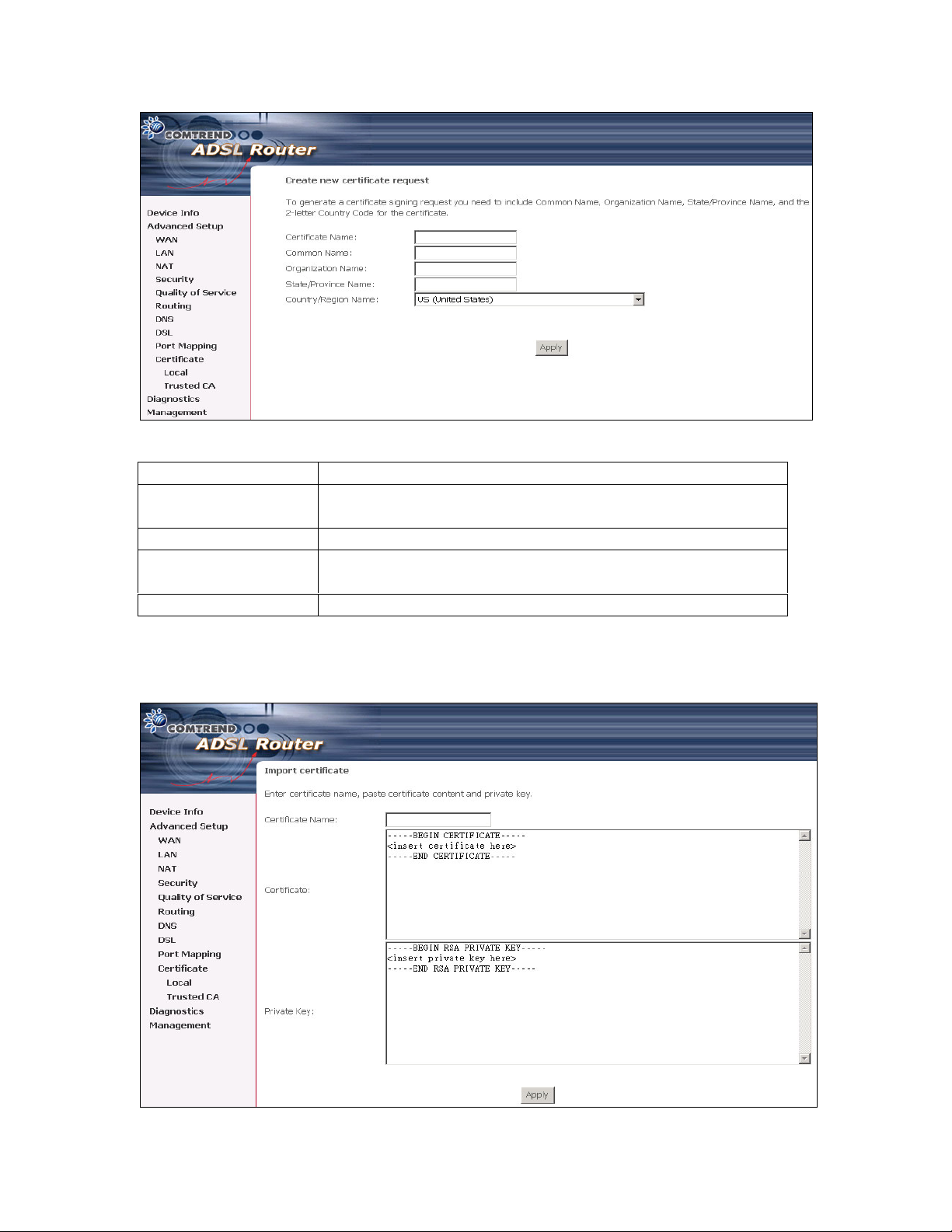

6.10 CERTIFICATE...................................................................................................... 78

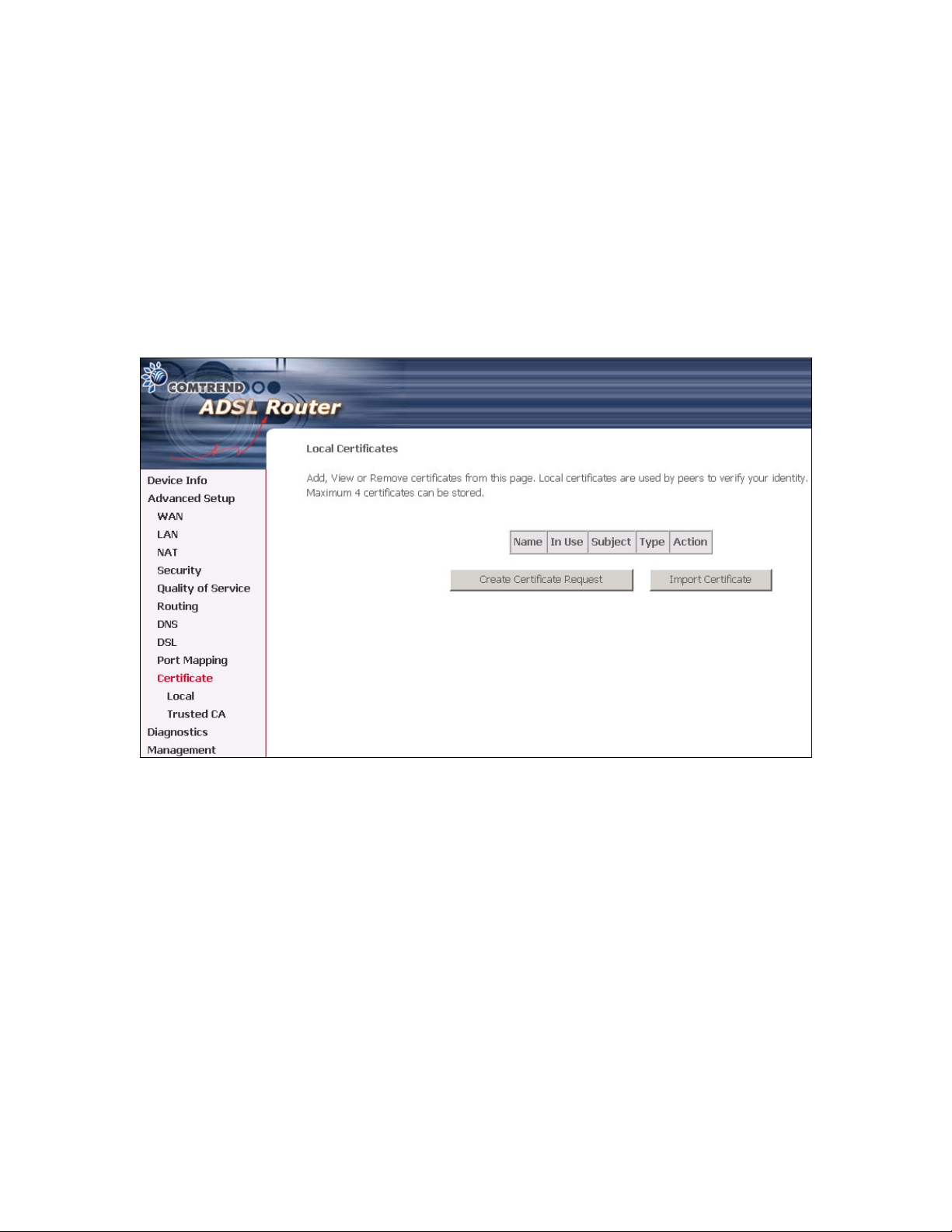

6.10.1 Local ......................................................................................................... 78

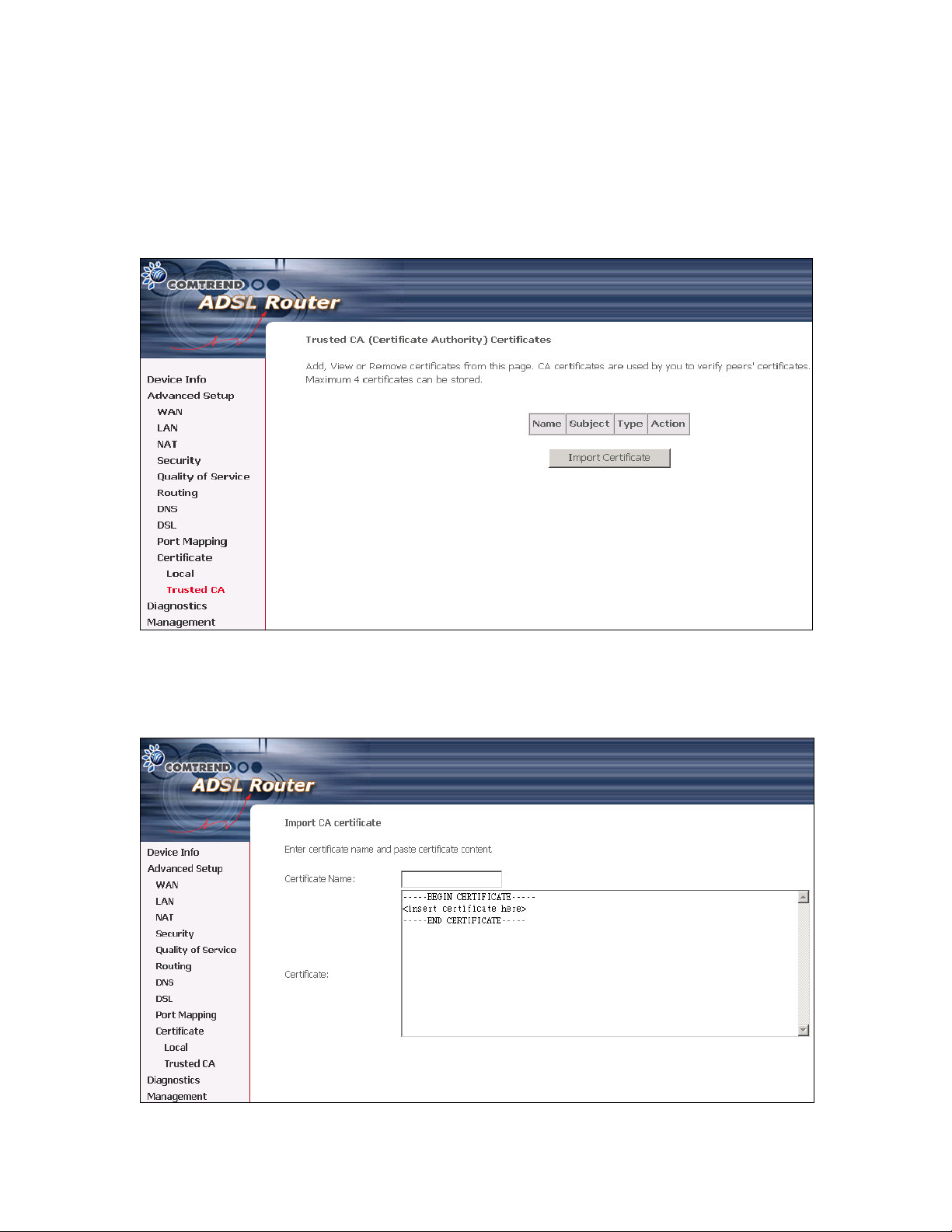

6.10.2 Trusted CA................................................................................................ 80

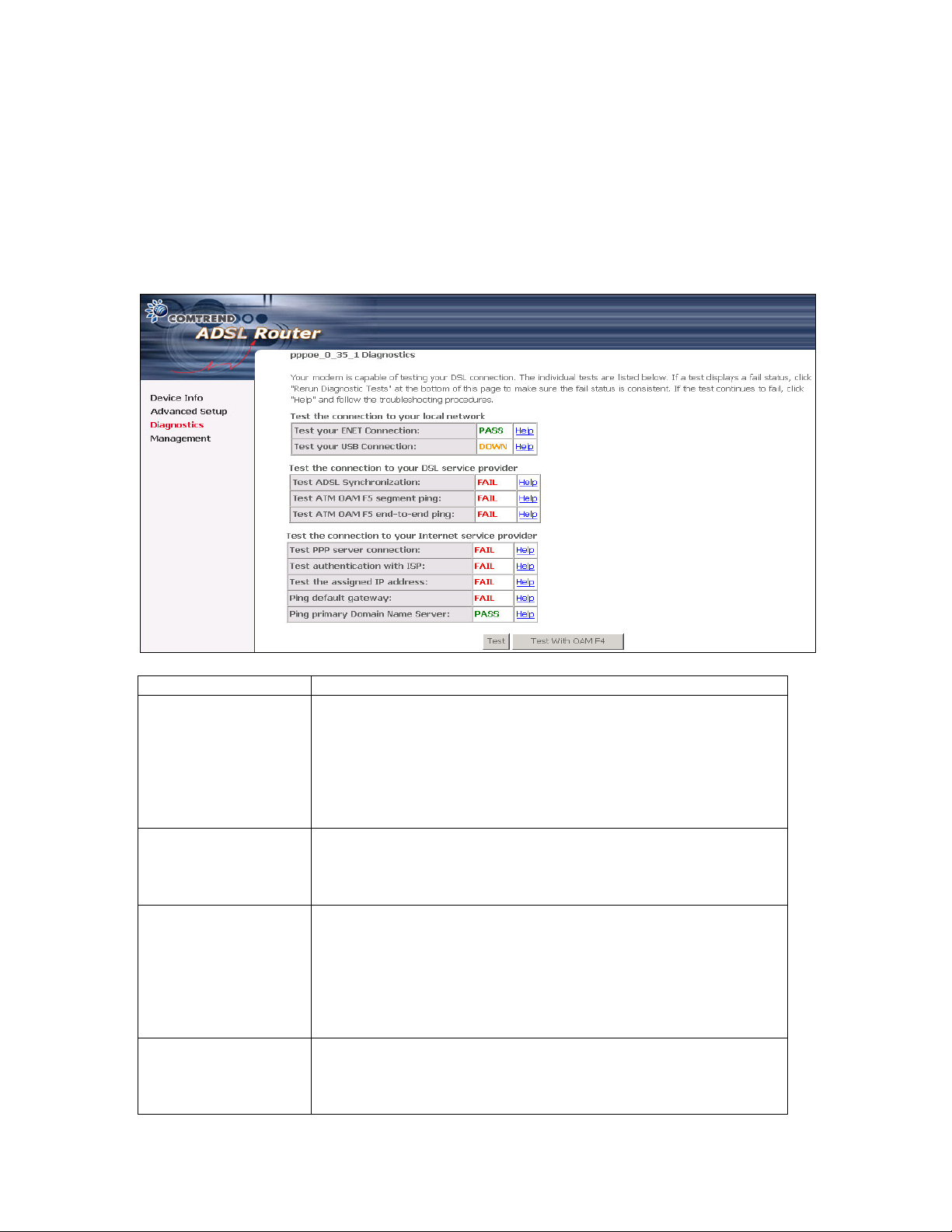

CHAPTER 7 DIAGNOSTICS................................................................................... 81
CHAPTER 8 MANAGEMENT ................................................................................ 82
8.1 SETTINGS ........................................................................................................... 82

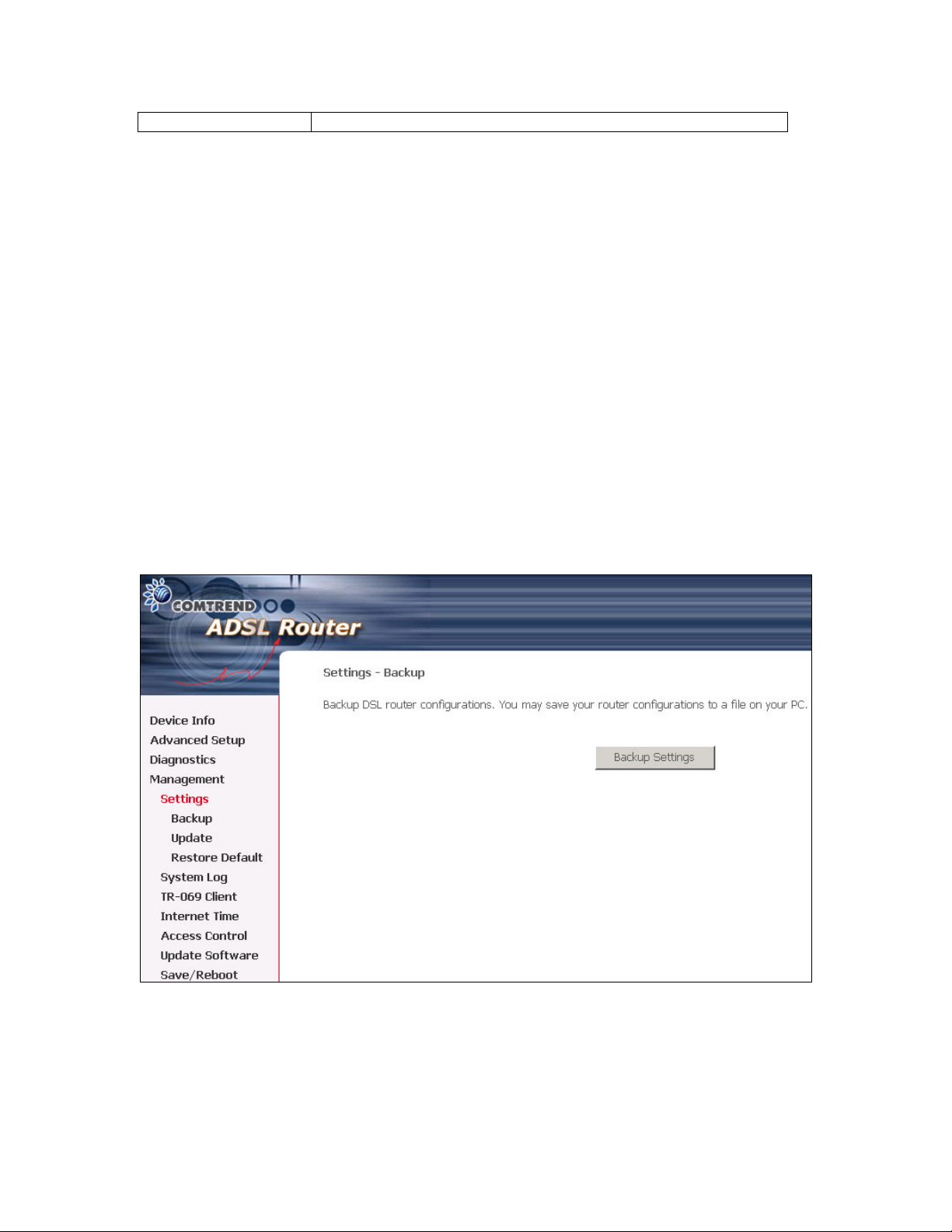

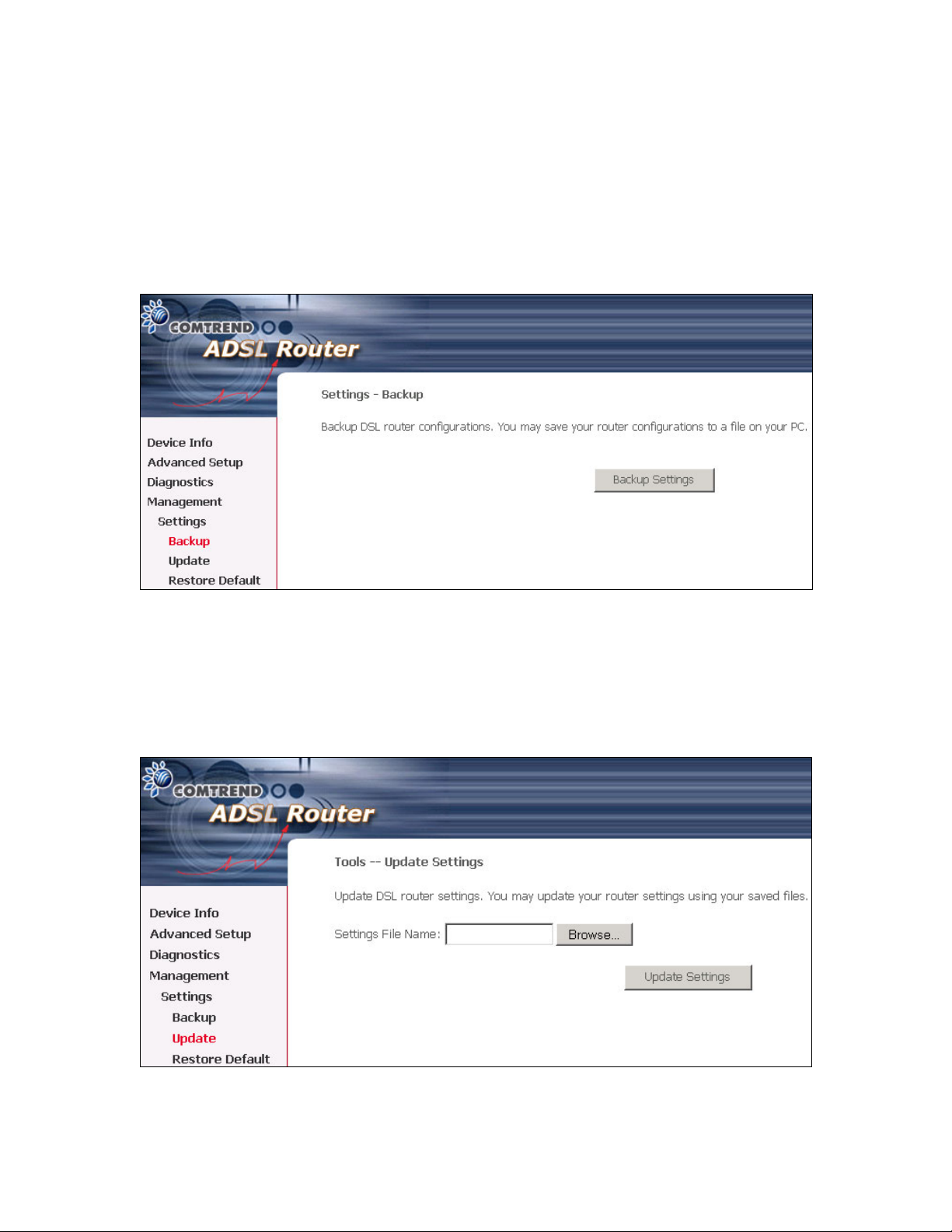

8.1.1 Configuration Backup............................................................................... 83
8.1.2 Update Settings......................................................................................... 83

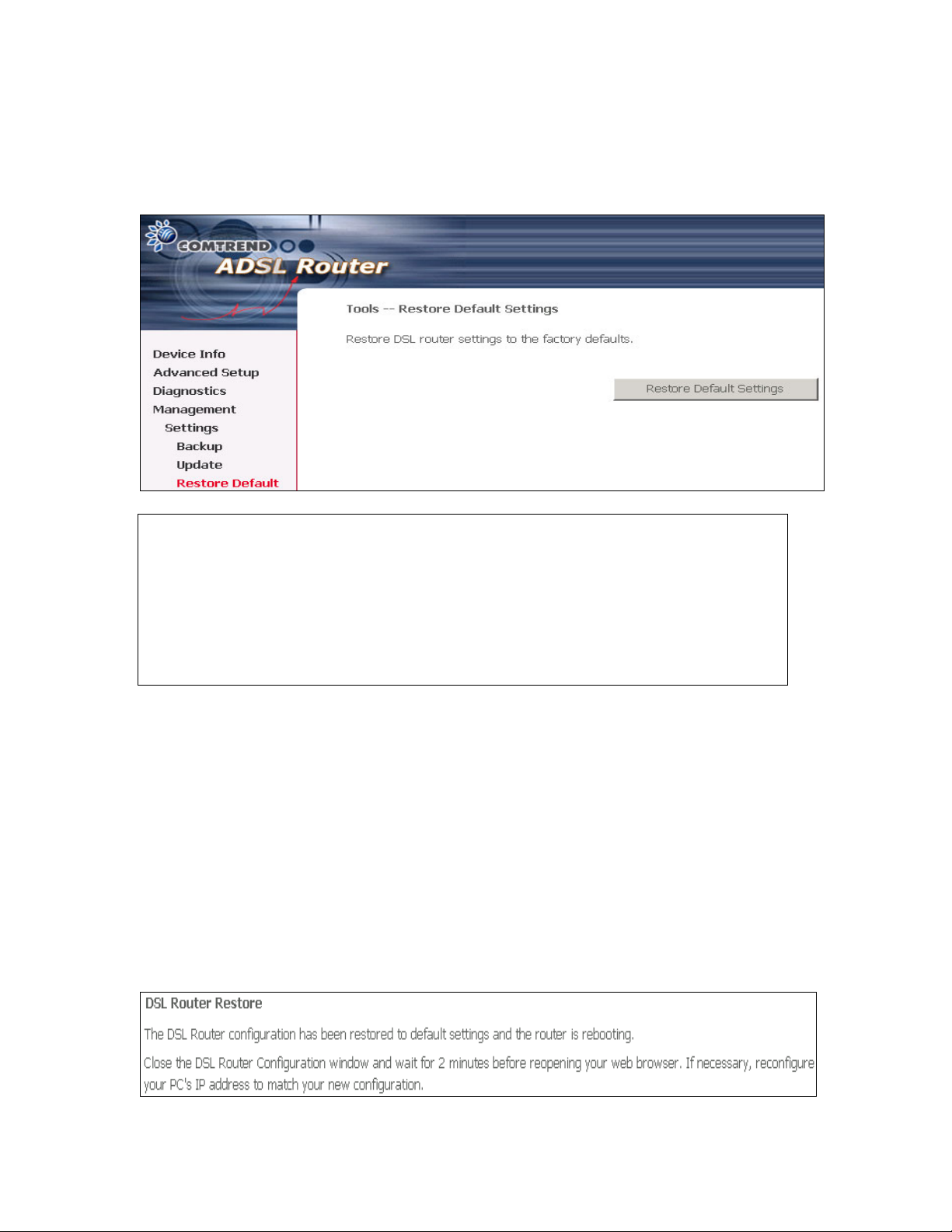

8.1.3 Restore Default ......................................................................................... 84

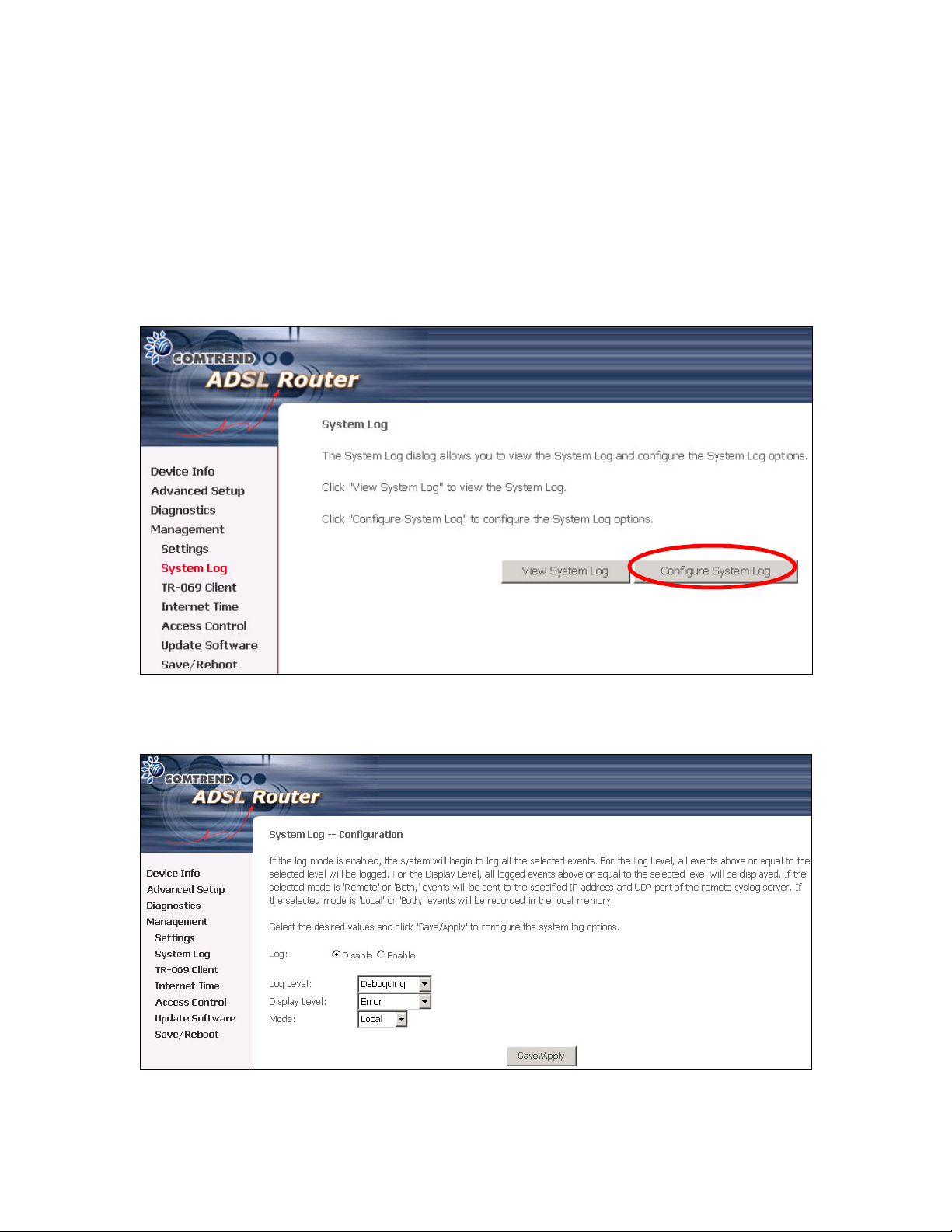

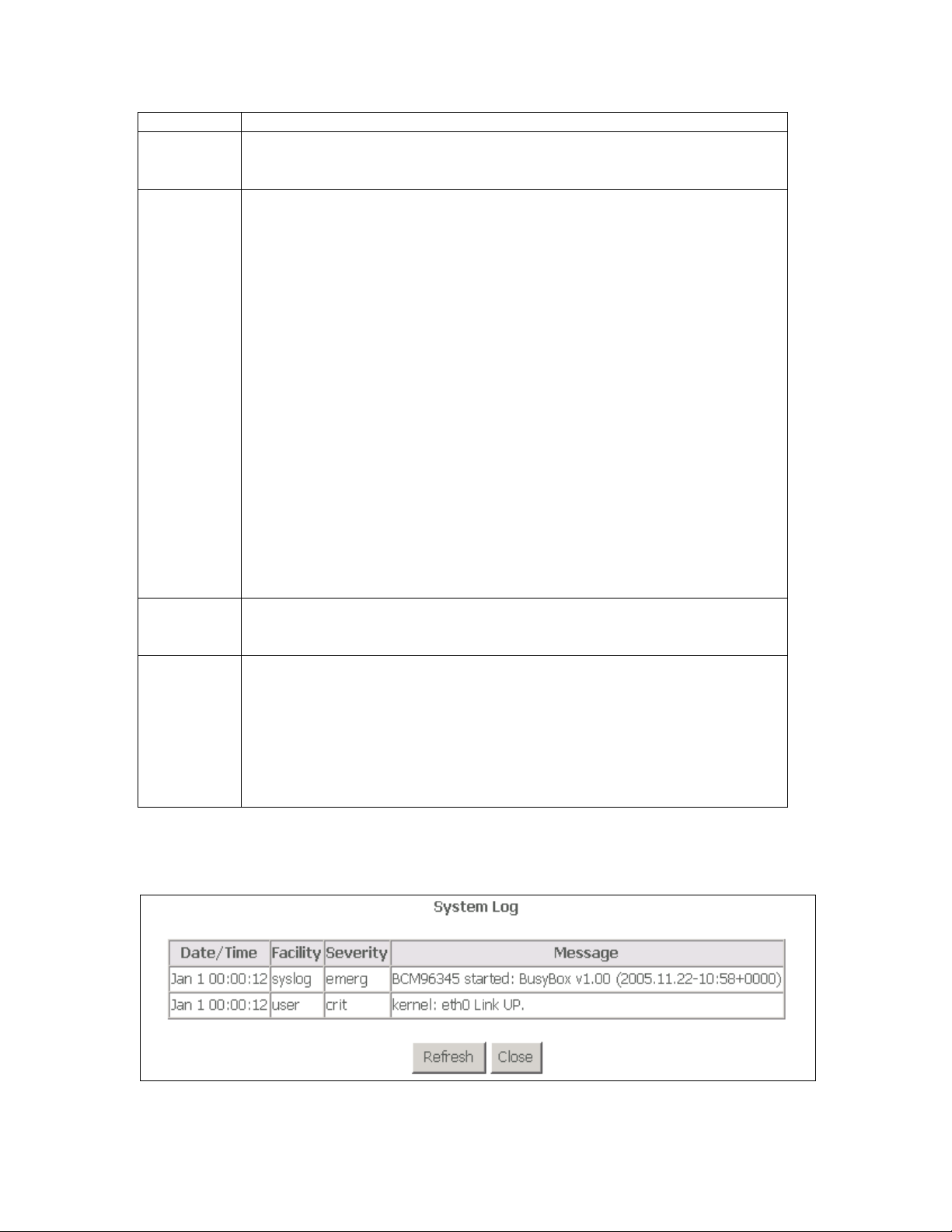

8.2 SYSTEM LOG...................................................................................................... 85

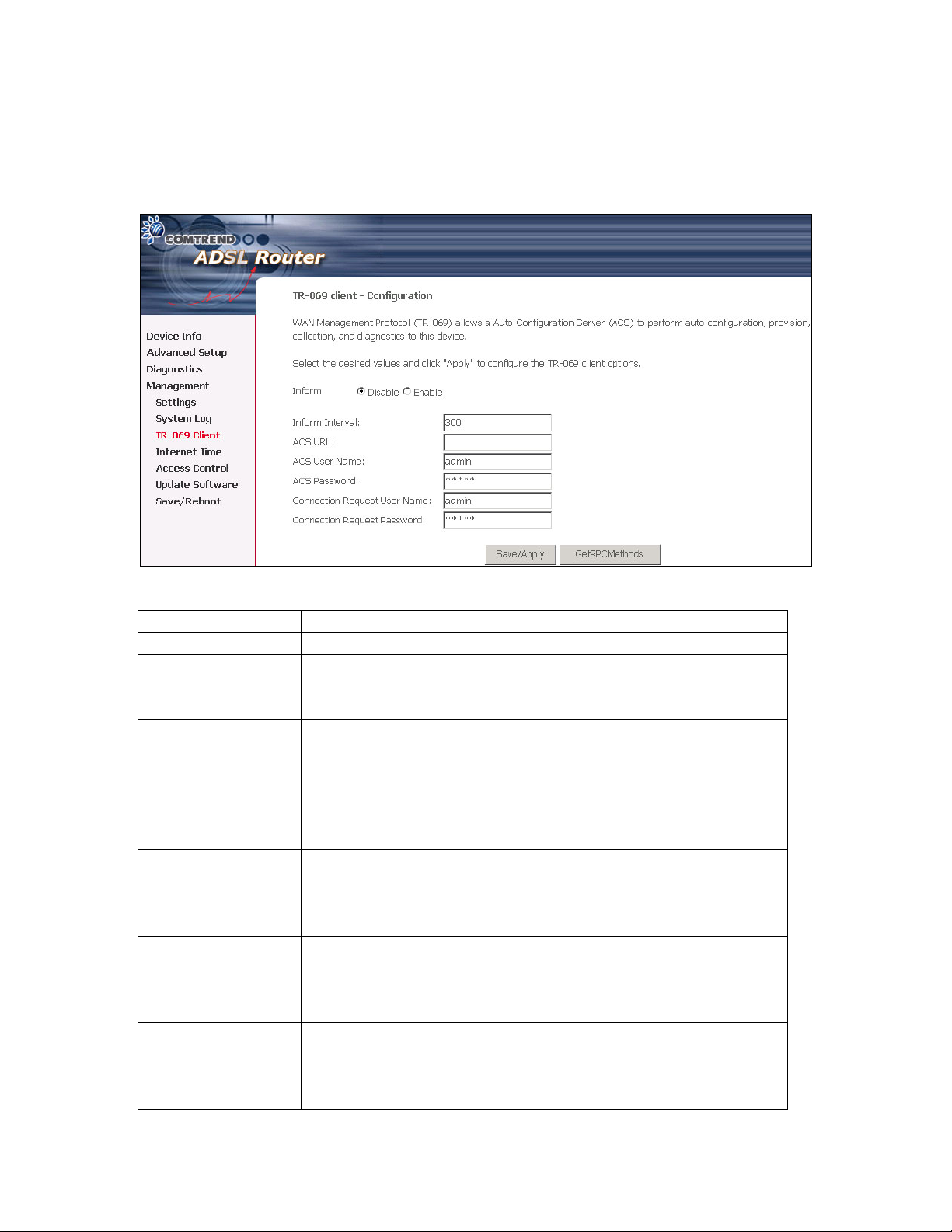

8.3 TR-069 CLIENT ................................................................................................. 87

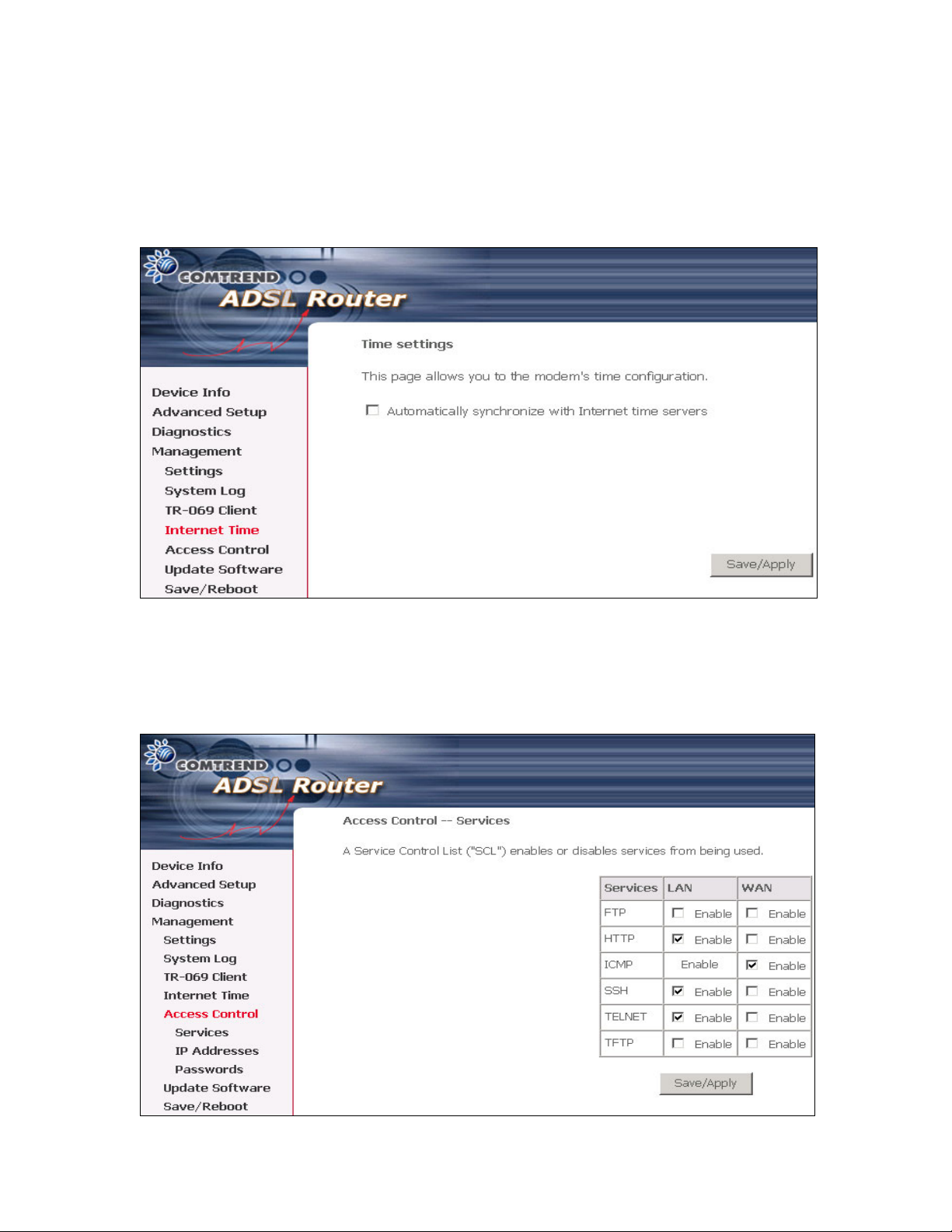

8.4 INTERNET TIME.................................................................................................. 89
8.5 ACCESS CONTROL.............................................................................................. 89

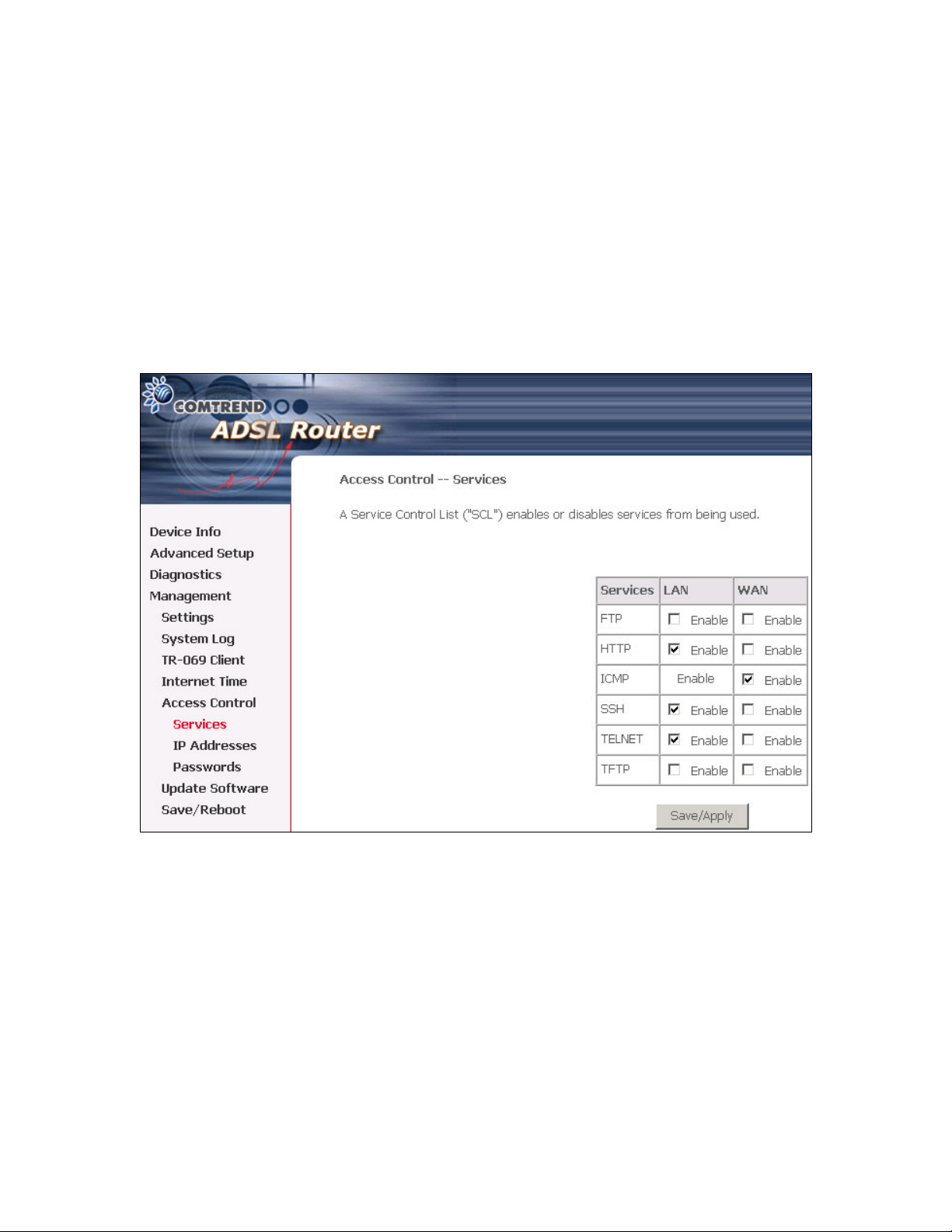

8.5.1 Services..................................................................................................... 90

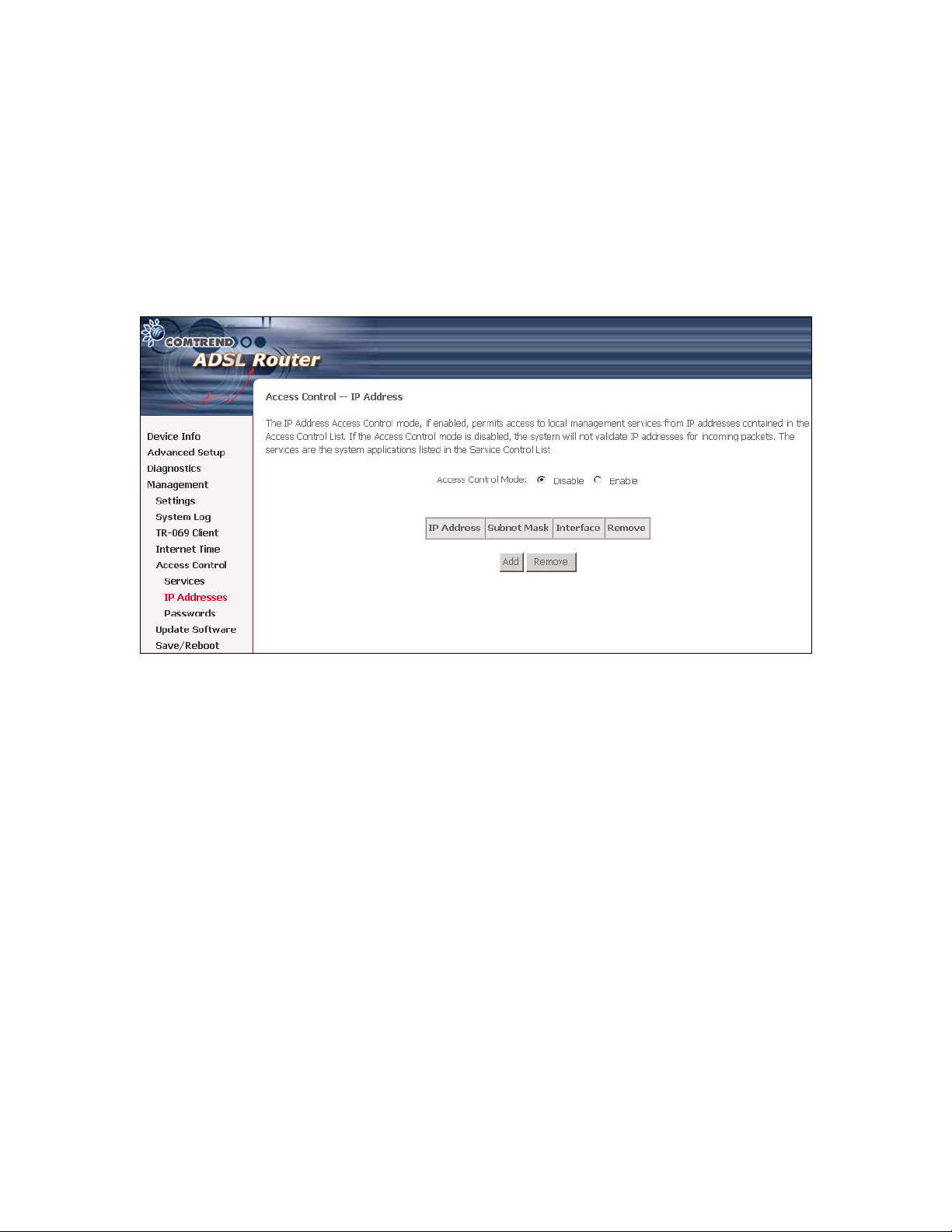

8.5.2 IP Addresses.............................................................................................. 91

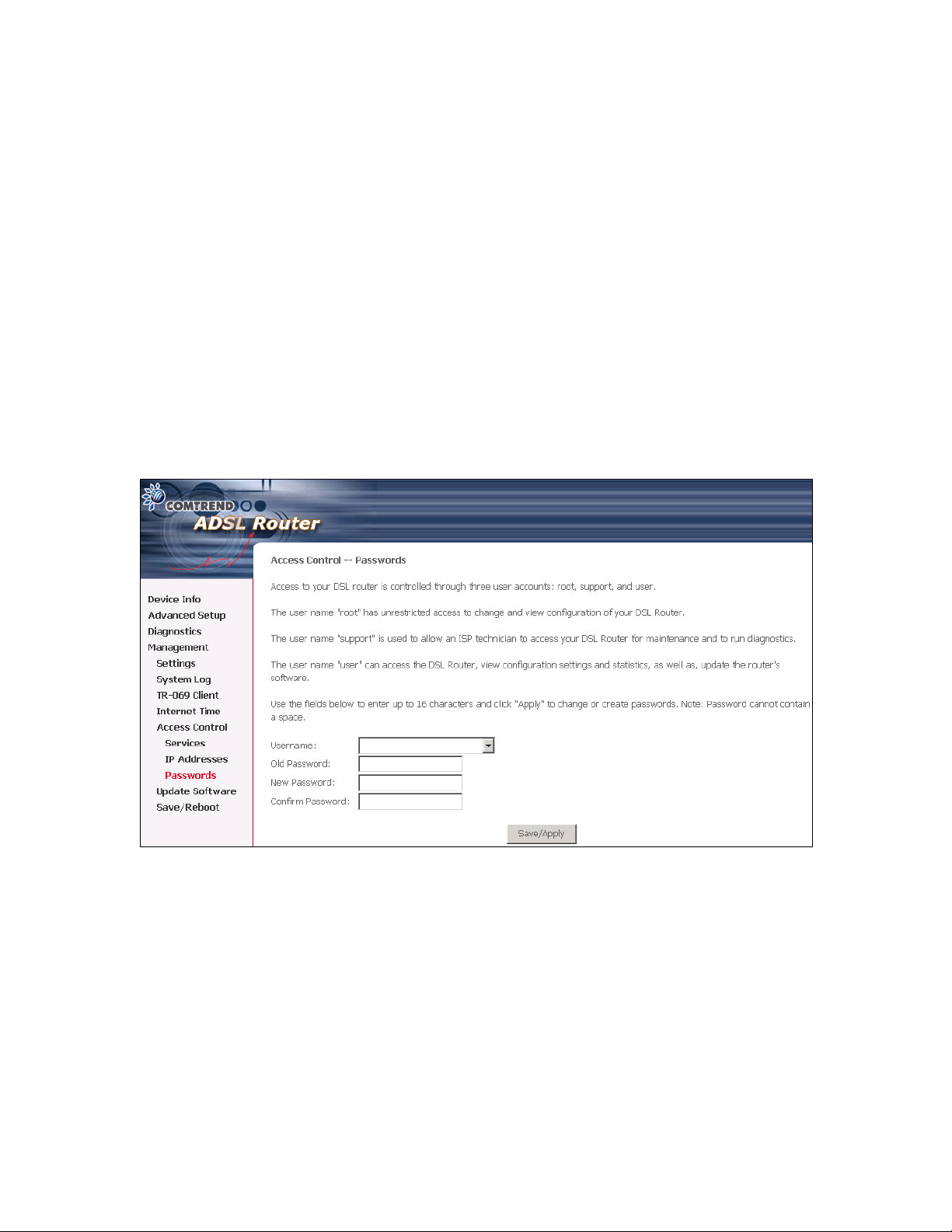

8.5.3 Passwords................................................................................................. 92

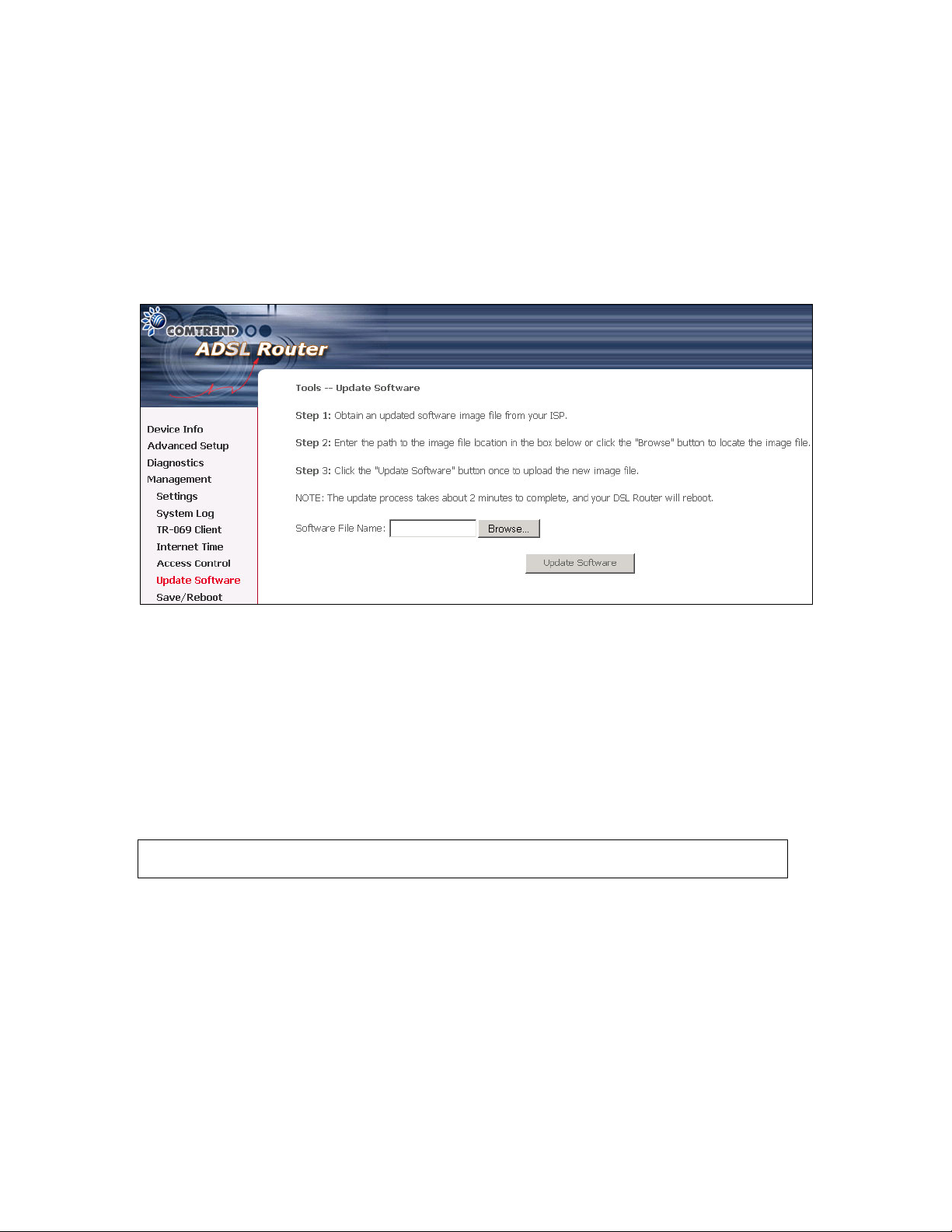

8.6 UPDATE SOFTWARE........................................................................................... 93

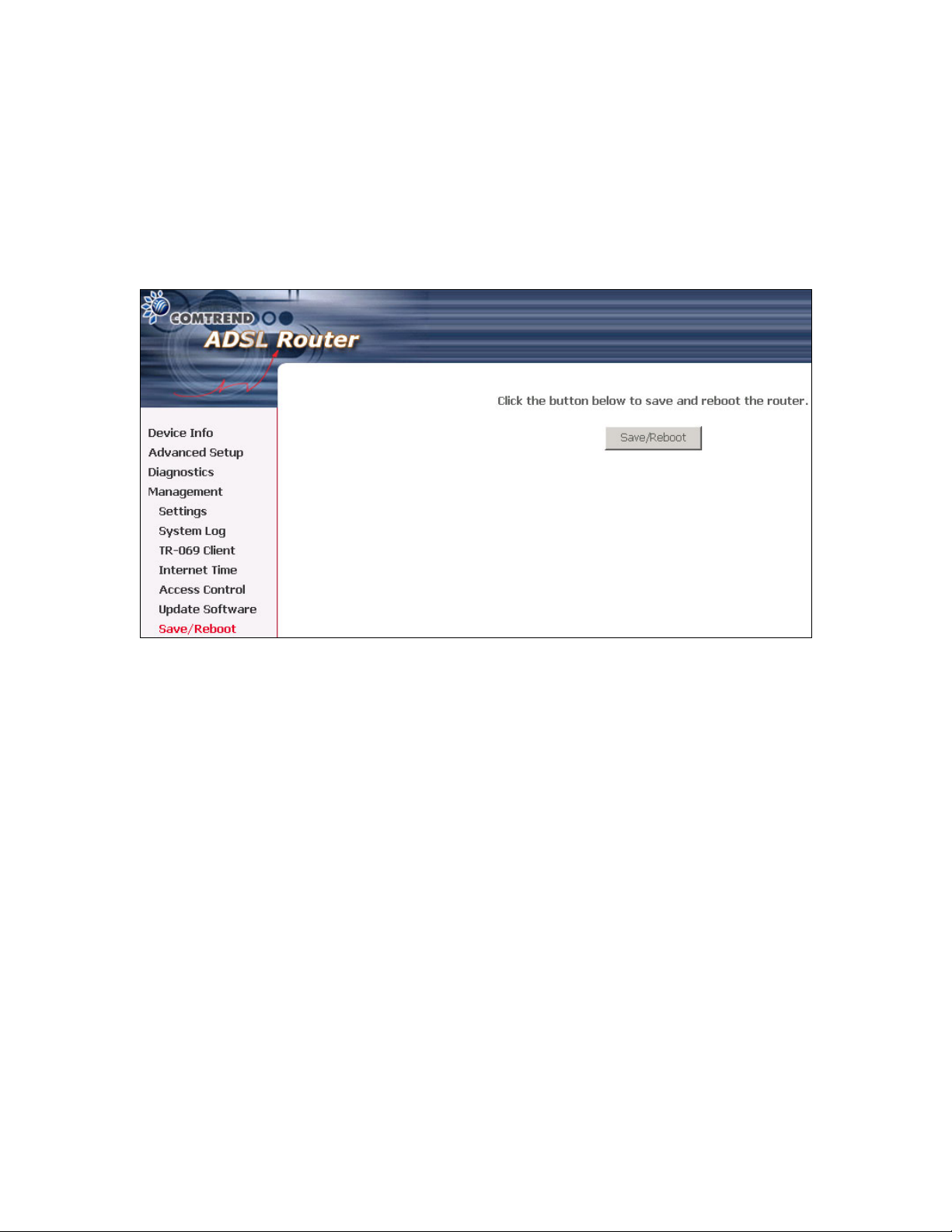

8.7 SAVE AND REBOOT ............................................................................................ 94
APPENDIX A: PIN ASSIGNMENTS........................................................................... 95
APPENDIX B: SPECIFICATIONS.............................................................................. 96
3
Chapter 1 Introduction
The CT-5611T ADSL2+ compact and high performance combo router provides one
10/100 Ethernet Interface and one USB interface, offering ADSL connectivity at
speeds of up to 24 Mbps. It also has full routing capabilities to segment/route IP
protocol, and supports advanced security functions.
1.1 Features
• IP filtering
• SPI (Stateful Packet Inspection)
• DoS protection
• Static route
• Dynamic IP assignment
• NAT/PAT
• IGMP Proxy
• DHCP Server/Relay/Client
• DNS Proxy
• Auto PVC configuration
• Up to 8 VCs
• Web-based management Remote configuration and upgrade
• Configuration backup and restoration
• FTP/TFTP server
• TR-68
• TR-69
4
1.2 Application
The following diagram depicts the application of the CT-5611T.
5
1.3 Front Panel LED Indicators
The front panel LEDs are shown in the picture below, followed by an explanation in
the table below.
LED Color Mode Function
POWER
ADSL LINK
Green
Red
Green
Green
On The router is powered up.
Off The router is powered down.
POST (Power On Self Test) fail (not
bootable) or router failure which could be
On
On The ADSL link is established.
Off The ADSL link is not established.
Blink
any error of internal sequence or state
that will not allow the router to connect
to the DSLAM, or send data.
The ADSL link is training or some traffic
is passing through ADSL.
6
Green
Green
On A USB link is established.
Off A USB link is not established. USB
Blink Data transmitting or receiving over USB.
INTERNET
Green
Green
Red
Green
Green
On Normal operating status.
Off The ADSL link is terminated.
Blink Data transmitting or receiving over ADSL.
Device attempted to become IP connected
and failed (no DHCP response, no PPPoE
response, PPPoE authentication failed, no
IP address from IPCP, etc.)
For bridged mode, the indicator light is off.
On
If the IP or PPPoE session is dropped due
to an idle timeout, the light will remain
green if an ADSL connection is still
present. If the session is dropped for any
other reason, the light is turned off. The
light will turn red when it attempts to
reconnect and DHCP or PPPoE fails.
On An Ethernet Link is established.
Off An Ethernet Link is not established. LAN
Blink Data transmitting or receiving over LAN.
7
Chapter 2 Installation
2.1 Hardware Installation
Follow the instructions below to complete the hardware connections.
Connection to LINE port
If you wish to connect both the router and a telephone, connect the LINE port to a
POTS splitter with a RJ11 connection cable.
Connection to LAN port
To connect to a hub or PC, use a RJ45 cable. The port is auto-sensing MDI/X and
either straight-through cable or crossover cable can be used.
Connection to USB port
Connect the USB port to a PC with a standard USB cable.
Connection to Power
Connect the Power jack to the shipped power cord. Attach the power adapter to the
wall outlet or other AC source.
After all connections have been made, turn the power-switch to the on position. After
powering on, the router performs a self-test. Wait for a few seconds until the test is
finished, then the router will be ready to operate.
Reset Button
Restore the default parameters of the router by holding down the device’s Reset button
until the LED’s start blinking simultaneously (about 5 seconds). After the device has
rebooted successfully, and if the connection is established, the LAN LED, ADSL LED or
USB LED will display in green, depending on the connection type.
Caution 1: If the router fails to power up, or it malfunctions, first verify that the
power supply is connected correctly. Then power it on again. If the
problem persists, contact our technical support engineers.
Caution 2: Before servicing or disassembling this equipment always disconnect
all power cords and telephone lines from the wall outlet.
Reset Button
8
2.2 USB Device Driver Auto-run Installation
Before you connect your router’s USB cable to your PC, you must load the ADSL USB
drivers. The auto-run USB driver installation supports Win ME, Win 98, Win 2000,
Win XP (32 bit) and Vista (32 bit). For those using Windows XP 64 bit, the driver
needs to be installed manually (please see section 2.3 below for details), and the
driver is also enclosed on the CD-ROM.
To connect the router to a PC using the USB interface, you need to use a standard
USB cable and install the USB interface software. Follow the steps below:
STEP 1: Insert the Installation disk and the following screen will be displayed. Click
the Next button to continue.
STEP 2: When the screen displays as below, wait until the drivers are fully installed.
9
STEP 3: Click the Finish button, when the screen displays as below.
STEP 4: Installation is complete.
10
2.3 USB Driver Manual Installation(64bit OS)
Before you connect your router’s USB cable to your PC, you must load the ADSL USB
drivers. This manual USB driver installation supports Windows XP 64 bit.
To connect the router to a PC using the USB interface, you need to use a standard
USB cable and install the USB interface software. Follow the steps below:
STEP 1: Connect the USB router to the PC by plugging the flat connector of a
standard USB cable into your PC, and plugging the square connector into the
router. The screen will display as below:
STEP 2: When the screen displays as below, select install from a list of specific
location (Advanced) and click the Next button.
11
Note: This screen won’t be displayed if the USB Driver has been previously
un/installed.
STEP 3: If you are installing the software from a disk, insert the disk.
12
STEP 4: Select the location of the file using the Browse button. Normally, the file is
on the CD-ROM shipped with the device.
STEP 5: Locate the Vista folder, and click the OK button.
13
STEP 6: When the screen displays as below, click the NEXT button.
14
15
STEP 7: Click the Finish button, when the screen displays as below.
STEP 8: Installation is complete.
16
2.4 Un-installing the USB Driver
STEP 1: Click Start, Settings and then Control Panel as shown here.
STEP 2: When the following screen is displayed, click on the Add/Remove Hardware
Icon.
STEP 3: When the following screen is displayed, click Next.
17
STEP 4: When the following screen is displayed, select Uninstall/Unplug a device
(as shown here). Then, click Next.
STEP 5: When the following screen is displayed, select Uninstall a device (as
shown here). Then, click Next.
18
STEP 6: When the following screen is displayed, select the device that you want to
uninstall. Then, click Next.
19
STEP 7: When the following screen is displayed, click Next to confirm that you want
to uninstall the device.
STEP 8: When the following screen is displayed, click Finish as un-installation is
complete.
20
Chapter 3 Login via the Web Browser
This section describes how to manage the router via a Web browser via the remote
end. You can use a web browser such as Microsoft Internet Explorer, or Netscape
Navigator. (The Web page is best viewed with Microsoft Internet Explorer 5.0 and
later): A unique default user account is assigned with user name admin and
password tot. The user can change the default password later when logged in to the
device.
3.1 IP Address
The default IP address of the CT-5611T (LAN port) is 192.168.1.1. To configure the
CT-5611T for the first time, the configuration PC must have a static IP address within
the 192.168.1.x subnet. Follow the steps below to configure your PC IP address to
use subnet 192.168.1.x.
STEP 1: Right click on the Local Area Connection under the Network and Dial-Up
connection window and select Properties.
STEP 2: Enter the TCP/IP screen and change the IP address to the domain of
192.168.1.x/24.
STEP 3: Click OK to submit the settings.
STEP 4: Start your Internet browser with the default IP address 192.168.1.1.
21
3.2 Login Procedure
Perform the following steps to bring up the Web user interface and configure the CT5611T. To log on to the system from the Web browser, follow the steps below:
STEP 1: Start your Internet browser. Type the IP address for the router in the Web
address field. For example, if the IP address is 192.168.1.1, type
http://192.168.1.1
STEP 2: You will be prompted to enter your user name and password. Type admin
in the user name field and tot in the password field, and click OK. These
values can be changed later in the Web User Interface by selecting the
Management link.
STEP 3: After successfully logging in, you will reach the Quick Setup menu.
Here is the Device Info screen for your reference.
22
23
3.3 Default Settings
During power on initialization, the CT-5611T initializes all configuration attributes to
default values. It will then read the configuration profile from the Permanent
Storage section on the flash memory. The default attributes are overridden when
identical attributes with different values are configured. The configuration profile in
Permanent Storage can be created via the Web user interface, the console, or telnet
user interface, or other management protocols. The factory default configuration can
be restored either by pushing the reset button for more than five seconds, or by
clicking the Restore Default Configuration option in the Restore Settings screen.
The following default settings are present when setting up the router for the first
time. The PC running the browser can be attached to the Ethernet or the USB.
z LAN port IP address: 192.168.1.1
z Local administrator account name: admin
z Local administrator account password: tot
z Local non- administrator account name: user
z Local non- administrator account password: user
z Remote WAN access: disabled
z Remote WAN access account name: support/support
z Remote WAN access account password: support/support
z NAT and firewall: disabled
z DHCP server on LAN interface: enable
z WAN IP address: none
24
Chapter 4 Quick Setup
After login, the Quick Setup screen appears as shown.
Note: The selections available on the left side of menu are based upon the
configured connection.
25
4.1 WAN
Click Device Info on the menu bar to display the WAN option. Then, click WAN on
the Device Info menu bar to display the configured PVC(s) and the status.
VPI/VCI Shows the values of the ATM VPI/VCI
Con. ID Shows the connection ID
Category Shows the ATM service classes
Service Shows the name for WAN connection
Interface Shows connection interfaces
Protocol Shows the connection type, such as PPPoE, PPPoA, etc.
IGMP Shows the statue of the IGMP function
Nat Shows if the Network Address Translation(NAT) is enabled
or disabled.
QoS Shows if QoS is enabled or disabled
State Shows the connection state of the WAN connection
Status Lists the status of DSL link
IP Address Shows IP address for WAN interface
26
4.2 Statistics
Selection of the Statistics screen provides statistics for the Network Interface of LAN,
WAN, ATM and ADSL. All statistics screens are updated every 15 seconds.
27
4.2.1 LAN Statistics
The Network Statistics screen shows interface statistics for Ethernet and USB
interfaces. (The Network Statistics screen shows interface statistics for LAN of
Ethernet and USB interfaces. This shows byte transfer, packet transfer, Error and
Drop statistics for the LAN interface.)
28
4.2.2 WAN Statistics
The following figure shows the WAN statistics screen.
Service Shows the service type
VPI/VCI Shows the values of the ATM VPI/VCI
Protocol Shows the connection type, such as PPPoE,
PPPoA, etc.
Interface Shows connection interfaces
Received/Transmitted
Bytes -
Pkts -
Errs -
Drops -
Rx/TX (receive/transmit) packet in Byte
Rx/TX (receive/transmit) packets
Rx/TX (receive/transmit) the packets which are
errors,
Rx/TX (receive/transmit) the packets which are
dropped
29
Loading...
