Thank you.
Thank you for your purchase of a Compustar alarm and/or remote-start system.
Conpustar alarms and remote-start systems are the most advanced systems on the
market with amazing features, incomparable ease of use, and breakthrough technologies
never before used in the automotive environment. Please take time to read and
understand this owner's manual so that you can fully use and enjoy you new Conpustar
system.
1.
Safety Information
2. Remote-Pager 2WSHR LED
3. LED
6. Remote-Page LED Functions
7. Remote -Page Learn Routine
8. Alarm Mode
9. Dual Stage Shock Sensor
10.Trunk Release
11.Query Function
12. Panic Mode
13. Valet Mode
14. Safety Shutdown Features
15. R.P.S(Remote Paging System)
16. Optional Programmable Features
Ignition Lock
Passive Arming
17. Optional Installation Features
Optional Auxiliary 1 & Auxiliary 2
19. Limited Lifetime Consumer Warranty
18. Your Warranty
TABLE OF CONTENTS
3
4
4
5
6
6
7
8
8
8
9
9
9
10
10
10
11
11
13
14
Remote-Pager : 2WSHR/LED
LED
4
The model name, 2WSHR LED, stands for
2Way Super Heterodyne
Remote.
This transmitter that allows you to activate multiple functions by
pressing a combination of the 4 the buttons on the unit in order to transmit
signals.
The remote-pager comes with a unique LED display that visually tells the you
the security status of your car at all times. There are differing icons that will
appear on your LED indicating what your vehicle is currently doing.
0.5 Sec
2 Sec
I
Lock
Panic
II
III
+
IV
I +II
Siren Chips- On/Off
Programming Menu 1
+
II+III
Valet Mode - On/Off
Shock Sensor- On/Off
AUX2
x
Unlock
x
BUTTON
PressFor FUCTION
LED ICON
Safety Information
3
Please take these safety precautions under the following conditions:
1. Servicing the vehicle
When servicing (i.e. changing the oil, washing your car) your automobile, the
Compustar system should be in Valet Mode. There is a safety shutdown switch
under the hood that deactivates the remote starter function if the hood is open.
However, if the switch has been damaged or the switch has been installed
improperly, the vehicle may start when the button is pressed for 2 seconds
even if the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who is not familiar with
Compustar, please put the vehicle in Valet mode. This will prevent the vehicle
loaner from accidentally activating the Compustar auto-security system.
3. For manual transmission vehicles
If the Compustar 2WSHR LED is installed in a manual transmission vehicle,
extra precautions are required because the system does not monitor the gear
shift.
Important!
Under normal circumstances, Reservation Mode is cancelled when a door or
hatchback opens. Please verify if the opening of any door or hatchback cancels
Reservation Mode. If any of the doors or hatchback are not monitored by
Compustar because of improper installation or a faulty dome light switch, do not
use the Compustar and take your vehicle to the dealer immediately for repair.
Do not set Reservation Mode when the window(s) are open or if there is anyone
inside of the vehicle including animals.
AUX1
Trunk Open
+
I +III
+
I+IV
x
Programming Menu 2
Passive Locking-On/Off
x
+
III+IV
x
Query
0.5 Sec
2 Sec
0.5 Sec
2 Sec
0.5 Sec
2 Sec
0.5 Sec
2 Sec
0.5 Sec
2 Sec
0.5 Sec
2 Sec
0.5 Sec
2 Sec
0.5 Sec
2 Sec
The Compustar system will allow up to three remotes to be programmed to one
vehicle. Please perform the following procedure to add or reprogram additional
remotes.
Step1 : Activate Valet/Programming mode by manually turning the ignition on
and off five times
(between Acc and On)
with car key within a 7 second period.
The parking lights will flash once with successful
completion of this step.
Step2 : Within a 7 second period after cycling the ignition for the 5
th
time,
press the button . The car parking lights will flash once to confirm that the
transmitter has been programmed. Continue program the additional remotes.
The parking lights will flash two times when the programming mode is expired.
You can arm by pressing the button for a 1/2 second.
You can disarm by pressing the button for a 1/2 second.
Press buttons for a 1/2second to make your car siren mute when
arming or disarming your vehicle. Keep in mind that your car siren will still
activate for all other modes (i.e. panic, alarm, shock sensor) regardless of
whether or not your car siren is in mute mode. The car siren will be mute only
when arming or disarming your vehicle. In alarm mode, the
starter kill
function
(this maybe an optional feature provided by your installer) is
activated. This feature disengages the starter mechanism on your car that
prevents you from starting your car even with a manual key when
your vehicle
s alarm mode is activated.
6
Alarm Mode
Remote-Pager Learn Routine
( + )
5
It a button is pressed, the LED Icon will be flashed rapidly. Also, if the signal
was sent successfully, the remote will beep and the LED icon will flash.
If the signal fails, the remote will beep rapidly.

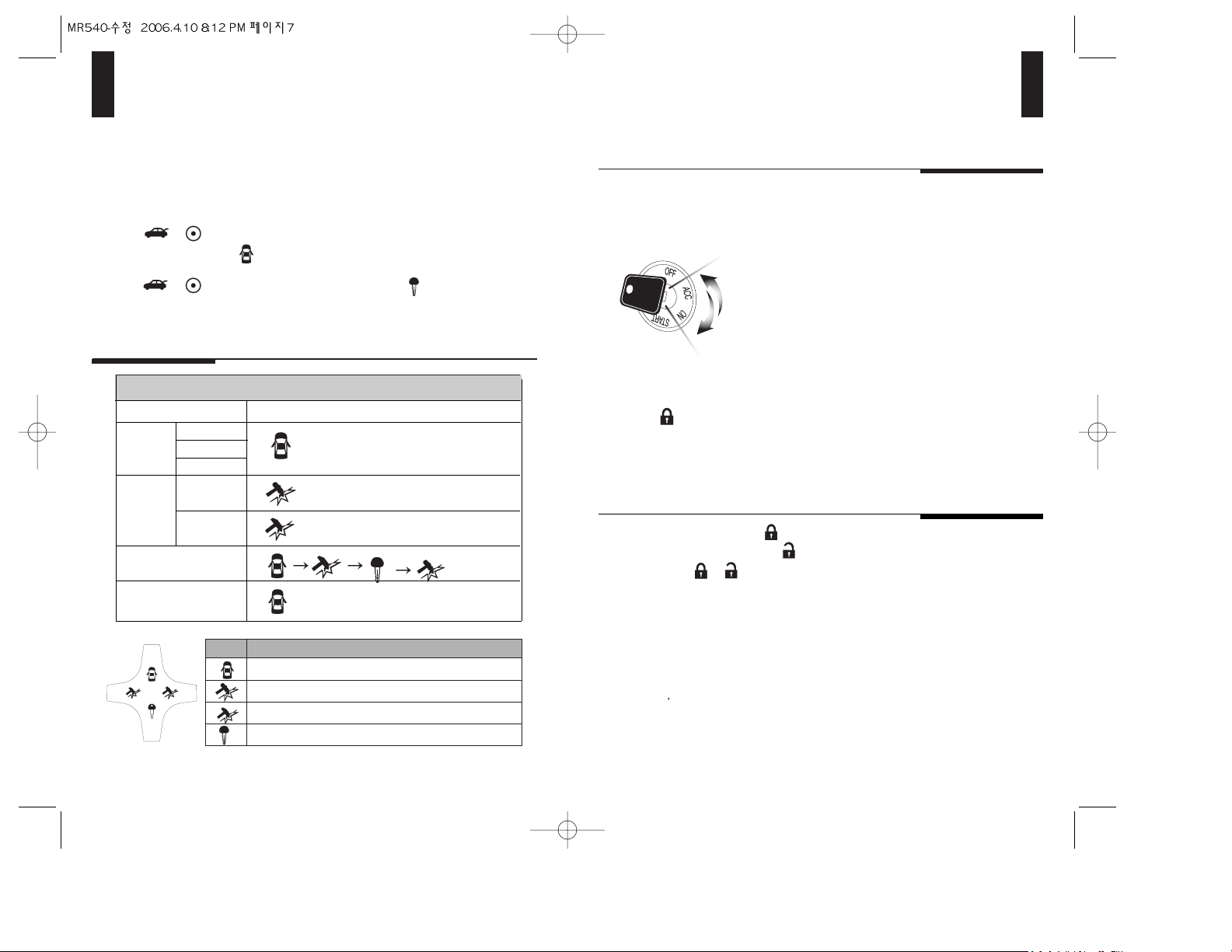

Query( + 2 Sec) : When This function is activated, if any of the
doors are still open, the Icon will be shown on the remote transmitter
Query( + 2 Sec) : If the engine is still running, icon will be
shown on the remote.
Remote-Pager LED Functions
Theft
Paging Operation
DISPLAY
LED ICON
Door
Trunk
Hood
Shock
Sensor
Storng
Weak
R.P.S
AUTO Arm/Disarm
ICON
Explanation
door,trunk.or hood,are open.
Indicates that the second stage shock sensor has been triggered
Indicates that the first stage shock sensor has been triggered
Indicates if your vehicle has auto- started properly or ignition on
8
Trunk Release
Press the button for 2 seconds in order to unlock and release your trunk
door. Note that the trunk release function will not only release the trunk but will
unlock all the doors as well.
Query Function allows you to visually monitor the status of your car by looking
at the remote-pager
LED icons. Press buttons
+
for a 2 second
to activate the Query Function.
Press the button for 2 seconds to enter Panic Mode. In this mode, the car
will arm if not armed already and the siren will activate and the parking lights will
flash. In order to disengage Panic Mode, press the button for a 1/2 second.
Then, press the button for a 1/2 second to lock/arm your vehicle.
If Anti-Jacking option has been programmed (ask your dealer if you
like to have this option) and the Ignition-Kill has is been installed , the
Panic Mode works as Anti-Jacking if the key is in the ignition. If AntiJacking mode is activated while key is in the ignition ;
a)Siren will go off for 1.5 minutes, and b) Ignition-Kill will be activated
after the first 30 seconds. That is to give warning to the hijacker for the
first 30 seconds and then to disconnect the ignition to stop the vehicle.
Query Function
Panic Mode
Dual Stage Shock Sensor
7
Press buttons + for 2 seconds to activate or deactivate the dual stage
shock sensor. The dual stage shock sensor will activate 30 seconds after the
Compustar alarm is armed. When the dual shock sensor is engaged, the
remote-pager security alerts will be triggered by the following:
Light impact to your vehicle will activate the
first stage shock sensor
and
the car siren will chirp 4 times in addition to the parking lights flashing 4 times.
The remote pager unit will beep and the icon flashes rapidly.
Heavy impact to your vehicle will activate the
second stage shock
sensor
and the car siren will sound for 30 to 60 seconds and the parking lights
will flash for 30 to 60 seconds. The remote-pager will beep
Both sound &
Icon rapidly
.
Press the button for a 1/2 second to turn off the second stage shock sensor
sirens and flashing lights.
Note : If you lose your remote after you have armed the vehicle, use your
key to open the vehicle. The siren will go off. Turn on and off ignition 5
times with your key to shut off the siren and turn the system into valet
mode. Cancel the valet mode with remote later. See Valet mode.
Note : (Siren duration is 30 to 60 sec depending on the options set at the
time of initial installation.)
The only feature that operates in valet mode is the keyless entry function.
Valet Mode is very useful when loaning your
vehicle or having it serviced.
In order to enter Valet mode, press Buttons
( + ) simultaneously for a 1/2 second.
In order to manually enter Valet Mode, insert your
car key into the ignition and turn the ignition on and
off
(between ACC and ON) five times within 7 seconds
You can exit Valet Mode only by pressing buttons
( + )
simultaneously for a 1/2 second.
Valet Mode
9
Safety Shut Down Features
Compustar 2WSHR LED system has several shut down safety features.
The following actions will shut down the engine or prevent the car from autostarting: Opening the engine hood, Pressing the brake or Valet mode
is turned on.
The optional RPS is a feature that allows an individual to page the owner of a
vehicle by simply tapping on the front windshield of the car. RPS is automatically
turned on upon activating alarm mode (pressing the button for a 1/2 second)
on the Compustar 2WSHR LED,
The RPS module can be activated by tapping a manual key producing a
high-frequency vibration. This high-frequency vibration is detected and your
remote-pager will beep and
all of the icons will flash.
RPS (Remote Paging System)
OPTIONAL PROGRAMMABLE FEATURES
These additional programmable features can be programmed to the Compustar
system by your authorized CompuStar dealer.
Passive Arming
10
You can turn this function on or off by pressing the buttons (+)for
a 1/2 second. When set to passive arming, your security system will arm
automatically 30 seconds after all the doors are closed. There are two types
of passive arming that can be programmed by your Compustar dealership:
(1) passive arming with passive lock and (2) passive arming with active lock.
Passive locking means the door will lock when the system passively arms.
In the default factory setting, the system is armed and locked actively, which
means the system will only arm/lock when the remote-pager is utilized.
Note :
1. If you select both Auto Arming and Passive Arming, Auto Arming
takes priority over Passive Arming.
2. If you select Passive Arming with Active Lock in the programming
option, you are also selecting Auto Arming without Auto Lock.
Consult your installer.
Ignition Lock
This programmable option enables your vehicle to automatically lock the doors
when the brake pedal is pressed after starting the vehicle with a key.
In addition, the vehicle will automatically unlock the doors upon pulling the key
out from the ignition. However, if the emergency brake wire was installed, the
vehicle will unlock upon the emergency brake is set if the engine is still running
with the key. This option must be chosen at the time of installation.
MEMO
1211
OPTIONAL INSTALLTURES
The Compustar 2WSHR LED remote-pager has additional features and expansion
possibilities that require additional parts and labor.
The auxiliary system is an optional car feature that can be tailored for your
vehicle by your local authorized Compustar dealership. For example, you can
customize your car to have remote power control of your windows, radio, and
sunroof in addition to the rooftop on your convertible car.
Optional Auxiliary 1 & Auxiliary 2
14
Some states do not allow limitations on how long an implied warranty will last or the
exclusion or limitation on how long an implied warranty will last or the exclusion or
limitation of incidental or consequential damages.
This warranty gives you specific legal rights, and you may also have other rights,
which vary State to State.
Firstech,
LLC
. is not RESPONSIBLE OR LIABLE FOR ANY DAMAGES
WHATSOEVER,INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL
DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF TIME,
LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC
OPPORTUNITY AND THE LIKE that may or may not resulted from the
operation of Compustar. NOT WITH STANDING THE ABOVE,
MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR
REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE.
The product’s warranty is automatically void if its date code or serial number is
defaced, missing or altered. This warranty will not be valid unless you have
completed the registration card and mailed it to Firstech,
LLC
., within 10 days after
the purchase to the address listed on the registration card.
13
Firstech, LLC Warrants to the original purchaser that this product shall be free of
defects in material and workmanship under normal use and circumstances for the
period of time that the original owner of this product owns the vehicle in which it is
installed ; except that the remote controller unit for the period of one year from the date
of installation to the original owner of this product.
When the original purchaser returns the product to the retail store where it was
purchased or prepaid postal to Firstech, LLC., 3415 S. 116thSt Seattle, WA 98168,
USA within the warranty period, and if the product is defective, Firstech, LLC, will at its
option repair or replace such.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES
ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING
IN THE STREAM OF COMMERCE THEREWITH.
THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO, THE EXCLUSION OF ANY
AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY
OF NON-INFRINGEMENT OR PATENTS, IN THE UNITED STATES OF AMERICA
AND/OR ABROAD.
NEITHER THE MANUFACTURER OF ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS,
COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE.
NOTWITHSTANDING THE ABOVE, MANUFACTURER DOES OFFER A LIMITED
WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED
ABOVE.
Limited Lifetime Consumer Warranty
Your Warranty
Loading...
