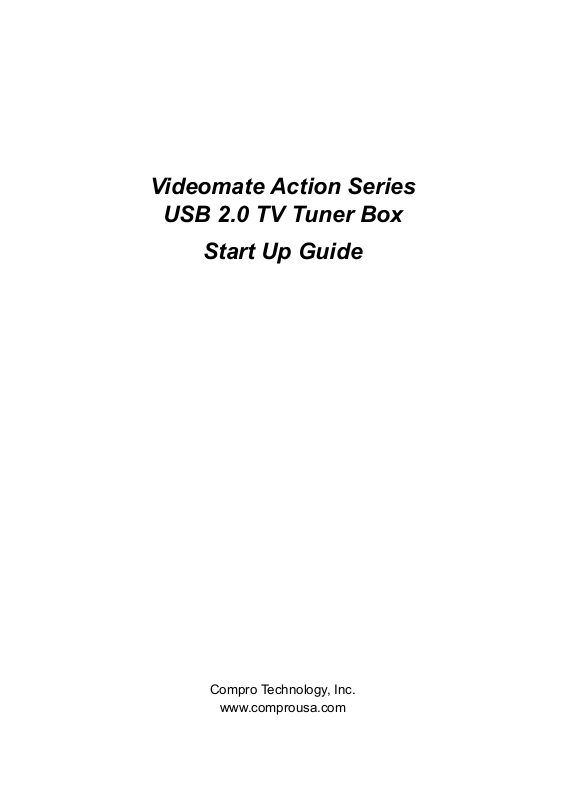

Compro VideoMate U700 START UP GUIDE
Videomate Action Series
USB 2.0 TV Tuner Box
Start Up Guide
Compro Technology, Inc.
www.comprousa.com
Copyright © 2001-2005. Compro Technology, Inc. No part of this
document may be copied or reproduced in any form or by any means
without the prior written consent of Compro Technology, Inc.
Compro, VideoMate, Poladyne, Play with Power, and the Compro
logo are trademarks of Compro Technology, Inc. Other names and
marks are trademarks of their respective owners.
Compro makes no warranties with respect to this documentation and
disclaims any implied warranties of merchantability, quality, or fitness
for any particular purpose. The information in this document is subject
to change without notice. COMPRO reserves the right to make
revisions to this publication without obligation to notify any person or
entity of any such changes.
Compro Technology, Inc.
Tel. +886 2 2918 0169, Fax +886 2 2915 2389
ii
3/F, No.12, Alley 6, Lane 45, Pao Shin Road
Hsintein City, Taipei, Taiwan
www.comprousa.com
Table of Contents
About This Guide ...................................................... 2
About VideoMate Action ........................................... 2
VideoMate Action Contents ...................................... 3
VideoMate Action Connectors .................................. 4
Installation................................................................. 5
Remote Control Key Definition and Use ................... 6
ComproPVR 2........................................................... 8
Troubleshooting ...................................................... 11
About This Guide
This manual tells you how to install and use your VideoMate Action USB 2.0
TV Tuner Box. For more information on using applications, please see the
User’s Guides in the programs, on the CDs, or at our website for the latest
manuals http://www.comprousa.com/download.
About VideoMate Action
VideoMate Action lets you watch and record TV on your PC. Depending on
which model you have, your VideoMate Action tuner card features a TV tuner,
FM Tuner, 3D Y/C Separation. All versions support: Digital Video Recording
(DVR) functions, scheduled recording at anytime, crystal video quality,
intelligent TV viewing, and Multi-function Remote Control. Additionally,
VideoMate Action also provides a Video capture function so that you can
transfer videos from video devices, such as video cameras, to your PC.
MINIMUM SYSTEM REQUIREMENTS
Your system must meet the following requirements to watch TV.
• 800 MHz Pentium III or equivalent CPU
• 128 MB RAM
• Sound card
• Open USB 2.0 port
• CD-ROM drive for software installation
• Windows XP SP1, Windows 2000 SP4 or above
• 50 MB free disk space for basic software installation.
• 600 MB (VCD-quality) to 3 GB (DVD-quality) per hour of recorded video.
RECOMMENDED SYSTEM REQUIREMENTS
To use all the features of VideoMate Action, including recording at DVD quality,
your system should meet the following requirements.
• 2.4 GHz CPU
• 256 MB RAM
• Sound card
• Open USB 2.0 ports
• Windows XP SP2
2
VideoMate Action Contents
VideoMate Action
Manual

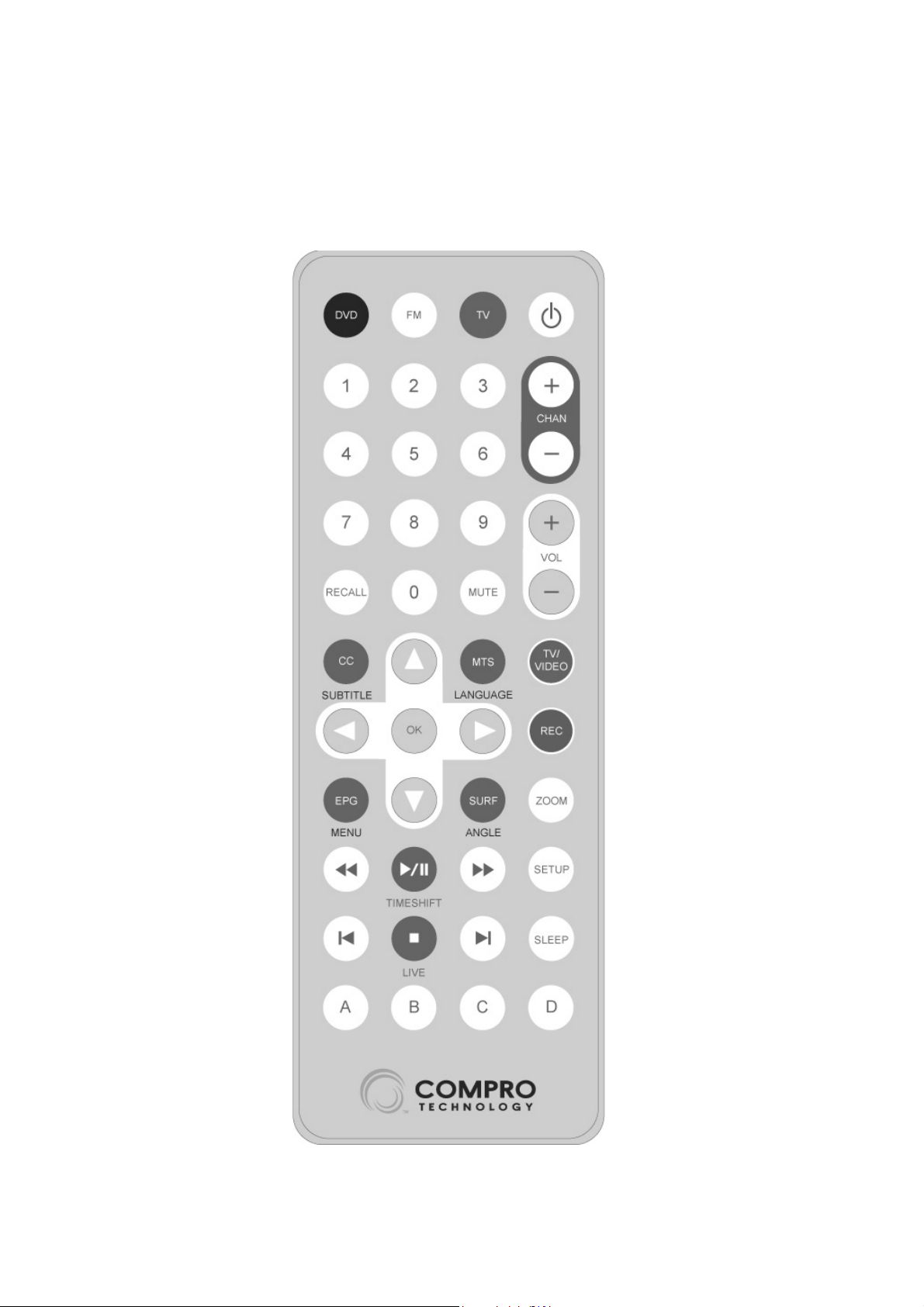

IR Remote Control
(batteries included)
Software CDs
USB cable
Y-Cable for S-Video
in and Audio out
Audio patch cable
FM antenna
USB power cable
(FM version
only)
Note
Do not connect USB cable and USB power cable on the same USB port.
VideoMate Action takes power from the USB port. Please connect an addition
external USB power cable to another USB port for sufficient power supply.
3
