Compro VideoMate U2600F START UP GUIDE
VideoMate U2600F
Hybrid D/A TV Stick
Start Up Guide
Compro Technology, Inc.
www.comprousa.com
Table of Contents
VideoMate U2600F Hybrid D/A Stick ........................... 3
VideoMate U2600F Contents........................................ 4
Installation ..................................................................... 5
Remote Control for VideoMate U2600F....................... 5

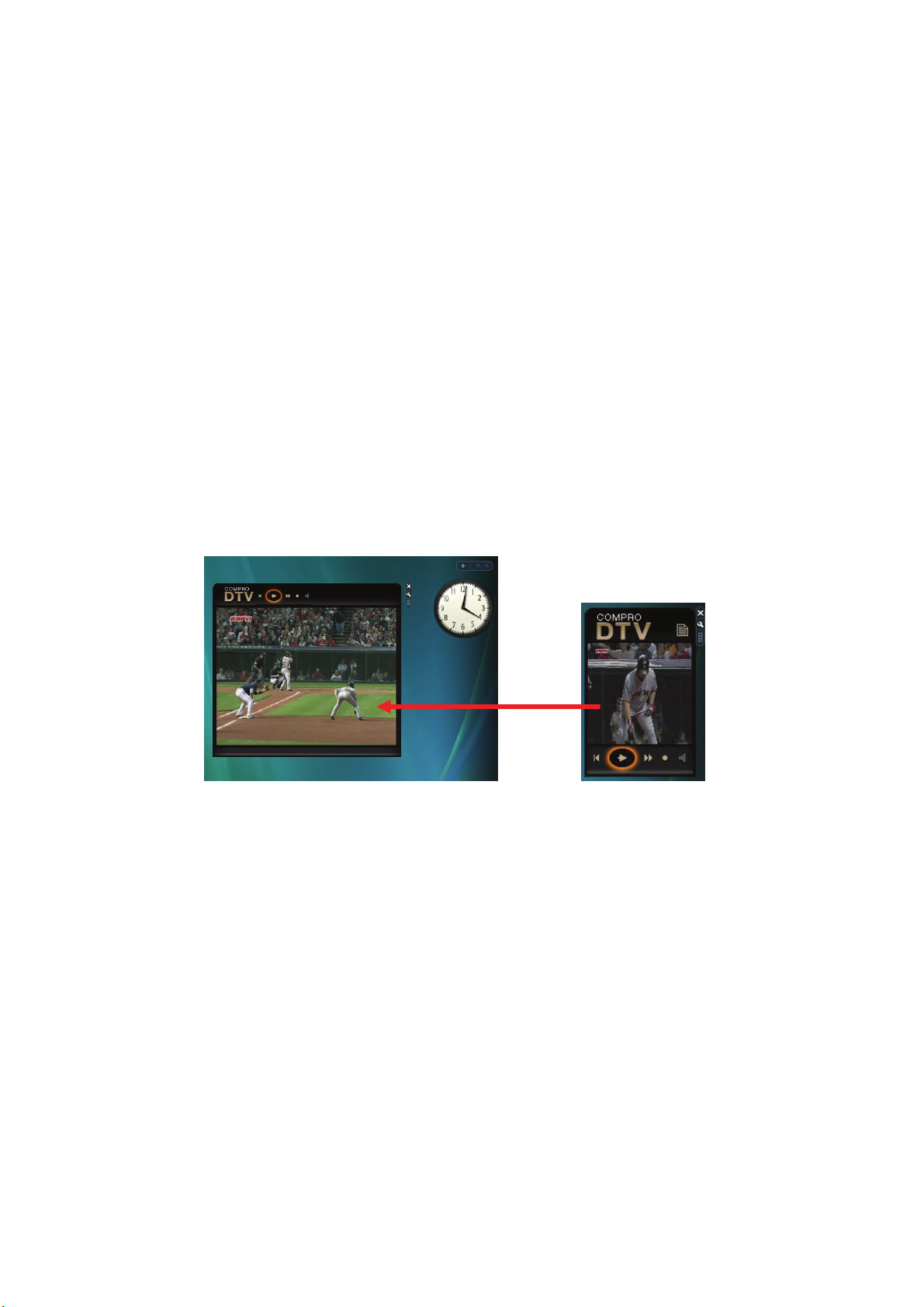

ComproDTV Vista Gadget Tool for Vista .................... 6
ComproDTV 4 ................................................................ 8
Open and close the ComproDTV 4 display panel ...... 9
ComproFM 2 ................................................................ 14
Troubleshooting.......................................................... 15
Copyright © 2001-2009. Compro Technology, Inc. No part of this document
may be copied or reproduced in any form or by any means without the prior
written consent of Compro Technology, Inc.
Compro, VideoMate, Poladyne, Play with Power, and the Compro logo are
trademarks of Compro Technology, Inc. Other names and marks are
trademarks of their respective owners.
Compro makes no warranties with respect to this documentation and
disclaims any implied warranties of merchantability, quality, or fitness for
any particular purpose. The information in this document is subject to
change without notice. COMPRO reserves the right to make revisions to
this publication without obligation to notify any person or entity of any such
changes. The product specification maybe very without further notice.
Compro Technology, Inc.
Tel. +886 2 2918 0169, Fax +886 2 2915 2389
www.comprousa.com
2
VideoMate U2600F Hybrid D/A Stick
VideoMate U2600F lets you watch/record digital TV broadcast or analog TV on
your PC. VideoMate U2600F features a TV tuner for either digital TV broadcast
or analog TV signals reception, Digital Video Recording (DVR) functions,
scheduled recording at anytime, crystal video quality, intelligent TV viewing,
and video/audio capture.
MINIMUM SYSTEM REQUIREMENTS
Your PC must meet or exceed the following system requirements to watch TV
on your PC.
z PIII 1.7 GHz CPU for TV viewing
z 512 MB RAM
z Available USB 2.0 ports (USB 2.0 only)
z Sound card or on-board sound chip
z Graphics Card or on-board graphics supports DirectX 9.0
z CD-ROM for software installation.
z Windows XP SP2 or above installed.
z 150 MB free disk space for basic software installation.
RECOMMENDED SYSTEM REQUIREMENTS
To use all the features of VideoMate U2600F, your PC should meet the
following requirements.
z 2.6 GHz CPU with SSE 2 support for DVD recording and timeshifting
z 3.0 GHz CPU with SSE 2 support for HDTV/TS viewing/recording and PIP
z Intel Core 2 Duo 2.2 GHz or above for H.264 viewing/recording
z 1GB RAM
z Sound card or on-board sound chip
z Available USB 2.0 ports
z CD-ROM for software installation
z Graphics Card or on-board graphics supports DirectX 9.0
z Windows Vista x86/x64
z Update the latest drivers of VGA, motherboard, and soundcard from
vendors.
z 150 MB free space for software installation
3
VideoMate U2600F Contents
VideoMate
U2600F
Card-design
Remote
I type to F type
converter
Start Up Guide
FM antenna
In order to receive digital terrestrial TV broadcast, you have to have your own
antenna which is crucial. Digital terrestrial TV broadcast uses about the same
wave (UHF) as analog TV. It’s recommended to have a fishbone-like antenna
on the roof for receiving. More details can be found in the troubleshooting
chapter of this manual.
3 in 1 video/audio
USB 2.0 cable
input cable
Note
Installation CD
Digital TV broadcast is different than normal analog TV. You will see no
picture instead of noisy or blurred picture when the signal is too weak. Make
sure you have a good antenna and strong digital TV signal in your location. Or
you will have no TV picture at all.
Please extend the antenna
horizontally to its fullest.
4
How to use the digital TV antenna:
For the best reception of this digital TV
antenna, please extend the antenna to
the left and right side as the picture
shown.
Installation
Start the computer. Make sure VideoMate U2600F is connected to your
computer and insert the installation CD into your CD drive.
Step 1. After restarting, Windows will detect a new device and start the
Add/Remove Hardware Wizard, please press Cancel and go to the
next step.
Step 2. Insert the installation CD into your CD drive. If you have Autorun
enabled, the installer will start automatically. (If Autorun is disabled,
double-click on “setup.exe” on the installation CD.) You can choose
Complete to install all necessary software (VideoMate U2600F
drivers, ComproDTV, and ComproFM 2) or choose Custom to select
item by item. Compro recommends you choose Complete.
Step 3. Press Next to install ComproDTV,
Step 4. After each program is successfully installed, press Finish to proceed.
Step 5. When installation completes, press Finish to restart computer.
Step 6. Connect the digital or analog TV signal and open ComproDTV to
enjoy the show.
Remote Control for VideoMate U2600F
Compro VideoMate U2600F bundles the easy-to-use remote control to
controls the ComproDTV
Icon ComproDTV 4
ZOOM Zoom In/Out
DVD On/Off ComproDVD 2
MUTE On/Off Mute
TV On/Off ComproDTV
0-9 Number keys
CHAN Switch channels
VOL Volume
REC Record
TV/VIDEO Not used
Backward Replay
Play/Pause Pause or timeshifting
Stop Stop
Forward Advance
CC Not used
RECALL Previous channel
SURF Channel surf
MTS Audio select
Snapshot Snapshot
SLEEP Sleep function
A, B Not used
5
