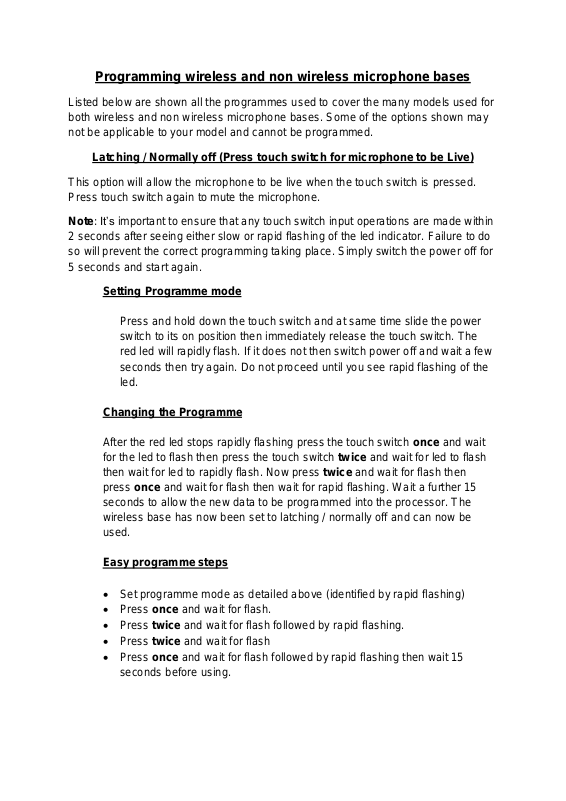

Programming wireless and non wireless microphone bases

Listed below are shown all the programmes used to cover the many models used for
both wireless and non wireless microphone bases. Some of the options shown may
not be applicable to your model and cannot be programmed.

Latching / Normally off (Press touch switch for microphone to be Live)

This option will allow the microphone to be live when the touch switch is pressed.
Press touch switch again to mute the microphone.

Note: It’s important to ensure that any touch switch input operations are made within
2 seconds after seeing either slow or rapid flashing of the led indicator. Failure to do
so will prevent the correct programming taking place. Simply switch the power off for
5 seconds and start again.

Setting Programme mode

Press and hold down the touch switch and at same time slide the power
switch to its on position then immediately release the touch switch. The
red led will rapidly flash. If it does not then switch power off and wait a few
seconds then try again. Do not proceed until you see rapid flashing of the
led.

Changing the Programme

After the red led stops rapidly flashing press the touch switch once and wait
for the led to flash then press the touch switch twice and wait for led to flash
then wait for led to rapidly flash. Now press twice and wait for flash then
press once and wait for flash then wait for rapid flashing. Wait a further 15
seconds to allow the new data to be programmed into the processor. The
wireless base has now been set to latching / normally off and can now be
used.

Easy programme steps

 Set programme mode as detailed above (identified by rapid flashing)
 Press once and wait for flash.
 Press twice and wait for flash followed by rapid flashing.
 Press twice and wait for flash
 Press once and wait for flash followed by rapid flashing then wait 15

seconds before using.

Latching / Normally on (Press touch switch to mute the microphone)

This option will allow the microphone to be always live when powered up. Press
touch switch to mute the microphone.

Note: It’s important to ensure that any touch switch input operations are made within
2 seconds after seeing either slow or rapid flashing of the led indicator. Failure to do
so will prevent the correct programming taking place. Simply switch the power off for
5 seconds and start again.

Setting Programme mode

Press and hold down the touch switch and at same time slide the power
switch to its on position then immediately release the touch switch. The
red led will rapidly flash. If it does not then switch power off and wait a few
seconds then try again. Do not proceed until you see rapid flashing of the
led.

Changing the Programme

After the red led stops rapidly flashing press the touch switch once and wait
for the led to flash then press the touch switch twice wait for the led to flash
followed by rapid flashing. Press touch switch twice wait for flash, press touch
switch twice wait for flash followed by rapid flashing after the flashing stops
wait a further 15 seconds to allow the new data to be programmed into the
processor. The wireless base has now been set to Latching normally on and
can now be used.

Easy programme steps

 Set programme mode as detailed above (identified by rapid flashing)
 Press once and wait for flash.
 Press twice wait for rapid flashing
 Press twice wait for flash
 Press twice wait for rapid flashing and wait 15 seconds before using.

Push to Mute

This option will allow the microphone to be always live until the touch switch is
continuously held / pressed.

Note: It’s important to ensure that any touch switch input operations are made within
2 seconds after seeing either slow or rapid flashing of the led indicator. Failure to do
so will prevent the correct programming taking place. Simply switch the power off for
5 seconds and start again.

Setting Programme mode

Press and hold down the touch switch and at same time slide the power
switch to its on position then immediately release the touch switch. The
red led will rapidly flash. If it does not then switch power off and wait a few
seconds then try again. Do not proceed until you see rapid flashing of the
led.

Changing the Programme

After the red led stops rapidly flashing press the touch switch once and wait
for the led to flash then press the touch switch once again. Now wait for the
led to flash followed by rapid flashing. Press touch switch twice wait for flash,
press touch switch twice again wait for flash followed by rapid flashing. Press
touch switch twice wait for flash, press touch switch again twice wait for flash
followed by rapid flashing. After the flashing stops wait a further 15 seconds to
allow the new data to be programmed into the processor. The wireless base
has now been set to PTM and can now be used.

Easy programme steps

 Set programme mode as detailed above (identified by rapid flashing)
 Press once and wait for flash.
 Press once wait for flash then rapid flashing.
 Press twice and wait for flash.
 Press twice and wait for flash followed by rapid flashing.
 Press twice wait for flash
 Press twice wait for flash followed by rapid flashing.
 Wait 15 seconds before using.
