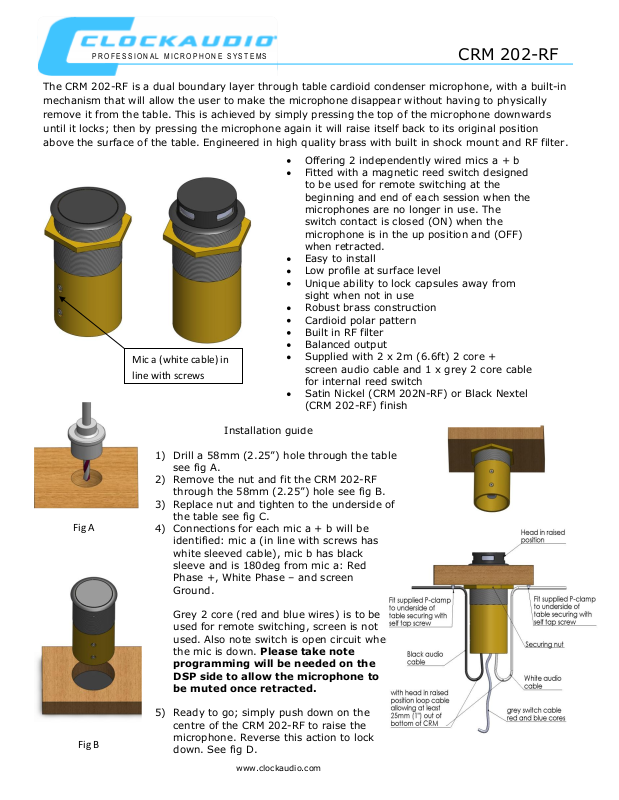

Clock Audio CRM 202-RF User Manual

CRM 202-RF

Installation guide

1) Drill a 58mm (2.25”) hole through the table

see fig A.

2) Remove the nut and fit the CRM 202-RF

through the 58mm (2.25”) hole see fig B.

3) Replace nut and tighten to the underside of

the table see fig C.

4) Connections for each mic a + b will be

identified: mic a (in line with screws has
white sleeved cable), mic b has black
sleeve and is 180deg from mic a: Red
Phase +, White Phase – and screen
Ground.

Grey 2 core (red and blue wires) is to be
used for remote switching, screen is not
used. Also note switch is open circuit when
the mic is down. Please take note

programming will be needed on the
DSP side to allow the microphone to
be muted once retracted.

5) Ready to go; simply push down on the

centre of the CRM 202-RF to raise the
microphone. Reverse this action to lock
down. See fig D.

Offering 2 independently wired mics a + b
Fitted with a magnetic reed switch designed

to be used for remote switching at the
beginning and end of each session when the
microphones are no longer in use. The
switch contact is closed (ON) when the
microphone is in the up position and (OFF)
when retracted.

Easy to install
Low profile at surface level
Unique ability to lock capsules away from

sight when not in use

Robust brass construction
Cardioid polar pattern
Built in RF filter
Balanced output
Supplied with 2 x 2m (6.6ft) 2 core +

screen audio cable and 1 x grey 2 core cable
for internal reed switch

Satin Nickel (CRM 202N-RF) or Black Nextel

(CRM 202-RF) finish

P R O F ES S I O N A L M IC R O P H O N E S Y S T E M S

The CRM 202-RF is a dual boundary layer through table cardioid condenser microphone, with a built-in
mechanism that will allow the user to make the microphone disappear without having to physically
remove it from the table. This is achieved by simply pressing the top of the microphone downwards
until it locks; then by pressing the microphone again it will raise itself back to its original position

above the surface of the table. Engineered in high quality brass with built in shock mount and RF filter.

Fig A

Fig B

www.clockaudio.com

Mic a (white cable) in
line with screws
