Clock Audio CRM 102-RF User Manual
CRM 102-RF
P R O F E S S I O N A L M I C R O P H O N E SY S T E M S
The CRM 102-RF is a boundary layer through table cardioid condenser microphone, with a built-in
mechanism that will allow the user to make the microphone disappear without having to physically
remove it from the table. This is achieved by simply pressing the top of the microphone downwards
until it locks; then by pressing the microphone again it will raise itself back to its original position
above the surface of the table. Engineered in high quality brass with built in shock mount and RF filter.
Standard finish: Black Nextel or Satin Nickel.
Designed for remote switching switch is
closed (on) when mic is visible and open
(off) once mic is retracted.
Easy to install
Low profile at surface level
Unique ability to lock capsule away from
sight when not in use
Robust brass construction
Cardioid polar pattern
Built in RF filter
Balanced output
Supplied with 2m (6.6ft) 2 core + screen
cable
Satin Nickel or Black Nextel finish
Fig A
Fig B
Fig C
Fig D

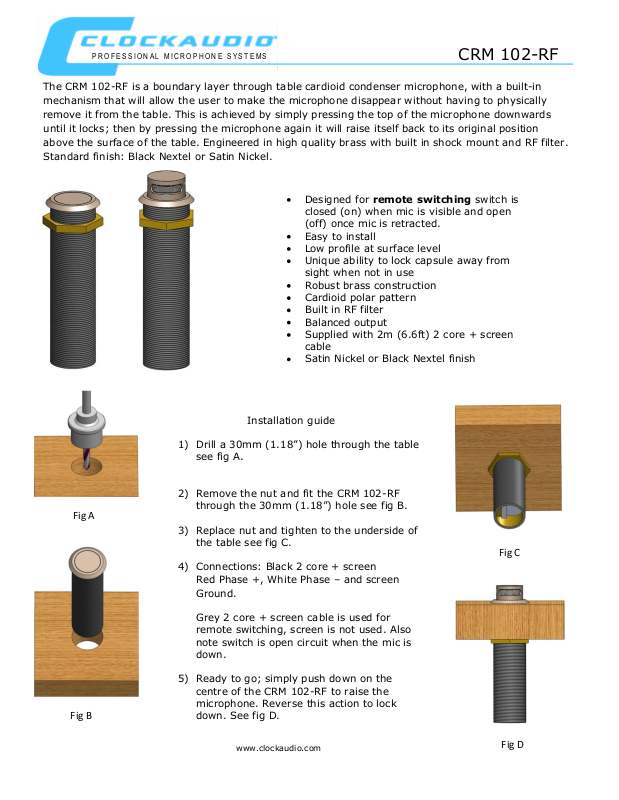

Installation guide
1) Drill a 30mm (1.18”) hole through the table
see fig A.
2) Remove the nut and fit the CRM 102-RF
through the 30mm (1.18”) hole see fig B.
3) Replace nut and tighten to the underside of
the table see fig C.
4) Connections: Black 2 core + screen
Red Phase +, White Phase – and screen
Ground.
Grey 2 core + screen cable is used for
remote switching, screen is not used. Also
note switch is open circuit when the mic is
down.
5) Ready to go; simply push down on the
centre of the CRM 102-RF to raise the
microphone. Reverse this action to lock
down. See fig D.
