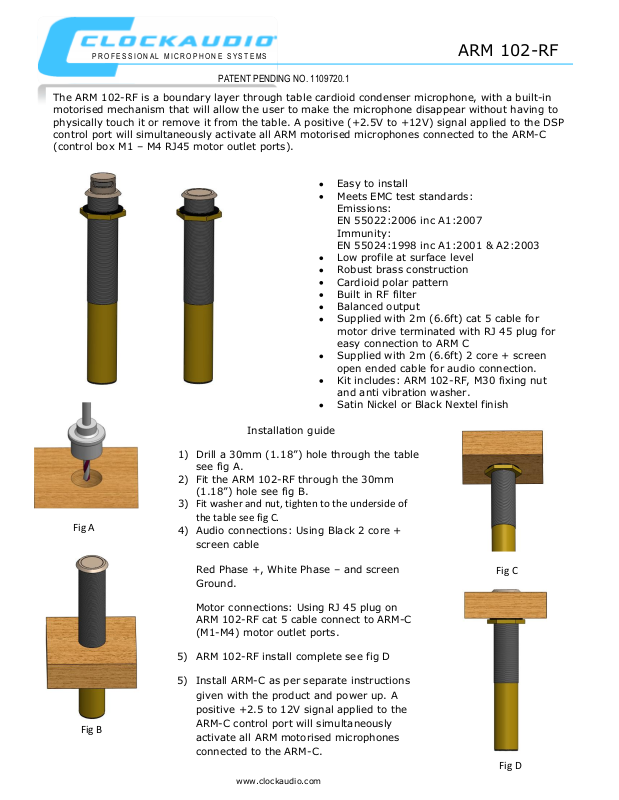

Clock Audio ARM102N-RF User Manual

ARM 102-RF

PATENT PENDING NO. 1109720.1

Easy to install
Meets EMC test standards:

Emissions:
EN 55022:2006 inc A1:2007
Immunity:
EN 55024:1998 inc A1:2001 & A2:2003

Low profile at surface level
Robust brass construction
Cardioid polar pattern
Built in RF filter
Balanced output
Supplied with 2m (6.6ft) cat 5 cable for

motor drive terminated with RJ 45 plug for
easy connection to ARM C

Supplied with 2m (6.6ft) 2 core + screen

open ended cable for audio connection.

Kit includes: ARM 102-RF, M30 fixing nut

and anti vibration washer.

Satin Nickel or Black Nextel finish

P R O F E S S I O N A L M I C R O P H O N E S Y S T E MS

The ARM 102-RF is a boundary layer through table cardioid condenser microphone, with a built-in
motorised mechanism that will allow the user to make the microphone disappear without having to
physically touch it or remove it from the table. A positive (+2.5V to +12V) signal applied to the DSP
control port will simultaneously activate all ARM motorised microphones connected to the ARM-C

(control box M1 – M4 RJ45 motor outlet ports).

Fig A

Fig B

Fig C

Installation guide

1) Drill a 30mm (1.18”) hole through the table

see fig A.

2) Fit the ARM 102-RF through the 30mm
(1.18”) hole see fig B.

3) Fit washer and nut, tighten to the underside of

the table see fig C.

4) Audio connections: Using Black 2 core +
screen cable

Red Phase +, White Phase – and screen
Ground.

Motor connections: Using RJ 45 plug on
ARM 102-RF cat 5 cable connect to ARM-C
(M1-M4) motor outlet ports.

5) ARM 102-RF install complete see fig D

5) Install ARM-C as per separate instructions
given with the product and power up. A
positive +2.5 to 12V signal applied to the
ARM-C control port will simultaneously
activate all ARM motorised microphones
connected to the ARM-C.

www.clockaudio.com

Fig D
