Thank you for purchasing this Clarke Infra Red Dryer system
Before attempting to operate the unit please read this instruction leaflet and carefully
follow all directions given. By doing so you will ensure safe operation of the unit and you
can also look forward to it providing you with long and trouble free service.
GUARANTEE
This CLARKE product is guaranteed against faults in manufacture for 12 months
from purchase date. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product has been found to have been abused in
any way, or not used for the purpose for which it was intended, or to have been
tampered with in any way. The reason for return must be clearly stated.
This guarantee does not affect your statutory rights.
ADVANTAGES of using INFRA RED
Many of the modern paint systems are two pack, and this type of system is getting
more popular. Two pack systems set, not by drying, but by a chemical reaction between
the two parts. Heat accelerates chemical reactions and many of today’s systems need
a minimum temperature to work. INFRA RED is a simple cost effective way of heating
these products.
Oven systems are expensive if the area being cured is relatively small. Up to 70%
of repairs are panel repairs rather than full resprays and it is for these jobs that
INFRA RED comes into its own. INFRA RED will give curing times of around 15-20
minutes. The cost savings can be substantial.
Even when a full respray is required there is often the need for local repairs using
filler etc. These can be carried out more quickly and efficiently with INFRA RED.
•Value for Money
Low capital cost. Easy installation. Reliable Operation. Low maintenance.
Efficient use of energy.
•Production Flexibility
Clean, safe and adaptable. Allows optimum workshop layout and promotes an
efficient working environment.
•High Throughput
Rapid heating from infra red emitters shortens curing times and increases
production rates.
•Better Product Quality
Controllable, predictable heating reduces wastage and promotes product quality.
•Efficient Energy Use
Energy not wasted heating the surroundings. Ceramic emitters convert 96% of electrical
energy into heat.
2
FEATURES
This INFRA RED heater is designed to be safe, hard wearing, rugged and
inexpensive to run. It is easily manoeuvrable even in confined spaces.
The ceramic “no glare” emitters are simple and safe to operate. Unlike short
wave emitters they are very durable and will not fracture even when splashed
with water or other liquids. They will continue to work 100% efficiently even when
covered in overspray.
They are long lasting – their life is measured in years rather than hours, and they
are maintenance free and self-cleaning.
There are no moving parts so there is less danger of dust being blown over the
painted surface.
The cassettes are independently adjustable and will reach under sills and around
corners. They are also separately controlled which allows for localised and
variable heating.
Medium/Long wave emitters have a gentle warm up temperature curve, which
eliminates the need for flash curing and eliminates the danger of solvent pop
and blistering.
Long term exposure to short wave infrared radiation is known to increase the
incidence of some eye problems. The wavelength produced by ceramic emitters
is not absorbed by the eye, and is therefore completely safe.
FREQUENTLY ASKED QUESTIONS
Q. What area can be covered by the INFRA RED heater?
A. Slightly more than the size of the head. The 3 head INFRA RED will cover
approximately 900x900mms. By moving the head further away a larger area
can be covered but the curing times will be longer.
Q. What will the running costs be?
A. The present UK cost to run 3kW continuously for 1 hour is 23p. The cost of
curing a top coat will therefore be about 8p.
Q. What products are suitable for infrared curing?
A. Stoppers, fillers and sealants. Two pack systems including etch primers, primers, top
coats and clear coats. Water-borne products, lacquers and some air drying products.
Q. Do some colours cure quicker than others?
A. Only with short wave infrared. The infrared produced by this system cures all
colours in the same time.
Q. Do you need to remove rubber and plastic parts?
A. The larger parts can be heated without harming them. However they should
not be handled until cool to prevent deforming. Any thin plastic parts should
be removed or masked with foil tape to protect them.
3
Q. Will infrared cure the next generation of water-borne products?
A. Yes. It is already being used for them.
Q. How fast does the INFRA RED system dry the Paint?
A. 15-20 minutes will be needed for two pack paints. Times vary slightly between
products.
Q. Can the emitters be replaced?
A. Yes, but don’t forget they have been designed to last for years.
Q. Do you have to have two settings, flash off and cure?
A. No. Because of the gentle warm up curve of ceramics only one setting is
needed.
Q. What distance should the unit be from the panel?
A. 450mm or 18 inches.
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through
an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with the
following code:
Green & Yellow ........................ Earth
Blue ............................................ Neutral
Brown ........................................ Live
As the colours of the flexible lead of this appliance may not correspond with the
coloured markings identifying terminals in your plug proceed as follows:
•Connect GREEN & YELLOW coloured cord to plug terminal marked with a
letter “E” or Earth symbol “ ” or coloured GREEN or GREEN & YELLOW.
•Connect BROWN cord to terminal marked with a letter “L” or coloured RED.
•Connect BLUE cord to terminal marked with a letter “N” or coloured BLACK.
If this appliance is fitted with a plug which is moulded onto the electric cable (i.e.
non-rewirable) please note:
1.The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.
2.Never use the plug without the fuse cover fitted.
3.Should you wish to replace a detachable fuse carrier, ensure that the correct
replacement is used (as indicated by marking or colour code).
Fuse Rating
The fuse in the plug must be replaced with one of the same rating (13 amps) and
this replacement must be ASTA approved to BS1362.
4
ASSEMBLY
Carefully remove the components
from the packing and lay out,
checking for damage which may
have occurred during transit.
Should any damage be apparent,
please contact your Clarke dealer
immediately.
Slide the column sections over the
column inserts, so that the holes in
the column line up with the screw
heads in the inserts, and tighten the
screws fully.
Slacken off the Cassette Head
Securing Lever, on the Junction
Box/ Control Unit, sufficiently for the
Head to be lowered on to the
column.
Tighten the Securing Lever when
the head at an appropriate height.
The unit may be moved easily and
safely around a workshop by lifting
the frame on to its wheels.
Notes:
(i) Two switches are provided on the Control Unit, allowing one, two or all three
heater heads to be used independently.
(ii) The heads are independently adjustable to reach around corners/sills etc.
(iii) The long life emitters are maintenance free and self cleaning
PARTS & SERVICE
Replacement Ceramic emtitters are available. Please contact your nearest Clarke
dealer, or Clarke International, for details, as follows:
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
SERVICE: Service@clarkeinternational.com
5
INFRA RED USER INSTRUCTIONS
In all these applications the INFRA RED should be positioned approximately 500mm
(18”) from the panel being painted. Times are a guide only an will vary slightly
depending on the product manufacturer.
Moisture Removal
Use the INFRA RED to dry any panels before starting any painting or filing job. This
will ensure that there is no moisture remaining, and will prevent problems
developing as the job progresses.
A 5 minute application should be sufficient. Allow the panel to cool to about 25
degrees before proceeding.
Filler
Problems arise from coating fillers before they have completely set. This can arise
through cold conditions or when to little catalyst has been used.
The use of the INFRA RED for 5-7 mins will ensure that the filler has set before
proceeding. Allow it to cool before sanding.
Etch Primer
Cure for 6-7 minutes.
Some etch primers are not intended to be heat cured. Do not use the INFRA
RED with these products.
Primer
Often primer is allowed to air dry leaving the oven free for top coats. This can
result in irregular drying/curing times, depending on the air temperature at the
time.
Apply INFRA RED for approximately 10 minutes. High build primer will need
approximately 15 minutes.
Allow to cool before sanding.
Air Dry Primer
Air dry primer can appear to be dry to touch without being completely set.
Apply INFRA RED for approximately 5 minutes per coat to ensure the product is
completely dry.
Allow to cool before sanding.
Water-borne Base coat
Drying times vary depending on the method of application.
For separate coats dry for approximately 5 minutes between coats.
Wet on wet systems will require longer. Cure for approximately 15 minutes.
Allow to cool before sanding.
6
Water-borne Primer
Drying times will vary depending on film thickness.
Pre heat the panel for 2-3 minutes before applying the primer.
Apply the INFRA RED for 3-5 minutes between coats.
For wet on wet dry for approximately 10 minutes after first preheating the panel
as above.
Allow to cool before sanding.
Top Coat
Curing times vary slightly depending on the product being used. Start the INFRA
RED from cold and cure for 15-20 minutes.
Allow to cool if any polishing is required.
Clear Coat
Treat as a top coat.
Stripe Removal
Heat the stripe with the INFRA RED for approximately 1 minute. This will enable
you to peel the stripe off without scraping.

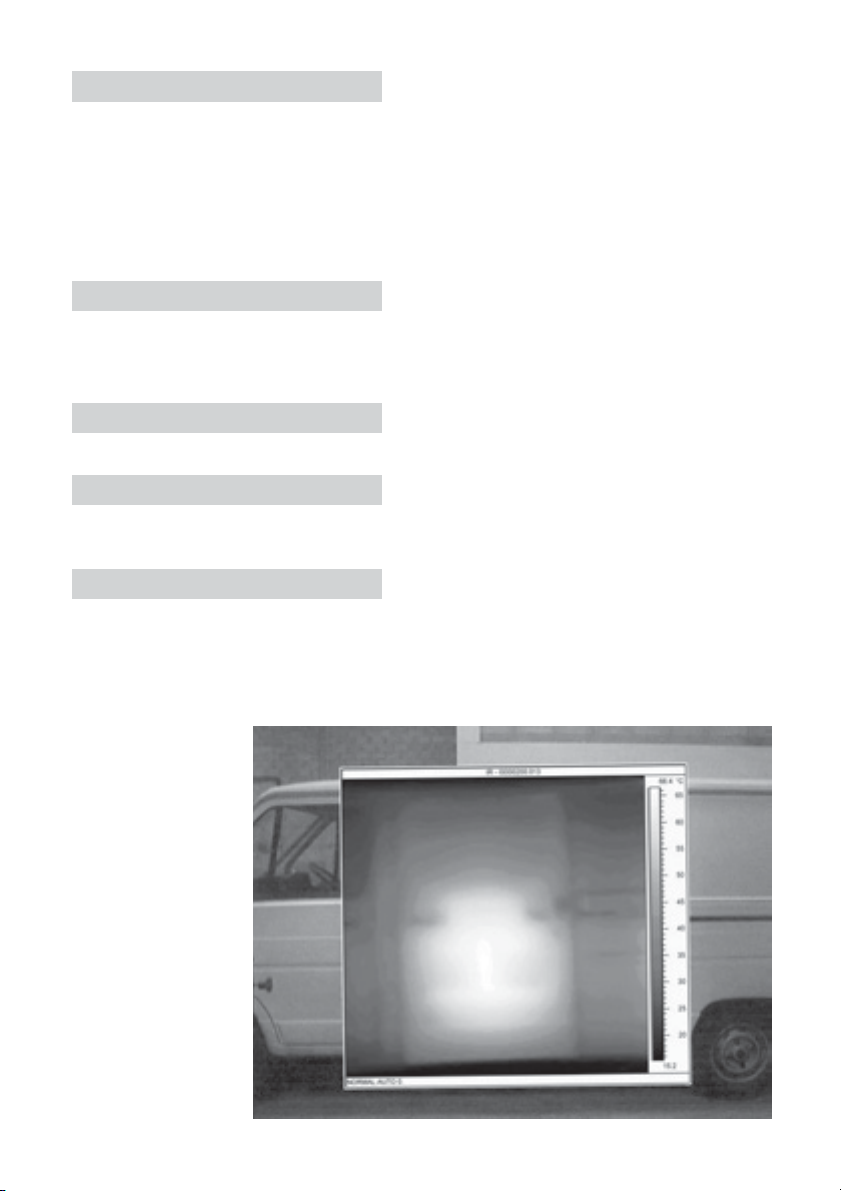

INFRA RED Footprint
The door panel on the van was photographed with an infrared camera after
heating with the INFRA RED Dryer
The footprint obtained has been superimposed onto a normal photograph of
the van.
The coverage
obtained can
easily be seen
together with the
temperature
gradient.
The results were
obtained at an
ambient
temperature of
17 deg.C.
7
