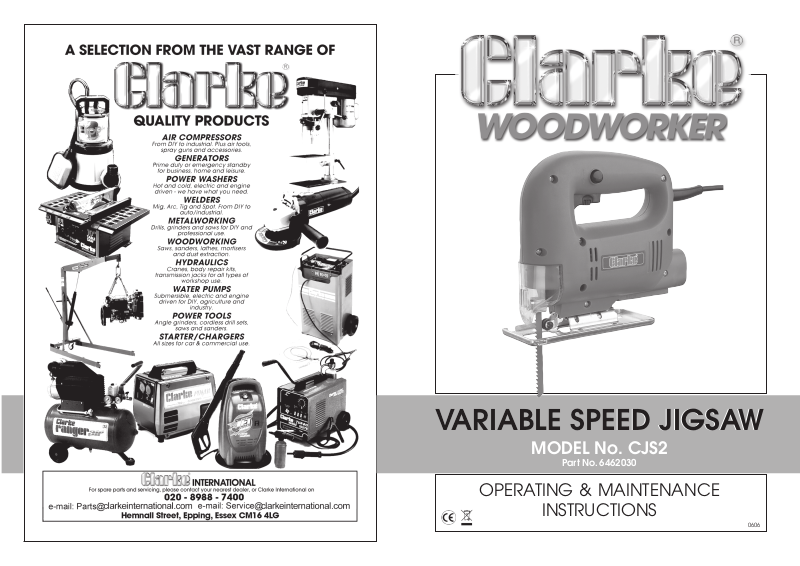

Clarke CJS 2, 6462030 User guide

VARIABLE SPEED

JIG SAW

MODEL No. CJS350

VARIABLE SPEED JIGSAW

VARIABLE SPEED JIGSAW

OPERATING & MAINTENANCE

MODEL No. CJS350

Part No. 6460200

MODEL No. CJS2

Part No. 6462030

INSTRUCTIONS

0606

Thank you for purchasing this CLARKE Jig Saw, which is designed for DIY and light workshop
use only.

Before attempting to use the machine, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to the saw giving you long and satisfactory
service.

Guarantee

This product is guaranteed against faulty manufacture for a period of 12 months from the
date of purchase. Please keep your receipt which will be required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in
any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned
to us without prior permission.

This guarantee does not effect your statutory rights.

Specifications

Elec. Supply .............................................................. 230V 50Hz 1 ph

Power Rating ........................................................... 420W Motor

Fuse Rating ............................................................... 5amp

No Load Speed ....................................................... 0-2,700 strokes/minute

Maximum Cutting Depth ....................................... 55mm

Net Weight ............................................................... 1.5kg

Vibration Emissions..................................................Refer to notes on page 10

This Product Conforms To 98/37/EEC Regulations

When disposing of this product, ensure it is disposed of according to all local ordinances. It must
not be disposed of with general household waste.

Please note that the details and specifications contained herein, are correct at the time of going to print. However,

CLARKE International reserve the right to change specifications at any time without prior notice.

You will note that a third value is given in the specification - the highest measured
reading in a single plane. This is the maximum level of vibration measured during
testing in one of the axes, and this should also be taken into account when making a risk
assessment.

‘a’ values in excess of 2.5 m/s2 are considered hazardous when used for prolonged
periods. A tool with a vibration value of 2.8 m/s2 may be used for up to 8 hours
(cumulative) per day, whereas a tool with a value of 11.2 m/s2 may be used for ½ hour
per day only.

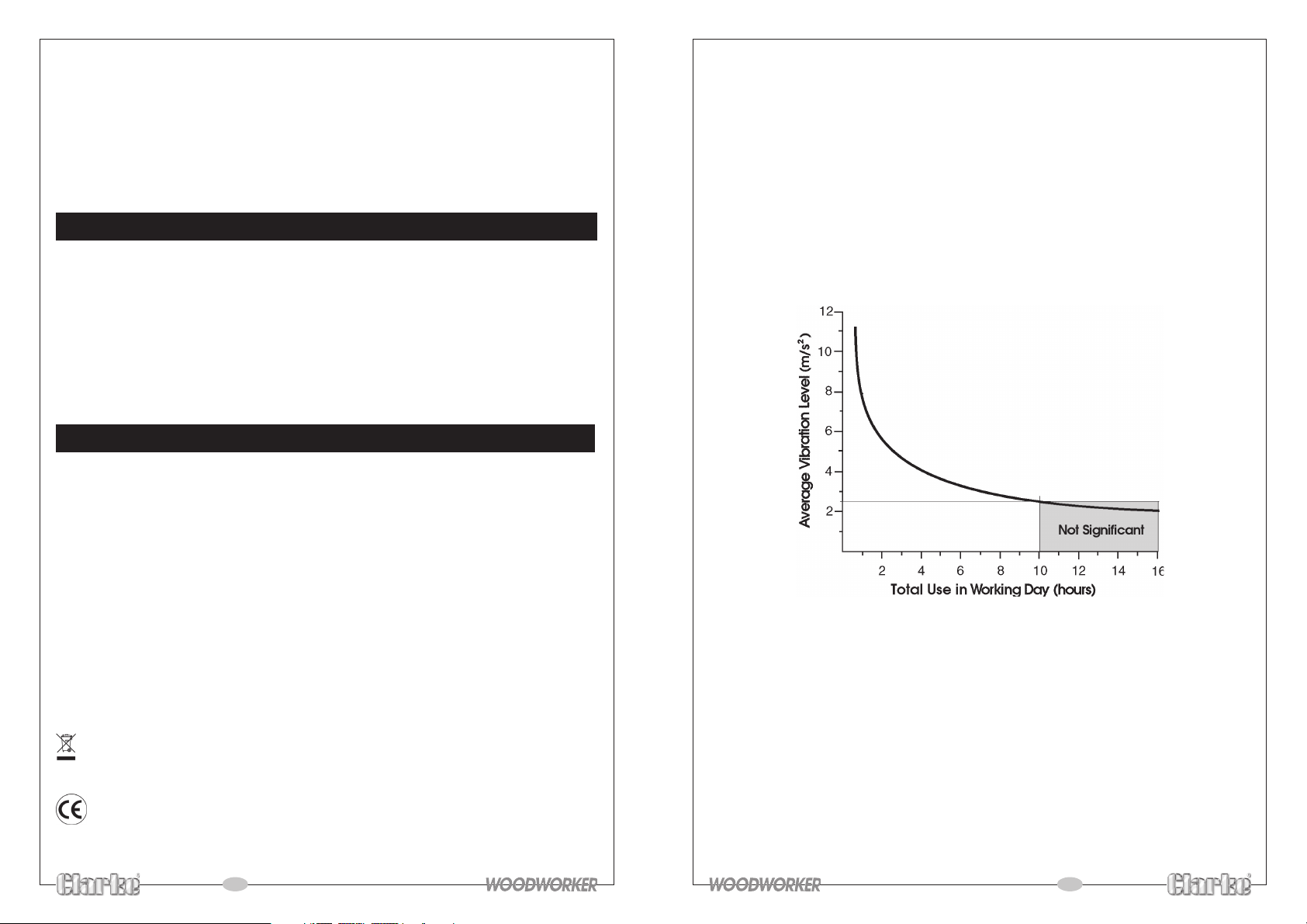

The graph below shows the vibration value against the maximum time the respective
tool may be used, per day.

The uncertainty factor should also be taken into account when assessing a risk. The two
figures ‘a’ and ‘K’may be added together and the resultant value used to assess the risk.

It should be noted that if a tool is used under abnormal, or unusual conditions, then the
vibration level could possibly increase significantly. Users must always take this into
account and make their own risk assessment, using the graph above as a reference.

Some tools with a high vibration value, such as impact wrenches, are generally used for
a few seconds at a time, therefore the cumulative time may only be in the order of a few
minutes per day. Nevertheless, the cumulative effect, particularly when added to that
of other hand held power tools that may be used, must always be taken into account
when the total daily dose rate is determined.

-1-

-10-

Vibration Emissions

Safety Precautions

HAND-ARM VIBRATION

Employers are advised to refer to the HSE publication “Guide for Employers”.

All hand held power tools vibrate to some extent, and this vibration is transmitted to the
operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500
herz is potentially damaging and is most hazardous in the range from about 5 to 20
herz.

Operators who are regularly exposed to vibration may suffer from Hand Arm Vibration
Syndrome (HAVS), which includes ‘dead hand’, ‘dead finger’, and ‘white finger’. These
are painful conditions and are widespread in industries where vibrating tools are used.

The health risk depends upon the vibration level and the length of time of exposure to
it……in effect, a daily vibration dose.

Tools are tested using specialised equipment, to approximate the vibration level
generated under normal, acceptable operating conditions for the tool in question. For
example, a grinder used at 45° on mild steel plate, or a sander on softwood in a horizontal
plane etc.

These tests produce a value‘a’, expressed in metres per second per second, which
represents the average vibration level of all tests taken, in three axes where necessary,
and a second figure ‘K’, which represents the uncertainty factor, i.e. a value in excess
of ‘a’, to which the tool could vibrate under normal conditions. These values appear in
the specification panel below.

MODEL No: CJS2

DESCRIPTION: JIG SAW

Declared vibration emission value in accordance

with EN12096

Measured vibration emission value -

Uncertainty value -

K:

a:

6.3m/s

2.5m/s

Highest measured reading in a single plane m/s

2

2

2

Values determined according to EN28622-1

WARNING:

As with all machinery, there are certain hazards involved with their operation

and use. Exercising respect and caution will considerably lessen the risk of

personal injury. However, if normal safety precautions are overlooked or

ignored, personal injury to the operator or damage to property, may result.

1. ALWAYS Learn the machines’ applications, limitations and the specific potential
hazards peculiar to it. Read and become familiar with the entire
operating manual.

2. ALWAY S use a face or dust mask if operation is particularly dusty.

3. ALWAYS check for damage. Before using the machine, any damaged
part, should be checked to ensure that it will operate properly, and
perform its intended function.
Check for alignment of moving parts, breakage of parts, mountings,
and any other condition that may affect the machines’ operation.
Any damage should be properly repaired or the part replaced. If in doubt, DO NOT
use the machine. Consult your local dealer.

4. ALWAY S disconnect the tool/machine from the power supply before servicing and
when changing accessories.

5. ALWAY S wear safety goggles, manufactured to the latest European Safety Standards.
Everyday eyeglasses do not have impact resistant lenses, they are not safety glasses.

6. ALWAYS keep work area clean. Cluttered areas and
benches invite accidents.

7. ALWAYS ensure that adequate lighting is available. A
minimum intensity of 300 lux should be provided. Ensure
that lighting is placed so that you will not be working in your
own shadow.

8. ALWAY S keep children away. All visitors should be kept a safe distance from the work
area, especially whilst operating the machine.

9. ALWAY S maintain machine in top condition. Keep tools/ machines
clean for the best and safest performance. Follow maintenance
instructions.

10. ALWAYS handle with extreme care do not carry the tool/machine
by its’ electric cable, or yank the cable to disconnect it from the
power supply .

11. ALWAYS ensure the switch is off before plugging in to mains. Avoid accidental starting.

12. ALWAYS concentrate on the job in hand, no matter how trivial it may seem.
Be aware that accidents are caused by carelessness due to familiarity.

13. ALWAYS keep your proper footing and balance at all
times don’t overreach. For best footing, wear rubber
soled footwear. keep floor clear of oil, scrap wood, etc.

-2--9-

14. A LWAY S wear proper apparel. loose clothing or jewellery may
get caught in moving parts. wear protective hair covering to
contain long hair.

15. A LWAY S use recommended accessories. the use of improper
accessories could be hazardous.

16. A LWAY S remove plug from electrical outlet when adjusting,
changing parts, or working on the machine.

17. NEVER operate machine while under the influence of drugs, alcohol or any medication.

18. NEVER leave machine running unattended. turn power off. Do
not leave the machine until it comes to a complete stop.

19. NEVER force the machine. it will do a better and safer job at
the rate for which it was designed.

20. NEVER use power tools in damp or wet locations or expose
them to rain. Keep your work area well illuminated. do not use
in explosive atmosphere (around paint, flammable liquids etc.).
Avoid dangerous environment.

Additional Precautions For Jig Saws

1. ALWAY S wear ear protectors/defenders as the noise level of this machine can exceed

85dB (A).

2. ALWAY S use the appropriate saw blade for the material being cut.

3. ALWAY S keep the mains cable well away from the machine and ensure an adequate

electrical supply is close at hand so that the operation is not restricted by the length of
the cable.

4. ALWAY S switch the machine OFF immediately the task is completed.

5. ALWAY S ensure the blade is fully tightened before use.

6. ALWAY S allow sufficient clearance beneath the work to ensure the blade does not

come into contact with the floor, table etc.

7. NEVER allow the ventilation slots in the machine to become blocked.

8. DO NOT cut hollow pipe and do not cut material above the specified thickness.

9. DO NOT cut through walls or cavities before checking for hidden electrical wires or

water pipes etc.

10. DO NOT remove tool from work until the blade has completely stopped.

11. DO NOT touch the blade immediately after use, allow time for it to cool.

12. DO NOT cut work less than at least twice the pitch of the saw blade. i.e. at least two

teeth must be in contact with the work at all times.

13. DO NOT use the machine if the electric cable, plug or motor is in poor condition.

14. When cutting wood, ensure all nails have been removed beforehand. Nails will damage

the wood saw blade.

15. When cutting metals, always use a cooling agent i.e. cutting/soluble oil.

16. Replacement blades for wood, plastic and steel are available from your CLARKE dealer.

(see Parts List, for details)

Additionally, please keep these instructions in a safe place for future reference.

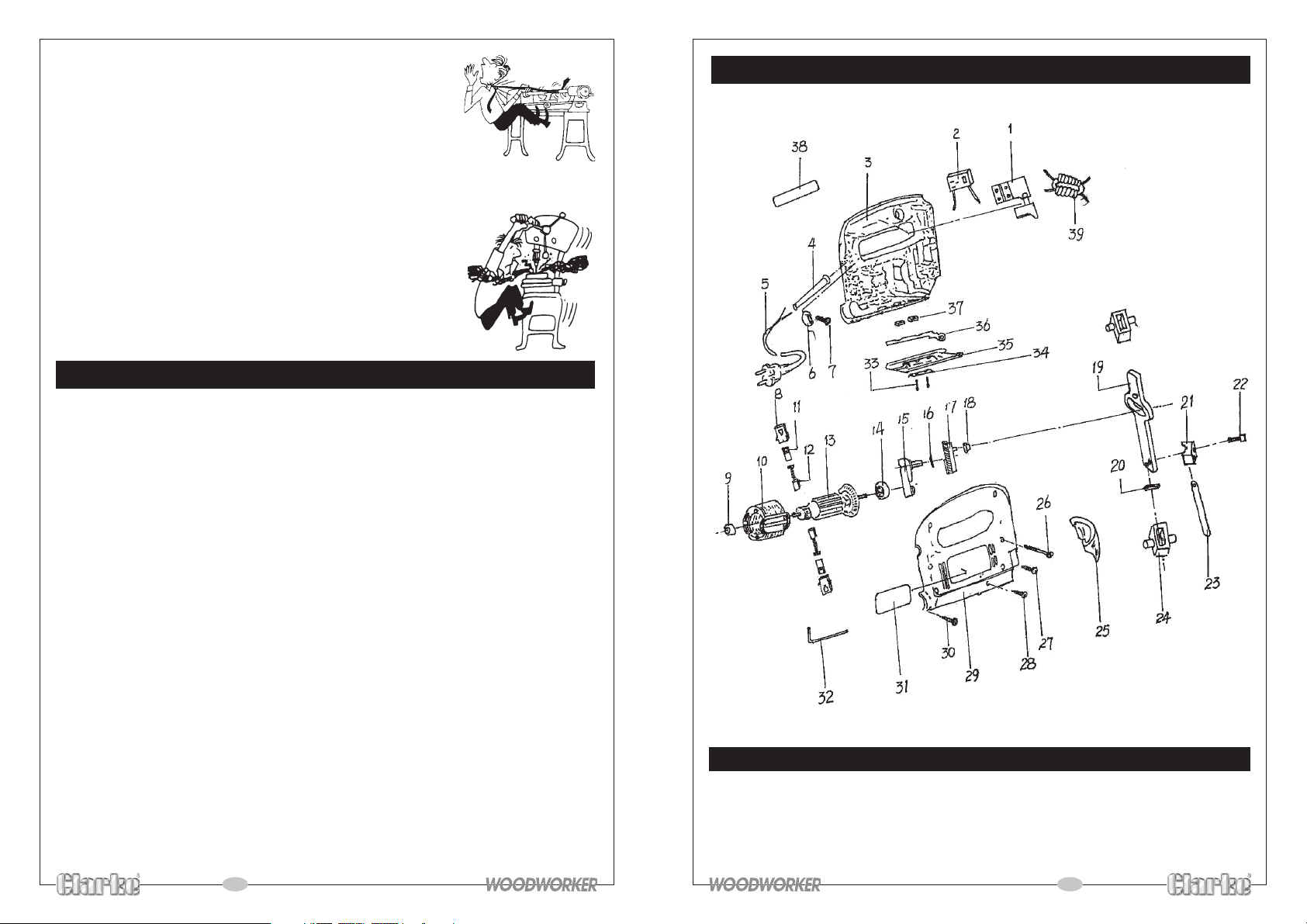

Parts Diagram

Accessories

A wide range of accessories is available from your nearest CLARKE dealer, for further
information, contact your nearest dealer, or telephone CLARKE International Sales
department on 01992 565300.

-3-

-8-

Parts List

Electrical Connections

Item Part No Description Qty Item Part No Description Qty

1 GRCJS2001 Switch 1 21 GRCJS2021 Blade Holder 1

2 GRCJS2002 Capacitor 1 22 GRCJS2022 Screw 2

3 GRCJS2003 Housing 1 23 GRCJS2023 Saw Blade 1

4 GRCJS2004 cable Sleeve 1 24 GRCJS2024 Sliding Part 1

5 GRCJS2005 Power Cable 1 25 GRCJS2025 Guard 1

6 GRCJS2006 Cable Clamp 1 26 GRCJS2026 Screw 3

7 GRCJS2007 Screw 2 27 GRCJS2027 Screw 2

8 GRCJS2008 Box 2 28 GRCJS2028 Screw 1

9 GRCJS2009 Bearing 1 29 GRCJS2029 Housing 1

10 GRCJS2010 Stator 1 30 GRCJS2030 Screw 1

11 GRCJS2011 Brush Holder 2 31 GRCJS2031 Label 1

12 GRCJS2012 Carbon Brush 2 32 GRCJS2032 Key 1

13 GRCJS2013 Rotor 1 33 GRCJS2033 Screw 2

14 GRCJS2014 Bearing 1 34 GRCJS2034 Fixing Plate 1

15 GRCJS2015 Centering Plate 1 35 GRCJS2035 Base 1

16 GRCJS2016 Spring Washer 1 36 GRCJS2036 Wheel Support 1

17 GRCJS2017 Gear 1 37 GRCJS2037 Square Nut 1

18 GRCJS2018 Pinion 1 38 GRCJS2038 Label 1

19 GRCJS2019 Rod 1 39 GRCJS2039 Inductor 1

20 GRCJS2020 Wool Pad 1

This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for
connection to a standard, domestic electrical supply. Should the plug need changing at
any time, ensure that a plug of identical specification is used.

WARNING

This appliance is Double Insulated, and the two wires in the mains lead should

be wired up in accordance with the following colour code:

BLUE - NEUTRAL

BROWN - LIVE

Connect the BLUE coloured cord to the plug terminal marked a letter “N”

•

• Connect the BROWN coloured cord to the plug terminal marked a letter “L”

If this appliance is fitted with a plug which is moulded on to the electric cable (i.e. non­rewireable) please note:

1. The plug must be thrown away if it is cut from the electric
cable. There is a danger of electric shock if it is subsequently
inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse
carrier, ensure that the correct replacement is
used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from
your local Clarke dealer or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating (5 amps) and this
replacement must be ASTA approved to BS1362.

If in doubt, consult a qualified electrician. Do not attempt any electrical repairs yourself.

CABLE EXTENSION.

Always use an approved cable extension suitable for the power rating of this tool (see
specifications), the conductor size should also be at least the same size as that on the

machine, or larger. When using a cable reel, always unwind the cable completely.

PARTS & SERVICE TEL: [phone]

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

-4--7-

Changing Blades

Note :

Item numbers in brackets, refer to parts list on page 8.

With the power cable disconnected from the mains supply, slacken off the two hex
socket screws, (item 33), securing the Base Plate, using the hex. wrench stored at the rear
of the base of the tool, and ease the roller, (item 36), backwards away from the blade.

Loosen the two blade holder screws, (item 22), (accessed through the clear plastic blade
guard) and remove existing blade. Select the saw blade appropriate for the job in hand,
and insert it in to the Blade Holder as far as it will go, with the teeth facing forwards.

Tighten the two blade holder Hex socket screws progressively, until the blade is held firmly.

Push the roller forwards so that it just touches the back of the blade, and with the base
plate at the desired angle (this will normally be at 90°), tighten the two base plate
securing screws.

Operation

The ON/OFF trigger switch is located under the grip.

IMPORTANT: DO NOT plug in to the mains, unless you have ensured the tool is switched
OFF. To do this, pull the switch fully upwards, and then release it.

Push the clear plastic blade guard down fully.

To start the tool pull the trigger switch. Blade speed is dependant upon the pressure
applied to the trigger. The greater the pressure (ie the more it is pulled in) the greater the
speed. If you desire a constant speed, pull the switch all the way in and lock in position
with the knob on the side of the grip, then adjust the blade speed by turning the knob
(within the trigger switch) until you achieve the desired result. Wait until the blade is
running at its desired speed before attempting to cut the workpiece. To stop the tool if
the switch lock is activated, pull the trigger switch fully in, then release it, (motor will stop).

to make a cut, depress trigger, place the end of the base plate on the workpiece and
move it slowly forward along the cutting line. Take extra care when cutting curves - move
the blade slowly to avoid stress and therefore blade breakages.

The base plate is adjustable so that bevels of 15°, 30°,45° may be cut, however, if absolute
accuracy is required you should always check the angle with a protractor whilst carefully
tightening the two base plate securing screws. This includes setting the base plate for cutting
at 90°, (check roller is still only just touching blade).

Trouble Shooting

Jig Saw is overheating

This indicates the machine is dirty. Clean the ventilation holes, and blow out with
compressed air or clean with a dry cloth.

Overloading the machine will also cause overheating. Do not use for heavy duty work,
and do not apply excessive pressure.

Excessive sparking occurs

This indicates worn brushes. This problem is quickly remedied but you should consult your
CLARKE dealer for parts and advice.

Jig Saw does not operate when switched ON

Check to ensure the fuse is sound and replace if necessary. If the fuse is sound or blows
repeatedly, consult your CLARKE dealer.

DUST EXTRACTION

The Jig saw is provided with a dust extraction facility, where a dust bag or vacuum extractor
may be connected to the rear of the machine. Please note however, that this does not
preclude the user from wearing a face mask to prevent the inhalation of dust particles.

It is an EEC requirement that a dust extraction facility be provided on power tools, however,
due to the nature of the tool, some of the dust produced will be forced into the surrounding
atmosphere, and will not be collected.

Maintenance

Always inspect the tool before use, and ensure it is in top condition.

Ensure all air vents are clear, (use compressed air to clean the machine where possible).

Check the power cable to ensure it is sound and free from cracks, bare wires etc. avoid
using solvents when cleaning plastic parts, most plastics are susceptible to damage from
the various types of commercial solvents.

All bearings etc, in this tool are lubricated with a sufficient amount of high grade lubricant
for the tools lifetime under normal operating conditions, therefore no further lubrication is
required.

-5-

Parts & Service

For Spare Parts and Service, please contact your nearest dealer, or CLARKE

International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

-6-
