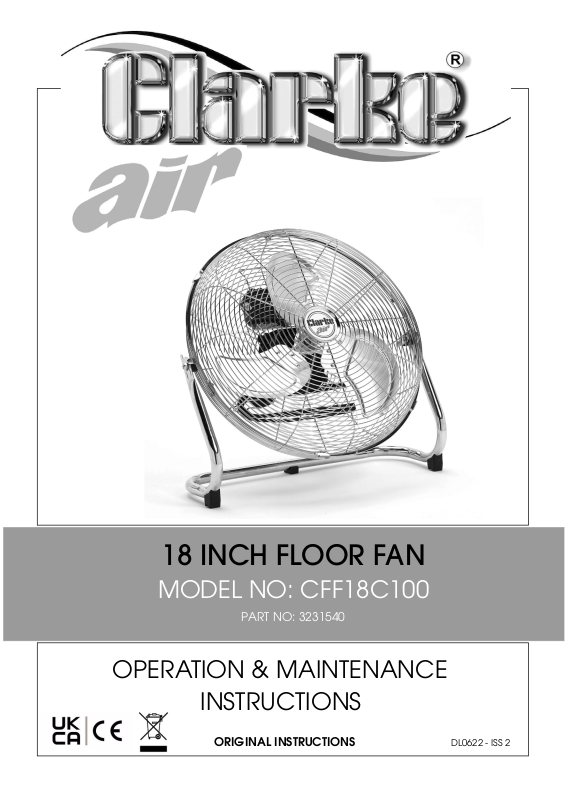

18 INCH FLOOR FAN
MODEL NO: CFF18C100
PART NO: 3231540
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL0622 - ISS 2
INTRODUCTION
Thank you for purchasing this CLARKE 18” Floor Fan.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
2
ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 3 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked L or coloured Red.
• The wire which is coloured Yellow and Green must be connected to the terminal which is marked E or or coloured Green.
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD). If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
3
SAFETY PRECAUTIONS
1. Always read the manual before use
2. Suitable for indoor use only.
3. Avoid using in dusty environments.
4. Do not use in environments containing chemical fumes etc.
5. Do not use as an extractor fan.
6. Do not use in areas of high humidity/water vapour, i.e. bathrooms etc.
7. Do not connect the fan to duct system.
8. Do not cover the fan with clothing or any material that will restrict free airflow through the fan.
9. Never touch the blades with your hand or any loose object.
10. Always unplug the fan before moving it or performing maintenance. Don’t touch the fan when your hands are wet.
11. Those who are not qualified electricians should not disassemble, repair or rebuild the fan.
12. Always unplug the fan when it is not in use.
13. Never unplug the fan by holding the cable. Unplug by holding the plug.
14. Never use the fan if the cable or plug are damaged.
15. Never use the fan close to fires.
16. Do not use this fan with any solid-state speed control device to reduce the risk of fire or electric shock.
OPERATING
TILTING THE FAN
You can adjust the angle of the fan by holding the base and grille and tilting the fan to the required angle.
Tighten the nuts on the side of the fan slightly if the fan will not stay in position.
4
ADJUSTING THE SPEED
Press the button on the speed regulator to select the fan speed required:
• Position 0 - Off
• Position 1 - 950 rpm
• Position 2 - 1080 rpm
• Position 3 - 1250 rpm
MAINTENANCE
WARNING: NEVER OPERATE THE FAN WITH THE GRILLE REMOVED.
Have any repairs carried out by a suitably qualified person.
• The motor bearings are permanently sealed for life and do not
require any additional lubrication.
CLEANING
If the fan has been operating for long periods in a very dusty environment, the blades and motor assembly may eventually require cleaning.
1. Unplug the power cable from the power supply.
2. Unscrew the small screw and nut from the grille perimeter and release the five clasps holding the front guard in place.
• The front grille can now be
lifted away.
3. Wipe the fan blades with dry cloth and remove any dust from the motor assembly with a soft brush, vacuum cleaner or jet of compressed air.
• Never use polish or any corrosive liquid that will damage the surface
finish.
4. Replace the grille securely before use.
5
SPECIFICATIONS
Voltage: 230 V AC (50Hz)
Wattage: 100 W
Fan Speeds 1=950 rpm, 2=1080 rpm, 3=1250rpm
Dimensions (D x W x H): 215 x 547 x 535 mm
Weight: 5.15 kg
3
Maximum Fan flow Rate (m
Fan Power Input (W) 104.4 W
/min) 156.43 (m3/min)
Service Value (m3/min) / (W)
Sound Power level: dB LWa
1.50 (m
65.47 dB
3
(Directive 2009/125/EC)
Maximum Air Velocity (m/ s) 4.17 m/s
Seasonal Electricity consumption
33.41 kWh/annum
(kWh/annum)
Measurement standard for service
IEC 60879:1986 (corr.1992)
value
/min) / (W)
6

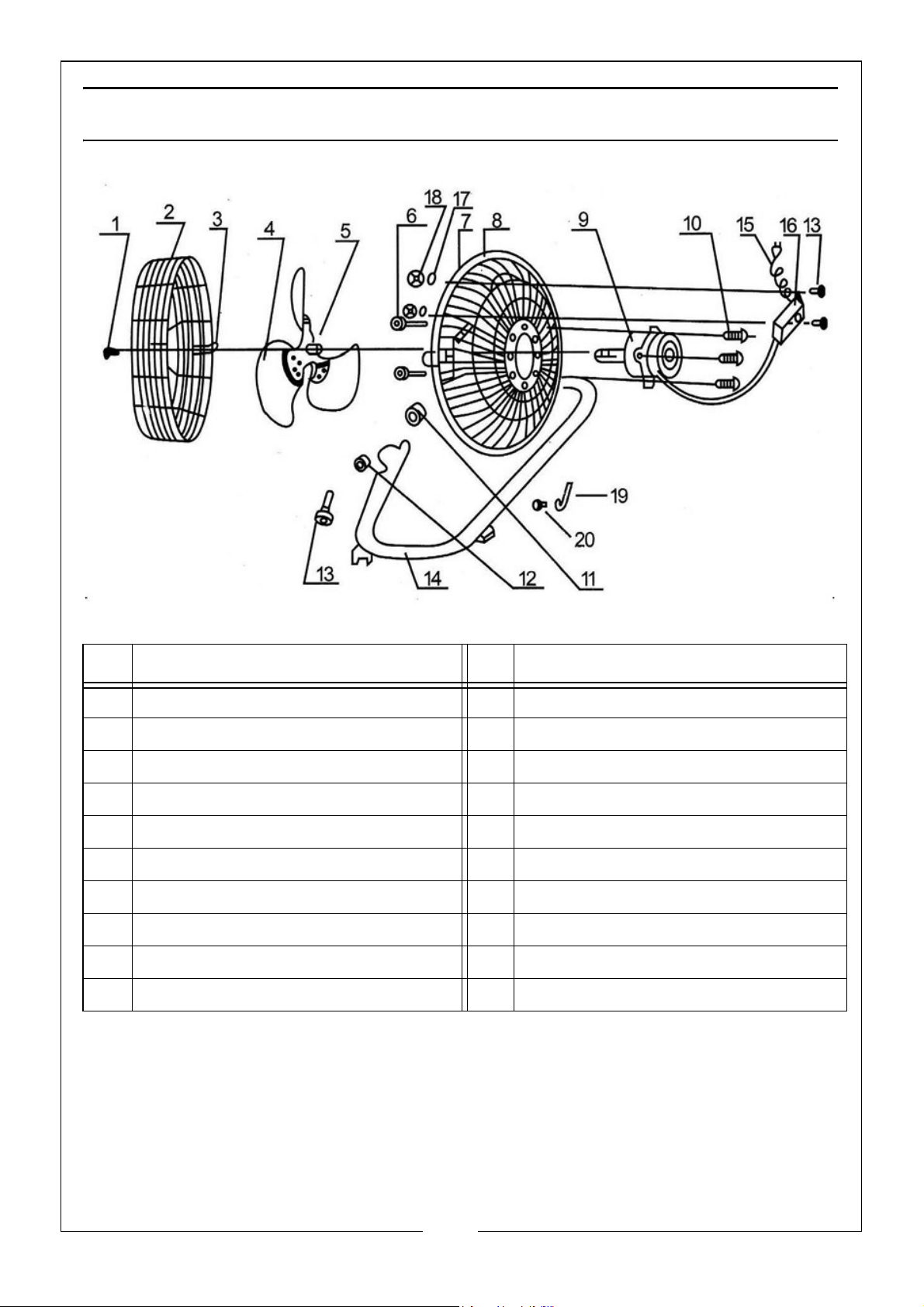

PART LIST AND DIAGRAM
N
O DESCRIPTION NO DESCRIPTION
1 Screw 11 Plastic Bearer
2 Front Grille 12 Locknut
3 Grille Clips 13 Screw
4. Blade 14 Tube Base
5 Set Screw 15 Power Cable
6 Nut 16 Control Box
7 Square Bolt 17 Washer
8 Rear Grille 18 Nuts
9 Motor 19 Hanging Hook
10 Screw 20 Screw
When ordering spare parts, please quote the model reference KWCFF18C100 followed by the number above.
7
DECLARATION OF CONFORMITY
