Clarke CFF 18B100, 3231530 User guide

18 INCH HIGH VELOCITY FLOOR FAN

MODEL NO: CFF18B100

PART NO: 3231530

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS

DL0622 - ISS 2

INTRODUCTION

Thank you for purchasing this CLARKE 18 inch High Velocity Floor Fan.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

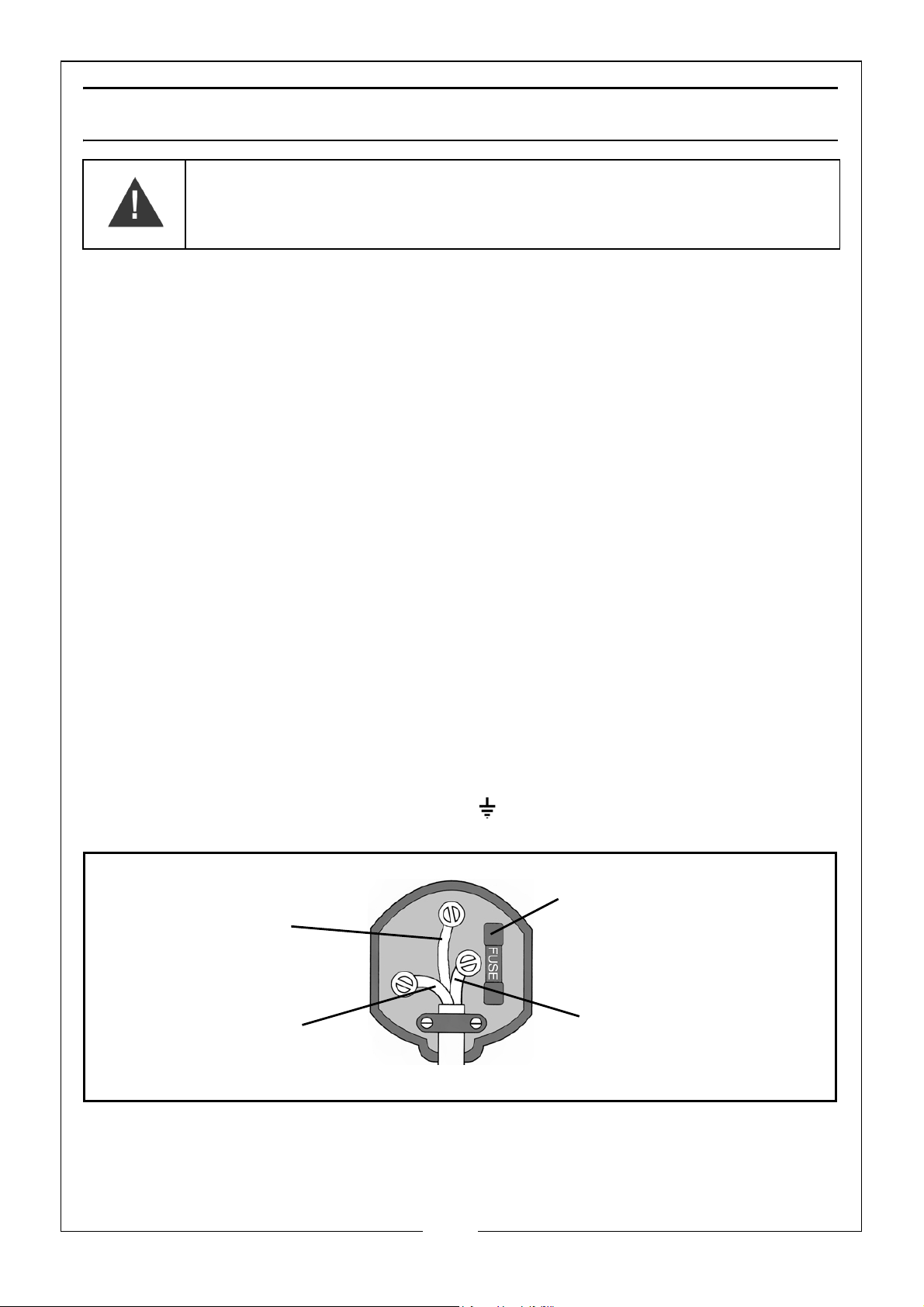

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal
which is marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal
which is marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to
the terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply via
a Residual Current Device (RCD). If in any doubt, consult a qualified electrician.
DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

3

SAFETY PRECAUTIONS

• DO NOT use in dusty environments.

• Indoor use only.

• DO NOT use in environments with high fumes from chemicals etc.

• DO NOT use as an extractor fan.

• DO NOT use in areas of high humidity/water vapour, i.e. bathrooms
etc.

• DO NOT connect fan to ducting system.

• DO NOT cover the fan with clothing or any material that will restrict
free airflow throught the fan

• Never touch the blades with your hand or any object.

OPERATION

TILTING THE FAN

You can adjust the angle of the fan
by holding the base and grill and
tilting the fan to the required angle.

• Tighten the nuts on the side of
the fan slightly if the fan will not
stay in position

ADJUSTING THE SPEED

Press the relevant button to select the
fan speed required

• Button 0 - Off

• Button 1 - 950 rpm

• Button 2 - 1080 rpm

• Button 3 - 1250 rpm

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

MAINTENANCE

WARNING: NEVER OPERATE THE FAN WITH THE GRILLE REMOVED.

• The motor bearings are permanently sealed and do not require any
additional lubrication.

• Have any repairs carried out by a suitably qualified person.

CLEANING

1. Disconnect the power cord from the mains.

2. Lift the guard clips and remove
the single bolt and nut at the
bottom of the guard.

3. Remove the guard carefully.

4. Wipe the fan blades with dry
cloth.

• Never use polish or any

corrosive liquid that will
damage the finish.

• Do not bend the blades!

5. Replace the guard so that the bolt holes in the front and rear guard line up
and lock the guard securely before use.

• Make sure that the guard clips are returned to the locked position.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SPECIFICATIONS

Voltage: 230 V AC (50Hz)

Wattage: 100 W

Fan Speeds 3

Setting 1 950 RPM

Setting 2 1080 RPM

Setting 3 1250 RPM

Dimensions (D x W x H): 215 x 547 x 535 mm

Weight: 5.15 kg

3

Maximum Fan flow Rate (m

Fan Power Input (W) 104.4 W

Service Value (m3/min) / (W) 1.50 (m3/min) / (W)

/min) 156.43 (m3/min)

Sound Power level: dB LWa
(Directive 2009/125/EC)

Maximum Air Velocity (m/ s) 4.17 m/s

Seasonal Electricity consumption (kWh/annum) 33.41 kWh/annum

Measurement standard for service value IEC 60879:1986 (corr.1992)

65.47 dB

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

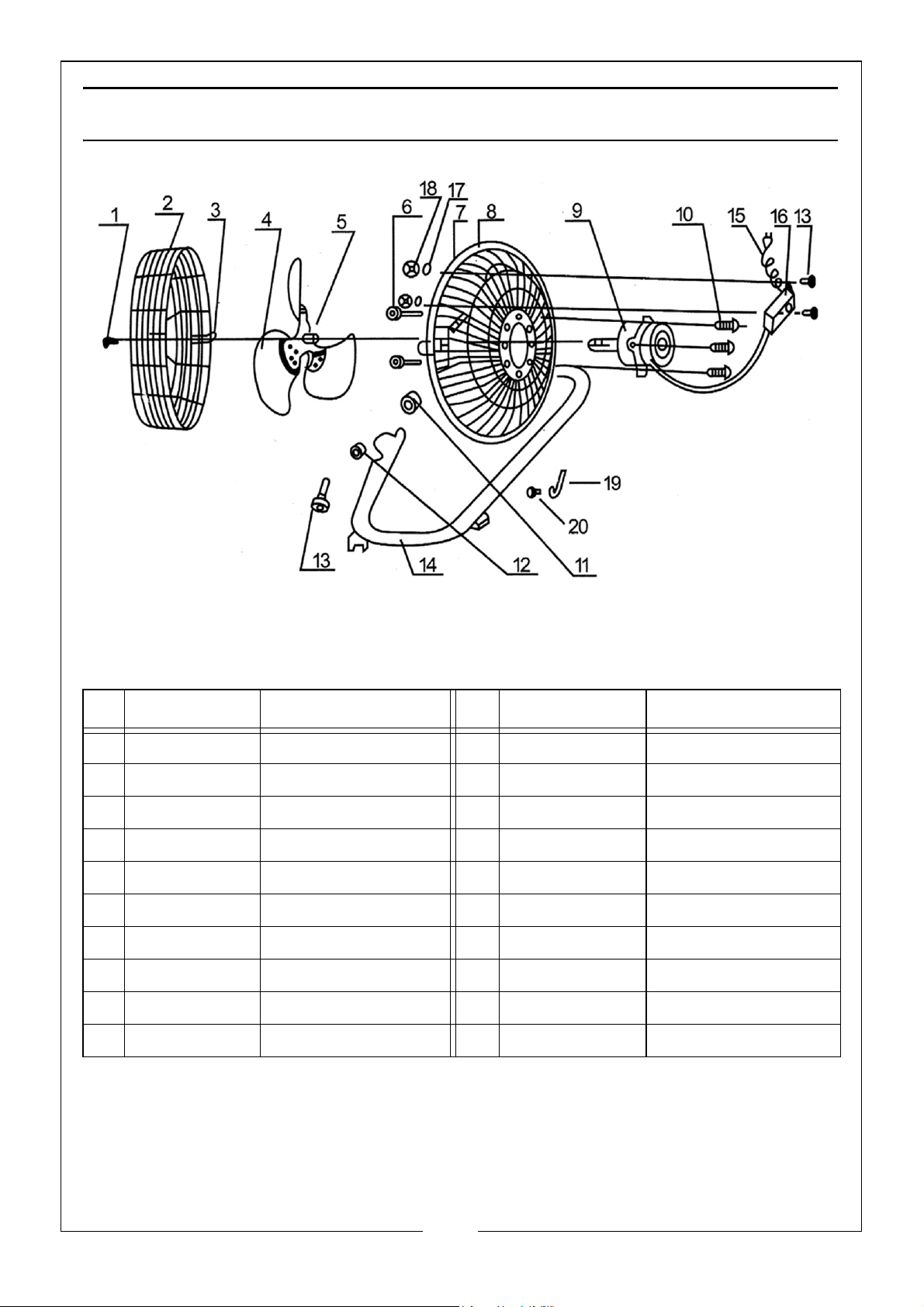

PART LIST AND DIAGRAM

NO DESCRIPTION PART NUMBER NO DESCRIPTION PART NUMBER

1 Screw KWCFF18B10001 11 Plastic Bearer KWCFF18B10011

2 Front Guard KWCFF18B10002 12 Locknut KWCFF18B10012

3 Guard Clips KWCFF18B10003 13 Screw KWCFF18B10013

4. Blade KWCFF18B10004 14 Tube Base KWCFF18B10014

5 Set Screw KWCFF18B10005 15 Power Cord KWCFF18B10015

6 Nut KWCFF18B10006 16 Control Box KWCFF18B10016

7 Square Bolt KWCFF18B10007 17 Washer KWCFF18B10017

8 Rear Guard KWCFF18B10008 18 Nuts KWCFF18B10018

9 Motor KWCFF18B10009 19 Carry Handle KWCFF18B10019

10 Screw KWCFF18B10010 20 Screw KWCFF18B10020

7

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DECLARATION OF CONFORMITY

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
