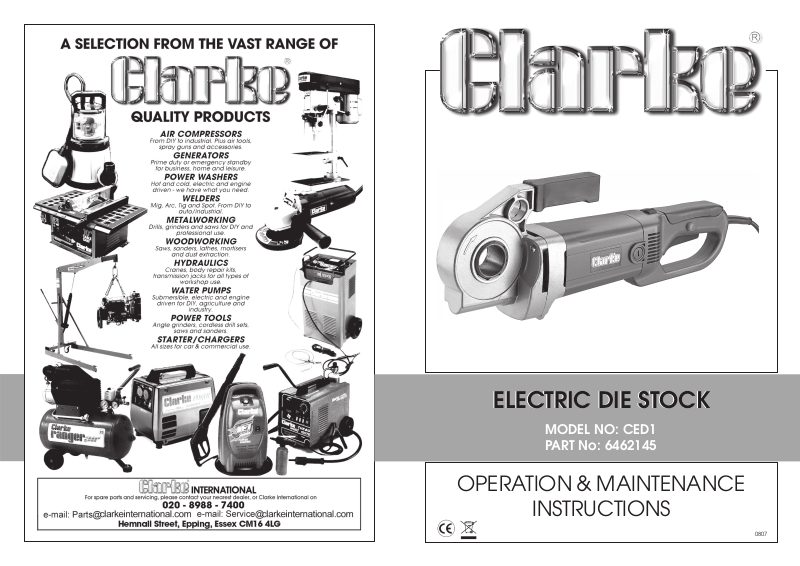

ELECTRIC DIE STOCK
ELECTRIC DIE STOCK
MODEL NO: CED1
PART No: 6462145
OPERATION & MAINTENANCE
INSTRUCTIONS
0807
Thank you for purchasing this CLARKE Electric Die Stock which is designed for general
workshop use.
Before attempting to use the machine, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others around
you, and you can look forward to the Die Stock giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the
date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned
to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATIONS
Model ........................................................... CED1
Part Number ............................................... 6462145
Elec. Supply ................................................. 230V 50Hz 1 ph
Power Rating .............................................. 1700 W Motor
Die Rotation Speed ................................... 25RPM
Input Current .............................................. 7.4 Amps
Fuse Rating .................................................. 13amp
Sound Pressure Level ................................. 93dB (A)
Vibration Emissions ..................................... <3.84 M/s (see inside back cover)
Dimensions ................................................... 520x101x195mm
Weight (unpacked) .................................. 10.8 kg
This product must not be disposed of with normal household waste. Ensure it is
disposed of according to all local ordinances, through your local disposal facility.
CHECK LIST
1 x Electric Die Stock
1 x Pipe Clamp comprising:
1 x ‘G’ Clamp
1 x Transverse bar with nut
1 x Clamping screw with Tommy Bar.
1 x 1/2” BSP Die
1 x 3/4” BSP Die
1 x 1” BSP Die
1 x 1-1/4” BSP Die
2 x Carbon Brush assemblies
1 x Oil Can
2
HAND ARM VIBRATIONS
Employers are advised to refer to the HSE publication “Guide for Employers”.
All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator
via the handle, or hand used to steady the tool. V ibration from about 2 to 1500 herz is potentially
damaging and is most hazardous in the range from about 5 to 20 herz.
Operators who are regularly exposed to vibration may suffer from Hand Arm V ibration Syndrome
(HA VS), which includes ‘dead hand’, ‘dead finger’, and ‘white finger’. These are painful conditions
and are widespread in industries where vibrating tools are used.
The health risk depends upon the vibration level and the length of time of exposure to it……in
effect, a daily vibration dose.
T ools are tested using specialised equipment, to approximate the vibration level generated under
normal, acceptable operating conditions for the tool in question. For example, a grinder used at
45° on mild steel plate, or a sander on soft wood in a horizontal plane etc.
These tests produce a value ‘a’’, expressed in metres per second per second, which represents the
average vibration level of all tests taken, in three axes where necessary , and a second figure ‘K’,
which represents the uncertainty factor, i.e. a value in excess of ‘a’, to which the tool could
vibrate under normal conditions. These values appear in the declaration on page 7.
You will note that a third value is given in the specification - the highest measured reading in a
single plane. This is the maximum level of vibration measured during testing in one of the axes,
and this should also be taken into account when making a risk assessment.
‘a’ values in excess of 2.5 m/s2 are considered hazardous when used for prolonged periods. A tool
with a vibration value of 2.8 m/s2 may be used for up to 8 hours (cumulative) per day, whereas a
tool with a value of 11.2 m/s2 may be used for ½ hour per day only.
The graph below shows the vibration value against the maximum time the respective tool may be
used, per day.
The uncertainty factor should also
be taken into account when assessing
a risk. The two figures ‘a’ and ‘K’may
be added together and the resultant
value used to assess the risk.
It should be noted that if a tool is
used under abnormal, or unusual
conditions, then the vibration level
could possibly increase significantly.
Users must always take this into
account and make their own risk
assessment, using the graph as a
reference.
Some tools with a high vibration value, such as impact wrenches, are generally used for a few
seconds at a time, therefore the cumulative time may only be in the order of a few minutes per
day. Nevertheless, the cumulative effect, particularly when added to that of other hand held
power tools that may be used, must always be taken into account when the total daily dose rate
is determined.
7
6. Exert pressure on the workpiece initially, towards the die in order to start the
cut, or if the pipe is fixed, exert pressure on the end of the pipe with the tool.
It is important to stop the tool regularly in order to add lubrication, or,
alternatively, get an assistant to regularly squirt oil into the cutting area.
IMPORTANT: Take great care to ensure the tool does not come into contact with
the clamp as it moves along the pipe. If cutting long threads, stop the tool and
reposition the clamp accordingly.
NOTE: If extending an existing thread, screw the Die on to the workpiece, but DO NOT
screw it to the end of the thread, Allow a few turns so that the direction of rotation
can be established when switching ON. The direction of rotation will depend upon
from which side of the tool the Die and therefore the workpiece, is mounted.
If the workpiece is fixed, it will be necessary to remove the Die from the tool, in
order for it to be screwed on to the work, before it can be remounted in the tool.
ALWAYS allow the motor to stop completely before moving the FORWARD/REVERSE switch.
7. When the thread is completed, release the trigger to stop the machine. Allow the
motor to stop completely, then toggle the Forward/Reverse switch to the
position, opposite to that to which it was set. Switch the machine ON again
and allow the tool to run off the workpiece. Alternatively, if the workpiece is
free standing, disconnect the tool from the mains supply, then unscrew the
workpiece from the Die by hand.
Pipe Sizes
Please note that the Die’s supplied are for use with the following pipe sizes.
1/2” BSP Die ................................. Pipe O.D. 0.825” (20.96mm)
3/4” BSP Die ................................. Pipe O.D. 1.041” (26.44mm)
1” BSP Die .................................... Pipe O.D. 1.309” (33.25mm)
1-1/4” BSP Die ............................. Pipe O.D. 1.650” (41.9mm)
MAINTENANCE
With the exception of regular inspection of the power cable to ensure it is in a
perfectly serviceable condition, and eventual replacement of the Motors’ carbon
brushes, the tool is maintenance free. Always keep it clean.
Any repairs should be carried out by a qualified technician/engineer. If necessary,
contact your Clarke dealer, or Clarke International Service Dep’t.
SPARE PARTS
The following spare parts are available from your Clarke dealer.
Pipe Clamp complete .................... Part Number ........ HTCED101
1/2” BSP Die ........................................................................ HTCED102
3/4” BSP Die ........................................................................ HTCED103
1” BSP Die ............................................................................ HTCED104
1-1/4” BSP Die .....................................................................HTCED105
Carbon Brush assemblies ................................................. HTCED106
6
SAFETY PRECAUTIONS
WARNING:
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator or damage to property, may result.
1. ALWAY S Learn the machines’ applications, limitations and
the specific potential hazards peculiar to it. Read and
become familiar with the entire operating manual.
2. ALWAY S keep children away. All visitors should be kept a safe
distance from the work area, especially whilst operating the
machine.
3. ALWAYS check for damage. Before using the machine, any
damaged part, should be checked to ensure that it will
operate properly, and perform its intended function. Check
for alignment of moving parts, breakage of parts, mountings, and any other condition
that may affect the machines’ operation. Any damage should be properly repaired or
the part replaced. If in doubt, DO NOT use the machine.
Consult your local dealer.
4. ALWAYS keep work area clean. Cluttered areas and
benches invite accidents.
5. ALWAY S disconnect the tool/machine from the power supply
before servicing and when changing accessories.
6. ALWAY S wear safety goggles, manufactured to the latest
European Safety Standards. Everyday eyeglasses do not have impact resistant lenses,
they are not safety glasses.
7. ALWAYS ensure that adequate lighting is available. A minimum intensity of 300 lux should
be provided. Ensure that lighting is placed so that you will not be
working in your own shadow.
8. ALWAY S maintain machine in top condition. Keep tools/machines
clean for the best and safest performance. Follow maintenance
instructions.
9. ALWAY S handle with extreme care do not carry the tool/machine
by its’ electric cable, or yank the cable to disconnect it from the
power supply .
10. ALWAYS ensure the switch is off before plugging in to mains. Avoid accidental starting.
11. ALWAYS concentrate on the job in hand, no matter how trivial it may seem. Be aware
that accidents are caused by carelessness due to
familiarity.
12. ALWAYS keep your proper footing and balance at all
times - don’t overreach. For best footing, wear rubber
soled footwear. Keep floor clear of oil, scrap wood, etc.
3
ELECTRICAL CONNECTIONS
SETUP & OPERATION
Connect the mains lead to a standard 230V (50Hz) electrical supply through an
approved 13 Amp BS1363 plug, or a suitably fused isolator switch.
WARNING: This appliance is DOUBLE INSULATED
IMPORTANT:
the following code:
As the colours of the flexible cord of this appliance may not correspond with the
coloured markings identifying terminals in your plug proceed as follows:
• Connect BROWN coloured cord to plug terminal marked with a letter L or
coloured RED
• Connect BLUE coloured cord to plug terminal marked with a letter N or coloured
BLACK
IMPORTANT:
the electric cable (i.e. non- re-wireable) please note:
1. The plug must be thrown away if it is cut from
the electric cable. There is a danger of electric
shock if it is subsequently inserted into a socket
outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse
carrier, ensure that the correct replacement is
used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most
electrical stockists.
5. The fuse in the plug must be replaced with one of the same rating (13 amps)
and this replacement must be approved to BS1362.
IMPORTANT: If in any doubt, do not attempt any electrical repair yourself.
Consult a qualified technician.
If a cable extension is needed, it is essential to comply with the following data.
The wires in the mains lead are coloured in accordance with
Blue - Neutral
Brown - Live
If this appliance is fitted with a plug which is moulded on to
IMPORTANT:
Voltage Extension length Cable section
230v Up to 20m 2.5mm
230v From 20 to 50m 4mm
2
2
1. Screw the Transverse Bar (A) into the G Clamp
fully and secure by tightening the lock nut (D).
2. With the machine disconnected from the mains
supply, select the appropriate Die and insert it
into the holder - from either side.
3. Slide the workpiece into the open end of the
Die, fully.
It is important to note that the Die’s supplied are
specifically for use with pipe sizes listed on page 6
4. Fasten the clamp to the workpiece,
in a similar manner to that shown in
Fig.2, so that the Transverse Bar
enters the opening in the tool.
Tighten, the clamping screw (C) by
hand ONLY, ensuring the distance
between the face of the tool and
the Transverse Bar securing nut - ‘X’
in Fig.3, is equal to the length of the
thread to be cut, plus approximately
25mm.
5. Before starting the machine, squirt
cutting oil, liberally, on the leading
edge of the pipe, then, holding the
tool very firmly with both hands, pull
the trigger and press the start button.
To stop the machine, release the trigger.
Note direction of rotation of the Die.
It may not rotate in the correct
direction for cutting. If this is the case,
stop the machine by releasing the
trigger and allow the motor to STOP
COMPLETELY, before toggling the
Forward/Reverse switch accordingly.
1: Opening for Pipe Clamp
2: Die Stock Opening
3: Forward/Reverse Switch
4: Start Button
5: Trigger
6: Carbon Brush Holders
7: Auxiliary Handle
FIG.1
FIG.2
FIG.3
4 5
Loading...
