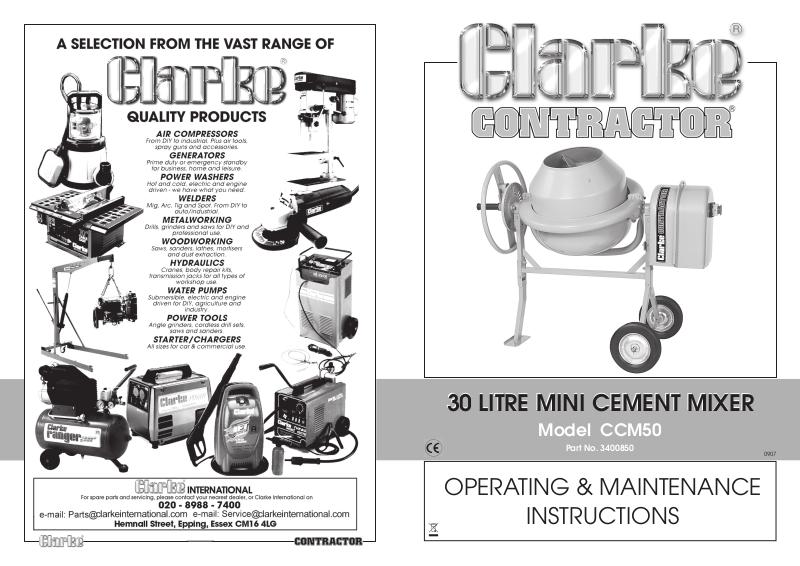

30 LITRE MINI CEMENT MIXER

30 LITRE MINI CEMENT MIXER

Model CCM50

Part No. 3400850

OPERATING & MAINTENANCE

INSTRUCTIONS

0907

o

o

SPECIFICATIONS

Motor ......................................................................................300W (0.4hp)

Power rating ...........................................................................2.6A

Fuse rating .............................................................................. 13A

Mixing Capacity .................................................................... 30 Litres

Motor Speed ..........................................................................960RPM

Drum Speed (unloaded) ..................................................... 31RPM

Dimensions -Without Handle (LxWxH) ................................ 907x530x845mm

Dimensions - Folded - Without Handle (LxWxH) ................. 907x530x640mm

Guaranteed Sound Power Level (under load) ..................92dBL

Weight .................................................................................... 40kg

Part Number .......................................................................... 3400850

When disposing of this product, do not dispose of with general waste. It must be
disposed of according to the laws governing Waste Electrical and Electronic
equipment, at a recognised disposal facility.

o

2

WA

SPARE PARTS & SERVICE CONTACTS

CLARKE International, on one of the following numbers.

Please contact your nearest dealer, or

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

o

15

Thank you for purchasing this CLARKE Concrete Mixer, model CCM50.

Please read this leaflet thoroughly and follow the instructions carefully, in doing so you will
ensure the safety of yourself and that of others around you, and you can look forward to the
mixer giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in any
way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to
us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Specifications .............................................................................................. 2

General Safety Precautions ....................................................................... 4

Unpacking & Pre-Assembly ....................................................................... 5

Assembly ..................................................................................................... 6

Electrical Connections ................................................................................ 10

Operation ..................................................................................................... 11

Maintenance ............................................................................................... 11

Parts List and Diagram ................................................................................ 12 - 13

Parts & Service Contacts ............................................................................ 15

Declaration of Conformity .......................................................................... 15

© Copyright CLARKE International. All rights reserved. March, 2001

14

o

3

o

GENERAL SAFETY RULES

WARNING:

As with all machinery, there are certain hazards involved with their operation and

use. Exercising respect and caution will considerably lessen the risk of personal

injury. However, if normal safety precautions are overlooked or ignored, personal

ALWAYS READ THE MANUAL. Become familiar with the entire operating manual. Learn

✓

the machine’s applications and limitations as well as the specific potential hazards
peculiar to it.

ALWAYS CHECK FOR DAMAGED PARTS. Before use of the machine, it should be

✓

checked to ensure that it will operate properly and perform its intended function.
Check for any condition that may affect its operation. A part that is damaged
should be properly repaired or replaced before the mixer is put into use.

ALWAYS KEEP COVERS AND GUARDS IN PLACE and in good condition.

✓

ALWAYS REMOVE TOOLS etc. Form habit of checking to ensure that any tools used for

✓

adjusting/repairs, are removed from machine before use.

NEVER operate the machine whilst under the influence of DRUGS, ALCOHOL or any

✗

MEDICATION.

injury to the operator or damage to property may result.

PARTS DIAGRAM

NEVER STAND ON THE MACHINE. Injury could occur from a fall.

✗

NEVER LEAVE MACHINE RUNNING UNATTENDED. Turn the motor OFF.

✗

NEVER put your hands inside the drum when it is rotating. Keep your hands well

✗

clear of the rotating drum at all times.

NEVER WEAR JEWELLERY or loose clothing that could be snagged by the rotating

✗

drum.

DO NOT LOAD THE DRUM WHEN IT IS STATIONARY. Always start the motor and ensure

✗

the drum is rotating.

o

4

o

13

SPARE PARTS LIST

No. Description Qty Part No.

1 Frame 1 SDCCM5001

2 Axle Bracket 1 SDCCM5002

3 Support Bracket 1 SDCCM5003

4 Wheel 2 SDCCM5004

5 Cup Washer 4 SDCCM5005

6 Split Pin 3x30 2 SDCCM5006

7 Lock Nut Ml6xl.5 2 SDCCM5007

8 Motor Mount Plate 1 SDCCM5008

9 Spacer 1 SDCCM5009

10 Motor Pulley 1 SDCCM5010

12 Motor 1 SDCCM5012

13 Lock Screw M8x8 2 SDCCM5013

14 Switch Assembly 1 SDCCM5014

15 Outer Motor Cover 1 SDCCM5015

16 Pulley 1 SDCCM5016

17 Inner Motor Cover 1 SDCCM5017

18 Pulley Belt A560mm 1 SDCCM5018

19 Shaft Pin 38 4 SDCCM5019

20 Washer 4 SDCCM5020

21 Bearing Bracket 2 SDCCM5021

22 Flat Key 5x35 1 SDCCM5022

23 Dust Cover 1 SDCCM5023

24 Shaft 1 SDCCM5024

25 Bearing 6002-2RS 2 SDCCM5025

26 Pinion 1 SDCCM5026

27 Support Arm Assy 1 SDCCM5027

28 Brg Cover, Upper 1 SDCCM5028

29 Brg Cover, Lower 1 SDCCM5029

30 Shaft Pin 020 2 SDCCM5030

31 Bearing 6204-2RS 2 SDCCM5032

32 Locking Plate 1 SDCCM5032

33 Wheel Assembly 1 SDCCM5033

No. Description Qty Part No.

34 Spring 1 SDCCM5034

35 Lower drum 1 SDCCM5035

36 Rubber Seal 1 SDCCM5036

37 Upper Drum 1 SDCCM5037

38 Mixer Blade 2 SDCCM5038

39 Hex Bolt M10 x65 1 SDCCM5039

40 Hex Bolt M8x60 2 SDCCM5040

41 Hex Nut M10 1 SDCCM5041

42 Spring Washer 1 SDCCM5042

43 Hex Nut M8 14 SDCCM5043

44 Spring Washer 14 SDCCM5044

45 Flat Washer 8 14 SDCCM5045

46 Flat Washer 6 16 SDCCM5046

47 Spring Washer 6 12 SDCCM5047

48 Hex Nut M6 12 SDCCM5048

49 Hex. Hd Scr M5x10 3 SDCCM5049

50 Flat Washer M5 3 SDCCM5050

51 Spring Washer M5 3 SDCCM5051

52 Hex Nut M5 3 SDCCM5052

53 Hex Screw M6 x 20 6 SDCCM5053

54 Leather Washer 4 SDCCM5054

55 Flat Washer 10 1 SDCCM5055

56 Hex. Hd Bolt M6x18 6 SDCCM5056

57 Hex Bolt M6 x 60 2 SDCCM5057

58 Hex Bolt M8 x 25 4 SDCCM5058

59 Hex Bolt M8 x 20 4 SDCCM5059

60 Hex Bolt M8 x 40 2 SDCCM5060

61 Hex Bolt M8 x 60 2 SDCCM5061

62 Handle Assembly 1 SDCCM5062

63 Clamping Plate 1 SDCCM5063

64 Drum Collar 2-piece 1 SDCCM5064

UNPACKING & PRE-ASSEMBLY CHECK

Remove all components from the packing cases and lay them out neatly so that they may
be identified and checked for any possible damage during transit.

Should any component be found to be damaged, please contact your Clarke dealer
immediately.

The major components are listed as follows:

Fig.1

A. Upper Drum Section

B. Drum Collar (2 pcs)

C. Rubber Sealing Ring

D. Bottom Drum Assembly

E. Mixing Blades (2 pcs)

F. Locking Plate

G. Hand Wheel

H. Motor with Cover attached

J. Driven Pulley

K. Inner Motor Cover

L. Pulley/Drive Belt

M. Motor Pulley and Key

N. Motor Support Plate

O. Outer Cover (attached to motor)

P. Axle Assembly

Q. Wheel (2 pcs)

R Main Frame

S Leg with handle

T Handle

U Bag of loose parts - Nuts, bolts

and washers

Indicated also are the Bearing Blocks (X)

o

12

5

o

ASSEMBLY

NOTE: 1. Letters in brackets refer to Fig.1

2. Unless otherwise stated, all nuts, bolts, washers and fixings are supplied.

IMPORTANT

For maximum safety and to ensure the adjustments are carried out correctly,

assistance should be employed during the assembly operation.

OPERATION

The Drum will turn immediately the machine is switched ON. Ensure therefore that nothing can
impede the drum before plugging into a 230 volt supply, and pressing the green ON button.

CAUTION: NEVER load the drum whilst it is stationary.

In order to rotate the drum, when stationary, pull the Hand Wheel outwards at the rim to
disengage the wheel from the Locking Plate (Fig.13). Turn the drum to the required position
then release the handwheel to lock it in that position.

1. The Stand

1.1 Attach the Leg Support to the Frame using
an M8 x 60 bolt - A, together with nut, spring
and flat washers provided,

Note: This bolt acts as a pivot pin...to be described
later.

1.2 Secure the leg using an M8x40 bolt - B
Screw on the nut, spring and flat washers
provided.

1.3 Turn the frame over and attach the Wheel
Axle in the same manner.

1.4 Slide a cup washer on to each stub axle,
followed by a wheel and a second washer.
Screw on the castellated nut and lock in
place with the split pin provided.

Tighten all nuts securely before righting the
stand.

2. The Bottom Drum

2.1 Carefully lower the bottom drum
assembly on to the stand as shown in
Fig.. 3, so that the bearing blocks slot
into the channels provided by the side
supports.

The drive shaft end, i.e. that end where
the pinion drives the drum, should be
at the AXLE end of the Frame.

2.2 Line up the holes in the side support
with those in the bearing block and
enter an M8x60 bolt with flat washer
and secure using a nut and spring
washer.

6

o

Fig.2

Fig.3

Fig.12

Note that the ON/OFF switch is a
No Volt Release Type. Therefore,
should power be lost, the ma­chine will switch OFF automati­cally, and will not restart once
power is restored.

Fig.13

MAINTENANCE - General

Before each use

Inspect the machine to ensure it is not damaged and will perform its normal functions
correctly. If any damage is apparent, have it fixed before putting into service.

Periodically

Inject a few drops of light oil into the oil points, located on top of the Bearing Blocks and
rotate the drum to ensure distribution of oil within the bearing surface.

Inspect the paintwork and remove any rust that may be apparent before touching up
where necessary, with a rust resistant paint.

It is recommended that the Collar be removed, at least annually, and grease smeared on
the serrated underside of the lower rim. Ensure the collar is replaced correctly.

After each use.

It is strongly recommended that the machine is hosed down thoroughly with clean water, taking
care to prevent water from entering the electrical components during the cleaning process.
Turn the drum so that it is face down to allow all
water to drain off. Protect it from the elements
by covering with a tarpaulin. This is particularly
important if the machine is to be stored for a
period of time.

Storage

It is possible to fold the leg and axle assembly
beneath the frame by removing their upper
mounting bolts, and slackening off the lower
mounting bolts so that the leg, or axle assembly.
pivots beneath the frame, as illustrated.

o

11

ELECTRICAL CONNECTIONS

3. The Upper Drum

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved
13 amp BS 1363 plug, or a suitably fused isolator switch.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with the following

code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug proceed as follows:

• Connect GREEN & YELLOW cord to terminal marked with a letter “E” or Earth symbol
“ ” or coloured GREEN or GREEN & YELLOW.

• Connect BROWN cord to terminal marked with a letter “L” or coloured RED.

• Connect BLUE cord to terminal marked with a letter “N” or coloured BLACK.

If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non­rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a danger of
electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. When replacing a detachable fuse carrier, ensure the correct replacement is used (as
indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local dealer or most electrical
stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating (13 amps) and this
replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

Note:
Before bolting down the upper drum section, it is necessary to perform a ‘dry run’ in order to

determine the correct orientation, to ensure all components are correctly aligned.

3.1. Lower the upper drum section on to the lower drum.

Rotate it until the position is found where the mixing blade upper
mounting hole lines up with the corresponding hole in the upper
drum section, and the lower mounting hole becomes aligned
with the hole in the base of the lower drum section.

Mark this position on the upper and lower rims with a pencil or
chalk mark, then remove the upper drum section.

3.2. Apply a film of impact adhesive (not supplied) to the rim of the
drum, according to the manufacturers instructions, and ensuring
the rim is perfectly clean beforehand. Position the rubber seal
on to the rim so that the holes in the seal and those in the rim of
the drum are aligned.

3.3. With assistance, lower the Upper Drum section on to the Lower
Drum, so that the two marks, previously made, are aligned.

Insert M6 x 18 bolts into each of the holes in the rim together
with a flat washer, and secure from below with a spring washer
and nut, ensuring the tightening process is carried out progressively.

3.4. Secure the Mixing Blades to the Upper
Drum by inserting an M6x20mm screw with
a flat and leather washer, through the hole
in the drum and through the upper
mounting hole in the mixing blade.

Secure on the inside using a flat washer, spring
washer and nut. Do not tighten at this stage.

3.5 Secure the Mixing Blades to the lower drum
in a similar manner, ensuring the leather
washers are in place.

3.6 Finally,tighten both top and bottom Mixing
Blade mountings.

4. The Collar

4.1 Liberally grease the underside of the rim of
the drum.

4.2 Wrap the collar around the rim of the drum
and secure using the M6 bolts with flat and
spring washers provided. Ensure flat washers
are used at the bolthead and at the nut.

Tighten the clamping nuts - A before
tightening the locating bolts -B

IMPORTANT:
The Drum Collar is a Safety Feature, and must
ALWAYS be in place. NEVER operate the
machine with the collar removed.

Fig.4

Fig.5

Fig.6

o

10

o

7

5. The Hand Wheel & Fittings

Fig.6

6. The Motor Covers and Fittings

Fig.9

5.1 Slide the Locking Plate over the large
diameter shaft, at the leg end of the frame,
with the rim facing inwards, as shown in Fig.6.

Secure with two M8x25 bolts with nut, spring
and flat washers

5.2 Insert the spring, into its holder in the
Handwheel, and holding it in place as shown
in Fig.7, slide the wheel over the large diameter
shaft so that the shaft retains the spring.

NOTE:
This operation may need a little exertion in order

to compress the spring sufficient to be able to
slip the handwheel on to the shaft.

5.3 Line up the holes in the bracket on the
handwheel with the hole drilled in the shaft,
then insert the M10 x 65mm bolt with flat
washer at the bolt head.

NOTE:
You will find it an easier task to line up the holes

on one side of bracket only, to begin with. Enter
the bolt, then use that as a pivot, by pushing
the handwheel IN to square it up, in order to
line up the holes on the other side. When the
holes at the opposite side are aligned, tap the
bolt through GENTLY to avoid damaging the
threads.

5.4 Screw on two nuts. Screw the first nut up
against the bracket, but not so tightly so as
to prevent the handwheel from pivoting
about the bolt. Lock the nut in this position
by screwing up the second nut so that they
are tight against each other.

NOTE:
The handwheel must be allowed to pivot about

the bolt so that the lugs on the handwheel can
be engaged or disengaged from the slots in
the Locking Plate.

5.5 Finally, screw the handle into the handwheel
hub, tightly

6.1 Bolt the Inner Cover to the Bearing Block. Use
two M8 x 25mm bolts, with flat washers at the
bolt heads, (within the Inner Cover), and spring
washers with nuts to the rear of the Bearing
Block. Tighten the nuts.

6.2 Bolt on the Motor Support Plate as shown in
Figs. 9 and 10, by inserting two M6 x 50mm
bolts, with flat washers, through the holes in:

a. the Support Plate
b. the slotted holes in the Inner Cover
c. the spacer, (which is inserted between

the Inner Cover, and the Frame

d. the Clamping plate.

NOTE:
The securing plate is steel, whereas the spacer is plastic and is the thicker of the two plates.

Insert the first bolt and thread on the nut by one turn only, before inserting the 2nd bolt.

Fig.7

6.3 Thread on a spring washer and nut, but DO NOT tighten the nut at this stage

6.4 Slide the Pulley on to the shaft, having lined up the key and keyway. Ensure the grubscrew

in the hub of the pulley faces outwards. Push the pulley on to the shaft until the end of
the shaft is slightly proud of the central boss. This is not a critical measurement. Lock the
pulley in this position by tightening the grub screw.

6.5 Slip the drive belt over the pulley

6.6 If the Motor pulley is not fitted, slide it on to the

shaft fully and tighten the grub screw using a
hex. wrench.

6.7 Place the motor, (which has the Outer Cover

attached via the power cable), on the motor
support plate, and slip the drive belt over the
pulley. It may be necessary to manoeuvre the
Motor support upwards to achieve this.

NOTE: It is now most important that the motor
pulley be aligned so that it is directly in line with

Fig.8

o

8

the driven pulley. This is achieved as follows:

6.8 Bolt the Motor, square on the Support so that

the back edge of the motor mounts are 25mm
from the edge of the support (see Fig. 11).

6.9 Allow the motor and Support to drop as far as

possible under its own weight in order to tension
the drive belt. Tension is correct when there is
approximately 1/4" total deflection at the centre
of the belt run when using moderate thumb
pressure. Tighten the mounting bolts
progressively ensuring the support plate is
parallel to the ground.

6.10 Finally, attach the outer cover using the three

screws provided.

o

9

Fig.10

Fig.11
