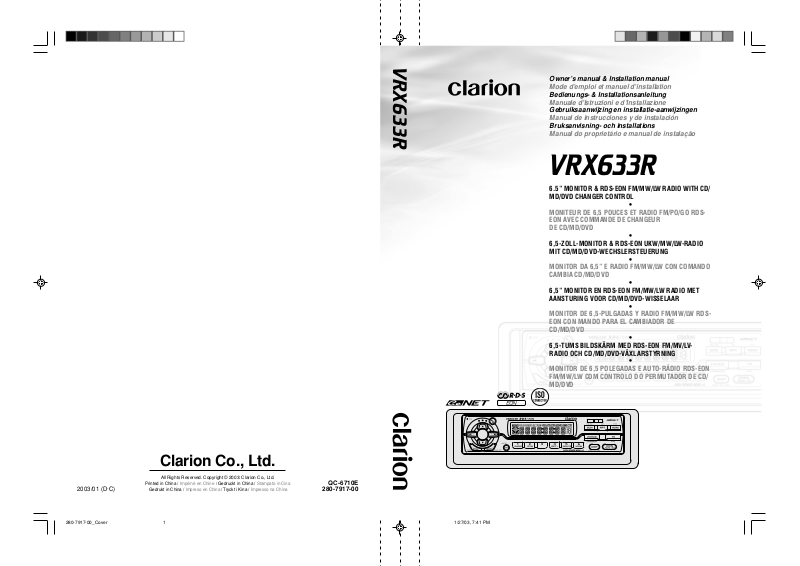

Clarion VRX633R User Manual

Owner’s manual & Installation manual

Mode d’emploi et manuel d’installation

Bedienungs- & Installationsanleitung

Manuale d’Istruzioni e d’Installazione

Gebruiksaanwijzing en installatie-aanwijzingen

Manual de instrucciones y de instalación

Bruksanvisning- och installations

Manual do proprietário e manual de instalação

VRX633R

6.5” MONITOR & RDS-EON FM/MW/LW RADIO WITH CD/
MD/DVD CHANGER CONTROL

•

MONITEUR DE 6,5 POUCES ET RADIO FM/PO/GO RDS­EON AVEC COMMANDE DE CHANGEUR
DE CD/MD/DVD

•
6,5-ZOLL-MONITOR & RDS-EON UKW/MW/LW-RADIO
MIT CD/MD/DVD-WECHSLERSTEUERUNG

•

MONITOR DA 6,5” E RADIO FM/MW/LW CON COMANDO
CAMBIA CD/MD/DVD

•
6,5” MONITOR EN
AANSTURING VOOR CD/MD/DVD-WISSELAAR

MONITOR DE 6,5-PULGADAS Y RADIO FM/MW/LW RDS­EON CON MANDO PARA EL CAMBIADOR DE
CD/MD/DVD

6,5-TUMS BILDSKÄRM MED RDS-EON FM/MV/LV­RADIO OCH CD/MD/DVD-VÄXLARSTYRNING

MONITOR DE 6,5 POLEGADAS E AUTO-RÁDIO RDS-EON
FM/MW/LW COM CONTROLO DO PERMUTADOR DE CD/
MD/DVD

RDS

-EON FM/MW/LW RADIO MET

•

•

•

Thank you for purchasing the Clarion VRX633R.

∗ This owner’s manual is for the VRX633R.
∗ Please read this owner’s manual in its entirety before operating this equipment.
∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
∗ This manual includes the operating procedures of the CD changer, MD changer, DVD changer, TV

tuner connected via the CeNET cable. The CD changer, MD changer, DVD changer, TV tuner have
their own manuals, but no explanations for operating them are described.

Contents

1. PRECAUTIONS ....................................... 4

2. CAUTIONS ON HANDLING .................... 4

LCD panel/Generalities ............................ 4

Cleaning ................................................... 4

3. CONTROLS ............................................. 5

4. NOMENCLATURE ................................... 6

Names of Buttons ..................................... 6

JOYSTICK Operation ............................... 7

5. MODE DISPLAY ...................................... 8

Display common to each mode ............... 8

TITLE LIST mode display ........................ 8

RADIO mode display ................................ 9

RDS mode display ................................... 9

CD/MD Changer mode display .............. 10

TV mode display .................................... 10

DAB mode display .................................. 11

6. REMOTE CONTROL ............................. 12

Inserting the Batteries ............................ 12

Functions of Remote Control Unit

Buttons ............................................... 13

7. DCP ........................................................ 14

8. OPERATIONS ........................................ 15

Basic Operations .................................... 15

Radio Operations ................................... 18

RDS Operations ..................................... 20

CD Changer Operations ........................ 23

MD Changer Operations ........................ 25

DVD Changer Operation ........................ 27

TV Operations ........................................ 31

Digital Radio/DAB Operations ............... 34

NAVI Operations .................................... 38

CCD Camera .......................................... 39

Connecting other company’s image

equipment ........................................... 40

Other Functions ...................................... 40

9. IN CASE OF DIFFICULTY ..................... 43

10. ERROR DISPLAYS ................................ 45

11. SPECIFICATIONS ................................. 46

2 VRX633R

5. MODE DISPLAY

1. PRECAUTIONS

2. CA UTIONS ON HANDLING

The Color LCD Display and the Information Panel on the main unit sho w the f ollowing displa ys, pro vid-

English

ing information about the mode and functions operated.

Display common to each mode

Owner’s manual

COLOR LCD DISPLAY INFORMA TION PANEL

MAIN

Clock Time display

TITLE LIST mode display

COLOR LCD DISPLAY INFORMA TION PANEL

!

WARNING

For your safety, the driver should not watch the TV or operate the controls while driving.
Please note that watching and operating the TV while driving are prohibited by law in
some countries. Also, while driving, keep the volume to a level at which external sounds
can be heard.

1. When the inside of the car is very cold and
the player is used soon after switching on
the heater, moisture may form on the disc
(CD/MD/DVD) or the optical parts of the
player and proper playbac k ma y not be pos­sible. If moisture forms on the disc (CD/MD/
DVD), wipe it off with a soft cloth. If moisture
forms on the optical parts of the player, do
not use the player for about one hour. The
condensation will disappear naturally allow­ing normal operation.

2. Driving on extremely bumpy roads which
cause severe vibration ma y cause the sound
to skip.

3. This unit uses a precision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.

4. TV broadcast reception
When receiving the TV broadcasts, the

strength of the signals changes since the
car is moving, so in some cases it may not
be possible to receive clear pictures.

• TV signals are strongly linear, so recep-

tion is affected by buildings, mountains
and other obstacles.

• Such external factors such as electric train

lines, a high voltage lines, and signal de­vices may disturb the picture or cause
noise.

∗ If the reception is poor, switch to a station

with good reception.

INFORMATION FOR USERS:.

CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPRO VED BY THE MANU­FA CTURER WILL V OID THE W ARRANTY .

On navigation

• If the NAVI mode is turned to NVG, the

FUNC button becomes invalid and the audio
modes cannot be switched.

LCD panel/Generalities

English

For a longer service life, be sure to read the following cautions.

•

Owner’s manual

Be sure to store the LCD panel inside the
main unit when parking the car outdoors for
long period of time. The LCD panel will oper­ate properly in a temperature range of 0 to
60°C.

• Don’t allow any liquids on the set from drinks,
umbrellas etc. Doing so ma y damage the in­ternal circuitry.

• Do not disassemble or modify the set in any
way. Doing so may result in damage.

• Do not draw the LCD panel out and use it as
a tray. Also, subjecting the LCD panel to
shocks may result in breakage, deformation
or other damage.

• Do not let cigarettes burn the display. Doing
so may damage or deform the cabinet.

• If a problem should occur, have the set in­spected at your store of purchase.

Cleaning

• Cleaning the cabinet

Use a soft, dr y cloth and gently wipe off the
dirt. For tough dirt, apply some neutral deter­gent diluted in water to a soft cloth, wipe off
the dirt gently, then wipe again with a dry cloth.

Do not use benzene, thinner, car cleaner, etc.,
as these substances may damage the cabinet
or cause the paint to peel. Also, leaving rub­ber or plastic products in contact with the cabi­net for long periods of time may cause stains.

• Do not inser t objects or poke in the space
between the LCD panel and the main unit
when the panel is tilted.

• Do not place anything on the display when
the panel is tilted.

• The remote controller may not work if the re­mote control sensor is exposed to direct sun­light.

• In extremely cold weather, the display mov e­ment may slow down and the display may
darken, but this is not a malfunction. The dis­play will work normally when the temperature
increases.

• Small black and shiny spots inside the LCD
panel are normal for LCD products.

• The LCD panel may stop temporarily when it
opens or closes, when the engine stops or
when it is cold.

• Cleaning the LCD panel

The LCD panel tends to collect dust, so wipe it
off occasionally with a soft cloth. The surface is
easily scratched, so do not rub it with hard ob­jects.

English

Owner’s manual

8 VRX633R

Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante.

Bitte ausbreiten und die nächste Seite lesen. / Assicurarsi di aprire e leggere la pagina successiva.

Volgende pagina uitvouwen en doorlezen a.u.b. / Cerciórese de desplegar y de leer la página siguiente.

Glöm inte att vika ut och läsa nästa sida. / Não deixe de aprir e ler a próxima página.

VRX633R 4VRX633R 3

CONTROLS / COMMANDES / REGLER / CONTROLLI

3.

REGELAARS / CONTROLES / KONTROLLER

English

Main unit / Unité principale / Hauptgerät / Unità principale
Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principale

With the Display closed / Avec l`afficheur fermé / Mit geschlossenem Display /

Français

Con display chiuso / Met het display gesloten / Con el visualisador cerrado /

Med bildskärmen stängd / Com o écran fechado

4 6 7 8

3

Deutsch

Italiano

2

1

$% @

#

With the Display open / Avec l`afficheur ouvert / Mit geöffnetem Display /

Con display aperto / Met het display geopend / Con el visualisador abierto

Med bildskärmen öppen / Com o écran aberto

Nederlands

¥ ) ¡& * (

Español

Svenska

Português

∞ ¢§ £¶ ™

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.

Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.

Opmerking:

Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.

Nota: Lembre-se de abrir esta página e consultar os diagramas frontais durante a leiture de cada capítulo.

Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.

5

9
0
!

4. NOMENCLATURE

English

Names of Buttons

Note:

• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unf old).

Owner’s manual

With the display closed With the display open

1 POWER button

FNC (Function) button

2 SEARCH button

VOLUME button

a button
d button

3 PLAY/PAUSE button
4 Information Panel
5 PS (Preset scan)/AS (Auto store) button

SCN (Scan) button

6 DCP RELEASE lever
7 AF (Alternative Frequencies) button

RPT (Repeat) button

8 PTY (Program Type) button

RDM (Random) button

9 Z-EHCR (Z-enhancer) button
0 INFO (Information) button

TA (Traffic announcement) button

! OPEN button

NVG/AV button

@ DISP (Display) button
# PRESET buttons (1 to 6)

DIRECT buttons (1 to 6)

$ MUTE button
% BND (Band) button

¥ Color LCD display
& SHORT (Short Cut) button
* RTN (Return) button
( RPT (Repeat) / RPT+ button
) ROUTE button
¡ ICON button
™ A-M (Audio-Mode) button

OUT (Zoom out) button

£ ADJ (Adjust) button

IN (Zoom in) button

¢ TITLE button

VIEW button

∞ MENU button

§ JOYSTICK
¶ Remote Control Infrared Sensor

JOYSTICK Operation

Note:

• Many settings/procedures have to be performed by using the JOYSTICK
in order to operate it properly.

• In the DVD changer mode, items for menu display, etc. can be selected by operating the JOYSTICK
upward, downward, leftward or rightward.

● Selecting an item in the menu

Select an item displayed in the menu by operat­ing the JOYSTICK § upward or downward.

● Setting an option for the selected item

When the setting options for an item are listed on
the right of the display, you can choose the de­sired option by operating the JOYSTICK § left­ward or rightward. Then, press the center of the
JOYSTICK § to set your choice.

● When “push NEXT” is displayed next to the
menu item

1. Press the ENT at the center of the JOYSTICK

§ to select the item and show the setting dis­play for this item.

2. Operate the JOYSTICK § upward or down-

ward to select the desired setting option, then
press ENT at the center of the JOYSTICK §
to set your choice.

● Returning to the previous mode

Select the item “MENU” by operating the JOY­STICK § leftward or rightward, then press the
ENT at the center of the JOYSTICK §.

§

. Be sure to read this chapter

5 VRX633R 6 VRX633R VRX633R 7

English

§

Owner’s manual

RADIO mode display

COLOR LCD DISPLAY INFORMA TION PANEL

RDS mode display

English

MAIN

Owner’s manual

SUB

COLOR LCD DISPLAY INFORMATION PANEL

VRX633R 9

CD/MD Changer mode display

COLOR LCD DISPLAY INFORMATION PANEL

English

Owner’s manual

TV mode display

COLOR LCD DISPLAY INFORMATION PANEL

MAIN

SUB

MAIN

10 VRX633R

SUB

DAB mode display

COLOR LCD DISPLAY INFORMATION PANEL

DVD Changer mode display

English

Owner’s manual

COLOR LCD DISPLAY INFORMATION PANEL

While the car is moving, the screen below is dis­played.

DVD

AUDIO PROGRAM ONLY

MAIN

• No sub-indication

VRX633R 11

6. REMOTE CONTR OL

English

Owner’s manual

Remote control unit

When the panel is open

Inserting the Batteries

1. Turn the remote control unit over, then slide
the rear cover in the direction of the arrow.

2. Insert the AA (SUM-3, IECR-6/1.5V) batter­ies that came with the remote control unit
facing in the directions shown in the figure,
then close the rear cover.

Notes:

Using batteries improperly can cause them to explode.
Take note of the following points:

• When replacing batteries, replace both batteries

with new ones.

• Do not short-circuit, disassemble or heat batteries.

• Do not dispose of batteries into fire or flames.

• Dispose of spent batteries properly.

12 VRX633R

Functions of Remote Control Unit Buttons

Mode

Button

¶ FUNC

• BAND

DISC UP
TOP

VOLUME

ª

º

SEARCH

⁄ PLAY/

PAUSE

¤ MUTE
‹ TA

DISP

›

MONI

fi PS/AS

SCN

AF

fl

RPT

PTY

‡

RDM
TV/VTR

WIDE

°

Radio (RDS)

Switches among Radio, DAB , CD changer, MD changer, DVD changer and TV.
Switches reception

band.

Increases and decreases volume (in all modes).
Moves preset chan-

nels up and down.

No function.

Turns mute on and off.
TA on and off.
Turns on and off the

monitor.

Preset scan.
When pressed and
held for 2 seconds:
Auto store.

AF function on and off.
When pressed and
held for 1 second:
REG function on and off

PTY standby mode
on and off.

No function.

Moves to the next disc in increasing order.

Moves tracks up and down.
When pressed and held for 1 second:
Fast-forward/Fast-backward.

Switches between playback and pause.

Turns on and off the monitor.
DVD changer mode;
When pressed and held for 1 second:
Superimpose (Playback information is
displayed.)
When pressed and held with Superimpose
on: Switches the screen sizes.

Scan play.
When pressed and held for 1 second:
Disc scan play. (∗)

Repeat play.
When pressed and held for 1 second:
Disc repeat play. (∗)

Random play.
When pressed and held for 1 second:
Disc random play. (∗)

CD/MD changer: No function.
DVD changer mode: Switches the screen
sizes.

CD changer
MD changer

DVD changer

TV

Switches reception band.

Moves preset channels
up and down.

No function.

Turns on and off the
monitor.
When pressed and held
for 1 second: Superim­pose (Playback informa­tion is displayed.)
When pressed and held
with Superimpose on:
Switches the screen
sizes.

Preset scan.
When pressed and held
for 2 seconds: Auto store.

No function.

Switches between TV
and VTR.

Switches the TV mode.

Notes:

• The remote control unit does not work when the panel is closed.

• Some of the corresponding buttons on the main unit and remote control unit have different functions.

• In the DVD changer mode, the remote control unit can not work for some items.

• Please use the dedicated remote control in the DVD changer mode.

∗

)In the DVD changer mode , this remote control unit makes the same operation as that performed using the

(

button with the same name on the remote control unit for the DVD changer.

English

Owner’s manual

VRX633R 13

7. DCP

The control panel can be detached to prevent

English

theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.

We recommend taking the DCP with you when
leaving the car.

Owner’s manual

Removing the DCP

1. Turn the power off.

2. Deeply push in the DCP RELEASE lever 6
to release the DCP/Operation Panel.

DCP/RALEASE lever

3. Pull the DCP toward you and remove it.

DCP/Operation Panel

Attaching the DCP

1. Hold the DCP/Operation Panel with its rear
side facing the main unit and, as shown in the
figure below, put the lower edge of the panel
onto the corresponding edge of the main unit.

2. Lock the DCP/Operation Panel at the upper
center until a click is heard.

POWER button

3. Press the power button 1 to turn on the
power .

∗ The unit will not accept any key inputs for 1 sec-

ond after the DCP has been reattached.

CAUTION

• The DCP can easily be damaged by shocks.

After removing it, be careful not to drop it
or subject it to strong shocks.

• If the Operation Panel is kept open, the DCP

may drop due to vibration of the car. This
results in damage to the DCP. So close the
Operation Panel or remove the DCP to store
into the case.

• The connector connecting the main unit and

the DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, screwdrivers, etc.

Note:

• If the DCP is dirty, wipe off the dirt with a soft, dry

cloth only.

14 VRX633R

8. OPERATIONS

Basic Operations

Note: Be sure to read this chapter referring to the front diagrams of

chapter “3. CONTROLS” on page 5 (unfold).

CAUTION

When the unit is turned on, starting and stop­ping the engine with its volume raised to the
maximum level may harm your hearings. Be
careful about adjusting the volume.

Note:

• Use this unit after starting the engine.

Turning on and off the power

Note:

• Be careful about using this unit for a long time with­out running the engine. If you drain the car’s bat-
tery too far, you may not be able to start the en­gine and this can reduce the service life of the
battery.

1. Press the POWER button 1.

2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.

Press and hold the POWER button 1 f or 1 sec-

3.
ond or longer to turn off the power for the unit.

Note:

• About the “SYSTEM CHECK”
The confirmation of connected equipment must be

performed for this unit only when the wiring con­nection is complete and power is turned on to the
unit first. When the po wer is supplied, “SYSTEM ”
and “PUSH PWR” appear alternately in the dis­play. Press the POWER button
check starts inside the unit. When “COMPLETE”
appears, press once again the POWER button

1

, the system

1

Adjusting the volume

Operate the VOLUME button 2 in the direction
of the arrows
volume;

ww

w: Increases the volume.

ww
zz

z: Decreases the volume.

zz

∗ The volume level indicated in the display is in a

range from 0 (minimum) to 33 (maximum).

ww

w (up) or

ww

zz

z (down) to adjust the

zz

CAUTION

While driving, keep the volume at a level at
which external sounds can be heard.

Switching the display

When the panel is closed:

Press the DISP button @to select the desired dis­play.
Each time you press the DISP button @, the dis­play switches in the following order:

.

English

Owner’s manual

Selecting a mode

1. Press the FNC button 1 to change the mode
of operation.

2. Each time you press the FNC button 1, the
mode of operation changes in the following
order:

Radio mode ➜ DAB mode ➜ CD changer
mode ➜ MD changer mode ➜ DVD changer
mode ➜ TV mode ➜ Radio mode...

∗ External equipment not connected with CeNET

is not selected.

Notes:

• Once selected, the preferred display becomes the
default display. When a function adjustment such
as volume is made, the display momentarily
switches to that function’s display, then returns
back to the preferred display several seconds af­ter the adjustment.

VRX633R 15

Basic Operations

•

If a title has been input, it is shown in the SUB dis­play. If no title has been input, “---------” appears in
the display. To input a title, refer to the subsection

English

“Entering titles” in “Other Functions” section.

• For CD, MD and TV, some special characters of

the title, the PS name of the RDS, and the DAB
service label will not be displayed on the Informa­tion Panel of the DCP. In this case, those charac-

Owner’s manual

ters will only be left blank.

• When CT data is not received, “CT--:--” appears
in the display.

Showing a mode display

When the panel is open:

Press the TITLE button ¢ to show the Title List
display. In the Title List display, the titles of items
stored in the PRESET buttons # 1 to 6 are listed.

∗ In the RDS tuner mode, a PS name is displayed.
∗ In the DAB mode, a service label is displayed.
∗ For detailed information, refer to the section “Title

list play”.

3. To store the Color LCD display ¥ in the source
unit, turn it to the horizontal position until a
click is heard.

Turning on and off the monitor

Pressing the DISP button @ turns the monitor
on and off.

∗ When a button is pressed or during security moni-

toring, the monitor-off mode is canceled.

Opening and turning the display

Notes:

• Do not place any object on the open display.

• Do not drop any object on the movable part.

• Do not expose the display to shocks.

1. Press the OPEN button ! to open the Color
LCD display ¥.

∗ If the Color LCD display ¥ is left horizontally

in the open position for 10 seconds or longer,
it is automatically drawn in.

2. Turn the Color LCD display ¥ upwards to a
good view angle.

When the monitor is turned upwards, a pic­ture appears in the display. The Information
Panel 4 display disappears.

CAUTION

Do not turn the display unless it is completely
open.

When adjusting the angle of the display be
careful no to let your fingers get caught by
the panel or instrument panel of the vehicle.

16 VRX633R

Mute

Each time you press the MUTE button $, mute
is turned on and off.

“MUTE” appears when mute is turned on.

Setting the Z-enhancer

This unit comes with 3 types of sound tone effect
stored in memory. Select the one you prefer.

∗ The factory default setting is “Z-EHCR OFF”.

When a Z-enhancer comes on (1-3), “Z-EHCR”
appears in the display.

•“Z-EHCR 1” (Z-Enhancer 1):
Setting emphasizing bass.

•“Z-EHCR 2” (Z-Enhancer 2):
Setting emphasizing treble.

•“Z-EHCR 3” (Z-Enhancer 3):
Setting emphasizing bass and

treble.

•“Z-EHCR OFF” (Z-Enhancer off):
Neither bass nor treble are empha-

sized by the Z-enhancer.

Basic Operations

When the panel is closed:

Each time you press the Z-EHCR button 9, the
tone effect changes in the following order:

“Z-EHCR 1” ➜ “Z-EHCR 2” ➜ “Z-EHCR 3” ➜
“Z-EHCR OFF” ➜ “Z-EHCR 1”...

When the panel is open:

1. Press the A-M button ™ to change into the
AUDIO-MODE display.

2. Operate the JOYSTICK § upward or down­ward to select “Z-EHCR”. Press the ENT at
the center of the JOYSTICK § to change into
the Z-enhancer selecting display.

3. Operate the JOYSTICK § upward or down­ward to select out of:

“TYPE 1” (Z-Enhancer 1)
hancer 2)
“OFF” (Z-Enhancer off),

and press the ENT at the center of the JOY­STICK § to set a desired Z-enhancer.

4. When the setting is finished, oper ate the JOY­STICK § rightward or leftward to move the
cursor to the “MENU”. Then press the ENT at
the center of the JOYSTICK § to return to
the AUDIO-MODE display.

∗

T o return from the A UDIO-MODE display to the
STANDARD display, press the A-M button
once again.

“TYPE 3” (Z-Enhancer 3)

“TYPE 2” (Z-En-

™

Adjusting the Z-enhancer

Note:

• This function is enabled only when the panel is

open.

1. Press the A-M button ™ to change into the
AUDIO-MODE display.

Operate the JOYSTICK §

2.
to select “Z-EH L VL” level. Press
center of the JOYSTICK §
Z-enhancer adjusting

3. Operate the
ward to adjust the Z-enhancer level.

∗ When Z-Enhancer 1 is selected, you can adjust

the bass in the range of ±2.

∗ When Z-Enhancer 2 is selected, you can adjust

the treble in the range of ±2.

∗ When Z-Enhancer 3 is selected, you can adjust

the bass and treble in the range of ±2.

4. When the adjustment is finished, operate the
JOYSTICK § rightward or leftward to move
the cursor to “MENU”. Then press the ENT at
the center of the JOYSTICK § to return to
the AUDIO-MODE display.

JOYSTICK

upward or downward

the ENT at the

to change into the

display

.

§ upward or down-

Adjusting the bass and treble

Notes:

• This function is enabled only when the panel is
open.

• This function can be adjusted only when the Z­enhancer is OFF.

1. Press the A-M button ™ to change into the

AUDIO-MODE displa y .

2. Operate the JOYSTICK § upward or down-

ward to select “BAS/TRE”. Then press the
ENT at the center of the JOYSTICK § to
change into the BASS/TREBLE adjusting dis­play.

3. Operate the JOYSTICK § rightward or left-

ward to adjust the “BASS” or “TREBLE”.

4. Operate the JOYSTICK § upward or down-

ward to adjust a level (adjustment range: from

-6 to 6).

5. When the adjustment is finished, operate the

JOYSTICK § rightward or leftward to move
the cursor to “MENU”. Then press the ENT at
the center of the JOYSTICK § to return to
the AUDIO-MODE display.

Adjusting the balance and fader

Note:

• This function is enabled only when the panel is
open.

1. Press the A-M button ™ to change into the

AUDIO-MODE displa y .

2. Operate the JOYSTICK § upward or down-

ward to select “BAL/FAD”. Then press the
ENT at the center of the JOYSTICK § to
change into the BAL/FAD adjusting display.

3. Operate the JOYSTICK § rightward or left-

ward to select “BALANCE” or “FADER”.
Operate the JOYSTICK § upward or down-

4.

ward to make an adjustment.
Adjusting range of the balance: L13 to R13
Adjusting range of the fader: front 12 / rear 12

5. When the adjustment is finished, operate the

JOYSTICK § rightward or leftward to move
the cursor to “MENU”. Then press the ENT at
the center of the JOYSTICK § to return to
the AUDIO-MODE display.

English

Owner’s manual

VRX633R 17

Basic Operations

Radio Operations

Turning on/off the loudness

The loudness effect emphasizes the bass and

English

treble to create a natural sound tone. When you
are listening to music at a low volume, it is rec­ommended to use the loudness effect.

∗ This function is enabled only when the panel is

open.

Owner’s manual

1. Press the A-M button ™ for 1 second or longer
to select Loudness ON. The “LD” indicator
lights in the display.

2. Press the A-M button ™ for 1 second or longer
to select Loudness OFF. The “LD” indicator
goes off.

CT (Clock Time) function

The CT function receives CT data sent from an
RDS station and displays the time. Press the
DISP button @ to switch to CT display.

∗ If CT is not being received, “CT--:--” appears in

the display.

Note:

• CT data is not transmitted in some countries and

by some broadcast stations. Also, in some areas,
the CT may not be displayed accurately.

Listening to the radio

1. Press the FNC button 1 and select the RA­DIO mode. The frequency or PS is displayed.

∗ PS: Programme service name

2. Press the BND button % and select the radio
band. Each time the button is pressed, the
radio reception band changes in the follow­ing order:

FM1 ➜ FM2 ➜ FM3 ➜ AM (MW/L W)➜ FM1...
Press the right or left side of the SEARCH but-

3.

2 to tune in the desired station.

ton

Tuning

There are 3 types of tuning mode available, seek
tuning, manual tuning and preset tuning.

Seek tuning

There are 2 types of seek tuning: DX SEEK and
LOCAL SEEK.

DX SEEK can tune in to receivable broadcast
stations; LOCAL SEEK can tune in to only broad­cast stations with a good reception condition.

1. Press the BND button % and select the de­sired band. (FM or AM (MW, LW))

2. Tune in to a station.

∗ If “MANU” is lit in the display (or when the panel

is closed, if the indicator “SRCH” is not lit) press
and hold the BND button % for 1 second or
longer. “MANU” in the display goes off (or when
the panel is open the indicator “SRCH” lights)
and seek tuning is now available.

∗ If “TA” is lit in the display , TP stations are auto-

matically sought.

● DX SEEK

Press the right or left side of the SEARCH
button 2 to automatically seek a station.

When the right side of the SEARCH button
2 is pressed, the station is sought in the di­rection of higher frequencies; when the left
side of the SEARCH button 2 is pressed, the
station is sought in the direction of lower fre­quencies.

∗ When seek tuning starts, “DX SEEK” appears

in the display.

● LOCAL SEEK

If you press and hold the right or left side of
the SEARCH button 2 for 1 second, local
seek tuning is carried out. Broadcast stations
with good reception condition are selected.

∗ When local seeking starts, “LO SEEK” appears

in the display.

18 VRX633R

Radio Operations

Manual tuning

There are 2 ways av ailable: Quick tuning and step
tuning.

When you are in the step tuning mode, the fre­quency changes one step at a time. In quick tun­ing mode, you can quickly tune the desired fre­quency.

1. Press the BND button % and select the de­sired band. (FM or AM (MW/LW))

∗ If “MANU” is not lit in the display (or when the

panel is closed, if the indicator “SRCH” is lit),
press and hold the BND button % for 1 sec­ond or longer. “MANU” appears in the display
(or when the panel is closed, the indicator
“SRCH” goes off) and manual tuning is now
available.

2. Tune into a station.

● Quick tuning:

Press and hold the right or left side of the
SEARCH button 2 for 1 second or longer to
tune in a station.

● Step tuning:

Press the right or left side of
ton 2 to manually tune in a station.

Note:

• Manual tuning is cancelled if you do not oper­ate the unit for 7 seconds or longer.

the SEARCH but-

Recalling a preset station

A total of 24 preset positions (6-FM1, 6-FM2, 6­FM3, 6-AM) exists to store individual radio sta­tions in memory. Pressing the corresponding
PRESET button # recalls the stored radio fre­quency automatically.

1. Press the BND button % and select the de­sired band. (FM or AM (MW/LW))

2. Press the corresponding PRESET button #
to recall the stored station.

∗ Press and hold one of the PRESET buttons #

for 2 seconds or longer to store that station into
preset memory.

Auto store

Auto store is a function for storing up to 6 sta­tions that are automatically tuned in sequentially .
If 6 receivable stations cannot be received, a pre­viously stored station remains unoverwritten at
the memory position.

1. Press the BND button % and select the de­sired band. (FM or AM (MW/LW))

2. Press and hold the PS/AS button 5 for 2 sec­onds or longer. The stations with good recep­tion are stored automatically to the preset
channels.

∗ If auto store is performed in the FM bands, the

stations are stored in FM3 even if FM1 or FM2
was chosen for storing stations.

Preset scan

Preset scan receives the stations stored in pre­set memory in order. This function is useful when
searching for desired station in memory.

1. Press the PS/AS button 5.

2. When the desired station is tuned in, press
the PS/AS button 5 again to continue receiv­ing that station.

English

Owner’s manual

Manual memory

1. Press the BND button % and select the de­sired band. (FM or AM (MW/LW))

2. Select the desired station with seek tuning,
manual tuning, or preset tuning.

3. Press and hold one of the PRESET buttons
# for 2 seconds or longer to store the cur­rent station into preset memory.

VRX633R 19

RDS Operations

RDS (Radio Data System)

This unit has a built in RDS decoder system that

English

supports broadcast stations transmitting RDS
data. This system can display the name of the
broadcast station being received (PS) and can
automatically switch to the broadcast station with
the best reception as you move long distances

Owner’s manual

(AF switching). Also, if a tr affic announcement or
programme type information is broadcast from
an RDS station, no matter what mode you are in,
this broadcast is received. Additionally, if EON
information is received, this information enables
automatic renewal of other preset stations on the
same network and interruption of traffic an­nouncement and/or chosen program type from
other stations (TP). This function is not available
in some areas.

When using the RDS function, always set the
radio to FM mode.

• “AF” : Alternative Frequency

• “PS” : Programme Service Name

• “PTY” : Programme Type

• “EON” : Enhanced Other Network

• “TP” : Traffic Programme

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

AF function

The AF function switches to a different frequency
on the same network in order to maintain opti­mum reception.

∗ The factory default setting is “ON”.

● Switching OFF the AF function

Press the AF button 7. The “AF” indicator goes
off.

● Switching ON the AF function

Press the AF button 7. The “AF” indicator lights .

∗ If the reception of the current broadcast station

deteriorates durably, “SEARCH” lights in the dis­play and the radio searches for the same
programme on another frequency.

∗ When the reception deteriorates, the “AF” indica-

tor flickers.

● AF function between RDS and DAB

When the same programme is broadcast by both
RDS and DAB, and this function is ON, the unit
switches automatically to the broadcast with the
better reception.

∗ This function only operates when the DAH9500z

DAB unit, sold separately, is connected.

1. Press the ADJ button £ to show the adjust­ment selection display.

2. Operate the JOYSTICK § upward or down­ward to select “LINKACT”.

3. Operate the JOYSTICK § rightward or left­ward to select “ON” or “OFF”. After selection,
press the ENT at the center of the JOYSTICK

§.

● ON:

AF switching between DAB and RDS enab led.

● OFF:

AF switching between DAB and RDS disab led.

4. Press the ADJ button £ to return to the pre­vious mode.

REG (Regional programme) function

When the REG function is ON, the optimum re­gional station can be received. When this func­tion is OFF, if the regional station area switches
as you drive, a regional station for that region is
received.

∗ The factory default setting is “OFF”.

Notes:

• This function is disabled when a national station

such as BBC 2 FM is being received.

• The REG function ON/OFF setting is valid when

the AF function is ON.

● Turning the REG function ON

When “REG” is not lit in the display, press and
hold the AF button 7 for 2 seconds or longer.
“REG” lights in the display.

● Turning the REG function OFF

Press and hold the AF button 7 for 2 seconds
or longer. “REG” in the display goes off.

Manually tuning a regional station
in the same network

Note:

• This function can be used when a regional broad-

cast of the same network is received.

1. This function is valid when the AF function is
ON and the REG function is OFF.

2. Press any one of the PRESET buttons # to
call out a regional station.

3. Each time you press the same PRESET but­ton #, the unit switches from a local station
to the other on the same network.

20 VRX633R

RDS Operations

TA (Traffic Announcement)

In TA standby mode, when a traffic announcement
broadcast starts, the traffic announcement broad­cast is received as top priority regardless of the
function mode so you can listen to it. Traffic
programme (TP) automatic tuning is also possible.

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

∗ This function can only be used when “TP” is lit in

the display. When “TP” is lit, this means that the
RDS broadcast station being received has traffic
announcement programmes.

● Setting TA standby mode

If you press the TA button 0 when only “TP” is lit
in the display, “TP” and “TA” light in the display
and the unit is set into TA standby mode until a
traffic announcement is broadcast. When a traf­fic announcement broadcast starts, “TRA INFO”
appears in the display. If you press the TA button
0 while a traffic announcement broadcast is
being received, the traffic announcement broad­cast reception is cancelled and the unit goes into
TA standby mode.

● Cancelling TA standby mode

With “TP” and “TA” are lit in the display, press the
TA button 0. The “TA” in the display goes off
and TA standby mode is cancelled.

∗ If “TP” is not lit, pressing the TA button 0 searches

for a TP station.

● Searching for a TP station

When “TP” is not lit, if you press the TA button
0, “TA” lights in the display and the unit auto-
matically searches a TP station.

Note:

• If a TP station is not received, the unit continues
the search operation. Pressing the TA button
again makes the “TA” indicator go off and stops
TP station searching.

0

Auto store function for TP stations

You can automatically store up to 6 TP stations
into preset memory. If the number of TP that can
be received is less than 6, broadcast stations
already stored in memory are left without being
overwritten.

1. With “TA” lit in the display, press the PS/AS
button 5 for 2 seconds or more.

2. The TP stations with the good reception con­dition are stored into preset memory.

∗ Even if you select FM1 or FM2, a TP station is

stored into memory for FM3.

PTY

This function enables you to listen to a broad­cast of the selected programme type when it
starts, even if the unit operates on a function
mode other than radio.

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

∗ Some countries do not yet have PTY broadcast.
∗ In TA standby mode, a TP station has priority over

a PTY broadcast station.

Selecting PTY

1. When you press the PTY button 8, the unit
goes into PTY select mode.

2. Press any one of the PRESET buttons # to
select a desired PTY. Alternatively, when the

panel is closed, operate the SEARCH but­ton 2 upward or downward to select a de­sired PTY.

∗ Below are the factory default settings stored

for the PRESET buttons #.

Preset
number

3.

The PTY select mode is cancelled automatically

ENGLISH Contents

1 NEWS News
2 INFO Information
3 POP M Pop music
4 SPORT Sports
5 CLASSICS Classics
6 M,O,R,M

PTY item

Middle of the road music

7 seconds after a PTY is selected.

● Cancelling PTY standby mode

When you press the PTY button 8 for 1 second
or longer, the indicator “PTY” goes off and PTY
standby mode is cancelled.

● Cancelling a PTY interrupt broadcast

Press the PTY button 8, during the PTY inter­rupt broadcast to display the subsidiary, the PTY
interrupt is cancelled and the unit returns to PTY
standby mode.

PTY seek

1. Press the PTY button 8, the PTY select mode
is turned on.

2. Select a desired PTY.

3. Press the right or left side of the SEARCH
button 2. If you press the right side, the unit
seeks a PTY broadcast moving up the fre­quencies; if you press the left side, it seeks
moving down the frequencies.

VRX633R 21

English

Owner’s manual

RDS Operations

∗ If no station with the selected PTY broadcast

English

can be received, the unit returns to the MAIN
mode.

PTY preset memory

1. When you press the PTY button 8, the PTY
select mode is turned on.

Owner’s manual

2. Select a desired PTY.

3. If you press and hold any one of the PRESET
buttons # for 2 seconds or longer, the se­lected PTY is stored into that preset channel
memory.

The 29 types of PTY below can be selected.

PTY item

ENGLISH Contents
NEWS News
AFFAIRS Today’s events
INFO Information
SPORT Sports
EDUCATE Education
DRAMA Drama
CULTURE Culture
SCIENCE Science
VARIED Variety
POP M Pop music
ROCK M Rock music
M,O,R, M Middle of the road music
LIGHT M Light music
CLASSICS Classics
OTHER M Other music
WEATHER Weather
FINANCE Finance
CHILDREN For children
SOCIAL A Social affairs
RELIGION Religion
PHONE IN Phone in
TRAVEL Travel
HOBBIES Hobbies
JAZZ Jazz
COUNTRY Countr y
NATIONAL National
OLDIES Oldies
FOLK M Folk music
DOCUMENT Documentaries

Operating the PTY SELECT display
when the panel is open

1. Press the PTY button 8 to select the PTY
SELECT display.

2. In the PTY SELECT display, PTY is selected
and PTY memory can be adjusted.

Operate the JOYSTICK § rightward or left­ward to select “PTY ITEM” or “PRESET” (by
moving the cursor).

3. When “PTY ITEM” is selected, PTY selection
is carried out. Operate the JOYSTICK § up­ward or downward to select a desired PTY.
Press the ENT at the center of the JOYSTICK

§ to set the selected PTY ITEM.
(The PTY ITEM thus set is listed at the lower

right of the display.)

4. When “PRESET” is selected, PTY preset
memory can be called for and stored.

5. Operate the JOYSTICK § upward or down­ward to select Preset Nos. 1 to 6.

6. Press the ENT at the center of the JOYSTICK

§ to call for the preset PTY ITEM.
Press the ENT at the center of the JOYSTICK

§ for 2 seconds to store the PTY ITEM cur­rently selected to any Preset No. selected
(listed at the lower right of the display).

7. After adjustment is finished, operate the JOY­STICK § rightward or leftward to move the
cursor to “MENU”, and press the ENT at the
center of the JOYSTICK § to return to the
STANDARD display.

Emergency broadcast

If an emergency broadcast is received, all the
function mode operations are stopped. “ALARM”
appears in the display and the emergency broad­cast can be heard.

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

● Cancelling an emergency broadcast

If you press the AF Button 7, emergency broad­cast reception is cancelled.

22 VRX633R

RDS Operations

CD Changer Operations

Switching the PTY display language

Note:

• This function is enabled only when the panel is
open.

Y ou can select one of 4 languages (English, Ger­man, Swedish or French) for the PTY displayed
in the display.

∗ The factory default setting is “GB” (English).

1. Press the ADJ button £ to show the adjust-

ment selection display.

2. Operate the JOYSTICK § upward or down-

ward to select "PTY LANG". After that, select
a desired language by operating the JOY­STICK § rightward or leftward and then press
the ENT at the center of the JOYSTICK § to
change the setting.

“GB”: English
“F”: French
“D”: German
“S”: Swedish

3. Press the ADJ button £. The unit returns to

the previous mode.

Volume setting of TA, emergency
broadcast (ALARM) and PTY

The volume for TA, ALARM and PTY interrupts
can be set during TA, ALARM or PTY interrupt.

∗ The factory default setting is “15”.

During a TA, ALARM or PTY interrupt, operate
the VOLUME button 2 upward or downward
to set the volume to the desired lev el (00 to 33).

∗ When the TA, ALARM or PTY interr upt ends, the

volume returns to the level it had before the inter­rupt.

CD changer functions

When an optional CD changer is connected
through the CeNET cable, this unit controls all
CD changer functions. This unit can control a to­tal of 2 changers (MD and/or CD).

Press the FNC button 1 and select the CD
changer mode to start play . If 2 CD changers are
connected, press the FNC button 1 to select the
CD changer for play.

∗ If “NO MAG” appears in the display, insert the

magazine into the CD changer. “LOADING” ap­pears in the display while the player loads (chec ks)
the magazine.

∗ If “NO DISC” appears in the displa y , eject the maga-

zine and insert discs into each slot. Then, reinsert
the magazine back into the CD changer.

CAUTION

CD-ROM discs cannot be played in the CD
changer.

Pausing play

1. Press the PLAY/PAUSE button 3 to pause
play. “PAUSE” appears in the display.

2. To resume play, press the PLAY/PAUSE but­ton 3 again.

Displaying CD titles

This unit can display title data for CD-text CDs
and user titles input with this unit.

Each time you press and hold the DISP button
@ for 1 second or longer , the title display changes
in the following order.

When the panel is closed:

User title (disc) ➜ CD-text title (disc) ➜ CD-text
title (track) ➜ User title (disc)...

When the panel is open:

User title (disc) ➜ CD-text title (disc & track) ➜
User title (disc)...

Note:

• If the CD playing is not a CD-text CD or no user

title has been input, “----------” appears in the dis­play.

● Scrolling a CD-text title

When a CD-text title is longer than 16 charac­ters (8 characters when the panel is closed), you
can scroll the display as follows.

English

Owner’s manual

VRX633R 23

CD Changer Operations

When the panel is closed:

1. Display the CD-text title (disc or track).

English

2. Press and hold the BND button % for 1 sec­ond or longer. The titles scroll.

When the panel is open:

1. Display the CD-text title (disc & track).

Owner’s manual

2. Press and hold the TITLE button ¢ for 1 sec­ond or longer to scroll the disc title.

press

3. To scroll the track title,

Notes:

• If the disc title is shorter than 16 characters, the

• If the track title is shorter than 16 characters, the

the TITLE button ¢

longer

scrolling the disc title.

after

track titles begin to scroll immediately.
track titles does not scroll.

for 1 second or

within 30 seconds

Selecting a CD

Each of the DIRECT buttons # corresponds to
a disc loaded into the magazine.

● Selecting a disc from 1 to 6

Press the corresponding DIRECT button (1 to 6)
# to select the desired disc.

● Selecting a disc from 7 to 12 (only when a

12 disc CD changer is used.)

Press the corresponding DIRECT button (7 to 12)
# for 1 second or more, then select the desired
disc.

Selecting a track

● Track-up

1. Press the right side of the SEARCH button
2 to move ahead to the beginning of the next
track.

2. Each time you press the right side of the
SEARCH button 2, the trac k advances ahead
to the beginning of the next track.

● Track-down

1. Press the left side of the SEARCH button 2
to move back to the beginning of the current
track.

2. Press the left side of the SEARCH button 2
twice to move to the beginning of the previ­ous track.

Fast-forward/Fast-backward

● Fast-forward

Press and hold the right side of the SEARCH
button 2 for 1 second or longer.

● Fast-backward

Press and hold the left side of the SEARCH but­ton 2 for 1 second or longer.

Top function

The top function plays from the first track (track
No. 1) of the disc.

● When playing a disc 1 to 6

Press the DIRECT button # (1 to 6) with the
same number as the CD playing.

● When pla ying a disc 7 to 12 (only when a 12

disc CD changer is used.)

Press the DIRECT button # (7 to 12) with the
same number as the CD playing for 1 second or
longer.

Scan play

The scan play locates and plays the first 10 sec­onds of each track on a disc automatically. This
function continues on the disc until it is cancelled
or the mode is changed.

∗ The scan play is useful when you want to select a

desired track.

1. Press the SCN button 5 to start scan play.

2. Press the SCN button 5 again to cancel the
scan play. Current track continues to play.

Disc scan play

The disc scan play locates and plays the first 10
seconds of the first track on each disc in the cur­rently selected CD changer. This function contin­ues automatically until it is cancelled or the mode
is changed.

∗ The disc scan play is useful when you want to se-

lect a desired CD.

1. Press the SCN button 5 for 1 second or longer
to start disc scan play.

2. Press the SCN button 5 again to cancel disc
scan play. Normal disc play continues on the
current track.

24 VRX633R

CD Changer Operations

MD Changer Operations

Repeat play

The repeat play continuously plays the current
track. This function continues automatically until it
is cancelled or the mode is changed.

1. Press the RPT button 7, to make repeat play
starts. “RPT” lights in the display.

2. To cancel repeat play, press the RPT button
7 again. “RPT” goes off from the display and

the unit returns to normal play.

Disc repeat play

After all tracks in the current disc have been
played, the disc repeat pla y automatically replays
the current disc over from the first track. This func­tion continues automatically until it is cancelled
or the mode is changed.

1. When you press the RPT button 7 for 1 sec­ond or longer, disc repeat play starts. “D-RPT”
lights in the display.

2. To cancel disc repeat play, press the RPT
button 7 again. “D-RPT” goes off from the
display and the unit returns to normal play
from the track being played.

Random play

The random play selects and plays individual
tracks on the disc in no particular order. This func­tion continues automatically until it is cancelled
or the mode is changed.

1. When you press the RDM button 8, random
play starts. “RDM” lights in the display.

2. To cancel random play, press the RDM but­ton 8 again. “RDM” goes off from the displa y
and the unit returns to normal play.

Disc random play

The disc random play selects and plays individual
tracks or discs automatically in no particular or­der. This function continues automatically until it
is cancelled or the mode is changed.

1. When you press the RDM button 8 for 1 sec­ond or longer, disc random play starts. “D-
RDM” lights in the display.

2. To cancel disc random play, press the RDM
button 8 again. “D-RDM” goes off from the
display and the unit returns to normal play
from the track being played.

MD changer functions

When an optional MD changer is connected
through the CeNET cable, this unit controls all
MD changer functions. This unit can control a total
of 2 changers (MD and/or CD).

Press the FNC button 1 and select the MD
changer mode to start play . If 2 MD changers are
connected, press the FNC button 1 to select
the MD changer for play.

∗ If “NO DISC” appears in the displa y, load MDs into

the MD changer.

Pausing play

1. Press the PLAY/PAUSE button 3 to pause
play. “PAUSE” appears in the display.

2. To resume play, press the PLAY/PAUSE but­ton 3 again.

Switching disc titles and track titles

This unit can display disc titles and track titles
already entered on MDs. Titles up to 128 char­acters long can be displayed by scrolling the titles.

∗ Titles cannot be entered for MDs with this unit.

When the panel is closed:

1. Press the DISP button @ to show the SUB
display . The disc title or trac k title is displayed.

2. Each time you press and hold the DISP but­ton @ for 1 second or longer, the display
toggles between the disc title and the track
title.

When the panel is open:

Both disc and track titles are displayed.

Scrolling titles

When a title is longer than 16 characters (or 8
characters if the panel is closed), you can scroll
through it with the following operation.

When the panel is closed:

1. Display the MD title (disc or track).

2. Press the BND button % for 1 second or
longer. The display scrolls through the title.

When the panel is open:

1. Press the TITLE button ¢ for 1 second or
longer to scroll through the disc title.

press

2. To scroll the track title,

the TITLE button ¢

longer

scrolling the disc title.

after

for 1 second or

within 30 seconds

English

Owner’s manual

VRX633R 25

MD Changer Operations

Notes:

• When the disc title is within 16 characters, the title

English

is scrolled immediately.

• If the track title is shorter than 16 characters, the
track titles does not scroll.

Selecting an MD

Owner’s manual

Each of the DIRECT button # corresponds to
an MD loaded into the MD changer.

Press the DIRECT button # (1 to 6) and select
the desired MD.

Selecting a track

● Track-up

1. Press the right side of the SEARCH button

2 to move ahead to the beginning of the next
track.

2. Each time you press the right side of the

SEARCH button 2, the trac k advances ahead
to the beginning of the next track.

● Track-down

1. Press the left side of the SEARCH button 2

to move back to the beginning of the current
track.

2. Press the left side of the SEARCH button 2

twice to move to the beginning of the previ­ous track.

Fast-forward/Fast-backward

● Fast-forward

Press and hold the right side of he SEARCH but­ton 2 for 1 second or longer.

● Fast-backward

Press and hold the left side of he SEARCH but­ton 2 for 1 second or longer.

Top function

The top function plays from the first track (track
No. 1) of the disc.

Press the DIRECT button # (1 to 6) with the
same number that the MD playing.

∗ If an MD is not loaded in a slot of the MD changer,

pressing the DIRECT button # corresponding to
its disc number is invalid.

Scan play

The scan play locates and plays the first 10 sec­onds of each track on a disc automatically. This
function continues on the disc until it is cancelled
or the mode is changed.

∗ The scan play is useful when y ou want to select a

desired track.

1. When you press the SCN button 5, scan play
starts.

2. Press the SCN button 5 again to cancel the
play. Current track continues to play.

Disc scan play

The disc scan play locates and plays the first 10
seconds of the first track on each disc in the cur­rently selected MD changer. This function con­tinues automatically until it is cancelled or the
mode is changed.

∗ The disc scan play is useful when you want to se-

lect a desired MD.

1. When you press the SCN button 5 for 1 sec­ond or longer, disc scan play starts.

2. To cancel disc scan play, press the SCN but­ton 5 again. Normal disc play continues on
the current track.

Repeat play

The repeat play continuously plays the current
track. This function continues automatically until
it is cancelled or the mode is changed.

1. When you press the RPT button 7, repeat
play starts. “RPT” lights in the display.

2. To cancel repeat play, press the RPT button
7 again. “RPT” goes off from the displa y and
the unit returns to normal play.

Disc repeat play

After all the tracks on the current disc hav e been
played, the disc repeat play automatically repla ys
the current disc over from the first track. This func­tion continues automatically until it is cancelled
or the mode is changed.

1. When you press the RPT button 7 for 1 sec­ond or longer, disc repeat pla y starts. “D-RPT”
lights in the display.

2. To cancel disc repeat play, press the RPT
button 7 again. “D-RPT” goes off from the
display and the unit returns to normal play
from the track being played.

26 VRX633R

MD Changer Operations

DVD Changer Operation

Random play

The random play selects and plays individual
tracks on the disc in no particular order. This func­tion continues automatically until it is cancelled
or the mode is changed.

1. When you press the RDM button 8, random
play starts. “RDM” lights in the display.

2. To cancel random play, press the RDM but­ton 8 again. “RDM” goes off from the displa y
and the unit returns to normal play.

Disc random play

The disc random play selects and plays individual
tracks or discs automatically in no particular or­der. This function continues automatically until it
is cancelled or the mode is changed.

1. When you press the RDM button 8 for 1 sec­ond or longer, random play starts. “D-RDM”
lights in the display.

2. To cancel random play, press the RDM but­ton 8 again. “D-RDM” goes off from the dis-
play and the unit returns to normal play from
the track being played.

DVD changer functions

When an optional DVD changer is connected
through the CeNET cable.

In this case, this unit only provides a part of the
DVD changer functions. As for other operations
not written in this manual, operates with a remote
control unit provided with your DVD changer. Refer
to the DVD changer owners’ manual for details.

This unit can control a total of 2 changers (CD
or MD or DVD).

Press the FNC button 1 and select the DVD
changer mode to start play.

∗ If “NO MAGAZINE” appears in the display, insert

the magazine into the DVD changer.
“DISC CHECKING” appears in the display while
the player loads (checks) the magazine.

∗ If “NO DISC” appears in the display, eject the

magazine and insert discs into each slot.
Then, reinsert the magazine back into the DVD
changer.

Pausing Play

1. Press and hold the PLAY/PAUSE button 3
to pause play. “PAUSE” appears in the dis-
play.

2. To resume play, press the PLAY/PAUSE but­ton 3 again.

Slow Play (DVD video & video CD)

1. Press and hold the PLAY/PAUSE button 3
then press and hold the d button 2. While
the button is being pressed, slow playback
continues at the speed 1/2 times the normal
playback.

∗ Slow playback cannot be performed in the

backward direction. In addition, audio cannot
be reproduced during slow playback.

English

Owner’s manual

Selecting a disc

1. Each of the DIRECT buttons # corresponds
to a disc loaded into the magazine.

2. Press the corresponding DIRECT buttons #
(1 to 6) to select the desired disc.

VRX633R 27

DVD Changer Operation
Switching to a next disc(Disc Up

function)

English

The disc up function plays from the first track
(track No1) of the next disc.

1. Press the BND button %.

2. Each time you press the BND button %, the

Owner’s manual

disc changes to the next disc.

DVD-Video Operation

Showing the DVD menu

1. Press the MENU button ∞ during playback.
The DVD menus appears.

The displayed contents may differ, depending
on the DVD software.

• Example showing menu display

Using the title menu

On DVD discs containing two or more titles, you
can select from the title menu for playback.

1. Press and hold the MENU button ∞ for 1
second or longer during playback.

The title menu screen appears.

• Press the MENU button ∞, and playback

resumes from the scene played back be­fore MENU button ∞ is pressed.

• Depending on the disc, the title menu can-

not be called.

2. Operate the JOYSTICK § upward, down-
ward, leftward or rightward to select an item.

• Depending on the disc, items cannot be

selected with the ten-key buttons on the
DVD changer remote control unit.

Skipping a chapter(searching)

About chapter

Chapter means a small segment to divide the
data area of the disc.

1. Press the right or left side of the SEARCH
button 2 during playback.

Chapters are skipped, as many as the times
the button is pressed, and playback starts.

• Press the d button 2, and playback
starts from the beginning of the next chap­ter.

• Press the a button 2, and playback
starts from the beginning of the current
chapter.

When this button is pressed again within
about 2 seconds, playback starts from the
beginning of the previous chapter.

• The unit may return to the menu screen
when the right or left side of the SEARCH
button 2 is pressed.

Fast forward and fast backward

1. Press and hold the right or left side of the
SEARCH button 2 during playback.

Press and hold the button, and the playback
speed becomes 4-time faster first and then
16-time faster 3 seconds later. Release the
button, and the normal speed is restored.

Notes:

• No audio is reproduced during fast forward

and fast rewind operation.

• The fast forward and fast rewind speed may

differ depending on the disc.

• The menu screen may appear when the button

is pressed.

Scan playback

Scans and plays back all chapters recorded on
the DVD-Video, the first 10 seconds for each.

1. Press the SCN button 5.

2. Press the SCN button 5 again and scan
playback is turned off.

Chapter repeat playback

This operation plays back chapters recorded on
the DVD-Video repeatedly.

1. Press the RPT button 7.

2. Press the RPT button 7 again and repeat
playback is turned off.

Title repeat playback

This operation plays back titles recorded on the
DVD-Video repeatedly.

1. Press and hold the RPT button 7 for 1 sec-
ond or longer.

2. Press the RPT button 7 again and repeat
playback is turned off.

28 VRX633R

DVD Changer Operation

Watching a video CD

Showing the V-CD menu (for V-CD
discs with PBC (Play Back Control))

This key does not function on some discs.

1. Press the MENU button ∞ during playback.
The V-CD menu appears.
The displayed contents may differ, depending

on the V-CD software.

• Example showing menu display

∗ To select the menu contents, press the 10 key

(DVD changer Remocon) according to the disc
contents menu.

Skipping a track (searching)

1. Press the right or left side of the SEARCH
button 2 during playback.

The track is skipped, and playback starts.

• Press the d button 2, and playback

starts from the beginning of the next track.

• Press the a button 2, and playback

starts from the beginning of the current
track.

When this button is pressed again within
about 2 seconds, playback starts from the
beginning of the previous track.

∗ This operation cannot be performed on some

discs with PBC

Fast forward and fast backward

1. Press and hold the right or left side of the
SEARCH button 2 during playback.

Press and hold the button, and the playback
speed becomes 4-time faster first and then

16-time faster 3 seconds later. Release the
button, and the normal speed is restored.

Notes:

• No audio is reproduced during fast forward

and fast rewind operation.

• The unit may return to the menu screen when

the button is pressed.

Scan playback

This operation plays back all tracks on the disc,
the first 10 seconds for each.

1. Press the SCN button 5.

2. Press the SCN button 5 again and scan
playback is turned off.

∗ If you are playing a disc with PBC and the

PBC function is engaged, this operation
cannot be performed.

Repeat playback

This operation plays back one track recorded on
the video CD repeatedly.

1. Press the RPT button 7.

2. Press the RPT button 7 again and repeat
playback is turned off.

∗ If you are playing a disc with PBC and the

PBC function is engaged, this operation
cannot be performed.

Random playback

This operation plays back all track on the disc in
no particular order.

1. Press the RDM button 8.

2. Press the RDM button 8 again and random
playback is turned off.

∗ If you are playing a disc with PBC and the

PBC function is engaged, this operation
cannot be performed.

Listening to a CD

Skipping a track (searching)

1. Press the right or left side of the SEARCH
button 2 during playback.

The tracks are skipped, as many as the
times the button is pressed, and playback
starts.

• Press the d button 2, and playback

starts from the beginning of the next track.

• Press the a button 2, and playback

starts from the beginning of the current
track.

When this button is pressed again within
about 2 seconds, playback starts from the
beginning of the previous track.

English

Owner’s manual

VRX633R 29

DVD Changer Operation
Fast forward and fast backward

1. Press and hold the right or left side of the

English

SEARCH button 2 during playback.
Press and hold the button, and the playback

speed becomes 4-time faster first and then
8-time faster 3 seconds later. Release the
button, and the normal speed is restored.

Owner’s manual

Scan playback

This operation plays back all tracks on the disc,
the first 10 seconds for each.

1. Press the SCN button 5.

2. Press the SCN button 5 again and scan
playback is turned off.

Track repeat playback

This operation plays back one track recorded on
the CD repeatedly.

1. Press the RPT button 7.

2. Press the RPT button 7 again and repeat
playback is turned off.

Disc repeat playback

This operation plays back all tracks on the disc
repeatedly (with music CDs only).

1. Press and hold the RPT button 7 for 1 sec­ond or longer.

2. Press the RPT button 7 again and repeat
playback is turned off.

Random playback

This operation plays back all track on the disc in
no particular order.

1. Press the RDM button 8.

2. Press the RDM button 8 again and random
playback is turned off.

Listening to an MP3

Skipping a track (searching)

1. Press the right or left side of the SEARCH
button 2 during playback.

The tracks are skipped, as many as the
times the button is pressed, and playback
starts.

• Press the d button 2, and playback

starts from the beginning of the next track.

• Press the a button 2, and playback
starts from the beginning of the current
track.

When this button is pressed again within
about 2 seconds, playback starts from the
beginning of the previous track.

∗ This operation skips the track over the folder.

Fast forward and fast backward

1. Press and hold the right or left side of the
SEARCH button 2 during playback.

Press and hold the button, and the playback
speed becomes 4-time faster first and then
8-time faster 3 seconds later. Release the
button, and the normal speed is restored.

Track scan playback

This operation plays back all files recorded on
the disc, about 10 seconds for each.

1. Press the SCN button 5.

2. Press the SCN button 5 again and scan
playback is turned off.

Folder scan playback

This operation plays back the first files of all
folders on the MP3 disc, about 10 seconds for
each.

1. Press and hold the SCN button 5 for 1 sec-
ond or longer.

2. Press the SCN button 5 again and scan
playback is turned off.

Track repeat playback

This operation plays back the file currently being
played back repeatedly.

1. Press the RPT button 7.

2. Press the RPT button 7 again and repeat
playback is turned off.

Folder repeat playback

This operation plays back files in an MP3 folder
repeatedly..

1. Press and hold the RPT button 7 for 1 sec-
ond or longer.

2. Press the RPT button 7 again and repeat
playback is turned off.

30 VRX633R

DVD Changer Operation

TV Operations

Track random playback

This operation plays the file in the folder in ran­dom order.

1. Press the RDM button 8.

2. Press the RDM button 8 again and random
playback is turned off.

Folder random playback

This operation plays back tracks recorded on
the disc in no particular order.

1. Press and hold the RDM button 8 for 1 sec-
ond or longer.

2. Press the RDM button 8 again and random
playback is turned off.

Selecting a file (track) on the
screen

1. Press the MENU button ∞ during playback.
Files (tracks) are displayed.

2. Operate the JOYSTICK § upward or down-
ward to select a file, and confirm it by press­ing ENT at the center of the JOYSTICK §.

∗ If no further operation is performed for 7 sec-

onds, the STANDARD screen is returned.

Notes:

• With the panel of the main unit closed, the remote

control unit supplied with the DVD changer cannot
be operated.

• While the panel of the main unit is closed, “DVD A/

C” is shown on the information panel.

• While the car is moving, the panel displays the name

of the current mode, time and “A UDIO PR OGRAM

ONLY”.

TV functions

When an optional TV tuner is connected through
the CeNET cable, this unit controls all TV tuner
functions. To watch TV requires a TV tuner.

WARNING

For your safety , the driver should not watch
the TV or operate the controls while driving.
Please note that watching and operating the
TV while driving are prohibited by law in
some countries.

Watching TV

Notes:

• For your safety, the VRX633R has a safety func­tion which turns off the picture when the car is
moving, so only the audio can be heard. The pic­ture can only be watched when the car is stopped
and the parking break is applied.

• After setting a country to be received, tune in to a
station. For setting the country, see the subsec­tion “Setting the TV area”.

1. Press the FNC button 1 and select the TV

mode.

2. Press the BND button % to select the desired

TV band (TV1 or TV2). Each time the button
is pressed, the input selection toggles be­tween TV1 and TV2.

3. Press the right or left side of the SEARCH

button 2 to tune in the desired TV station.

Watching a video

The TV tuner has a VTR input terminal to which
1 external device can be connected. Connect a
12V video cassette player (VCP) or video cas­sette recorder (VCR) to the TV tuner input termi­nal.

1. Press the PTY/RDM button 8 and select the

VTR.

2. To return to the TV broadcast, press the PTY/

RDM button 8 again.

English

Owner’s manual

Tuning

There are 3 types of tuning mode available , seek
tuning, manual tuning and preset tuning.

VRX633R 31

TV Operations
Seek tuning

1. Press the BND button % and select the de-

English

sired TV band (TV1 or TV2).

∗ If “MANU” is lit in the display (or when the panel

is closed, if the indicator “SRCH” is not lit), press
and hold the BND button % for 1 second or

Owner’s manual

longer. “MANU” in the display goes off (or when
the panel is closed, the indicator “SRCH” lights)
and seek tuning is now available.

2. Press the right or left side of the SEARCH
button 2 to automatically seek a station.
Press the right side of the SEARCH button
2 to automatically tune up the frequency band
to the next availab le TV station; press the left
side to automatically tune down.

Manual tuning

There are 2 ways av ailable: Quick tuning and step
tuning. When you are in the step tuning mode,
the frequency changes one step at a time. In quic k
tuning mode, you can quickly tune the desired
frequency.

1. Press the BND button % and select the de­sired band. (TV1 or TV2)

∗ If “MANU” is not lit in the display (or when the

panel is closed, if the indicator “SRCH” is lit),
press and hold the BND button % for 1 sec­ond or longer. “MANU” appears in the display
(or when the panel is closed, the indicator
“SRCH” goes off) and manual tuning is now
available.

2. Tune into a station.

● Quick tuning:

Press and hold the right or left side of the
SEARCH button 2 for 1 second or longer to tune
in a station.

● Step tuning:

Press the right or left side of the SEARCH but­ton 2 to manually tune in a station.

Note:

• Manual tuning is cancelled if you do not operate

the unit for 7 seconds longer.

Recalling a preset station

A total of 12 TV stations can be stored (6-TV1
and 6-TV2). This allo ws y ou to select y our favor­ite TV stations and store them in memory for later
recall.

1. Press the BND button % and select the de­sired TV band. (TV1 or TV2)

2. To recall a stored TV station, press the de­sired PRESET button # to select that sta­tion.

32 VRX633R

∗ Press and hold one of the PRESET buttons #

for 2 seconds or longer to store the current sta­tion into the preset memory.

Manual memory

1. Select the desired station with seek tuning,
manual tuning or preset tuning.

2. Press and hold one of the PRESET buttons
# for 2 seconds or longer to store the cur­rent station to that preset memory.

Auto store

Auto store selects 6 TV stations automatically and
stores each one into a preset memory.

If there are not 6 stations with good reception,
stations previously stored in memory remain and
only the strong stations are stored into memory.

1. Press the BND button % and select the de­sired TV band. (TV1 or TV2)

2. Press and hold the AS/PS button 5 for 2 sec­onds or longer. The stations with good recep­tion are automatically stored to the PRESET
buttons # .

Preset scan

Preset scan allows the user to view each preset
position before it automatically advances to the
next preset. This function is useful for searching
for desired TV station in memory.

1. Press the AS/PS button 5.

2. When the desired channel is received, press
the AS/PS button 5 again.

Switching the VTR system between
NTSC and PAL

∗ This function is enabled only when the panel is

open.

Switch to the VTR or DVD changer mode you
use.

1. Press the ADJ button £ to switch to the ad­justment selection display.

2. Operate the JOYSTICK § upward or down­ward to move the cursor to “VTR N/P”.

3. Operate the JOYSTICK § rightward or left­ward to move the cursor to select “NTSC” or
“PAL”.

Press the ENT at the center of the JOYSTICK

4.

§ to set the selected VTR or DVD changer
mode.

TV Operations

Setting the TV area

∗ This function is enabled only when the panel is

open.

When you select the TV area (TV reception area),
the TV tuner area setting changes.

1. Press the ADJ button £ to switch to the ad­justment selection display.

2. Operate the JOYSTICK § upward or down­ward to move the cursor to “TV AREA” and
press the ENT at the center of the JOYSTICK

§ to display a list of country name.

3. Operate the JOYSTICK § upward or down­ward to select a desired country. Then press
the ENT at the center of the JOYSTICK § to
set it.

4. When the setting is finished, operate the JOY­STICK § rightward or leftward to move the
cursor “MENU”. Then press the ENT at the
center of the JOYSTICK § to return to the
adjustment selection display.

Setting the TV diver

∗ This function is enabled only when the panel is

open.

∗ Normally use the TV diver with the “ON” position.

You can change the reception setting for the TV
antenna connected to the TV tuner.

1. Press the ADJ button £ to switch to the ad­justment selection display.

2. Operate the JOYSTICK § upward or down­ward to select “TV DIVER”.

3. Operate the JOYSTICK § rightward or left­ward to select “ON” or “OFF” and press the
ENT at the center of the JOYSTICK § to set
the selected reception setting.

● ON:
Sets reception emphasizing the visual.

● OFF:
Sets the diver setting to OFF.

4. Press the ADJ button £ to return to the pre­vious mode.

Adjusting the brightness and tone
of color

Notes:

• This operation is available only when the car is
stopped and the parking brake is applied.

• This function is not available when the display is
stored.

• The HUE setting can be adjusted only when the
NTSC mode is selected.

1. Press the BND button % to switch to the ad-

justment selection display.

2. Operate the JOYSTICK § upward or down-

ward to select the option “MONI ADJ” (by mov-
ing the cursor).

3. Press the ENT at the center of the JOYSTICK

§.

4. Operate the JOYSTICK § rightward or left-

ward to select “BRIGHT”,“COLOR” or “HUE”
(by moving the cursor).

● “BRIGHT“:
Adjust the brightness of the display.

● “COLOR“:
Adjusts the color saturation.

● “HUE“:
Adjusts the tone of color (red is emphasized

or green is emphasized.)

5. Operate the JOYSTICK § upward or down-

ward to adjust a level.

6. When the adjustment is made, operate the

JOYSTICK § rightward or leftward to move
the cursor to “MENU”. Then press the ENT at
the center of the JOYSTICK § to return to
the adjustment selection display.

English

Owner’s manual

VRX633R 33

TV Operations
Changing over TV display size

∗ This function is available only when the panel is

English

open.

1. Press the DISP button @ for 1 second or
longer to display playback information such
as screen size.

2. Each time you press the DISP button @ for 1

Owner’s manual

second or longer to change over the TV dis­play size, the TV display size changes in the
following order:

“NORMAL” ➜ “WIDE” ➜ “F . WIDE” ➜ “CIN-
EMA” ➜ “NORMAL”

● “NORMAL”: (normal display)
There is a black area at both right and left

ends of a display . In case of normal TV broad­casting (4:3), the image can be shown with­out being cut or deformed.

● “WIDE”: (wide mode)
The image at right and left ends in a display

elongates horizontally.

● “F . WIDE”: (full wide mode)
The whole image elongates horizontally.

● “CINEMA”: (cinema mode)
The image at both top and bottom in a dis-

play disappears.

Notes:

• When a normal 4:3 size image, not being a wide

one, is viewed by displaying it fully on a wide TV
display in a wide mode or a full-wide mode, a part
of the peripheral image will be lacking or deformed.
In deference to the intention of producer, an origi­nal image can be viewed in a normal mode.

• During superimposed display, it becomes a full-

wide mode.

• In the DVD changer, when the monitor display size

is set in the CINEMA mode, a part of playback dis­play such as play time may not be shown depend­ing on the play disc.

In this case, change the monitor display size to a
mode other than the CINEMA mode.

Digital Radio/DAB
Operations

About DAB programmes

The Digital Audio Broadcasting (hereinafter re­ferred to as “DAB”) system transmits several
programmes on one frequency simultaneously,
by compressing audio signals.

∗ The group of programmes, which is transmitted

on a single frequency is called “ensemble”.

∗ Some DAB stations have several ensembles and

broadcast diversified programmes.

∗ The number of programmes and the contents

which an ensemble provides depend on the broad­cast stations and times. Since DAB programmes
are broadcast on several diff erent frequencies, the
same programme can be enjoyed over large ar­eas.

●

A DAB station has multiple programmes on one

frequency.

● When you turn the unit on and select DAB

mode, the programme that starts is the one that
was selected before when the power w as turned
off. If this programme is not available, another
programme is selected automatically.

● Programmes have their own names, just like
PS on RDS.

Note:

• For sophisticated audio quality , the receiver needs
to tune on a DAB Ensemble. While the receiver is
being tuned in to the DAB Ensemble, the Audio
outputs are muted. The tuning time is not fixed.

Listening to the DAB

1. Press the FNC button 1 and select the DAB

mode.

2. Press the right or left side of the SEARCH

button 2 to tune in the desired station.

Tuning

There are 3 types of tuning mode available, seek
tuning, manual tuning and preset tuning.

34 VRX633R

Seek tuning

1. Press the FNC button 1 to select DAB mode.

2. Press and hold right or left for 1 second or

longer using the SEARCH button 2.

∗ The unit stops the seek tuning when it cannot

find a DAB station. The display returns to the
previous mode.

Digital Radio/DAB Operations

Manual tuning

1. Press the FNC button 1 to select DAB mode.

2. Press and hold the BND button % for 1 sec­ond or longer.

3. Select right or left to select a station using
the SEARCH button 2.

∗ The unit stops the seek tuning when it cannot

find a DAB station. The display returns to the
previous mode.

Note:

• Manual tuning is cancelled if you do not operate

the unit for 7 seconds or longer.

Recalling a preset station

This unit has another preset memory function for
DAB stations. Up to 18 stations (6 for each
[MEM1], [MEM2] and [MEM3]) can be preset in
the PRESET buttons #.

1. Press the FNC button 1 to select DAB mode.

2. Press the BND button % to select anyone of
[MEM1], [MEM2] and [MEM3]. Each time you
press the BND button %, the display changes
in the following order:

[MEM1] ➜ [MEM2] ➜ [MEM3] ➜ [MEM1]...

3. Press the corresponding the PRESET button
# to recall the stored station.

Note:

• Press and hold one of the PRESET buttons

2 seconds or longer to store that station into pre­set memory.

#

for

Manual memory

1. Press the FNC button 1 to select DAB mode.

2. Press the BND button % to select anyone of
[MEM1], [MEM2] and [MEM3].

3. Select the desired station using seek tuning,
manual tuning or preset tuning, using the
SEARCH button 2.

4. Press and hold one of the PRESET buttons
# for 2 seconds or longer to store the cur­rent station into preset memory.

Switching programmes

1. Press the FNC button 1 to receive a DAB
station.

2. Select right or left to switch programmes in a
DAB station using the SEARCH button 2.

Note:

• Programmes may not be switched depending on

DAB station or broadcasting time.

Programme scan

This function scans through each receivable
programme in a DAB station being received for
10 seconds sequentially . This is useful when you
want to search for a desired programme.

1. Press the FNC button 1 to receive a DAB
station.

2. Press the PS/AS button 5. The unit starts
scanning each programme for 10 seconds se­quentially.

3. When a programme which you want to listen
is tuned in, press the PS/AS button 5 once
again.

AF function

The AF function switches to a different frequency
on the same network in order to maintain opti­mum reception.

∗ The factory default setting is “ON”.

● Switching OFF the AF function

Press the AF button 7, the “AF” indicator goes
off.

● Switching ON the AF function

Press the AF button 7, the “AF” indicator lights.

∗ If the reception of the current broadcast station

deteriorates, “SEARCH” lights in the display and
the radio searches for the same programme on
another frequency.

∗ When AF is ON, if the reception of an RDS broad-

cast deteriorates, the AF indicator flickers.

● AF function between RDS and DAB

Refer to the item of RDS tuner.

English

Owner’s manual

TA (Traffic Announcement)

In TA standby mode, when a traffic announcement
broadcast starts, the traffic announcement broad­cast is received as top priority regardless of the
function mode so you can listen to it. Traffic
programme (TP) automatic tuning is also possible.

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

VRX633R 35

Digital Radio/DAB Operations

∗ This function can only be used when “TP” is lit in

the display. When “TP” is lit, this means that the

English

RDS broadcast station being received has traffic
announcement programmes.

● Setting TA standby mode

If you press the TA button 0 when only “TP” is lit
in the display, “TP” and “TA” light in the display

Owner’s manual

and the unit is set into TA standby mode until a
traffic announcement is broadcast. When a traf­fic announcement broadcast starts, “TRA INFO”
appears in the display. If y ou press the TA button
0 while a traffic announcement broadcast is be­ing received, the traffic announcement broadcast
reception is cancelled and the unit goes into TA
standby mode.

● Cancelling TA standby mode

With “TP” and “TA” lit in the display, press the TA
button 0. The “TA” indicator in the display goes
off and TA standby mode is cancelled.

∗ If “TP” is not lit, pressing the TA button 0 searches

for a TP station.

● Searching for a TP station

When “TP” is not lit, if you press the TA button
0, the “TA” in the display lights and the unit au-
tomatically searches a TP station.

Information standby mode

When the INFORMATION programme selected
in the “INFO SEL” displa y of the adjustment mode
starts, the unit switches to the selected INFOR­MATION programme automatically.

∗ For details on “Information select”, refer to the

procedure below.

1. Press the T A button 0, for 1 second or longer,
“INFO” lights in the display and the unit is set
to INFORMA TION standby mode until INFOR­MATION starts.

* If you press the TA button 0 while the INFOR-

MATION programme is being broadcast, the
programme broadcast is cancelled and the unit
enters INFORMATION standby mode.

2. To cancel INFORMATION standby mode,
press the TA button 0 again for 1 second or
longer.

Note:

• Only in case of DAB connection, this can be oper-

ated even in the RDS tuner mode.

Information select

This function allows selecting a type of INFOR­MATION on INFORMATION interrupt mode. You
can set any of the 6 types of INFO below:

TRAFFIC, WARNING, NEWS INFO , WEATHER,
EVENTS, SP. EVENT

∗ This function is enabled only when the panel is

open.

1. Press the ADJ button £.

2. Operate the JOYSTICK § upward or down­ward to select “INFO SEL”. Press the ENT at
the center of the JOYSTICK § to change into
the INFO selecting display.

3. Operate the JOYSTICK § upward or down­ward to select a desired INFORMATION. “ON”
and “OFF” items are displayed to the right.

4. Operate the JOYSTICK § rightward or left­ward to select “ON” and press the ENT at the
center of the JOYSTICK § to set it.

5. When the setting is finished, operate the JOY­STICK § rightward or leftward to move the
cursor to the “MENU”. Then press the ENT at
the center of the JOYSTICK § to return to
the adjustment display.

PTY

This function enables you to listen to the selected
programmes type, irrespective of the function
mode.

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

∗ DAB and RDS have the same PTY.
∗ You can select one PTY from DAB or RDS.
∗ PTY broadcast are not yet available in all coun-

tries.

∗ In INFO standby mode, INFO stations have prior-

ity over PTY stations.

∗ In T A standb y mode, TP stations hav e priority over

PTY broadcasting station.

Selecting PTY

1. When you press the PTY button 8, the unit
goes into PTY select mode.

2. Press any one of the PRESET buttons # to
select the desired PTY . Alternatively, when the

panel is closed, operate the SEARCH button
2 upward or downward to select a desired
PTY.

36 VRX633R

Digital Radio/DAB Operations

∗ Below are the factory default settings stored

for PRESET buttons #.

Preset
number

3.

The PTY select mode is cancelled automatically

ENGLISH Contents

1 NEWS News
2 INFO Information
3 POP M Pop music
4 SPORT Sports
5 CLASSICS Classics
6 M,O,R,M

PTY item

Middle of the road music

7 seconds after a PTY is selected.

● Cancelling PTY standby mode

Press the PTY button 8 for 1 second or longer
to turn off “PTY” in the display and cancel the
PTY standby mode.

PTY seek

1. Press the PTY button 8, the PTY select mode
is turned on.

2. Select a desired PTY.

3. Press the right or left side of SEARCH button

2. If you press the right side, the unit seeks a
PTY broadcast moving up the frequencies; if
you press the left side, it seeks moving down
the frequencies.

∗ If no station with the selected PTY broadcast

can be received, the unit returns to PTY select
mode.

PTY preset memory

1. Press the PTY button 8, the PTY select mode
is turned on.

2. Select a desired PTY.

3. If you press and hold any one of the PRESET
buttons # for 2 seconds or longer, the se­lected PTY is stored into that preset channel
memory.

The following 29 types of PTY can be selected.

PTY item

ENGLISH Contents
NEWS News
AFFAIRS Today’s events
INFO Information
SPORT Sports
EDUCATE Education
DRAMA Drama
CULTURE Culture
SCIENCE Science
VARIED Variety
POP M Pop music
ROCK M Rock music
M,O,R, M Middle of the road music
LIGHT M Light music
CLASSICS Classics
OTHER M Other music
WEATHER Weather
FINANCE Finance
CHILDREN For children
SOCIAL A Social affairs
RELIGION Religion
PHONE IN Phone in
TRAVEL Travel
HOBBIES Hobbies
JAZZ Jazz
COUNTRY Countr y
NATIONAL National
OLDIES Oldies
FOLK M Folk music
DOCUMENT Documentaries

Operating the PTY SELECT display
when the panel is open

1. Press the PTY button 8 to select the PTY
SELECT display.

2. In the PTY SELECT display, PTY is selected
and PTY memory can be adjusted.

Operate the JOYSTICK § rightward or left-
ward to select “PTY ITEM” or “PRESET” (by
moving the cursor).

English

Owner’s manual

VRX633R 37

Digital Radio/DAB Operations

3. When “PTY ITEM” is selected, PTY selection
is carried out. Operate the JOYSTICK § up-

English

ward or downward to select a desired PTY.
Press the ENT at the center of the JOYSTICK

§ to set the selected PTY ITEM.
(The PTY ITEM thus set is listed at the lower

right of the display.)

Owner’s manual

4. When “PRESET” is selected, PTY preset
memory can be called for and stored.

5. Operate the JOYSTICK § upward or down­ward to select Preset Nos.1 to 6.

6. Press the ENT at the center of the JOYSTICK

§ to call for the preset PTY ITEM.
Press the ENT at the center of the JOYSTICK

§ for 2 seconds to store the PTY ITEM cur­rently selected to any Preset No. selected
(listed at the lower right).

7. After adjustment is finished, operate the JOY­STICK § rightward or leftward to move the
cursor to “MENU”, and press the ENT at the
center of the JOYSTICK § to return to STAN­DARD display.

Emergency broadcast

If an emergency broadcast is received, all the
function mode operations are stopped. “ALARM”
appears in the display and the emergency broad­cast can be heard.

∗ RDS interrupt does not function during AM radio

reception or in TV mode.

● Cancelling an emergency broadcast

If you press the AF Button 7, emergency broad­cast reception is cancelled.

Volume setting of TA, emergency
broadcast (ALARM), information
and PTY

The volume for TA, ALARM, information and PTY
interrupts can be set during TA, ALARM or PTY
interrupts.

∗ The factory default setting is “15”.

During a TA, ALARM or PTY interrupt, operate
the VOLUME button 2 upward or downward to
set the volume to the desired level (00 to 33).

∗ When the TA, ALARM, information or PTY inter-

rupt ends, the volume returns to the level it had
before the interrupt.

Dynamic Label Function

A dynamic label (hereinafter referred to as “DLS”)
is a text data associated with each DAB service.
This set can display DLS up to 128 characters in
a display.

∗ This function is enabled only when the panel is

open.

DLS display mode

Press the TITLE button ¢ f or 1 second or longer
to place in the DLS display mode. To cancel the
DLS mode and return to the previous display,
press the TITLE button ¢ again. If there is a DLS
data in the reception service, DLS text is dis­played in the text displaying area.

Δ appears at the head of a whole text

A mark “
sentence (page), and a RETURN mark is indi­cated at the end point.

DLS memory

Up to six DLS, currently being received, can be
stored. By pressing the PRESET button # 1 to
6 for 2 seconds or longer, the DLS page currently
being displayed is stored. Operating the JOY­STICK § rightward or leftward moves a cursor
to either P1 through P6, and pressing the ENT
at the center of the JOYSTICK § for 2 seconds
stores it.

DLS Calling

T o call the DLS stored in the DLS memory, press
the PRESET button #. The DLS in the DLS
memory is displayed by 16 characters (2 lines)
at the intervals of 5 seconds (automatic calling).
To display at shorter intervals, press the PRE­SET button # while waiting for successive DLS
character string to be displayed, the following
DLS character string is displayed (manual call­ing).

With the DLS memory being called, move the cur­sor to “UPDATE” and press the ENT at the cen-
ter of the JOYSTICK §. The display is changed
into the DLS display being received.

38 VRX633R

NAVI Operations

NAVI functions

When Clarion Navigation (hereinafter referred to
as NAVI) is connected, the following functions
are enabled:

• Showing the NAVI display;

• NAVI operation using the unit key;

• NAVI guidance sound interruption;

• Remote operation of navigation functions by the

remote controller through the optic sensor.

∗ While interrupting the NAVI audio signal, an audio

sound level is decreased and the NAVI guidance
sound output is mixed.

∗ NAVI guidance sound interruption is possible ev en

when the panel is closed, however in this case,
only the Audio Display is showed.

Setting Clarion NAVI as external
input equipment

Be sure to perform this setting after connecting
Clarion NAVI.

1. When the panel is open, press the ADJ but­ton £ to show the adjustment selection dis­play.

2. Operate the JOYSTICK § upward or down­ward to select “INPUT”. A menu bar is sho wn
to the right to select the following items:

● “NAVI”: Setting when Clarion NAVI is con-
nected;

● “CCD”: Setting when Clarion CCD cam-
era is connected to this unit;

● “RGB”: Setting when a RGB image of other
company’s equipment is input;

● “COM”: Setting when a composite image
of other company’s equipment is input.

∗ These settings cannot be selected when the

DVD changer is connected.

3. Operate the JOYSTICK § rightward or left­ward to select “NAVI”. Press ENT at the cen-
ter of the JOYSTICK § to set connection of
Clarion NAVI.

terruption setting (NAVI operation) is turned to the
NAVI/NA VI mode on this unit, the audio sound le vel
is decreased.

When the NAVI display is shown with the panel
open, the following buttons are assigned to NA VI
control functions, which correspond to the same
functions as that of the same buttons on the NA VI
remote controller.

JOYSTICK §
MENU button ∞
VIEW button ¢
IN button £
OUT button ™
SHORT button &
RTN button *
RPT/RPT+ button (
ROUTE button )
ICON button ¡

Note:

• These buttons become normal audio operating but­tons when changing into the AV display using the
NVG/AV button

!

.

English

Owner’s manual

NAVI operation

Changeover between NAVI display and Audio/
Visual (hereinafter referred to as AV) displays.
When the panel is open, the NVG/AV button !
has the same function as the NVG/AV button !
on the NAVI remote controller to set a screen
mode and a NAVI interruption.

Operate this button to change ov er between NA VI
and AV displays.

∗ When the NAVI Display/NAVI guidance sound in-

VRX633R 39

CCD Camera

Monitoring the CCD camera

The CCD camera can be connected to this unit.

English

For the power supply of the camera, mount the
power box sold separately (CCA-188).

Notes:

• This function is not available when the display is
stored.

Owner’s manual

• When the TV tuner and CCD camera are to be
connected to this unit, connect the CCD camera
to the CCD input terminal on this unit.

• Refer to the subsection “Sample System 3” in
“9. SAMPLE SYSTEMS” section.

Setting CCD as an external input
equipment

Be sure to perform this setting after connecting
the CCD.

1. When the panel is open, press the ADJ but-

ton £ to show the adjustment selection dis­play.

2. Operate the JOYSTICK § upward or down-

ward to select “INPUT”. A menu bar is sho wn
to the right to select the following items:

● “NAVI”: Setting when Clarion NAVI is con-
nected;

● “CCD”: Setting when Clarion CCD camera
is connected to this unit;

● “RGB”: Setting when a RGB image of other
company’s equipment is input;

● “COM”: Setting when a composite image
of other company’s equipment is input.

3. Operate the JOYSTICK § rightward or left-

ward to select “CCD”. Press the ENT at the

Connecting other
company’s image equipment

center of the JOYSTICK § to set connection
of the CCD.

RGB type or composite type images from other
company’s equipment can be displayed on this
unit

Be sure to perform this setting after connecting
the RGB type or composite type image equip­ment to the RGB terminal.

1. When the panel is open, press the ADJ but­ton £ to show the adjustment selection dis­play.

2. Operate the JOYSTICK § upward or down­ward to select “INPUT”. A menu bar is sho wn
to the right to select the following items:

● “NAVI”: Setting when Clarion NAVI is con-
nected;

● “CCD”: Setting when Clarion CCD camera
is connected to this unit;

● “RGB”: Setting when a RGB image of other
company’s equipment is input;

● “COM”: Setting when a composite image
of other company’s equipment is input.

3. Operate the JOYSTICK § rightward or left­ward to select “RGB” or “COM”.

● T o connect an RGB equipment:
If the image equipment to connect is RGB

type, select “RGB”. Equipment capable to be
connected should have positive polarity sig­nal of 0.7 V p-p for RGB, and negative polar­ity signal of 0.3 V p-p f or synchronous signal.

To connect a composite type equipment:

●
If the image equipment to connect is a “Com-

posite” type, select “COM”.

∗ These settings cannot be selected when the

DVD changer is connected.

4. Then, press the ENT at the center of the JOY­STICK § to set the connection.

40 VRX633R

Display changeover

When the panel is open, it is possible to change
over between A V display and e xternal equipment
display using the NVG/AV button !.

∗ In the external equipment display, those buttons

in the panel (JOYSTICK §, MENU ∞, VIEW

¢, IN £, OUT ™) are disabled.

Other Functions

Always turning on the button
illumination on the operation panel

Note:

• The follo wing operation is enabled when the panel
is open.

The button illumination on the operation panel
when the display is turned upward, can be
switched between “ON” and “OFF”.

● “ON”: Button illumination on the operation

panel turns on for 5 seconds;

● “OFF” : Button illumination is alwa ys on when

the power is turned on;

When the panel is open, press the ADJ button

1.

£ to show the adjustment selection display.

2. Operate the JOYSTICK § upward or down-

ward and select “AUTO ILL” to show “ON” and
“OFF” in the menu bar.

3. Operate the JOYSTICK § rightward or left-

ward to select either position to be set and
press the ENT at the center of the JOYSTICK

§ for setting.

4. Press the ADJ button £ to return to the pre-

vious mode.

∗

To set “ON” again, s witch “OFF” to “ON” manually.

Entering titles

Titles up to 10 characters long can be stored in
memory and displayed for TV stations and CD
changer. The numbers of titles that can be en­tered for each mode are as follows.

Mode Number of titles

TV mode 15 titles

CD changer mode Number of titles

DCZ628 connected 100 titles
CDC655z connected 60 titles
CDC655Tz connected 100 titles
CDC1255z connected 50 titles

∗ You cannot enter titles with the unit in Seek, Pre-

set Scan, Auto store (TV), Scan, Repeat or Ran­dom (CD changer, MD changer) mode. Cancel
each of those operations before entering titles.

1. Press the FNC button 1 to select the mode

you want to enter a title (CD changer or TV).

2. Select and play a CD in the CD changer or

tune in to a TV station for which you want to
enter the title.

3. If you press and hold the TITLE button ¢ for

1 second or longer, the display switches to
the title input mode display.

4. Operate the JOYSTICK § upward or down­ward, rightward or leftward and move the cur­sor to the character to be entered. Press the
ENT at the center of the JOYSTICK §.

∗ When the cursor is at the lower/upper limit of

the display, operate the JOYSTICK § upward
or downward, the character string of the follow­ing line appears.

“-->” : Space
“<--” : Backspace
“--I--” : Centering

5. Repeat the step 4 to enter the complete title.
Press and hold the ENT at the center of the

6.
JOYSTICK § for 2 seconds or longer to store
the title into memory and cancel title input mode.

Title list play

You can display a list of titles, then select the disc
or broadcast station to listen to from that list.

∗ Y ou can not display a title list with the unit in Seek,

Preset Scan, Auto store (T uner , TV or D AB), Scan,
Repeat or Random (CD changer or MD changer)
mode. Cancel those operation modes before to
display a title list.

1. With the unit in radio, CD/MD changer, TV or
DAB mode, press the TITLE button ¢. A title
list is displayed. The following functions can
be carried out in a title list display.

● TUNER: PS name (for RDS) of frequency
stored in the presets 1 to 6 or frequency is
displayed;

● DAB: Service label of a channel stored in
the presets 1 to 6 is displayed. When there is
not any service label, “---------” is displayed.

● CD/MD changer: DISC titles f or discs 1 to
6 are displayed (By changing over a display
page in case of 12-CD changer, disc 7 to 12
can be displayed). When there is not any disc
in a changer, ”---------” is displayed.

● TV: A title of a channel stored in the pre-

sets 1 to 6 or a channel number is displayed.

2. Operate the JOYSTICK § upward or down­ward to select one of the items 1 to 6. Press
ENT at the center of the JOYSTICK § to re­produce the selected broadcast station or
disc.

∗ In case of 12-CD changer, move the cursor to

disc 6 and then operate the JOYSTICK §
downward to change over to a list display of
discs 7 to 12.

3. Press the TITLE button ¢ again to return to
the STANDARD display.

English

Owner’s manual

VRX633R 41

Other Functions
Cellular phone interrupt setting

If you connect this unit and your cellular phone

English

with a separately sold cable, you can listen to
your telephone calls on your car speakers.

∗ The factory default setting is “OFF”.

1. Press the ADJ button £ to switch to the ad­justment selection display.

Owner’s manual

2. Operate the JOYSTICK § upward or down­ward to select out of “TEL SW”, “ON”, “OFF”,
and “MUTE”, which are displayed in the menu
bar.

● OFF:

This unit continues normal operation even
when the cellular phone is used.

Note:

• When the setting is OFF, disconnect the cellu-

lar phone from the cable or turn off the power
of the cellular phone.

● ON:

You can listen to your telephone calls from
the speakers connected to this unit.

∗ When listening to your calls on your car speak-

ers, you can adjust the volume by operating
the VOLUME button 2.

● MUTE:

The sound from this unit is muted during tele­phone calls.

3. Operate the JOYSTICK § rightward or left­ward to select a desired mode, and then press
the ENT at center of the JOYSTICK § to set
it.

4. Press the ADJ button £ again to return to
the STANDARD display.

3. Operate the JOYSTICK § rightward or left­ward to select a desired mode, and then press
the ENT at the center of the JOYSTICK § to
set it.

4. Press the ADJ button £ again to return to
the STANDARD display.

Setting the car speaker output for
the cellular phone

∗ The factory default setting is “RIGHT”.
∗ To output the telephone calls , set the cellular phone

interrupt to ON.

1. Press the ADJ button £ to switch to the ad­justment selection display.

2. Operate the JOYSTICK § upward or down­ward to select “TEL SP”. “LEFT” and “RIGHT”
are displayed in the menu bar.

● LEFT:

Telephone calls can be heard on the left
speaker connected to this unit.

● RIGHT:

Telephone calls can be heard on the right
speaker connected to this unit.

42 VRX633R

9. IN CASE OF DIFFICULTY

Problem

Power does not
turn on.
(No sound is
produced.)

Nothing happens
when buttons are
pressed.

Display is not
accurate.

GENERAL

The remote
controller does
not work.

The image is not
displayed.

The display is
dark.

TV

The color of the
display is light or
a shade of color
is not good.

When the VTR is
connected, the
image is
disturbed.

Cause Measure

Fuse is blown.

Incorrect wiring.
The microprocessor has

malfunctioned due to noise,
etc.

DCP or main unit connectors
are dirty.

The display is not open.

Direct rays of the sun fall on
the light-receptive part of the
remote controller.

The batteries of the remote
controller unit are dead or
there is no battery in the
remote controller unit.

The parking brake is not
pulled.

The brightness control is too
low.

The operating condition is
not good.

The headlight of the vehicle
is lit.

The color is not adjusted
adequately.

Improper NTSC/PAL setting

Replace with a fuse of the same amperage. If the
fuse blows again, consult your store of purchase.

Consult your store of purchase.
Turn off the power, then press the RELEASE le ver

6 and remove the DCP.
Press the RESET button for about 2 seconds with
a thin rod.

Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.

The remote controller does not work unless the
display is open.

When direct rays of the sun fall on the light­receptive part of the remote controller, it may not
work.

Check the batteries of the remote controller unit.

Check that the parking brake is applied.

Adjust the brightness properly.

The temperature inside the vehicle may be 0˚C or
less. Set to an appropriate temperature (25˚C or
so) and check it again.

The display is made dark at night to prevent the
glare (When the headlight of the vehicle is lit in the
daytime, the display gets dark).

Check that COL and HUE are adjusted properly.

Set the NTSC/PAL properly according to the VTR.

English

Owner’s manual

VRX633R 43

English

Owner’s manual

TV

Problem

When the TV
tuner is con­nected, the image
gets unclear.

The TV tuner has
a double or triple
image.

The TV tuner has
spots or stripes in
the image.

There are red,
green, and blue
points in the
display.

Cause Measure

Bad receiving condition

Bad receiving condition

Presence of jamming

A radio wave ma y not reach sufficiently due to
obstruction of mountains or buildings. Chec k it again
at a place where a radio wave can be received
properly.

It may be under the influence of radio wave reflected
by mountains or buildings. Check it again after
changing place or direction.

It may be under the influence from automobiles,
streetcar, power cab le , neon sign, and so f orth.
Check it again after changing place.

This is not a failure, but a phenomenon peculiar to a
liquid crystal panel (The LCD panel is produced
according to technology with very high precision.
Note that, though there are effective pixels of 99.99%
or more, pixel missing or normally lit pixels account
for 0.01%).

44 VRX633R

10. ERROR DISPLAYS

If an error occurs, one of the following displa ys is displa y ed. Take the measures described to eliminate
the problem.

Error Display

ERROR 2

ERROR 3

CD

ERROR 6

ERROR 2

ERROR 3

ERROR 6

CD CHANGER

ERROR H

ERROR 2

ERROR 3

ERROR 6

MD CHANGER

A CD is caught inside the CD deck and is
not ejected.

A CD cannot be played due to scratches,
etc.

A CD is loaded upside-down inside the CD
deck and does not play.

A CD inside the CD changer is not loaded.

A CD inside the CD changer cannot be
played due to scratches, etc.

A CD inside the CD changer cannot be
played because it is loaded upside-down.

Displayed when the temperature in the MD
changer is too high and playback has
been stopped automatically.

An MD inside the MD changer is not
loaded.

An MD inside the MD changer cannot be
played due to scratches, etc.

An MD inside the MD changer cannot be
played because it is loaded upside-down.

Displayed when a non-recorded MD is
loaded in the MD changer.

Cause

Measure

This is a failure of CD deck’s mechanism
and consult your store of purchase.

Replace with a non-scratched,
non-warped-disc.

Eject the disc then reload it properly.

This is a failure of CD changer’s mecha-
nism and consult your store of purchase.

Replace with a non-scratched, non-warped­disc.

Eject the disc then reload it properly.

Lower the surrounding temperature and
wait for a while to cool off MD changer.

This is a failure of MD changer’s mecha-
nism and consult your store of purchase.

Replace with a non-scratched, non-warped­disc.

Eject the disc then reload it properly.

Load a pre-recorded MD in the MD
changer.

English

Owner’s manual

If an error display other than the ones described above appears, press the RESET button. If the prob­lem persists, turn off the power and consult your store of purchase.

For the DVD changer, refer to the Owner’s Manual provided with the DVD changer.

VRX633R 45

11. SPECIFICATIONS

English

FM (UKW) Tuner

Frequency range:

87.5 MHz to 108 MHz (0.05 MHz steps)

Owner’s manual

AM T uner

Frequency range:

MW: 531 kHz to 1602 kHz (9 kHz steps)
LW: 153 kHz to 279 kHz (3 kHz steps)

Audio Amplifier

Rated power output:

17 W × 4 (20 Hz to 20 kHz, 1%, 4 Ω)

Maximum power output: 46 W × 4
Speaker impedance: 4 Ω (4 to 8 Ω)

Input

RGB input:

Video: 0.7 +/- 0.2 Vp-p (input impedance 75 Ω)
Synchronize: 0.3 V (+0.9 / -0.1) Vp-p (input

impedance: 75 Ω)

Video input:

1.0 +/- 0.2 Vp-p (input impedance 75 Ω)

General

Power source voltage:

14.4 V DC (10.8 to 15.6 V allowable)

Ground:

Negative

Current consumption:

4.0 A (1 W)

Auto Antenna Rated Current:

500 mA less

Dimensions of the Main Unit:

178 mm Width × 50 mm Height × 157 mm
Depth

Weight of the Main Unit:

1.7 kg

Dimensions of the Remote Control Unit:

44 mm Width × 110 mm Height × 27 mm Depth

Weight of the Remote Control Unit:

30 g (including battery)

Output

Audio output: min.200mVrms

LCD Monitor

Screen Size:

6.5-inch wide type (142 mm Width × 78 mm
Height)

Display method: Transmission type TN liquid

crystal display

Drive method: TFT (thin-film transistor) active

matrix driving

Pixels:

280,800 (1200 × 234)

46 VRX633R

Notes:

• Specifications comply with EIAJ Standards.

• Specifications and design are subject to change

without notice for further immprovement.
