1. FEATURES
Description
Owner’s manual
• New 3 . 5 " Wide Screen TFT Display
• DVD Video / Audio CD / MP3 / WMA / DivX Play Capability
• RCA 6 (+2)-Channel (2Zone) Output
• Built-in 50 W x 4 Amplifier
• CD-R/CD-RW/DVD±R/DVD±RW Compatible
• 2Zone Control
• USB Memory Playback (MP3/WMA/AAC)
®
• iPod Control
“iPod” is for legal or rightholder-authorized copying only. Don’t steal music. “iPod” is a trademark
of Apple Inc.
5
Expanding Systems
English
Owner’s manual
6
English
8
English
Owner’s manual
Information Guide
English
Owner’s manual
■CLARION PRODUCT REGISTRATION INFORMATION
FOR USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of a Clarion mobile electronic products. We are confident that
you'll enjoy your Clarion experience.
There are many benefits to registering your product. We invite you to visit our website at
www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registration form is
short and easy to complete. Once you're registered, we can keep you informed of important product
information.
Register at www.clarion.com – it's easy to keep your Clarion product up to date.
7
2. PRECAUTIONS
English
WARNING
For your safety, the driver should not watch the DVD video/TV/VTR or operate the
controls while driving. Please note that watching and operating the DVD video/TV/VTR
while driving are prohibited by law in some countries. Also, while driving, keep the
volume to a level at which external sounds can be heard.
① When the inside of the car is very cold and the player is used soon after switching on the heater,
moisture may form on the disc (DVD/CD) or the optical parts of the player and may cause
improper playback. If moisture forms on the disc (DVD/CD), wipe it off with a soft cloth. If
moisture forms on the optical parts of the player, discontinue any use of the player for about one
hour. The condensation will disappear naturally and allow normal operation.
② Driving on extremely bumpy roads which cause severe vibrations may be the cause of skipping
sounds.
③ This unit uses precision mechanisms. Even in the event that trouble arises, never open the
case, disassemble the unit, or lubricate the rotating parts.
And following the provisions of 2004/104/EC Directive,
according to paragraph 3.2.9 of Annex l,
meets the limits defined in paragraph 6.5, 6.6, 6.8 and 6.9 of Annex l
Information for Users
Changes or modifications to this product not approved by the manufacture will void
the warranty and will violate FCC approval.
Owner’s manual
8
English
10
English
Owner’s manual
Handling Discs
Handling
■ New discs may have some roughness around its edges. If such discs are used, the player
Owner’s manual
may not work or the sound may skip. Use a ball-point pen or a similar object to remove
any roughness from the edges of the disc.
■ Never stick labels on the surface of the disc or mark the surface with a pencil or pen.
■ Never play a disc with any cellophane tape or other glue on it or with peeling off marks. If
you try to play such a disc, you may not be able to eject it from the DVD player or it may
cause damage to the DVD player.
Do not use a disc which has large scratches, misshapen or cracked exteriors, etc. The
use of such discs may cause improper operation or damage.
■ To remove a disc from its storage case, press down on the center of the case and lift the
disc out, holding it carefully by the edges.
■ Do not use commercially available disc protection sheets or discs equipped with stabilizers,
etc. Such use may damage the disc or cause breakdowns to the internal mechanism.
Storage
■ Do not expose discs to direct sunlight or heat source.
■ Do not expose discs to excess humidity or dust.
■ Do not expose discs to direct heat from heaters.
Cleaning
■ To remove finger-marks and dust, use a soft cloth and wipe in a straight line from the
center of the disc to the circumference.
■ Do not use any solvents, such as commercially available cleaners, anti-static spray, or
thinner to clean discs.
■ After using special disc cleaner, let the disc dry off well before beginning to play the disc.
On Discs
■ Do not exert strong force when inserting the disc into the insertion slot.
Ball-point pen
Roughness
9
3. CONTROLS
English
Owner’s manual
④ ⑤
①
②
⑬
③
N BUTTON FUNCTION
To turn on/off the power (Press and hold this button more than 2 seconds.
①
②
③
④
⑤
⑥
If you press this button for more than 2 seconds while turning the power off,
the power of the unit will be turned on.)
To change the operation mode during POWER ON
To increase/decrease the volume
To play/pause the playback in the DVD/CD/MP3/iPod(AUDIO)/USB modes
To stop the playback (Press and hold this button for more than 2 seconds.)
To turn on/off the mute in the TUNER/AUX(VIDEO) modes
To switch to the previous screen
To switch reception band in the TUNER mode
To select the item or menu
To display an information (artist, genre, composer, etc) of the selected file in the
MP3 mode.(Disc mode only)
To store automatically to the PRESET channels in the TUNER mode
(Press and hold this button for more than 2 seconds.) : Auto Store
To display lists(file, track, PRESET, etc) in first screen of each mode
⑩
⑪
⑫
⑦
⑥ ⑧ ⑨
10
English
12
English
Owner’s manual
1
2
3
4
5
6
7
8
9
0
PWR/SRC BAND
RPT
SCAN
RDM
PBC
SETUP
ENTER
RTN TOP MENU
SLOW
P.CH VOLUME
AUDIO SUB TITLE
WIRELESS REMOTE CONTROLLER
ANGLE 2-ZONE
PLAY/PAUSE MUTE
MENU
P.TIME
SEARCH MODE
Owner’s manual
⑦
To enter/exit the 2ZONE mode (Press and hold this button for more than
⑧
⑨
To enter/exit the SOUND mode
2 seconds.)
To scroll lists or move the cursor
To adjust the item value
To perform the chapter/track/file down or up
To play at fast backward or fast forward during AUDIO/VIDEO playback
(Keep pressing this button.)
⑩
To view the disc insertion slot when the DCP is closed
To eject the disc.
(When the unit is in power off condition, press and hold this button for more
than 2 seconds to eject)
To open/close the control panel (Press and hold this button for more than 2
⑪
seconds.)
To adjust the angle of the control panel
⑫ To use OPTION function in some mode
To enter/exit the ADJUST mode (Press and hold this button for 2 seconds).
To cancel RDS interruption. Press the [OPT] button.
⑬ Reset button. (Please use the reset pin.)
11
1
2
3
4
5
6
7
8
9
0
PWR/sRC BAND
RPT
sCAN
RDM
PBC
sETUP
ENTER
RTN TOP MENU
sLOW
P.Ch VOLUME
AUDIO sUB TITLE
WIRELEss REMOTE CONTROLLER
ANgLE 2-ZONE
PLAY/PAUsE MUTE
MENU
P.TIME
sEARCh MODE
Remote Control
1. Remote Control Unit
English
Owner’s manual
POWER/sRC
RPT
sCAN
RDM
PBC
sETUP
RTN
sLOW
P.Ch
AUDIO
sUB TITLE
BAND
0 ~ 9
P.TIME
sEARCh MODE
MENU
▲◀▶▼
ENTER
TOP MENU
MUTE
PLAY/PAUsE
VOLUME
2-Zone
ANgLE
12
English
14
English
Owner’s manual
2. Inserting the Batteries
① Open the rear cover, and remove it and insert the AAA (SUM-4, IEC LR03/1.5V) batteries bundled
Owner’s manual
with the remote control unit in the directions as shown in the figure and then, close the rear cover.
② Using batteries improperly can cause them to explode. Take note of the following points:
■ When replacing batteries, replace both batteries with new ones
■ Do not short-circuit, disassemble or heat batteries.
■ Do not dispose of batteries in fire or flames.
■ Dispose of discharged batteries properly.
AAA (SUM-4, IEC LR03/1.5V)
Batteries
Rear side
3. Button Functions
You can use the remote control unit to control this unit. The steering wheel remote control operation
works on the MAIN Zone even when the SUB Zone is selected.
N BUTTON FUNCTION
To change the operation mode
①
[PWR/SRC]
To turn on/off the power (Press and hold more then 2 seconds.)
②
[BAND]
To switch reception band in TUNER mode
To repeat chapter in DVD mode
③
[RPT]
To scan tracks in USB mode
[SCAN]
④
To play tracks at random in the CD mode
[RDM]
⑤
[PBC]
⑥
To turn on/off PBC function.
To select the PRESET number in the PRESET List screen of TUNER mode
[0-9]
⑦
⑧
To turn on/off the playtime display in DVD mode
To switch the search mode (To enter search mode. Use the [◀] [▶] keys to switch
⑨
the chapter/title/time search mode)
To input the chapter number in the DVD mode
[P.TIME]
[SEARCH
MODE]
To repeat the track in CD mode
To perform the file/folder repeat in the MP3/USB modes
To scan tracks/folders in MP3 mode
To play files/folders at random in the MP3/USB modes
Battery cover
13
⑩
[SETUP]
[MENU]
⑪
[▲][▲]
⑫
[▶][▼]
⑬
[ENTER]
⑭
[RTN]
⑮
[TOP MENU]
⑯
[SLOW]
To display the setup menu in DVD mode.
To display stored menu on the DVD video disc.
To select a menu or item
To scroll the track/folder list screen in MP3 mode
To select track, file, folder or item in all modes
To return to the previous screen from the list or menu screens
To switch to the previous screen display while the menu screen is
being displayed.
To display title menu screen on the DVD video disc
To perform slow playback in DVD mode
English
Owner’s manual
[PLAY
⑰
/PAUSE]
⑱
[MUTE]
⑲
[P.CH]
⑳
[VOLUME]
[AUDIO]
㉑
[SUB TITLE]
㉒
[ANGLE]
㉓
[2Zone]
㉔
To play or pause the playback
To stop video playback in the DVD Video mode
(keep pressing for more than 2 seconds.)
To turn the mute on/off
When the mute is turned on, appears at the top right of the screen.
To seek up/down in the TUNER mode
To select the next higher or lower chapter number in DVD mode
To perform fast forward and fast backward (Keep pressing) in the DVD/ iPod
modes.
To select the next higher or lower track in CD/MP3 modes
To select the next higher or lower track numbers in the iPod mode.
To increase/decrease the volume
To switch the AUDIO function in DVD/CD modes
To display the subtitle in DVD mode
To switch the ANGLE function in the DVD mode when the ANGLE MARK is
displayed (available only on multiple angles DVDs)
To turn on/off 2Zone function (Press and hold for more than 2 seconds.)
To change the SUB Zone mode when 2Zone function is turned on
4. When SUB Zone is selected
SUB Zone operations are supported, but button functions are limited as follows:
[VOLUME] button controls sound volume for MAIN Zone source.
[MUTE] button controls audio mute function for MAIN Zone source.
14
English
16
English
Owner’s manual
4. SUMMARY OF EACH MODE
POWER ON/OFF Mode
Owner’s manual
Press and hold the [SRC] button for more than 2 seconds after ENGINE ON.
The "WARNING" sentence initially become displayed on the screen.
Last mode screen(such as the TUNER mode) is displayed in a moment.
If you want to turn the power of the unit off, press and hold the [SRC] button for more than
2 seconds again.
15
TUNER Mode
Enter into TUNER mode.
Press the [MENU] button to display the PRESET channels.
English
Owner’s manual
Press the [RTN] button to switch to the reception band.
16
English
18
English
Owner’s manual
DVD Video Mode
Insert a DVD-video disc. The playback will start automatically.
Owner’s manual
Press the [OPT] button to change the detail setting.
Press the [
Then press the [ENT] button to change the screen size.
▼] button
to choose the "SCREEN" item.
17
CD Mode
Insert an Audio CD. The play mode is automatically engaged.
Press the [OPT] button to change the detail setting.
English
Owner’s manual
18
English
20
English
Owner’s manual
MP3 Mode
Insert a CD on which MP3/WMA music data have been recorded. The play mode is
automatically engaged.
Owner’s manual
Press the [MENU] button to display folder and le lists.
19
Press the [OPT] button to change the detail setting.
AUX Mode
Enter into AUX mode.
Press the [OPT] to change the detail settings.
English
Owner’s manual
20
English
22
English
Owner’s manual
iPod Mode
Connet an iPod unit (that an AUDIO/VIDEO data is stored) to your unit.
Owner’s manual
The playback will start automatically.
Press the [MENU] button to display data lists.
21
Press the [OPT] button to change the detail setting.
Press the [ENT] button to switch to VIDEO mode.
Select the video data on the iPod unit. The video will be played back automatically.
Press the [OPT] button and [
Then press the [ENT] button to change the screen size.
▶▶ | ] button two times to choose the "SCREEN" item.
English
Owner’s manual
Press the [RTN] button to display the previous screen.
22
English
24
English
Owner’s manual
SOUND Mode
Press the [♪] button.
Owner’s manual
Press the [ENT] button to use the detail functions.
Press the [ENT] button to adjust the value of "BASS BOOST" item.
23
Press the [RTN] button 2 times. And press the [
Press the [
▶▶ | ] button to select "OTHERS" item.
English
▶▶ | ] button to search "BAL/FAD" item.
Owner’s manual
24
English
26
English
Owner’s manual
USB Mode
Connect a USB memory device(in which MP3/WMA/AAC les are stored) to your unit.
The playback will start automatically.
Owner’s manual
Press the [MENU] button to display folder/le lists.
25
Press the [OPT] button to change the detail setting.
ADJUsT Mode
Press and hold the [OPT] button for more than 2 seconds.
English
Owner’s manual
Press the [
Press the [ENT] button to adjust the detail functions.
button to select "GENERAL" item.
▶▶ | ]
26
English
28
English
Owner’s manual
Press the [ENT] button to set the time.
Owner’s manual
Press the [
▶▶ | ] button to change "AM" to "PM".
27

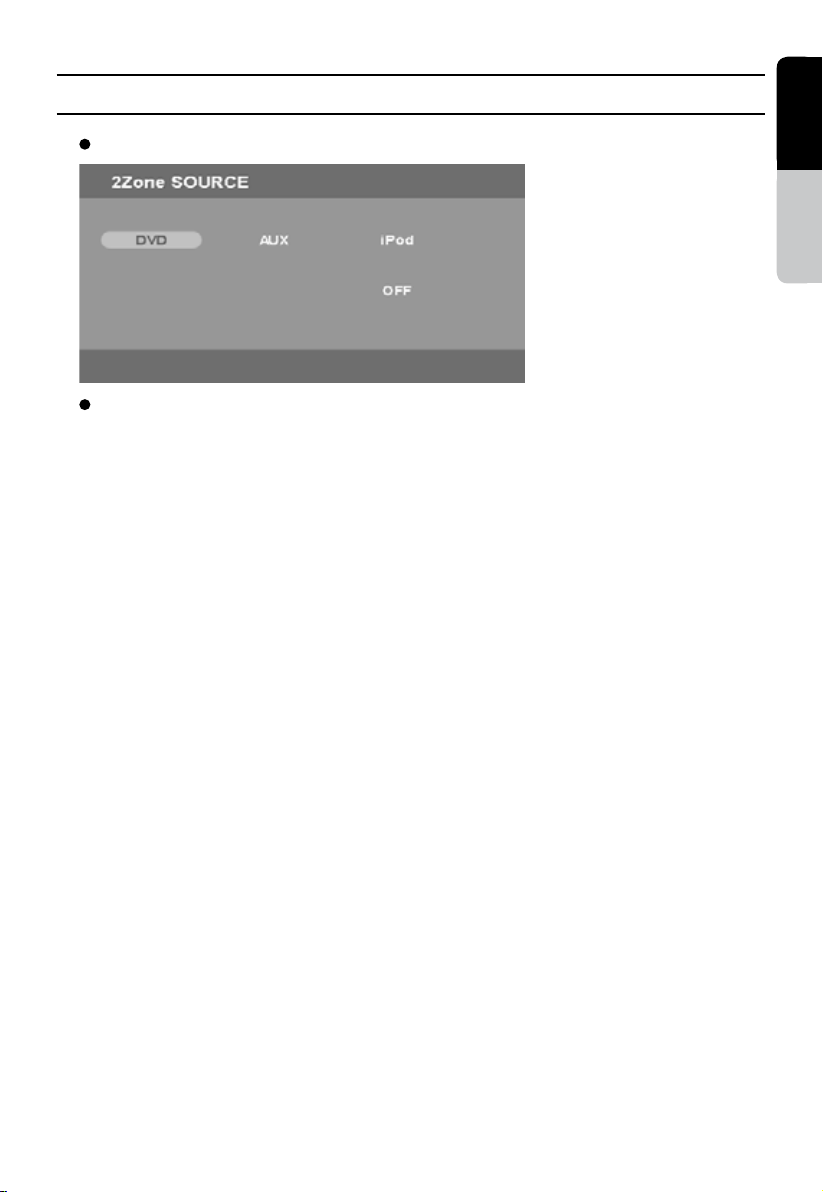

2Zone sOURCE Mode
Press and hold the [♪] button for more than 2 seconds.
English
Owner’s manual
Press the
[
▶▶ | ] button and [ENT] button to
select the source which you would like to use.
28
English
30
English
Owner’s manual
2
2
2
2
2
2
ALL
1
4
6
1
5. CAUTIONS
Control Panel/Generalities
Owner’s manual
For a longer service life, be sure to read the following cautions.
■ Be sure to close the control panel inside the main unit when parking the car outdoors for
prolonged periods of time. The control panel will operate properly within a temperature range of
0 to 60°C.
■ Do not allow any liquids on the unit from drinks, umbrellas etc. Doing so may damage the
internal circuitry
■ Do not disassemble or modify the unit in any way. Doing so may result in damage.
■ Do not draw out the control panel and use it as a tray. Also, subjecting the control panel to shock
may result in breakage, deformation or other damages.
■ Do not let cigarettes burn the display. Doing so may damage or deform the cabinet.
■ If a problem should occur, have the unit inspected at your place of purchase.
■ When the panel is tilted, do not insert objects or poke within spaces between the control panel
and the main unit.
■ When the panel is tilted, do not place anything on the display.
■ The remote control unit may not work if the remote control sensor is exposed to direct sunlight.
■ In extremely cold weather, the movement of the display may slow down and the display may
darken,but these are not malfunctions. The display will work normally when the temperature
returns to operating temperature range.
■ The control panel may stop temporarily when it opens or closes, when the engine stops or
when the weather is cold.
■ Do not exert much force to the case surrounding the control panel. This may lead to
malfunction.
Cleaning
Cleaning the cabinet
For tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe off the dirgently
and wipe again with a dry cloth. Do not use benzene, thinner, car cleaner, etc., as these
substances may damage the cabinet or cause the paint to peel. Also, leaving rubber or plastic
products in contact with the cabinet for prolonged periods of time may cause stains.
Cleaning the LCD panel
The LCD panel tends to collect dust, so wipe it off occasionally with a soft cloth.
The surface is easily scratched, so do not rub it with hard objects.
29
6. DVD VIDEO SYSTEM
2
2
2
2
2
2
ALL
1
4
6
1
DVD Video Features
DVD video is a high-quality digital video source that provides crisp and clear images. One 12cm
disc contains either one film or four hours of music. This unit provides the following functions in
addition to the high image quality and sound quality of DVD video. The following functions differ with
the DVD video disc. Refer to the instructions provided with the DVD video. Some disc functions may
operate differently from the descriptions within this manual.
Multi-Sound
DVD video can store up to 8 languages for one film; select the language of your preference.
The languages stored on the disc are indicated by the icon shown below.
Multi-Angle
A DVD video that is filmed from multiple angles allows you to select the angle of choice.
The number of recorded angles is indicated by the icon shown below.
Sub-Picture (Subtitle)
A DVD video can record subtitles for up to 32 languages and you can select the language of the
subtitles you wish to see.
The number of recorded subtitle languages is indicated by the icon shown below.
English
Owner’s manual
Multi-Story
When a DVD video contains more than one story for a film, you can select the story you wish to
view. The operation procedures vary with the type of disc; observe the instructions for selecting a
story provided during playback.
Dolby Digital
Dolby Digital enables up to 5.1 independent multi-channel audio reproductions, the same type of
surround system that is used in cinemas.
Menu Screen
Menus can be called up during DVD video playback to perform menu setting.
To display the menu, press the [MENU] button.
30
English
32
English
Owner’s manual
ALL
1
4
6
1
Discs
Playable Discs
Owner’s manual
This DVD video player supports the following disc formats.
CD Extra Discs
A CD Extra disc is a disc in which a total of two sessions have been recorded. The first session is
the AUDIO session and the second session is the DATA session. Your personally-created CDs with
more than two recorded DATA sessions are not supported by this DVD video player. When you play
a CD Extra disc, only the first session will be recognized.
CD-R/CD-RW Discs (MP3/ WMA)
This player supports Audio CD format (MP3/ WMA) on CD-R/CD-RW discs.
DVD±R/RW Discs
This player supports MP3/WMA files recorded on DVD±R/RW discs.
Unsupported Disc Format
This DVD video player will not supportck DVD Audio, DVD-RAM, Photo CDs, etc. It may also not be
possible to play back CDs recorded on a CD-R unit and CD-RW unit. (Cause : disc characteristics,
cracks, dust/dirt, dust/dirt on player’s lens, etc.) If a CD-R or CD-RW disc that has not been finalized
is played, it may take a prolonged period of time to initialize playing . Also, it may not be possible to
play depending on recording conditions. You cannot play SUPER AUDIO CDs. Playback of the CD
player is not supported even if the disc is a hybrid disc.
MP3/WMA Playback
This unit supports CD-R/CD-RW, DVD-R/RW and DVD+R/RW discs on which MP3/WMA music
data have been recorded.
DivX Playback
This player supports DivX format file recorded on DVD±R/RW and CD-R/RW discs.
Region Number
The DVD video system assigns a region number to DVD video players and DVD discs by sales
area. The DVD video region number is marked on the disc jacket as shown below.
31
Registered Trademark
■ This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright protection technology must be authorized
by Macrovision, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.
■ Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D
symbol are trademarks of Dolby Laboratories.
■ “iPod” is for legal or rightholder-authorized copying only. Don’t steal music. “iPod” is a
trademark of Apple Inc. registered in the U.S and other countries.
■ Windows Media
Corporation in the United States and/or other countries.
■ DivX, DivX Certified, and associated logos are trademarks of DivX Inc and are used under
license.
TM
, the Windows® logo are trademarks, or registered trademarks of Microsoft
English
Owner’s manual
32
English
34
English
Owner’s manual
7. OPERATIONS
DCP Operations
Owner’s manual
The control panel can be detached to prevent theft. When detaching the control panel, store it in the
DCP (Detachable Control Panel) case to prevent scratches. Please take the DCP with you when
leaving the car.
Remove DCP
① When the control panel is open
Keep pressing the [RELEASE] button on the back of the DCP and pull the front side of the
DCP toward you, and remove it.
PUSH
Attach DCP
① Hook the left side of the DCP.
② Press the right sides of the DCP with force.
Cautions
■ The DCP can easily be damaged by impact. After removing it, be careful not to drop or give
impact.
■
Remote control unit cannot be used when the DCP is removed.
■ If the DCP is dirty, wipe it off by using a soft dry cloth.
Basic Operations
POWER ON/OFF
■ Start the engine before using this unit. The illuminations on this unit will light up.
■ Press and hold the [SRC] button for more than 2 seconds to turn the power on. To open the
Control panel, press the [TILT] button more than a second. The last mode screen is displayed.
■ Press and hold the [SRC] button for more than 2 seconds to turn the power off.
※ When the unit is turned on, starting and stopping the engine with the volume raised to
maximum level may harm your hearing. Be careful when adjusting the volume. Be careful
whenusing this unit for prolonged periods of time without running the engine. If the car battery
is discharged to excessive levels, you may not be able to start the engine and can reduce the
service life of the battery.
33
Mode Selections
■ Press the [SRC] button to change operation mode when the control panel is open/closed.
■ Each time you press the [SRC] button, the operation mode changes in the following order:
TUNER mode → DVD(CD/MP3) Play mode → USB mode or iPod mode → AUX mode
■ When the 2Zone function is turned on, the [SRC] button will operate only for the MAIN Zone.
To switch to the SUB Zone source. Use the [♪ ] button or [2Zone] button on the remote
control unit.
Control Panel
■ Cautions
To prevent the battery from becoming completely discharged, operate this unit with the engine
running whenever possible. When the control panel is operating, be careful not to get your
hands or fingers caught in between the control panel and the main unit. Do not move the control
panel by hand.
■ Opening the control panel
① Press and hold the [SRC] button for more than 2 seconds to turn the power on.
②
Press the [TILT] button for more than 2 seconds. The control panel comes out toward you.
English
Owner’s manual
■ Closing the control panel
Press the [TILT] button more than 2 seconds. The control panel is automatically housed. If
you do not use the unit for a prolonged period oftime or leave the car, please house the control
panel.
※ OPEN or CLOSE function might not work properly if ACC is off while opening or closing the control
panel or if moved by manually.
■ Adjusting the angle of the control panel
Each press of the [TILT] button tilts the control panel forward or backward.
34
English
36
English
Owner’s manual
AUDIO Operations
Z-ENHANCER
Owner’s manual
Z-ENHANCER
SOUND
BAL/FAD
OTHERS
1. Z-ENHANCER
Press the [♪] button to enter into SOUND mode. Press the [ENT] button to adjust detail items.
To adjust the "BASS BOOST", "IMPACT", "EXCITE", "CUSTOM" item, set the Z-ENHANCER to
"ON". Use the [|◀◀ ] or [▶▶ | ] button to adjust the level.
BASS BOOST -
SET BASS TREBLE
+3 F = 80Hz, G=+12dB, Q=1 F=12KHz, G= 4dB
+2 F = 80Hz, G=+10dB, Q=1 F=12KHz, G= 4dB
+1 F = 80Hz, G=+ 8dB, Q=1 F=12KHz, G= 4dB
0 F = 80Hz, G=+ 6dB, Q=1 F=12KHz, G= 4dB
-1 F = 80Hz, G=+ 4dB, Q=1 F=12KHz, G= 4dB
-2 F = 80Hz, G=+ 2dB, Q=1 F=12KHz, G= 4dB
-3 F = 80Hz, G=+ 0dB, Q=1 F=12KHz, G= 4dB
Seeing the following table, set the value to emphasize low sound.
BASS BOOST
IMPACT
EXCITE
CUSTOM
SUB WOOFER VOL
M-B EX
HIGH PASS FILTER
LOW PASS FILTER
AMP CANCEL
BASS GAIN
BASS FREQ
BASS Q
TREBLE GAIN
TREBLE FREQ
IMPACT - Seeing the following table, set the value to emphasize both low sound and high sound.
SET BASS TREBLE
+3 F = 80Hz, G=+10dB, Q=1 F=8KHz, G= +6dB
+2 F = 80Hz, G=+ 8dB, Q=1 F=8KHz, G= +6dB
+1 F = 80Hz, G=+ 8dB, Q=1 F=8KHz, G= +4dB
0 F = 80Hz, G=+ 6dB, Q=1 F=8KHz, G= +4dB
-1 F = 80Hz, G=+ 6dB, Q=1 F=8KHz, G= +2dB
-2 F = 80Hz, G=+ 4dB, Q=1 F=8KHz, G= +2dB
-3 F = 80Hz, G=+ 4dB, Q=1 F=8KHz, G= 0dB
35
EXCITE - Seeing the following table, set the value to weaken intermediate sound and emphasize
both low sound an d high sound.
SET BASS TREBLE
+3 F = 50Hz, G=+ 10dB, Q=1 F=12KHz, G= +8dB
+2 F = 50Hz, G=+ 8dB, Q=1 F=12KHz, G= +8dB
+1 F = 50Hz, G=+ 8dB, Q=1 F=12KHz, G= +6dB
0 F = 50Hz, G=+ 6dB, Q=1 F=12KHz, G= +6dB
-1 F = 50Hz, G=+ 6dB, Q=1 F=12KHz, G= +4dB
-2 F = 50Hz, G=+ 4dB, Q=1 F=12KHz, G= +4dB
-3 F = 50Hz, G=+ 4dB, Q=1 F=12KHz, G= +2dB
CUSTOM - Choose the "CUSTOM" item and select the "CUSTOM DETAIL" item. "BASS" controls
low sound and "TREBLE" controls high sound.
2. BAL/FAD
To control the location adjustment of the sound, choose the "BAL/FAD" item and press the [ENT]
button. Use the [▲][▼][|◀◀ ] [▶▶ | ] button to adjust the balance/fader level.
FADER
■ To emphasize the sound from the front speaker or rear speaker.
■ This function has a range from 0 to 12.
BALANCE
■ To emphasize the sound from the right speaker or left speaker
■ This function has a range from 0 to 13.
English
Owner’s manual
3. OTHERS
To adjust other functions, choose the "OTHERS" item and press the [ENT] button.
SUB WOOFER VOL
■ To control the volume level of the subwoofer
M-B EX
■ To boost low sounds of below 50Hz
HPF
■ To control the output of POWER-AMP
LPF
■ To control the output of SUB-WOOFER
AMP CANCEL
■ To control the using presence of built-in AMP
■ Select the ON or OFF value to enable/disable the internal amplifier. If you use the external
AMP, it is recommended that the built-in AMP be turned off.
36
English
38
English
Owner’s manual
ADJUST Operations
BRIGHT
Owner’s manual
MONITOR
ADJ
GENERAL
MONITOR ADJUST
CAMERA INT.
CAMERA WARNING
NTSC/PAL/AUTO
CLOCK
BEEP
TEL SWITCH
TEL SPEAKER
1. MONITOR
Press and hold the [OPT] button for more than 2 seconds to enter into ADJUST mode. Press the
[ENT] button to adjust detail items.
MONITOR ADJUST
■ To adjust the BRIGHT, COLOR, HUE, DIMMER
CAMERA INT
■ ON : To turn rear camera on when reverse line is activated
■ OFF : To ignore reverse line not to be interrupted by camera
CAMERA WARNING
■ When you are using CCD camera, select the ON vallue if you want to see the warning
message. Select the OFF value if you do not want to.
NTSC/PAL/AUTO
■ To set the VTR system for AUX video input. When selecting AUTO mode, the monitor will
automatically select the video system according to the input video signal.
1-1. MONITOR ADJUST : At TUNER, iPod, USB Mode
Select the [ADJUST] item of the "MONITER ADJUST" in the ADJUST mode.
COLOR
HUE
DIMMER
37
BRIGHTNESS
■ To adjust the brightness of display image.
■ Press the [|◀◀ ] button to make the image darker.
■ Press the [▶▶ | ] button to make the image brighter.
DIMMER
■ To adjust the brightness of the LCD when the car lights are on/off.
■ [DAY] : Brightness of the LCD is always set to maximum level.
■ [NIGHT] : Brightness of the LCD is always set to user setting level.
■ [AUTO] : According to the status of the car light, brightness of the LCD is changed.
(When the car light is
1-2. MONITOR ADJUST : At DVD, AUX Mode
off : DAY color, on : NIGHT color)
English
Owner’s manual
BRIGHT
■ To adjust the brightness of display image.
■ Press the [|◀◀ ] button to make the image darker.
■ Press the [▶▶ | ] button to make the image brighter.
DIMMER
■ To adjust the brightness of the LCD when the car lights are on/off
■ DAY : Brightness of the LCD is always set to maximum level.
■ NIGHT : Brightness of the LCD is always set to user setting level.
■ AUTO : According to the status of the car light, brightness of the LCD is changed.
(When the car light is off : DAY color, on : NIGHT color)
COLOR
■ To adjust the color depth
■ Press the [|◀◀ ] button to decrease the color depth.
■ Press the
■ This function enables to adjustments of the values on the VIDEO-play / DVD MODE/ AUX
MODE/ iPod VIDEO MODE.
▶▶ | ] button to increase the color depth.
[
38
English
40
English
Owner’s manual
Owner’s manual
HUE
■ To adjust the tone of color
■ Press the [|◀◀ ] button to increase the red.
■ Press the
■ This function enables to adjust the value on the VIDEO-play/DVD MODE/ AUX MODE/ iPod
VIDEO MODE. Only when the NTSC mode is selected, this function can be adjusted.
▶▶ | ] button to decrease the green.
[
2. GENERAL
Press and hold the [OPT ] button for than 2 seconds, then select "GENERAL" item.
CLOCK
■ To set up the time, choose the [ADJUST] value and press the [ENT] button.
■ Adjust the value (AM, PM, HOUR, MINUTE) by pressing the [|◀◀ ] or [▶▶ | ] button.
BEEP
■ The sound heard when you press the button is called BEEP.
■ ON : To turn the BEEP sound on
■ OFF : To turn the BEEP sound off (In spite of "OFF" setting, the WARNING BEEP sound
comes out.)
■ When memorizing, the BEEP sounds longer.
TEL SWITCH
■ To set up the mobile phone interruption
■ When you connect your mobile phone to this unit using a separately sold cable, you can listen
to your telephone calls on your car speakers.
■ ON : To listen to your telephone calls from the speakers connected to this unit
(When listening to your car speakers, you can adjust the volume level.)
■ OFF : To continue normal operation even when you use the telephone calls (When you set
■ MUTE : To mute the sound during your telephone calls (This function is not compatible with
this function to OFF, disconnect the mobile phone from the cable or turn off the power
of the mobile phone.)
all mobile telephones. Contact your local authorized Clarion dealer for information on
proper installation and compatibility.)
TEL SPEAKER
■ To change the output speaker for the mobile phone
■ To output the telephone calls, set the above "TEL SWITCH" item to ON.
■ During mobile phone interruption, settings of this function is set to disabled.
■ LEFT : To hear your telephone calls from the left speaker connected to this unit
■ RIGHT : To hear your telephone calls from the right speaker connected to this unit
39
2Zone Operations
Description
The 2Zone function is a function that outputs separate sounds/images from the MAIN and SUB
Zone (such as the rear monitor) by simultaneously operating two sources in the one center unit.
Thereby, plural listeners are allowed to enjoy separate audio/visual sources. The 2Zone function
allows internal sources (TUNER, DVD, iPod) and external sources (AUX, etc.) to be played on
the MAIN and SUB Zone. Controlling sources of MAIN and SUB Zone can be made from the
main unit and from the remote control unit. The source sounds of the MAIN zone are played
back from the speakers positioned at the sides of the vehicle, and those of the SUB zone are
from the wireless headphone. Sound volume control on the SUB Zone is performed by wireless
headphone. When you run the units for the first time, 2Zone function is set to the OFF, both of
the MAIN and SUB Zone are set to the MAIN source.
■ The TUNER mode cannot be specified for the SUB Zone.
■ The steering wheel remote control operations work upon the MAIN Zone even when the SUB
Zone is selected.
■ If a mobile phone interrupt arises when an external equipment is specified for the SUB zone,
the 2-ZONE function is automatically turned off and does not resume the 2-ZONE ON status
even when the interruption is finished.
■ You cannot switch the MAIN and SUB Zone when the front monitor locked screen or CCD
camera screen is displayed.
■ The ON/OFF of the 2Zone keeps up regardless of the engine or power ON/OFF.
Display
♪
To display the 2-ZONE mode screen, press the [
desired source. (2-ZONE mode : DVD(CD/MP3), AUX, iPod, OFF)
※ 3 DVD VISUAL(AUX) ※ iPod (VIDEO) RADIO USB
Specification of Conversion
■ When the 2Zone function is turned on, the source of the MAIN and SUB Zone is made up of
the mixture besides of the external source.
■ The source conversion of the MAIN Zone is available when the 2Zone setting mode sets up
to the MAIN Zone.
■ The source conversion of the SUB Zone is available when the 2Zone setting mode sets up to
the MAIN Zone.
■ The source conversion of the MAIN Zone and SUB Zone is as like below.
] button for more than 2 seconds. Select the
English
Owner’s manual
※ 3 DVD
MAIN
RADIO ※ 1 Y ※ 1 Y ※ 1 Y N N
DVD Y Y Y N N
VISUAL(AUX) Y Y N N N
iPod Y Y Y N N
USB Y Y Y N N
NOTE
※1 : Receiving condition of some stations may be altered in the 2Zone mode.
※2 : To select the VIDEO mode of a iPod when you watch in the SUB Zone.
※3 : DVD operation can be done only in the MAIN Zone.
SUB
VISUAL(AUX)
※ 2 iPod (VIDEO) RADIO USB
40
English
42
English
Owner’s manual
RADIO Operations
Listening to the Radio
■ Switch to the tuner mode.
Owner’s manual
■ Press the [BAND] button on the remote control unit or press the [RTN] button to select the
radio band. Each time you press the [RTN] button, the radio reception band is changed in the
following order : FM1 ▶ FM2 ▶ FM3 ▶ AM1 ▶ AM2 ▶ FM1 …
■ Press the [MENU] button to display the stored PRESET lists.
■ Press the [|◀◀ ] or [▶▶ | ] button to seek up or down. If you continue to pressthe [|◀◀ ]button,
manual tuning will be done in the direction of lower frequencies. If you continue to press the
[▶▶ | ] button, manual tuning will be done in the direction of higher frequencies.
■ Frequency map
BAND
FM 1,2,3
AM 1,2
Auto Store
■ The Auto Store is a function for storing up to 6 stations which are automatically tuned in
sequentially. If 6 receivable stations cannot be received, a previously stored station remains at
the memory position.
■ Press and hold the [MENU] button for more than 2 seconds. A beep sounds and the stations
with good reception are stored automatically to the PRESET channels.
Memorizing the PRESET
■ By selecting PRESET number, preferred PRESET memories stations between 1 ~ 6 can be
selected.
■ To memorize the frequency, choose the desirable PRESET number and press the [ENT]
button for more than 2 seconds.
RECEIVING
BAND(Hz)
87.9 ~ 107.9 M
530 ~ 1710 K
STEP
SEEK(KHz)
200
10
STEP
MANU(KHz)
200
10
IF
(Hz)
10.7 M
450 K
41
DVD Video Player Operations
English
1. Size of the Screen
To change the screen size, press the [OPT] button during the VIDEO playback. Then select the
"SCREEN" item on the DVD option screen.
"FULL" "NORMAL" "CINEMA" values are displayed on the screen.
Normal Mode
Select the "NORMAL" value to change the screen size. There are black Zones at the right and
left ends of the display.
Cinema Mode
Select the "CINEMA" value to change the screen size. The top and bottom areas of the screen
are cut off.
Owner’s manual
Full Wide Mode
Select the "FULL" value to change the screen size. The whole image will become elongated
horizontally.
42
English
44
English
Owner’s manual
2. Parental Level
You can change the level of parental lock. This function allows cutting scenes that are unfavorable
Owner’s manual
for children or replacing them automatically with other scenes prepared in advance. For example,
by replacing scenes of radical violence or portrayals of sex with safe scenes, you can make a
trouble-free story as if it were so from the beginning.
LEVEL8 Adult
LEVEL7 No Children,17 or older
LEVEL6 Under 17 Requires Accompanying Parent or Adult Guardian
LEVEL5
LEVEL4 Parents Strongly Cautioned
LEVEL3
LEVEL2 G
LEVEL1 Kid Safe
※ The standard differs by countries.
※ Initial password is ‘0000’. Before you change the level of parental lock, you have to set a new password
except '0000'.
3. Disc Loading
Insert a disc into the center of the insertion slot with the label side facing up. The disc plays
automatically after loading. Never insert foreign objects into the disc insert slot. If the disc can not
be easily inserted, there may be another disc in the mechanism or the unit may require service.
8cm (single play) discs cannot be used.
PG - R
Parental Guidance Suggested
WARNING
Some videos can be played at higher volume levels if desired. Turn up a little at a
time after playing the video. For safety, drivers can not watch the video or use the
remote control while they are driving. Watching and controlling the video is illegal in
some countries, so your caution is needed.
■ After inserting the disc, the playback starts automatically. When playback is not started, press
the [▶||] button.
■ If you press the [ ] button, the disc will be ejected from the disc set.
■ If you do not pull out the disc within 10 seconds after pressing the button, the disc will go inside
automatically. (Auto reloads) Discs can be damaged if you insert it by exerting force before auto
reloading.
43
4. Setting the DVD Video
English
The playing mode is revitalized automatically after the disc loading. The settings on the DVD
SETUP menu can be set only with the remote control unit. To enter into the DVD SETUP menu,
press the [SETUP] button on the remote control unit.
Operation
■ Press the [▶
→ Press the [▶
→ Press and hold the [▶/||] button for more than one second to resume stop.
→ Press and hold the [▶
DVD.
■ Continue pressing the
■ To operate items of the DVD menu, press the [MENU] button.
Use the [|◀◀ ][▶▶ | ][▲][▼][ENT] buttons according to the disc contents menu.
■ If you want to change the title, press the [SEARCH MODE] button on remote control unit to
display the search mode. Then, choose the desirable title number by using the [0] - [9] button
and press the [ENTER] button.
■ Press the [OPT] button to use the following three functions.
CHAPTER REPEAT : Chapter repeat playback
TITLE REPEAT : Title repeat playback.
TITLE RANDOM : Title random playback.
Chapter Skipping
■ Pressing the
■ Pressing the [|◀◀ ] button starts playback from the beginning of the current chapter. When the
button is pressed again within approximately 2 seconds, playback starts from the beginning of
the previous chapter.
■ With some discs furnished with PBC function, when PBC is set to "ON", this operation will cause
the menu screen to be displayed.
||] button to play/pause the playback.
/
||] button to resume the playback when in resume stop mode.
/
||] button for more than one second in resume stop mode to stop the
/
▶▶ | ] button to fast forward, the [|◀◀ ] button to rewind.
[
▶▶ | ] button starts playback from the beginning of the next chapter.
[
|<< Current >>|
Owner’s manual
Chapter Chapter Chapter
Down
Up
44
English
46
English
Owner’s manual
5. CD Playback
The play mode is automatically engaged after the disc loading. When playback is not started, press
the [▶||] button.
Owner’s manual
■ Press the [▶||] button to pause or resume the playback. Keep pressing the [▶||] button more
than 2 seconds to stop during the playback.
■ Press the [▶▶ | ] button to start playback from the beginning of the next track. Pressing the
[|◀◀ ] button starts playback from the beginning of the current track. When this button is pressed
again within approximately 2seconds, playback starts from the beginning of the previous track.
■ Press the [OPT] button to use three functions. To cancel the playback, select the relevant item
of the function again.
TRACK REPEAT : Track repeat playback. This operation plays back the selected track recorded
DISC REPEAT : Disc repeat playback. This operation plays back all tracks recorded on the disc
DISC RANDOM : Disc random playback. This operation plays back all tracks on the disc in no
6. MP3 / WMA Playback
MP3 is the AUDIO compressed appliance and is classified by the AUDIO LAYER 3 MPEG
standards. The compressed appliance can be easily used by PC users and also used broadly as
a compressed standard. This MP3 makes possible to compress the original audio data to 1/10
of the initial size and provide high quality sound. This means approximately 10 music CDs can
be recorded on a CD-R disc and provide longer periods of music without having to change the CD
through CD-RW. This DVD Player does not support discs recorded by CD-RW. Some CDs recorded
in CD-R mode may not be supported.
on the disc repeatedly.
repeatedly.
particular order.
Cautions for Making MP3 Disc
① File extension
Always keep the ‘MP3’ file to have ‘MP3’ or ‘mp3’ by using single byte characters. If you do not
specify the extension like this or use another extension, you may not be able to play the disc. If
users mix capital letters and lower-case letters, normal operation may not be supported.
② Logical format(File system)
Select "ISO9660 level 1 or level 2" as the software format used in the MP3 file for the CD-R
disc. Normal operation may not be supported if recorded in other formats. The name of the
folder and file can be displayed in the title while MP3 is playing; however, the title is displayed
by the single alphabet bytes and numbers of 31 and 27 to the name of the folder and file. The
name may be represented incorrectly if you input more letters and numbers than specified.
③ Folder structure
A disc with more than 8 level folders will conflict with the ISO9660 standard and playing will not be
supported.
45
④ The number of the file or folder
A total of 3000 files and a total of 255 directories are allowed. If the numbers of files and
directories are greater than this number, then such files will not be played. Track is played in
accordance to the order as recorded by the user.
Operation
■ Press the [▶/||] button to pause or resume the playback.
■ Keep pressing the [▶
■ Press the [|◀◀ ] or [▶▶ | ] button to skip the track.
■ Keep pressing the [▶▶ | ] button to fast forward, the [|◀◀ ] button to rewind.
■ Press the [ENT] button to display information (artist, genre, composer, etc) of the selected file.
■ Press the [OPT] button to use functions during MP3 playback. To cancel play, re-select the
relevant item.
TRACK REPEAT : Track repeat playback.
TRACK SCAN : Track scan playback.
TRACK RANDOM : Track random playback.
FOLDER REPEAT : Folder repeat playback.
FOLDER SCAN : Folder scan playback.
FOLDER RANDOM : Folder random playback.
||] button for more than one second to stop during the playback.
/
iPod Operations
This unit can be used to control a connected Apple iPod(iPod Mini, fourth generation, iPod nano,
iPod with video). An iPod player with versions higher than those specificed may not be supported.
This unit will not operate or may operate improperly with unsupported versions. First, second
and third generation iPod cannot be used. When using an iPod, connect the iPod to the AUX-IN
and USB cable. Depending on the iPod device, iPod main screen displays can be different from
others. The remote control unit cannot be used to perform scan, repeat or random play. This unit
can display the Podcast titles, Artist names, Album titles, Song titles, Genre names, Playlist titles,
Composer names registered on the iPod. Whether these functions are available or not depends
on the version of the iPod device. The iPod is used with the equalizer function turned OFF. Don't
connect an iPod to the unit if headsets are connected to the iPod.
English
Owner’s manual
Operation
■ Press the [▶/||] button to pause or resume the playback.
■ Keep pressing the [▶/||] button for more than 2 seconds to stop during the playback.
■ Press the [|◀◀ ] or [▶▶ | ] button to skip the track.
■ Press the [MENU] button show the list like PODCASTS, PLAYLIST, ARTISTS, ALBUMS,
GENRES, SONGS, COMPOSERS, MUSIC, PHOTOS, VIDEOS, EXTRAS etc. Lists are
available from the iPod menu screen.
■ Press the [▲] [▼] button to scroll menu lists.
Option
■ Press the [OPT] button to use functions.
■ Each time you press the first item, You can switch between AUDIO mode and VIDEO mode.
If you want to play the audio mode, select the "AUDIO" value.
If you want to play the video mode, select the "VIDEO" value.
■ The [REPEAT] item uses to switch the repeat mode, in the order:
→ REPEAT ALL → REPEAT ONE → REPEAT OFF.
46
English
48
English
Owner’s manual
■ The [SHUFFLE] item uses to switch the shuffle ON/OFF mode.
When enabled, this function performs playback in random order, regardless of the order in
which they are recorded.
Owner’s manual
Video Mode
■ You can view video data stored in the iPod. However, you cannot control and navigate an iPod
device in video mode with a CLARION device. Only the iPod device can be used to make
controls. To enjoy the video data, please operate in the following order:
① Change the "AUDIO" value to "VIDEO". This value works in toggle on the iPod option screen.
You can switch to VIDEO mode.
② Play back your desired video data from the iPod.
③ VIDEO screen is activated.
■ Each time you select the second item "AUX SENS MIDDLE",
You can switch among (AUX SENS LOW, AUX SENS MIDDLE, AUX SENS HIGH) to change
the AUX audio volume.
AUX SENS LOW : Low volume.
AUX SENS MIDDLE : Middle volume.
AUX SENS HIGH : High volume.
■ When selecting the third item "SCREEN" , the screen that is changing over monitor display size
is displayed. You can choose among (FULL SCREEN, NORMAL SCREEN, CINEMA SCREEN)
to change the display size.
■ To return to the iPod menu screen, change the "VIDEO" value to "AUDIO" on the iPod option
screen.
※
To connect the iPod unit, a dedicated cable must be purchased separately.
USB Operations
USB is an acronym for Universal Serial Bus, and refers to an external bus standard supporting data
transfer rates of 12 Mbps. This unit is compatible with USB 1.1/2.0 with maximum data transfer
rates of 12 Mbps. USB memory devices that can be played by connecting to the unit's USB cable
are limited to those recognized as “USB mass storage class devices”; operation is not guaranteed
with all USB memory devices. Devices compatible with “USB Mass Storage Class” can be used
merely by connecting to the host device, without need for special drivers or application software.
Consult the manufacturer of your USB memory device for information regarding whether it is
supported by “USB Mass Storage Class” standards. Audio files supported by this unit are limited to
MP3/WMA/AAC files. This unit is not compatible with a USB Card-Reader (SD). Track numbers can
be displayed from 001 to 999 on the USB mode screen.
Operation
■ Press the [◀] or [▶] button to display the track list of the previous or next folder.
■ Press the [▶||] button to pause or resume the playback.
■ Keep pressing the [▶||] button for more than 2 seconds to stop during the playback.
■ Press the [|◀◀ ] or [▶▶ | ] button to skip the track.
■ Keep pressing the [▶▶ | ] button to play at fast forward, the [|◀◀ ] button to play at fast
backward.
47
English
■ Press the [OPT] button to use the detail function.
TRACK REPEAT : Track repeat playback.
TRACK SCAN : Track scan playback.
TRACK RANDOM : Track random playback.
FOLDER REPEAT : Folder repeat playback.
FOLDER SCAN : Folder scan playback.
FOLDER RANDOM : Folder random playback.
Owner’s manual
48
English
50
English
Owner’s manual
8. TROUBLESHOOTING
General
Owner’s manual
PROBLEM CAUSE SOLUTION
No Power(no sound)
No button activation
Wrong Display
Remote Controller
is not working
Disconnected fuse
Wrong Connection
Wrong operation due to
the interference from microprocessor
Receiver is in the direct rays of the
sun
Out of battery power
Change to a new fuse. If the fuse
goes out again, please consult
withyour place of purchase.
Press the reset button for about 2
seconds with a thin rod.
NOTE:When the reset button is
pressed, freguencies of the radio
station, clock, etc, stored within
memory will be cleared.
Remote controller is not working
if the receiver is in the direct sun
rays.
Check the batteries.
DVD Player
PROBLEM CAUSE SOLUTION
Unable to insert the disc
Noise sound
and sound skipping
Decreased sound quality
after POWER ON
No video display
Another disc is already in the unit
Foreign materials are
in the disc insertion slot
Dirty CD
CD is damaged
(scratched and damaged)
Moisture can effect the
performance when parked in a
humid area
Parking brake is released
Eject the disc from the unit
Clean the disc insertion slot
Clean the CD with a soft
fabrics
Do not use damaged CD
Dry the unit for an hour
with the power turned on
Check the parking brake.
iPod Connection
When trying to play the iPod with this unit, iPod operation may not work. In such a case, please
reset the iPod. Please confirm the method of resetting the iPod within the manual for the iPod
device.Because the noise occurs on the unit, do not connect the AUDIO-VISUAL device to AUX IN after connecting the iPod that is using power from the vehicle via the cigarette jack. Please
use the AUX-IN and the USB cable. When an iPod is connected to the unit, some iPod may not
properly charge. In such a case, turn off the power on the unit. Use an iPod which has been
charged.
49
Noise
Noise may occasionally occur if a portable AUDIO-VISUAL device has been connected to the
monitor in a state where you are connected to the vehicle power supply for charging, etc. In such
a case, please us a portable AUDIO-VISUAL device without connecting to the power supply on the
vehicle. Only use the device through its internal battery.
English
Owner’s manual
50
English
52
English
Owner’s manual
9. SPECIFICATIONS
Frequency range 87.9MHz to 107.9MHz
Owner’s manual
FM TUNER
Quieting sensitivity 20dBf
Limiting sensitivity 15dBf
Stereo separation 20dB (1kHz)
Frequency response 100Hz to 7kHz
AM TUNER
DVD PLAYER
MP3 / WMA
AUDIO
AMPLIFIER
LCD MONITOR
Frequency range 530kHz to 1710kHz
Usable sensitivity 40dBuV
CDDA capable
Usable discs DVD video disc, Compact disc
Frequency response 17Hz to 20kHz(CD)(+3/-3dB)
Separation 60dB
Distortion 0.5%
MPEG2 22.05kHz/24kHz/16kHz
MPEG1 32kbps to 320kbps
Bit rate MPEG2 8kbps to 160kbps
(VBR)
JOLIET or Romeo
Maximum power output 50W x 4ch
Speaker impedance 4 ohm (4 to 8 ohm)
Screen size 3.5inch wide type
Display method Transmission type
active matrix driving
Pixels 336,960 (1440 x 234)
Digital versatile disc system with
System
Sampling rate
Logical Format
Drive method
MPEG1 44.1kHz/48kHz/32kHz
ISO9660 level1, 2
TFT(thin-film transistor)
TN QVGA TFT LCD
51
GENERAL
Power source voltage
(10.8 to 15.6V allowable)
Ground Negative
Current consumption 4.0A(1W)
Auto antenna rated current 500mA less
Dimension of the Main Unit 7.0"(W) x 1.9"(H) x 6.2"(D)
Weight of the Main Unit 1.8kg
Dimension of the Remote Control Unit 2.0"(W) x 0.8"(H) x 6.4"(D)
Weight of the Remote control Unit 90g (including battery)
14.4V DC
unit : inch (mm)
※ Specifications and designs are subject to change without notice for further improvement.
Power Output : 18W RMS x 4 Channels at 4Ω and 1% THD+N
Signal to noise Ratio : 74dBA (reference : 1W into 4Ω )
English
Owner’s manual
52
English
54
English
Owner’s manual
10. INSTALLATION AND WIRE
CONNECTION
Owner’s manual
Cautions on Installation
1. Before Starting
This set is exclusively for use in cars with a negative ground 12 V power supply. Read these
instructions carefully. Be sure to disconnect the battery "⊖" terminal before starting. This is to
prevent short circuits during installation.
2. Package Contents
PART QTY
① Main unit
② Manuals
③ Power supply lead (For the main unit)
④ RCA lead
⑤ Bag for accessories of the main unit (No. 1)
⑥ Bag for accessories of the main unit (No. 2)
⑦ Universal mounting bracket
⑧ Remote control unit
⑨ Battery (for remote control unit)
⑩ DCP case
Owner’s manual & Installation manual 1
Warranty card 1
Flat head screw (M5 ' 8) 4
Sems hexagonal bolt (M5 ' 8)
Electro tap
Machine screw (M4 ' 3) 4
Hook plate 2
Cord clamp 1
Reset Pin 1
Car battery
1
1
1
5
1
1
1
2
1
3. General Cautions
① Do not open the case. There are no user serviceable parts inside. If you drop anything into the
unit during installation, consult your dealer or an authorized CLARION service center.
② Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol,
etc. For tough dirt, apply a little cold or warm water to a soft cloth and wipe off the dirt gently.
53
4. Cautions on Installation
① Prepare all articles necessary for installing the main unit before starting.
② Install the unit within 30° of the horizontal plane.
③ If you have to do any work on the car body, such as drilling holes, consult your car dealer
beforehand.
④ Use the enclosed screws for installation. Using other screws can cause damage.
Chassis Chassis
Damage
Max. 8mm (M5 screw)
⑤ The source unit has mounting screw holes for NISSAN (N marks) and TOYOTA (T marks)
vehicles.
English
Owner’s manual
54
English
56
English
Owner’s manual
Main Unit Installation (Universal Mount)
① Place the universal mounting bracket into the instrument panel, use a screwdriver to bend each
Owner’s manual
stopper of the universal mounting bracket inward, then secure the stopper.
② Wire as shown in Section "Electrical Connection".
③ Insert the main unit into the universal mounting bracket until it locks.
• Console opening dimensions
7.2" (183mm)
Rear Iastening hole (of vehicle)
Hole
Screw Drover
※ Some car models require special mounting kits for proper installation. Consult your Clarion
dealer for details.
※ Fasten the front stopper securely to prevent the main unit from coming loose.
2.0"
53mm
Instrument Panel
Stopper
Hole
Unviersal Mounting
Bracket
Stopper
55
Removing The Main Unit
① When the rear of the main unit has been secured through the method as shown in the following
figure, unfasten the special screw.
② Insert the hook plate into the universal mounting bracket, then pull the main unit out by the hook
plate. (Insert both the right and left edges of the hook plate.)
English
Owner’s manual
Unversal mounting bracket
2-Hook Plate
※ Keep the hook plate. You cannot remove the main unit without disengaging the hook plate.
Instrument panel
Cautions On Wiring
Be sure to turn the power off before wiring. Be particularly careful where you route the wires.
Keep them well away from the engine, and exhaust pipe, etc. Heat may damage the wires.
If the fuse should blow, check to see if the wiring is correct. If it is, replace the fuse with a new one
with the same amperage rating as the original. To replace the fuse, remove the old fuse of the
power supply lead and insert the new One.
※ There are various types of fuse holder. Do not let the battery side touch other metal parts.
※ After the connection, fix the lead by a clamp or insulation tape for protection.
Fuse holder
Fuse
56
English
58
English
Owner’s manual
15A
Electrical Connection
1. Wire Connection
Owner’s manual
Grey
Black
Blue
Green
Red
Black
Black
Grey
Red
White
Red
White
Red
White
Yellow
Red
White
Yellow
White
Red
Right
Left
Right
Left
Right
Left
Video
Right
Left
Video
Audio(L)
Audio(R)
Yellow
Visual-in(for camera)
Black
OEM Remote
Brown
Tel Mute
Grey
iPod
Front
Audio
}
Output
Rear
Audio
}
Output
Subwoofer
}
Output
}
}
2Zone
Output
Visual
Input
Refer to the
next pages
6 Ch Amp
Rear Side
Monitor
Wireless Head phone
VTR
Black
Antenna
Black
Black
※ Disconnect the Negative(-) power cable from the battery before installation.
※ The RCA pins and connector cables are sold separately.
※ To activate "Auto Mute-On when receiving phone call", connect right wire to the dedicated
connector in the vehicle.
USB Cable
57
2. Power supply Lead
15A
Fuse Box
Filter &
Yellow
Black
Violet
Violet / Black
Red
Grey
Grey / Black
White
White / Black
Green
Green / Black
Blue / White
Orange / White
Blue
Violet / White
Yellowish Green
Battery
Ground
Rear-Right(+)
Rear-Right(-)
ACC
Front-Right(+)
Front-Right(-)
Front-Left(+)
Front-Left(-)
Rear-Left(+)
Rear-Left(-)
Amp Remote On
Illumination
Auto Antenna
Reverse
Parking Brake
English
Owner’s manual
58
English
60
English
Owner’s manual

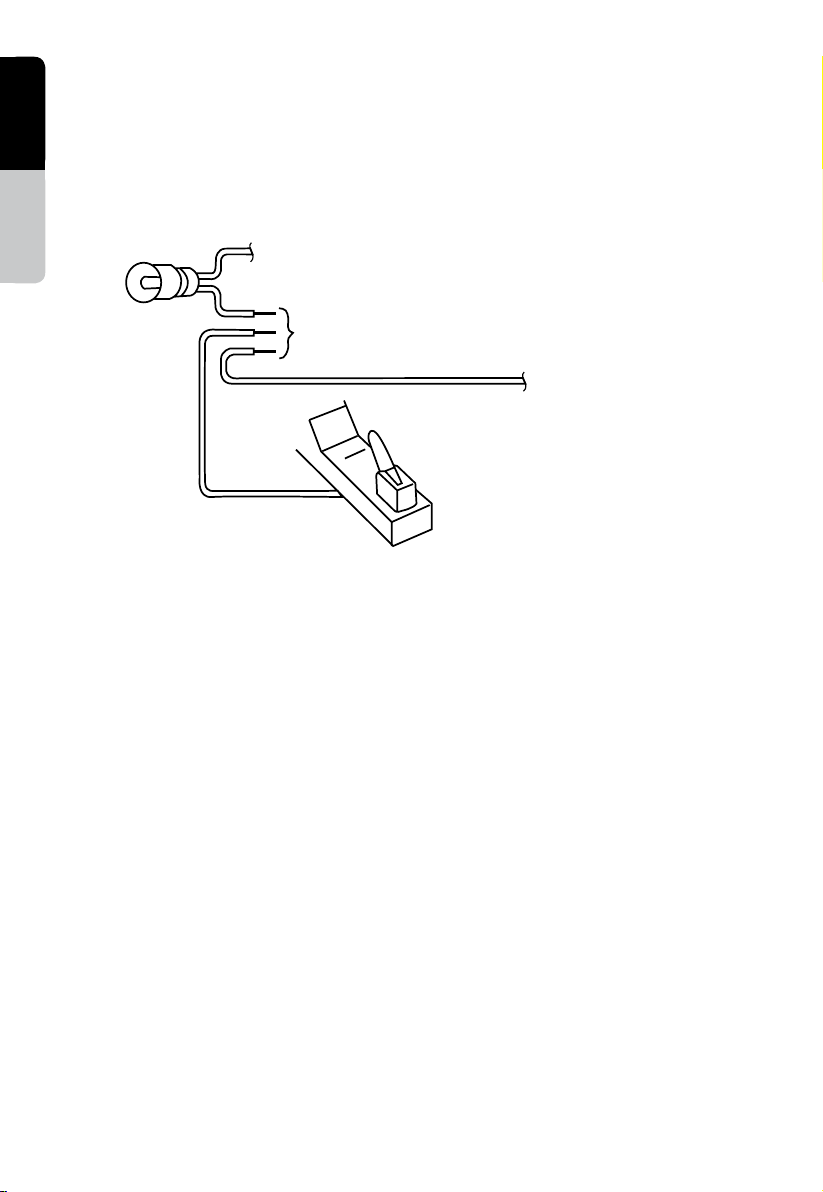

3. Connecting the Parking Brake Lead
Connect the lead to parking brake lamp earth in the meter panel. Connecting the parking brake
Owner’s manual
lead to lamp earth allows you to watch VTR/DVD video when the parking brake is engaged.
When the parking brake lead is not connected, the monitor will stay off.
Parking brake lamp
(-)Cord parking
brake signal lead
4. Connecting the Accessories
① Connection to the external amplifier
The external amplifier can be connected unless the MCP (Multiple Channel Processor) is
connected. For detailed information, refer to the instruction manual of the MCP.
② Connection to the CCD camera for vehicle
The CCD camera for vehicle can be connected to the system expansion terminal on the main
unit. For detailed information, refer to the instruction sheet or manual for the CCD camera.
③ If the specified lead of the cellular phone is connected to the phone mute lead of the
source unit, the audio mute is available when the cellular telephone is used.
(+)Lead to battery
Connect these three leads
Parking brake lead
(Bright green)
Parking brake
59
5. Sample System
English
CAA-185
for Camera
Steening
Remocon
CAA-185
for Camera
Steening
Remocon
4ch - RCA
2ch - Mini - Jack
sold separately
4ch - RCA
2ch - Mini - Jack
CCA-691
2ch - RCA
iPod
BLT370
3ch - RCA
Phone Mute
4ch - RCA
2ch - RCA
4ch - RCA
2ch - RCA
Rear
Monitor
Sub Woofer
4 - ch
AMP
Powered
Sub Woofer
4 - ch
AMP
Powered
Owner’s manual
USB
Audio / Memory
3ch - RCA
USB
AUX
3ch - RCA
Rear
Monitor
60
Clarion Co., Ltd.
All Rights Reserved.Copyright © 2007:Clarion Co., Ltd.
Printed in Korea / Impreso en Corea / Imprimé en Corée
2008/01 (Y-YI)
QC-6826B-A
Loading...
