M202RC-RET
MARINE REMOTE-MOUNTED CONTROL PANEL
Owner's Manual / Installation Guide
VOLUME
VOLUME
BAND SOURCE
POWER
SELECT
SELECT
MUTE
Precautions
Table of Contents
Make certain that the remote is installed in a location which
does not interfere with the safe and proper operation of the
boat.
The M202RC-RET is only comp atible with the M335-RET AM/
FM/CD Player.
About Installation
Installation of Clarion marine audio components requires
experience with a variety of mechanical and electrical
procedures. Even though this manual provides general
installation and operation instructions for your new Clarion
marine audio remote control panel, it does not show the exact
methods for your particular installation.
If you do not have the required knowledge and experience to
successfully complete the installation, we strongly recommend
consulting an authorized Clarion marine audio dealer about
professional installation options.
1. Introduction.....................................................................4
2. Care and Maintenance ...................................................4
3. Using the Remote Control Panel ...................................5
4. Installation and Wiring ...................................................7
Limited Warranty Information ......................................... 11
1. INTRODUCTION
2. CARE AND MAINTENANCE
The M202RC-RET is a waterproof remote control panel which
allows operation of the Clarion M335-RET head unit from a
remote location. Two M202RC-RET units may be used with a
single M335-RET (using an optional M101RYC adapter). The
M202RC-RET can be connected to your boat’s illumination
circuit, backlighting the panel in low-light conditions.
What is included
• Remote control panel (1)
• One mounting bracket and four 7mm hex nuts (1 set)
• Owner’s Manual / Installation Guide (1)
Note: An extension DIN cable is available separately
(P/N M101RXC)
Clean the remote control panel with a slightly damp, soft cloth
using household glass cleaner. Do not use solvents such as
benzene, thinner, or commercially available cleaners.
From time to time, inspect the connections on the rear of the
unit for corrosion and correct as needed.
4 M202RC-RET

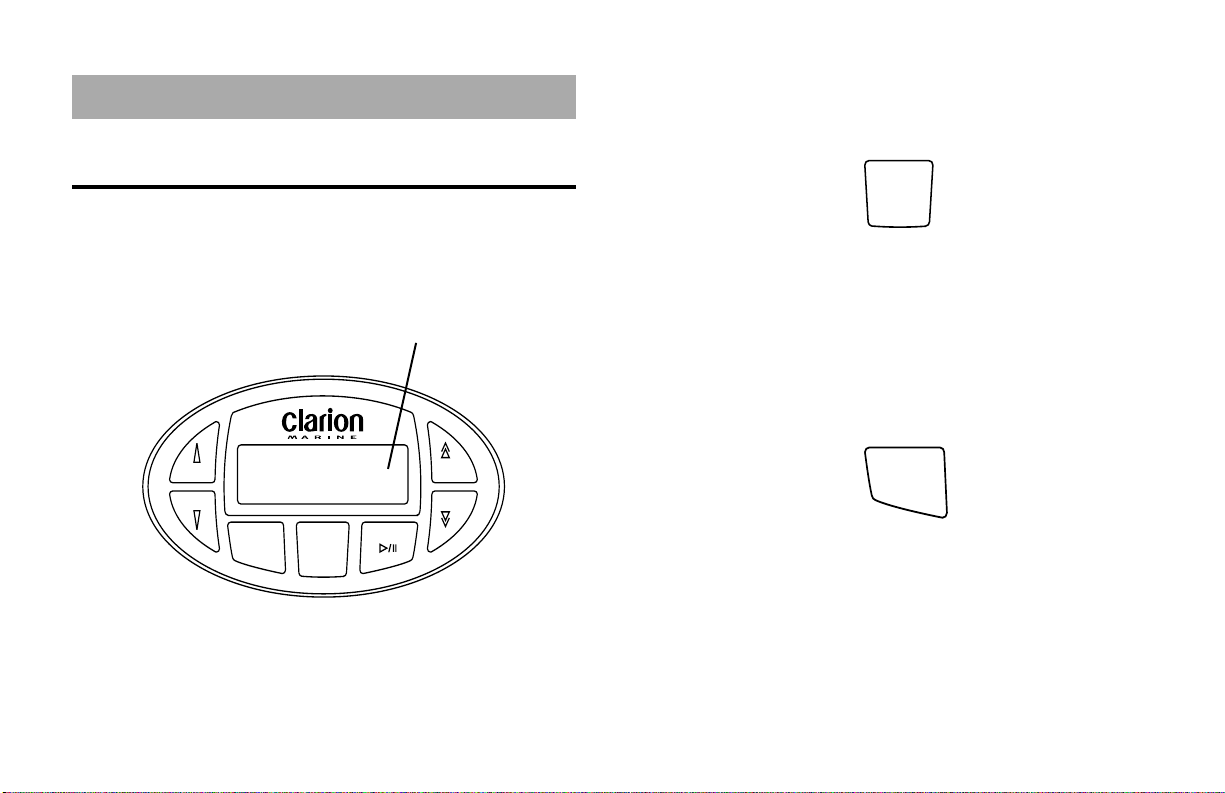

3. USING THE REMOTE CONTROL P ANEL
The [POWER/SOURCE] button:
Using the Remote Control Panel
This remote control allows the user to control the Clarion
M335-RET AM/FM/CD Player from a remote location, even if
the source unit is mounted out of sight in a compartment or in
a different area.
Display
VOLUME
VOLUME
BAND SOURCE
POWER
SELECT
SELECT
MUTE
To turn the unit on, press this button momentarily. To
turn the unit off, press and hold for 1 second.
When the M335-RET is already on, press momen
tarily to switch between the CD and the AM/FM tuner.
The [BAND] button:
In Radio mode: Switches between AM and FM
bands, and selects among the various memory
registers (FM1, FM2, etc.)
In CD mode: begins playback from the beginning of
the CD.
SOURCE
POWER
BAND
M202RC-RET 5
The [MUTE/PLAY/PAUSE] button:
MUTE
In Radio mode: this button mutes the system. Press
the button again to defeat the mute feature.
In CD mode: this button pauses playback of the CD.
To resume playback, press this button again.
The [VOLUME UP/DOWN] buttons:
VOLUME
VOLUME
These increase and decrease the system volume. If
the [MUTE] function is active, pressing one of these
buttons defeats the mute function.
The [SELECT UP/DOWN] buttons:
SELECT
SELECT
In Radio mode: these buttons select the next
preset radio station in the memory.
In CD mode, these buttons serve two functions:
Track navigation: To select the next track on the
disc, press and release the [SELECT UP] button. To
return to the beginning of the current track, press
and release the [SELECT DOWN] button. To “back
up” a few tracks, press and release the [SELECT
DOWN] button until the desired track number is
displayed.
Searching within a track: To fast-forward or fastreverse within the track, press and hold the
[SELECT UP] or [SELECT DOWN] button.
6 M202RC-RET
4. INST ALLATION AND WIRING
3. Installing the Unit
1. Before Starting
Read these instructions and the following precautions.
Precautions
• This unit is exclusively for boats with a negative ground,
12V power supply.
• Do not open the case. There are no user-serviceable parts
inside. If you require assistance, consult your Clarion
dealer or an authorized Clarion service center.
• Use a soft, dry cloth to gently clean the control panel after
installation. Never use a rough cloth, thinner, benzene,
alcohol, or other solvent. The screen surface can be
scratched - do not rub when cleaning.
2. Package Contents
! Remote Control Panel unit (1)
! One mounting bracket and four 7mm hex nuts (1 set)
! Owner’s Manual / Installation Guide (1)
Selecting the Location
Location of the panel varies.
Before you begin installation of the panel, verify that you have
sufficient clearance in the desired location. 2.5 inches is
required to avoid cable damage. A flat surface is required in
order to ensure a watertight seal when mounting is complete.
WARNING!
Before cutting any panel, ALWAYS
ensure that there is sufficient clearance
behind the panel, and that no wire
harnesses, fuel lines, moving linkages,
or any other critical components are
exposed to damage by your choice of
location. NEVER risk damage to the hull
while cutting your opening.
Prepare the boat for installation by carefully removing interior
trim panels as necessary. Route wire harnesses away from
sharp edges, and ensure that no harnesses will be pinched
or pierced during reassembly.
M202RC-RET 7
1. Determine the mounting location is a flat surface with
sufficient rear clearance (2.5”) and access. Ensure
that the installation can be successfully completed
before continuing! If the cable is not long enough, a
cable extension is available - P/N M101RXC.
2. The remote control panel requires a 2” (51mm) diameter
round hole. Cut the hole and insert the panel as shown.
2” (51mm)
Diameter
Hole
3. The mounting bracket is scored with “break lines’ to allow
use with panels of different thicknesses. Determine if the
bracket needs to be shortened, and remove the appropriate number of breakaway segments using a pair of pliers.
Each segment is 1/4” long.
Mounting Bracket
Break Lines
VOLUME
VOLUME
BAND
8 M202RC-RET
4. Insert the remote control panel into the opening. Make
sure that the gasket behind the remote control panel face
seats completely against the mounting surface.
SOURCE
SELECT
POWER
SELECT
MUTE
5. Position the bracket onto the rear of the remote control
panel, sliding the two threaded studs on the rear of the
panel through the two holes in the mounting bracket (as
shown below). Tighten the 7mm hex nuts onto the
bracket, again ensuring that the gasket seals tightly to
the front of the mounting surface. Avoid pinching the
cable.
Wiring Connections
Take the following precautions before wiring your system.
• Disconnect the negative battery terminal before making any wiring
connections.
• Be particularly careful where you route wires and cables. Keep
them away from the engine, exhaust system, etc. Heat may
damage wires. Sharp edges can pierce wire insulation and cable
jackets, causing short circuits, damage to the craft, blown fuses,
and system failure.
• If any fuse should blow, make sure all connections are correct
and no wires are damaged before replacing the fuse. Always use
fuses that are the same amperage value as the original. When
replacing a fuse, never let the battery side touch any metal part or
any other wire.
Wiring
1. Connecting the ground lead.
Connect a wire to one of the
mounting studs on the rear of
the unit, using a #8 ring
terminal (not supplied).
Connect this wire to the
boat’s negative (-) ground.
M202RC-RET 9
2. Connecting the illumination lead.
The illumination circuit of the M202RC-RET operates with
a 12V(+) input. Wire with a .250 female insulated spade
terminal (not supplied), and connect the illumination
terminal on the rear of the panel to a 0.5A in-line fuse (not
supplied). Connect the other side of the fuse to an
illumination circuit of the boat.
3. Connecting the cables.
Connect the DIN cable from the M335-RET AM/FM/CD
Player to the remote(s). Route it carefully to avoid moving
parts.
M101RXC-24
VOLUME
VOLUME
M335
BAND SOURCE
M202RC
Connecting one remote to the XMD3
with optional M1012RXC-24 DIN cable.
M101RYC
M101RXC-24
SELECT
SELECT
MUTE
POWER
10 M202RC-RET
M335
VOLUME
VOLUME
M202RC
M101RXC-24
VOLUME
M202RC
Connecting two remotes to the M335 using an optional
M1012RYC and two M1012RXC-24 DIN cables.
NOTE: A maximum of two remotes can be connected to
the M335.
VOLUME
BAND SOURCE
BAND SOURCE
SELECT
SELECT
MUTE
POWER
SELECT
SELECT
MUTE
POWER
LIMITED WARRANTY INFORMATION
For USA and Canada only
This product is warranted against all defects in material workmanship
for a period of one year from the date of original purchase. Clarion
ProAudio products, except for speakers, are covered by a two year
limited warranty when installed by an authorized Clarion dealer. The
conditions of this limited warranty and the extent of responsibility of
Clarion Corporation of America (“Clarion”) under this limited warranty
are as follows:
1. PROOF OF DATE OF PURCHASE WILL BE REQUIRED FOR
WARRANTY SERVICE OF THIS PRODUCT. IN THE CASE OF THE
TWO (2) YEAR LIMITED WARRANTY FOR CLARION PROAUDIO
PRODUCT, PROOF OF INSTALLATION BY AN AUTHORIZED
DEALER IS REQUIRED. INFORMATION ABOUT CLARION
AUTHORIZED WARRANTY SERVICE CENTERS MAY BE OBTAINED
BY CONTACTING CLARION AT THE ADDRESS BELOW.
2. This limited warranty will become void if service performed by
anyone other than an approved Clarion Warranty Service Center
results in damage to the product.
3. This limited warranty does not apply to any product which has
been subject to misuse, neglect or accident, or which has had the
serial number altered, defaced or removed, or which has been
connected, installed, adjusted or repaired, other than in
accordance with the instructions furnished by Clarion.
4. This limited warranty does not cover vehicle static or other
electrical interferences, tape head or laser pick-up cleaning or
adjustments, or labor costs for the removal or reinstallation of the
unit for repair.
5. The sole responsibility of Clarion under this limited warranty shall
be limited to the repair of the product or replacement of the
product, at the sole discretion of Clarion.
6. Product must be shipped in its original carton or equivalent carton,
fully insured, with shipping charges prepaid. Clarion will not
assume any responsibility for any loss or damage incurred in
shipping.
7. ALL IMPLIED WARRANTIES EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW SHALL HAVE NO GREATER DURATION
THAN THE WARRANTY PERIOD SET FORTH ABOVE. UNDER NO
CIRCUMSTANCES SHALL CLARION BE LIABLE FOR ANY LOSS OR
DAMAGE, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INABILITY TO USE THE PRODUCT. BECAUSE SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR EXCLUSIONS OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
8. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
9. Should you have any difficulties with the performance of this
product during the warranty period, please call or visit our web
site (www.clarion.com) for a listing of Authorized Warranty
Service Centers in your area. You may also contact Clarion at the
address listed below.
In USA:
Clarion Corporation of America
Attn: Customer Service Manager
661 W. Redondo Beach Blvd
Gardena, CA. 90247-4201
1-800-GO-CLARION
(310)327-9100
www.clarion.com
In Canada:
Clarion Canada, Inc.
Warranty Service Center
2239 Winston Park Drive
Oakville, Ontario L6H 5R1
(905)829-4600
www.clarioncanada.com
www.clarion.com
Customer Service 800.347.8667
c
2003 Clarion Corporation
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Clarion Corporation.
Loading...
