1. When the inside of the car is very cold and the player is used soon after switching on the heater, moisture may form on the disc or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc, wipe it off with a soft cloth. If moisture forms on the optical parts of the player, do not use the player for about one hour and the condensation will disappear naturally to allow normal operation.

2. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

1. PRECAUTIONS

Bottom View of Source Unit

Printed in Malaysia / Imprimé à Malaisie / Impreso en Malasia

2001/1 (D•M)

Clarion Co., Ltd.

PE-2420B

280-7643-00

Owner’s manual

Mode d’emploi

Manual de instrucciones

AM/FM CD PLAYER

•

RADIO AM/FM-LECTEUR CD

•

RADIO AM/FM Y REPRODUCTOR CD

■Contents

English

1. PRECAUTIONS...........................................................2

2. CONTROLS.................................................................3

3. BUTTON TERMINOLOGY..........................................4

4. FEATURES..................................................................5

5. HANDLING COMPACT DISCS...................................6

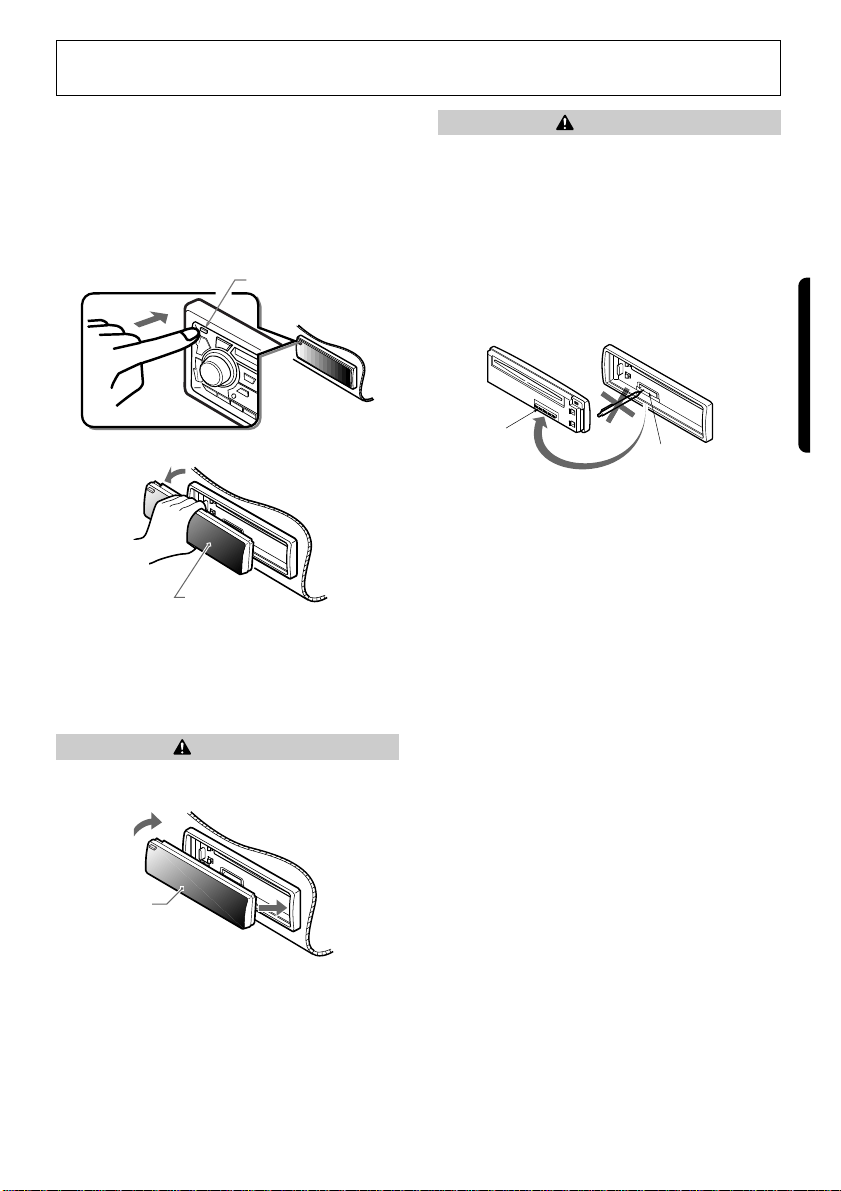

6. DCP (Detachable Control Panel)..............................7

7. OPERATION................................................................8

8. TROUBLESHOOTING..............................................12

9. ERROR DISPLAYS...................................................13

10.SPECIFICATIONS.....................................................14

■Table des matières

Français

1. PRÉCAUTIONS.........................................................15

2. COMMANDES.............................................................3

3. NOMENCLATURE DES TOUCHES.........................16

4. CARACTÉRISTIQUES..............................................17

5. MANIPULATION DES DISQUES COMPACTS ........18

6. CLAVIER DE COMMANDE AMOVIBLE (DCP).......19

7. FONCTIONNEMENT.................................................20

8. DÉPISTAGE DES PANNES......................................24

9. AFFICHAGE DES ERREURS...................................25

10.SPÉCIFICATIONS.....................................................26

■Índice

Español

1. PRECAUCIONES......................................................27

2. CONTROLES..............................................................3

3. NOMENCLATURA DE LOS BOTONES...................28

4. CARACTERÍSTICAS ................................................29

5. MANEJO DE LOS DISCOS COMPACTOS..............30

6. PANEL DE CONTROL DESMONTABLE (DCP)......31

7. OPERACIÓN.............................................................32

8. SOLUCIÓN DE PROBLEMAS..................................36

9. INDICACIONES DE ERROR ....................................37

10.ESPECIFICACIONES ...............................................38

CHANGES OR MODIFICATIONS T O THIS PR ODUCT WILL V OID THE W ARRANTY AND WILL VIOLATE FCC APPROVAL.

INFORMATION FOR USERS:

USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.

CAUTION

Be sure to unfold and read the next page.

Veuillez déployer et vous référer à la page suivante.

Cerciórese de desplegar y de leer la página siguiente.

BD216

280-7643-00

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque: Veuillez déployer cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

3 BD216 4 BD216

English

CONTROLS / COMMANDES / CONTROLES

SOURCE UNIT / APPAREIL PILOTE / UNIDAD FUENTE

DISPLAY

AFFICHEUR

VISUALIZADOR

CD Insertion Slot

Fente d’insertion de CD

Ranura de inserción del disco compacto

1 32 4 5

789 6@$ # !

¥

English

Français Español

BD216 41

Note:

•

Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).

1 DCP Release Button 2 Volume Knob 3 Eject (Q) Button 4 POWER Button

FNC (Function) Button

5 Z-EHCR (Z-enhancer) Button 6 AS (Auto Store) Button 7 PS (Preset Scan) Button 8 Play/Pause (s) Button 9 DISP (Display) Button 0 BND (Band) Button

TOP Button

! RDM (Random) Button @ A-M (Audio Mode) Button # RPT (Repeat) Button $ SCN (Scan) Button % Preset Buttons (1 to 6) ¥ SRCH (Search) Up and Down ( and ) Buttons

3. BUTTON TERMINOLOGY

Note: The above illustration shows the front panel of the model BD216.

Remarque: L’illustration ci-dessous montre le panneau avant du modèle

BD216.

Nota: La ilustración de arriba muestra el panel frontal del modelo BD216.

E glis

BD216 5

■ Rotary Encoder Volume Control

■ DIN Chassis with Detachable Control Panel (1DIN, Full DCP feature)

■ Z-Enhancer with 3 Mode Sound Selector

■

FM Reception System

■ Seek / Manual Up / Down Tuning

■ 8-Times Oversampling Digital Filter and Dual 1-Bit D/A Converters

■ Preset Station Scan (PS), Automatic Store (AS)

■ 2-Channel RCA Line Level Output

■ AM 1 band, FM 4 bands each 5 channels total 25 channels, Preset Memory Function

■ Repeat/Random Play/Intro Music Scan

■ 180W (45 W × 4) Maximum Power Output

4. FEATURES

6 BD216

5. HANDLING COMPACT DISCS

This unit has been designed specifically for playback of compact discs bearing the mark. No other discs can be played.

Single CD (8cm) cannot be played with the unit. To remove the compact disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.

Always handle the compact disc by the edges. Never touch the surface.

To remove fingermarks and dust, use a soft cloth, and wipe in a straight line from the center of the compact disc to the circumference.

New discs may have some roughness around the edges. The unit may not work or the sound may skip if such discs are used. Use a ball-point pen, etc. to remove roughness from the edge of the disc.

Note on Compact Discs

Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen.

Do not use any solvents such as commercially available cleaners, anti-static spray, or thinner to clean compact discs.

Do not use compact discs that have large scratches, are misshapen, or cracked, etc. Use of such discs will cause misoperation or damage.

Do not expose compact discs to direct sunlight or any heat source.

Ball-point pen

Roughness

Proper way to hold the compact disc

Removing the disc

Note:

•

Do not use commercially available CD protection sheets or discs equipped with stabiliz ers, etc. These may get caught in the internal mechanism and damage the disc.

+ 8 hidden pages
