Familiarisation

All aspects of the use of your vehicle are presented in this section to allow quick and effective familiarisation with the main systems.

Exterior

Stop & Start

This system puts the engine temporarily on standby during stops in the traffic (red lights, traffic jams, etc...). The engine restarts automatically as soon as you want to move off. The Stop & Start system reduces fuel consumption and exhaust emissions, and offers the comfort of complete silence when stationary.

166

Guide-me-home lighting

After switching off the ignition, under low lighting conditions the headlamps remain on for a few seconds to help you leave the vehicle.

109

Customising kits

These expressive stickers form part of a range of kits, very different one from another, which allow you to create a unique and attractive exterior for your vehicle.

Rear parking sensors

This system provides a warning when reversing by detecting obstacles located behind the vehicle.

173

Temporary puncture repair kit

This kit is a complete system consisting of a compressor and a sealant cartridge, to allow the temporary repair of a tyre.

190

Access

Familiarisation

Remote control key

A. Unfolding/Folding the key. B. Unlocking the vehicle.

Other functions... C. Normal locking of the vehicle Vehicle location.

Fuel tank

1. Opening the fuel filler flap.

2. Opening and hooking the fuel filler cap.

Tank cap acity:

- approximately 50 litres (petrol),

- approximately 46 litres (Diesel).

- (depending on version: approximately 30 litres (petrol or Diesel)).

100, 102

Bonnet

A. Interior release lever. B. Exterior safety catch. C. Bonnet stay.

179

Interior

Gear shift indicator

Associated with the manual gearbox, this system suggests when to change up to obtain optimum fuel consumption.

Scented air freshener

The scented air freshener diffuses the selected fragrance throughout the passenger compartment from its location in the ventilation system.

Digital air conditioning

After setting the desired level of comfor t, the system then automatically controls this level according to the exterior climatic conditions.

158

Interior mood lighting

This subdued passenger compartment lighting improves visibility inside the vehicle in low lighting conditions. It comprises several lamps, located in the footwells and in the lower dashboard storage compartment.

117

Audio and communication systems

These systems benefit from the latest technology: MP3 compatible Audio system, Bluetooth system and USB Box, MyWay with 16/9 colour screen, auxiliary inputs, Hi-Fi audio system. MyWay

247

Audio system

281

Instruments and controls

1. Cruise control/speed limiter controls.

2. Headlamp height adjustment.

3. Steering wheel adjustment.

4. Lighting and direction indicator stalk

5. Instrument panel.

6. Driver's airbag. Horn.

7. Gear lever.

8. 12 V accessory socket USB port/auxiliary socket.

9. Heated seat control.

10. Bonnet release lever.

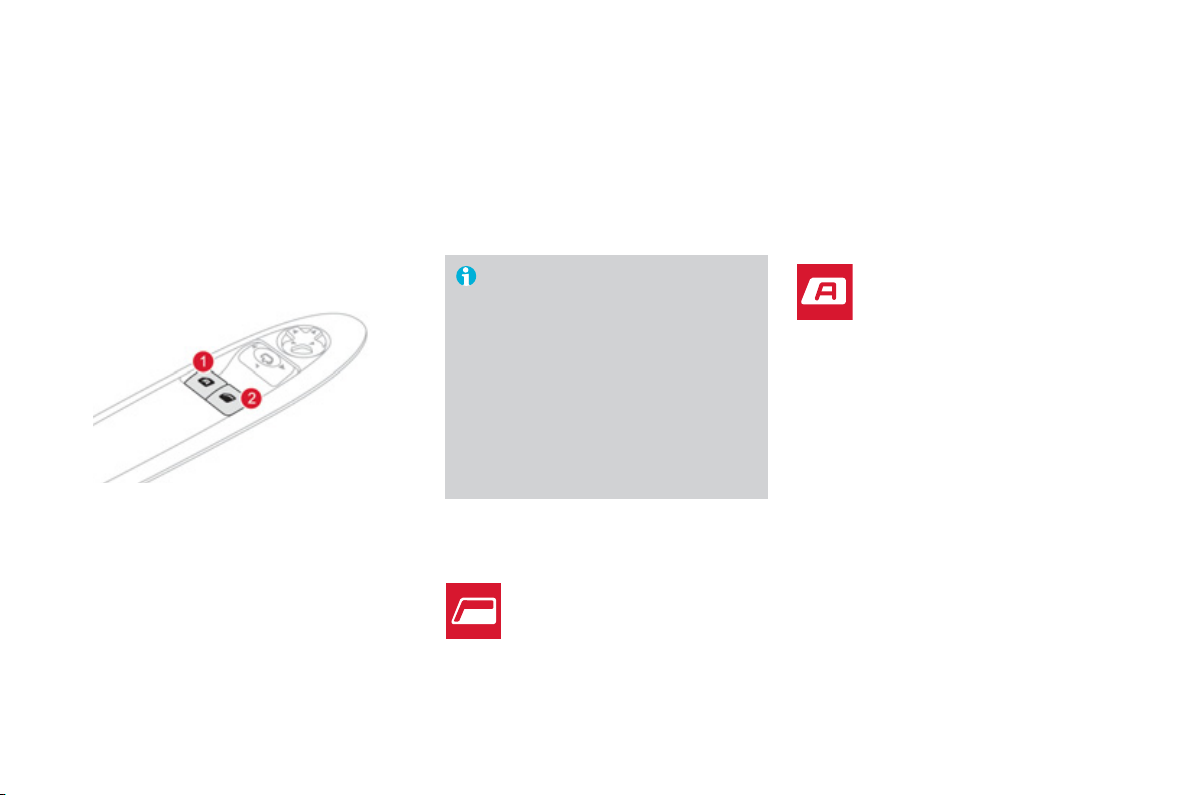

11. Door mirror controls. Electric window controls.

12. Fusebox.

13. Stop & Start button Electronic stability programme button

(ESP/ASR).

14. Front door window demisting/defrosting vent.

15. Speaker (tweeter).

16. Windscreen demisting/defrosting vent.

Familiarisation

Instruments and controls

1. Steering lock and ignition.

2. Audio equipment steering wheel controls.

3. Wiper/screenwash/trip computer stalk.

4. Scented air freshener.

5. Central locking button.

6. Multifunction screen.

7. Hazard warning lamp switch.

8. Central adjustable air vents.

9. Sunshine sensor Hi-Fi audio system central speaker.

10. Passenger's airbag.

11. Side adjustable air vent.

12. Glove box/Passenger's airbag deactivation.

13. Parking brake.

14. Central armrest with storage.

15. Upper and lower storage.

16. MyWay or Audio system.

17. Heating/air conditioning controls.

Sitting comfortably

Front seats

Familiarisation

1. Forwards-backwards adjustment. 2. Height adjustment.

3. Seat back angle adjustment.

77, 80

Sitting comfortably

Other adjustments

4. Head restraint height adjustment.

78, 81

Other functions... Access to rear seats. Heated seats.

Steering wheel adjustment

1. Release the adjustment mechanism.

2. Adjust for height and reach.

3. Lock the adjustment mechanism.

For reasons of safety, these operations must only be carried out with the vehicle stationary.

Sitting comfortably

Familiarisation

Door mirrors

Adjustment

A. Selecting the door mirror. B. Adjusting the position of the door mirror. C. De-selecting the door mirror.

Other functions... Folding/Unfolding.

Rear view mirror

Manual day/night type

Selecting the "day" position of the rear view mirror.

2. Adjusting the rear view mirror.

Automatic day/night type

1. Automatic detection of day/night mode.

2. Adjusting the rear view mirror.

Front seat belts

A. Fitting the belt. B. Fastening. C. Check that the belt is correctly fastened by

pulling on the belt webbing.

145

Seeing clearly

Lighting

Ring A

Lighting off.

Automatic illumination of headlamps.

Sidelamps.

Dipped/main beam headlamps.

Ring B

Front and rear foglamps.

106

Wipers

Control stalk A: windscreen wipers

2. Fast wipe.

1. Normal wipe. Int. Intermittent wipe.

0. Park. AUTO È Automatic wiping or single wipe. Screenwash: pull the stalk towards you.

112

Switching on "AUTO" mode

) Push the stalk downwards and release it.

Switching off "AUTO" mode

) Push the stalk upwards and return it to

position "0" .

114

Ring B: rear wiper

Park. Intermittent wipe. Screenwash.

113

Ventilation

Advice on interior settings

Heating or Manual air conditioning

Familiarisation

I require...

HEAT

COOL

DEMISTING

DEFROSTING

Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.

Air distribution Air flow

Air recirculation/

Exterior air intake

Temp eratur e Manual A/C

Monitoring

Instrument panels

On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the fuel gauge bars for

the fuel remaining should light up.

B. With the engine running, the associated

low level warning lamp should go off.

C. With the ignition on, the oil level indicator

should display "OIL OK" for a few

seconds. If the levels are not correct, top up the level which is low.

26, 28

Warning lamps

1. With the ignition on, the orange and red

warning lamps come on.

2. With the engine running, these warning

lamps should go off. If a warning lamp remains on, refer to the page concerned.

30, 35

Switch panel

Illumination of the indicator lamp indicates the state of the corresponding function. A. Deactivation of the ESP/ASR system.

144

B. Deactivation of Stop & Star t.

167

Familiarisation

Passenger safety

Front passenger's airbag

1. Open the glove box.

2. Insert the key.

3. Select position: "ON" (activation), with front passenger or

"forwards facing" child seat, "OFF" (deactivation), with "rear facing" child seat.

4. Remove the key keeping the switch in the

new osition.

149

Front seat belts and passenger's front airbag

A. Front seat belts not fastened or unfastened

warning lamp.:

145

B. Front passenger's airbag deactivation

indicator lamp.

C. Front passenger's airbag activation

indicator lamp.

150

Customise your vehicle

Using expressive stickers

These styling stickers are treated to give good resistance to ageing and tearing. They have been designed to allow you to customise your vehicle's bodywork. Available also as accessories, we recommend that you have them fitted by a CITROËN dealer or a qualified workshop.

When using a high pressure jet wash, keep the end of the lance at least 30 centimetres from the stickers

Driving safely

Stop & Start

Going into engine STOP mode

The "ECO" warning lamp comes on in the instrument panel and the engine automatically goes into standby:

- with a manual gearbox: at speeds below

12 mph (20 km/h), when you put the gear lever in neutral, and you release the clutch pedal.

In certain circumstances, the STOP mode may not be available; the "ECO" warning lamp flashes for a few seconds, then goes off.

166

Going into engine START mode

The "ECO" warning lamp goes off and the engine restarts automatically:

- with a manual gearbox: when you fully

depress the clutch pedal.

In certain circumstances, START mode may be invoked automatically; the "ECO" warning lamp flashes for a few seconds, then goes off.

167

Deactivation/Reactivation

You can deactivate the system at any time by pressing the "ECO OFF" button; the button's warning lamp comes on.

The system is automatically reactivated every time the engine is started with the key.

Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key.

167

Driving safely

Familiarisation

Speed limiter "LIMIT"

1. Selecting/Switching off speed limiter mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter on/off.

The values must be set with the engine running.

169

In order to be programmed or activated, the

Cruise control "CRUISE"

1. Selecting/Switching off cruise control mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Cruise control Off/Resume.

vehicle speed must be higher than 25 mph (40 km/h), with at least fourth gear engaged on a manual gearbox (second gear on a SensoDrive or automatic gearbox).

171

Display in the instrument panel

The cruise control or speed limiter mode appears in the instrument panel when it is selected.

Cruise control

Speed limiter

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently, change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear shift indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.

With an automatic or electronic gearbox, stay in Drive "D" or Auto "A" , according to the type of gear selector, without pressing the accelerator pedal heavily or suddenly.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These attitudes contribute towards a reduction in fuel consumption and CO reduce the background traffic noise.

When the traffic is flowing well, and if you have cruise control, make use of the system at speeds above 25 mph (40 km/h).

emissions and also helps

Control the use of your electrical equipment

Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windows and leave the air vents open. Remember to make use of equipment that can help keep the temperature in the passenger compartment down (sun roof and window blinds...). Switch off the air conditioning, unless it has automatic digital regulation, as soon as the desired temperature is attained. Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off, particularly in winter; your vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting the consumption of electrical energy, and so of fuel. Disconnect your portable devices before leaving the vehicle.

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendations on maintenance

Check the tyre pressures regularly, when cold, referring to the label in the door aperture, driver's side. Carry out this check in particular:

- before a long journey,

- at each change of season,

- after a long period out of use. Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter...) and observe the schedule of operations recommended by the manufacturer.

When refuelling, do not continue after the 3 rd cut-of f of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settle down to a consistent average.

001

Instruments and controls

To help you understand the information presented in the instrument panel, this section describes the three back-lit dials, the location and purpose of each warning and indicator lamp, and explains the information provided by your trip computer.

Petrol - Diesel instrument panels, manual, SensoDrive or automatic gearbox

Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.

Dials

1. Rev counter. Indicates the speed of rotation of the

engine (x 1 000 rpm).

2. Vehicle speed. Indicates the current speed of the moving

vehicle (mph or km/h).

3. Engine coolant temperature. Indicates the temperature of the engine

coolant liquid.

4. Display screen.

5. Fuel level. Indicates the quantity of fuel remaining in

the tank.

6. Display management button Alternates display between range and trip

mileage recorder. Servicing information. Resets the selected function to zero (trip

distance recorder or service indicator).

7. Lighting dimmer button. Adjusts the level of the instrument and

controls illumination and the interior mood lighting.

For more information, refer to the paragraph relating to the button or function and its associated display.

Screen

A. Speed limiter (mph or km/h) or Cruise control. B. Gear shift indicator. C. SensoDrive or automatic gearbox

information.

D. Range (miles or km) or Trip mileage recorder.

E. Service indicator (miles or km), then Total mileage recorder These two functions are displayed

successively when switching on the ignition

F. Engine oil level indicator Appears a few seconds after switching on

the ignition, then disappears.

Monitoring

RACING petrol instrument panel, manual gearbox

Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.

Dials

1. Rev counter. Indicates the speed of rotation of the

engine (x 1 000 rpm).

2. Vehicle speed. Indicates the current speed of the moving

vehicle (mph or km/h).

3. Engine coolant temperature. Indicates the temperature of the engine

coolant liquid.

4. Display screen.

5. Fuel level. Indicates the quantity of fuel remaining in

the tank.

6. Display management button Alternates display between range and trip

mileage recorder. Servicing information. Resets the selected function to zero (trip

distance recorder or service indicator).

7. Lighting dimmer button. Adjusts the level of the instrument and

controls illumination and the interior mood lighting.

For more information, refer to the paragraph relating to the button or function and its associated display.

Screen

A. Speed limiter (mph or km/h) or Cruise control. B. Range (miles or km) or Trip mileage recorder.

C. Service indicator (miles or km), then Total mileage recorder . These two functions are displayed

successively when switching on the ignition.

D. Engine oil level indicator. Appears a few seconds after switching on

the ignition, then disappears.

Monitoring

Indicator and warning lamps

Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occurrence of a fault (warning lamp).

When the ignition is switched on

Cer tain warning lamps come on for a few seconds when the vehicle's ignition is switched on. When the engine is started, these same warning lamps should go off.

If they remain on, before moving off, refer to the information on the warning lamp concerned. The passenger's airbag system operation lamp stays on for about a minute after switching on the ignition, even after the engine has started.

Associated warnings

The illumination of certain warning lamps may be accompanied by an audible signal and a message in the multifunction screen.

The warning lamps may come on continuously (fixed) or flash. Cer tain warning lamps may come on in two different modes. Only by relating the type of lighting to the operating status of the vehicle can it be ascertained whether the situation is normal or whether a fault has occurred.

Operation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.

Warning lamp is on Cause Action/Observations

Monitoring

Left-hand direction indicato r

Right-hand direction indicator

Hazard warning lamps

Sidelamps fixed. The lighting stalk is in the "Sidelamps"

Dipped beam headlamps

Main beam headlamps

Front foglamps fixed. The front foglamps are switched on. Turn the ring on the stalk rearwards twice to switch off

Rear foglamps fixed. The rear foglamps are switched on. Turn the ring on the stalk rearwards to switch off the

flashing with buzzer. The lighting stalk is pushed down.

flashing with buzzer. The lighting stalk is pushed up.

flashing with audible signal.

fixed. The lighting stalk is in the "Dipped

fixed. The lighting stalk is pulled towards

The hazard warning lamps switch, located on the dashboard, has been operated.

position.

beam headlamps" position.

you.

The left-hand and right-hand direction indicators and their associated indicator lamps flash simultaneously.

Pull the stalk to return to dipped beam headlamps.

the front foglamps.

rear foglamps.

Warning lamp is on Cause Action/Observations

Diesel engine pre-heating

Parking brake fixed. The parking brake is applied or not

Stop & Start

fixed. The ignition switch is at the

fixed. When the vehicle stops (red lights,

flashes for a few seconds, then goes off.

2nd position (ignition on).

properly released.

traffic jams, ...) the Stop & Start system has put the engine into STOP mode.

STOP mode is temporarily unavailable. or START mode is invoked automatically.

Wait until the warning lamp goes off before star ting. The period of illumination of the warning lamp is determined by the climatic conditions (up to about thirty seconds in extreme climatic conditions). If the engine does not start, switch the ignition off and then on, wait until the warning lamp goes off again, then start the engine.

Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal. Observe the safety. For further information on the parking brake, refer to the "Driving" section.

The warning lamp goes off and the engine restarts automatically in START mode, as soon as you want to move off.

Refer to "Driving - § Stop & Start" for special cases with STOP mode and START mode.

Warning lamp is on Cause Action/Observations

Monitoring

Passenger's airbag system

Foot on the brake pedal

Automatic wiping fixed. The wiper control is pushed

fixed. The control switch, located in the

glove box, is in the " ON " position. The passenger's front airbag is activated. In this case, do not install a rearfacing child seat.

fixed. The brake pedal must be pressed. With the SensoDrive gearbox, press the brake pedal

flashing. With a SensoDrive gearbox, if you

hold the vehicle on an incline using the accelerator for too long, the clutch overheats.

downwards.

Turn the control switch to the " OFF " position to deactivate the front passenger's airbag. In this case you can install a rear-facing child seat.

to start the engine (lever in position N ). With an automatic gearbox, with the engine running, press the brake pedal before releasing the parking brake, to unlock the lever and come out of position P . If you wish to release the parking brake without pressing the brake pedal, this warning lamp will remain on.

Use the brake pedal and/or the parking brake.

Automatic front wiping is activated.

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally. This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp is on Cause Action/Observations

Passenger's airbag system

ESP/ASR fixed. The button, located at the bottom

fixed. The control, located in the glove box,

is set to the OFF position. The passenger's front airbag is deactivated. In this case you can install a "rear facing" child seat.

left of the dashboard, is pressed. Its indicator lamp is on. The ESP/ASR is deactivated. ESP: electronic stability programme. ASR: anti-skid regulation.

Set the control to the ON position to activate the passenger's front airbag. In this case, do not fit a child seat in the rear-facing position.

Press the button again to manually reactivate the ESP/ ASR. Its indicator lamp goes off. From approximately 30 mph (50 km/h), the system is reactivated automatically (except for the 1.6 litre THP 150 and RACING engines). The ESP/ASR system is activated automatically when the vehicle is started.

Monitoring

Warning lamps

When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a fault which requires action on the part of the driver.

Warning lamp is on Cause Action/Observations

STOP fixed, alone or

Service temporarily. Minor problems have occurred for

associated with another warning lamp, accompanied by an audible signal and a message on the screen.

fixed. Major problems have occurred for

Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the multifunction screen. If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified workshop.

Illumination of the warning lamp is associated with a serious braking system or engine coolant temperature problem.

which there is no specific warning lamp.

Stop as soon as it is safe to do so as the engine may cut out when driving. Park, switch off the ignition and call a CITROËN dealer or a qualified workshop.

Identify the problem by reading the message shown in the screen, such as, for example:

- the engine oil level,

- the screenwash level,

- the remote control battery,

- saturation of the particle emission filter on Diesel vehicles (see "Checks - § particle emissions filter").

For any other faults, contact a CITROËN dealer or a qualified workshop.

Identify the problem by reading the message shown in the screen and contact a CITROËN dealer or a qualified workshop.

Warning lamp is on Cause Action/Observations

Braking

Anti-lock Braking System (ABS)

Dynamic stability

control (ESP/ ASR)

fixed, associated with the STOP warning lamp.

fixed, associated with the STOP and ABS warning lamp.

fixed. The anti-lock braking system has a

flashing. The ESP/ASR regulation is active. The system optimises traction and improves the

fixed. Unless it has been deactivated (button

The braking system fluid level is too low.

The electronic brake force distribution (EBFD) system has a fault.

fault.

pressed and its indicator lamp on) the ESP/ASR system has a fault.

You must stop as soon as it is safe to do so. Top up with brake fluid recommended by CITROËN. If the problem persists, have the system checked by a CITROËN dealer or a qualified workshop.

You must stop as soon as it is safe to do so. Have it checked by a CITROËN or a qualified workshop.

The vehicle retains conventional braking. Drive carefully at reduced speed and contact a CITROËN dealer or a qualified workshop without delay.

directional stability of the vehicle.

Have it checked by a CITROËN or a qualified workshop.

Warning lamp is on Cause Action/Observations

Monitoring

Engine

autodiagnosis system

Low fuel level fixed. When it first comes on there remains

Maximum coolant temperature

fixed. The emission control system has a

fault.

flashing. The engine management system has

a fault.

approximately 5 litres of fuel in the tank.

fixed red. The temperature of the cooling system

is too high.

The warning lamp should go off when the engine is started. If it does not go off, contact a CITROËN dealer or qualified workshop without delay.

Risk of destruction of the catalytic converter. Have it checked by a CITROËN dealer or a qualified workshop.

You must refuel as soon as possible to avoid running out of fuel. This warning lamp will come on every time the ignition is switched on, until a sufficient addition of fuel is made. Fuel tank capacity: approximately 50 litres (petrol) or 46 litres (Diesel); depending on version: approximately 30 litres (petrol or Diesel). Never continue to drive until you run out of fuel as this could damage the emission control and injection systems.

Stop as soon as it is safe to do so. Wait until the engine has cooled down before topping up the level, if necessary. If the problem persists, contact a CITROËN dealer or qualified workshop.

Warning lamp is on Cause Action/Observations

Engine oil pressure

Battery charge fixed. The battery charging circuit has a fault

Door(s) open

fixed. There is a fault with the engine

fixed if the speed is below 6 mph (10 km/h).

fixed and accompanied by an audible signal if the speed is above 6 mph (10 km/h).

lubrication system.

(dirty or loose terminals, slack or cut alternator belt, ...).

A door or the boot is still open. Close the door or boot.

You must stop as soon it is safe to do so. Park, switch off the ignition and contact a CITROËN dealer or a qualified workshop.

The warning lamp should go off when the engine is started. If it does not go off, contact a CITROËN dealer or a qualified workshop.

Warning lamp is on Cause Action/Observations

Monitoring

Airbags

Seat belt not

fastened/ unfastened

Power steering fixed. The power steering has a fault. Drive carefully at reduced speed.

temporarily. This lamp comes on for a few seconds

fixed. One of the airbag or seat belt

fixed then flashing accompanied by an increasing audible signal.

when you turn on the ignition, then goes off.

pretensioner systems has a fault.

The driver and/or the front passenger has not fastened or has unfastened their seat belt.

This lamp should go off when the engine is started. If it does not go off, contact a CITROËN dealer or a qualified workshop.

Have it checked by a CITROËN dealer or a qualified workshop.

Pull the strap then insert the tongue in the buckle.

Have it checked by a CITROËN dealer or a qualified workshop.

Coolant temperature indicator

With the engine running, when the needle is:

- in zone A , the temperature is correct,

- in zone B , the temperature is too high; the central STOP warning lamp and the maximum temperature warning lamp 1 come on in red, accompanied by an audible signal and a message in the multifunction screen.

You must stop as soon as it is safe to do so. Wait a few minutes before switching off the engine. Contact a CITROËN dealer or a qualified workshop.

After driving for a few minutes, the temperature and pressure in the cooling system increase. To top up the level: ) wait for the engine to cool down, ) unscrew the cap by two turns to allow the

pressure to drop,

) when the pressure has dropped, remove

the cap,

) top up the level to the "MAX" mark.

Service indicator

Monitoring

System which informs the driver when the next service is due, in accordance with the manufacturer's servicing schedule. The point at which the service is due is calculated from the last indicator zero reset. It is determined by two parameters:

- the distance travelled,

- the time elapsed since the last service.

More than 1 800 miles (3 000 km) remain before the next service is due

When the ignition is switched on, no service information appears on the display.

Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due

For a few seconds after the ignition is switched on, the spanner symbolising the service operations comes on. The distance recorder display line indicates the distance remaining before the next service is due. Example: 1 700 miles/2 800 km remain before the next service is due. For a few seconds after the ignition is switched on, the display indicates:

A few seconds after the ignition is switched on, the spanner goes off ; the distance recorder resumes its normal operation. The display then indicates the total and trip distances.

Less than 600 miles (1 000 km) remain before the next service is due

Example: 400 miles/900 km remain before the next service is due. For a few seconds after the ignition is switched on, the display indicates:

A few seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a service must be carried out soon.

Service overdue

For a few seconds after the ignition is switched on, the spanner flashes to indicate that the service must be carried out as soon as possible. Example: the ser vice is overdue by 300 miles (km). For a few seconds after the ignition is switched on, the display indicates:

A few seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on .

The distance remaining may be weighted by the time factor, depending on the driver's driving habits. Therefore, the spanner may also come on if you have exceeded the two year service interval.

Service indicator zero reset

After each service, the service indicator must be reset to zero. The procedure for resetting to zero is as follows: ) switch off the ignition, ) press and hold the trip distance recorder

zero reset button,

) switch on the ignition; the distance recorder

display begins a countdown,

) when the display indicates "=0" , release

the button; the spanner disappears.

Following this operation, if you wish to disconnect the battery, lock the vehicle and wait at least five minutes for the zero reset to be taken into account.

Retrieving the service information

You can access the service information at any time. ) Press the trip distance recorder zero reset

button.

The service information is displayed for a

few seconds, then disappears.

Engine oil level indicator

Monitoring

System which informs the driver whether the engine oil level is correct or not. This information is indicated for a few seconds when the ignition is switched on, after the service information.

The level shown will only be correct if the vehicle is on level ground and the engine has been off for more than 30 minutes.

Oil level correct

Oil level low

This is indicated by the flashing of "OIL" , linked with the service warning lamp, accompanied by an audible signal and a message in the multifunction screen. If the low oil level is confirmed by a check using the dipstick, the level must be topped up to prevent damage to the engine.

Oil level indicator fault

This is indicated by the flashing of "OIL --" . Contact a CITROËN dealer or a qualified workshop.

Dipstick

Refer to the "Checks" section to locate the dipstick and the oil filler cap on your engine.

There are 2 marks on the dipstick:

- A = max; never exceed this

level (risk of damage to the engine),

- B = min; top up the level via

the oil filler cap, using the grade of oil suited to your engine.

Total distance recorder

Trip distance recorder

Lighting dimmer

System which measures the total distance travelled by the vehicle during its life. The total and trip distances are displayed for thirty seconds when the ignition is switched off, when the driver's door is opened and when the vehicle is locked or unlocked.

System which measures a distance travelled during a day or other period since it was reset to zero by the driver. ) With the ignition on, press the button until

zeros appear.

System for manual adjustment of the brightness of the instruments and controls in relation to the exterior brightness.

Activation

When the lighting is on: ) press the button to change the brightness

of the instruments and controls,

) when the level of brightness required is

reached, release the button.

Deactivation

When the lighting is off, or in day mode on vehicles fitted with daytime running lamps, pressing the button does not have any effect.

Black panel

Monitoring

System allowing certain displays to be switched off for night driving. The instrument panel remains illuminated with only the vehicle speed and cruise control or speed limiter information, if in use. If there is an alert or a change in a function or to a setting, the black panel mode is interrupted.

Activation

) With the lighting on, press the left hand

button of the instrument panel several times to progressively reduce the dashboard lighting level.

) Press the button again to reduce the

lighting to the minimum level and switch off the interior mood lighting.

) Press the button again to activate the black

panel.

Trip computer

System that gives you current information on your journey (range, fuel consumption…).

Monochrome screen A

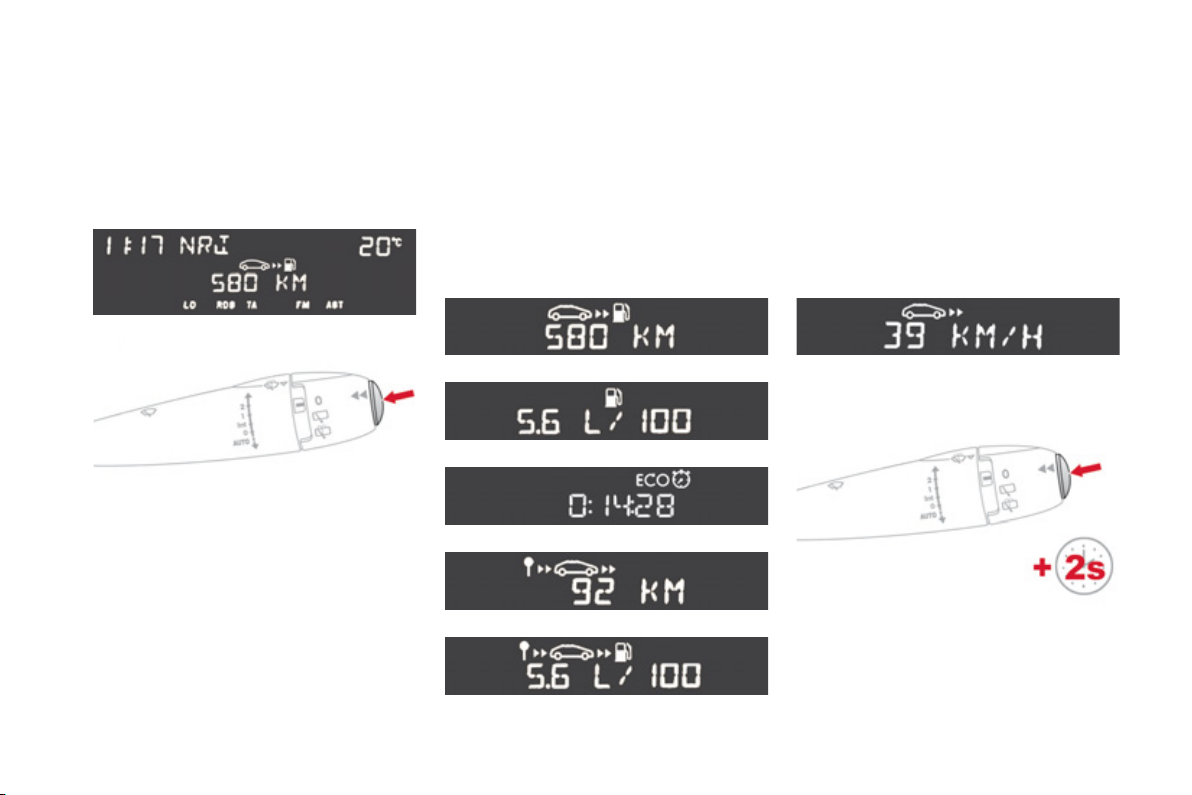

The trip computer provides the following information:

- range,

- average speed.

Information displays

) Press the button, located at the end of the

wiper stalk , to display the various items of trip computer information in succession.

- current fuel consumption,

- Stop & Start time counter,

- distance travelled,

- average fuel consumption,

) The next press then returns you to

the normal display.

Zero reset

) Press the control for more than

two seconds to reset to zero the distance travelled, the average fuel consumption and the average speed.

Monochrome screen C

16/9 colour screen (MyWay)

Information displays

) Press the button, located at the end of

the wiper stalk , to display the various trip computer tabs in succession.

- the current information tab with:

● the range,

● the current fuel

consumption,

● the distance remaining to

be travelled or the Stop & Start time counter.

- the trip "1" tab with:

● the distance travelled,

● the average fuel

consumption,

● the average speed, for the first trip.

- the trip "2" tab with:

● the distance travelled,

● the average fuel

consumption,

● the average speed, for the second trip.

) Pressing the button again returns you to

the normal display.

Monitoring

Trip zero reset

) When the trip required is displayed, press

the button on the end of the wiper stalk for more than two seconds.

Trips "1" and "2" are independent but their use is identical. For example, trip "1" can be used for daily figures, and trip "2" for monthly figures.

A few definitions…

Range

(miles or km)

This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average fuel consumption over the last few miles (kilometres) travelled.

This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.

When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.

Current fuel consumption

(mpg or l/100 km or km/l) This is the average fuel consumption during the last few seconds.

This function is only displayed from 20 mph (30 km/h).

Average fuel consumption

(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.

Average speed

(mph or km/h)

This is the average speed calculated since the last trip computer zero reset (ignition on).

Distance travelled

(miles or km) This indicates the distance

travelled since the last trip computer zero reset.

Distance remaining to destination

(miles or km) This is the distance remaining to be travelled to the final destination. It can be entered by the user. If the distance is not entered, dashes are displayed in place of the digits.

Stop & Start time counter

(minutes/seconds or hours/minutes) If your vehicle is fitted with Stop & Start, a time counter calculates the time spent in STOP mode during a journey. It resets to zero every time the ignition is switched on with the key.

Monitoring

002

Multifunction screens

Identify your multifunction screen in this section, to adjust or view vehicle settings and information, by means of the user-friendly menus.

Monochrome screen A

Displays on the screen

This displays the following information:

- time,

- date,

- ambient temperature (this flashes if there is a risk of ice),

- status of the doors and boot,

- audio sources (radio, CD...),

- trip computer (refer to the "Instruments and Controls" section).

Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Boot open") may appear temporarily. These can be cleared by pressing the "ESC" button.

Controls

From the control panel of your Audio system, you can: ) press the "MENU" button to gain access to

the main menu ,

) press the "  " or "  " buttons to scroll

through the items on the screen,

) press the "MODE" button to change

the permanent application (date, audio source...),

) press the "  " or "  " buttons to change a

setting value,

) press the "OK" button to confirm, or ) press the "ESC" button to abandon the

operation in progress.

Main menu

) Press the "MENU" button to gain access

to the main menu , then press the "  " or "  " buttons to scroll through the various menus:

- radio-CD,

- vehicle configuration,

- options,

- display settings,

- languages,

- units.

) Press the "OK" button to select the menu

required.

Multifunction screens

Radio-CD

With the Audio system switched on, once the "Radio-CD" menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG), or the CD (introscan, shuffle, CD repeat). For more information on the "Radio-CD" application, refer to the Audio system part of the "Audio and Telematics" section.

Vehicle conﬁ guration

Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate the following equipment:

- wiper linked with reverse gear (refer to the "Visibility" section),

- guide-me-home lighting (refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).

Options

Once the "Options" menu has been selected, you can start diagnostics of the status of the equipment (active, not active, faulty).

Display settings

Once the "Display settings" menu has been selected, you can gain access to the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

For safety reasons, configuration by the driver of the multifunction screen must only be done when stationary.

) Once you have selected a setting, press

the "  " or "  " buttons to change its value.

) Press the "  " or "  " buttons to switch

respectively to the previous or next setting.

) Press the "OK" button to save the change

and return to the normal display or press the "ESC" button to cancel.

Languages

Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).

Units

Once the "Units" menu has been selected, you can change the units of the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).

Once the fuel consumption units have been set to mpg, the information in the instrument panel screen on speed and distance will also be in mph and miles.

Monochrome screen C

Multifunction screens

Displays on the screen

This displays the following information:

- time,

- date,

- ambient temperature (this flashes if there is a risk of ice),

- status of doors and boot,

- audio sources (radio, CD, USB port, jack socket etc.),

- trip computer (refer to the "Instruments and controls" section).

Warning messages (E.g. "Emisions control system faulty") or information messages (E.g.: Automatic headlamps active") may appear temporarily. These can be cleared by pressing the "ESC" button.

Controls

From your Audio system control panel, you can: ) press the "MENU" button to gain access to

the main menu ,

) press the "  " or "  " buttons to scroll

through the items on the screen,

) press the "MODE" button to change the

permanent application (trip computer, audio source...),

) press the "  " or "  " buttons to change a

setting value,

) press the "OK" button to confirm, or ) press the "ESC" button to abandon the

operation in progress.

Main menu

) Press the "MENU" button to gain access to

the main menu :

- audio functions,

- the trip computer,

- personalisation-configuration,

- telephone (hands-free kit).

) Press the "  " or "  " buttons to select the

menu required, then confirm by pressing the "OK" button.

"Audio functions" menu

"Trip computer" menu

With the Audio system switched on, once this menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB port/jack socket). For more information on the "Audio functions" application , refer to the Audio system part of the "Audio and Telematics" section.

Once this menu has been selected, you can consult information concerning the status of the vehicle (warnings log, status of functions, etc.).

Alert log

This summarises the active warning messages, displaying them in succession on the multifunction screen.

Status of functions

This summarises the status (active or inactive) of the vehicle's functions.

Enter distance to destination

This allows you to enter an approximate distance until your final destination.

) Press the "MENU" button to gain access to

the general menu.

) Press the arrows, then the "OK" button to

select the " Tr ip com puter " menu.

) In the " Tr ip com puter " menu, select one

of the following applications:

"PersonalisationConfiguration" menu

Example: setting of the duration of the guideme-home lighting ) Press the "  " or "  " buttons, then the

"OK" button to select the menu required.

Multifunction screens

Once this menu has been selected, you can gain access to the following functions:

- define the vehicle parameters,

- display configuration,

- choice of language.

Deﬁ ne the vehicle parameters

Once this menu has been selected, you can activate or deactivate the following equipment:

- wiper linked to reverse gear (refer to the "Visibility" section),

- guide-me-home lighting and duration (see "Visibility" section),

- parking sensors (refer to the "Driving" section).

) Press the "  " or "  " buttons, then the

"OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.

) Press the "  " or "  " buttons, then the

"OK" button to select the "Guide-me-home headlamps" line.

) Press the "  " or "  " buttons to set the

value required (15, 30 or 60 seconds), then press the "OK" button to confirm.

"Telephone" Menu

Display conﬁ guration

Once this menu has been selected, you can gain access to the following settings:

- brightness-video setting,

- date and time setting,

- selection of units.

Once the fuel consumption units have been changed to mpg, the information in the screen relating to speed and distance also changes to mph and miles respectively.

Choice of language

Once this menu has been selected, you can change the language used by the display (Deutsch, English, Espanol, Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Türkçe * ).

For safety reasons, configuration by the driver of the multifunction screen must only be done when stationary.

* According to country of destination.

With Audio system on, once this menu is selected you can configure your Bluetooth hands-free system (pairing), view the various telephone directories (list of calls, services...) and manage your calls (call, hang up, second call, secret mode...). For more information on the "Telephone" function, refer to the Audio system part of the "Audio and telematics" section.

16/9 colour screen (MyWay)

Multifunction screens

Displays on the screen

It displays the following information automatically and directly:

- time,

- date,

- altitude,

- ambient temperature (the value displayed flashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status messages, displayed temporarily,

- audio functions,

- trip computer information (see the "Monitoring" section),

- satellite navigation system information.

Controls

MyWay To select one of the applications, at the control panel: ) press the dedicated "RADIO" , "MUSIC" ,

"NAV" , "TRAFFIC" , "SETUP" or "PHONE" button for access to the

corresponding menu, ) turn the dial to change the selection, ) press the dial to confirm the selection, or ) press the "ESC" button to abandon the

current operation and return to the previous

display.

For more information on these applications, refer to the "Audio and Telematics" section or to the specific user guide given to you with the other owner's documents.

"SETUP" menu

) Press the "SETUP" button to gain access

to the "SETUP" menu. This allows you to select from the following functions:

- "System language",

- "Date and time",

- "Display",

- "Vehicle",

- "Units",

- "System".

System language

This menu allows you to select the language used by the display: Deutsch, English, Espanol, Français, Italiano, Nederlands, Polski, Portugues, Türkçe * .

Date and time

This menu allows you to set the date and time, the format of the date and the format of the time (refer to the "Audio and Telematics" section or to the specific user guide given to you with the other owner's documents).

Display

This menu allows you to set the brightness of the screen, the screen colour scheme and the colour of the map (day/night or auto mode).

* According to country.

Vehicle

This menu allows you to activate or deactivate certain driving and comfort equipment:

- wiper linked with reverse gear (refer to the "Visibility" section),

- guide-me-home lighting and duration (refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).

Units

This menu allows you to select the units: temperature (°C or °F) and fuel consumption (km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver must only be done when stationary.

Multifunction screens

003

Comfort

This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments for the seats, steering wheel and mirrors, for your comfort and an optimum driving position.

Ventilation

Air intake

The air circulating in the passenger compar tment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode.

Air treatment

The incoming air follows various routes depending on the controls selected by the driver:

- direct arrival in the passenger compartment (air intake),

- passage through a heating circuit (heating),

- passage through a cooling circuit (air conditioning).

The temperature control enables you to obtain the level of comfort required by mixing the air of the various circuits. The air distribution control enables you to diffuse the air in the passenger compartment combining several air vents. The air flow control enables you to increase or reduce the speed of the ventilation blower.

Control panel

The controls of this system are grouped together on control panel A on the centre console. Depending on the model, the functions offered are:

- the level of comfort required,

- air flow,

- air distribution,

- demisting-defrosting,

- manual or digital air conditioning controls.

Air distribution

1. Windscreen demisting-defrosting vents.

2. Front side window demisting-defrosting

vents.

3. Side adjustable air vents.

4. Central adjustable air vents.

5. Air outlets to the front footwells.

6. Air outlets to the rear footwells.

Recommendations for ventilation and air conditioning

Comfort

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: ) To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.

) Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the digital air conditioning system.

) Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month

to keep it in perfect working order.

) Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly (refer to the "Checks" section).

We recommend the use of a combined passenger compar tment filter. Thanks to its

special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).

) To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly as recommended in the Maintenance and Warranty Guide.

) If the system does not produce cold air, switch it off and contact a CITROËN dealer or a

qualified workshop. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.

If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.

The condensation created by the air conditioning results in a discharge of water under the vehicle which is perfectly normal.

Heating/Ventilation

Manual control panel Electric control panel

Manual air conditioning

Manual control panel Electric control panel

Comfort

The heating/ventilation or air conditioning systems operates with the engine running, as well as in STOP mode with Stop & Start.

1. Temperature adjustment

) Turn the dial from blue

(cold) to red (hot) to adjust the temperature to your requirements.

2. Air ﬂ ow adjustment

) Turn the dial from position 1

to position 5 to obtain a comfortable air flow.

) If you place the air flow control

in position 0 (deactivation of the system), the temperature is no longer maintained at a comfortable level. However, a slight flow of air, due to the movement of the vehicle, can still be felt.

3. Air distribution adjustment

Windscreen and side windows.

Windscreen, side windows and footwells.

Footwells.

Central and side vents.

The air distribution can be adapted by placing the dial in an intermediate position.

4. Air intake/Air recirculation

The intake of exterior air avoids the formation of mist on the windscreen and side windows. The recirculation of interior air insulates the passenger compartment from exterior odours and smoke. Return to exterior air intake as soon as possible to prevent deterioration of the air quality and the formation of mist.

Manual control panel

) Move the manual control to

the left to be in the "recycling interior air" position.

) Move the manual control to the

right to return to the "fresh air intake" position.

5. Air conditioning On/Off

Comfort

Electric control panel

) Press the button to recirculate

the interior air. The indicator lamp comes on to confirm this.

) Press the button again to allow fresh air

into the passenger compartment. The indicator lamp goes off to confirm this.

The air conditioning is designed to operate effectively in all seasons, with the windows closed.

It enables you to:

- lower the temperature, in summer,

- increase the effectiveness of the demisting in winter, above 3 °C.

Switching on

) Press the "A/C" button, the button’s

indicator lamp comes on.

The air conditioning does not operate when the air flow adjustment control 2 is in position " 0 ".

Switching off

) Press the "A/C" button again, the button’s

indicator lamp goes off. Switching off may affect comfort levels (humidity, condensation).

Front demist - defrost

These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.

With the heating/ventilation system

) Put the temperature and air flow controls to

the dedicated marked position.

) Put the air intake control to the "Exterior air

intake" position

(manual control to the right or electric

control with indicator lamp off).

) Put the air distribution control to the

"Windscreen" position.

With the manual air conditioning system

) Put the temperature and air flow controls to

the dedicated marked position.

) Put the air intake control to the "Exterior air

intake" position

(manual control to the right or electric

control with indicator lamp off).

) Put the air distribution control to the

"Windscreen" position.

) Switch on the air conditioning by pressing

the "A /C" button; the associated green warning lamp comes on.

With Stop & Start, when the demisting, air conditioning and air flow functions are activated, STOP mode is not available.

Comfort

Digital air conditioning

The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.

Automatic operation

For your comfort, when the engine is switched off, the settings are retained until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.

1. Automatic "comfort" programme

Press the "AUTO " button. The "AU TO" symbol is displayed. We recommend that you use

this mode. It provides optimised automatic control of all of the following functions: passenger compartment temperature, air flow, air distribution and air intake, in accordance with the comfort value that you have chosen. This system is designed to operate effectively in all seasons, with the windows closed.

2. Temperature adjustment

The value indicated on the display corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.

Press the "  " and "  " buttons to change this value. A setting around the value 21 enables optimum comfort to be obtained. However, depending on your requirements, a setting between 18 and 24 is usual.

On entering the vehicle, if the interior is very cold or hot, there is no need to change the value displayed in order to reach the required level of comfort. The system corrects the temperature difference automatically and as quickly as possible.

3. Automatic "visibility" programme

The automatic comfort programme may not be sufficient for rapid demisting or defrosting of the

windscreen and side windows (humidity, several passengers, ice, etc.). In this case, select the automatic visibility programme. The button 3 indicator lamp comes on. The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen and side windows. It deactivates air recirculation 5 .

To exit this programme, press button 3 again or "AU TO" , the indicator lamp on the button goes off and "AUTO" is displayed.

With Stop & Start, when demisting has been activated, the STOP mode is not available.

Manual override

It is possible to adjust one or more functions manually while leaving the other functions in automatic mode. The "AUTO" symbol switches off. To return to automatic mode, press the "AUTO" button.

Switching to manual mode may not be suitable (temperature, humidity, odour, condensation) and does not provide optimum comfort.

4. Air conditioning on/off

Press this button to switch off the air conditioning. Stopping the air conditioning may cause

some problems (humidity, misting). Automatic operation of the air conditioning is resumed when the button is pressed again. The symbol "A/C" is displayed.

5. Air intake/Air recirculation

Press this button for recirculation of the interior air. The air recirculation symbol 5 is displayed.

Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke. Press this button again or press the "AUTO" button to resume automatic management of the intake of air. The air recirculation symbol 5 goes off.

For maximum cooling or heating of the cabin, it is possible to go beyond the minimum 14 or maximum 28 values. ) Press the blue button 2 until "LO"

is displayed or the red button 2 until "HI" is displayed.

Avoid prolonged recirculation of interior air (risk of condensation or deterioration of the air quality).

Comfort

6. Air distribution adjustment

Pressing this button several times in succession enables the air flow to be directed in turn towards:

- the windscreen and the side windows (demisting or defrosting),

- the windscreen, side windows and air vents,

- the windscreen, the side windows, the air vents and the footwells,

- the windscreen, the side windows and the footwells,

- the footwells,

- the air vents and the footwells,

- the air vents.

7. Air ﬂ ow adjustment

Press the "full fan" button to increase the air flow.

The air flow symbol, the fan, fills progressively according to the value requested.

Press the "empty fan" button to decrease the air flow.

Switching the system off

Press the air flow "empty fan" button 7 until the fan symbol disappears.

This action switches off all of the functions of the air conditioning system. Thermal comfort is no longer controlled. A slight flow of air resulting from the movement of the vehicle, remains perceptible however. Pressing the air flow "full fan" button 7 or on "AU TO" reactivates the system with the values set before it was switched off.

Avoid driving for long periods with the air conditioning switched off (risk of misting and reduction of the air quality in the cabin).

Rear screen demist - defrost

The control button is located on the heating or air conditioning system control panel.

Switching on

The rear screen demisting/defrosting can only operate when the engine is running. ) Press this button to demist/defrost the rear

screen and (depending on version) the door mirrors. The indicator lamp associated with the button comes on.

Switching off

The demisting/defrosting switches off automatically to prevent an excessive consumption of current. ) It is possible to stop the demisting/

defrosting operation before it is switched off automatically by pressing the button again. The indicator lamp associated with the button switches off.

If the engine is switched off before the demisting/defrosting is switched off automatically, demisting/defrosting will resume next time the engine is

switched on.

) Switch off the demisting/defrosting

of the rear screen and door mirrors as soon as appropriate as lower current consumption results in reduced fuel consumption.

Comfort

Scented air freshener

System permitting the diffusion of a fragrance in the passenger compartment in accordance with your requirements, by means of the adjustment dial and the various fragrance cartridges available.

Adjustment dial

Fragrance cartridge

This cartridge can be removed easily. The first time it is used, replace the plug with a real cartridge. You can change it at any time and store it in the sealed case which keeps it closed once it has been opened. You can obtain different fragrance cartridges from a CITROËN dealer or a qualified workshop.

Do not discard the original cartridge as this serves as a plug when no fragrance cartridge is in use. In order to preserve the service life of the cartridge, turn the dial fully to the left when you no longer wish to diffuse the fragrance in the passenger compartment.

This dial is located on the dashboard. It allows you to adjust the intensity of diffusion of the fragrance. ) Turn the dial to the right to permit diffusion

of the fragrance.

) Turn the dial to the left to stop diffusion of

the fragrance.

Leave the central vents open. The intensity of diffusion of the fragrance may depend on the ventilation or air conditioning settings.

As a safety precaution, do not carry out any action on the cartridge while driving. Do not dismantle the cartridges. Do not attempt to refill the fragrance diffuser or the car tridges. Avoid all contact with the skin and eyes. Keep out of reach of children and animals.

Removing the cartridge

) Press the dial and turn it a quarter of a turn

anti-clockwise. ) Remove the cartridge. ) Refit its sealing case.

Fitting the cartridge

) Remove the cartridge from the sealing

case. ) Install the cartridge (flower at top left). ) Press the dial and turn it a quarter of a turn

clockwise.

Front seats

Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

Manual adjustments

Comfort

Forwards-backwards adjustment

) Raise the control and slide the seat

forwards or backwards.

Driver’s or passenger’s seat height adjustment

) Pull the control upwards to raise or push

it downwards to lower, as many times as necessary, to obtain the position required.

Seat back angle adjustment

) Push the control rearwards.

Additional adjustments

Head restraint height adjustment

) To raise the head restraint, pull it upwards. ) To remove the head restraint, press the

lug A and pull the head restraint upwards.

) To put the head restraint back in place,

engage the head restraint stems in the openings keeping them in line with the seat back.

) To lower the head restraint, press the lug A

and the head restraint at the same time.

The head restraint is fitted with a frame with notches which prevents it from lowering; this is a safety device in case of impact. The adjustment is correct when the

upper edge of the head restraint is level with the top of the head.

Never drive with the head restraints removed; they must be in place and adjusted correctly.

Comfort

Access to the rear seats

) Pull the control upwards to fold the seat

back and move the seat forward.

When put back in place, the seat returns to

its initial position.

No person or object should prevent the seat slide from returning to its initial position; the return to this position is necessary for longitudinal locking. Check that the seat belt has reeled in correctly so as to not impede access to the rear seats for passengers.

Grab handle

This easy to use handle, located at the top of the side trim:

- provides a means of support for the outer rear passengers when moving,

- provides a hand hold to ease access to the rear seats,

- facilitates exit from the rear seats.

Heated seats control

With the engine running, the front seats can be heated separately. ) Use the adjustment dial, placed on the side

of each front seat, to switch on and select the level of heating required:

0: Off. 1 : Low. 2 : Medium. 3 : High.

RACING front seats

Seat consisting of a seat cushion and a seat back which can be adjusted to adapt your position for maximum ease of driving and comfort.

Manual adjustments

Forwards-backwards adjustment

) Lift the control and slide the seat forwards

or backwards.

Driver's or passenger's seat height adjustment

) Pull the handle upwards to raise or push

it downwards to lower, as many times as necessary to obtain the required position.

Seat backrest angle adjustment

) Push the handle towards the rear and move

the seat backrest forwards or backwards.

Additional adjustments

Comfort

Access to rear seats

) Pull the handle forwards to fold the seat

backrest and move the seat forwards.

On repositioning, the seat returns to its

initial position.

No person or object must prevent the seat slide from returning to its initial position; return to this position is necessary for the seat to lock in place. Ensure that the seat belt reels in correctly to avoid hindering access for the passengers to the rear seats.

Grab handle

This ergonomic grab handle, located at the top of the side trim, serves:

- as a handle to steady rear passengers when driving,

- as a grip to improve access to the rear seats,

- to facilitate exit from the rear seats.

Rear seats

Bench seat with fixed one-piece cushion and split backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.

Folding the backrest

) Move the corresponding front seat forward

if necessary.

) Check that the seat belt is positioned

correctly on the side of the seat back.

) Place the head restraints in

the low position.

Repositioning the seat backrest

When repositioning the rear seat backrest: ) Straighten the seat back 2 and secure it. ) Check that the red indicator, located next to

the control 1 , is no longer visible.

When repositioning the seat backrest, take care not to trap the seat belts.

) Pull control 1 forwards to release the seat

back 2 .

) Fold the seat back 2 on to the cushion.

Rear head restraints

These have one position for use (up) and a stowed position (down). They can also be removed. To remove a head restraint: ) release the backrest using control 1 , ) tilt the backrest 2 slightly forwards, ) pull the head restraint upwards to the stop, ) then, press the lug A .

Steering wheel adjustment

) When stationary , pull the control lever to

release the adjustment mechanism.

) Adjust the height and reach to suit your

driving position.

) Push the control lever to lock the

adjustment mechanism.

Comfort

Never drive with the head restraints removed; they must be in place and correctly adjusted.

As a safety precaution, these operations should only be carried out while the vehicle is stationary.

Mirrors

Door mirrors

Folding

) From outside: lock the vehicle using the

remote control or the key.

) From inside: with the ignition on, pull the

control A in the central position rearwards.

If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A .

Each fitted with an adjustable mirror glass permitting the lateral rearward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.

Demisting - Defrosting

If your vehicle is fitted with heated mirrors, the demisting-defrosting operates with the engine running, by

switching on the heated rear screen (refer to the "Rear screen demist-defrost" page).

Adjustment

) Move control A to the right or to the left to

select the corresponding mirror.

) Move control B in all four directions to

adjust.

) Return control A to the central position.

The objects observed are, in reality, closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.

Unfolding

) From outside: unlock the vehicle using the

remote control or the key.

) From inside: with the ignition on, pull the

control A in the central position rearwards.

The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer or a qualified workshop. Never fold or unfold the electric folding mirrors manually.

Rear view mirror

Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass: this reduces the nuisance to the driver caused by the headlamps from following vehicles, low sun...

Manual day/night model

Automatic day/night model

Comfort

As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

Adjustment

) Adjust the mirror so that the glass is

directed correctly in the "day" position.

Day/night position

) Pull the lever to change to the "night" anti-

dazzle position.

) Push the lever to change to the normal

"day" position.

By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.

In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.

004

Access

This section describes the functions of the remote control key, electric windows, central locking of doors and boot and access to the fuel filler.

Remote control key

System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.

Unlocking the vehicle

Unlocking using the remote control

) Press the open padlock to unlock

the vehicle.

Unfolding the key

) First press this button to unfold the key.

Unlocking using the key

) Turn the key to the left in the driver's door

lock to unlock the vehicle.

Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrors unfold at the same time.

Locking the vehicle

Access

Locking using the remote control

) Press the closed padlock to lock

the vehicle.

Locking using the key

) Turn the key to the right in the driver's door

lock to lock the vehicle completely.

Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time.

If one of the doors or the boot is still open, the central locking does not take place. When the vehicle is locked, if it is unlocked inadvertently, it will relock automatically after thirty seconds unless a door or the boot is open.

Folding the key

) First press this button to fold the key.

The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer or a qualified workshop.

Locating your vehicle

) Press the closed padlock to

locate your locked vehicle in a car park.

This is indicated by lighting of the courtesy lamps and flashing of the direction indicators for a few seconds.

Anti-theft protection

Electronic engine immobiliser

The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.

Ignition switch

In the event of a malfunction, you

are informed by lighting of this warning lamp, an audible signal and a message on the multifunction screen. In this case, your vehicle does not start; contact a CITROËN dealer as soon as possible.

- Position 1: Stop

- Position 2: Ignition

- Position 3: Starting

Access

Starting the vehicle

) Insert the key in the ignition switch. The system recognises the starting code. ) Turn the key fully towards the dashboard to

position 3 (Starting) .

) When the engine starts, release the key.

Switching the vehicle off

) Immobilise the vehicle. ) Turn the key fully towards you to position 1

(Stop) .

) Remove the key from the ignition switch.

Do not attach any heavy objects to the key as this could weigh down on it when in the ignition switch and cause a fault.

Key reminder

If the key is left in the ignition switch, an audible signal sounds when the driver's door is opened.

Remote control problem

Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle. ) First of all, use the key in the lock to unlock

or lock your vehicle. ) Then, reinitialise the remote control. If the problem persists, contact a CITROËN dealer as soon as possible.

Reinitialisation

) Switch off the ignition. ) Turn the key to position 2 (Ignition) . ) Press the closed padlock immediately for a

few seconds. ) Switch off the ignition and remove the key

from the ignition switch. The remote control is fully operational again.

Changing the battery

Battery ref.: CR1620/3 volts.

If the battery is flat, you are

informed by lighting of this warning lamp in the instrument panel, an audible signal and a message in the multifunction screen.

) Unfold the key. ) Release the chrome finisher by pressing on

lug A .

) Maintain pressure on lug A and remove the

chrome finisher by sliding it off at 45°.

) Unclip the casing by inserting a coin at the

notch and rotating. ) Slide the flat battery out of its location. ) Slide the new battery into its location

observing the original direction. ) Clip the casing in place, then the chrome

finisher. ) Reinitialise the remote control.

Access

Lost keys

Visit a CITROËN dealer with the vehicle's V5 registration document and your personal identification documents. The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement key.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.

When purchasing a second-hand vehicle

Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.

Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.

Window controls

System which opens or closes a window manually or automatically. It is fitted with anti-pinch protection on the driver's side.

Driver's electric window

1. Driver's electric window switch.

2. Passenger's electric window switch.

The electric window switches remain operational for approximately 45 seconds after the ignition is switched off or until a door is opened. If, during this period of 45 seconds, you open a door while operating a window, the window stops. The window switch will then only be operative after the ignition is switched on again.

Passenger's electric window

) Press or pull the switch. The

window stops as soon as the switch is released.

There are two methods of operation:

- manual mode

) Press or pull the switch without passing

the point of resistance. The window stops as soon as the switch is released.

- automatic mode

) Press or pull the switch fully. The window

opens or closes completely when the switch is released.

) Pressing or pulling the switch again

stops the movement of the window.

Reinitialisation

Access

Safety anti-pinch

On the driver's side, the one-touch front electric window has a safety anti-pinch function. When the window rises and meets an obstacle, it stops and partially lowers again.

In the event of unwanted opening of the window on closing (for example in the presence of frost): ) press the switch beyond the point

of resistance and release it; the window opens completely,

) then immediately pull the switch

without going beyond the point of resistance until the window closes fully,

) continue to hold the switch for

approximately one second after the window has closed.

The safety anti-pinch function is not active during these operations.

In the event of a malfunction you have to reinitialise the operation of the electric windows: ) release the switch and pull it again until the

window closes completely,

) hold the switch for approximately one

second after closing,

) press the switch to lower the window

automatically.

The safety anti-pinch function is not active during these operations.

Always remove the key from the ignition when leaving the vehicle, even for a short time. In the event of contact during operation of the windows, reverse the movement of the window. To do this, press the corresponding switch. When the driver operates the passenger electric window switch, they should ensure that no one is preventing correct closing of the window. The driver should ensure that the passenger uses the electric window correctly. Be aware of children when operating the windows.

Doors

Opening

From outside

) After unlocking the vehicle using the

remote control or the key, pull the door handle.

Closing

When a door is not closed correctly:

- when the engine is running ,

this warning lamp comes on, accompanied by a message in the multifunction screen for a few seconds,

- when the vehicle is moving (speed

higher than 6 mph (10 km/h)), this warning

lamp comes on, accompanied by an

audible signal and a message in the

multifunction screen for a few seconds.

From inside

) Pull the door lever to open the door; this

unlocks this vehicle completely.

Access

Manual centralised control

System which provides full manual locking or unlocking of the doors from the inside.

Locking

) Press button A to lock the vehicle. The red indicator lamp on the button comes on.

If one of the doors is open, central locking from the inside does not take place.

Unlocking

) Press button A again to unlock the vehicle. The red indicator lamp on the button switches off.

If the vehicle is locked from the outside, the red indicator lamp flashes and button A is inactive. ) In this case, use the remote control

or the key to unlock the vehicle.

Automatic centralised control

System which provides full automatic locking or unlocking of the doors and the boot while driving. You can activate or deactivate this function.

Locking

When the speed exceeds 6 mph (10 km/h), the doors and the boot lock automatically.

If one of the doors is open, the automatic central locking does not take place. If the boot is open, the automatic central locking of the doors is active.

Unlocking

) Above 6 mph (10 km/h), press button A to

unlock the doors and the boot temporarily.

Emergency control

To lock or unlock the doors mechanically in the event of a central locking system failure or flat battery.

In the event of a fault with the central locking system, you must disconnect the battery to lock the boot and so ensure the complete locking of the vehicle.

Activation

) Press button A for more than two seconds. A confirmation message appears on the multifunction screen, accompanied by an audible signal.

Deactivation

) Press button A again for more than

two seconds. A confirmation message appears on the multifunction screen, accompanied by an audible signal.

Locking the driver's door

) Insert the key in the lock, then turn it to the

right.

Unlocking the driver's door

) Insert the key in the lock, then turn it to

the left.

Locking the passenger's door

) Remove the black cap, on the edge of the

door, using the key. ) Insert the key in the cavity, then turn it fully. ) Remove the key and refit the cap.

Unlocking the passenger's door

) Pull the interior door opening control.

Citroën DS3 2011 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
