Citizen iDP-3410 User Manual

Download

DOT MATRIX PRINTER

MODEL

iDP3410

Manufacturer's Name : Japan CBM Corporation Manufacturer's Address :

Declare the Product

Product Name : Dot Matrix Printer Model Number (s) :

Conform to the following Standards

LVD : EN60950 : 1992+A1+A2+A3+A4 EMC : EN55022 : 1994 Class A

iDP3410 User's Manual

Declaration of Conformity

CBM Bldg.,5-68-10, Nakano, Nakano-ku, Tokyo 164-0001, Japan

iDP3410 (iDP3410R/P, iDP3410S/C, iDP3410T/I) (S.NO.98X0001 - )

EN61000-3-2 : 1995 EN61000-3-3 : 1995 EN50082-1 : 1992 IEC801-2 : 1991 4KV CD, 8KV AD IEC801-3 : 1984 3V/m, 26MHz-1000MHz AM1KHz 80% IEC801-4

: 1988 0.5KV Signal Line ± 1KV AC mains

Supplementary Information "The product complies with the requirements of the Low Voltage Directive 73/23/EEC, 93/68/EEC and the EMC Directive 89/336/EEC, 92/31/EEC, 93/68/EEC"

Place : Tokyo, Japan

Date : September1995 Signature:

Full Name : Mikio Moriya Position : General Manager

R & D Department

Europe Contact :

Norco Declaration AB Box 7146 S-250 07 Helsingborg, Sweden

WARNING

This is a Class A products. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

ATTENTION

Ce produit de class A. Dans environement domestique, il peut causer des interférences radio. Auquel cas, l’utilisateur sera amené à prendre les mesures adéquates.

Warnung

Dies ist ein Klasse A Produkt. In einer örtlichen Umgebung kann dieses Gerät Funkstörungen verusachen.

Atención

Este es un producto de la clase A. En ambientes domésticos éste producto puede causar radio Interferencias en cuyo caso el usuari o de berá tomar las medldas oportunas.

VERWITTIGING

Dit is een klasse A produkt. Het gebruik hiervan kan radio interferenties veroorzaken die de gebruiker ertoe kunnen dwingen sommige maatregelen te moeten treffen.

* THE ABOV E MENTIONED DECLARATION IS APPLIED ONLY FOR 230V MODEL.

CITIZEN

iDP3410 User's Manual

IMPORTANT SAFETY INSTRUCTIONS

• Read all of these instructions and save them for future reference.

• Follow all warnings and instructions marked on the product.

• Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use

a damp cloth for cleaning.

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. The product may fall, causing serious

damage to the product.

• Slots and openings on the back or bottom of the case are provided for ventilation. To ensure reliable

operation of the product and to protect it from overheating, do not block or cover these openings. The openings should never be blocked by placing the product on a bed, sofa, rug of other similar surface. This product should neve r be placed near or over a radiator or heater. This product should not be placed in an built-in installation unless proper ventilation is provided.

• This product should be operated from the type of power source indicated on the marking label. If you

re not sure of the type of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not place this product where the cord will be

walked on.

• If an extension cord is used with this product, make sure that the total of the ampere ratings of the

products plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

• Never push objects of any kind into this product through cabinet slots as they may touch dangerous

voltage points or short out parts that could result in a risk of fire or e lectric shock. Never spill liquid of any kind on the product.

• Except as explained elsewhere in this manual, do not attempt to service this product by yourself.

Opening and removing the covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks. Refer all servicing on those compartments to service personnel.

• Unplug this product fr om the wall outlet and refer servicing to qualified service personnel under the

following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally when the operating instructions are followed. Adjust

only those controls that are covere d be the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified

technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance, indicating a need for service.

• Please keep the poly bag which this equipment is packed in away from children or throw it away to

prevent children from putting it on. Putting it on may cause suffocation.

CITIZEN

iDP3410 User's Manual

WICHTIGE SICHERHEITSANWE I SUNGEN

• Lesen Sie die nachfolgenden Anweisungen sorgfältig durch und bewahren Sie sie auf.

• Befolgen Sie alle auf dem Drucker vermerkten Hinweise und Anweisungen. Vor dem Reinigen

grundsätzlich Stecker aus der Steckdose ziehen. Ke ine Flüssigkeiten oder Aerosolreiniger benutzen. Nut mit einem feuchten Tuch abwischen.

• Der Drucker darf nicht in der Nähe von Wasser aufgestellt werden.

• Drucker nicht auf einem unstabilen Wagen, Stand oder Tisch aufstellen. Der Drucker könnte

herunterfallen und dabel beschädigt werden.

• Schlitze und Öffnungen im Gehäuse, in der Rückwand und im Boden dienen der Belüftung. Sie

dürfen keinesfalls zugedeckt oder blockiert werden, da sich der Drucker sonst überhitzt. Drucker nicht auf ein Bett, Sofa, Teppich oder dergleichen stellen. Drucker nicht in der Nähe eines Heizkörpers aufstellen. Drucker darf nicht eingebaut werden, falls nicht für ausreichende Belüftung gesorgt ist.

• Drucker nur mit der auf dem Typschild angegebenen Spannung betreiben. Wenn Sie sich nicht sicher

sind, fragen Sie ihren Händler oder ihr zuständiges Elektrizitätswerk.

• Nichts auf das Stromanschlußkabel stellen. Kabel muß so verlegt werden, daß man nicht darauftreten

kann.

• Ein etwaiges Verlängerungskabel muß der Stromstärke aller daran angeschlossenen Geräte

entsprechen.

• Keine Gegenstände in die Gehäuseschlitze schieben.

• Drucker darf nur da gewartet werden, wo im Handbuch angegeben, Öffnen und. Abnehmen von

Abdeckungen, die mit “Do not remove” gekennzeichenet sind, könnte gefährliche spannungführende Stellen oder sonstige Gefahrenpunkte freilegen. Die War tung solcher Stellen darf grundsätzlich nur von besonders ausgebildetem Fachpersonal vorgenommen werden. A. Wenn das Stromanschlußkabel oder der Stecker beschädigt oder durch-gescheuert ist. B. Wenn Flüssigkeit auf dem Drucker verschüttet wurde. C. Wenn der Drucker im Regen gestanden hat oder Wasser darauf verschüttet wurde. D. Wenn der Drucker trotz genauer Befolgung der Betriebsvorschriften nicht richtig arbeitet. Nur die

in der Bedienungsanleitung angegebenen Einstellungen vornehmen. Ein Verstellen anderer

Bedienungselemente könnte den Drucker beschädigen und macht umständliche Arbeiten eines

qualifizierten Technikers erforderlich, um den Drucker Wieder auf den normalen Betrieb

einzustellen. E. Wenn der Drucker heruntergefallen ist oder das Gehäuse beschädigt wurde. F. Wenn der Drucker in seiner Leistung nachläßt.

• Bitte halten Sie den Kunststoffbeutel, in den die Ware verpackt ist, von Kindern entfernt, oder werfen

Sie ihn weg, damit er nicht in die Hande von Kindern gerät. Das Überstülpen des Beutels kann zum Ersticken führen.

Lärmemis sion kleiner 70dBA

CITIZEN

iDP3410 User's Manual

IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 off FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to c orrect the interference.

CAUTION: Use shielded cable for this equipment.

Sicherheitshinweis

Die Steckdose zum Anschluß dieses Druckers muß nahe dem Grät angebracht und leicht zugänglich sein.

For Uses in Canada

This digital apparatus does not exceed the class A limits for radio noise emissions from digital, apparatus, as set out in the radio interference regulations of the Canadian department of communications.

Pour L’utilisateurs

Cet appareil numérique ne dépasse pas les limites de carégorie a pour les émissions de bruit radio émanant d’appareils numériques, tel que prévu dans les réglements sur l’interférence radio du départment Canadien des communications.

Canadiens

CITIZEN

iDP3410 User's Manual

1. Prior to using the equipment, be sure to read this User's Manual thoroughly. Please keep it handy for reference whenever it may be needed.

2. The information contained herein may be changed without prior notice.

3. Reproduction of part or all of this User's Manual without permission is strictly prohibited.

4. Never service, disassemble, or repair parts that are not mentioned in this User's Manual.

5. Note that we will not be responsible for damages attributable to a user's incorrect operation/ handling or an improper operating environment.

6. Operate the equipment only as described in this User's Manual; otherwise accidents or problems may result.

7. Data are basically temporary; they cannot be stored or saved permanently or for a long time. Please note that we will not be responsible for damages or losses of profit resulting f rom losses of the data attributable to accidents, repairs, tests, and so on.

8. If you have any questions or notice any clerical errors or omissions regarding the information in this manual, please contact our office.

9. Pl ease note tha t, no twiths tandin g Item 8 above, we will not be responsible for any effects resulting from operation of the equipment.

CITIZEN

iDP3410 User's Manual

SAFETY PRE CAUTIONS ----- BE SUR E TO OBSERVE

In order to prevent hazards to an operator or other persons and damage to property, be sure to observe the following precautions.

 The following describes the degrees of hazard and damages that can occur if the given instructions are

neglected or the equipment is incorrectly operated.

WARNING Negligence of this precaution may result in death or serious injury.

CAUTION Negligence of this precaution may result in injury or damage to property.

This is an illustration mark used to alert your attention.

This is an illustration mark used to indicate such information as an instruction or the like.

CITIZEN

iDP3410 User's Manual

WARNING !

 Never handle the equipment in the following manners, as it may break, become out of order, or overheat

causing smoke and resulting in fire or electric shock. If the equipment is used in an abnormal condition, such as when broken, then problems, smoke emission, abnormal odor/noise, and fire can result. If an abnormal condition exists, be sure to turn off the power, disconnect the power plug from a plug socket, and contact our dealer. Never repair the equipment on your own - it is very dangerous.

• Do not allow the equipment to receive a strong impact or shock, such as kicking, stomping, hitting,

dropping, and the like.

• Install the equipment in a well-ventilated place. Do not use it in such a manner that its ventilation port will

be blocked.

• Do not install the equipment in a place like a laboratory where chemical reactions are expected, or in a place

where salt or gases are contained in the air.

• Do not connect/disconnect a power cord or a data cable, while holding the cable. Do not pull, install, use, or

carry the equipment in such a manner that force will be applied to the cables.

• Do not drop or insert any foreign substances, such as clips or pins, into the equipment.

• Do not spill any liquid or spray any chemical-containing liquid over the equipment. If any liquid is spilled

on it, turn off the power, disconnect the power cable and power cord from the plug socket, and so on, a nd contact our dealer.

• Do not disassemble or remodel the equipment. Negligence of this may cause fire or electric shock.

• Should you drop or break this AC adapter by any chance, unplug it immediately and contact our office.

Using it in that condition may result in fire or electric shock.

• Should water enter inside the equipment by any chance, unplug it and contact our offic e. Using it in that

condition may result in fire or electric shock.

• Use the equipment only with the specified commercial power supply. Negligence of this may result in fire,

electric shock, or problems.

• Do not damage, break, process, bend/pull by force, twist, or bundle an AC adapter cord. Also, do not put a

heavy substance on it or heat it. The AC adapter could be broken, resulting in fire, electric shock, or trouble. If the AC adapter cord is damaged, contact our office.

• Do not connect/disconnect the AC adapter with wet hands. It may result in electric shock or other problems.

• Do not overload a single electrical outlet, using a table tap or a current tap socket. It may result in fire or

electric shock.

 An equipment packing bag must be discarded or kept away from children. A child can suffocate if the bag

is placed over the head.

CITIZEN

iDP3410 User's Manual

PRECAUTIONS FOR INSTALLATION

• Do not use or store the equipment in a place exposed to fire, moisture, or direct sunlight, or in a place near a

heater or a thermal device where the prescribed operating temperature and humidity are not met, or in a place exposed to much oil, iron powder, or dust. The e quipment may become out of order, emit smoke, or catch fire.

• Do not install the equipment in a place like a laboratory where chemical reactions are expected, or in a place

where salt or gases are contained in the air. There is a danger of fire or electric shock.

• Do not put any object on the printer. It may cause trouble.

• Do not use the equipment near a radio or TV receiver. Do not share the power from a plug socket a radio or

TV receiver is connected to. It may cause a reception problem.

• Use the equipment only at the specified voltage and frequency. Otherwise, it may emit smoke and catch fire

or cause other problems.

• Confirm that a plug socket used for connection has sufficient capacity.

• Do not overload a single electrical outlet in connecting the power cable. It may result in the cable catching

fire or a power outage. Also, do not stamp or put any object on the cable.

• Never connect a grounding cable to a gas pipe. There is a danger of explosion. When connecting or

disconnecting the grounding cable, be sure to disconnect the power plug from the plug socket.

• When connecting/disconnecting the cables, be sure to turn off the power first, including the connected side,

and then connect/disconnect them, holding a plug and a connector. Do not pull or carry the equipment with a load applied to the cable.

• Connect a connector cable securely. If a reverse-polarity connection is made, internal elements may be

broken or a mating device may be adversely affected.

• Use a shielding wire or twisted pair wire for a signal line, in order to minimize noise effect. Avoid

connecting to a device that is likely to generate noise.

• When a drawer kick connector is provided, do not connect any device other than the prescribed solenoid

specifications. Negligence of this could cause trouble.

• Use the equipment in a n environment where there is a plug socket near the main body and you can easily

disconnect the power plug from it, to shut off the power.

• When the equipment will not be used for a long period of time, unplug it.

• When transporting the equipment, remove the rolled paper from it.

• Install the equipment on a flat, stable desk in a well-ventilated place free from vibrations. (Do not block the

ventilation port.)

CITIZEN

iDP3410 User's Manual

PRECAUTIONS FOR HANDLING

Do not handle the equipment in the following manners, because problems may result.

• Do not use a power supply other than the specified AC adapter.

• Do not print when there is no recording paper or ink ribbon set in the e quipment. The print head may be

damaged

• Be careful not to drop foreign substances, such as clips, pins, and screws, into the main body.

• Do not spill any liquid or spray any chemical-containing liquid over the equipment.

• Do not stamp on, drop, hit, or give a strong shock to the equipment.

• Never use a pointed object, such as a pen, to operate the operation panel.

• Do not use Scotch tape to fasten paper together for continuous use.

• Never pull the set paper forcibly. When opening/closing the printer cover, take care that the p aper will not

be caught.

To Prevent Injury and Spreading of Damage

• Do not touch the printing part of the print head.

• When turning on the power, do not touch the moving parts, such as a cutter and gear inside the main body,

or electric parts.

• Be careful to avoid bodily injure or damaging other objects with an edge of sheet metal.

• Should any error occur while operating the equipment, stop it immediately and disconnect the power plug

from the plug socket.

• Should a problem occur, leave solving it to our serviceman. Do not disassemble the e quipment on your

own.

• When opening/closing the cover, and so on, be careful not to catch your hand or finger on the equipment.

CITIZEN

iDP3410 User's Manual

DAILY MAINTENANCE

• Prior to starting maintenance work, be sure to turn off the main body.

• Use a dry soft cloth to wipe off stains and dust from the surfaces of the main body case. For severe soiling,

dip the cloth in water and wring it, for wiping off the soil. Never use organic solvents, such as a lcohol, thinner, trichlene, benzene, ketone, or chemical dusters.

• If the equipment is contaminated with paper powder, use a soft brush to clean it.

CITIZEN

iDP3410 User's Manual

1. OUTLINE...............................................................................................................................................1

1.1 Features.......................................................................................................................................................... 1

1.2 Unpacking...................................................................................................................................................... 1

2. BASIC SPECIFICATIONS.....................................................................................................................2

2.1 Model Classification....................................................................................................................................... 2

2.2 Basic Specifications........................................................................................................................................ 3

2.3 Paper Specification......................................................................................................................................... 4

2.3.1 Recommended Paper............................................................................................................................... 4

2.3.2 Printing Position...................................................................................................................................... 4

2.3.2 Cutter Layout........................................................................................................................................... 4

3. OUTER APPEARANCE AND COMPONENT PARTS .........................................................................5

4. OPERATION..........................................................................................................................................6

4.1 Connecting AC Adapter................................................................................................................................. 6

4.2 Connecting Interface Cable............................................................................................................................ 7

4.3 Connecting Drawer Kick-Out Connector....................................................................................................... 7

4.4 Setting the Cassette Ribbon............................................................................................................................ 8

4.5 Inserting the Paper.......................................................................................................................................... 9

4.6 How to Remove Remaining Paper Roll........................................................................................................ 11

4.7 Removing Paper Jam.................................................................................................................................... 11

4.8 Operation Panel and Display of Error .......................................................................................................... 12

4.9 Operation Flow at Power-on......................................................................................................................... 13

5. DIP SWITCH SETTING.......................................................................................................................14

5.1 Location of DIP Switch................................................................................................................................ 14

5.2 DIP Switches Setting.................................................................................................................................... 15

6. PRESET JUMPER SETTING..............................................................................................................17

6.1 Location of Preset Jumper............................................................................................................................ 17

6.2 Preset Jumper Table...................................................................................................................................... 17

7. MODE SETTING METHOD.................................................................................................................18

8. INPUT BUFFER BACKUP FUNCTION..............................................................................................19

8.1 Buffer Size.................................................................................................................................................... 19

8.2 Input Buffer Backup..................................................................................................................................... 19

8.3 Clearing the Input Buffer.............................................................................................................................. 19

9. PARALLEL INTERFACE.....................................................................................................................20

9.1 Specifications............................................................................................................................................... 20

9.2 Connector's Pin Configuration ..................................................................................................................... 20

9.3 Input and Output Signals.............................................................................................................................. 21

9.3.1 Input and Output Signals....................................................................................................................... 21

9.3.2 Electrical Characteristics....................................................................................................................... 22

9.3.3 Timing Chart......................................................................................................................................... 23

9.3.4 Data Receiving Control......................................................................................................................... 23

10. SERIAL INTERFACE ........................................................................................................................24

10.1 Specifications............................................................................................................................................. 24

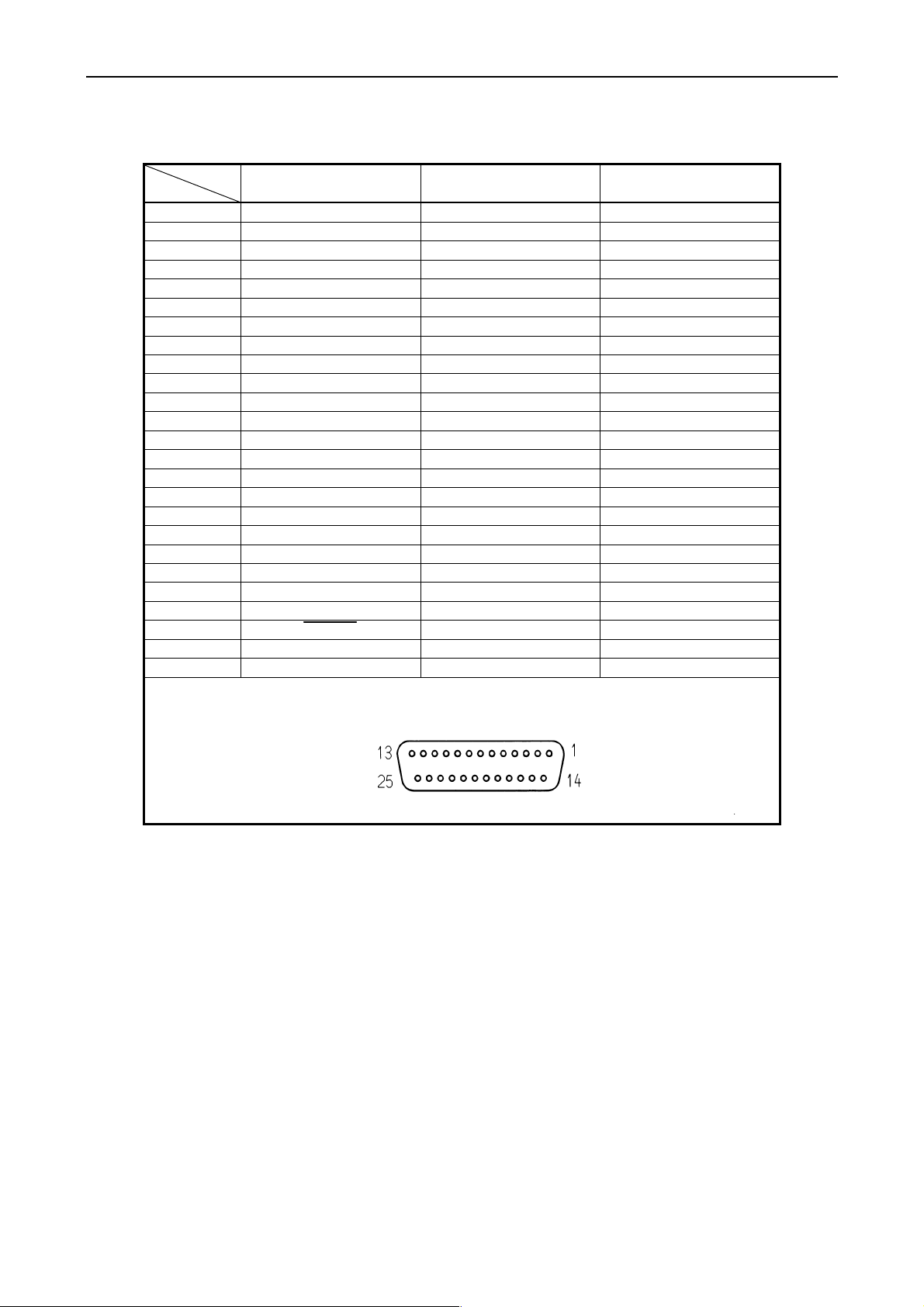

10.2 Connector's Pin Configuration ................................................................................................................... 25

10.3 Input and Output Signals............................................................................................................................ 26

10.3.1 Input and Output Signals..................................................................................................................... 26

10.3.2 Data Configuration............................................................................................................................. 28

10.3.3 Error Detection.................................................................................................................................... 29

10.3.4 Data Receiving Control....................................................................................................................... 29

10.3.5 Buffering ............................................................................................................................................. 29

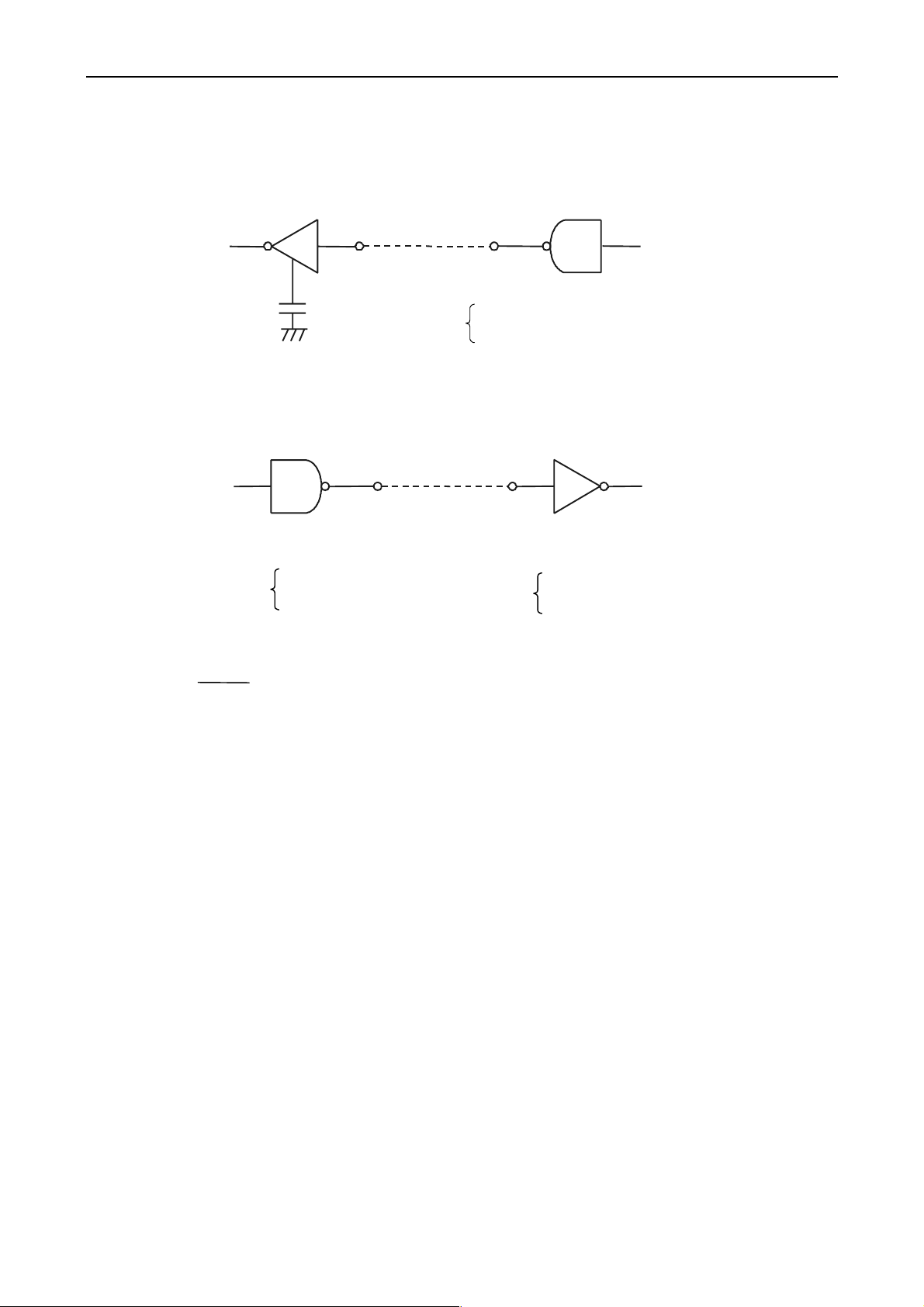

10.3.6 Electrical Characteristics..................................................................................................................... 30

CITIZEN

iDP3410 User's Manual

11. DRAWER KICK-OUT CONNECTOR AND POWER CONNECTOR................................................31

11.1 Specifications of Drawer Kick-Out Connector...........................................................................................31

11.2 Connector's Pin Configuration ................................................................................................................... 31

11.3 Drive Circuit............................................................................................................................................... 31

11.4 Specifications of Power Supply Connector................................................................................................ 32

12. MAINTENANCE AND SERVICE ......................................................................................................33

13. PRINT CONTROL FUNCTIONS.......................................................................................................34

13.1 CBM Mode................................................................................................................................................. 34

13.1.1 Command List..................................................................................................................................... 34

13.1.2 Description of Items............................................................................................................................ 35

13.2 STAR Mode................................................................................................................................................ 52

13.2.1 Command List..................................................................................................................................... 52

13.3 ESC/POS Commands................................................................................................................................. 83

13.3.1 Command List..................................................................................................................................... 83

14. CHARACTER CODES TABLE .......................................................................................................104

14.1 CBM (Domestic)...................................................................................................................................... 104

14.2 CBM (International)................................................................................................................................. 105

14.3 STAR (Domestic)..................................................................................................................................... 106

14.4 STAR (International)................................................................................................................................ 107

14.5 Code Page 437.......................................................................................................................................... 108

14.6 Katakana................................................................................................................................................... 109

14.7 Code Page 850.......................................................................................................................................... 110

14.8 Code Page 860.......................................................................................................................................... 111

14.9 Code Page 863.......................................................................................................................................... 112

14.10 Code Page 865........................................................................................................................................ 113

14.11 Code Page 852........................................................................................................................................ 114

14.12 Code Page 866........................................................................................................................................ 115

14.13 Code Page 857........................................................................................................................................ 116

14.14 Windows Code ....................................................................................................................................... 117

14.15 International Character Codes Table ...................................................................................................... 118

APPENDIX 1. BLOCK DIAGRAM........................................................................................................119

APPENDIX 2. OUTLINE DRAWING.....................................................................................................120

CITIZEN

iDP3410 User's Manual

<<<German>>>

4. BETRIEB...........................................................................................................................................128

4.1 Anschluß des Netzteils............................................................................................................................... 128

4.2 Anschluß des Schnittstellenkabels ............................................................................................................. 129

4.3 Anschluß des Ausschubmechanismussteckers der Geldschublade ............................................................ 129

4.4 Einsetzen der Farbbandkassette.................................................................................................................. 130

4.5 Einlegen der Papierrolle............................................................................................................................. 131

4.6 Entfernen des restlichen Druckpapiers....................................................................................................... 133

4.7 Beseitigung von Papierstaus....................................................................................................................... 133

4.8 Bedienfeld und Fehleranzeigelämpchen..................................................................................................... 134

4.9 Betriebsfluß beim Einschalten.................................................................................................................... 135

5. DIP-SCHALTER-EINSTELLUNG.....................................................................................................136

5.1 Lage der DIP-Schalter................................................................................................................................ 136

5.2 DIP-Schalter-Einstellungen........................................................................................................................ 137

6. EINSTELLUNG DER VORWAHL-JUMPERSTECKER....................................................................139

6.1 Lage der Vorwahl-Jumperstecker............................................................................................................... 139

6.2 Vorwahl-Jumperstecker-Tabelle................................................................................................................. 139

7. METHODE FÜR MODUSEINSTELLUNG........................................................................................140

12. WARTUNG UND DIENST ...............................................................................................................141

Note:

CITIZEN, CITIZEN logo are registered trademark of CITIZEN WATCH CO., LTD. ESC/POS and EPSON are a trademark and registered trademark of SEIKO EPSON Corporation. STAR is a registered trademark of Star Micronics Corporation. Windows is a registered trademark of Microsoft Corporation.

CITIZEN

iDP3410 User's Manual

1. OUTLINE

This is a small-size dot impact printer developed for various data communication terminals, POS terminals, kitchen-use printers, bank card, terminals, and so on. Its abundant built-in features allow you to widely use this printer for different applications. Prior to using it, rea d and understand this manual thoroughly.

1.1 Features

(1) Small size, light weight, and low price (2) High-speed print (Bi-directional) (3) Red and black print (4) Very easy paper loading by the auto loading function (5) Paper end detecting function (6) Power supply through an AC adapter

1.2 Unpacking

(1) When unpacking the printer, confirm that the following parts are provided.

• Printer body 1 unit

• Cassette ribbon 1 piece

• Sample paper roll 1 roll

• AC adapter 1 piece

• User's manual 1 copy

CAUTION : • Install the printer on a flat and stable desk.

• Do not install the printer near a heater or in a place exposed to direct sunlight.

• Do not use the printer in a high-temperature, high-humidity, and contaminated

environment.

• Do not allow dew condensation on the printer. If dew is condensed on it, leave the

power turned off until dew condensation is gone.

1 CITIZEN

2. BASIC SPECIFICATIONS

2.1 Model Classification

The printer model is classified by the following designation method.

iDP3410 - R F 120

Model Name

AC adapter 120: For 120 V AC 230: For 230 V AC

iDP3410 User's Manual

Character Set F: International

Interface CBM Mode R: Serial(RS-232C D-Sub) P: Parallel(CENTRONICS-based) STAR Mode S: Serial(RS-232C mini DIN) C: Parallel(CENTRONICS-based) ESC/POS Mode T: Serial(RS-232C D-S ub)

I: Parallel(CENTRONICS-based)

♦ Exclusive AC Adapter Types and Power Cords

• 34AD-U (120 V 2-core cord)

• 34AD-E (230 V 2-core cord)

2 CITIZEN

iDP3410 User's Manual

2.2 Basic Specifications

Model

iDP3410-*F120 iDP3410-*F230

Item Printer mechanism DP-410 Series (CITIZEN) Print method Serial dot impact method (Bi-directional print) Print width 64 mm Print head 9 pins Print speed Approx. 3 lines/sec. (At single-color continuous print) Print columns 40 columns or 42 columns (Selectable with the DIP switch) Character size Character types Alphanumeric, International characters, Code page 850, 860, 863, 865, 852, 866,

Line spacing 4.23 mm(1/6 inch) or 2.82(1/9 inch);

Paper

Ink ribbon Special purpose ribbon cartridge, Red/black or single color(black) Interface Serial (RS-232C), Parallel (CENTRONICS compliant)

Command system Print function Provided by operating the on-line, self-test, hex dump print function power

Input buffer 6 KB or 256 bytes (Selectable with the DIP switch) Buffer backup Within 24 hours (After 10 minutes or more of printer operation) Drawer 2-drawer or 1-drawer switch Auto loading Paper end detection Equipped (Stops printing when the paper runs out.) Supply voltage 120 V AC +/- 10 %,

Power consumption Not printing: Approx. 8 W Printing: Approx. 30 W W eight Main body: 1.25 kg AC adapter: 0.95 kg Outer dimensions

Operating temperature and humidity Storage temperature and humidity Reliability Print head: 80,000,000 characters

EMI standard

Safety Standard *1 TUV GS

*1.The AC adapter alone has acquired the Electric Appliances Control Act, UL Standard, C-UL Standard, and

TUV GS Standard.

1.31 mm (W)×3.1 mm (H)

857; Windows code

Minimum paper feed pitch 1.41 mm(1/18 inch) Ordinary paper and non-carbon paper 76+/-0.5 mm (W)×φ83 mm (O.D.); Single-sheet paper: 45 to 55 kg/1,000 sheets/1,091×788 mm

Copying paper: Non-carbon paper, 1 original + 1 copy, Total thickness 0.2 mm or less

CBM mode, STAR mode, ESC/POS mode The user can select the mode with the DIP switches and preset jumpers.

switches and FEED switch

Equipped (Automatically feeds the paper by several lines when it is inserted.)

230 V A C +/- 10 %,

50/60 Hz

34AD-U 34AD-EAC adapter

Output: 26 V DC, 1.15 A

144 (W) × 233 (D) × 121 (H) mm 0∼40 °C, 35∼85 % RH (No dew condensation)

-20∼60°C, 10∼90 % RH (No dew condensation)

Mechanism: MCBF 2,500,000 lines

FCCA

50/60 Hz

EN55022 Class-A

CE Marking

3 CITIZEN

2.3 Paper Specification

2.3.1 Recommended Paper

• Type : Normal paper and non-carbon paper

• Paper width : 76 +/- 0.5 mm

• Paper thickness : Single-sheet paper --- 45∼55 kg / 1,000 sheets / 1,091 x 788 mm;

Copying paper --- Non-carbon paper, 1 original + 1 copy,

• Roll diameter : φ83 mm or less

• Core : φ12 mm (Inner Diameter), φ18 mm (Outer Diameter)

2.3.2 Printing Position

iDP3410 User's Manual

Total thickness 0.2 mm or less

2.3.2 Cutter Layout

Cutting Position

Approx. 20 mm

4 CITIZEN

3. OUTER APPEARANCE AND COMPONENT PARTS

iDP3410 User's Manual

5 CITIZEN

iDP3410 User's Manual

4. OPERATION

4.1 Connecting AC Adapter

(1) Turn off the Power switch. (2) Connect the cable connector of the AC adapter to the power connector located on the back of the printer. (3) In order to prevent disconnection of the cable connector, put it through a wire saddle, as shown in the

figure below.

(4) Connect the AC power cord plug to a plug socket.

CAUTION : • Use only the specified AC adapter.

• Use a different AC power supply from one used for any noise-generating device.

• Do not use the accessory AC adapter for another device or application be sides this

equipment.

• When disconnecting the AC adapter, be sure to hold the AC adapter itself or the plug.

Do not pull its cord.

• Pulling an AC adapter cord will damage it and may result in fire, electric shock, or

snapping of the wire.

• If lightning is occurring in the area, disconnect the AC adapter from the plug socket

and do not use the equipment. A lightning strike could result in fire or electric shock.

• Do not put the AC adapter cord near any thermal device. The coating of the power

cord can melt, resulting in fire or electric shock.

• When the printer is not used for a long period of time, be sure to disconnect the AC

adapter from the plug socket, for safety.

6 CITIZEN

4.2 Connecting Interface Cable

(1) Turn off the power. (Mating side included) (2) Check the top and bottom of the cable terminals, and connect to the interface connector. (3) Fix the cable terminals.

• Serial Interface: Tighten screws, to fix.

• Parallel Interface: Turn a stopper, to fix.

(4) Connect the cable to a computer.

4.3 Connecting Drawer Kick-Out Connector

iDP3410 User's Manual

(1) Turn off the power. (2) Chec k the top and bottom of the drawer kick-out cable connector, and connect it to the drawer kick-out

connector located on the back of the printer.

(3) Screw the grounding cable of the drawer to the grounding terminal of the printer.

CAUTION : Connect only the prescribed drawer (Solenoid) to the drawer kick-out connector.

7 CITIZEN

iDP3410 User's Manual

4.4 Setting the Cassette Ribbon

(1) Open the printer cover. (2) I f the ribbon is slackened, turn the knob in the arrow-indicated direction to give the tension to it before

setting.

(3) W hile putting the ribbon in between the head cover and platen, push the locking claws into the holder of

the printer. (4) Turn the knob of the cassette ribbon in the arrow-indicated direction to eliminate slackness of the ribbon. (5) To remove the cassette ribbon, lift it while tilting the locking claws on both sides toward the inside.

8 CITIZEN

iDP3410 User's Manual

4.5 Inserting the Paper

(1) Put your hands in the concave parts on both sides of the printer cover, and open it until it comes to a stop. (2) Cut the end of the paper roll at close to a right angle.

CAUTION : • Be sure to use the specified paper roll.

• Use of unspecified paper may adversely affect print quality, printer service life, and so

on.

• The printer cover is not detachable. Do not apply an excessive force beyond its

stopping position.

• Do not insert a frayed or bent end of paper into the printer.

(3) Check the winding direction of the paper roll. (4) Opening the paper holder, support the center of the paper roll correctly. (5) Turn on the printer. (6) Insert the end of the paper roll straight into the paper inlet slot (Indicated by an arrow on the case). (7) The paper is automatically fed in and comes out of the paper outlet slot of the printer. (8) Close the printer cover and cut the surplus paper with a tear bar.

9 CITIZEN

CAUTION : • If the paper is slack, rewind it, to remove the slack.

• If the paper is set slantwise, operate the paper-free lever, to correct the paper position.

• While printing, do not hold the paper. This can cause a paper jam.

iDP3410 User's Manual

10 CITIZEN

4.6 How to Remove Remaining Paper Roll

(1) Open the printer cover. (2) Pushing the paper-free lever in the arrow direction, pull out the paper roll.

CAUTION : When pulling out the paper (Forward/Reverse direction), be sure to operate the paper-

free lever.

iDP3410 User's Manual

4.7 Removing Paper Jam

(1) Open the printer cover. (2) Cut off the paper near the paper inlet slot. (3) Push the paper-free leve r in the arrow dir ection. The paper feed roller is disengaged, to free the paper,

allowing you to eliminate the jammed paper. (4) Eliminate completely the paper remaining in the paper route.

CAUTION : • When pulling out the paper (Forward/Reverse direction), be sure to operate the paper-

free lever.

11 CITIZEN

4.8 Operation Panel and Display of Error

(1) POWER lamp(Green)

Illuminated when the power is turned on. (2) ERROR lamp(Red)

Illuminated when the printer is out of paper or has a printer mechanical error or communication error.

• Paper end ----- If the paper runs out, the paper sensor located in the paper course near the print

head detects a paper end, turning on the ERROR LED, thus stopping the printer. If the paper is inserted into the paper course, it is loaded.

• Printer mechanism error ----- If the printer mechanism is abnormally loaded due to a paper jam,

etc., the ERROR LED is illuminated, to stop the printer.

(3) FEED switch

The paper is fed by one line by pressing this switch for a short time, and it is fed continuously by holding

down the switch.

(4) FEED switch and Power switch

Self-print is performed by turning on the Power switch while pressing the FEED switch.

iDP3410 User's Manual

12 CITIZEN

4.9 Operation Flow at Power-on

Power-on

Feed SW ?

iDP3410 User's Manual

Buffer data

1 Sec. Passed

Yes

Off

FEED SW ?

(CONTINUE)

Prints" =H exadecimalDu mp =

Dump Mode

Yes

"Clear Data in Buffer"

Yes(FEED SW) and Enlarged

Red Print

Test Print

Buffer Data

Yes

Off

Yes

1 Sec. Passed

FEED SW ?

(AGAIN)

Input Buffer Clear

rints "Power Down(Data i

uffer)" in Red, Followed b uffer Contents.

Waits for Data Input

13 CITIZEN

5. DIP SWITCH SETTING

5.1 Location of DIP Switch

(1) Turn off the power. (2) Remove a cassette ribbon. The DIP switches are located as shown in the figure below.

(Only DS1 provided for the parallel interface)

iDP3410 User's Manual

14 CITIZEN

5.2 DIP Switches Setting

1) DIP Switch 1 No. Function ON OFF

DS1-1 Auto cutter Yes No OFF DS1-2 DS1-3 DS1-4 DS1-5 Paper used 2P 1P OFF DS1-6 CR mode See the Table below OFF DS1-7 Number of columns 42 40 ON DS1-8 Buffer size 6K bytes 256 bytes ON DS1-9 Operation mode OFF *3

DS1-10

*1, *3 : Depends on the type. *2 : Depends on the destination.

International Character Selection Character Code Selection

ountr

U.S.A. ON ON ON Code 437 France OFF ON ON Code 850 Code 850 Code 850

Germany ON OFF ON

U.K. OFF OFF ON

Denmark ON ON OFF

Sweden OFF ON OFF

Italy ON OFF OFF

Japan OFF OFF OFF Katakana

International characters

No.

DS1-2 DS1-3 DS1-4

iDP3410 User's Manual

Upon Shipment from F acto ry

ON *2

″ ″

″

See the Table below

See the table below

ESC/POS

mode

CBM mode Star mode

(International)

″″ ″ ″″ ″ ″″ ″ ″″ ″ ″″ ″

(Domestic)

CBM

ON *2 ON *2

OFF *3

Star

(International)

Star

(Domestic)

See the International Character Codes Table and Character Codes Table.

CR mode(DS1-6) Operation Mode DS1-9 DS1-10

Mode OFF ON CBM OFF OFF

CBM CR+LF CR ESC/POS ON OFF

STAR CR+LF Ignored STAR OFF ON

ESC/POS CR+LF CR STAR ON ON

15 CITIZEN

2) DIP Switch 2

No. Function ON OFF Factory Setting DS2-1 Bit length 8 bits 7 bits ON DS2-2 Parity No Yes ON DS2-3 Odd/Even Odd Even ON DS2-4 Communication mode DTR/DSR XON/XOFF ON

DS2-5 Baud rate ON DS2-6 ″ ON DS2-7

″

DS2-8 Unused

See the table below

−−

Baud rate

Baud ra te(bps)

DS2-5 DS2-6 DS2-7 150 OFF OFF OFF 300 OFF OFF ON 600 OFF ON OFF

1200 OFF ON ON 2400 ON OFF OFF 4800 ON OFF ON 9600 ON ON OFF

19200 ON ON ON

iDP3410 User's Manual

OFF OFF

♦ The DIP switch 2 is used only for the serial interface.

(Note) Setting of the paper used simply changes the drive pulse width to the printing head; it does not

mean that 2 ply paper is not available for the 1 ply setting. The same applies to when 1 ply paper is used for the 2 ply setting.

16 CITIZEN

6. PRESET JUMPER SETTING

6.1 Location of Preset Ju mper

(1) Turn off the power. (2) Remove a cassette ribbon. (3) Remove the top cover. The preset jumper is located as shown in the figure below.

Serial Interface Parallel Interface

6.2 Preset Jumper Table

Serial Interface

Mode

Location

SCA 1-C * 2-C 2-C

SCB 1-C * 1-C * 2-C SCC 1-C 2-C *

SCD 1-C 2-C *

SCE 1-C * 2-C 1-C *

SCF 1-C * 2-C 1-C * SCG 1-C * 2-C 1-C * SCH 1-C 2-C * 2-C *

* = Open 1-C * = 1-C or open 2-C * = 2-C or open

CBM STAR ESC/POS

iDP3410 User's Manual

Parallel

Mode

Location

SCA 1-C * 1-C 2-C *

SCB 1-C 1-C 2-C

SCC 1-C * 1-C * 2-C SCD 1-C 1-C 2-C *

* = Open 1-C * = 1-C or open 2-C * = 2-C or open

CBM STAR ESC/POS

17 CITIZEN

iDP3410 User's Manual

7. MODE SETTING METHOD

This printer has the CBM, STAR, and ESC/POS mode. Any desired mode can be selected and set according to your need.

(1) Setting method

• See 5. DIP SWITCH SETTING.

• Seeing the settings of the DIP switch 1-9 and 1-10 and those of the preset jumper, set each mode.

18 CITIZEN

iDP3410 User's Manual

8. INPUT BUFFER BACKUP FUNCTION

8.1 Buffer Size

With the DIP switch, you can set either 6K bytes or 256 bytes. DIP switch 1-8 ON → 6K bytes

OFF → 256 bytes

8.2 Input Buffer Backup

Even if the power is turned off or fails during the printing process, the data in the input buffer will be saved. If the power is turned on again, the printer will print a power failure mark, "==POWER DOWN==," in red and reprints the data from the beginning of the line where it left off.

8.3 Clearing the Input Buffer

When you want to clear the data in the input buff er, turn on the power, holding down the LF switch. A buzzer will sound to inform you that the input buffer has been cleared. Hold dow n the LF switch until the buzzer sounds.

If the printer prints the data erroneously at power-on, clear the input buffer as described above, and then, reinput the data.

19 CITIZEN

9. PARALLEL INTERFACE

9.1 Specifications

• Data input system : 8-bit parallel system (DATA1 to DATA8)

• Control signals : ACK, BUSY, STB, FAULT, SELECT, RESET, COMPULSION

• Applicable connectors : Printer side --- 57LE-40360 (Equivalent to anphenol),

Cable side --- 57-30360 (Ditto)

9.2 Connector's Pin Configuration

iDP3410 User's Manual

No.

Mode

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18

CBM STAR ESC/POS

STB DATA 1 DATA 2 DATA 3 DATA 4 DATA 5 DATA 6 DATA 7 DATA 8 ACK BUSY

PE(HI-LEVEL)

SELECT GND GND GND

FRAME GND

Vcc

← ← ← ← ← ← ← ← ← ← ← ← ← ←

NC NC

← ←

← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ←

No.

Mode

19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

CBM ST AR ESC/POS

TWISTED PAIR GND

↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑

RESET FAULT NC COMPULSION NC Vcc

← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ←

← ← ← ← ← ← ← ← ← ← ← ← ←

GND

← ←

Vcc

20 CITIZEN

9.3 Input and Output Signals

9.3.1 Input and Output Signals

(1) Input signals to the printer

• DATA : An 8-bit parallel signal. (Positive logic)

• STB : A strobe signal to read the 8-bit data. (Negative logic)

• RESET : A signal to reset the printer from the outside.(Negative logic)

(2) Output signals from the printer

• ACK : An 8-bit data request signal. A pulse signal output at the end of the BUSY signal.

(Negative logic)

• BUSY : A signal to indicate the BUSY status of the printer. Input new data when at

"LOW". (Positive logic)

• FAULT : A signal turned to "LOW" when the printer has an alarm. At this time, all the

control circuits in the printer stop. (Negative logic)

• SELECT : A signal to show whether the printer is selected(on-line) or deselected.(Positive

logic)

• COMPULSION

: A signal to show the status of the drawer switch.(Positive logic)

• PE : A signal to show that the paper has run out. Normal at the "LOW" level, but turned

to the "HIGH" level when the paper has run out.

(3) Power related signal

• GND : Common ground on the circuits

• Vcc : A +5V signal. Connected via a 3.3kΩ resistor.

iDP3410 User's Manual

21 CITIZEN

9.3.2 Electrical Characteristics

(1) Input signal level

All the input signals are at the TTL level. "HIGH" level : 2.0 V at minimum "LOW" level : 0.8 V at maximum

(2) Output signal level

All the output signals are at the TTL level. "HIGH" level : 2.4 V at minimum "LOW" level : 0.4 V at maximum

(3) Input and output conditions

All the input signals are pulled up at 3.3 kΩ.

[Printer Side] [Host Side]

iDP3410 User's Manual

All the output signals are pulled up at 3.3kΩ.

[Printer Side] [Host Side]

22 CITIZEN

9.3.3 Timing Chart

(1) Data input and printing timing

iDP3410 User's Manual

T1, T2, T3 : 0.5 µs MIN T4 : 270 ns MAX T5 : 2.3 µs TYP T6 : 500 ms MIN (At power-on)

9.3.4 Data Receiving Control

When the BUSY signal is at "LOW," the printer can receive the data from the host, but when at "HIGH," it cannot.

23 CITIZEN

10. SERIAL INTERFACE

10.1 Specifications

(1) Synchronous system: Asynchronous (2) Baud rate: 150, 300, 600, 1,200, 2,400, 4,800, 9,600, or 19,200 bps (User selectable)

(3) Configuration of one word

• Start bit : 1 bit

• Data bits : 7 or 8 bits (User selectable)

• Parity bit : Odd, even, or none (User selectable)

• Stop bit : 1 bit or more

(4) Signal polarity

RS-232C

• Mark = Logic "1" (-3 V ∼ -12 V)

• Space = Logic "0" (+3 V ∼ +12 V)

(5) Received data (RXD signal)

RS-232C

• Mark = 1

• Space = 0

iDP3410 User's Manual

(6) Reception control (DTR signal)

RS-232C

• Mark : Data transfer disabled

• Space : Data transfer enabled

24 CITIZEN

10.2 Connector's Pin Configuration

iDP3410 User's Manual

Mode

No.

1FG 2TXD 3RXD 4RTS

CBM STAR ECS/POS

←← ←← ←←

←

5 6DSR 7 GND ←← 8

9 10 11 PE (HI-LEVEL) RCH 12 FAULT 13 GND 14 FAULT 15 mTXD 16 mRXD 17 18 19 20 DTR

←←

21 22 23 RESET 24 25

Cautions

: 1. An RS-232C signal is based on the EIA RS-232C.

2. When the data is not being transferred, the received data should be always maintained as a mark.

25 CITIZEN

10.3 Input and Output Signals

10.3.1 Input and Output Signals

(1) RXD

This is a serial received data signal. When a framing error, overrun error, or parity error occurs, that data is printed as "?".

(2) DTR

When this signal is Ready, write the data or a command. I f writte n at the time of Busy, an overrun error results, ignoring the previous data. The data can be written in the input buffer even during printing. Busy is also issued at the time of power-on, test print, on-line, and reset.

(3) TXD

XON(11H) or XOFF(13H) is sent at XON/XOFF control. XON(11H) is sent every 3 seconds in the Star mode. When a command is received, that requests the printer state and printer status, 1-byte corresponding data is output.

(4) DSR

When this signal is a space, the data is sent from the printer side . Note that if this signal is a mark when a request to send command is executed, the printer will wait until the signal becomes a space.

iDP3410 User's Manual

(5) FAULT

1) CBM mode When this signal is Space, a mechanical error has occurred.

2) STAR mode When this signal is Mark, a mechanical error has occurred.

(6) RESET

A signal to reset the entire printer.(Negative logic)

(7) RTS

This signal is turned to Space when the printer is turned on.

26 CITIZEN

iDP3410 User's Manual

(8) RCH

When the printer is ready to receive, this signal is turned to Space. This signal line is the same as DTR.

(9) mTXD

TXD signal for the diode gate.

(10) mRXD

RXD signal for the diode gate.

(11) FG

This is a Frame Ground signal.

(12) GND

This is a common ground on the circuit.

27 CITIZEN

10.3.2 Data Configuration

Mark

Space (1) (2) (3)

(1) Start bit

After a lapse of 1/2 bit from a mark-to-space fall edge, the state is read again, and if it is a space, it is recognized as the start bit. If it is a mark, it is assumed neither the start bit nor an error, and it is attempted to detect the start bit again.

, b1, b2, ........

(1) Start Bit (2) Data Bit (+ Parity Bit) (3) Stop Bit (1 or More)

iDP3410 User's Manual

(2) Data bit + parity bit

The data bit and parity bit are sampled for 1 bit worth of time from the 1/2 start bit. The then state is assumed the data for the corresponding bit. A sequence of the bits are named Bit 0, Bit 1, ..., parity bit, starting from the one closest to the start bit.

(3) Stop bit

The stop bit is a mark level of 1 bit or more. If a space is detected in detecting the stop bit, a framing error resul ts .

28 CITIZEN

10.3.3 Error Detection

A parity error, framing error, and overrun error are detected. When an error is detected, that data is stored in the buffer as "?".

(1) Framing error

This error results when a space is detected in detecting the stop bit. T hat da ta is stored in the buffer as "?".

(2) Parity error

If a parity check has been spe cified and an error is detected at the time of parity check, that data is stored in the buffer as "?".

(3) Overru n er ror

If an overrun error is detected, that data is stored in the buffer as "?".

10.3.4 Data Receiving Control

When the DTR signal is a space, the data from the host side can be received. When it is a mark, however, the data cannot be received.

10.3.5 Buffering

iDP3410 User's Manual

The DTR signal and the TXD signal are available as a control signal for data transfer to the input buffer.

29 CITIZEN

10.3.6 Electrical Characteristics

(1) RS-232C circuit

Input (RXD, DSR, mRXD)

[Printer Side] [Host Side]

Equivalent MAX232

Output (DTR, TXD, mTXD, RCH, RTS, FAULT)

iDP3410 User's Manual

RXD Mark=(-8V): Stop bit

Space=(+8V): Start bit

Equiv alent to MAX232

DTR Mark=(-8V): At Busy TXD Mark=(-8V): 1

Space=(+8V): At Ready Space=(+8V): 0

(2) Others

• RESET : A signal to reset the entire printer.

• PE : A signal to show that the paper has run out. Normal at the "LOW" level, but turned

to the "HIGH" level when the paper has run out.

• GND : Signal ground

• FG : Frame ground

30 CITIZEN

11. DRAWER KICK-OUT CONNECTOR AND POWER CONNECTOR

11.1 Specifications of Drawer Kick-Out Connector

(1) Drawer kick-out drive signal

Parallel Interface ----- Can be learned at the no. 34 pin of the interface connector Serial Interface ----- Provided with a command to learn the status in the Star and ESC/POS modes.

(2) Electrical characteristics

1) Drive voltage: 24 V DC

2) Drive current: 0.8 A at maximum(Within 510 ms)

3) Switch signal: Signal level "L" = 0 ∼ 0.5 V "H" = 3 ∼ 5 V

11.2 Connector's Pin Configuration

No. Signal Function

1 FG Frame Ground 2 DRAWER 1 Drawer 1 drive signal 3 DRSW Drawer switch input 4 VDR Drawer drive power 5 DRAWER 2 Drawer 2 drive signal 6 GND Common ground on the circuit

iDP3410 User's Manual

CAUTION

11.3 Drive Circuit

Connector used : TM5RJ3-66 (HIROSE) Applicable connector : TM3P-66P (HIROSE) or equivalent

: • No output is made while printing.

• The drawers 1 and 2 cannot be driven simultaneously.

• A solenoid used for the drawer should be of 36Ω or more. An output current should be

kept below 0.8 A. Use beyond this limit cannot be assured.

• This connector cannot be connected to a telephone line. Do not connect other than the

solenoid.

31 CITIZEN

11.4 Specifications of Power Supply Connector

This is a power connector from an exclusive AC adapter.

Connector’s Pin Configuratio n

No. Function

iDP3410 User's Manual

1 2

Jack used : HEC0470-01-640(HOSHIDEN) or equivalent Applicable plug : JXP series Type-A (I.D. 2.45 mm, O.D. 5.5 mm) (HOSHIDEN) or equivalent

CAUTION: • Be sure to use the specified power supply. Use of unspecified one may lead to a

trouble or breakage.

• Do not connect the power supply with different polarities.

+24V

GND

32 CITIZEN

iDP3410 User's Manual

12. MAINTENANCE AND SERVICE

For the information on maintenance and service, please contact our dealer or at the following address.

Northern Ameri ca Other Areas CBM America Corporation Japan CBM Corporation Service Center Information Systems Division 363 Van Ness WayCBM Bldg., 5-68-10, Nakano Suite 404 Nakano-ku, Tokyo 164-0001 Torrance, CA 90501, U.S.A Japan

TEL +1-310-781-1460 TEL +81-3-5345-7540 FAX +1-310-781-9157 FAX +81-3-5345-7541

33 CITIZEN

iDP3410 User's Manual

13. PRINT CONTROL FUNCTIONS

13.1 CBM Mode

13.1.1 Command List

Command Function Code Page

1 FF n n-line paper feed 0CH n 36

2 SO Specifying the double width character 0EH 36 3 SI Canceling the double width character 0FH 37 4 LF Printing and paper feed 0AH 37 5 CR Printing 0DH 37 6 DC 1 Initializing the printer 11H 37 7 DC 2 Specifying/Canceling the Inverted character 12H 37 8 DC 3 Specifying the red print 13H 38

9 CAN Canceling the print data 18H 38 10 ESC ∗ n1 n2 Specifying the bit image mode 1BH 2AH n1 n2 39 11 ESC - n Specifying/Canceling the Underline 1BH 2DH n 39 12 ESC 1 Specifying 1/9-inch line feed rate 1BH 31H 39 13 ESC 2 Specifying 2/9-inch line feed rate 1BH 32H 40 14 ESC 3 Specifying 1/6-inch line feed rate 1BH 33H 40 15 ESC C n Setting the page length 1BH 43H n 40 16 ESC N n Specifying the perforation skip 1BH 4EH n 41 17 ESC O Canceling the perforation skip 1BH 4FH 41 18 ESC f 1 Form feed (Changing the page) 1BH 66H 01H 41 19 ESC t n Selecting the character code table 1BH 74H n 42 20 ESC BEL n1 n2 Setting the external device drive pulse width 1BH 07H n1 n2 43 21 BEL Driving command A for Drawer-1 07H 43 22 FS Driving command B for Drawer-1 1CH 44 23 SUB Driving command for Drawer-2 1AH 44 24 RS Buzzer-on 1EH 44 25 ESC R n Selecting the international character set 1BH 52Hn 45 26 ESC & 0 n1 n2 Defining the download character set 1BH 26H 00H n1 n2 46 27 ESC % n Specifying/Canceling download character set 1BH 25H n 39 28 ESC / n Definition the message 1BH 2FH n 39 29 ESC DC3 n Printing the message 1BH 13H n 48

30 ESC DC2 n1 n2 31 GS ∗ n1 n2 Defining the download, bit image 1DH 2AH n1 n2 50

32 GS / m Printing the download, bit image 1DH 2FH m 51

Deleting the download character, message, bit image

1BH 12H n1 n2 49

34 CITIZEN

13.1.2 Description of Items

iDP3410 User's Manual

XXXX

[Function] Command name

[Code] A row of command constituent code is represented by a hexadecimal number with < >H,

binary number with < >B, and a decimal number with < >. [ ]k means a repeat count of ktimes.

[Range] Describes an argument value (Setting range) for the command.

[Outline] Describes a command function. [Caution] Describes a caution as required.

[Default] Describes an initial value for the command when accompanied by an argument.

XXX Shows a command.

ALL

35 CITIZEN

iDP3410 User's Manual

Details

FF n

[Function] n-line paper feed

[Code] <0C>H n [Range] 1 ≤ n ≤ 127

[Outline] This command feeds the paper by n-lines. You can set n = 1 to 127 lines. If the print

buffer contains the data, use of this command feeds the paper by n-lines after printing the data. Setting n = 0 does not feed the paper.

[Function] Specifying the double width character

[Code] <0E>H [Outline] The data following this command is printed doubled in the horizontal direction. Double

width characters remain valid until the double width character cancel command is entered, but they are also cancelled after they are printed one line. Note that the double width characters take up two ordinary characters worth of width.

36 CITIZEN

iDP3410 User's Manual

[Function] Canceling the double width character

[Code] <0F>H [Outline] This command cancels the double width characters set with SO. The data following this

command are printed in the ordinary character width.

[Function] Printing and paper feed

[Code] <0A>H [Outline] If the print buffer contains the data, this command will feed the line after printing. If not,

the command only feeds the line.

[Function] Printing [Code] <0D>H

[Outline] This command prints the data. If the DIP switch segments 1 to 6 are set to OFF, the

printer will print the data in the print buffer and feed the paper by one line . If they are set to ON, the printer will print the data in the print buffer and will not feed the paper.

DC1

[Function] Initializing the printer

[Code] <11>H

[Outline] This command initializes the printer.

The input buffer is not cleared. The settings of the DIP switch segments are not re-read.

DC2

[Function] Specifying/Canceling the inverted character

[Code] <12>H

[Outline] This command selects/deselects the inverted characters. Enter this command at the

beginning of one line. Otherwise, it is overridden. Erect and inverted characters cannot be mixed in one line.

37 CITIZEN

iDP3410 User's Manual

DC3

[Function] Specifying the red print

[Code] <13>H [Outline] This command specifies red-color characters. All the characters in one line are printed in

red by prefixing the print data with this command and sending it to the printer. When you want to use red characters, use this command for each line.

CAN

[Function] Canceling the print data [Code] <18>H

[Outline] This command clears the print data in the lines entered prior to this command.

38 CITIZEN

iDP3410 User's Manual

ESC "*" n1 n2

[Function] Specifying the bit image mode

[Code] <1B>H <2A>H n1 n2 [Range] 1 ≤ n1 + 256 × n2 ≤ 378

[Outline] This command allows printing in the bit image mode. Divide the number of dots printe d

by 256 and assume its quotient to be n2 and remainder to be n1. Therefore, the number of horizontal dots will be n1 + 256 × n2. If the bit image data is entered beyond the dot positions printable in one line, the surplus data will be discarded. Normal data processing is restored after bit image printing. Printing is done in a single direction.

ESC "-" n

[Function] Specifying/Canceling the underline

[Code] <1B>H <2D>H n

[Outline] This command selects/deselects an underline. The underline is selected at n = 1 and

deselected at n = 0.

[Default] n = 0

ESC "1"

[Function] Setting the 1/9-inch line feed width

[Code] <1B>H <31>H [Outline] This command sets the line feed width to 1/9 inch.

39 CITIZEN

ESC "2"

[Function] Setting the 2/9-inch line feed width

[Code] <1B>H <32>H [Outline] This command sets the line feed width to 2/9 inch.

ESC "3"

[Function] Setting the 1/6-inch line feed width

[Code] <1B>H <33>H

[Outline] This command sets the line feed width to 1/6 inch(Default).

iDP3410 User's Manual

ESC "C" n

[Function] Setting the page length

[Code] <1B>H <43>H n

[Range] 1 ≤ n ≤ 127

[Outline] Sets the 1-page length to n-lines.

40 CITIZEN

iDP3410 User's Manual

ESC "N" n

[Function] Specifying the perforation skip

[Code] <1B>H <4E>H n [Range] 1 ≤ n ≤ 126

[Outline] This command feeds(Skips) the lines specified with n without printing. However, you

cannot specify beyond the length of one page.

ESC "O"

[Function] Canceling the perforation skip

[Code] <1B>H <4F>H

[Outline] This command cancels perforation skipping operation.

ESC "f" 1

[Function] Form feed (Changing the page)

[Code] <1B>H <66>H <01>H

[Outline] This command searches for the beginning of the next page after printing the data in the

print buffer.

41 CITIZEN

ESC "t" n

[Function] Selecting the character code table

[Code] <1B>H <74>H n [Range] 0 ≤ n ≤ 255

[Outline] This command selects Page-n of Character Code Table. [Default] Depends upon DIP switch setting.

n Character Code Table n Character Code Table 0 CBM International 6 Code Page 852 (Eastern Europe) 1 CBM Domestic 7 Code Page 866 (Russia) 2 Code Page 850 (Multilingual) 8 Code Page 857 (Turkey) 3 Code Page 860 (Portugal) 9 Windows Code 4 Code Page 863 (Canada-French) 5 Code Page 865 (Norway) 255 Space Page (For user setting)

iDP3410 User's Manual

42 CITIZEN

ESC BEL n1 n2

[Function] Setting the external device drive pulse width

[Code] <1B>H <07>H n1 n2 [Range] 1 ≤ n1 ≤ 127 1 ≤ n2 ≤ 127

[Outline] This command sets the power-on time to drive an external device (Cash drawer).

Power-on time = n1 × 10 (ms) Delay time = n2 × 10 (ms) To actually drive the drawer, use the <BEL> and <FS> commands.

[Default] n1 = n2 = 20

iDP3410 User's Manual

BEL

[Function] Driving command A for drawer-1

[Code] <07>H [Outline] This command drives the drawer connector no. 2 pin under the condition set with the

<ESC><BEL> n1 n2 command. This command is executed in order of entry into the input buffer.

43 CITIZEN

iDP3410 User's Manual

[Function] Driving command B drawer-1

[Code] <1C>H [Outline] This command drives the drawer connector No. 2 pin under the condition set with the

<ESC><BEL> n1 n2 command.

SUB

[Function] Driving command for drawer-2

[Code] <1A>H [Outline] As soon as this command is received, the drawer connector no. 5 pin is driven. The

power-on time is 200 ms ON and 200 ms OFF stationary. The draw ers 1 and 2 cannot be driven simultaneously.

[Function] Buzzer-on [Code] <1E>H

[Outline] This command emits a short warning sound from the printer.

44 CITIZEN

ESC "R" n

[Function] Selecting the international character set

[Code] <1B>H <52>H n [Range] 0 ≤ n ≤ 10

[Outline] This command selects the international characters according to the value of n.

n Character Set n Character Set 0 U.S.A. 6 Italy 1 France 7 Spain

2 Germany 8 Japan 3U.K.9Norway 4 Denmark I 10 Denmark II 5 S weden

[Default] Depends upon DIP switch setting.

iDP3410 User's Manual

45 CITIZEN

iDP3410 User's Manual

ESC "&" <0> n1 n2 [m0 m1 ... m5 m6 m7 m8 m9] n2 - n1 + 1

[Function] Defining the Download character set

[Code] <1B>H <26>H <00>H n1 n2 [m0 m1 ... m5 m6 m7 m8 m9] n2 - n1 + 1 [Range] 32 ≤ n1 ≤ n2 ≤ 255 m0 = 0 or m0 = 128

[Outline] This command defines he download characters. n1 is a character code to start definition

and n2 is to end definition, respectively. When defining only one character, set n1 = n2. You can define the ASCII codes ranging from 32 to 255. Once the download characters are defined, they remain valid until they are redefined or the download deletion command (ESC DC2 n1 n2) is executed.

46 CITIZEN

iDP3410 User's Manual

ESC "%" n

[Function] Specifying/Canceling the download character set

[Code] <IB>H <25>H n [Outline] This command selects/deselects the download character set. The download characters

cannot be printed by simply defining them with the above-mentioned ESC & 0 command. To print them, send this command to the printer.

n Download Character Set 0

Deselects

Selects

ESC "/" n "data" CR or LF

[Function] Defining the Message [Code] <1B>H <2F>H n "data" CR or LF

[Range] 1 ≤ n ≤ 10

[Outline] This command can define up to a 50-byte message in one line. If the value of n is

specified beyond the range, the data following n will be treated as the print data. Once the message is defined, it remains valid until it is redefined. The data should end with CR (0DH) or LF (0AH). If the data exceeds 50 bytes, the subsequent data will be treated as the print data. Once the message is defined, it remains valid until it is redefined or the download deletion command (ESC DC2 n1 n2) is executed.

47 CITIZEN

iDP3410 User's Manual

ESC DC3 n

[Function] Printing the message

[Code] <1B>H <13>H n [Range] 1 ≤ n ≤ 10

[Function] This command prints a message. If the value of n is specified beyond the range, the

message will not be printed.

48 CITIZEN

ESC DC2 n1 n2

[Function] Deleting the download character, message, bit image

[Code] <1B>H <12>H n1 n2 [Range] 0 ≤ n1 ≤ 3

0 ≤ n2 (Specify 0 at n1 = 0)

(1 ≤ n2 ≤ 10 at n1 = 1) (32 ≤ n2 ≤ 255 at n1 = 2) (Specify 0 at n1 = 3)

[Outline] This command deletes the downloaded characters, message, and bit image.

n 1 Object Deleted

0 All(Message, characters, bit image) 1 Download message 2 Download characters 3 Download bit image

With n2, specify which data of the function specified with n1 should be deleted. n2 = 0 Deletes all the data saved with the download function specified with n1. n2≠0 Deletes the data downloaded at the value specified with n2 (Value specified

when saving with each download command), of the download function specified with n1.

Note) No meaning when n1 = 0 is set.

iDP3410 User's Manual

49 CITIZEN

iDP3410 User's Manual

GS "*" n1 n2 [d] n1 × n2 × 8

[Function] Defining the download, bit image [Code] <1D>H <2A>H <n1> <n2> [<d>] n1 × n2 × 8 [Range] 1 ≤ n1 ≤ 45 0 ≤ n2 ≤ 24

Note) Take care that the number of data (n1×n2×8) is equal to or smaller than 2,048.

[Outline] This command defines the download bit image having the dots specified n1 and n2. The

number of horizontal dots is represented by n1 × 8 and that of vertical dots is represented by n2 × 8, respectively. m denotes the number to be registered. (See a download bit image printout.) d denotes the bit image data. Once the download bit image is defined, it

remains valid until it is redefined or the download deletion command (ESC DC2 n1 n2) is executed.

50 CITIZEN

iDP3410 User's Manual

GS / m

[Function] Printing the download, bit image

[Code] <1D>H <2F>H m [Range] 0 ≤ m ≤ 255

[Outline] This command prints the bit image saved in the number specified with m. [Caution] If the print buffer contains the data, this command will be ignored. If the bit image has not

been saved in the specified number, this command will be ignored. Nothing is printed when m is other than 0,1,2 or 3.

51 CITIZEN

iDP3410 User's Manual

13.2 STAR Mode

13.2.1 Command List

Command Function Code Page 1 ESC R n Selecting t he i nt ernat i on al ch aract er set 1BH 52H n 54 2 ESC 6 NOP 1BH 36H 3 ESC 7 NOP 1BH 37H 4 ESC M NOP 1BH 4DH 5 ESC P NOP 1BH 50H 6 ESC : NOP 1BH 3AH 7 SO Specifying the double width character 0EH 54 8 DC4 Canceling the double width character 14H 55 9 ESC E Specifying the highlight character 1BH 45H 55 10 ESC F Canceling the highlight character 1BH 46H 55 11 ESC - Specifying/Canceling the underline 1BH 2DH n 56 12 ESC _ NOP 1BH 5FH n 13 ESC 4 Specifying the red print 1BH 34H 56 14 ESC 5 Canceling the red print 1BH 35H 56 15 SI Specifying the inverted character 0FH 57 16 DC2 Canceling the inverted character 12H 57 17 LF Printing and paper feed 0AH 58 18 CR Printing 0DH 58 19 ESC z Setting the 1/6-inch line feed 1BH 7AH 58 20 ESC 0 NOP 1BH 30H 21 ESC a n n-line paper feed 1BH 61H n 59 22 FF Form feed (Change the page) 0CH 59 23 ESC C n Setting the n-line page length 1BH 43H n 59 24 ESC C 0 n Setting the n-inch page length 1BH 43H 00 n 60 25 VT Vertical tab 0BH 60 26 ESC B n1 n2 Setting the vertical tab position 1BH 42H n1 n2 61 27 ESC N n Setting the lower margin 1BH 4EH n 61 28 ESC 0 Canceling the lower margin 1BH 4FH 62 29 ESC 1 n Setting the left margin 1BH 6cH n 62 30 ESC Q [n] k NUL Setting the right margin 1BH 51H n 62 31 HT Horizontal tab 09H 63 32 ESC D n1 n2 Setting the horizontal tab position 1BH 44H n1 n2 64 33 ESC 1 Setting the 1/9-inch line feed width 1BH 31H 65 34 ESC A n NOP 1BH 41H n 35 ESC 2 Setting the 2/9-inch line feed width 1BH 32H 65 36 ESC J n NOP 1BH 4AH n 37 ESC K n1 <0> Specifying the 8-dot standard density bit image 1BH 4BH n1 00H 66 38 ESC L n1 n2 Specifying the 8-dot double density bit image 1BH 4CH n1 n2 67 39 ESC h n Specifying/Canceling the double height character 1BH 68H n 68 40 ESC & 0 n1 n2 Defining the download character 1BH 26H 00H n1 n2 69 41 ESC % n Specifying/Canceling the download character set 1BH 25H n 70

52 CITIZEN

iDP3410 User's Manual

Command Function Code Page 42 ESC BEL n1 n2 Setting the external device drive pulse width 1BH 07H n1 n2 71 43 BEL Driving command A for drawer-1 07H 71 44 FS Driving command B for drawer-1 1CH 72 45 SUB Driving command for drawer-2 1AH 72 46 RS Buzzer-on 1EH 72 47 CAN Canceling the print data 18H 73 48 DC3 Setting the deselect mode 13H 73 49 DC1 Setting the Select mode 11H 73

50 ESC U n

Selecting the Unidirectional/bidirectional print mode

1BH 55H n 74

51 ESC @ Initializing the printer 1BH 40H 74 52 ENQ Enquiry 05H 75 53 STX Text start 02H 76 54 ETX Text end command 03H 76 55 ESC t n Selecting the character code table 1BH 74H n 78 56

ESC ⁄ n

Defining the message 1BH 2FH n

57 ESC DC3 Printing the message 1BH 13H n 79 58 ESC DC2 n1 n2

Deleting the download character, message bit image

1BH 12H n1 n2

59 GS ∗ n1 n2 Defining the download, bit image 1DH 2AH n1 n2 81 60

GS ⁄ m

Printing the download, bit image 1DH 2FH m

53 CITIZEN

Details

ESC “R” n

[Function] Selecting the international character set

[Code] <1B>H <52>H n [Range] 0 ≤ n ≤ 10

[Outline] This command selects the international characters according to the value of n.

n Character Set n Character Set 0 U.S.A. 6 Italy 1 France 7 Spain 2 Germany 8 Japan 3U.K.9Norway 4 Denm ark I 10 Denmark II 5 Sweden

[Default] Depends upon DIP switch setting.

iDP3410 User's Manual

[Function] Specifying the double width character

[Code] <0E>H

[Outline] The data following this command is printed doubled in the horizontal direction. Double

54 CITIZEN

iDP3410 User's Manual

DC4

[Function] Canceling the double width character

[Code] <14>H [Outline] This command deselects the double width characters set with SO. The data following this

command will be printed in ordinary characters.

ESC "E"

[Function] Specifying the highlight character

[Code] <1B>H <45>H [Outline] The data following this command is printed in highlight (Double) characters. The

highlight characters remain valid until the highlight character deselection command is entered.

ESC "F"

[Function] Canceling the highlight character [Code] <1B>H <46>H

[Outline] This command deselects the highlight characters set with ESC "E". The data following

this command will be printed in ordinary characters.

55 CITIZEN

iDP3410 User's Manual

ESC "-" n

[Function] Specifying/Canceling the underline

[Code] <1B>H <2D>H n [Outline] This command selects/deselects an underline. The underline is selected at n = 1 and

deselected at n = 0. The space by the horizontal tab is not underlined.

ESC "4"

[Function] Specifying the red print [Code] <1B>H <34>H

[Outline] This command prints its subsequent data in red. This command remains valid until the red

print deselection command is entered. Red and black characters cannot be mixed in one line.

ESC "5"

[Function] Canceling the red print

[Code] <1B>H <35>H

[Outline] This command deselects red print.

56 CITIZEN

iDP3410 User's Manual

[Function] Specifying the inverted character

[Code] <0F>H [Outline] This command selects and prints the inve rted characters. Enter it at the beginning of one

line. Otherwise, it will be invalid. Erect and inverted characters cannot be mixed in one line.

DC2

[Function] Canceling the Inverted character [Code] <12>H

[Outline] This command deselects the inverted characters. Enter this command a t the beginning of

one line.

57 CITIZEN

iDP3410 User's Manual

[Function] Printing and paper feed

[Code] <0A>H [Outline] If the print buffer contains the data, this command will feed the line after printing. If not,

the command only feeds the line.

[Function] Printing

[Code] <0D>H [Outline] This command prints the data. If the DIP switch segments 1 to 6 are set to OFF, the

printer will print the data in the print buffer and feed the paper by one line . If they are set to ON, the printer will print the data in the print buffer and will not feed the paper.

ESC "z"

[Function] Setting the 1/6-inch line feed width [Code] <1B>H <7A>H

[Outline] This command sets the line feed width to 1/6 inch (Default).

58 CITIZEN

iDP3410 User's Manual

ESC "a" n

[Function] Setting the n-line paper feed

[Code] <1B>H <61>H n [Range] 1 ≤ n ≤ 127

[Outline] This command feeds the paper by the number of lines specified with n. You can set n = 1

to 127 lines. If the print buffer contains the data, use of this command feeds the paper by n-lines after printing the data.

[Function] Form feed (Changing the page)

[Code] <0C>H [Outline] This command searches for the head of the next page after printing the data in the print

buffer.

ESC "C" n

[Function] Setting the n-line page length

[Code] <IB>H <43>H n [Range] 1 ≤ n ≤ 255

[Outline] Sets the 1-page length to n-lines. [Default] n = 42

59 CITIZEN

iDP3410 User's Manual

ESC "C" <0> n

[Function] Setting the n-inch page length

[Code] <1B>H <43>H <0> n [Range] 1 ≤ n ≤ 127

[Outline] This command sets the length of one page to n-inches. [Default] n = 42

[Function] Vertical tab

[Code] <0B> H [Outline] This command feeds the paper to the next vertical tab position. It cannot be fed unless the

vertical tab position has been set. If the current position is equal to or greater than the maximum set vertical tab position, it will be fed to the head of the next page.

60 CITIZEN

iDP3410 User's Manual

ESC "B" [n]k NUL

[Function] Setting the vertical tab position

[Code] <1B>H <42>H [n]k <00> [Range] 1 ≤ n ≤ 255

1 ≤ k ≤ 16

[Outline] This command cancels the already set vertical tab positions and sets new vertical tab

positions. They are set in the ascending order and ends with <00>. Up to 16 vertical tabs can be set. If the tab setting position <nK> is equal or smaller than the preceding set position <nk-1>, it is assumed that setting of the vertical tabs has been completed.

ESC "N" n

[Function] Setting the lower margin [Code] <1B>H <4E>H n

[Range] 0 ≤ n ≤ 255

[Outline] This command sets the n-line lower margin.

[Default] n = 0

61 CITIZEN

iDP3410 User's Manual

ESC "O"

[Function] Canceling the lower margin

[Code] <1B>H <4F>H [Outline] This command deselects the set lower margin.

ESC "l" n

[Function] Setting the left margin

[Code] <1B>H <6C>H n [Range] 0 ≤ n ≤ (Right margin - 2)

[Outline] This command sets the left margin and printing starts from the column next to the set

margin.

ESC "Q" n

[Function] Setting the right margin

[Code] <1B>H <51>Hn [Range] 2 ≤ n ≤ (Max. print columns)

[Outline] This command sets the right margin and printing is performed up to n-columns.

62 CITIZEN

iDP3410 User's Manual

[Function] Horizontal tab

[Code] <09>H [Outline] This command moves a printing position to the preset next horizontal tab position. This

command will be ignored unless there is the next horizontal tab position.

63 CITIZEN

iDP3410 User's Manual

ESC "D" [n] k NUL

[Function] Setting the horizontal tab position

[Code] <1B>H <44>H [n] k <00>H [Range] 1 ≤ n ≤ Max. print columns – 1

1 ≤ k ≤ 16

[Outline] This command sets the horizontal tab positions. n indicates the number of lines from the

head of the line to the horizontal tab setting position; n equals the set column position - 1." k indicates the number of horizontal tab positions to be set. The tab position is set at the character width × n from the head of the line. The character width at this time includes the right space of the character and will be doubled if the double width characters are specified. The data <n>k indicating the set position is entered in the ascending order and ends with <00>H. ESC D NUL clears all the set tab positions. Af ter clearing the ta b positions, HT will be ignored.

[Caution] I f the da ta <n>k is equal to or smaller than the preceding data <n>k - 1, it is assumed that

horizontal tab setting has been completed. In that case, the subsequent data will be processed as regular one. Up to 16 tab positions can be set. If the data exceeds this limit, it will be processed a s regular data. If the da ta <n>k exceeds the one-line print range, the set column position will equal the maximum print columns + 1. If the character width is changed after setting the horizontal tab positions, they will not change.

64 CITIZEN

ESC "1"

[Function] Setting the 1/9-inch line feed width

[Code] <1B>H <31>H [Outline] This command sets the line feed width to 1/9 inch.

ESC "2"

[Function] Setting the 2/9-inch line feed width

[Code] <1B>H <32>H [Outline] This command sets the line feed width to 2/9 inch.

iDP3410 User's Manual

65 CITIZEN

iDP3410 User's Manual

ESC "K" n1 <0> m1 m2 ...

[Function] Specifying the 8-dot standard density bit image

[Code] <1B>H <4B>H n1 <00>H m1 m2 ... [Range] 1 ≤ n1 ≤ 378/2

[Outline] This command prints the bit image by the number of data specified with n1. Printing will

be unidirectional. The surplus data exceeding the printable quantity in one line will be ignored. The printer will automatically return to the charac ter mode after printing the bit image.

66 CITIZEN

iDP3410 User's Manual

ESC "L" n1 n2 m1 m2 ...

[Function] Specifying the 8-dot double density bit image

[Code] <1B>H <4C>H n1 n2 m1 m2 ... [Range] 1 ≤ n1 + 256 × 2 ≤ 378

[Outline] This command prints the 8-dot double density (Half-dot print) bit image . Printing will be

unidirectional. The surplus data exceeding the printable quantity in one line will be ignored. The printer will automatically return to the charac ter mode after printing the bit image. The relations between the printing head pin numbers and the data are the same as the 8-dot standard density bit image command. When printing the double density bit image, the horizontally adjacent dots cannot be printed.

67 CITIZEN

iDP3410 User's Manual

ESC "h" n

[Function] Specifying/Canceling the double height character

[Code] <1B>H <68>H n [Outline] The data following this command is printed in double height characters, except the bit

image mode <ESC> "K" and <ESC> "L". In combination with the <SO> command, this command can print double height, double width characters. It cannot be combined with the inverted character command, <SI>. The double height characters and ordinary characters shall be bottom-justified.

n Double height character command 0

Deselects

Selects

68 CITIZEN

iDP3410 User's Manual

ESC "&" <O> n1 n 2 m0 m1 m2 m3 m4 m5 m6 m7 m8 m9 ] n2 - n1 + 1

[Function] Defining the download character set

[Code] <1B>H <26>H <00>H n1 n2 [m0 m1 ... m5 m6 m7 m8 m9] n2 - n1 + 1 [Range] 32 ≤ n1≤ n2 ≤ 255 m0 = 0 or m0 = 128

[Outline] This command defines he download characters. n1 is a character code to start definition

and n2 is to end definition, respectively. When defining only one character, set n1 = n2. You can define the ASCII codes ranging from 32 to 255. The horizontally adjacent dots cannot be printed. Once the download bit image is defined, it remains valid until it is redefined or the download deletion command(ESC DC2 n1 n2) is executed.

Horizontal adjacent dots cannot be printed.

69 CITIZEN

iDP3410 User's Manual

ESC "%" n

[Function] Specifying/Canceling the download character set

[Code] <1B>H <25>H n [Outline] This command selects/deselects the download character set. The download characters

cannot be printed by simply defining them with the above-mentioned ESC & 0 command. To print them, send this command to the printer.

n Download Character Set 0

Deselects

Selects

70 CITIZEN

ESC BEL n1 n2

[Function] Setting the external device drive pulse width

[Code] <1B>H <07>H n1 n2 [Range] 1 ≤ n1 ≤ 127

1 ≤ n2 ≤ 127

[Outline] This command sets the power-on time to drive an external device(Cash drawer).

Power-on time = n1 × 10 (ms) Delay time = n2 × 10 (ms)

To actually drive the drawer, use the <BEL> and <FS> commands.

iDP3410 User's Manual

[Default] n1 = n2 = 20 (200ms)

BEL

[Function] Driving command A for drawing-1 [Code] <07>H

[Outline] This command drives the drawer connector no. 2 pin under the condition set with the

<ESC><BEL> n1 n2 command. This command is executed in order of entry into the input buffer.

71 CITIZEN

iDP3410 User's Manual

[Function] Driving command B for drawer-1

[Code] <1C>H [Outline] This command drives the drawer connector no. 2 pin under the condition set with the

<ESC><BEL> n1 n2 command.

SUB

[Function] Driving command for drawer-2

[Code] <1A>H [Outline] As soon as this command is received, the drawer connector no. 5 pin is driven. The

power-on time is 200 ms ON and 200 ms OFF stationary. The draw ers 1 and 2 cannot be driven simultaneously.

[Function] Buzzer-on [Code] <1E>H

[Outline] This command emits a short warning sound from the printer.

72 CITIZEN

iDP3410 User's Manual

CAN

[Function] Canceling the print data

[Code] <18>H [Outline] This command clears the input buffer and print buffer. In the STX-EXT mode of the serial

interface printer, the command clears the data in the data buffer and ends the STX-ETX mode.

DC3

[Function] Setting the deselect mode [Code] <13>H

[Outline] If the printer receives <DC3>, it will ignore the subsequent data. The Deselect mode is

cancelled by <DC1>.

DC1

[Function] Setting the select mode [Code] <11H>

[Outline] If the printer receives this command, it will save the subsequent data in the input buffer.

73 CITIZEN

iDP3410 User's Manual

ESC "U" n

[Function] Selecting the Unidirectional/Bidirectional print mode

[Code] <1B>H <55>H n [Range] 0 ≤ n ≤ 255

[Outline] This commands selects or deselects unidirectional print.

n0 = 0 Bidirectional print n0 = 1 Unidirectional print

ESC "@"

[Function] Initializing the printer [Code] <1B>H <40>H

[Outline] This command cancels various conditions set after power-on to initializes the printer to the

conditions having existed at power-on. However, the input buffer is not initialized.

74 CITIZEN

iDP3410 User's Manual

ENQ

[Function] Enquiry

[Code] <05>H [Outline] This command is valid only for the serial interface. The printer sends the status

information. If this command is entered after receiving the text information in the STXETX mode, the printer will send the status information and check byte.

75 CITIZEN

iDP3410 User's Manual

STX

[Function] Text start

[Code] <02>H [Outline] This command is valid only for the serial interface. It effectuates the STX-ETX mode.

ETX

[Function] T ext end

[Code] <03>H [Outline] This command is valid only for the serial interface. It ends the STX-ETX mode and prints

the data.

76 CITIZEN

iDP3410 User's Manual

* ETX-STX Mode

STX/ETX Mode Start

Receives Status

Data Buffer Empty ?

Sends ENQ

YES

Sends STX

Sends ENQ

Receives Status

Receives Check Byte

Status Error ?

Check Byte

= Test B

YES

te ?

YES

Odd Parity Check ?

Sets Test Byte To FFH

Exclusive ORs Test Byte and Sent Data

Sends Data to Printer

Last Data in 1 Block ?

YES

Test Byte

YES

Sets Test Byte To 00

Sends ETX

(Print)

YES

STX-ETX Mode End

STX-ETX Mode Data

Block Ready to Send ?

Sends CAN

RET

77 CITIZEN

ESC "t" n

[Function] Selecting the character code table

[Code] <1B>H <74>H n [Range] 0 ≤ n ≤ 255

[Outline] This command selects Page-n of Character Code Table. [Default] Depends on DIP switch setting.

n Character Code Table N Character Code Table 0 STAR International 6 Code Page 852 (Eastern Europe) 1 STAR Domestic 7 Code Page 866 (Russia) 2 Code Page 850 (Multilingual) 8 Code Page 857 (Turkey) 3 Code Page 860 (Portugal) 9 Windows Code 4 Code Page 863 (Canada-French) 5 Code Page 865 (Norway) 255 Space Page (For user setting)

iDP3410 User's Manual

78 CITIZEN

iDP3410 User's Manual

ESC "/" n "data" CR or LF

[Function] Defining the message

[Code] <1B>H <2F>H n "data" CR or LF [Range] 1 ≤ n ≤ 10

[Outline] This command can define up to a 50-byte message in one line. If the value of n is

ESC "DC3" n

[Function] Printing the message

[Code] <1B>H <13>H n [Range] 1 ≤ n ≤ 10

[Function] This command prints a message. If the value of n is specified beyond the range, the

message will not be printed.

79 CITIZEN

ESC DC2 n1 n2

[Function] Deleting the download character, message, bit image [Code] <1B>H <12>H n1 n2 [Range] 0 ≤ n1≤ 3

0 ≤ n2 (Specify 0 at n1 = 0)

(1 ≤ n2 ≤ 10 at n1 = 1) (32 ≤ n2 ≤ 224 at n1 = 2) (Specify 0 at n1 = 3)

[Outline] This command deletes the downloaded characters, message, and bit image.

n 1 Object Deleted

0 All(Message, characters, bit image) 1 Download message 2 Download characters 3 Download bit image

With n2, specify which data of the function specified with n1 should be deleted. n2 = 0 Deletes all the download function specified with n1. n2≠0 Deletes the data downloaded at the value specified with n2 (Value specified

when saving with each download command), of the download function specified with n1.

Note)No meaning when n1 = 0 is set.

iDP3410 User's Manual

80 CITIZEN

iDP3410 User's Manual

GS "*" n1 n2 [d] n1 × n2 × 8

[Function] Defining the download, bit image [Code] <1D>H <2A>H <n1> <n2> [<d>] n1 × n2 × 8 [Range] 1 ≤ n1 ≤ 45 0 ≤ n2 ≤ 24

Note)Take care that the number of data(n1×n2×8) is equal to or smaller than 2,048.

[Outline] This command defines the download bit image having the dots specified n1 and n2. The

remains valid until it is redefined or the download deletion command(ESC DC2 n1 n2) is executed.

81 CITIZEN

iDP3410 User's Manual

GS / m

[Function] Printing the download, bit image

[Code] <1D>H <2F>H m [Range] 0 ≤ m ≤ 255

[Outline] This command prints the bit image saved in the number specified with m. [Caution] If the print buffer contains the data, this command will be ignored. If the bit image has not

been saved in the specified number, this command will be ignored. Nothing is printed when m is other than 0,1,2 or 3.

82 CITIZEN

iDP3410 User's Manual

13.3 ESC/POS Commands

13.3.1 Command List

Command Function Code Page 1 HT Horizontal tab 09H 84 2 LF Printing and paper feed 0AH 84 3 CR Printing 0DH 85 4 ESC " " n Setting the character right space 1BH 20H n 85

5 ESC ! n Setting print mode batch 1BH 21H n 86 6 ESC % n Specifying/Canceling the download character set 1BH 25H n 87

ESC & s n m

× a]

∗ m n1 n2

ESC

[d] n1 + 256 × n2

[a[p] s

Defining the download character set

Specifying the bit image mode

9 ESC 2 Setting the 1/6-inch line feed rate 1BH 32H n 90

10 ESC 3 n

Setting the line feed width in minimum pitch

increments 11 ESC < NOP 1BH 3CH 12 ESC @ Initializing the printer 1BH 40H 90

13 ESC D [n] k NUL Setting the Horizontal tab position 1BH 44H [n] k 00 91

14 ESC J n NOP 1BH 4AH n 15 ESC R n Selecting the international character set 1BH 52H n 92 16 ESC U n Specifying/Canceling the unidirectional print mode 1BH 55H n 93 17 ESC c 0 n NOP 1BH 63H 30 n 18 ESC c 5 n Selecting the panel switch enable/disable 1BH 63H 35H n 94 19 ESC d n Printing and n-line paper feed 1BH 64H n 94 20 ESC p m n1 n2 Specifying the pulse generation 1BH 70H m n1 n2 95 21 ESC r n Selecting the printing color 1BH 72H n 96 22 ESC t n Selecting the character code table 1BH 74H n 96 23 ESC u n Sending the status for peripheral device 1BH 75H n 97 24 ESC v Sending the printer status 1BH 76H 98 25 ESC { n Specifying/Canceling the inverted character print 1BH 7BH n 99 26 GS E n NOP 1DH 45H n 27 ESC / n Defining the message 1BH 2FH n 99 28 ESC DC3 n Printing the message 1BH 13H n 100

29 ESC DC2 n1 n2

Deleting the download character, message, bit

image 30 GS ∗ n1 n2 Defining the download, bit image 1DH 2AH n1 n2 102 31 GS / m Printing the download, bit image 1DH 2FH m 103

1BH 26H s n m [a[p] a×a] m-n+1 1BH 2AH m n1 n2 [d] n1 + 256×n2

1BH 33H n 90

1BH 12H n1 n2 101

83 CITIZEN

iDP3410 User's Manual

Details

[Function] Horizontal tab

[Code] <09>H [Outline] This command moves a printing position to the next horizontal tab position. If the next

horizontal tab position is not set, this command will be ignored.

[Caution] The horizontal tab position is set by <ESC> D. Initial setting of the horizontal tab position

is every 8 characters (9th, 17th, 25th culomns, and so on) of the 7×9 font.

[Function] Printing and paper feed

[Code] <0A>H [Outline] This command prints one line worth of the data saved in the print buffer and feeds the line

based on the set line f eed value. The head of the line is assumed to be the next print start position.

84 CITIZEN

iDP3410 User's Manual

[Function] Printing

[Code] <0D>H [Outline] This command prints the data. If the DIP switch segments 1 to 6 are set to OFF, the

printer will print the data in the print buffer and feed the paper by one line. If they are set to ON, the printer will print the data in the print buffer and will not feed the paper.

ESC " " n

[Function] Setting the character right space [Code] <1B>H <20>H n

[Range] 0 ≤ n ≤ 32

[Outline] This command sets the right space of the character.

[Caution] I n the double width mode, the right space will be double the set amount. Set the space in

increments of half dot.

[Default] n = 0

85 CITIZEN

ESC "!" n

[Function] Setting the print mode batch

[Code] <1B>H <21>H n [Range] 0 ≤ n ≤ 255

[Outline] Sets the print mode. "n" (Each bit) has the following meanings.

iDP3410 User's Manual

Bit Function

0 Undefined −− 1 Undefined −− 2 Undefined 3 High-lighting Canceled Specified 4 Double height Canceled Specified 5 Double width Canceled Specified 6 Undefined 7 Underline Canceled Specified

[Caution] The entire character print width is underlined, but the portion skipped by HT is not. If

both double height and double width are selected, the characters will be quadrupled. If the double width characters are selected, some dots may not be printed depending on the preceding one. When printing the double height characters, there will be less shear in unidirectional printing.

[Default] n = 0

−−

Values

86 CITIZEN

Citizen iDP-3410 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

1. OUTLINE

1.1 Features

1.2 Unpacking

2. BASIC SPECIFICATIONS

2.1 Model Classification

2.2 Basic Specifications

2.3 Paper Specification

2.3.1 Recommended Paper

2.3.2 Printing Position

2.3.2 Cutter Layout

3. OUTER APPEARANCE AND COMPONENT PARTS

4. OPERATION

4.1 Connecting AC Adapter

4.2 Connecting Interface Cable

4.3 Connecting Drawer Kick-Out Connector

4.4 Setting the Cassette Ribbon

4.5 Inserting the Paper

4.6 How to Remove Remaining Paper Roll

4.7 Removing Paper Jam

4.8 Operation Panel and Display of Error

4.9 Operation Flow at Power-on

5. DIP SWITCH SETTING

5.1 Location of DIP Switch

5.2 DIP Switches Setting

6. PRESET JUMPER SETTING

6.1 Location of Preset Ju mper

6.2 Preset Jumper Table

7. MODE SETTING METHOD
