Table of contents
Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure correct use.
Parts identification . . . . . . . . . . . . . . .
2
Adjusting the time . . . . . . . . . . . . . . . .
5
Adjusting the date . . . . . . . . . . . . . . . .
6
Using the chronograph . . . . . . . . . . . .
7
Using the alarm. . . . . . . . . . . . . . . . . . .
8
Adjusting the dual time . . . . . . . . . . .
10
Adjusting the reference position
of the dual time hand . . . . . . . . .
13
Using the tachymeter . . . . . . . . . . . .
14
Notes on charging your watch . . . . .
16
Troubleshooting . . . . . . . . . . . . . . . . .
19
Precautions . . . . . . . . . . . . . . . . . . . . .
22
Maintenance . . . . . . . . . . . . . . . . . . . .
30
Information . . . . . . . . . . . . . . . . . . . . .
31
Specifications . . . . . . . . . . . . . . . . . . .
32
Page 2
2
60
4
0
0
300
2
5
0
120
13
0
1
40
150
160
180
2
0
0
220
80
85
90
95
1
00
11
0
65
70
75
T
A
C
H
Y
M
E
T
E
R
12
6
93
60
30
45 15
12
1
0
8
6
4
2
0
•
•
•
•
•
•
•
•
•
•
•
•
1
4
16
1
8
2
0
22
24
ON
OFF
60
05
10
1
5
2
0
25
3
0
35
40
45
5
0
55
Lower left crown
(Alarm crown)
Alarm indication/
Alarm ON/OFF hand
Hour hand
Second hand
Alarm time hand
Upper left button (C)
Click the button with a
narrow pointed object
such as a wooden
toothpick.
Chronograph second
hand
Minute hand
Upper right button (B)
Dual time hand
Crown
Chronograph minute
hand
Lower right button (A)
Date indication
Tachymeter
Chronograph hour hand
Parts identification
• The illustrations in this instruction manual may differ from the actual appearance of your watch.
Page 3
3
How to read the dual time hand
How to read the alarm time hand
This watch has a fan-shaped window graduated in
hours for dual time in the 24-hour system.
The dual time hand moves every 15 minutes.
The time in the illustration to the left indicates
approximately 10:30 a.m.
• See page 10 to adjust the dual time.
The alarm time hand indicates the times set for the alarm
on a 12-hour system.
The alarm time set in the illustration to the left indicates
approximately 7:30 a.m. and 7:30 p.m.
• See page 8 to set the alarm time.
12
8
10
6
4
•
•
•
•
•
•
•
•
•
14
16
1
8
2
6
93
ON
O
FF
6
9
3
ON
FF
Page 4
4

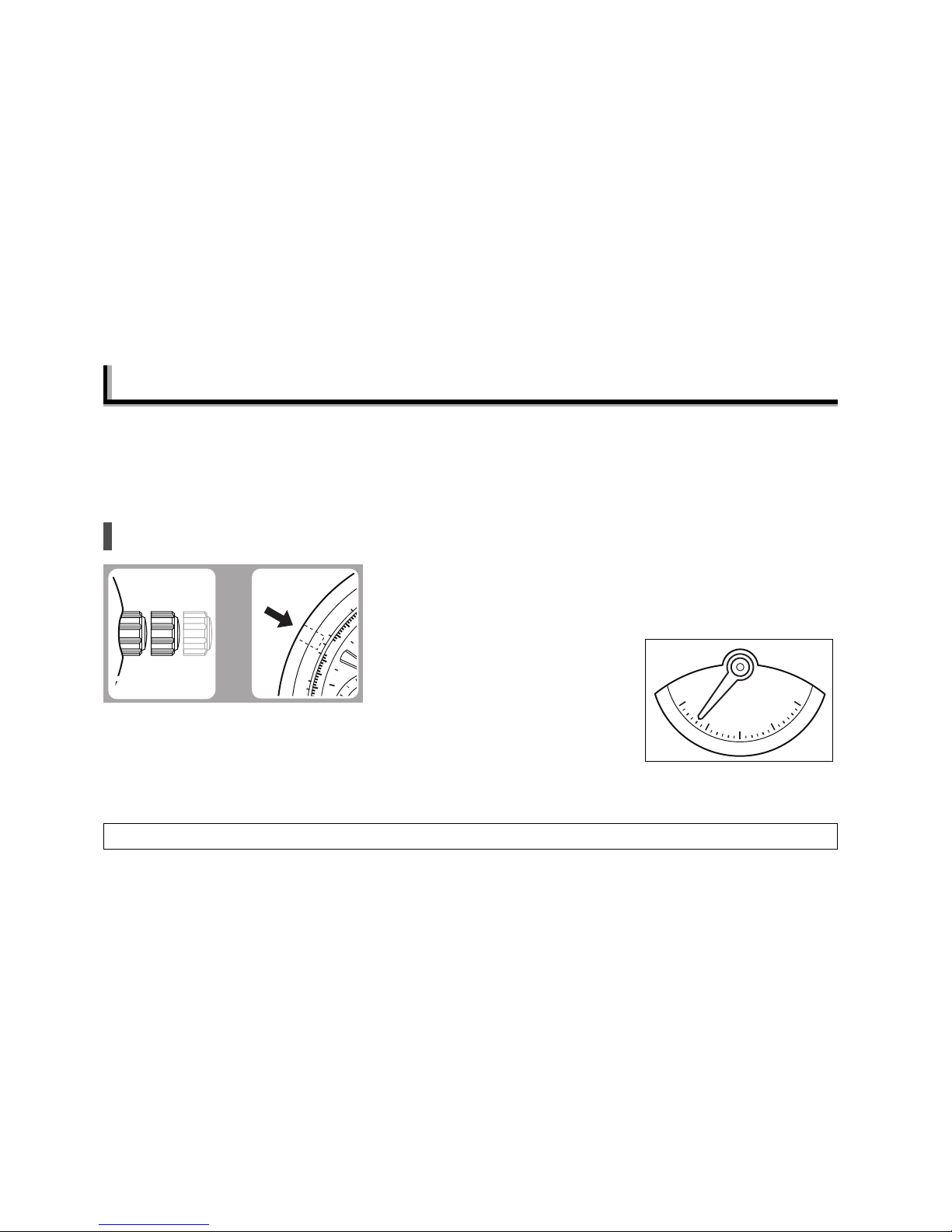

How to use the screw down crown and screw down push button
Some models feature a screw down crown and screw down push button.
Locking the crown and button prevents accidental operation. Unlock them when you
want to operate the watch.
Unlock Lock
Screw down
crown
Rotate the crown
counterclockwise until it
releases from the case.
Push the crown in to the
case. With gentle pressure
towards the case, rotate
the crown clockwise to
secure it to the case. Be
sure to tighten firmly.
Screw down
push button
Rotate the locking screw
counterclockwise, and
loosen until it stops.
Rotate the locking screw
clockwise, and tighten
firmly.
• Unlocking is not required when a standard crown and button are equipped.
Page 5
5
Adjusting the time
1.
Pull the crown out to position 2 when the
second hand indicates 12:00.
2.
Adjust the time by rotating the crown.
• Pay attention to the difference between the morning
and the afternoon. When the hands indicate
approximately 12:00 midnight, the date will change.
• The hour hand and date move linked with the minute
hand. The date do not move counterclockwise.
3.
Push the crown in to position 0 to start the
watch.
The second hand starts to move.
012
012
Crown position
Crown position
Crown
• You must adjust the dual time separately. See page 10.
Page 6
6
Adjusting the date
1.
Pull the crown out to position 1.
2.
Adjust the date by rotating the crown.
• The date does not change when the crown is rotated
clockwise.
3.
Push the crown in to position 0.
012
012
Crown position
Crown position
Crown
• You must adjust the date for each month shorter than 31 days.
Page 7
7
Using the chronograph
You can record up to 12 hours in increments of 0.2 seconds.
1.
Ensure that the crown is in position 0.
2.
Press the upper right button (B) to start
timing.
• The button clicks only when timing is activated.
• The chronograph operates no matter the position of
the crown.
• The chronograph stops automatically 12 hours later.
3.
Press the upper right button (B) to stop
timing.
• Pressing the upper right button (B) again restarts
timing from the point of the previously recorded time.
To reset the chronograph
Press the lower right button (A) after stopping the
chronograph by pressing the upper right button (B).
• You must reset the chronograph after timing for
using other functions.
A
180
200
2
2
B
300
B
300
T
A
C
H
Y
12
1
0
8
6
4
•
•
•
•
•
•
•
•
•
•
1
4
16
1
8
2
0
22
60
T
A
C
H
Y
12
1
0
8
6
4
•
•
4
16
8
0
Page 8
8
Using the alarm
To set the alarm time
1.
Pull the lower left crown (alarm crown) out
to position 1.
2.
Rotate the lower left crown (alarm crown)
to set the alarm time.
• When adjusting the alarm time, rotate the lower left
crown (alarm crown) counterclockwise half hour past
the desired set time, then rotate the lower left crown
(alarm crown) clockwise to move the hand back to the
desired set time.
3.
Push the lower left crown (alarm crown) in
to position 0.
4.
Press the lower left crown (alarm crown).
The alarm ON/OFF hand indicates “ON” to
activate the alarm.
0
1
9
0
1
9
30
45
Page 9
9
To stop the alarm tone
Press the lower left crown (alarm crown) to move the alarm hand to the “OFF”
position.
The alarm tone stops.
To activate/deactivate the alarm
Press the lower left crown (alarm crown) so that the alarm ON/OFF hand
indicates “ON (activate)” or “OFF (deactivate)”.
• Each time you press the lower left crown (alarm crown), the alarm ON/
OFF hand indicates “ON” or “OFF” alternately.
• If you wish to activate the alarm after stopping, you must wait for 20
minutes after the set time.
• While the alarm hand indicates “ON”, the alarm tone sounds every 12 hours.
• The alarm tone sounds for 20 seconds with the number of tones increased gradually.
0
9
0
Page 10
10
Adjusting the dual time
The dual time makes it easy to set the local time while on a journey or to monitor an
alternate time zone.
• If the dual time hand does not match the hour mark on the 24-hour sub dial, adjust
the reference position referring to page 13.
To adjust the hour of the dual time
1.
Ensure that the crown is in position 0 or 1.
2.
Press the upper left button (C).
• Each time you press the button, the dual time hand
advances one hour. This
feature is independent from
the minute and second of
the dual time.
• The dual time hand reaches
“24”, it returns in a reverse
direction to “0”.
C
70
75
50
012
Crown position
12
8
10
6
4
2
0
•
•
•
•
•
•
•
•
•
•
•
•
14
16
18
20
22
24
• The dual time does not synchronize the watch time.
Page 11
11
Notes on the minute of the dual time
You can adjust the dual time hand in five-minute step though it moves every 15
minutes for indicating the dual time.
For adjusting the minute of the dual time, you can read graduations of the dual time as
the illustration below:
12
8
10
6
4
2
0
•
•
•
•
•
•
•
•
•
•
•
•
14
16
18
20
22
24
30 35 40 45 50 552520151050
Graduations for the dual time 0 2 4 6 8 10 12 14 16 18 20 22
Minute of the dual time for adjustment
0 5 10 15 20 25 30 35 40 45 50 55
Minute of the dual time for
adjustment
Graduations for the dual time
Continued to the next page
Page 12
12
To adjust the minute of the dual time
You can also adjust the minutes of the dual time together with the time adjustment on
page 5.
1.
Pull the crown out to position 2.
The watch stops and then the dual time hand
shows the minutes of the dual time.
2.
Press the upper left button (C).
• Each time you press the button, the dual time hand
moves five minutes (two steps of graduations).
• For in-depth information on reading the minutes of
the dual time, see page
11
.
3.
Push the crown in to position 0.
• The second of the dual time starts from 0 second the
moment the crown is set to position 0.
012
012
C
70
75
50
Crown position
Crown position
Page 13
13
Adjusting the reference position of the dual time hand
If the dual time hand does not match the hour mark on the 24-hour sub dial, you must
adjust the reference position.
1.
Pull the crown out to position 2.
2.
Press and hold the lower right button (A)
for five or more seconds.
The dual time hand indicates to the current
reference position.
3.
Adjust the dual time hand by repeatedly
pressing the upper left button (C).
4.
Push the crown in to position 0.
The adjustment of the dual
hand is complete.
The watch shows the dual
time based on the adjusted
reference position.
012
012
C
70
75
50
180
200
2
2
A
Crown position
Crown position
12
8
10
6
4
2
0
•
•
•
•
•
•
•
1
4
Correct reference
position
• Reset the chronograph before
adjusting the reference position.
Page 14
14
Using the tachymeter
The tachymeter easily brings you
the average speed by recording a lap
time to go one kilometer.
• You can measure the approximate
average speed from 60 km/h up to
400 km/h.
• The illustrations in this manual
may differ from the actual
appearance of your watch.
• Some models do not feature the
tachymeter.
60
400
300
2
5
0
120
130
140
1
5
0
160
180
200
220
80
85
90
95
100
110
65
70
7
5
T
A
C
H
Y
M
E
T
E
R
12
6
93
60
30
45 15
12
10
8
6
4
2
0
•
•
•
•
•
•
•
•
•
•
•
•
1
4
16
1
8
2
0
22
24
ON
OFF
60
05
1
0
15
20
25
3
0
3
5
4
0
45
50
55
Tachymeter
Upper right
button (B)
Page 15
15
To measure an average speed
Read the value on the tachymeter after recording a lap time.
1.
Ensure that the crown is in position 0.
2.
Press the upper right button (B) to start
timing.
The chronograph second hand starts timing.
3.
Stop timing at the point one kilometer
away from the starting point by pressing
the upper right button (B).
The chronograph second hand indicates the
approximate average speed on the tachymeter.
To reset the chronograph
Press the lower right button (A).
A
180
200
2
2
B
300
012
Crown position
Page 16
16
Notes on charging your watch
This watch has a rechargeable cell which is charged by exposing the dial to light such
as direct sunlight or fluorescent lamps.
For optimal performance:
• Expose the watch with the dial towards direct sunlight for several hours at least once
a month.
• After taking off the watch, put it in a position so that the dial is exposed to bright
light, such as by a window.
• Before storing the watch in a dark place for an extended period of time, be sure to
charge it fully.
When the watch is regularly covered with long sleeves, it may not be charged
sufficiently. Try to keep the watch exposed to light sufficient for charging.
Do not charge the watch at a high temperature (about 60˚C/140˚F or higher).
Page 17
17
When the watch reaches a low charge state—insufficient charge warning
function
When the power reserve becomes low, the second hand moves once every two
seconds—This is the insufficient charge warning function. Charge the watch by
exposing the dial to light.
• After the watch is charged, the second hand will move normally. See page 18.
• If you have not charged the watch for three days or more since the insufficient
charge warning movement began, the watch will run out power and stop.
Caution
When the second hand moves once every
two seconds, you cannot use any functions—
chronograph, alarm, etc.—except the time indication.
Continued to the next page
Page 18
18
Charging time by environment
Below are the approximate times needed for charging when exposing the watch dial to
light continuously.
Please use this table as a reference only.
Environment Illuminance (Lx)
Charging time to work for
one day
Charging time to start
working normally when the
rechargeable cell is empty
Under direct sunlight
or cloudy weather
10000 to 100000 3 to 12 minutes 45 minutes to 3 hours
20 cm under a
fluorescent lamp (30
W)
3000 40 minutes 7.5 hours
Interior lighting
500 4 hours 60 hours
Your watch will run approximately 12 months from a full charge.
Page 19
19
If you have a problem with your watch, check the table below.
Symptoms Remedies Page
Troubleshooting
The hands do not work properly.
Some hands moves
unintentionally.
Stop the chronograph.
7
The second hand moves
once every two seconds.
Charge the watch.
16
All hands stop moving.
Push the crown in to position 0.
−
Charge the watch by exposing it to direct sunlight for five
or six hours.
16
The dual time hand does
not move.
Press the upper left button (C). If the hand does not
move yet, reset the watch.
21
Continued to the next page
Page 20
2020
The time and/or date is not correct.
The time and/or date is wrong.
Adjust the time and/or date.
5, 6
The date changes around at noon.
Adjust the time by 12 hours.
5
Symptoms Remedies Page
Others
The watch does not
move even if the watch is
charged.
Charge the watch by exposing it to direct sunlight for
five or six hours.
Though the trouble is not solved after charging,
contact your nearest Authorized Citizen Service
Center.
16
The alarm tone does not
sound on time.
Set the alarm ON/OFF hand to “ON”.
8, 9
Push the crown in to position 0.
−
Charge the watch.
16
Page 21
21
Resetting the watch
The watch may not work properly if it is affected by static electricity or shock. In this
case, you must reset the watch. Fully charge the watch before resetting.
1.
Pull the crown out to position 2.
2.
Press the upper left button (C) and the
lower right button (A) simultaneously.
The confirmation tone sounds and the watch is
reset.
3.
Adjust the reference position of the dual
time hand correctly.
See pages 11 to 12.
4.
Adjust the dual time.
See pages 10.
5.
Adjust the time.
See pages 5 to 6.
6.
Push the crown in to position 0.
012
012
C
70
5
5
0
A
180
2
0
0
20
Crown position
Crown position
• Reset the chronograph before resetting the watch.
Page 22
22
Precautions
Warnings
Handling the rechargeable cell
• Do not remove the rechargeable cell. If it is removed, keep the rechargeable cell out of the reach of
children to prevent ingestion.
• If the rechargeable cell is swallowed, consult a doctor and seek medical treatment.
Page 23
23
Cautions
About charging
• Excessively high temperature when charging the watch may cause discoloration and deformation
of the components, and result in malfunction of the movement.
• Do not charge the watch at a high temperature (about 50˚C/122˚F or higher).
Example:
- charging the watch too close to light such as an
incandescent lamp or halogen lamp (Halogen lights are
not recommended for charging due to their high heat
output.)
- charging the watch in locations where the temperature
may become extremely high—such as on the dashboard
of a vehicle
Page 24
24
To avoid injury
• DO NOT wear the watch where the temperature becomes extremely high—such as in a sauna. The
watch may become hot and burn the skin.
To avoid malfunction
• DO NOT use the watch where the temperature is lower or higher than the operating temperature
specified in this manual. Doing so may cause the watch to malfunction or stop.
• DO NOT place the watch nearby any materials generating a strong magnetic field such as:
– magnetic health equipment such as a magnetic necklace
– a magnetic latch of a refrigerator door
– a magnetic clasp on a handbag
– a magnetic coin tray
– speakers of a mobile phone
– electromagnetic cooking devices
They may interfere with function of the movement in the watch causing it to stop or operate
erratically.
• DO NOT place the watch on or nearby household appliances that generate static electricity such as
Televisions or computer monitors. The timekeeping may be affected.
• DO NOT apply any strong shock, for example, by dropping it onto a hard floor.
Page 25
25
• Avoid using the watch where it may be exposed to chemicals or corrosive gases. If solvents, such
as thinners or benzine, or substances containing such solvents come in contact with the watch,
discoloration, melting, cracking, etc. may occur.
The case, band, or other parts may become discolored if the watch comes into contact with some
household chemicals mercury that may be found in thermometers.
Page 26
26
Warnings on water-resistance performance
• Water-resistance for daily use: This type of watch is resistant to minor exposure to water such as
accidental splashing. For example, you may wear the watch while washing your face; however, it is
not designed to be used underwater.
• Upgraded water-resistance for daily use (tested to 5 bar): This type of watch is resistant to
moderate exposure to water. You may wear the watch while swimming; however, it is not designed
to be used for skin diving.
• Upgraded water-resistance for daily use (tested to 10 or 20 bar): This type of watch may be used
for skin diving; however, it is not designed to be used for scuba or saturation diving.
• Before use, confirm the water-resistance level of your watch indicated on the dial and case,
referencing the table on the next page. (The unit “bar” is roughly equal to 1 atmosphere.)
• “WATER RESIST(ANT) xx bar” may also be indicated as “W.R. xx bar.”
Page 27
27
Examples of use
Minor exposure
to water
(washing face,
rain, etc.)
Moderate
exposure to
water (washing,
kitchen work,
swimming, etc.)
Marine sports
(skin diving)
Names
Indication
(Case or back)
Specifications
WATER
RESIST(ANT) or
no indication
WATER
RESIST(ANT)
Water resistant for
daily use
YES NO NO
WR 50 or WATER
RESIST 50
WATER
RESIST(ANT)
5 bar
Water resistant to
5 atmospheres
YES YES NO
WR 100/200 or
WATER RESIST
100/200
WATER
RESIST(ANT)
10/20 bar
Water resistant
to 10/20
atmospheres
YES YES YES
Page 28
28
Cautions on exposure to water
• Be sure to use the watch with the crown pressed in fully (normal position) to ensure the water
resistance. If the crown of your watch is the screw down crown, be sure to tighten it completely.
• Do not operate the crown or buttons when the watch is wet.
• If water has penetrated the watch, or if the inside of the glass is fogged up and does not become
clear in a day, take the watch to your dealer or Citizen Service Center for repair. Leaving the watch
in such a state will rust the internal parts and cause malfunction.
• If seawater penetrates the watch, place the watch in a box or plastic bag and immediately take it in
for repair. Otherwise, the pressure inside the watch will increase, and parts (glass, crown, buttons,
etc.) may come off.
• If the watch is used in seawater, rinse with fresh water afterward and wipe with a dry cloth after
each use.
Page 29
29
Keep your watch clean
• Keep your watch clean to prevent rust or dirt building up as this may stain your clothes, damage
the watch or appear as black residue on your wrist. Depending on use, occasional cleaning of the
exterior of your watch may be necessary.
• Wipe dirt off the leather band with a soft and dry cloth to prevent it from discoloring.
Page 30
30
Maintenance
Daily maintenance
• Rotate the crown while it is pressed in fully and press the buttons periodically so they do not
become stuck due to accumulations of foreign matter.
• Wipe off dirt, perspiration, and water from the case and glass with a clean soft cloth occasionally.
• To clean a metal, plastic, or rubber watchband, wash away dirt with water. Use a soft brush to
remove dust and dirt stuck in the gaps in a metal band.
•
Do not use a polishing type of cloth as this may damage the surface and certain treatments.
•
Do not use solvents (thinner, benzine, etc.), as they may damage the finish.
Periodical inspections
Your watch needs an inspection once every two or three years for safety and longer usage. To keep
your watch water-resistant, the gaskets and other components need to be replaced regularly. Other
parts need to be inspected and replaced if necessary.
Always ask for genuine Citizen parts upon replacement.
Page 31
31
Information
Luminous dials and hands
The paint on the dial and hands helps you with reading the time in a dark place. The luminous paint
stores light (daylight or artificial light) and glows in a dark place.
It is free from any radioactive substance or any other material harmful to a human body or
environment.
• The light emission gradually becomes weaker as time passes.
• The duration of the light (“glow”) will vary depending on the brightness, types of and distance
from a light source, exposure time, and the amount of the paint.
• The paint may not glow and/or may dissipate quickly if exposure to light was not sufficient.
Page 32
32
Model
E26*
Type
Analog solar-powered watch
Timekeeping
accuracy
Within ±15 seconds per month on average (when worn at normal temperatures
between +5˚C/41˚F and +35˚C/95˚F without the time signal reception)
Operating
temperature range
−10˚C/14˚F to +60˚C/140˚F
Display functions
Time: Hours, minutes, seconds, 24 hours
Calendar: Date
Chronograph: Hours, minutes, 0.2 seconds
Dual time: 24-hour system
Alarm: 12-hour system
Battery duration
without recharging
• Fully charged to fully discharged: Approx. 12 months
• Two seconds interval movement to stopping: Approx. three days
Battery
Rechargeable cell, 1pc.
Specifications
Page 33
33
Additional
functions
• Solar power function
• Overcharging prevention function
• Insufficient charge warning function (two-second interval movement)
• Chronograph (up to 12 hours by 0.2 seconds)
• Dual time function
• Alarm function
• Checking alarm time
• Checking/correcting reference position
Specifications are subject to change without prior notice.
Loading...
