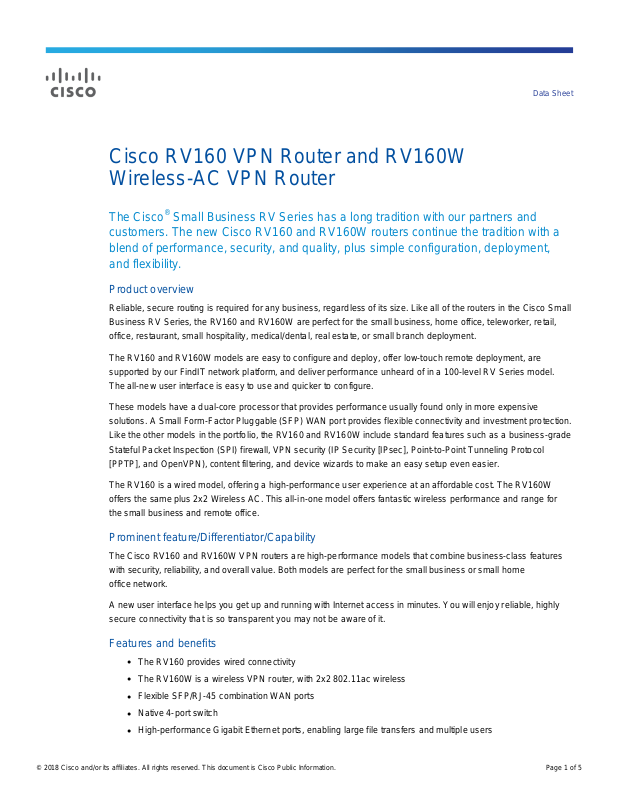

Data Sheet
Cisco RV160 VPN Router and RV160W
Wireless-AC VPN Router
The Cisco® Small Business RV Series has a long tradition with our partners and
customers. The new Cisco RV160 and RV160W routers continue the tradition with a
blend of performance, security, and quality, plus simple configuration, deployment,
and flexibility.
Product overview
Reliable, secure routing is required for any business, regardless of its size. Like all of the routers in the Cisco Small
Business RV Series, the RV160 and RV160W are perfect for the small business, home office, teleworker, retail,
office, restaurant, small hospitality, medical/dental, real estate, or small branch deployment.
The RV160 and RV160W models are easy to configure and deploy, offer low-touch remote deployment, are
supported by our FindIT network platform, and deliver performance unheard of in a 100-level RV Series model.
The all-new user interface is easy to use and quicker to configure.
These models have a dual-core processor that provides performance usually found only in more expensive
solutions. A Small Form-Factor Pluggable (SFP) WAN port provides flexible connectivity and investment protection.
Like the other models in the portfolio, the RV160 and RV160W include standard features such as a business-grade
Stateful Packet Inspection (SPI) firewall, VPN security (IP Security [IPsec], Point-to-Point Tunneling Protocol
[PPTP], and OpenVPN), content filtering, and device wizards to make an easy setup even easier.
The RV160 is a wired model, offering a high-performance user experience at an affordable cost. The RV160W
offers the same plus 2x2 Wireless AC. This all-in-one model offers fantastic wireless performance and range for
the small business and remote office.
Prominent feature/Differentiator/Capability
The Cisco RV160 and RV160W VPN routers are high-performance models that combine business-class features
with security, reliability, and overall value. Both models are perfect for the small business or small home
office network.
A new user interface helps you get up and running with Internet access in minutes. You will enjoy reliable, highly
secure connectivity that is so transparent you may not be aware of it.
Features and benefits
●
The RV160 provides wired connectivity
●
The RV160W is a wireless VPN router, with 2x2 802.11ac wireless
●
Flexible SFP/RJ-45 combination WAN ports
●
Native 4-port switch
●
High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 5
Description
Specification
Ethernet WAN
1 RJ-45 SFP Gigabit Ethernet combination port
Ethernet LAN
4 RJ-45 Gigabit Ethernet ports
Console port
1 RJ-45 port
Switch
Power on/off
Cabling type
Category 5 or better
LEDs
Power, VPN, WAN, LAN
Operating system
Linux
LAN
VLANs
16
Port security
Yes, 802.1X
IPv6
Dual stack, 6rd, 6in4
WAN
Dynamic Host Configuration Protocol (DHCP) client, static IP, Point-to-Point Protocol over Ethernet (PPPoE), PPTP,
Layer 2 Tunneling Protocol (L2TP)
WLAN
2x2 wireless 802.11ac (RV160W)
Security
Firewall
SPI firewall
Port forwarding and triggering
Denial-of-Service prevention (DoS)
Access control
IP access control lists
Secure management
HTTPS, username/password complexity
User privileges
Two levels of access: Admin and guest
Network
Network protocols
●
Dynamic Host Configuration Protocol (DHCP) server
●
Point-to-Point Protocol over Ethernet (PPPoE)
●
Point-to-Point Tunneling Protocol (PPTP)
●
Layer 2 Tunneling Protocol (L2TP)
●
DNS proxy
●
DHCP relay agent
●
Internet Group Management Protocol (IGMP) proxy and multicast forwarding
●
Rapid Spanning Tree Protocol (RSTP)
●
Dynamic DNS (TZO, DynDNS, 3322.org, No-IP)
●
Network Address Translation (NAT), Port Address Translation (PAT)
●
One-to-one NAT
●
Port management
●
Port mirroring
●
Software-configurable DMZ to any LAN IP address
●
Session Initiation Protocol (SIP) Application-Layer Gateways (ALG)
Routing protocols
●
Static routing, IGMP proxy
●
Dynamic routing
●
Dynamic DNS (ChangeIP, DynDNS, No-IP)
●
Routing Information Protocol (RIP) v1 and v2
●
RIP for IPv6 (RIPng)
●
Inter-VLAN routing
Product specifications
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 5
Network
NAT protocol
Port Address Translation (PAT), Network Address Port Translation (NAPT)
Policy NAT
Port forwarding, one-to-one NAT, VPN NAT Traversal, Session Initiation Protocol (SIP), ALG, FTP ALG
VPN
Gateway-to-gateway
IPsec VPN
10 IPsec tunnels
Client-to-gateway IPsec
VPN
10 IPsec tunnels
IPsec VPN
Internet Key Exchange (IKE) v2, Generic Routing Encapsulation (GRE), hub and spoke supported
PPTP VPN
10 PPTP VPN tunnels
OpenVPN
Support for the OpenVPN server
Encryption
Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) with 128, 192, and 256-bit keys
encryption
VPN pass-through
IPsec, PPTP, and L2TP pass-through
Quality of Service (QoS)
QoS ● 802.1p port-based priority on LAN port, application-based priority on WAN port
●
4 queues
●
Differentiated Services Code Point (DSCP) support
●
Class of service (CoS)
●
Bandwidth management for service prioritization
Jumbo frame support
Supports jumbo frames on Gigabit ports – at least 1536B
Performance
NAT throughput
600 Mbps
Concurrent sessions
15,000
IPsec VPN throughput
50 Mbps
Configuration
Web-based user
interface
Browser-based configuration (HTTP/HTTPS)
Management
Web-based user interface, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play
(PnP)
FindIT support for monitoring and management
Event logging
Local, syslog, email alerts
Network diagnostics
Ping, traceroute, DNS lookup
Upgradability
Firmware upgradable via browser UI, imported/exported file, USB, Cisco FindIT
System time
Network Time Protocol (NTP), Daylight Savings, manual entry
Language support
User interface support: English
Environmental
Power
RV160: 12VDC/1.5A
RV160W: 12VDC/2A
Operating temperature
0° to 40°C (32° to 104°F)
Storage temperature
-20° to 70°C (-4° to 158°F)
Operating humidity
10% to 85% noncondensing
Storage humidity
5% to 90% noncondensing
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 5
Network
Certifications
Safety:
●
UL 60950-1
●
CAN/CSA-C22.2 No. 60950-1
●
IEC 60950-1
●
EN 60950-1
Radio approvals:
●
FCC Part 15.247, 15.407
●
RSS-210 (Canada)
●
EN 300.328, EN 301.893 (Europe)
●
AS/NZS 4268.2003 (Australia and New Zealand) EMI and susceptibility (Class B):
●
FCC Part 15.107 and 15.109
●
ICES-003 (Canada)
●
EN 301.489-1 and -17 (Europe)
Part number
Product description
RV160
RV160-K9-NA
United States, Canada, Columbia, Mexico, Chile, Taiwan
RV160-K9-G5
EU (CE Mark) 32 countries, Ukraine, Hong Kong, Singapore, Thailand, Vietnam, Philippines, Indonesia, Malaysia,
Saudi Arabia, UAE, South Africa
RV160-K9-AU
Australia, New Zealand
RV160-K9-AR
Argentina
RV160-K9-BR
Brazil
RV160-K9-CN
China
RV160-K9-IN
India
RV160-K9-JP
Japan
RV160-K9-KR
Korea
RV160-K8-RU
Russian Federation
RV160W
RV160W-A-K9-NA
United States, Canada, Columbia, Mexico
RV160W-E-K9-G5
EU (CE Mark) 32 Countries, Hong Kong, Singapore, Thailand, Vietnam, Philippines
RV160W-A-K9-AU
Australia, New Zealand
RV160W-A-K9-AR
Argentina
RV160W-A-K9-BR
Brazil
RV160W-C-K9-CN
China
RV160W-I-K9-IN
India
RV160W-E-K9-JP
Japan
RV160W-R-K8-RU
Russian Federation
RV 160
RV 160W
Device Dimension/Weight
Size: (L)200x(W)150x(H)30 mm
Weight: 570 g
Size: (L)200x(W)150x(H)30 mm
Weight: 630 g
Single Box Dimensions/Weight
O.D.Size: (L)288*(W)249*(H)106 mm
Weight: 1.19 kg
O.D.Size: (L)288*(W)249*(H)106 mm
Weight: 1.26 kg
Ordering information
Dimensions
© 2018 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 5
Printed in USA C78-741410-00 10/18
Warranty information
Cisco limited lifetime warranty for Cisco products
This Cisco product comes with a limited lifetime hardware warranty. Product warranty terms and other information
applicable to Cisco products are available at https://www.cisco.com/go/warranty.
Cisco Support Service
Cisco Support Service offers an affordable, subscription-based support service that helps protect your investment
and derive maximum value from Cisco products. Delivered and backed by Cisco, this comprehensive service
includes software updates, extended access to the Cisco Support Center, and expedited hardware
replacement, if required.
Cisco Capital
Flexible payment solutions to help you achieve your objectives
Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation
and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and
accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware,
software, services and complementary third-party equipment in easy, predictable payments. Learn more.
For more information
For more information on the Cisco RV160 and RV160W VPN routers, visit https://www.cisco.com/go/rv160.
Firmware
To download firmware for the routers, visit Cisco Software Central.
