Chevrolet Corvette 2016 User Manual

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Introduction . . . . . . . .. . . . . . . .. . 2

Radio . . . . . . . .. . . . . . .. . . . . . .. . 9

Audio Players . . . . . . . . . . . . . . 18

OnStar System . . . . .. . . . . .. . 23

Navigation . . . . . . . . . .. . . . . . . . 24

Voice Recognition . . . . . . . . . . 51

Phone . . . . . . . .. . . . . .. . . . . .. . 58

Settings . . . . . . . . . . . . . . . . . . . . 66

Trademarks and License

Agreements . . . . . . . . . . . . . ..

Index . . . . . . . . . . . . . . . . . . . . 79

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

2 Introduction

Introduction

The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, CORVETTE, the CORVETTE Emblem, CORVETTE STINGRAY, the STINGRAY Emblem and the names Corvette and MyLink are registered trademarks of General Motors Corporation LLC.

For vehicles first sold in Canada, substitute the name General Motors of Canada Limited for Chevrolet Motor Division whenever it appears in this manual.

This manual describes features that may or may not be on the vehicle because of optional equipment that was not purchased on the vehicle, model variants, country specifications, features/applications that may not be available in your region, or changes subsequent to the printing of this manual.

Keep this manual with the owner manual in the vehicle, so it will be there if it is needed. If the vehicle is sold, leave this manual in the vehicle.

Overview

Read the following pages to become familiar with the infotainment system features.

Litho in U.S.A. Part No. 23494395 B Second Printing

Warning

{

Taking your eyes off the road for too long or too often while using any infotainment feature can cause a crash. You or others could be injured or killed. Do not give extended attention to infotainment tasks while driving. Limit your glances at the vehicle displays and focus your attention on driving. Use voice commands whenever possible.

The infotainment system has built-in features intended to help avoid distraction by disabling some functions when driving. These functions may gray out when they are unavailable. Many infotainment features are also available through the instrument cluster and steering wheel controls.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Introduction 3

Before driving:

Become familiar with the operation, faceplate buttons, and screen buttons.

Set up the audio by presetting favorite stations, setting the tone, and adjusting the speakers.

Set up phone numbers in advance so they can be called easily by touching a single button or by using a single voice command if equipped with Bluetooth phone capability.

See “Defensive Driving” in the owner manual.

To play the infotainment system with the ignition off, see “Retained Accessory Power (RAP)” in the owner manual.

Infotainment System

The infotainment system is controlled by using the touchscreen, the buttons below the touchscreen, steering wheel controls, and voice recognition.

This vehicle has storage behind the radio. Touch the screen up/down button to lower the display and access the storage behind it. There is a USB port inside. Touch the screen up/down button again to raise the display and close. Keep the storage area closed when not in use. See the owner manual.

Automatic Switch-Off

If the infotainment system has been turned on after the ignition is turned off, the system will turn off automatically after 10 minutes.

1. O /VOL (Power/Volume)

Q SCREEN R

3. RADIO (AM/FM/XM)

4. MEDIA (iPod/USB Port)

{ (Home Page)

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

4 Introduction

6. MENU

g or d (Seek or Track)

o BACK

Power (On/Off/Mute)

When off, press the system on. Press and hold to turn off.

When on, press the system. Press

to unmute the system.

Retained Accessory Power (RAP)

The vehicle has RAP. When in RAP the audio system can be played even after the ignition is turned off. See “Retained Accessory Power (RAP)” in the owner manual.

Volume

Turn

O /VOL to increase or

decrease the volume.

O /VOL to turn

O /VOL to mute

O /VOL again

Home Page

The Home Page is where vehicle application icons are accessed. Some applications are disabled when the vehicle is moving.

The Home Page can be set up to have up to five pages with eight icons per page.

h or k to access the pages of

Touch icons.

h (Previous) : Touch to go to the

previous Home Page.

k (Next) : Touch to go to the next

Home Page.

l (Interaction Selector) : Touch to

display the favorites list.

Touch and hold a location within the favorites area to begin the process of saving a favorite application.

Touch the application icon to store as a favorite. The name of the application will be shown in favorites.

Managing Home Page Icons

1. Touch and hold any of the Home Page icons to enter edit mode.

2. Continue holding the icon and drag it to the desired position.

3. Release your finger to drop the icon in the desired position.

4. To move an application to another page, drag the icon to the edge of the screen toward the desired page.

5. Continue dragging and dropping application icons as desired.

6. Press

{ to exit edit mode.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Introduction 5

Steering Wheel Controls

If equipped, some audio controls can be adjusted at the steering wheel.

g (1) (Push to Talk) : Press to

answer an incoming call or to start a voice recognition session.

See Bluetooth (Overview) 0 58 or

Bluetooth (Infotainment Controls) 0 59 or Bluetooth (Voice Recognition) 0 62 or “OnStar

Overview” in the owner manual.

R (1) (Phone/Mute) : Press to

decline an incoming call or end a current call. Press to mute or unmute the infotainment system when not on a call.

w or x (1) (Next or Previous) :

Press to change radio stations in audio mode or to go up or down in a list.

o or p (1) (Previous or Next) :

Press to go to the previous or next area in the display or the previous or next menu.

SEL (1) (Select) : Press to select a highlighted menu option.

x + or x − (2) (Volume) : Press to

increase or decrease volume.

l FAV or FAV g (3) (Next or

Previous Favorite) : Press to display a list of favorites. Press again to select the next or previous favorite when listening to the radio.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

6 Introduction

Using the System

Touchscreen Buttons

Touchscreen buttons show on the screen when available. When a function is unavailable, the button may gray out. When a function is selected, the button may highlight.

Home Page Features

Touch the icons on the Home Page screen to launch an application.

Audio

Touch the AUDIO icon to display the active audio source page. Available sources are AM, FM, XM (if equipped), My Media, USB, Bluetooth, and AUX Input.

Phone

Touch the PHONE icon to display the Phone main page. See

Bluetooth (Overview) 0 58 or Bluetooth (Infotainment Controls) 0 59 or Bluetooth (Voice Recognition) 0 62.

NAV (Navigation, If Equipped)

Touch the NAV icon to display the navigation map or OnStar Turn-by-Turn Navigation. See Using the Navigation System 0 24 or “OnStar Navigation” in the owner manual.

Settings

Touch the SETTINGS icon to display the Settings menu. See Settings 0 66.

Pandora (If Equipped)

Touch the PANDORA icon to begin Pandora Radio 0 13.

. See Pandora Internet

Weather (If Equipped)

Touch the WEATHER icon to display the Weather main page. See “SiriusXM Travel Link Weather (If Equipped)” under Destination 0 33.

OnStar

Touch the ONSTAR icon to display the OnStar main page and start OnStar voice recognition. See “OnStar Overview” in the owner manual.

Applications Tray

The applications tray is at the top center of the screen. The applications tray can have three to five applications.

To add an application from the Home Page to the applications tray:

1. Touch and hold any icon on the Home Page to enter edit mode.

2. Drag the icon to the applications tray.

To remove an item from the applications tray, drag the icon from the applications tray back to the Home Page.

{ to exit edit mode.

Press

Adding or removing applications from the applications tray will not remove them from the Home Page.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Introduction 7

Infotainment Gestures

Use the following finger gestures to control the infotainment system.

Touch/Tap

Touch/tap is used to select a button or option, activate an application, or change the location inside a map.

Touch and Hold

Touch and hold can be used to start another gesture, move, or delete an application.

Drag

Drag is used to move applications on the Home Page, or to pan the map. To drag the item, it must be held and moved along the screen to the new location. This can be done up, down, right, or left.

Nudge

Nudge is used to move items a short distance on a list or a map. To nudge, hold and quickly move the selected item up or down to a new location.

Fling or Swipe

Fling or swipe is used to scroll through a list, pan the map, or change page views. Do this by

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

8 Introduction

placing a finger on the screen then moving it rapidly up and down or right and left.

Turn

Turn the MENU knob or knob on the faceplate to perform functions such as tuning the radio or scrolling lists.

O /VOL

Cleaning High Gloss Surfaces and Vehicle Information and Radio Displays

For vehicles with high gloss surfaces or vehicle displays, use a microfiber cloth to wipe surfaces. Before wiping the surface with the microfiber cloth, use a soft bristle brush to remove dirt that could scratch the surface. Then use the microfiber cloth by gently rubbing to clean. Never use window cleaners or solvents. Periodically hand wash the microfiber cloth separately, using mild soap. Do not use bleach or fabric softener. Rinse thoroughly and air dry before next use.

Software Updates

Website Information

In the U.S., see www.chevrolet.com

In Canada, see www.chevrolet.gm.ca

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Radio 9

Radio

AM-FM Radio

Playing the Radio

While on the Audio main page the available sources are: AM, FM, SiriusXM (if equipped), My Media, USB, Bluetooth, and AUX Input.

Press the RADIO button on the faceplate or touch the AUDIO screen button on the Home Page to scroll through AM, FM, or SiriusXM (if equipped).

Press the MEDIA button on the faceplate or touch the AUDIO screen button on the Home Page to scroll through My Media, USB, Bluetooth, and AUX Input.

Infotainment System Settings

Press the RADIO button to access broadcast sources.

Press the MENU screen button or the MENU knob to display the following menus:

Tone Settings:

Bass, Midrange, Treble, Surround (if equipped): Touch + or − to adjust. Surround adjusts the headrest speaker volume only.

Balance: Touch sound from the left or right speakers. The middle position balances the sound between the left and right speakers.

Fade: Touch sound from the front or rear speakers. The middle position balances the sound between the front and rear speakers.

Tag Song (If Equipped) :

If equipped, touch to tag song information, including artist and title, to transfer to an iPod not attached, the information will be transferred when it is attached. Press OK to go back to the Now Playing view.

Timeshift (If Equipped) : Timeshift is the recording of a radio station for up to 25 minutes. See “Timeshifting” later in this section.

S or T for more

y or z for more

. If the iPod is

DSP Modes (If Equipped):

Bose Studio Surround system has three DSP modes:

‐ Normal: Adjusts the audio to

provide the best sound for all seating positions.

‐ Driver: Adjusts the audio to

provide the best sound for the driver.

‐ Centerpoint: Turns on the

Bose Centerpoint surround technology. This setting creates a surround sound listening experience from nearly any audio source; existing stereo, CD collection, satellite radio, and MP3 players. For more information on Bose Centerpoint surround technology, visit www.bose.com/centerpoint.

Auto Volume : If equipped, this feature adjusts the volume based on vehicle speed. The options are Off, Low, Medium - Low, Medium,

Medium - High, or High. Press BACK to go back to the previous menu.

sound

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

10 Radio

Bose AudioPilot noise compensation Technology :

If equipped, this feature adjusts the volume based on the noise in the vehicle. When turned on, AudioPilot technology detects noise and vehicle speed to continuously adjust the audio signal so that music will sound the same at a set volume level. This feature is most effective at lower radio volume settings where background noise can affect how well the music is being played. See www.bose.com/audiopilot. This feature can be turned on or off.

Press

o BACK to go back to the

previous menu.

EQ (Equalizer) : If equipped with a Bose Sound System, the available choices are Manual and Talk.

Update Station List : For AM and FM only, touch to update the station

list. Press the previous menu.

o BACK to go back to

Finding a Station

Seeking a Station

Press g or d to search for the previous or next strongest station.

Direct Tune (If Equipped)

Touch the TUNE screen button to switch to Direct Tune for manually searching for a station.

If not equipped with Direct Tune, touch the SEEK screen button to switch to TUNE. Touch again to change back. Turn the MENU knob to manually search for a station.

Storing Radio Station Presets

Favorites are stored in the area at the bottom of the screen.

Up to 60 preset stations can be stored under the following:

AM, FM, and SiriusXM (if equipped) Radio Stations : Touch

and hold a screen button to save the current station as a favorite. Touch a screen button in the favorite area to recall a favorite station.

Mixed-Audio Favorites

Favorites that can be stored include radio stations, media favorites, contacts, destinations, navigation, or applications.

To scroll through the favorites:

Drag anywhere on the screen buttons along the bottom to view the favorites. To close the favorites, drag them down.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Radio 11

Slide a finger to the right or left to scroll through each page of favorites.

Tone Settings : Touch and hold a screen button to save the current tone settings as a favorite in the tone settings screen. Drag up on the reveal button at the bottom to bring up favorites. Touch a screen button in the favorite area to recall a favorite tone setting.

Pandora Radio Stations : Touch and hold a screen button to store the current station as a favorite. Touch a screen button in the favorite area to recall a favorite Pandora station.

The number of favorites displayed is automatically adjusted by default, but can be manually adjusted in the Settings menu under Radio and then Number of Favorites Shown.

Timeshifting (If Equipped)

The audio system can record live radio for up to 25 minutes. When tuned to a station, the system automatically begins recording the audio along with the associated metadata.

Touch

j to pause playback of the

audio and to initiate timeshift mode.

r to resume playback of the

Touch recorded audio.

When timeshifting begins, a time is indicated on the right of the play/ pause indicator. This time indicates the time of day at which playback is paused. This time continues to show as long as the system is in a paused mode and the buffer continues to fill.

Buffer Reset

The buffer will reset anytime the broadcast band or stations/channels are changed. Changing to a media source while paused will not reset the buffer.

Rewinding or Fast Forwarding a Timeshifted Broadcast

Touch and hold the rewind indicator to reverse playback at a rate of 15 times the rate of normal playback.

Touch and hold the fast forward indicator to advance playback at a rate of 15 times the rate of normal playback. The timeshift buffer can be advanced up to the end of the timeshift buffer and return to live mode.

Returning to Live Broadcast

If listening to timeshifted radio, touch the fast forward indicator to return to live radio.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

12 Radio

Timeshifting and Station/Channel Lists

If browsing a station/channel list is started while listening to the timeshift content, the list content is shown in live time not buffered time.

Skipping Back in a Broadcast

For programs with metadata, touching the previous button less than five seconds into a program will make the system skip to the beginning of the previous program. If more than five seconds into the current song/program, the system starts at the beginning of the current program. If no metadata is available, the system skips back 30 seconds.

Reaching the End of the Buffer

If the audio is paused and the 25-minute buffer is reached, the buffer continues recording content on a first-in, first-out basis. When playback is started, the content played will be the last 25 minutes in the buffer.

Satellite Radio

SiriusXM®Satellite Radio Service (If Equipped)

Vehicles with a valid SiriusXM satellite radio subscription can receive SiriusXM programming.

SiriusXM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound. See www.siriusxm.com or call 1-866-635-2349 in the U.S. In Canada, see www.xmradio.ca or call 1-877-209-0079.

When SiriusXM is active, the station name, number, category name, song title, and artist display on the screen.

SiriusXM Menu

SiriusXM has a menu to adjust different features.

Touching the MENU screen button may display the following:

Tone Settings : Touch + or − to adjust the tone settings. See AM-FM Radio 0 9.

Tag Song : Press the Tag Song button to save song information that SiriusXM stations include in their broadcasts. You can then preview and purchase your tagged songs in the iTunes

When connected to iTunes, the Sync button on the device may need to be pressed to transfer the tags to iTunes.

TuneSelect : For SiriusXM only, this feature allows for an alert to be set for artists or songs that are played on any channel. Touch Manage TuneSelect to turn the alerts On and Off or manage the saved selection of Artists or Songs. To unselect an alert, touch the Song or Artist. To

store

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Radio 13

delete an alert, touch the Back screen button to go back to the previous menu.

Auto Volume : If equipped, this feature adjusts the volume based on the vehicle speed. See AM-FM Radio 0 9.

Bose AudioPilot Noise Compensation Technology :

If equipped, this feature adjusts the volume based on the noise in the vehicle. See AM-FM Radio 0 9.

Radio Reception

Unplug electronic devices from the accessory power outlets if there is interference or static in the radio.

FM signals only reach about 16 to 65 km (10 to 40 mi). Although the radio has a built-in electronic circuit that automatically works to reduce interference, some static can occur, especially around tall buildings or hills, causing the sound to fade in and out.

The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. Static can also occur when things like storms and power lines interfere with radio reception. When this happens, try reducing the treble on the radio.

SiriusXM®Satellite Radio Service

If equipped, SiriusXM Satellite Radio Service provides digital radio reception. Tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or tunnels may cause loss of the SiriusXM signal for a period of time.

Cell Phone Usage

Cell phone usage, such as making or receiving phone calls, charging, or just having the phone on may

cause static interference in the radio. Unplug the phone or turn it off if this happens.

Diversity Antenna System

The AM-FM antenna is a hidden self-tuning system. It optimizes the AM and FM signals relative to the vehicle's position and radio station source. No maintenance or adjustments are needed.

Satellite Radio Antenna

If equipped with SiriusXM Satellite Radio, the antenna is under the left front fender. The antenna is hidden from view and not adjustable.

Pandora Internet Radio

If equipped, Pandora®is a free Internet radio service that streams personalized radio stations based on artists, tracks, genres, and comedians. Create stations using the Pandora website or Smartphone

application, then use

, (thumbs down) to personalize

- (thumbs up)

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

14 Radio

stations. To set up an account, or for more information, go to www.pandora.com.

A phone or tablet with Internet connection and the Pandora application installed is required. Personal cell phone data plans are used. Make sure the latest version is installed on the device.

Launching Pandora

before connecting to the vehicle. The Pandora icon will be available on the Home Page.

When Pandora is chosen, the Pandora logo will populate on the screen and will display “Acquiring Pandora Radio Station.” Launch times can be significant.

Using the iPhone

1. Plug the device into the USB port. The phone screen must be unlocked.

2. Touch PANDORA on the Home Page to launch Pandora.

3. If nothing happens when the available Pandora screen button is touched, download the latest Pandora application and retry.

Connect the iPhone to the USB port, or connect Android™ or BlackBerry

through Bluetooth. See

Auxiliary Jack 0 21 or Bluetooth (Overview) 0 58 or Bluetooth (Infotainment Controls) 0 59 or Bluetooth (Voice Recognition) 0 62.

For first time use, set up the stations

The login screen may display on the device.

Using an Android or BlackBerry Phone

The BlackBerry phone must be unlocked to launch Pandora service.

1. Pair the phone using Bluetooth.

2. Launch Pandora directly from the Home Page by touching PANDORA.

If nothing happens when the available PANDORA screen button is touched, download the latest Pandora application and retry.

The login screen may display on the device.

Pandora Menus

Touch Menu on the Pandora main page.

Pandora has a menu system with the following:

Tone Settings : Touch to adjust the tone settings. See AM-FM Radio 0 9.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Radio 15

Bookmark Artist : Touch to

bookmark the artist.

Bookmark Song : Touch to bookmark the song.

Auto Volume : This feature sets the auto volume based on the speed of the vehicle and noise in the vehicle. See AM-FM Radio 0 9.

Bose AudioPilot : If equipped, this feature adjusts the volume based on the noise in the vehicle. See AM-FM Radio 0 9.

Pandora Features

Pandora service has features to rate tracks, skip tracks, or change stations.

, (Thumbs Down) : When

touched, Pandora stores this information, changes to the next track, and does not play this track on this station again. This helps Pandora choose which tracks should not play on this station. This feature is only available on user created stations.

- (Thumbs Up) : When touched,

Pandora stores this information and

- is highlighted for the remainder

of the track. This helps Pandora choose which tracks should play on this station.

d (Next Track) : When touched,

Pandora changes to the next track.

r or j (Play/Pause) : Press to play

or pause playback.

Pandora Skip Limit

Pandora limits the number of skips allowed on their service. When the

skip limit is reached, track will not skip the currently

playing track, but the will be recorded.

, or next

, feedback

Advertisements on Pandora

Pandora may display advertisements. The artist name and track title will not be displayed and the skip track button will not be available.

Pandora Troubleshooting

Unable to Connect Device to Vehicle

If the device is unable to connect to the USB or Bluetooth:

1. Turn the vehicle off.

2. Take the Remote Keyless Entry (RKE) transmitter at least 6 m (20 ft) away from the vehicle.

3. Wait about 30 seconds, and try to connect the device again. See Auxiliary Jack 0 21 or

Bluetooth (Overview) 0 58 or Bluetooth (Infotainment Controls) 0 59 or Bluetooth (Voice Recognition) 0 62.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

16 Radio

Unable to Start Pandora

If the device is unable to launch Pandora:

Check that the latest version of Pandora is installed.

Check that there is an active account logged into Pandora.

End a call. Pandora will not work during an active call.

Have at least one station created.

For Android and BlackBerry devices, check that the device is paired with the vehicle, and whether the device displays in the Connected phone sources list under the PHONE icon from the Home Page.

For an iPhone, check that the USB cable is connected to the USB port and the screen is unlocked.

Close Pandora on the device and launch again. Devices that allow multitasking may require

an extra step to quit the Pandora application. See the cell phone manufacturer's user guide.

Thumbs Up or Thumbs Down Error

If there is an error trying to rate a track with the

message “Thumbs Down Error” or “Thumbs Up Error” will display. Touch OK to dismiss.

Loss of Audio

Loss of Pandora audio can happen in different ways:

Weak or lost data connection.

Device needs to be charged.

Application needs to be relaunched.

Connection between phone and radio lost.

An iPhone is connected to both Bluetooth and the USB port.

Playback can be resumed from a loss of audio by double tapping on the iPhone menu button then scrolling through the

, or - buttons, the

icons to find an icon that allows a change of flow between Bluetooth and USB cable.

Common Pandora Messages

Pandora Error/Please Check Connected Device : Not signed in

or Pandora is down for maintenance.

No Stations Available : No stations are available on the Pandora server through the connected device.

Action Unavailable Please Check Device : A few conditions for loss of

Internet connection are:

The connected device loses its cellular connection.

The device does not support Internet connectivity.

The device is not in the vehicle.

There is no Bluetooth signal.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

No skips remaining for this station or permitted during advertisements:

The maximum Pandora skip limit has been reached according to the plan that was obtained.

Skipping an advertisement was tried.

See www.pandora.com/help. If the service will not work, see your dealer for assistance.

Radio 17

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

18 Audio Players

Audio Players

USB Port

This vehicle is equipped with three USB ports. Two USB ports are in the center console and one is in the storage area behind the radio. The system is optimized to support two connected devices with a total of 15,000 songs.

Playing from a USB

A USB mass storage device can be connected to the USB port.

Gracenote

When plugging in a USB device, Gracenote service builds voice tags for music. Voice tags allow artists, albums with hard to pronounce names, and nicknames to be used to play music through voice recognition.

While indexing, infotainment features are available.

My Media Library

This allows access to content from all indexed media sources. Touch the MEDIA screen button to scroll through the options until My Media is selected. Use gestures or screen buttons to scroll through the content.

USB MP3 Player and USB Drives

The USB MP3 players and USB drives connected must comply with the USB Mass Storage Class specification (USB MSC).

Hard disk drives are not supported.

The following restrictions apply for the data stored on a USB MP3 player or USB device:

‐ Maximum folder structure

depth is11 levels.

‐ Applicable audio extensions

are mp3, wma, aac, m4a, and aif.

‐ WMA and Apple lossless files

are not supported.

‐ Supported file systems are

FAT32 and NTFS.

To play a USB device, do one of the following:

Connect the USB.

Touch MEDIA until the connected device is shown.

Use the following when playing an active USB source:

r (Play) : Touch to play the current

media source.

j (Pause) : Touch to pause play of

the current media source.

t (Previous/Reverse):

Press to seek to the beginning of the current or previous track. If the track has been playing for less than five seconds, the previous track plays. If playing longer than five seconds, the current track restarts.

Press and hold to reverse quickly through playback. Release to return to playing speed. Elapsed time displays.

u (Next/Forward):

Press to seek to the next track.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Audio Players 19

Press and hold to advance quickly through playback. Release to return to playing speed. Elapsed time displays.

USB Menu

Touch Menu to display the USB menu. The following may be available:

Shuffle: Touch to play the tracks randomly. Touch again to stop shuffle.

Bose AudioPilot Noise Compensation Technology:

If equipped, this feature adjusts the volume based on the noise in the vehicle. See AM-FM Radio 0 9.

Tone: Touch + or − to adjust the tone settings. See AM-FM Radio 0 9.

USB Browse Menu

Touch anywhere between the top and bottom menus or touch the BROWSE button to view the browse menu and the following options are displayed along the bottom of the screen:

Playlists:

1. Touch to view the playlists stored on the USB.

2. Select a playlist to view the list of all songs in that playlist.

3. Select a song from the list to begin playback.

Artists:

1. Touch to view the list of artists stored on the USB.

2. Select an artist name to view a list of all albums by the artist.

3. To select a song, touch All Songs or touch an album and then select a song from the list.

Albums:

1. Touch to view the albums on the USB.

2. Select the album to view a list of all songs on the album.

3. Select a song from the list to begin playback.

Songs:

1. Touch to display a list of all songs on the USB.

2. To begin playback, select a song from the list.

Genres:

1. Touch to view the genres on the USB.

2. Select a genre to view a list of all content of that genre.

3. Select an artist to view a list of albums. Select an album to view a list of songs.

4. Select a song to start playback.

Podcasts, Composers, Audiobooks, Videos, and Folder View are shown when More is selected from the bottom of the screen.

Podcasts:

1. Touch to view the podcasts on the USB.

2. Select a podcast.

3. Select an episode to start playback.

Composers:

1. Touch to view the composers on the USB.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

20 Audio Players

2. Select Composers to view a list of albums by that composer.

3. Select an album to view a list of songs.

4. Select a song from the list to begin playback.

Audiobooks:

1. Touch to view the audiobooks stored on the device.

2. Select the audiobook from the list. Select a chapter to begin playback.

File System and Naming

The songs, artists, albums, and genres are taken from the file’s song information and are only displayed if present. The radio displays the file name as the track name if the song information is not available.

Supported Apple

Devices

To view supported devices in the U.S., see my.chevrolet.com/learn.

To view supported devices in Canada, see chevroletowner.ca.

Loss of Audio

Do not pair the Bluetooth of an iPhone that is connected and using the iPod feature under vehicle media sources. If an attempt to pair the Bluetooth of the same connected phone is made, the system will automatically mute the iPhone audio.

If there is a loss of audio, playback can be resumed by changing the audio flow from Bluetooth to USB cable.

To change the audio flow:

1. While the iPhone is connected, double tap the phone’s home button.

2. Swipe a finger to the left on the phone’s screen display. A box with a triangle on the lower line of the box that is highlighted displays. Touch this box to display the dock connector option.

3. Select “Dock Connector.”

Other phones such as the Droid phones may have a similar reaction.

Bluetooth Streaming Audio and Voice Recognition

See Bluetooth Audio 0 22 for information using voice recognition with Bluetooth streaming audio.

Make sure all devices have the latest software downloaded.

Storing and Recalling Media Favorites

To store media favorites, touch and hold an open favorite during media playback to display a list of media types. Select from this list.

The media types that may display are:

Genres : Touch to store the current genre as a favorite. Touch a screen button in the favorite area to recall a favorite genre. The first song of the genre begins to play.

Artists : Touch to store the current artist as a favorite. Touch a screen button in the favorite area to recall a favorite artist. The first song in the artist list begins to play.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

Audio Players 21

Albums : Touch to store the current

album as a favorite. Touch a screen button in the favorite area to recall a favorite album. The first song in the album list begins to play.

Playlists : Touch to store the current playlist as a favorite. Touch a screen button in the favorite area to recall a favorite playlist. The first song in the playlist begins to play.

Songs : Touch to store the current song as a favorite. Touch a screen button in the favorite area to recall a favorite song.

Podcasts or Podcast Episode :

Touch and hold a screen button to store the current podcast as a favorite. Touch a screen button in the favorite area to recall a favorite podcast or podcast episode. The podcast or podcast episode begins to play.

Audiobooks : Touch and hold a screen button to save the current audiobook as a favorite. Touch a screen button in the favorite area to recall a favorite audiobook; the first chapter in the audiobook begins to play.

SD Card Reader

This vehicle may have an SD card reader in the glove box.

This SD card reader is used with the Performance Data Recorder system and is used to store recorded driving information. See “Performance Data Recorder (PDR)” in the owner manual.

Auxiliary Jack

This vehicle has an auxiliary input jack in the center console under the armrest. Possible auxiliary audio sources include:

Laptop computer

Audio music player

Portable CD player

This jack is not an audio output. Do not plug headphones into the auxiliary input jack. Set up an auxiliary device while the vehicle is in P (Park).

Connect a 3.5 mm (1/8 in) cable from the auxiliary device to the auxiliary input jack. When a device

is connected, the system can play audio from the device over the vehicle speakers.

If an auxiliary device has already been connected, but a different source is currently active, press the MEDIA faceplate button or touch the MEDIA screen button to scroll through audio source screens, until AUX Input source screen displays.

Playing from the AUX Port

An auxiliary device is played through the audio system and controlled through the device itself.

AUX Menu

Press the MENU knob to display the AUX Input menu and the following may display:

Tone Settings : Select to adjust Bass, Midrange, Treble, Balance, Fade, and EQ (Equalizer). See AM-FM Radio 0 9.

Bose

AudioPilot®: If equipped,

this feature can be turned on or off. See “Bose

AudioPilot®” in AM-FM

Radio 0 9.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

22 Audio Players

EQ (Equalizer) Settings :

If equipped, this feature adjusts the pre-defined EQ modes. See “EQ (Equalizer) Settings” in AM-FM Radio 0 9.

DSP Modes : If equipped with a

Surround sound system, this

Bose feature adjusts the DSP modes. See “DSP Modes” in AM-FM Radio 0 9.

Bluetooth Audio

If equipped, music may be played from a paired Bluetooth device. See

Bluetooth (Overview) 0 58 or Bluetooth (Infotainment Controls) 0 59 or Bluetooth (Voice Recognition) 0 62 for help pairing a

device.

The music can be controlled by either the infotainment controls or the controls on the device.

Music can be launched by touching the MEDIA screen button on the Home Page.

To play music via Bluetooth:

1. Power on the device, and pair to connect the device.

2. Once paired, go into the audio application from the Home Page or through the applications tray. Select MEDIA until Bluetooth displays.

Bluetooth Audio Menu

Touch the MENU screen button or press the MENU knob to display the Bluetooth Audio menu. The following may be available:

Bose AudioPilot (If Equipped):

This feature adjusts the volume based on the noise in the vehicle and the speed. See AM-FM Radio 0 9.

Tone: Touch + or − to adjust the tone settings. See AM-FM Radio 0 9.

Touch the Back screen button to go back to the previous menu.

Manage Bluetooth Devices: Touch to go to the Bluetooth page to add or delete devices.

When using the Bluetooth audio source, the radio may not be able to launch specific applications on your device. Use the device to start audio playback when it is safe to do so.

All devices launch audio differently. When selecting Bluetooth audio as a source, the radio may show as paused on the screen. Press play

on the device or press playback.

Some phones support sending Bluetooth music information to display on the radio. When the radio receives this information, it will check to see if any is available and display it. For more information about supported Bluetooth features, see www.gm.com/bluetooth.

r to begin

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

OnStar System 23

OnStar System

OnStar®with 4G LTE

If equipped with OnStar 4G LTE, up to seven devices, such as smartphones, tablets, and laptops, can be connected to high-speed Internet through the vehicle’s built-in Wi-Fi hotspot.

Call 1-888-4-ONSTAR (1-888-466-7827) to connect to an OnStar Advisor for assistance. See www.onstar.com for a detailed instruction guide, vehicle availability, details, and system limitations. Services and apps vary by make, model, year, carrier, availability, and conditions. 4G LTE service is available in select markets. 4G LTE performance is based on industry

averages and vehicle systems design. Some services require a data plan.

Chevrolet Corvette Infotainment System (GMNA-Localizing-U.S/Canada-

9085897) - 2016 - crc - 9/9/15

24 Navigation

Navigation

Using the Navigation System

Touch the NAV button on the Home Page or the Nav icon in the applications tray to access the navigation application.

Touch MENU from the map view to access the Navigation Menu. Features displayed in the Navigation Menu can be selected to adjust navigation preferences.

It is advised to set up preferences before setting a destination. To set a destination, see Destination 0 33.

The buttons on the infotainment screen display will time out when not interacting. Tap anywhere on the screen to reveal the controls, then select the desired control.

Additional navigation features are:

Cancel Route/Resume To

Navigation Voice Preferences

Current Location

Map View

Traffic

Display “Places of Interest” Icons

Routing Preferences

Personal Data

Cancel Route/Resume To

While under route guidance, this screen button displays Cancel Route. Touch Cancel Route to cancel route guidance. No further prompts will be given. The list item then changes to Resume To.

Touch the Resume To screen button to resume route guidance to the last entered destination.

The last location that the system has provided guidance to can be resumed by touching on this list item.

If the route includes waypoints, the entire route can be suspended using the Cancel Guidance list item. When Resume Guidance is touched, all waypoints are resumed for guidance.

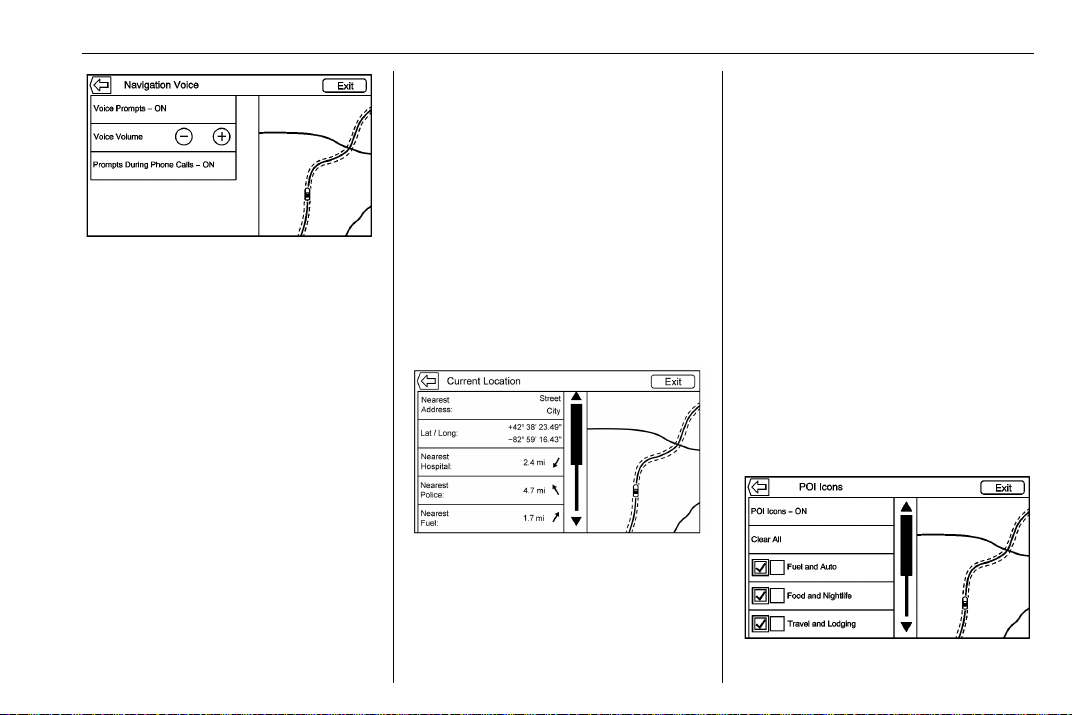

Navigation Voice Preferences

Touch the Navigation Voice Preferences list item to adjust the voice preferences.

+ 58 hidden pages

Chevrolet Corvette 2016 User Manual

Contents

Introduction

Overview

Steering Wheel Controls

Using the System

Software Updates

Radio

AM-FM Radio

Satellite Radio

Radio Reception

Diversity Antenna System

Satellite Radio Antenna

Pandora Internet Radio

Audio Players

USB Port

SD Card Reader

Auxiliary Jack

Bluetooth Audio

OnStar System

Navigation

Using the Navigation System
