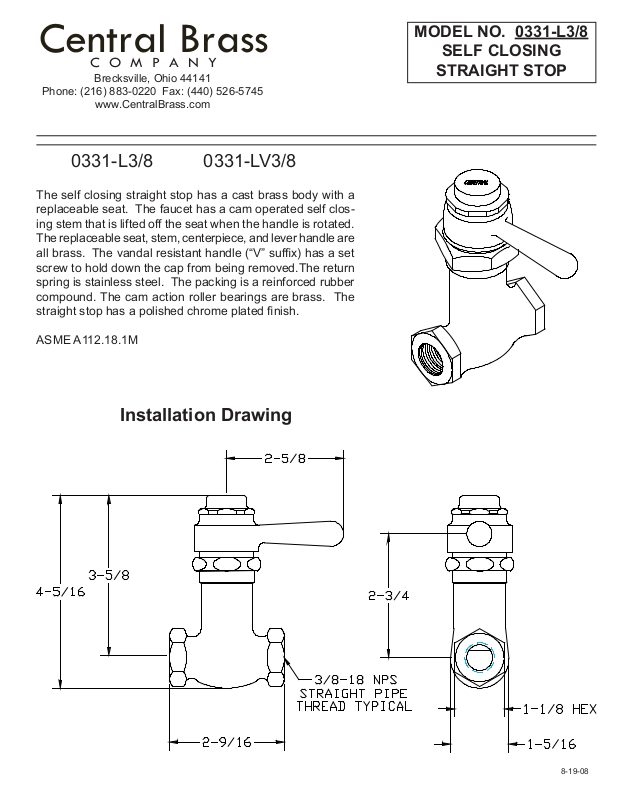

CENTRAL BRASS 0331-LV3-8 User Manual

MODEL NO. 0331-L3/8

Central Brass

C O M P A N Y

SELF CLOSING

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

0331-L3/8 0331-LV3/8

The self closing straight stop has a cast brass body with a
replaceable seat. The faucet has a cam operated self clos­ing stem that is lifted off the seat when the handle is rotated.
The replaceable seat, stem, centerpiece, and lever handle are

all brass. The vandal resistant handle (“V” sufx) has a set

screw to hold down the cap from being removed.The return
spring is stainless steel. The packing is a reinforced rubber
compound. The cam action roller bearings are brass. The

straight stop has a polished chrome plated nish.

ASME A112.18.1M

STRAIGHT STOP

Installation Drawing

8-19-08

MODEL NO. 0331-L3/8

Central Brass

C O M P A N Y

SELF CLOSING

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

20

STRAIGHT STOP

Parts Breakdown

# Part # Description
1 6900 Brass Body
2 PF-59 Bras Seat
3 104-02 Brass Seat Washer Screw CP
4 904 Seat Washer
5 PD-7101-AF Brass Stem
6 1008-B Stainless Steel Spring
7 PF-70-F Brass Gland
8 70-D Stainless Steel Spring
9 PF-33-A Brass Washer
10 849-G Packing
11 433-AN Nylon Gasket
12 7106-F Brass Centerpiece
13 71 Brass Bearings
14 PF-7114-P Brass Lever Handle
15 33-A Brass Washer
16 68-HX Brass Nut
17 PF-67-AC Celcon Samson Nut
18 69-C Celcon Sleeve
19 PF-7125 Brass Handle Cap
20 103-HSSS Set Screw

(for vandal-resistant handle)

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.

8-19-08
