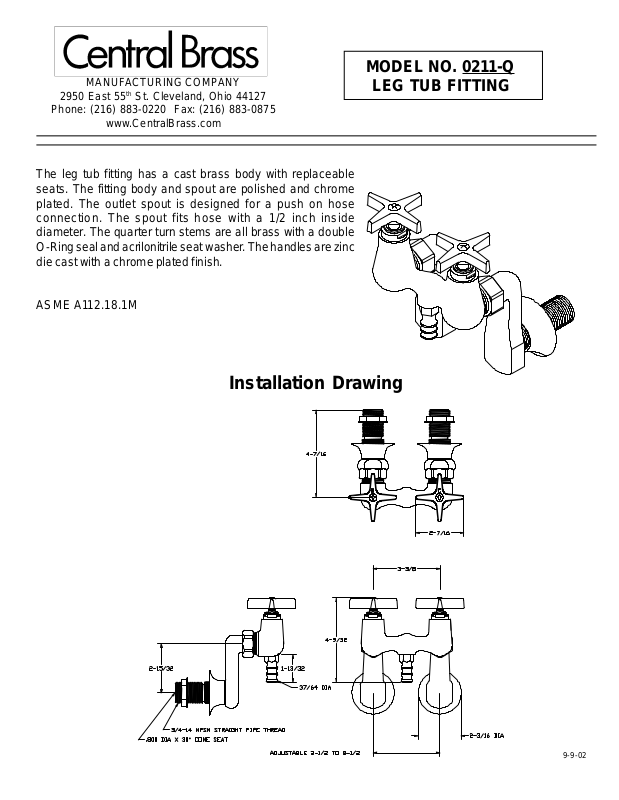

central brass 0211-Q Installation Drawing

MODEL NO. 0211-Q

MANUFACTURING COMPANY

2950 East 55

Phone: [phone] Fax: [phone]

th

St. Cleveland, Ohio 44127

www.CentralBrass.com

LEG TUB FITTING

The leg tub fitting has a cast brass body with replaceable
seats. The fitting body and spout are polished and chrome
plated. The outlet spout is designed for a push on hose
connection. The spout fits hose with a 1/2 inch inside
diameter. The quarter turn stems are all brass with a double
O-Ring seal and acrilonitrile seat washer . The handles are zinc
die cast with a chrome plated finish.

ASME A1 12.18.1M

Installation Drawing

9-9-02

MANUFACTURING COMPANY

# Part# Description
1 4090-3/4 Zinc Locknut
2 1767-A Brass Faucet Body
3 263-BC Bronze Seat
4 1028-Y Nylon Gasket
5 104 Brass Seat Washer Screw
6 901-WN Seat Washer
7 454-FR Brass Right Thread O-Ring Stem
8 1038-453 O-Ring

9 454-EH Brass Right Thread O-Ring Bonnet
10 1045-SCM 4 Arm Handle - Indexed “C”
10 1045-SHM 4 Arm Handle - Indexed “H”
11 107-F Brass Phillips Head Screw
12 PF-177-G Brass Spout
13 940-TRN Washer
14 PF-256-L Brass Spud
15 PF-2843-49 Brass Hex Spout Nut
16 2841 Brass Offset Arm
17 390 Flange
18 1768 Brass Shank
19 SU-454-ERRC Right Thread Stem Assembly

th

2950 East 55

St. Cleveland, Ohio 44127

Phone: [phone] Fax: [phone]

www.CentralBrass.com

MODEL NO. 0211-Q

LEG TUB FITTING

Parts Breakdown

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.

9-9-02
