Central Brass 0123-A07 Installation Drawing

Brecksville, Ohio 44141

Central Brass

C O M P A N Y

Phone: [phone] Fax: [phone]

www.CentralBrass.com

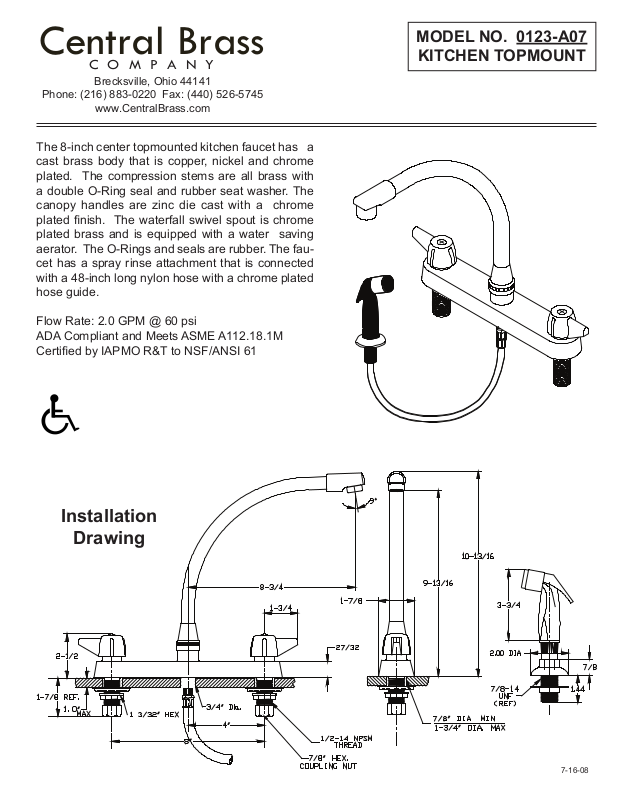

The 8-inch center topmounted kitchen faucet has a
cast brass body that is copper, nickel and chrome
plated. The compression stems are all brass with
a double O-Ring seal and rubber seat washer. The
canopy handles are zinc die cast with a chrome

plated nish. The waterfall swivel spout is chrome

plated brass and is equipped with a water saving
aerator. The O-Rings and seals are rubber. The fau­cet has a spray rinse attachment that is connected
with a 48-inch long nylon hose with a chrome plated
hose guide.

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M

Certied by IAPMO R&T to NSF/ANSI 61

MODEL NO. 0123-A07

KITCHEN TOPMOUNT

Installation

Drawing

7-16-08

MODEL NO. 0123-A07

Central Brass

C O M P A N Y

KITCHEN TOPMOUNT

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

Parts Breakdown

The parts listed in the parts breakdown above
may not be offered separately as replacement
parts. Please review the Replacement Parts
page for the authorized replacement parts that
are available for this item.

# Part # Description

1 4015-BAR Brass Coupling Nut

2 7133-AZ Zinc Dichromate Locknut

3 54 Steel Crowfoot Washer

4 1947-AN Brass Faucet Body

5 263-BC Bronze Seat

6 1028-Y Nylon Gasket

7 104 Brass Seat Washer Screw

8 901-WNN Seat Washer

9 453-FL Brass Left Thread O-Ring Stem

9 453-FR Brass Right Thread O-Ring Stem

10 1038-453 O-Ring

11 453-EWC Brass Left Thread O-Ring Bonnet

11 453-EWH Brass Right Thread O-Ring Bonnet

12 523-C Handle Indexed “C”

12 523-H Handle Indexed “H”

13 107-F Brass Phillips Head Screw

14 1038-IN O-Ring

15 266-AD Diverter Adapter

16 266-D Diverter

17 266-S Diverter Seal

18 266-S Diverter Casing

19 1038-DIV O-Ring

20 1038-KN O-Ring

21 PF-741-DO Brass Spout Adapter

22 PF-782-JES Brass Spout Nut

23 PF-357-JHR Brass Spout

24 30-L Male Aerator

25 PF-1550-J Brass Spout End Adapter

26 SU-453-EL Left Thread O-Ring Stem Assembly

26 SU-453-ER Right Thread O-Ring Stem Assembly

27 266-A Hose & Spray

28 SU-2987-DA Hose Guide

7-16-08
