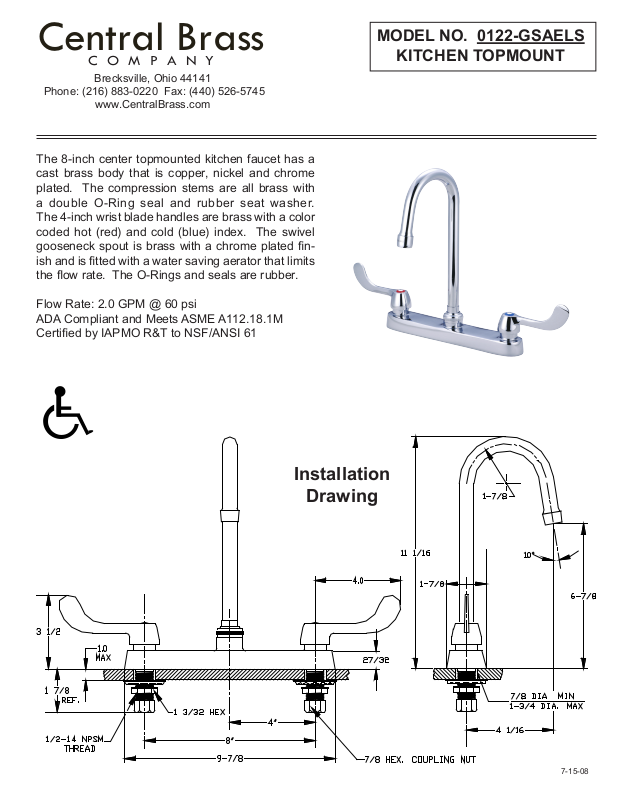

Central Brass 0122-GSAELS Quick Start Manual

Brecksville, Ohio 44141

Central Brass

C O M P A N Y

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The 8-inch center topmounted kitchen faucet has a
cast brass body that is copper, nickel and chrome
plated. The compression stems are all brass with
a double O-Ring seal and rubber seat washer.
The 4-inch wrist blade handles are brass with a color
coded hot (red) and cold (blue) index. The swivel

gooseneck spout is brass with a chrome plated n­ish and is tted with a water saving aerator that limits
the ow rate. The O-Rings and seals are rubber.

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M

Certied by IAPMO R&T to NSF/ANSI 61

MODEL NO. 0122-GSAELS

KITCHEN TOPMOUNT

Installation

Drawing

7-15-08

Brecksville, Ohio 44141

Central Brass

C O M P A N Y

Phone: [phone] Fax: [phone]

www.CentralBrass.com

MODEL NO. 0122-GSAELS

KITCHEN TOPMOUNT

Parts Breakdown

# Part # Description

1 4015-BAR Brass Coupling Nut

1 7133-AZ Zinc Dichromate Locknut

3 54 Steel Crowfoot Washer

4 1947 Brass Faucet Body

5 263-BC Bronze Seat

6 1028-Y Nylon Gasket

7 104 Brass Seat Washer Screw

8 901-WNN Seat Washer

9 453-FL Brass Left Thread O-Ring Stem

9 453-FR Brass Right Thread O-Ring Stem

10 1038-453 O-Ring

11 453-EWC Brass Left Thrread O-Ring Bonnet

11 453-EWH Brass Right Thread O-Ring Bonnet

12 4147-02-BLUE 4” Brass Handle

12 4147-02-BLUE 4” Brass Handle

13 107-FB Blue Plastic Index

13 107-FR Red Plastic Index

14 PF-107-FNP Brass Phillips Head Screw

15 1038-KN O-Ring

16 PF-741-DOA Brass Spout Adapter

17 PF-782-DES Brass Spout Nut

18 PF-157-GA-02 Brass Gooseneck Spout

19 30-M Female Aerator

20 SU-453-EL Lefth Thread O-Ring Stem Assembly

20 SU-453-ER Right Thread O-Ring Stem Assembly

The parts listed in the parts breakdown above
may not be offered separately as replacement
parts. Please review the Replacement Parts
page for the authorized replacement parts that
are available for this item.

7-15-08
