Instructions for use
TABLE OF CONTENTS Page
1 - GENERAL .....................................................................................................................................................................3
1.1 - GENERAL SAFETY REGULATIONS ................................................................................................................3
1.1.1 - STANDARD SAFETY DEVICES ..........................................................................................................3
1.2 - FIELD OF APPLICATION .................................................................................................................................3
1.3 - OVERALL DIMENSIONS ..................................................................................................................................3
1.4- TECHNICAL DATA..............................................................................................................................................4
2 - HANDLING AND LIFTING ...........................................................................................................................................4
3 - STARTUP .....................................................................................................................................................................4
3.1 - ANCHORING......................................................................................................................................................4
3.2 - ELECTRICAL CONNECTION ........................................................................................................................... 4
3.3 - FLANGE MOUNTING.........................................................................................................................................5
3.4 - WD SPACER .....................................................................................................................................................5
4 - CONTROLS AND COMPONENTS ..............................................................................................................................5
4.1 - MANUAL DISTANCE MEASUREMENT GAUGE .............................................................................................5
4.2 - KEYBOARD AND DISPLAY ...............................................................................................................................6
4.2.1 FUNCTION MENU MANAGEMENT ........................................................................................................7
5 - INSTRUCTIONS FOR USE OF THE WHEEL BALANCER ........................................................................................8
5.1 - SETTING THE WHEEL DIMENSIONS ............................................................................................................ 8
5.1.1 - DIMENSIONS UNIT OF MEASURE.......................................................................................................9
5.1.2 - PRESETTING WITH GAUGE EXTENSION ........................................................................................10
5.1.3 - DOUBLE OPERATOR PROGRAM ......................................................................................................10
5.2 - MEASUREMENT RESULT ............................................................................................................................11
5.3 - RECALCULATION OF THE UNBALANCE VALUES ...................................................................................... 11
5.4 - SPLIT FUNCTION (hidden weight) ..................................................................................................................12
5.5 - OUT OF BALANCE OPTIMIZATION................................................................................................................13
5.6 - AUTOMATIC MINIMISATION OF STATIC UNBALANCE ................................................................................ 14
6 - SET-UP ......................................................................................................................................................................15
6.1 - AUTODIAGNOSTICS.......................................................................................................................................15

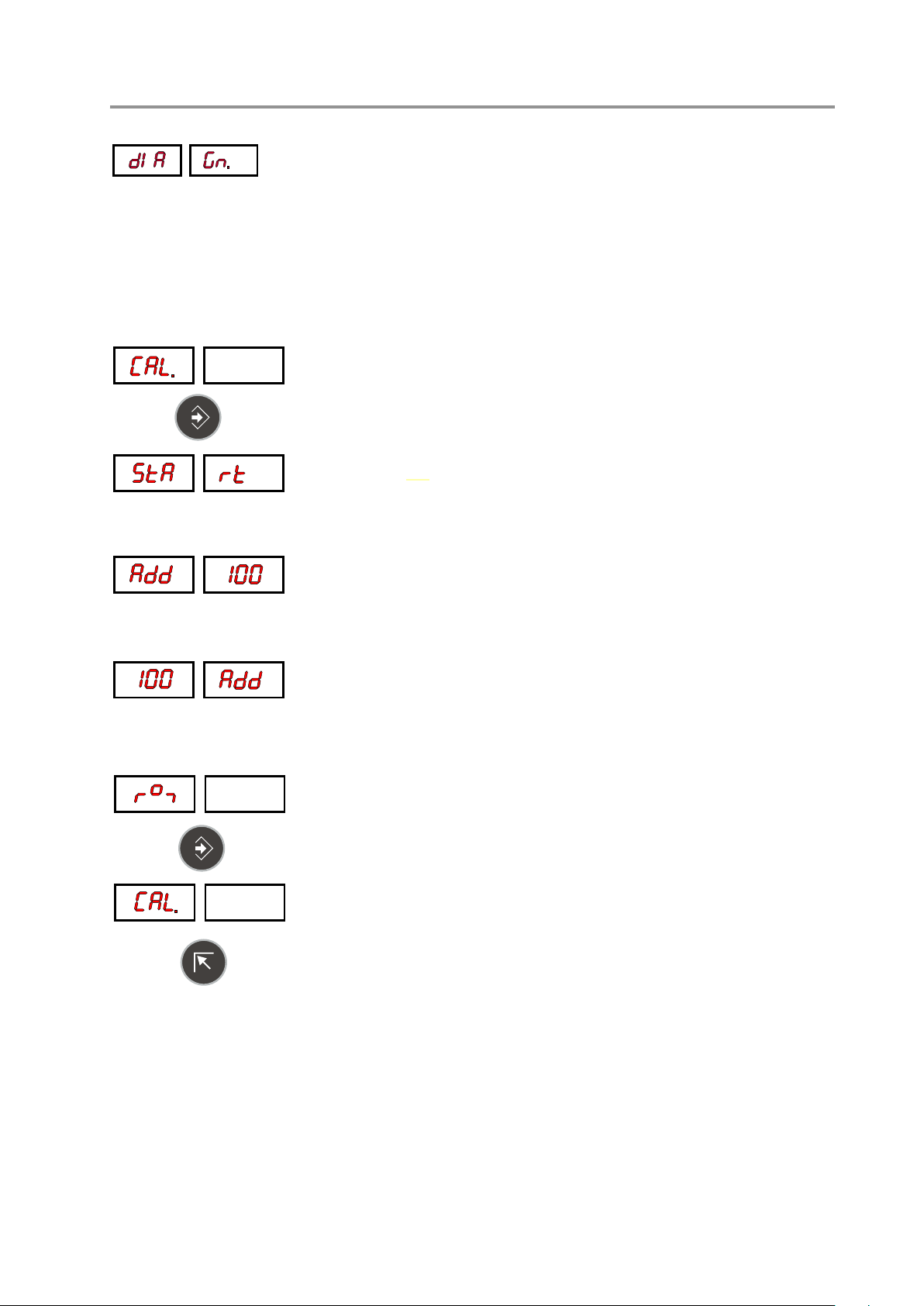

6.2 - AUTOCALIBRATION........................................................................................................................................15
7 - ERRORS ....................................................................................................................................................................16
7.1 - INCONSISTENT UNBALANCE READINGS ..................................................................................................17
8 - ROUTINE MAINTENANCE ........................................................................................................................................17
8.1 - REPLACING THE PROTECTION FUSES ......................................................................................................17
9 - LIST OF RECOMMENDED SPARE PARTS ...............................................................................................................17
I
I 0337 - 1
GB
I 0337 - 2
I 0337 - 3
GB
GB
956
500
926
1 - General
1.1 - General safety regulations
-The wheel balancer may only be used by duly authorized and trained personnel.
- The wheel balancer must not be used for purposes other than those described in the instruction manual.
- The wheel balancer must not be modied in any way except for those modications made
explicitly by the manufacturer.
- Do not remove the safety devices. Any work on the machine must be carried out by specialised personnel
only.
- Avoid using strong jets of compressed air for cleaning.
- Use alcohol to clean plastic panels or shelves (AVOID LIQUIDS CONTAINING SOLVENTS).
- Before starting the wheel balancing cycle, make sure that the wheel is securely locked on the ange.
- The machine operator must not wear clothes with apping parts. Do not allow unauthorized personnel to
approach the wheel balancer when the cycle is running.
- Avoid placing objects in the base which could impair the correct operation of the wheel balancing machine.
1.1.1 - Standard safety devices
- The wheel guard is not compulsory since the balancing speed is less than 100 min
-1.
1.2 - Field of application
The machine is designed for balancing wheels of cars, light commercial vehicles or motorcycles weighing less than 75 kg.
It can be operated in a temperature range of 0° to + 45° C.
The following functions are provided: ALU-S; SPLIT; Unbalance optimisation; Autodiagnostics; Autocalibration.
1.3 - Overall dimensions
1
I 0337 - 3
GB
I 0337 - 5
GB
1.4 - Technical data
Single-phase power supply 230 V - 50/60 Hz AC - 12/24 V DC
Protection class IP 54
Max. power absorbed 0,03 Kw
Balancing speed < 100 min
Cycle time for average wheel (14 kg) 6-8 seconds
Max. resolution of measurement 1 gram
Position resolution ± 1.4 °
Average noise < 70dB (A)
Rim-machine distance 0 - 210 mm
Rim width setting range 1.5” - 20” or 40 - 510 mm
Diameter setting range 10” - 26” or 265 - 665 mm
-1
2 - Handling and lifting
2 2a
Note: DO NOT LIFT THE WHEEL BALANCER USING OTHER GRIPS.
3 - Startup
3.1 - Anchoring
The machine can operate on any at non resilient oor.
Make sure that the machine rests solely on the three support points provided (Fig.2a).
3.2 - Electrical connection
The machine is provided with net supply (AC) and cable for battery supply (12-24VDC).
The supply voltage (and mains frequency) is given on the machine nameplate. It cannot be changed.
The machine should not be started up without proper earthing.
Connection to the mains should be through a slow acting safety swich rated at 0.5 A (230V). See attached diagram.
I 0337 - 4
GB
3.3 - Flange mounting
3
The wheel balancer is supplied complete with cone
anges
for xing wheels with a central hole. Other optional
anges can be mounted:
a) Remove the threaded end-piece A after unscrewing
the screw B.
b) Mount the new ange (see attached sheets).
Note: CAREFULLY CLEAN THE COUPLING
SURFACES BEFORE PERFORMING ANY
OPERATION.

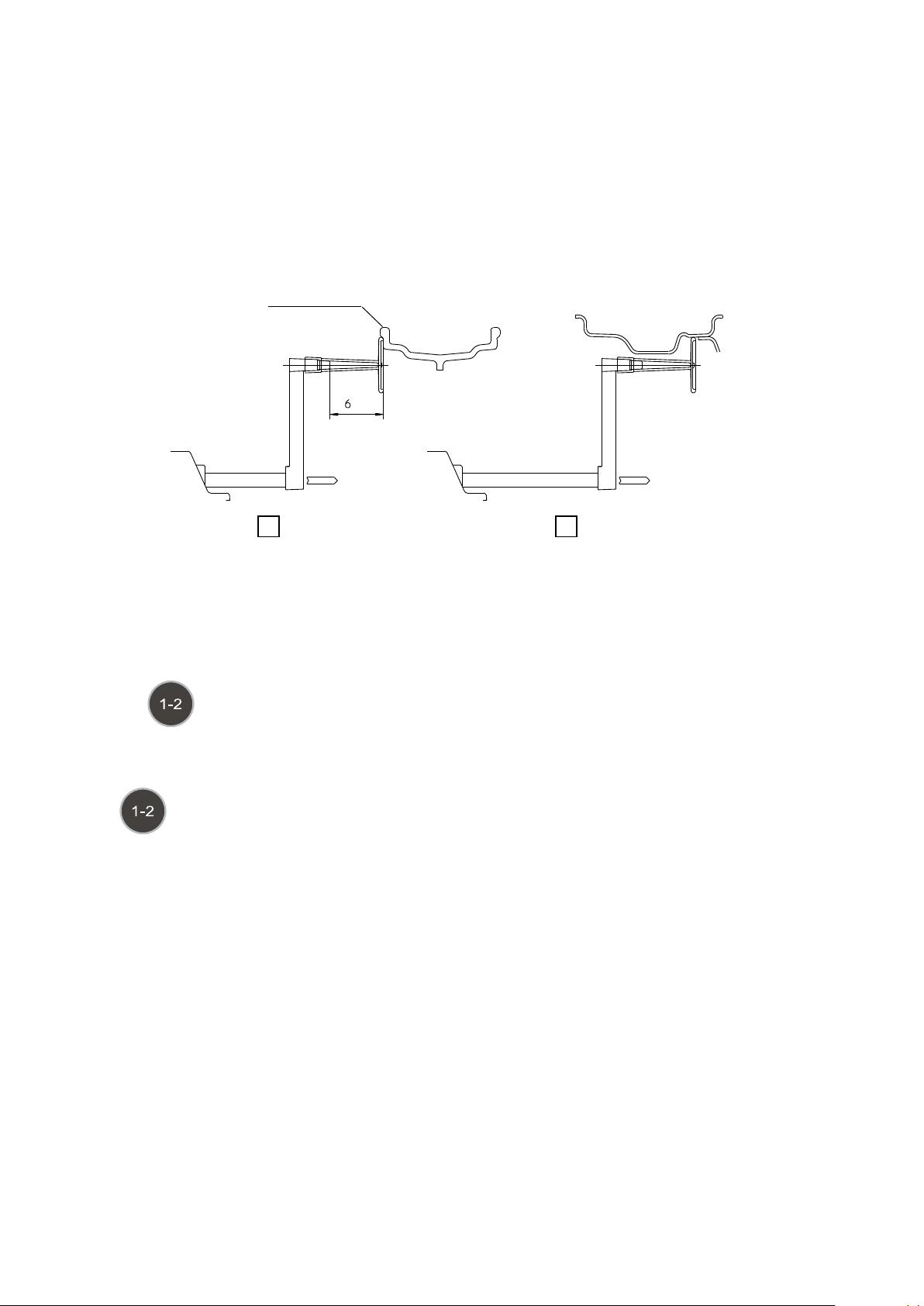

3.4 - WD spacer
When balancing very wide wheels (9”), there is not enough space to turn the distance gauge. To move the wheel
away from the machine side, t the WD spacer on the ange body and secure it with the standard issue nuts. When
centring the wheel with cone from the inside, mount the DC spacer to obtain spring thrust.
3a
4 - Controls and components
4.1 - Manual distance measurement gauge
This gauge serves to manually measure the distance between the point of application of the counterweight and the
machine.
I 0337 - 5
GB
I 0337 - 7
GB
4.2 - Keyboard and display
4
8 9
6
7
19
10
11
12
13
14
15
16
1-2 Digital readouts, AMOUNT OF UNBALANCE, inside/
outside
3-4 Digital readouts, POSITION OF UNBALANCE,
inside/outside
5 Indicators, selection made
6 Push button, FUNCTION MENU
7 Push button, SPLIT (unbalance resolution)
8 Unbalance optimization selection button
9 Push button, unbalance reading < 5 g (.25 oz)
10 ALUS correction mode selection button
17 18
3
1
2
4
5
11 Correction mode selection button
12 Selecting the unit of measure for diameter
and width
13 Push button, operator selection
14 MENU selection conrmation pushbutton
15 HOME push button
16 Manual DISTANCE setting button
17 Manual WIDTH setting button
18 Manual DIAMETER setting button
19 Indicators, selection made
Note: - Press buttons only with your ngers. Do not use the counterweight grippers or other pointed
objects.
- In case of audible alarm connected (see par.OPERATION FUNCTIONS MENU), any push button
operation sounds with a “beep” alarm.
I 0337 - 6
GB
