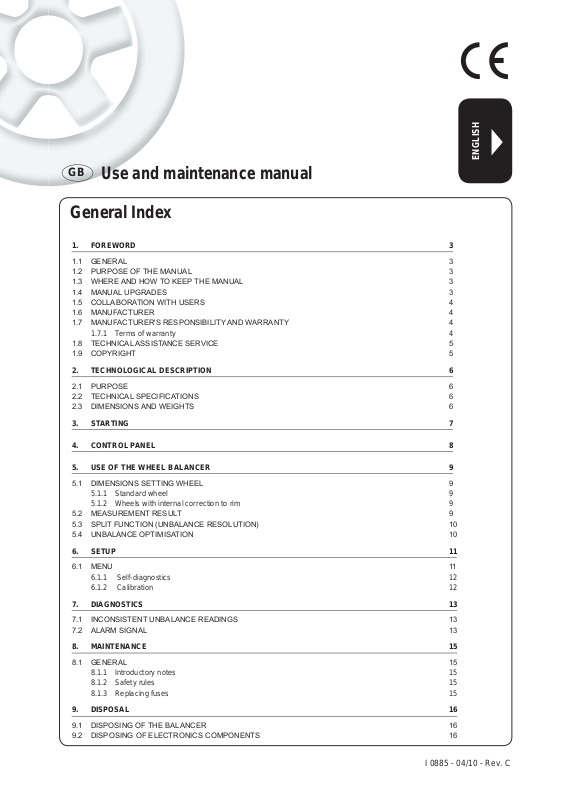

General Index
1. FOREWORD 3
1.1 GENERAL 3
1.2 PURPOSE OF THE MANUAL 3
1.3 WHERE AND HOW TO KEEP THE MANUAL 3
1.4 MANUAL UPGRADES 3
1.6 MANUFACTURER 4
1.7 MANUFACTURER'S RESPONSIBILITY AND WARRANTY 4
1.7.1 Terms of warranty 4
1.8 TECHNICAL ASSISTANCE SERVICE 5
1.9 COPYRIGHT 5
2. TECHNOLOGICAL DESCRIPTION 6
2.1 PURPOSE 6
2.2 TECHNICAL SPECIFICATIONS 6
2.3 DIMENSIONS AND WEIGHTS 6
3. STARTING 7
4. CONTROL PANEL 8
5. USE OF THE WHEEL BALANCER 9
5.1 DIMENSIONS SETTING WHEEL 9
5.1.1 Standard wheel 9
5.1.2 Wheels with internal correction to rim 9
5.2 MEASUREMENT RESULT 9
5.3
SPLIT FUNCTION (UNBALANCE RESOLUTION) 10
5.4 UNBALANCE OPTIMISATION 10
6. SETUP 11
6.1 MENU 11
6.1.1 Self-diagnostics 12
6.1.2 Calibration 12
7. DIAGNOSTICS 13
7.1 INCONSISTENT UNBALANCE READINGS 13
7.2 ALARM SIGNAL 13
8. MAINTENANCE 15
8.1 GENERAL 15
8.1.1 Introductory notes 15
8.1.2 Safety rules 15
8.1.3 Replacing fuses 15
9. DISPOSAL 16
9.1 DISPOSING OF THE BALANCER 16
9.2 DISPOSING OF ELECTRONICS COMPONENTS 16
I 0885 - 04/10 - Rev. C
10. SPARE PARTS 16
10.1 IDENTIFICATION AND ORDERING METHOD 16
11. ATTACHED DOCUMENTATION 16
Use and maintenance manual Rev. 04-2010
1. Foreword
ENGLISH
1.2 PURPOSE OF THE MANUAL
This manual, and the installation manual, contains the instructions required to use the machine safely and carry out routine maintenance work.
THIS MANUAL IS AN INTEGRAL PART OF THE INSTALLATION
WARNING
MANUAL WHICH SHOULD BE CONSULTED CONCERNING STARTING
AND USING THE MACHINE SAFELY.
READ CAREFULLY BEFORE CONTINUING.
1.1 GENERAL
The machine has been constructed in conformity with the current EC Directives and the technical standards imple­menting the requirements, as stated in the declaration of conformity issued by the manufacturer and attached to the manual.
This publication, hereinafter simply referred to as ‘man- ual’, contains all the information required to safely use
and service the machine referred to in the Declaration of Conformity. This appliance, hereinafter is generically referred to as
machine’.
The manual addresses operators instructed on the precau­tions to take in relation to the presence of electric current and moving devices. This publication is intended for all ‘users’ who as far as within their competence need to and/or are obliged to give instructions to others or operate on the machine themselves.
Any calibrations, adjustments and extraordinary mainte­nance operations are not considered in this document as they may only be performed by the service engineer who must work on the machine according to the technical and rated characteristics for which it was built.
Though it is fundamental to read this manual, it cannot replace skilled technical staff who must be adequately trained beforehand. The foreseen use and configurations of the machine are the only ones allowed by the manufacturer; do not attempt to use the machine in a different way.
Any other use or configuration must be agreed in advance with the manufacturer in writing and in this case an annex will be attached to this manual. For use, the user must also comply with the specific workplace legislation in force in the country where the machine is installed. The manual also refers to laws, directives, etc., that the user must know and consult in order to accomplish the goals that the manual sets out to achieve.
1.3 WHERE AND HOW TO KEEP THE MANUAL
These persons can be identified as follows:
- operators directly involved in transporting, storing, installing, using and servicing the machine from when it is put on the market until when it is scrapped;
- direct private users.
The original Italian text of this publication constitutes the only reference to resolve any interpretation controversies related to the translation into the European Community languages. This publication forms an integral part of the machine and must therefore be kept for future reference until final dismantling and scrapping of the machine.
Introduction
This manual (and relative attachments) must be kept in a safe and dry place and must always be available for consultation. Make a copy and keep it in the archive. When exchanging information with the manufacturer or the technical assistance staff authorised by the former, quote the rating plate information and the serial number of the machine.
This manual must be kept for the entire lifetime of the machine, and if necessary (e.g.: damage making all or
some of it illegible, etc.) the user must request another copy exclusively from the manufacturer, quoting the pub­lication code indicated on the cover.
1.4 MANUAL UPGRADES
This manual is an integral part of the machine and reflects the state of the art at the moment it was put on the market. The publication complies with the directives in force on that date; the manual cannot be considered inadequate as a result of regulatory updates or modifications to the
3
Use and maintenance manual Rev. 04-2010
machine.
Any manual upgrades that the manufacturer may see fit to send to users will become an integral part of the manual and must be kept together with it.
ENGLISH
1.5 COLLABORATION WITH USERS
The manufacturer will be pleased to provide its custom­ers with any further information they may require and will consider proposals for improving this manual in order to more fully satisfy the requirements it was written for.
In case of transfer of ownership of the machine, which must always be accompanied by the use and maintenance manual, the original user must inform the manufacturer of the name and address of the new user in order to allow it to send the new user any communications and/or updates deemed to be indispensable.
This publication is the property of the Manufacturer and may not be fully or partly reproduced without prior written agreement.
in this manual
- use of the machine by people who have not read and fully understood the contents of this manual;
- use in breach of specific regulations in force in the country of installation;
- modifications made to the machine, software and op­erating logic, unless authorised by the manufacturer in writing;
- unauthorised repairs;
- exceptional events.
Transfer of the machine to a third party must also include this manual; failure to include the manual automatically invalidates all the rights of the purchaser, including the terms of warranty, where applicable. If the machine is transferred to a third party in a country with a different language from the one written in this manual, the original user shall provide a faithful translation of this manual in the language of country in which the machine will operate.
1.7.1 Terms of warranty
The Manufacturer guarantees the machines it manufac­turers against all manufacturing or assembly faults for 12 (twelve) months from the date of collection or delivery.
1.6 MANUFACTURER
The machine identification data is indicated on the plate mounted on the machine.
The plate below is shown for the sake of example.
1.7 MANUFACTURER'S RESPONSIBILITY AND WARRANTY
In order to make use of the manufacturer's warranty, the user must scrupulously observe the precautions contained in the manual, in particular he must:
- never exceed the limits of use of the machine;
- always constantly and carefully clean and service the
machine;
- have the machine used by people of proven capacity
and attitude, adequately trained for the purpose.
The manufacturer declines all direct and indirect liability
caused by:
- use of the machine in a different way from that indicated
The Manufacturer undertakes to replace or repair any part which it deems to be faulty free of charge at its factory, carriage paid.
If a Manufacturer's repairman (or a person authorised by the same) is required to work at the user's facilities, the relative travel expenses and board and lodging shall be charged to the user. The free supply of parts under warranty is always subject to the faulty part being inspected by the manufacturer (or a person authorised by the same).
The warranty is not extended following repairs or other work done to the machine.
The warranty does not cover damage to the machine
deriving from:
- transport;
- neglect;
- improper use and/or use not in compliance with the instructions in the operating manual
- incorrect electrical connections.
The warranty is invalidated in case of:
- repairs made by people who were not authorised by the manufacturer;
- modifications that were not authorised by the manu­facturer;
- use of parts and/or equipment that were not supplied or approved by the manufacturer;
- removal or alteration of the machine identification plate.
4
Introduction
Use and maintenance manual Rev. 04-2010
1.8 TECHNICAL ASSISTANCE SERVICE
For any technical service operation, contact the manufacturer directly or an authorised dealer always quoting the model, the version and the serial number of the machine.
1.9 COPYRIGHT
The information contained in this manual may not be disclosed to third parties. Partial or total duplication, un­less authorised by the Manufacturer in writing, through photocopying, duplication or other systems, including electronic acquisition, is breach of copyright and can lead to prosecution.
ENGLISH
Introduction
5
2. Technological description
ENGLISH
Use and maintenance manual Rev. 04-2010
2.1 PURPOSE
It is used to balance the wheels of cars, vans, 4-WD, mo­torcycles and scooters weighing less than 75 Kg. It can be operated in the temperature range of 0° to + 45°C.
The machine can operate only on fl at non resilient fl oor.
To lift the machine, lever only on the base where the 3 support points are located. never, under any circustance, apply force to other points such as the spindle, head, or accessory shelf. It functions properly without having to fasten it to the floor with wheels weighing up to 35 kg; for heavier wheels, fasten it at the points indicated. Do not mount anything other than motorbike, car or truck tyres on the wheel balancer.
Thanks to the new and exclusive VDD (Virtual Direct Drive) system, reliable unbalance measurements can be made in a short time, almost half the time of the cycle used with respect to other balancers in this range.
1
3
The main features include:
direct selection of the metrical or Anglo-Saxon system machine settings menu. optimisation of tyre and rim unbalance. static programme, ALU / ALU “S” / SPLIT. automatic minimisation of static unbalance.
2.2 TECHNICAL SPECIFICATIONS
The following data refers to the balancer in its standard configuration.
Single phase power supply 115 or 230 V 50-60 Hz (see rating plate)
Protection class IP 54
Cycle time per wheel 4.7 seconds (5 3/4"x14") 15 Kg.
Balancing speed 100 min
Balancing accuracy 1 gram
Position resolution ± 1.4 °
Average noise < 70 dB(A)
Rim width settable 1.5" ÷ 20" or 40 ÷ 510 mm
Settable diameter
-1
10" ÷ 30" or 265 ÷ 765 mm
2
4
4
2.3 DIMENSIONS AND WEIGHTS
906
460
CONTROL PANEL1. LOCK NUT2. WEIGHT-TOOL HOLDER3. MANUAL GAUGE4.
The machine complete with flange weighs 110 kg.
952
6
Technological description
Use and maintenance manual Rev. 04-2010
3. Starting
ENGLISH
6. To switch on the balancer press the switch on the left-hand side of the machine.
BEFORE SWITCHING ON THE MACHINE, MAKE SURE THAT ALL THE
WARNING
CONNECTIONS DESCRIBED IN THE INSTALLATION CHAPTER
HAVE BEEN MADE CORRECTLY.
THE FOLLOWING OPERATIONS INVOLVE A POTENTIAL RISK FOR
THE OPERATOR, GIVEN THE PRESENCE OF VOLTAGE ON THE
EQUIPMENT. THE PERSONAL PROTECTIVE EQUIPMENT DESCRIBED
IN THE INSTALLATION MANUAL MUST BE WORN AND WORK
MUST BE DONE WITH DUE CARE AND ATTENTION.
OPERATIONS MAY ONLY BE PERFORMED BY A
SPECIALISED TECHNICIAN.
Before powering the machine, carry out the following
checks:
check that the balancing machine touches the floor 1.
at the three support points;
7. Position the wheel on the terminal with the inner part facing the balancer;
8 At this point, you can read the tyre measurements
and perform balancing.
2. make sure that all the parts of the balancer are cor rectly connected and fixed;
3. make sure that the parameters (voltage and frequency) of the mains power supply are compatible with those indicated on the rating plate of the balancer;
4. make sure the power cable is correctly connected;
5. make sure the machine shaft and flange hole are clean.
CAUTION
ANY TRACES OF DIRT MAY AFFECT BALANCING ACCURACY.
Starting
7
4. Control panel
ENGLISH
Use and maintenance manual Rev. 04-2010
1
13
3
11
16
5
14
15
Inner side UNBALANCE VALUE digital indicator1. Outer side UNBALANCE VALUE digital indicator2. Inner side UNBALANCE POSITION indicator3. Outer side UNBALANCE POSITION indicator4. DISTANCE setting5. DIAMETER setting6. WIDTH setting7. INNER SIDE correction position selection (selects and views the position for applying 8.
the correction weight)
STATIC and OUTER SIDE correction position selection (selects and views the position 9.
for applying the correction weight)
Grams/ounces selection10. SPLIT (unbalance resolution)11. Unbalance reading < 5 g (.25 oz) 12. Push button, operator selection13. Confirm MENU selection14. HOME15. FUNCTIONS menu16.
89
2
4
12
7
10
6
NEVER USE THE COUNTERWEIGHT GRIPPERS OR OTHER POINTED OBJECTS!
PRESS THE BUTTONS WITH YOUR FINGERS.
8
CAUTION
Control panel
Use and maintenance manual Rev. 04-2010
5. Use of the wheel balancer
ENGLISH
5.1 DIMENSIONS SETTING
WHEEL
5.1.1 Standard wheel
b
a
d
Set the DISTANa. CE “a” between the inner side of the wheel and the machine.
Use the relative gauge on the machine to measure
this.
a
5.1.2 Wheels with internal correction to rim
Select the correction position according to the method used to apply the weights to the wheels.
For this operation use the two buttons Use the gauge to measure the distances according to the
following scheme.
.
Sb. et the rated WIDTH, normally indicated on the rim,
or measure the width “b” using the supplied calliper
gauge.
b
Sc. et the rated DIAMETER “d” indicated on the tyre.
To set dE hold down the button
2 seconds, when any of the dimensions appear on the
display.
(red button) for
5.2 MEASUREMENT RESULT
Move the wheel manually until all the LED’s correspond­ing to the side light up. The display shows the measured unbalance.
Use of the wheel balancer
9
For unbalance within tolerance 0 (zero); using
Use and maintenance manual Rev. 04-2010
5.4 UNBALANCE OPTIMISATION
values within tolerance can be viewed.
ENGLISH
5.3 SPLIT FUNCTION (unbalance resolution)
The SPLIT function is used to position the adhesive weights behind the wheel spokes (angle > 18°) so that they are no longer visible (for alloy rims). Use this function in the ALU or STATIC mode where the adhesive weight is ap­plied inside the rim.
Enter the wheel dimensions in the ALU S mode and press START.
Turn the wheel to the outer side unbalance correction a. position.
2
1
Mob. ve one of the spokes to 12 o'clock (e.g.: 1) and press .
1
2
This operation is performed to reduce the static unba­lance of the wheel. It is suitable for static unbalance values in excess of 30 grams.
Ia. f no unbalance was measured before, ST ART appears on the display. Press this button to proceed.
Perform a manual spin
Makb. e a reference mark on the flange and the rim (using a piece of chalk, for example).
With the aid of a tyre remover, turn the tyre on the rim
by 180°.
Refi t the wheel in such a way that the reference marks
on the rim and the fl ange coincide.
Press START to begin reading.
Perform a manual spin
RH displc. ay: percentage reduction value
LH display: actual static unbalance value which can be
reduced by rotation
Followingc. the direction of rotation indicated by the position LED's, move spoke 2 to12 o'clock and press
, The value to use for correction in position 2 is displayed.
2
1
Mod. ve spoke 1 to the correction position as indicated by the position LED's
1
2
To return to the normal unbalance indication press any button.
INFORMATION
The spoke-to-spoke distance must be a minimum of 18° and a maximum of 120° (if not, errors 24, 25 or 26 ap­pear). Spokes with irregular or inconstant angles can be
compensated.
Md. ark the two positions of the rim and tyre, and turn the tyre on the rim until the positions coincide to achieve the optimisation shown on the display
TYRE
POSITION
RIM POSITION
To cancel optimisation at any time, press
.
10
Use of the wheel balancer
Use and maintenance manual Rev. 04-2010
6. Setup
6.1 MENU
This is used to personalise some balancer functions and to perform calibrations. To access this section, press the FUNCTIONS MENU button.
See chapter on UNBALANCE OPTIMIZATION
ENGLISH
diameter unit of
measure mm/inch
width unit of
measure mm/inch
approximates
1-5g or 0.1-.25 oz
See
AUTO-DIAGNOSTICS
See CALIBRATION
RETURNS TO MEASUREMENT SCREEN
Setup
11
6.1.1 Self-diagnostics
The machine can perform self-diagnostics to check the LED's on the control panel and make sure the encoder reads correctly.
ENGLISH
To perform this operation, view the SETUP menu.
Use and maintenance manual Rev. 04-2010
Perform a manual spin
A2. dd a standard weight of 60 g (2.00 oz) to the outer
side, in any position.
.
Perform a manual spin
Sh3. ift the standard weight from the outside to the
inside keeping the same position.
In the self-diagnostics sequence, all the LED's on the panel light up for a few seconds in order to check operation. When the LED's go out, the machine automatically moves on to the encoder reading phase. When the wheel is turned manually (forwards and backwards), the display shows its exact posi­tion. The value lies between 0 (zero) and 255.
6.1.2 Calibration
To calibrate the machine, proceed as follows:
Fit an average size wheel with a metal rim on the shaft. Example: 6” x 15” (± 1”). Set the wheel measurements as described in paragraph
SETTING WHEEL DIMENSIONS.
CAUTION
SETTING INCORRECT DIMENSIONS WOULD MEAN THAT THE MACHINE
IS NOT CORRECTLY CALIBRATED, THEREFORE, ALL SUBSEQUENT MEASUREMENTS WILL BE INCORRECT UNTIL CALIBRATION IS PER- FORMED ONCE AGAIN WITH THE CORRECT DIMENSIONS.
Perform a manual spin
Tu4. rn the wheel until the standard weight is at the top
(12 o'clock).
End of calibration.5.
To cancel calibration at any time, press
.
Display the SETUP menu:
Press 1.
function.
or
12
to view view the CALIBRATION
Setup
Use and maintenance manual Rev. 04-2010
7. Diagnostics
7.1 INCONSISTENT UNBALANCE
READINGS
In some cases, when a wheel that has just been balanced is repositioned on the balancer, the machine can detect an unbalance.
This is not a machine problem but is due to faulty mounting of the wheel on the flange. In other words, when mount­ing the wheel after initial balancing, it has taken another position with respect to the balancer shaft axis.
If the wheel has been mounted on the flange with screws, the screws may not have been tightened correctly (criss­cross sequence) or the tolerances of the holes drilled in the wheel may be too large. Small errors, up to 10 grams (4 oz), are to be considered normal in wheels locked with the relative cone: The error is normally greater for wheels locked with screws or studs.
ENGLISH
If, after balancing, the wheel is still unbalanced when re­fitted on the vehicle, this could be due to an unbalanced brake drum or, very often, the tolerances of the holes drilled in the rim and drum are too large. In this case, balancing should be performed using a balancer with the wheel mounted on the vehicle.
7.2 ALARM SIGNAL
The machine has a self-diagnostics cycle which identi­fies the most frequent malfunctions during the normal work cycle. These malfunctions are processed by the system and shown on the display.
Diagnostics
13
Use and maintenance manual Rev. 04-2010
ENGLISH
THE INFORMATION IN THE POSSIBLE REMEDY COLUMN REQUIRES WORK TO BE PERFORMED BY SPECIALIST TECHNICIANS OR OTHER AUTHOR-
ISED PEOPLE WHO MUST ALWAYS WORK USING THE PERSONAL PROTECTIVE EQUIPMENT INDICATED IN THE INSTALLATION MANUAL. IN SOME
CASES, THIS WORK CAN BE PERFORMED BY A NORMAL OPERATOR.
WARNING
ERROR CAUSE POSSIBLE REMEDY
Black The wheel balancer does not switch
on.
Err. 1 No rotation signal. Use the self-diagnostics function to check the encoder.1.
Err. 2 Speed too low during detection.
During the unbalance measurement revolutions, the wheel speed has fallen to below 42 rpm.
Err. 3 Unbalance too high. Check the wheel dimensions setting.1.
Err. 4 Rotation in opposite direction. Use the self-diagnostics function to check the encoder.1.
Err. 7 Err. 8 Err. 9
Err.14 Err.15 Err.16 Err.17 Err.18 Err. 19
Err. 20
Err.22 Maximum number of spins possible for
Err. 23 The wheel does not slow down 1. Remember to release the spinning device when the displays go off
Err. 24
Err. 25 Distance between the spokes
NOVRAM parameter read error Switch off the machine and wait for at least ~ 1 min;1.
Unbalance measurement error. Use the self-diagnostics function to check the encoder.1.
Wheel still. The wheel must remain still for more than one second after START.
the unbalance measurement has been exceeded.
Distance between the spokes less than 18 degrees.
greater than 120 degrees.
Check the machine is properly connected to the mains power 1.
supply.
Check the fuses on the power board and replace if necessary.2. Replace the CPU board.3.
Replace the encoder.2. Replace the CPU board.3.
Make sure that a vehicle wheel is mounted on the wheel balancer.1. Use the self-diagnostics function to check the encoder.2. Detach the measuring head connector from the board and do a 3.
spin (if no error is detected, replace the measuring heads).
Replace the CPU board.4.
Check the detection unit connections.2. Mount a wheel with more or less known unbalance (less than 3.
100 grams) and check the response of the machine.
Replace the CPU board.4.
Check the encoder bearing/spring.2.
re-start the machine and check it works properly.
Repeat machine calibration.2. Replace the CPU board.3.
Check the detection unit connections.2. Check the machine earthing connection.3. Mount a wheel with more or less known unbalance (less than 4.
100 grams) and check the response of the machine.
Replace the CPU board.5.
Use the self-diagnostics function to check the encoder.1. Check the connections on the power board.2. Replace the CPU board.3.
1. Check that a vehicle wheel has been mounted on the wheel balancer.
2. Use the self-diagnostics function to check the encoder
3. Replace the computer board.
2. Use the self-diagnostics function to check the encoder
3. Replace the computer board.
The minimum distance between the spokes where the 1.
unbalance is to be split must be greater than 18 degrees.
Repeat the SPLIT function increasing the distance between 2.
the spokes.
The maximum distance between the spokes where the 1.
unbalance is to be split must be less than 120 degrees.
2. Repeat the split function increasing the distance between the spokes.
Err. 26 First spoke too far from the unbal-
ance
14
The maximum 1. distance between the unbalance position and
the spoke must be less than 120 degrees.
Repeat the split function increasing the distance between the2.
spokes and the unbalance.
Diagnostics
Use and maintenance manual Rev. 04-2010
8. Maintenance
ENGLISH
8.1 GENERAL
CAUTION
BEFORE PERFORMING ANY MAINTENANCE OPERATIONS, MAKE SURE
THE MACHINE HAS BEEN DISCONNECTED FROM THE MAINS POWER SUPPLY. ALWA YS USE THE PERSONAL PROTECTIVE EQUIPMENT
INDICATED IN THE INSTALLATION MANUAL.
8.1.1 Introductory notes
This machine has been designed so as not to require rou­tine maintenance, apart from accurate periodic cleaning. It is important to keep the machine perfectly clean in or­der to prevent dust or impurities from compromising the operation of the balancer.
WARNING
THE PEOPLE RESPONSIBLE FOR CLEANING THE AREA WHERE THE
MACHINE IS INSTALLED MUST WEAR PERSONAL PROTECTIVE EQUIPMENT IN ORDER TO WORK IN SAFETY AND ACCORDING TO THE CURRENT
OCCUPATIONAL HEATH AND SAFETY REGULATIONS.
Specialist staff must be authorised and especially trained concerning the dangers that may arise during operation and the correct methods for avoiding them. They must always work with great care and pay full at­tention.
If, exceptionally, the staff removes the guards to carry out a particular specialist technical maintenance, inspection or repair job, they are required to put them back after work.
After work, staff must make sure that foreign objects, in particular mechanical pieces, tools or devices used dur­ing the operative procedure that could cause damage or malfunctions are not left inside the balancer.
For safety, before starting work, maintenance, inspection and repair staff must disconnect all power sources and take all the necessary preventive safety measures.
As well as operating frequencies, the operations described below indicate the qualifications that staff must possess in order to perform the operation.
8.1.3 Replacing fuses
Some protection fuses are located on the power board (see wiring diagrams) accessible by dismantling the weight shelf). If fuses require replacement, use ones with an identical current intensity.
As extraordinary maintenance must be performed by service staff or, in any case, by specifically authorised and trained people, is not dealt with in this manual.
8.1.2 Safety rules
Performing specialist activities on the equipment, particu­larly if the guards need to be dismounted, exposes people to serious danger due to the presence of potentially live parts.
The rules shown below must be scrupulously followed.
People must always use the Personal Protective Equip­ment indicated in the Installation Manual. During activi­ties, unauthorised people may not access the equipment and WORK IN PROGRESS signs will be erected in the department in such a way that they are visible from every place of access.
Maintenance
15
Use and maintenance manual Rev. 04-2010
9. Disposal
ENGLISH
CAUTION
THE INSTRUCTIONS IN THIS CHAPTER ARE INDICATIVE. REFER TO
THE REGULATIONS IN FORCE IN THE COUNTRY WHERE THE EQUIP-
MENT IS USED.
9.1 DISPOSING OF THE BALANCER
The balancer must be disposed of after dismounting the various parts.
For disposal operations, as well as wearing the Personal Protective Equipment indicated in the INSTALLATION MANUAL, refer to the instructions and diagrams in this manual. If necessary, request specific information from the manufacturer.
Once you have removed the various parts and components, separate them into the different types of materials according to the differentiated waste disposal regulations in force in the country where the machine is dismantled.
If the various components must be stored before being taken to the dump, make sure to keep them in a safe place protected from atmospheric agents in order to prevent them from contaminating the ground and the water table.
10.
Spare parts
10.1 IDENTIFICATION AND ORDERING METHOD
The various parts can be identified using the explodeddraw­ings, the electrical drawings and diagrams in the machine technical file which is archived by the Manufacturer to which a request can be made.
For off-the-shelf parts, the technical manuals or the supplier's original documents can be provided if the Manufacturer deems this to be useful.
If not supplied, this documentation is also included in the machine Technical File, archived by the Manufacturer, as regards by Ministerial Decree 98/37/EC. In this case, contact the Technical Service to identify the required piece.
If the required pieces are not in any position or they can-
not be identified, contact the Technical Service, specify­ing the type of machine, its serial number and year of construction.
This information is indicated on the machine identifica­tion plate.
9.2 DISPOSING OF ELECTRONICS COMPONENTS
Community directive 2002/96/EC, assimi-
lated in Italy with legislative decree n° 151 of 25th July 2005, requires electrical and electronic equipment manufacturers and users to comply with a number of obliga­tions concerning the collection, treatment, recovery and disposal of this waste.
Please scrupulously comply with these waste disposal regulations. Remember that abusive dumping of this waste leads to the application of the administrative penalties established by current law.
11. Attached documentation
If not supplied, this documentation is included in the Techni­cal File of the machine, archived by the Manufacturer.
In this case, contact the Technical Service for detailed information concerning the machine.
16
Disposal – Spare parts – Attached documents
Loading...
