CEMB USA C202 User Manual

Instructions for use
I

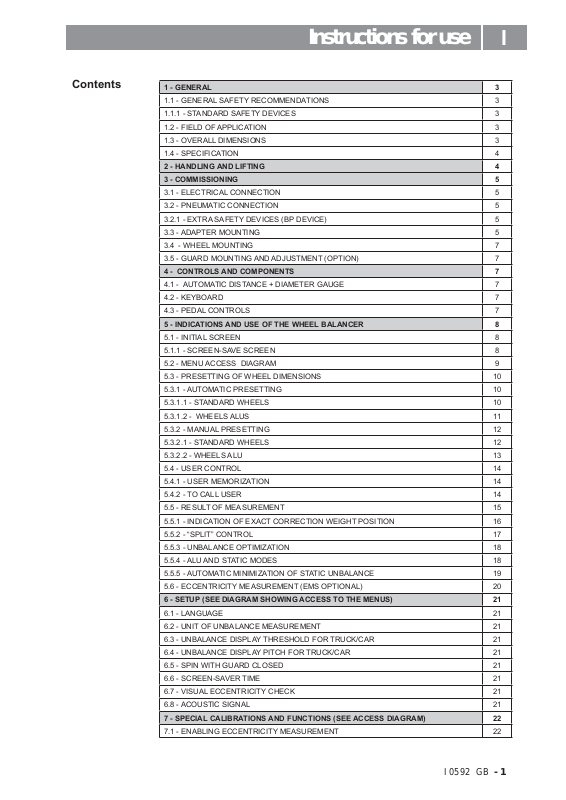

Contents
1 - GENERAL 3
1.1 - GENERAL SAFETY RECOMMENDATIONS 3
1.1.1 - STANDARD SAFETY DEVICES 3
1.2 - FIELD OF APPLICATION 3
1.3 - OVERALL DIMENSIONS 3
1.4 - SPECIFICATION 4
3 - COMMISSIONING 5
3.1 - ELECTRICAL CONNECTION 5
3.2 - PNEUMATIC CONNECTION 5
3.2.1 - EXTRA SAFETY DEVICES (BP DEVICE) 5
3.3 - ADAPTER MOUNTING 5
4 - CONTROLS AND COMPONENTS 7
4.1 - AUTOMATIC DISTANCE + DIAMETER GAUGE 7
4.2 - KEYBOARD 7
4.3 - PEDAL CONTROLS 7
5 - INDICATIONS AND USE OF THE WHEEL BALANCER 8
5.1 - INITIAL SCREEN 8
5.1.1 - SCREEN-SAVE SCREEN 8
5.2 - MENU ACCESS DIAGRAM 9
5.3 - PRESETTING OF WHEEL DIMENSIONS 10
5.3.1 - AUTOMATIC PRESETTING 10
5.3.1.1 - STANDARD WHEELS 10
5.3.1.2 - WHEELS ALUS 11
5.3.2 - MANUAL PRESETTING 12
5.3.2.1 - STANDARD WHEELS 12
5.3.2.2 - WHEELS ALU 13
5.4 - USER CONTROL 14
5.4.1 - USER MEMORIZATION 14
5.4.2 - TO CALL USER 14
5.5 - RESULT OF MEASUREMENT 15
5.5.1 - INDICATION OF EXACT CORRECTION WEIGHT POSITION 16
5.5.2 - “SPLIT” CONTROL 17
5.5.3 - UNBALANCE OPTIMIZATION 18
5.5.4 - ALU AND STATIC MODES 18
5.5.5 - AUTOMATIC MINIMIZATION OF STATIC UNBALANCE 19
5.6 - ECCENTRICITY MEASUREMENT (EMS OPTIONAL) 20
6 - SETUP (SEE DIAGRAM SHOWING ACCESS TO THE MENUS) 21
6.1 - LANGUAGE 21
6.2 - UNIT OF UNBALANCE MEASUREMENT 21
6.3 - UNBALANCE DISPLAY THRESHOLD FOR TRUCK/CAR 21
6.4 - UNBALANCE DISPLAY PITCH FOR TRUCK/CAR 21
6.5 - SPIN WITH GUARD CLOSED 21
6.6 - SCREEN-SAVER TIME 21
6.7 - VISUAL ECCENTRICITY CHECK 21
6.8 - ACOUSTIC SIGNAL 21
7 - SPECIAL CALIBRATIONS AND FUNCTIONS (SEE ACCESS DIAGRAM) 22
7.1 - ENABLING ECCENTRICITY MEASUREMENT 22
I 0592 - 1GB
7.2 - PRESETTING THE CUSTOMER AND USER NAME 22
7.3 - CALIBRATIONS 22
7.3.1- ADAPTER ECCENTRICITY CORRECTION 22
7.3.2 - WHEEL BALANCING MACHINE CALIBRATION 22
7.3.3 - WHEEL BALANCING MACHINE SELF-TEST 22
7.3.3.1 - TO CHECK THE ENCODER 23
7.4 - RS232C SERIAL PORT MANAGEMENT (OPTION) 23
8 - ERRORS 24
9 - ROUTINE MAINTENANCE (FOR NON SPECIALIZED PERSONNEL ONLY) 25
9.1 - ADJUSTING BELT TAUTNESS 25
9.2 - REPLACING FUSES 25
9.3 - AIR CIRCUIT MAINTENANCE 25
I 0592 - 2 GB
1 - GENERAL
1.1 - General safety recommendations
The balancing machine should only be used by duly authorized and trained personnel. The balancing machine should not be used for purposes other than those described in the instruction
manual. ▪ Under no way should the balancing machine be modifi ed except for those modifi cations made explicitly by the manufacturer. ▪ Never remove the safety devices. Any work on the machine should only be carried out by duly authorized specialist personnel.
Do not use strong jets of compressed air for cleaning. Use alcohol to clean plastic panels or shelves (AVOID LIQUIDS CONTAINING SOLVENTS). Before starting the wheel balancing cycle, make sure that the wheel is securely locked on the adapter. The machine operator should not wear clothes with apping edges. Make sure that unauthorized person
nel do not approach the balancing machine during the work cycle. Avoid placing counterweights or other objects in the base which could impair the correct operation of the balancing machine.
For TFT monitors, see the specifi c instructions attached.
1.1.1 - Standard safety devices
STOP push button for stopping the wheel under emergency conditions. The safety guard (option) of high impact plastic is with shape and size designed to prevent risk of
counterweighhyghts from fl ying out in any direction except towards the fl oor. A microswitch prevents starting the machine if the guard is not lowered and stops the wheel whenever the guard is raised. Protection system on LIFT control.
1.2 - Field of application
The machine is designed for balancing wheels weighing up to 250 kg. It can be operated within a temperature range of 0° to + 45°C. EMS option: can measure radial geometric deformity (run-out) with all truck wheels.
1.3 - Overall dimensions
1
I 0592 - 3
GB
1.4 - Specifi cation
Single phase power supply 230 - 400 V Three-phase
Protection class IP 54
Max. power consumption 1,5 Kw
Monitor TFT 15”
Balancing speed 160 min-1 for cars - 70 min-1 for trucks
Cycle time for wheel 8 to 20 seconds
Balancing accuracy 1 gram for cars / 10 grams for trucks
Position resolution ± 1.4°
Average noise level < 70 dB(A)
Distance rim - machine 0 - 300 mm (400 mm max. presettable)
Rim width setting range 1.5” to 20” or 40 to 510 mm
Diameter setting range 10 to 30” or 265 to 765 mm
Max. wheel weight 250 kg
Max. wheel diameter 1300 mm
2
Min/max. compressed air pressure 8 to 10 kg/cm
approx. 0.8 to 1MPa
approx. 8 to 10 BAR
approx. 115 to 145 PSI
2 - HANDLING AND LIFTING
The balancing machine must be lifted only by levering on the substructure / base at the 3 specifi c fi xing points. Other points - such as the spindle, the workhead or the accessory bench - must not be subject to any kind of force.
Make sure that the balancing machine contacts the fl oor at all three support points. It will operate correctly without having to be secured to the ground.
2
2a
I 0592 - 4
GB
3 - COMMISSIONING
3.1 - Electrical connection
THE ELECTRICAL CONNECTION MUST BE MADE BY SPECIALIZED PERSONNEL. CONNECTION TO THE SINGLE PHASE MAINS MUST
BE MADE BETWEEN PHASE AND NEUTRAL, AND NEVER, UNDER ANY CIRCUMSTANCES, BETWEEN PHASE AND EARTH (GROUND).
E
FFICIENT EARTHING (GROUNDING) IS ESSENTIAL FOR CORRECT MACHINE OPERATION. THE MANUFACTURER DECLINES ALL
RESPONSIBILITY AND WARRANTY IN THE EVENT OF INCORRECT CONNECTION.
Before connecting the machine to the mains through relative cable, check that the mains voltage matches the one shown on the nameplate at the back of the balancing machine. Rating of the electrical connection should be on the basis of the machine electrical power consumption (see nameplate).
The machine mains supply cable should be fi tted with a plug conforming to current regulations.
It is recommended to provide the machine with its own electrical connection through an automatic switch.
When connection is made directly to the main control panel without using any plug, it is advisable to padlock the
main switch of the balancing machine in order to limit its use to authorized personnel only.
3.2 - Pneumatic connection
Connection to the compressed air supply is available on the fi lter - regulator - lubrication unit located on the rear of
the balancing machine. The lift is controlled by a pedal that can be positioned ad lib (NOTE: keep away from lift movement area).The ascent and descent speed can be adjusted on the pedal according to need. The air circuit is
designed to ensure signifi cant “elasticity” of movement for the lift whatever the position of its travel; this means that the position of the wheel can be adjusted with minimal manual effort.
3.2.1 - Extra safety devices (BP device)
A one-way valve prevents accidental release of the wheel should pressure be cut out during the balancing
cycle.
Pressure switch to halt the motor if there is no pressure. Always actuate the unlocking control pedal with
the machine stationary in order to avoid stress and abnormal wear on the adapter.
3.3 - Adapter mounting
Before fi tting the adapter on the shaft of the balancing machine, make sure that the shaft and the adapter centering area are clean. Clamp the adapter on the shaft of the balancing machine. The machine can be operated with CEMB adapters for both trucks and cars (
fi gg. 3 e 3a). The vehicle adapter is locked manually with a threaded ring
nut.
3
- Truck adapter
- Car adapter
3a
I 0592 - 5
GB
TRUCK ADAPTER FITTING INSTRUCTIONS
A
Clean the surface on which the adapter will be fi tted and push the pneumatic locking pedal to extract the central tie-rod
C
Release the pneumatic locking pedal so that the tie-rod retracts together with the entire adapter
B
Holding the pneumatic locking pedal depressed, screw the internal cap onto the central tie-rod
D
Centre and lock the adapter with the 4 Allen screws
E
Truck adapter fi tting instructions
3.4 - Wheel mounting
The wheels should be fastened with one of the numerous adapters manufactured by CEMB.
N.B.: Incorrect centering inevitably causes unbalance.
3.5 - Guard mounting and adjustment (option)
Fasten the components to the base as illustrated in specifi c exploded view.
1.
The positions of these guards can be adjusted using the special screws accessed from inside the main support.
2.
Check that the microswitch is held down when the guard is closed.
3.
Adjust the angular position of microswitch control.
4.
4 - CONTROLS AND COMPONENTS
4.1 - Automatic distance + diameter gauge
It allows measurement of the distance from the machine and the wheel diameter at the point of application of the counterweight. It also allows correct positioning of the counterweights inside rim by using the specifi c function (
INDICATION OF EXACT CORRECTION WEIGHT POSITION) which allows reading, on the monitor, the position used for
the measurement inside the rim (for calibration, see the corresponding paragraph).
The gauge can only be used with the counterweight pincers mounted.
4.2 - Keyboard
FUNCTION KEYS: they immediately select function indicated on the monitor
Selection of special functions
Press the buttons with the fi ngers only
Never use the counterweight pincers or other pointed objects.
When the beep signal is enabled (
is accompanied by a “beep”.
The TFT monitor is NOT the TOUCH SCREEN type.
Confi rm
Starts measuring cycle
ACOUSTIC SIGNAL), pressing of any push button
Interrupts machine cycle
4.3 - Pedal controls
The machine is equipped with a pedal to lock/release the pneumatic spindle and a pedal to control the lift .
I 0592 - 7GB
5 - INDICATIONS AND USE OF THE WHEEL BALANCER
The monitor shows several information and suggests various alternative ways of use to the operator. This is done through various “screens”.
5.1 - Initial screen
Buttons enabled
: main functions screen (
: type of correction ( ALU AND STA TIC MODES)
: Vehicle/truck selection
: balancing spin (
Dimensions gauge : when extracted, the Dimensions screen is selected ( PRESETTING OF WHEEL DIMEN-
SIONS).
If the machine remains on the initial screen for a certain amount of time without being used, the system is automati­cally switched to a screen-save. Striking of any key, movement of the wheel or distance + diameter gauge will cause automatic switching from the screen-save menu to the initial screen.
5.1.1 - Screen-save screen
N.B.: Name of the wheel balancer’s owner. Can be preset via the monitor (
THE CUSTOMER AND USER NAME).
RESULT OF MEASUREMENT)
MENU ACCESS DIAGRAM)
PRESETTING
I 0592 - 8 GB
