Page 1
Scoops
Product Line

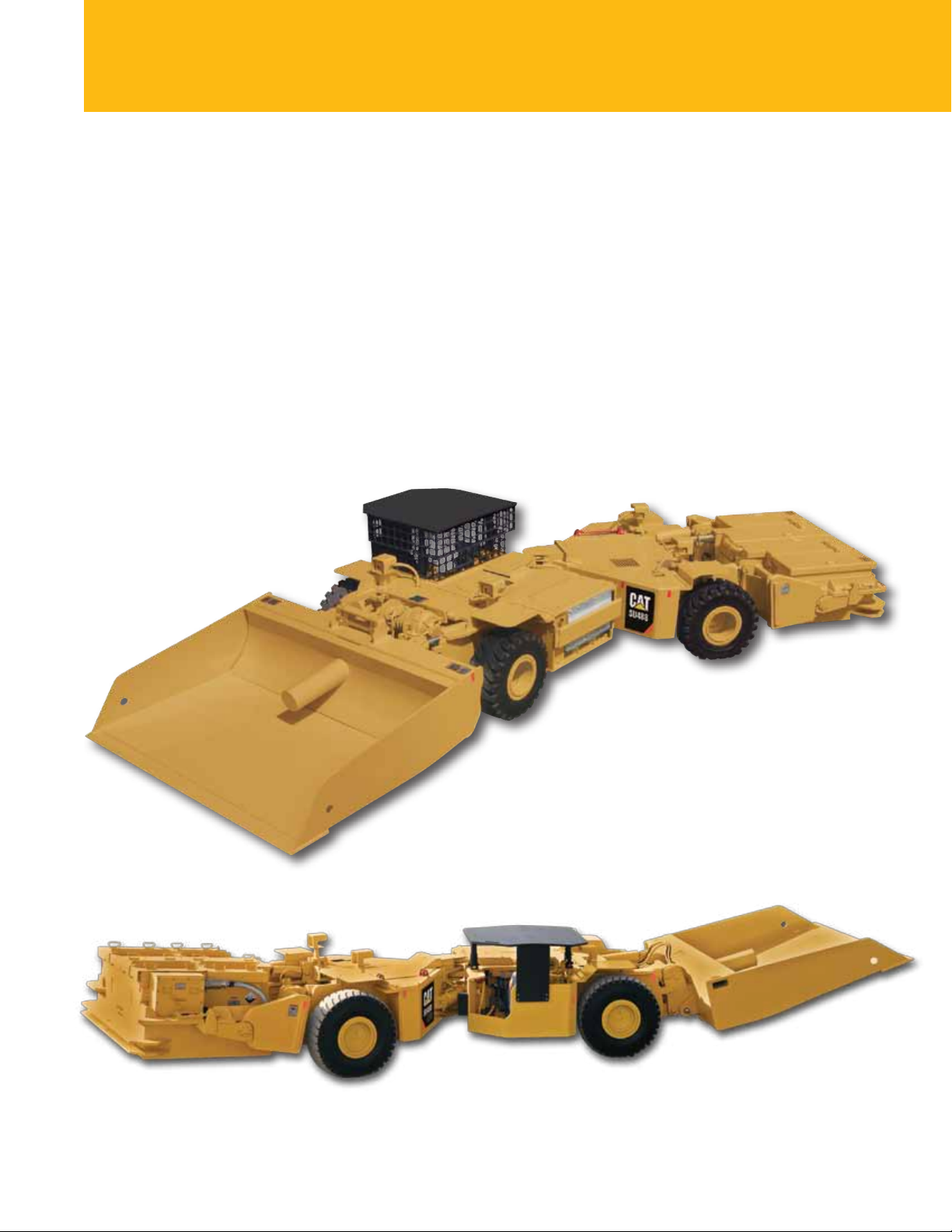

Page 2
The Section Workhorse
With over 40 years’ experience and over 6,500 battery-powered units produced, the Cat® scoop is the obvious
choice for a low-maintenance, high-productivity utility vehicle. The products from the No. 1 manufacturer of
battery-powered mining machinery are setting the pace in efficient and reliable underground utility vehicles.
The SU488 is the strongest and most rugged low-profile scoop ever built.
2
Page 3
Cat® Scoops Features
• Oversize center sections
• Tape switch type emergency stops
• Wet-disc service brakes
• Cat IGBT electric controllers
(optional HIPAC 10 AC drive)
• Multi-purpose contoured bottom bucket
• Planetary wheel drives
• Ground-level battery change system
The Cat Control System
We have led the way in increasing the productivity
of battery powered mining equipment. Our control system
eliminates commutating coils and capacitor banks and is
able to provide a microprocessor-based motor controller.
Using the dash-mounted diagnostic display and the
handheld calibrator/diagnostic unit, difculties can be
overcome in short order.
3

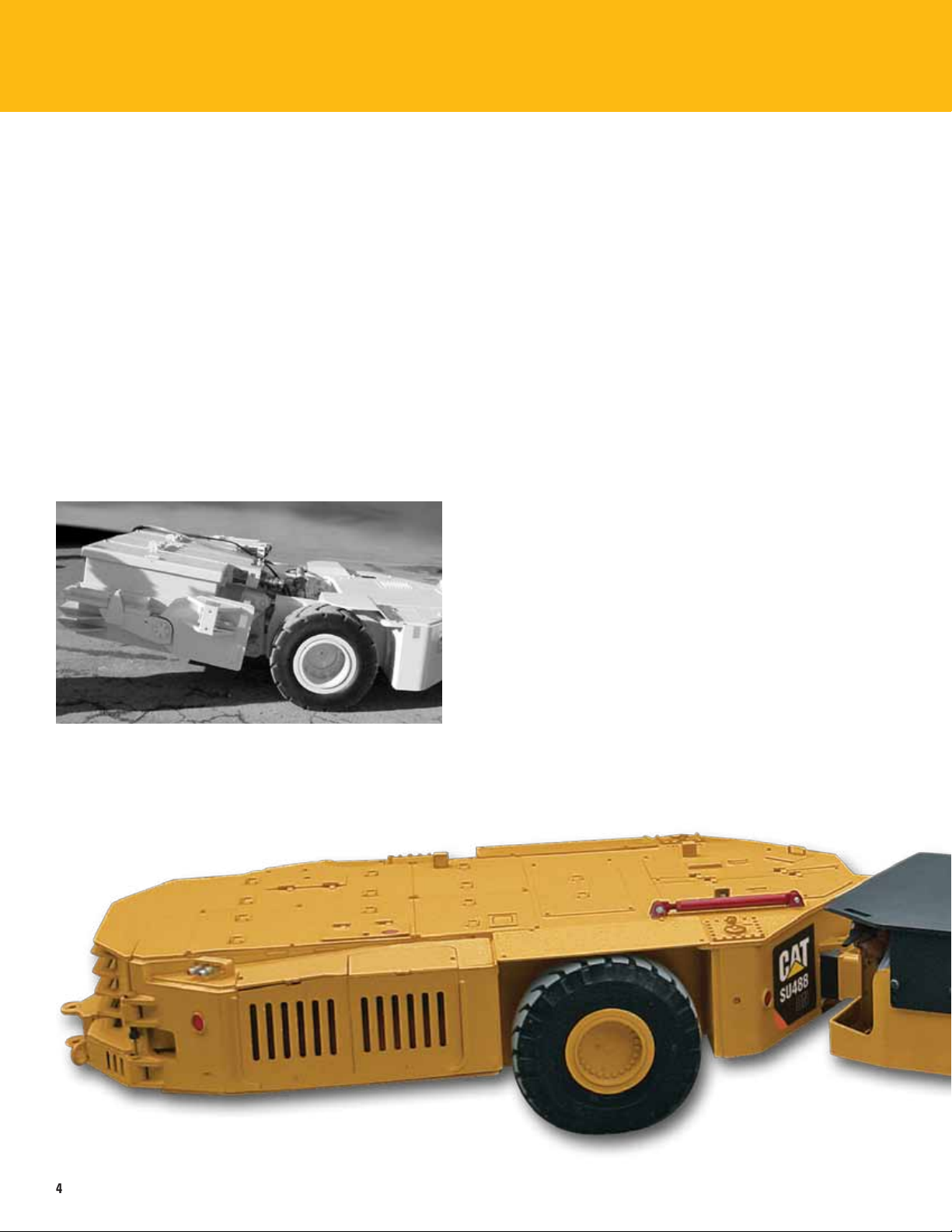

Page 4
State-of-the-Art Drive Technology
Optional HiPAC 10 VFD
The Cat HiPAC 10 is a DC to AC variable-frequency
inverter control that drives high-performance AC
electronic motors, which have a superior speed-torque
characteristics. It is up to 14% more efcient than
traditional DC motors. This means higher loaded tram
speeds, more responsive hydraulic functions and more
work per battery charge.
Mine Duty, 37 kW/50 hp Tram Motor
The scoop is equipped with a 50 hp, 110 V DC, class H
insulation series wound traction motor. An Optional
100 hp AC tram motor is available with the HiPAC 10
VFD Control System.
Explosion Proof, 11.9 kW/16 hp Pump Motor
All Cat utility scoops feature large hydraulic uid
reservoirs for maximum cooling capacity. Each reservoir
is equipped for easy uid-level monitoring. The machines
are provided with 10-micron return line ltration and
a magnetic particle sump strainer. For long life and
dependability, the main implement pumps are helical gear,
xed displacement. Dash-mounted gauges provide the
operator with continuous monitoring of the status of the
hydraulic system. An optional 35 kW (47 hp) AC Pump
motor with HiPAC 10 VFD control system is available.
Heavy-duty Drive Train
With options and features like full inboard planetary axles
and bulletproof outboard and hub-end planetary axles,
the Cat Scoop is the right combination for any application.
For unparalleled speed and maximum reliability, the
SU488 offers dual 37.3 kW (50 hp) tram motors.
On-demand, Axle Difflock
With the ability to engage a battery from below grade, and to vary the
ground clearance of the battery in undulating conditions, the Cat® Scoop
is able to thrive in varying mining environments.
Four-wheel drive for when conditions get tough,
planetary axles with wet disc service brakes, helical,
parallel gearbox, spring applied, hydraulically-released
parking brakes and other features all combine to provide
rock climbing gradeability.
4

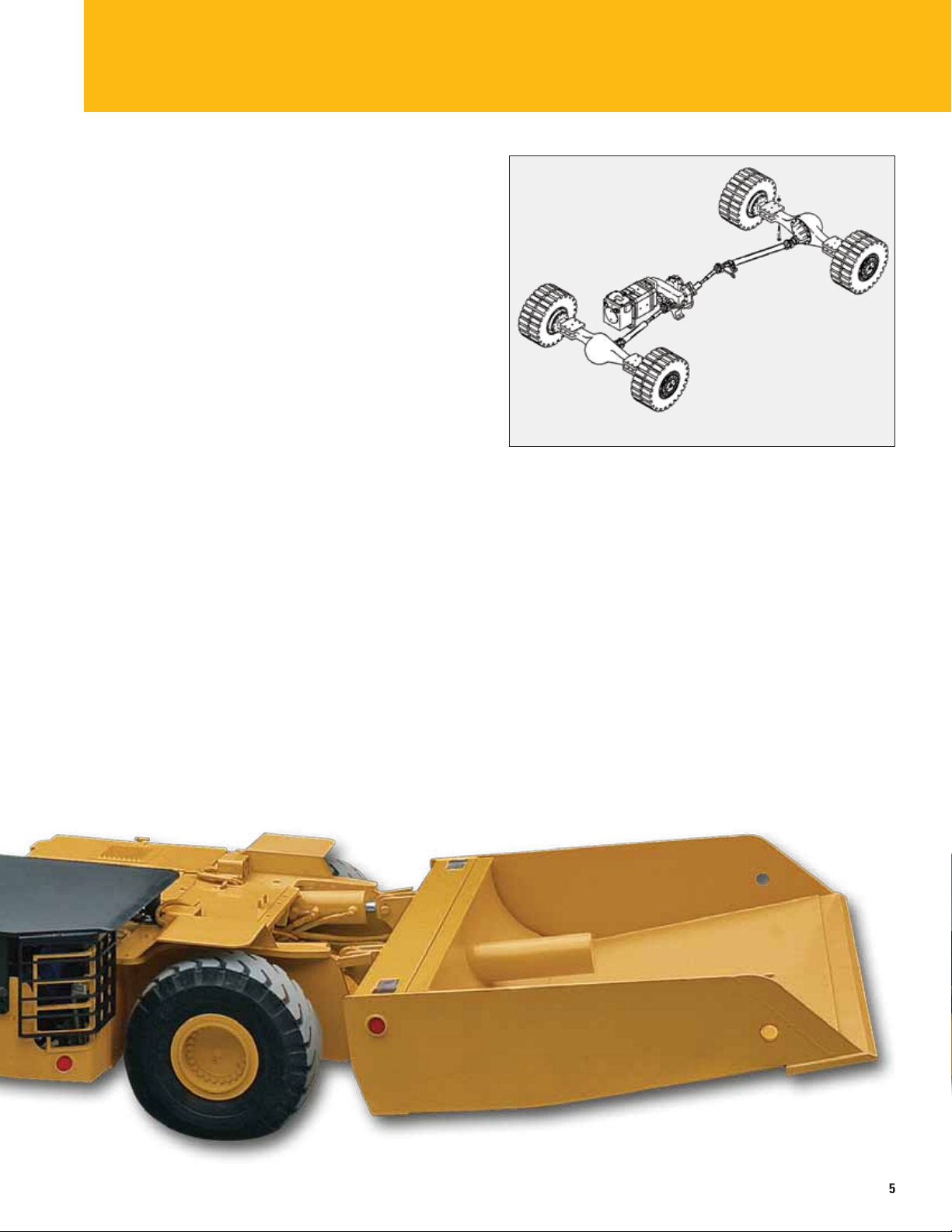

Page 5
Human-factor Engineered Operator’s Compartment
For long-shift productivity, operator comfort is
paramount for maintaining a safe working environment.
At Caterpillar, ergonomics is not just another marketing
buzzword. Controls are placed in a logical, easy-to-reach
position and are easily operated from the fully padded,
adjustable seat.
Heavy-duty Center Section
To provide superior stability in tough conditions, the
scoop offers ball bearing oscillation. The problems
associated with three-point-hitch style oscillation are
eliminated with the robust design of the pivot section.
High-strength, low-alloy steel bearing attachment
faces and quality ANSI/AWS welding help provide the
reliability that our customers demand. The articulation
joint features hardened spherical bushings to ensure
even load distribution to the high-strength, hardened
articulation pins.
Environmentally Responsible
The Cat Diesel Power pack, in both permissible and
non-permissible congurations, is the cleanest power
pack available for the underground mining environment.
Alternate engines are available depending on application
and geographical regions.
5
Page 6
Optional Features
• Vertical lift and tilt
• Dual tram motors
• Battery sizes from 550 to 1,500 Amp/Hrs
• Two-speed winch (SU488 & SU636)
• Heavy-duty, forged steel fork frame
• Special rock bucket
• Hydraulically operated cab assembly
(SU488 and SU636)
• Cat Control Stick
• Diesel versions available
• AC Motors with VFD Control System

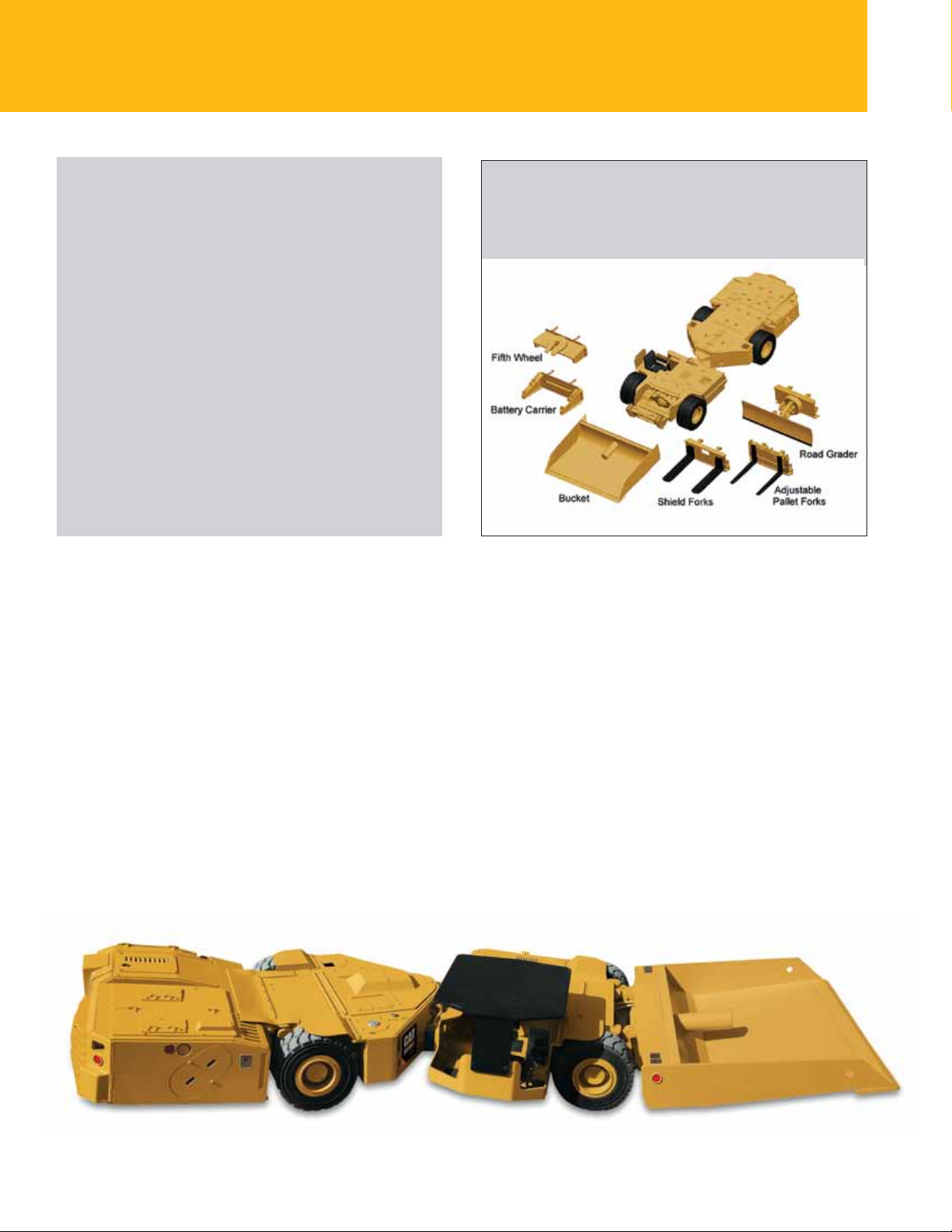

Quick Attach System
For additional flexibility, the scoop quick attach system allows for
speedy conversion from a fork machine for yard work to a section
utility scoop.
Diesel Options
Cat diesel-powered equipment boasts the most efcient
engines and powertrains available while ensuring the
lowest levels of emissions. The SU488 D and SU482 DN
are capable of operating for long distances at high speeds
and are designed for challenging roadway conditions with
steep gradients. Both units have SAHR Breaking systems
and can be available for PA or WV operations.
SU488 D
The new Diesel scoop offers an alternative to battery
powered low seam utility vehicles.
• Four speed power shift transmission
• Optional XP diesel power pack
• The SU488 D can also be congured with a
LHD lift mechanism
SU482 DN
• Three-speed power shift transmission
• Vertical articulation provides improved maneuverability
6

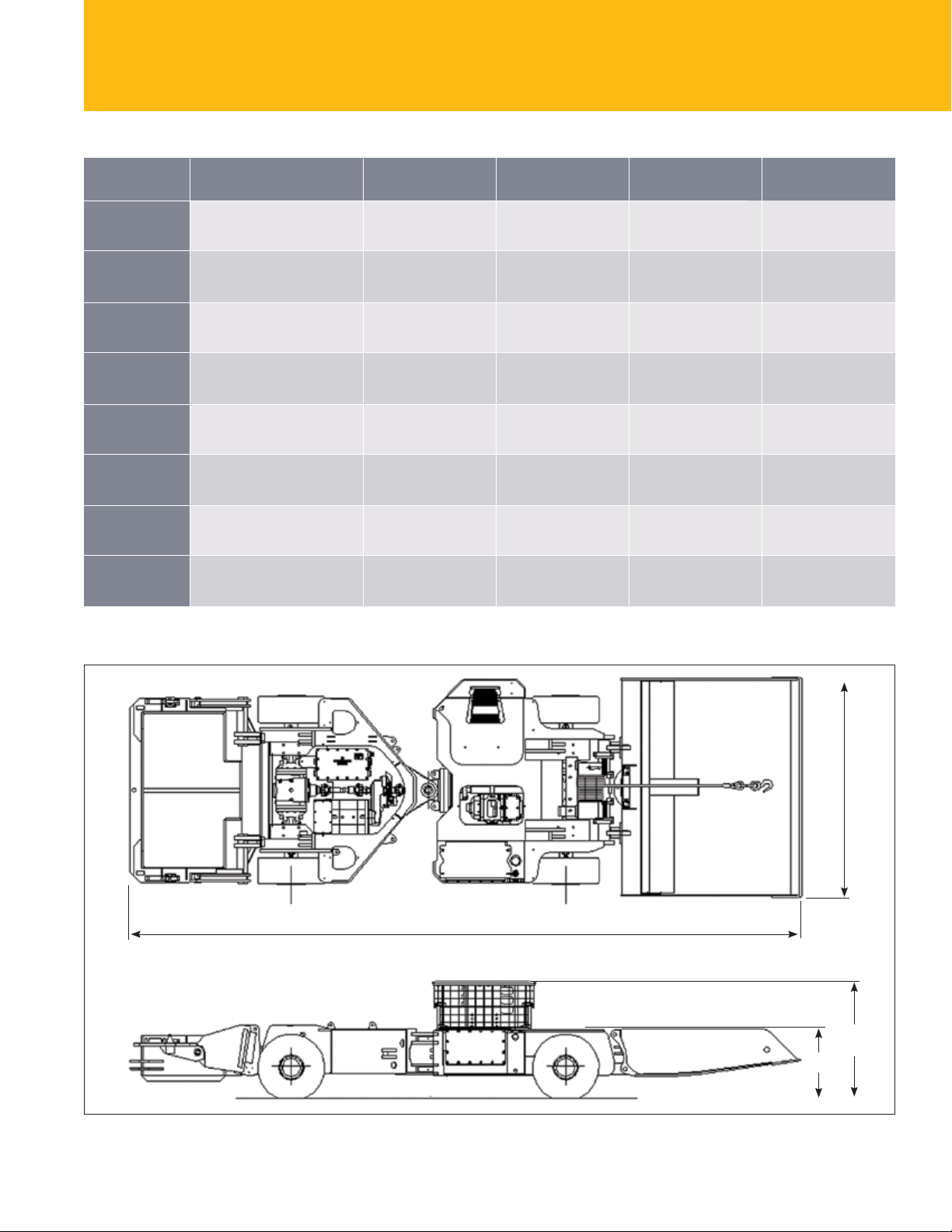

Page 7
MODEL Payload Capacity A B C* D*
SU482 4.5 tonnes 8 760 mm 2 920 mm 864 mm 635 mm
SU482 DN 6.8 tonnes 8 763 mm 3 098 mm 864 mm 685 mm
SU488 LHD 9.1 tonnes 8 915 mm 2 920 mm 1 170 mm 864 mm
SU488 L 9.1 tonnes 9 347 mm 2 920 mm 915 mm 864 mm
SU488 DN 14.5 tonnes 8 788 mm 2 997 mm 1 170 mm 864 mm
SU488 14.5 tonnes 8 915 mm 2 920 mm 1 245 mm 965 mm
SU488 DM 14.5 tonnes 9 576 mm 2 920 mm 1 170 mm 965 mm
SU636 22.7 tonnes 11 074 mm 2 920 mm 1 676 mm 1 092 mm
*Height depending on tire option
5.0 tons 28 ft 9 in 9 ft 7 in 2 ft 10 in 2 ft 1 in
7.0 tons 28 ft 9 in 10 ft 2 in 2 ft 10 in 2 ft 3 in
10 tons 29 ft 3 in 9 ft 7 in 3 ft 10 in 2 ft 10 in
10 tons 30 ft 8 in 9 ft 7 in 3.0 ft 2 ft 10 in
16 tons 28 ft 10 in 9 ft 10 in 3 ft 10 in 2 ft 10 in
16 tons 29 ft 3 in 9 ft 7 in 4 ft 1 in 3 ft 2 in
16 tons 31 ft 5 in 9 ft 7 in 3 ft 10 in 3 ft 2 in
25 tons 36 ft 4 in 9 ft 7 in 5 ft 6 in 3 ft 7 in
A
C
D
7
Page 8
Scoops – Product Line �
For more complete information on Cat products, dealer services, and industry solutions,
visit us on the web at mining.cat.com and www.cat.com
© 2011 Caterpillar Inc.
All rights reserved
Materials and specifications are subject to change without notice. Featured machines in
photos may include additional equipment. See your Cat dealer for available options.
CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade
dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and
may not be used without permission.
AEXQ0615
