USER’S GUIDE

Please keep all information for future reference.

Safety Precautions Before trying to use the keyboard, be sure to read the separate “Safety Precautions”.

GUÍA DEL USUARIO

Guarde toda la información para futuras consultas.

Precauciones de seguridad

Antes de intentar usar el teclado, asegúrese de leer las “Precauciones de seguridad” separadas.

EnglishEspañol

WK210ES1A

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Declaration of Conformity

Model Number: WK-210 Trade Name: CASIO COMPUTER CO., LTD. Responsible party: CASIO AMERICA, INC. Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important!

Please note the following important information before using this product.

• Before using the optional AC Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.

• Never attempt to recharge batteries.

• Do not use rechargeable batteries.

• Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only a CASIO AD-5 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

English

This mark applies in EU countries only.

Manufacturer: CASIO COMPUTER CO.,LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union: CASIO EUROPE GmbH Casio-Platz 1, 22848 Norderstedt, Germany

● Company and product names used in this manual may be registered trademarks of others.

● Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal

use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

● IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

● The contents of this manual are subject to change without notice.

E-1

Contents

General Guide ............................. E-4

Using the 10-key Pad (bs) .................................E-6

FUNCTION Button (ct) Functions .....................E-6

Getting Ready to Play ................ E-8

Preparing the Music Stand .................................E-8

Power Supply .....................................................E-8

Playing the Digital Keyboard..... E-9

Turning on Power and Playing ...........................E-9

Using Headphones .............................................E-9

Changing Keyboard Response to

Touch Pressure (Touch Response)..................E-10

Adjusting Display Contrast ...............................E-10

Using the Voice Pads .......................................E-11

Using the Metronome .......................................E-12

Controlling the

Keyboard Sounds..................... E-14

Select from a variety of

musical instrument sounds ...............................E-14

Layering Two Tones.........................................E-15

Splitting the Keyboard between

Two Different Tones .........................................E-15

Using Reverb....................................................E-16

Using Chorus....................................................E-16

Using a Pedal ...................................................E-17

Changing the Pitch

(Transpose, Tuning, Octave Shift)....................E-17

Sampling Sounds and Playing Them on the

Digital Keyboard ....................... E-19

Connection and Preparation.............................E-19

Sampling and Playing a Melody Sound

(Melody Sampling) ...........................................E-20

Incorporating a Sampled Sound into a

Drum Set (Drum Sampling) ..............................E-22

Other Sampling Functions................................E-24

Using Built-in Songs to

Master Keyboard Play ..............E-31

Phrases............................................................E-31

Step Up Lesson Flow.......................................E-31

Selecting the Song, Phrase, and

Part You Want to Practice................................E-32

Lessons 1, 2, and 3..........................................E-33

Lesson Settings ...............................................E-34

Using Auto Step Up Lesson.............................E-36

Music Challenge

Keyboard Game ........................ E-37

Using Auto Accompaniment.... E-38

Playing the Rhythm Part Only..........................E-38

Playing All Parts............................................... E-39

Using Auto Accompaniment Effectively ........... E-41

Using One-Touch Preset ................................. E-42

Using Auto Harmonize ..................................... E-43

Editing Auto Accompaniment

Patterns...................................... E-44

Saving Keyboard Setups to

Registration Memory ................ E-48

To save a setup to registration memory........... E-49

To recall a setup from registration memory ..... E-49

Recording Your

Keyboard Play........................... E-50

Recording and Playing Back

Keyboard Play.................................................. E-50

Using Tracks to Record and Mix Parts ............E-51

Recording Two or More Songs, and

Selecting One for Playback.............................. E-53

Recording while Playing Along with a

Built-in Song.....................................................E-53

Saving Recorded Data on an

External Device................................................ E-54

Playing Built-in Songs ............. E-27

Playing the Demo Songs..................................E-27

Playing Back a Particular Song ........................E-28

Increasing the Selection of Songs

(User Songs) ....................................................E-30

E-2

Other Useful Digital Keyboard

Functions .................................. E-55

Changing the Scale of the Keyboard................E-55

Using Music Preset ..........................................E-56

Using the Arpeggiator.......................................E-56

Deleting User Song Data..................................E-57

Deleting All Data in

Digital Keyboard Memory .................................E-58

Contents

English

Connecting External Devices

Connecting a Computer ...................................E-59

MIDI Settings....................................................E-60

Storing and Loading

Digital Keyboard Memory Data.........................E-62

Connecting to Audio Equipment .......................E-63

... E-59

Reference .................................. E-64

Troubleshooting................................................E-64

Specifications ...................................................E-66

Operating Precautions......................................E-67

Error Messages ................................................E-68

Song List ..........................................................E-69

Chord Example List ..........................................E-70

MIDI Implementation Chart

Included Accessories

● Music Stand

● Song Book

● Leaflets

• Safety Precautions

• Appendix

• Other (Warranty, etc.)

Items included as accessories are subject to change without notice.

Separately Available Accessories

• You can get information about accessories that are separately for this product from the CASIO catalog available from your retailer, and from the CASIO website at the following URL.

http://world.casio.com/

E-3

General Guide

• In this manual, the term “Digital Keyboard” refers to the WK-210.

• In this manual, buttons and other controllers are identified using the numbers shown below.

132

4 5 6 7

9bkblbm bn

bp bq br

dq dr

E-4

bt ck cl cm cn co cp cq cr cs ct

dk dkdl dm dn do dp

General Guide

POWER button ☞E-9, 26, 46, 49, 51, 62

MAIN VOLUME knob ☞E-9

MIC VOLUME knob ☞E-19

PRESET SCALE button ☞E-55

RECORDER button ☞E-50, 51, 52, 53, 54

RHYTHM EDITOR button ☞E-44, 45

METRONOME, BEAT button ☞E-12

INTRO, REPEAT button ☞E-29, 34, 41, 44, 45

NORMAL/FILL-IN, REW button

☞E-28, 32, 38, 41, 44, 45

VARIATION/FILL-IN, FF button

☞E-28, 32, 41, 44, 45

SYNCHRO/ENDING, PAUSE button

☞E-28, 41, 42, 44, 45

START/STOP, PLAY/STOP button

☞E-27, 28, 30, 33, 34, 38, 50, 52, 53, 54

ACCOMP ON/OFF, CHORDS, PART SELECT

button ☞E-27, 30, 32, 34, 39, 43, 44, 45, 54, 61

TEMPO buttons ☞E-13, 29, 42

TONE, MUSIC PRESET button

☞E-9, 14, 20, 22, 23, 24, 26, 56

RHYTHM, ONE TOUCH PRESET button

☞E-11, 14, 21, 22, 24, 38, 42, 45, 49, 50, 53, 55

SONG BANK button ☞E-28, 30, 32, 37, 53

Number buttons, [–]/[+] buttons ☞E-6

BANK, PAD SET SELECT, CHORD/TR1,

LISTEN button ☞E-11, 21, 33, 48, 49

Area1, VOICE PAD1, TR2, WATCH button

☞E-11, 21, 33, 48, 49, 52

Area2, VOICE PAD2, TR3, REMEMBER button

☞E-11, 21, 34, 48, 49, 52

Area3, VOICE PAD3, TR4, NEXT button

☞E-11, 21, 32, 48, 49, 52

Area4, VOICE PAD4, TR5, AUTO button

☞E-11, 21, 36, 48, 49, 52

STORE, VOICE PAD5, TR6, MUSIC CHALLENGE

button ☞E-11, 21, 37, 49, 52

SPLIT button ☞E-15, 16

LAYER button ☞E-15, 18

AUTO HARMONIZE/ARPEGGIATOR, TYPE button

☞E-43, 56, 57

SAMPLING button ☞E-11, 20, 21, 22, 23, 49

FUNCTION button ☞E-6

Speakers

Song Bank list

Music Preset list

Rhythm list

Display

Tone list

CHORD root names ☞E-39

Percussion instrument list ☞E-14

English

USB port ☞E-59

SUSTAIN/ASSIGNABLE JACK ☞E-17

PHONES/OUTPUT jack ☞E-9, 63

dt ek enemel

AUDIO IN jack ☞E-19, 63

DC 9V terminal ☞E-8

MIC IN jack ☞E-19

E-5

General Guide

Using the 10-key Pad (bs)

Use the number buttons and the [–] and [+] buttons to change the settings of the parameters that appear in the upper left area of the display.

Setting

St .GrPno

Number Buttons

Use the number buttons to enter numbers and values.

• Enter the same number of digits as the currently displayed value. Example: To enter tone number 001, input 0 3 0 3 1.

• Negative values cannot be input using the number buttons. Use [–] (decrease) and [+] (increase) instead.

FUNCTION Button (ct) Functions

You can use the FUNCTION button ( effect, to delete data, and to perform a wide range of other Digital Keyboard operations.

To select a function

Press ct to display the function menu.

Use the bs (10-key) [4] (o) and [6] (p) keys to display the function you want.

• You can exit the function menu by pressing ct.

• After selecting functions 8 through 12, press the (10-key) [7] (ENTER) key to display the menu item’s submenu. Then use [4] (o) and [6] (p) to select an item. You can exit a submenu by pressing the (10-key) [9] (EXIT) key.

Refer to the indicated pages for details about each function.

) to adjust the reverb

[–] and [+] Buttons

You can use the [–] (decrease) and [+] (increase) buttons to change the displayed number or value.

• Holding down either button scrolls the displayed setting.

• Pressing both buttons at the same time will revert to the initial default setting or the recommended setting.

E-6

General Guide

Function Display

1 Transpose Trans. E-17

2 Accompaniment Volume AcompVol E-42

3 Song Volume Song Vol E-30

4 Touch Response Touch E-10

5 Tuning Tune E-17

6 Reverb Reverb E-16

7 Chorus Chorus E-16

8 Sampling SAMPLING

Automatic Sampling Start AutoStrt E-24

Automatic Sampling Stop AutoStop E-25

Sampled Tone Protect (Protect) E-26

9 Step Up Lesson LESSON

Voice Fingering Guide Speak E-34

Note Guide NoteGuid E-35

Performance Evaluation Scoring E-35

Phrase Length PhraseLn E-35

10 Other Settings OTHER

Arpeggiator Hold ArpegHld E-57

Pedal Effect Jack E-17

Accompaniment Scale AcompScl E-55

LCD Contrast Contrast E-10

11 MIDI Settings MIDI

Keyboard Channel Keybd Ch E-60

Navigate Channels Navi. Ch E-60

Local Control Local E-61

Accomp Out AcompOut E-61

12 Delete DELETE

Sampled Sound Delete (tone name) E-25

User Rhythm Delete (rhythm name) E-47

User Song Delete (song name) E-57

All Data Delete All Data E-58

Page

See

English

• The tone and other parameters revert to their initial defaults whenever you turn on power (page E-9).

E-7

Getting Ready to Play

Preparing the Music Stand

Music stand

Power Supply

Either an AC adaptor or batteries can be used to power this Digital Keyboard. Normally, use of AC adaptor power is recommended.

• The AC adaptor does not come with this Digital Keyboard. Purchase it separately from your retailer. See page E-3 for information about options.

Using the AC Adaptor

Use the AC adaptor when you want to power the Digital Keyboard from a household electrical outlet.

Specified AC Adaptor: AD-5

DC 9V terminal

AC adaptor

Using Batteries

• Be sure to turn off power before loading batteries.

• It is up to you to prepare six commercially available D-size batteries. Do not use oxyride batteries or any other nickel based batteries.

Open the battery cover on the bottom of the Digital Keyboard.

Load six D-size batteries into the battery compartment.

Make sure the positive + and negative - ends of the batteries are facing as shown in the illustration.

Insert the tabs of the battery cover into the holes on the side of the battery compartment, and close the cover.

Tabs

Household power outlet

• Be sure to turn off Digital Keyboard power before connecting or disconnecting the AC adaptor.

E-8

■ Low Battery Indication

The indicator shown below starts to flash to let you know when battery power is low. Replace the batteries with new ones.

Low battery indicator (flashes)

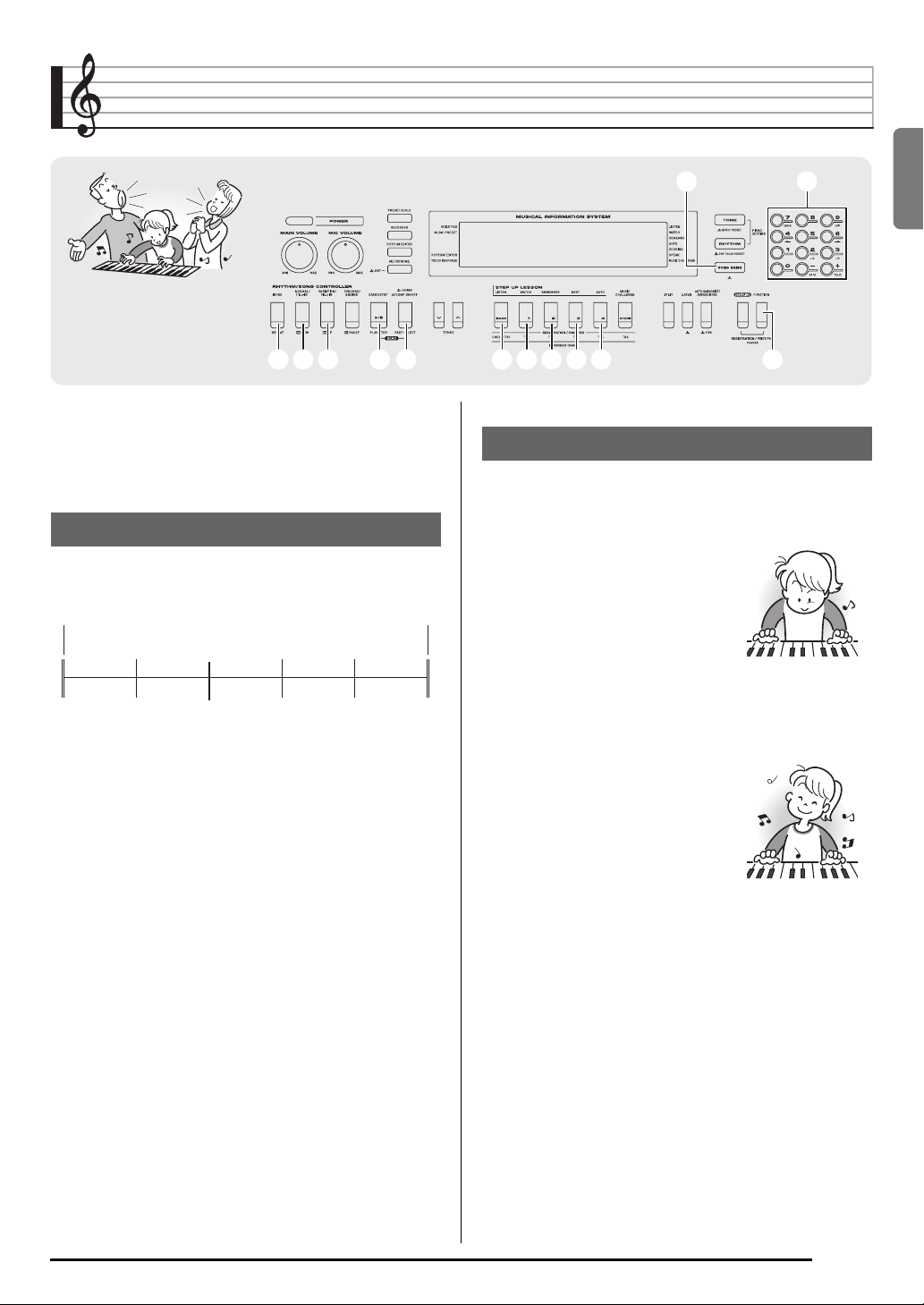

Playing the Digital Keyboard

1122 77

Turning on Power and Playing

Press 1.

This turns on power.

Try playing something on the keyboard. Use 2 to adjust volume.

bpbp

bqbq

bobo

ctctcscsbtbtckck clcl cmcmcncn coco

Using Headphones

Using headphones cuts off output from the built-in speakers, which means you can practice playing even late at night without disturbing others.

• Be sure to turn down the volume level before connecting headphones.

PHONES/OUTPUT jack

bsbs

English

IncreaseDecrease

• Turning off the Digital Keyboard causes most current settings to be cleared. The Digital Keyboard will revert to initial settings the next time you turn it on.

• This is true for all settings except for sample sound protection. Once you turn it on it remains on until you turn it off again.

Auto Power Off (Using Batteries)

While you are using batteries for power, power will turn off automatically if you do not perform any operation for about six minutes. Auto Power Off is disabled while the AC adaptor is being used for power.

■ Disabling Auto Power Off

You can disable Auto Power Off to ensure that power is not turned off automatically during a concert, etc.

While holding down bp, turn on power.

Auto Power Off will be disabled.

• Headphones do not come with the Digital Keyboard.

• Use commercially available headphones. See page E-3 for information about options.

• Do not listen to very high volume output over headphones for long period. Doing so creates the risk of hearing damage.

• If you are using headphones that require an adaptor plug, make sure you do not leave the adaptor plugged in when removing the headphones.

E-9

Playing the Digital Keyboard

Changing Keyboard Response to Touch Pressure (Touch Response)

Touch Response alters tone volume in accordance with keyboard pressure (speed). This provides you some of the same expressivity you get on an acoustic piano.

Keyboard Instrument Sound Intensity

■ Sound intensity depends on the speed that keys are pressed.

People normally believe that the stronger the pressure applied to a piano keyboard, the louder the sound. Actually, however, the intensity of the notes played depends on the speed at which keys are pressed. Notes are louder when keys are pressed quickly, and quieter when keys are pressed slowly. Keeping this in mind as you play a keyboard musical instrument lets you control note volume without striving to apply too much pressure with your fingertips.

■ The playability of an acoustic piano

Your Digital Keyboard provides you with key touch that is the next best thing to an acoustic piano. Note volume changes automatically in accordance with key press speed.

Changing Touch Response Sensitivity

Use the procedure below to control how much the volume of played notes change in accordance with playing speed. Select the setting that best matches your playing style.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “Touch” (page E-6).

Touch

Use bs (10-key) [–] and [+] keys to select one of the three Touch Response sensitivity settings.

Off (oFF) Touch Response is turned off. Sound

volume is fixed, regardless of key press speed.

Type 1 (1) Normal Touch Response Type 2 (2) More sensitive Touch Response than Type 1

Indicator disappears when Touch Response is turned off.

Pressing fast produces louder notes.

Pressing slowly produces softer notes.

Do not try to use too much pressure.

Adjusting Display Contrast

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “OTHER” (page E-6).

Flashes

OTHER

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “Contrast”.

C o n t r a s t

Use the bs (10-key) [–] and [+] keys to adjust the contrast.

• The contrast setting range is 01 to 17.

E-10

Using the Voice Pads

You can use the voice pads to sound various sound effects or even sounds you have sampled (page E-19). Use the voice pads to add something extra to your performances.

Press bq.

Press cs and ct at the same time to enable the voice pads.

Lit when on

Playing the Digital Keyboard

Press a voice pad (1 through 5, ck through co) to sound what is assigned to it.

There are four sets of voice pad sounds numbered 1 through 4 (see below). Each press of

cycles through

sound sets 1 through 4.

bt ck cl cm cn co

English

•Pressing cs and ct at the same time again will disable the voice pads.

• Be sure to make sure the voice pad function is enabled before performing the next step. While voice pads are disabled, buttons

through co function as

registration memory buttons (page E-48). Performing the following step with voice pads disabled will change the setup of the keyboard (tone number, rhythm number, etc.).

Pad 1Pad 2Pad 3Pad 4Pad 5

VOICE 1

Set 1

(Tone 571)

Set 2 Set 1 at various pitches

Set 3 Same as Set 1 Set 1 sound, repeated

Set 4 APPLAUSE GUNSHOT BONGO CONGA

(Tone 572)

VOICE 2

(Tone 573)

VOICE 3

(Tone 574)

VOICE 4

VOICE 5

(Tone 575)

TAMBOURINE

*1: If you performed melody sampling (page E-20) and

assigned the results to these tone numbers, the pad will output the sampled sound.

*2: Pad 1: Perfect fifth up; Pad 2: Perfect fifth down;

Pad 3: Same as Set 1; Pad 4: Starting from a major third down, gradually raises the pitch; Pad 5: Starting from one octave up, gradually lowers the pitch

*3: Pad 3 gradually raises the pitch

Example: When Set 2 is selected

Pad Se t

• While a sound set number is displayed, you can change it using few seconds after the indicator appears, the display will return to the previous screen automatically.

(10-key). If you do not perform any operation for a

E-11

Playing the Digital Keyboard

Sounding Sampled Sounds with the Voice Pads

After performing melody sampling to tone number 571 through 575, the corresponding tones are replaced with the samples in Sets 1, 2, and 3 of the voice pads described in the previous section. For more information about melody sampling, see page E-20.

• Deleting sampled data will return the Voice Pads to their default sounds. For more information about deleting sampled data, see page E-25.

Adjusting the Volume Levels of Voice Pads

You can use the following procedure to adjust the volume levels of the voice pad sounds to match them to other sounds (keyboard, etc.).

Enable the voice pads.

• See steps 1 and 2 of the procedure on page E-11.

While holding down bt, hold down the voice pad ( adjust.

• Keep bt and the voice pad depressed as you perform

Example: To select

through co) whose volume you want to

the next step.

(Pad 2).

bt cl

Using the Metronome

The metronome lets you play and practice along with a steady beat to help keep you on tempo.

Start/Stop

Press 7.

This starts the metronome.

This pattern changes with each beat.

Press 7 again to stop the metronome.

Changing the Beats Per Measure

You can configure the metronome to use a bell sound for the first beat of each measure of the song you are playing.

• You can specify 0, or a value from 2 to 6 as the number of beat per measure.

• When playing a built-in song, the beats per measure setting (which determines when the bell sounds) is configured automatically for the currently selected song.

While still holding down the two buttons, keep pressing and releasing any keyboard key.

• Each press of the keyboard key will sound the tone assigned to the voice pad. As you listen to the tone, adjust its volume by altering the speed at which you are pressing the keyboard key. Pressing at a faster rate will raise the volume, while a slower rate will lower the volume.

After the tone is at the volume you want, release the two buttons you depressed in step 2.

• You can batch adjust the volume level of more than one voice pad by holding down more than one voice pad along with

in step 2 above.

Hold down 7 until the beats per measure setting screen appears on the display.

Bea t

• If you do not perform any operation for a few seconds after the beats per measure setting screen appears, the display will return to the screen displayed before you pressed

Use bs (10-key) to enter the number of beats per measure.

• The bell will not sound if you specify 0 for this setting. In this case, all beats are indicated by a click sound. This setting lets you practice with a steady beat, without worrying how many beats there are in each measure.

E-12

Changing the Metronome Tempo

Use the following procedure to change the tempo of the metronome.

Press bo.

Use y (slower) and t (faster) to change the tempo setting. Holding down either button changes the setting at high speed.

•Pressing t and y at the same time will initialize the

tempo setting in accordance with the currently selected song or rhythm.

•Pressing display. While the tempo value is flashing, you can use

(10-key) to change it.

Note that you must input leading zeros, so 89 is input as 089.

• The tempo value will stop flashing if you do not perform any operation for a short while.

Tempo value (flashes)

causes the tempo value to flash on the

Playing the Digital Keyboard

English

Changing the Metronome Sound Volume

The metronome volume setting is changed automatically with the volume level of the currently selected Auto Accompaniment or song. The metronome volume cannot be adjusted independently.

• For information about changing the Auto Accompaniment volume, see page E-42.

• For information about changing the song volume, see page E-30.

• You cannot adjust the balance between the metronome and note volume during Auto Accompaniment and built-in tune play.

E-13

Controlling the Keyboard Sounds

Select from a variety of musical instrument sounds

Your Digital Keyboard lets you select tones for a wide variety of musical instrument sounds, including violin, flute, orchestra, and more. Even the same song sound takes on a different feel by changing the instrument type.

To select an instrument for playing

Press bp.

Tone nameTone number

St .GrPno

bqbq

bpbp

bsbs

cpcp cqcq ctct

Try playing something on the keyboard.

The tone of the instrument you selected will sound.

Playing with a Piano Tone (Piano Setup)

Press bp and bq at the same time.

This selects the grand piano tone.

Use bs (10-key) to select the tone number you want.

The corresponding tone number and tone name will appear on the screen.

• See the separate “Appendix” for a complete list of available tones.

• Use the number buttons to enter the tone number. Specify three digits for the tone number. Example: To select 001, enter 0 3 0 3 1.

• When one of the drum sets is selected, each keyboard key is assigned a different percussion sound.

E-14

Settings

Tone Number : “001” Reverb : “06” Transpose : 00 Touch Response : Off:Returns to initial default

On: No change Pedal Effect : SUS Rhythm Number : “161” Accompaniment : Rhythm part only Local Control : On Drum Assign : Off Split : Off Layer : Off Chorus : Off Octave Shift (Upper): 0 Auto Harmonize : Off Arppegiator : Off Scale : Equal

Controlling the Keyboard Sounds

Layering Two Tones

You can use the following procedure to layer two different tones (such as piano and strings) so they sound simultaneously when you press a keyboard key.

Select the first tone you want to use.

Press bp and then use bs (10-key) to select the tone you want. Example: 021 ELEC.PIANO 1

E . P i a n o 1

Press cq.

Lights

Use bs (10-key) to select the second tone you want.

Example: 175 STRINGS

Splitting the Keyboard between Two Different Tones

You can use the procedure below to assign different tones to the right range and left range of the keyboard, so it sounds like you are playing an ensemble between two instruments.

To select the two tones for a split keyboard

Select the tone for the right side range (page E-14).

Press bp and then use bs (10-key) to select the tone you want. Example: 273 FLUTE 1

Flute 1

Press cp.

Lights

English

St r ings

Play something on the keyboard.

Both tones sound at the same time.

Pressing cq again to unlayer the keyboard (so it plays only the tone you selected in step 1).

• Each press of cq toggles between layered (two tones) and unlayered (one tone).

Disappears

Use bs (10-key) to select the left side range tone you want.

Example: 046 VIBRAPHONE 1

V i b e s 1

Play something on the keyboard.

This will sound the tones assigned to the left and right side ranges of the keyboard.

VIBRAPHONE 1

Split point

FLUTE 1

E-15

Controlling the Keyboard Sounds

Pressing cp again to unsplit the keyboard (so it plays only the tone you selected in step 1).

• Each press of cp toggles between split (two tones) and unsplit (one tone).

Using Reverb

Reverb adds reverberation to notes. You can change the duration of the reverb.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “Reverb” (page E-6).

Disappears

• If you turn on both layer and split, layering will be applied to the right side range of the keyboard only.

To change the split point

While holding down cp, press the keyboard key where you want the split point to be.

The key you press will become the lowest note of the right side range of the split keyboard. Example: Setting middle C (C4) as the split point.

Key name

Reverb

Use the bs (10-key) [–] and [+] keys to select the reverb setting you want.

Off (oFF) Turns off reverb. 1 to 10 The larger the number selected, the longer

the reverb duration.

Reverb

Indicator disappears when reverb is turned off.

Using Chorus

Chorus is a function that adds depth and breadth to notes. It makes you sound as if you are playing multiple instruments.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “Chorus” (page E-6).

E-16

Cho r us

Use the bs (10-key) [–] and [+] keys to select the chorus type you want.

There are five chorus types, plus an off setting.

Cho r us

Indicator disappears when chorus is turned off.

• The actual effect produced by chorus depends on the tone you are using.

Controlling the Keyboard Sounds

Using a Pedal

A pedal can be used to change notes in various ways while playing.

• A pedal unit does not come with the Digital Keyboard. Purchase one separately from your retailer. See page E-3 for information about options.

Connecting a Pedal Unit

Connect an optional pedal unit.

SUSTAIN/ASSIGNABLE JACK

Selecting the Pedal Effect

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “OTHER” (page E-6).

Flashes

OTHER

Press bs (10-key) [7] (ENTER) key.

Changing the Pitch (Transpose, Tuning, Octave Shift)

Changing the Pitch in Semitone Steps (Transpose)

The transpose feature lets you change the pitch, in semitone steps. A simple operation lets you instantly change the pitch to match that of a singer.

• The transpose setting range is –12 to +12 semitones.

Press ct.

Trans.

Use the bs (10-key) [–] and [+] keys to select the transpose setting you want.

Fine Tuning (Tuning)

Use the tuning feature when you need to adjust the pitch slightly to play along with another musical instrument. Also, some artists perform their music with slightly altered tuning. You can use the tuning feature to adjust tuning so it exactly matches a performance on a CD.

• The tuning setting range is –99 to +99 cents.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “Tune” (page E-6).

English

Use the bs (10-key) [4] (o) and [6] (p) keys to display “Jack”.

Jack

Use the bs (10-key) [–] and [+] keys to select the pedal effect you want.

• The following shows the available pedal effects.

Sustain (SUS)

Sostenuto (SoS)

Soft (SFt)

Rhythm (rHy)

Sustains notes played while the pedal is depressed. Organ and other similar tone notes are sustained even if the pedal is not pressed.

Sustains notes that are playing when the pedal is depressed before the keyboard keys are released.

Slightly softens notes played while the pedal is depressed.

Pressing the pedal starts and stops Auto Accompaniment or song playback.

Tune

Use the bs (10-key) [–] and [+] keys to adjust the tuning.

E-17

Controlling the Keyboard Sounds

Octave Shift

Octave Shift lets you raise or lower the pitch of the keyboard notes in octave units.

• The octave shift setting range is –2 to +2 octaves.

• When using Split (page E-15), you can individually set the left and right keyboard ranges to the pitches you want.

Keep pressing cq until the screen shown below appears on the display.

If you want to use Split, turn on Split before pressing cq.

• If you do not perform any operation for a few seconds after this screen appears, the display will return to the previous screen automatically.

Oc t U

Use the bs (10-key) [–] and [+] keys to shift the octave.

• Split On : This step affects the right side keyboard

range only.

• Split Off : This step affects the entire keyboard range.

Press cq.

• Split On : The screen shown below will appear. Use the

(10-key) [–] and [+] keys to shift the

octave for the left side keyboard range.

• Split Off : The screen shown below will appear.

Advance to step 4.

Oc t Lowe r

Press cq again.

E-18

Sampling Sounds and Playing Them on the Digital Keyboard

You can sample sounds from a microphone, from a portable audio player, or other device, and then play the sound on the keyboard or voice pads. For example, you could sample the bark of your dog and then use the sound in a melody. You also can sample and use passages from a CD. The sampling feature is a great way to create new sounds that are highly creative.

Connection and Preparation

• Before connecting, make sure that the Digital Keyboard, external devices, and/or the microphone all are turned off.

bpbp

bqbq33

bsbs

btbtckck clcl cmcmcncn coco ctctcscs

Turn down the volume levels of the external device and the Digital Keyboard.

Turn on the external device or microphone, and then turn on the Digital Keyboard.

• When using a microphone, adjust the input volume level with

• It will take a few seconds after you turn on the Digital Keyboard before you will be able to use the microphone.

• Sampled sounds are recorded in monaural.

English

Connect a microphone or external device to the Digital Keyboard.

MIC IN jack

Digital Keyboard AUDIO IN jack

CD player, Cassette player, etc.

Stereo mini plug

• You also could connect a commercially available microphone.

• Connection of an external device requires commercially available connecting cords, supplied by you. Connecting cords should have a stereo mini plug on one end and a plug that matches the configuration of the external device on the other end.

E-19

Sampling Sounds and Playing Them on the Digital Keyboard

Sampling and Playing a Melody Sound (Melody Sampling)

Use the procedures in this section to sample a sound and play it as the melody part on the Digital Keyboard.

• Up to five sampled sounds can be stored in Digital Keyboard memory as tone numbers 571 through 575. Simply select the tone number where the sound you want is located to assign the sound to the keyboard.

To sample a sound

Press bp and then use bs (10-key) to enter the tone number 571 to 575 where you want to store the sampled sound.

No sampled sound stored

N o D a t a

Lights

• In place of the above steps, you could press cs and bp at the same time and then select a tone number.

Press cs.

This enters sampling standby. The allowable sampling time (in seconds) will appear on the display momentarily and then the display will change to the following.

After the sound you want to sample is finished, press

Sampling will stop when you release cs.

• Even if you do not press

, sampling will stop automatically whenever there is no more sound being input from the external device or microphone. Sampling also will stop automatically 10 seconds after it is started.

Sampled sound 1

S 1 : O r g n l

Used memory

(Unit: Kbytes)

Play something on the Digital Keyboard.

• You can press voice pad 1 through 5 (ck through co) to sound the sampled sound. For more information about the relationship between tone numbers and voice pads, see page E-11.

• You may not be able to get 10 seconds of sampling if Digital Keyboard memory is low due to storage of other data. If this happens, deleting other memory data you no longer need will free up memory space and you should be able to sample for 10 seconds. See “Deleting a Sampled Sound” on page E-25 for more information.

Remaining memory capacity

a i t i n

Flashes

Output the sound from the external device. In the case of a microphone, output the sound in the direction of the microphone.

Sampling will start automatically.

S a m pli n

Flashes

• Sampling sound and storing it will delete any sound data currently stored under the same tone number. To help ensure that you do not accidentally delete important data, be sure to read “Protecting Against Accidental Deletion of Sampled Sounds” on page E-26.

E-20

Sampling Sounds and Playing Them on the Digital Keyboard

■ How sampled sounds are played

Pressing Middle C (C4) will play back the original sound. The keys to the left and right of C4 play the sound at different pitches.

Looping a Sampled Sound

You can use the following procedure to loop a sampled sound so it continues to repeat, as you play on the Digital Keyboard.

Press bq.

While holding down cs, press bt.

This enters repeat standby.

F u n k 8 B t

Lights

Press the button (ck to co) that corresponds to the melody sampling tone number you want to select.

This will start looped playback of the selected sound.

Changing the Volume of Sampled Sound Looped Playback

You can use the following procedure to change the volume level of the looped playback of each sampled sound, if you want.

Press the button of the sampled sound whose volume you want to change (

• This will cause the sound’s loop to sound.

While the loop is sounding hold down the same sampled sound button ( any keyboard key.

• Pressing the keyboard key quickly will increase sample sound volume, while pressing slowly will decrease volume.

After the sampled sound is at the volume level you want, release its button (

to co).

to co) as you press

to co).

English

To select this tone number: Press this button:

571

572

573

574

575

Press the same button again to stop playback.

Press bt to return to the screen that was displayed before step 2 of this procedure.

E-21

Sampling Sounds and Playing Them on the Digital Keyboard

Applying Effects to a Sampled Sound

You can apply various effects to sampled sounds.

Press bp and then use bs (10-key) to enter the tone number 571 to 575 to which you want to apply effects.

Press bp to cycle thorough the available effects, described below.

Effect Type

(Display)

Original (Orgnl)

Loop 1 (Loop1) Loops the sampled sound.

Loop 2 (Loop2)

Loop 3 (Loop3)

Pitch 1 (Ptch1)

Pitch 2 (Ptch2)

Pitch 3 (Ptch3)

Tremolo (Treml) Alternates volume between high and low.

Funny 1 (Funy1)

Funny 2 (Funy2)

Funny 3 (Funy3)

• Avoid assigning the same sampled sound to the keyboard for play along and for looped play. Doing so will cause, the Loop 1 effect to be applied to the keyboard tone while looped play of the sampled sound is being performed.

Normal sampled tone (no looping, no effect).

Loops the sample sound and raises the pitch of the resonating sound when the keyboard key is released.

Loops the sample sound and lowers the pitch of the resonating sound when the keyboard key is released.

Changes the pitch from low to high, at an increasing rate.

Changes the pitch from high to low, at a decreasing rate.

Changes the pitch from high to low, at a decreasing rate, and then raises the pitch when the key is released.

Adds vibrato and changes the pitch by a gradually increasing amount.

Alternates between high pitch and low pitch.

Adds vibrato and changes the pitch from low to high.

Description

Incorporating a Sampled Sound into a Drum Set (Drum Sampling)

You can use the procedure to change the drum sounds that are assigned to each keyboard key.

• You can store up to three drum sets and store them as tone numbers 576, 577, and 578. Simply select the tone number where the drum set you want is located to assign the drum set sounds to the keyboard.

Press bq.

lights.

Press bp and then use bs (10-key) to enter the tone number 576, 577, or 578 for the drum set whose sounds you want to change.

N o D a t a

Lights

• In place of the above steps, you could press cs and bq at the same times and then select a tone number.

Press cs.

N o D a t a

Flashes

Press the keyboard key to which you want to assign the drum sound you are about to sample.

This enters sampling standby. The allowable sampling time (in seconds) will appear on the display momentarily and then the display will change to the following.

a i t i n

E-22

Flashes

Output the sound from the external device. In the case of a microphone, output the sound in the direction of the microphone.

Sampling will start automatically.

S a m pli n

Flashes

After the sound you want to sample is finished, press

S m pl D r m 1

Used memory

(Unit: Kbytes)

Sampling will stop when you release cs.

• Even if you do not press automatically whenever there is no more sound being input from the external device or microphone. Sampling also will stop automatically 10 seconds after it is started.

Press the keyboard key.

, sampling will stop

Remaining memory capacity

Sampling Sounds and Playing Them on the Digital Keyboard

Editing Sampled Drum Set Sounds

You can use the procedures in this section to copy the drum sound assigned to one keyboard key to another key, to change the pitch of a sound, and to delete a sampled sound.

Press bp and then use bs (10-key) to enter the tone number 576, 577, or 578 for the drum set you want.

Press cs.

Press ct.

S m p l D r m 1

Flashes at high speed

English

• You can repeat steps 3 through 6 to change other sounds that make up the currently selected drum set. There are eight sounds per drum set.

• Sampling a sound will delete any sound data currently assigned to the same keyboard key. To help ensure that you do not accidentally delete important data, be sure to read “Protecting Against Accidental Deletion of Sampled Sounds” on page E-26.

This is the editing mode.

• While in the editing mode, you can copy a sound, change the pitch of a sound, or delete a sound (each of which is described below). Pressing editing mode and returns to step 2 of this procedure.

Indicates keyboard keys that have sounds assigned.

again exits the

■ To copy a sampled sound from one key to another

While holding down the keyboard key to which the sampled sound you want to copy is assigned, press the keyboard key to which you want to copy it.

Example: To copy sampled sound of key C4 to key D4

Indicates the keyboard key whose sound was copied.

• A keyboard key that already has a sampled sound assigned cannot be selected as a copy destination.

E-23

Sampling Sounds and Playing Them on the Digital Keyboard

■ To change the pitch of a sampled sound

While holding down the keyboard key of the sampled sound whose pitch you want to change, use the [+] keys to change the pitch.

• You can change the pitch within a range of –64 to 63 semitones.

■ To delete a keyboard key’s sampled sound

While holding down the keyboard key whose sound you want to delete, press that appears, press the to cancel the delete operation.

• Deleting a sampled sound will return the key to its initial default built-in sound. Example: To delete the sound assigned to key D4

. In response to the “DelSure?” message

(10-key) [+] button to delete, or [–]

Disappears

(10-key) [–] and

Using a Drum Sampling Tone in Auto Accompaniment (Drum Assign)

Use the following procedure to change the rhythm part of an Auto Accompaniment pattern to a drum set sound that you sampled.

Press bq and then use bs (10-key) to enter the rhythm number of the Auto Accompaniment pattern you want.

You cannot use a Drum Sampling Tone in a user rhythm, so do not select a user rhythm in the above step.

Press bp and then use bs (10-key) to enter the tone number of the sampling drum set that contains the sound you want to use.

Press bp.

This changes the rhythm part of the Auto Accompaniment pattern you selected in step 1 to the sampled sound you selected in step 2.

• To change the Auto Accompaniment rhythm part back to its original sound, press

• Some rhythm part drum sounds cannot be replaced by sampled sounds.

again.

Other Sampling Functions

Changing to a Manual Sampling Start

Normally when the Digital Keyboard is in sampling standby, it will start sampling automatically whenever it detects sound input. You can use the following procedure to enable manual sampling start, which will cause sampling to wait until you press a button to start it. You can use this to insert silence before the sampled sound.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “SAMPLING” (page E-6).

Flashes

S A M P L I N G

Press the bs (10-key) [7] (ENTER) key.

A u t o S t r t

Press the bs (10-key) [–] key to turn off automatic sampling start.

This enables manual sampling start, which operates as described below.

• Melody sampling (page E-20): Sampling starts when you release in step 2 of the sampling procedure.

• Drum sampling (page E-22): Sampling starts when you release the Digital Keyboard key you press in step 4 of the sampling procedure.

• When manual sampling start is enabled, sampling starts when you release when you press it. Sampling does not start if you hold down the button or key.

or the keyboard key, not

, which you press

E-24

Sampling Sounds and Playing Them on the Digital Keyboard

Changing to Manual Sampling Stop

Normally the Digital Keyboard will stop sampling automatically whenever it detects there is no sound input. You can use the following procedure to enable manual sampling stop, which will cause sampling to continue until you press a button to stop it. You can use this to insert silence after the sampled sound.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “SAMPLING” (page E-6).

Press the bs (10-key) [7] (ENTER) key.

Press the bs (10-key) [6] (p) key.

A u t o S t o

Press the bs (10-key) [–] key to turn off automatic sampling stop.

Even when there is no sound input from an external device, sampling will continue until you press and release

or a keyboard key.

Deleting a Sampled Sound

You can use the following procedure to specify a sampled tone number and delete its data.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “DELETE” (page E-6).

Flashes

D E L E T E

Press the bs (10-key) [7] (ENTER) key.

S 1 : O r g n l

Used memory

(Unit: Kbytes)

Use the bs (10-key) [–] and [+] keys to select the tone number of the data you want to delete.

Remaining memory capacity

English

• When manual sampling stop is enabled, sampling stops when you release when you press it. Sampling does not stop if you hold down the button or key.

or the keyboard key, not

Press the bs (10-key) [7] (ENTER) key.

This displays a delete confirmation message.

S u r e ?

Press the bs (10-key) [+] (YES) key to delete the data, or [–] (NO) or [9] (EXIT) to cancel the delete operation.

• After the delete procedure is complete, “Complete” will appear on the display followed by the screen in step 2 of the above procedure.

• For information about deleting individual drum sounds in a drum sampling set, see “Editing Sampled Drum Set Sounds” on page E-23.

E-25

Sampling Sounds and Playing Them on the Digital Keyboard

Protecting Against Accidental Deletion of Sampled Sounds

You can use the following procedure to protect each sampled sound against accidental deletion.

Press bp and then use bs (10-key) to enter the tone number of the sampled tone you want to protect.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “SAMPLING” (page E-6).

Press the bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “Protect”.

P r o t e c t

Press the bs (10-key) [+] key to turn on protection.

Once protected a tone cannot be deleted. A protected tone is indicated as shown below.

Protected

1 : O r g n l

■ Saving Sample Data on an External Device

See page E-62 for details about how to transfer sampled data to a computer for storage.

■ Maintaining Sampled Sound Data in Memory

After you save sampled sound data in memory, it will remain there as long as power is supplied to the keyboard. However, if you disconnect the AC adaptor when there are no batteries loaded, sampled sound data will be deleted.

Tips for Maintaining Data

• Use both batteries and the AC adaptor together.

• Make sure that batteries with sufficient power are loaded whenever you disconnect the AC adaptor.

• Connect the AC adaptor to the keyboard and plug it into a power outlet before replacing batteries.

Before connecting or disconnecting the AC adaptor or replacing batteries, first press

to turn off power.

E-26

Playing Built-in Songs

88 99 bkbk blbl bmbm ctctbnbn

With this Digital Keyboard, built-in tune data is referred to as “songs”. You can listen to the built-in songs for your own enjoyment, or you can play along with them for practice.

• In addition to simple listening enjoyment, the built-in songs can be used with the lesson system (page E-31) for practice.

• You can increase the number of tunes using your computer (page E-59).

Playing the Demo Songs

Use the following procedure to play back built-in songs.

bobo

brbr

To change to another song while demo playback is in progress, use [+] keys to enter the song number you want (page E-6).

This will cause demo playback to jump to the song whose number you entered.

• You cannot use song.

To stop demo playback, press bm.

Demo playback continues until you stop it by pressing bm.

(10-key) number buttons to select a

bsbs

(10-key) [–] and

English

Press bm and bn at the same time.

This will start playback of the demo songs.

• See page E-69 for information about song numbers and the song sequence.

• Demo playback always starts from song number 151.

Flashes

Song number Tune name

D e m o T u n e

E-27

Playing Built-in Songs

Playing Back a Particular Song

Use the procedure below to play back one of the built-in songs. You can play along on the keyboard with song playback.

Start/Stop

Press br.

Tune nameSong number

T w i n k l e

Use bs (10-key) to enter the number of the song you want.

• See page E-69 for a complete list of available songs.

Press bm.

This starts playback of the song.

Tempo

Note

Beat

Sustain pedal

Measure

Pause, Skip Forward, Skip Back

Use the operations in this section to perform pause, skip forward, and skip back operations.

■ Pause

Press bl.

This pauses song playback.

Press bl again to resume playback from the point where you paused it.

■ Skip Forward

Press bk.

This skips song playback forward to the next measure. Each press of down

• Pressing lesson function phrase skip forward (page E-32).

skips ahead one measure. Holding

skips forward at high speed until you release it.

while song playback is stopped performs

Measure number

Key

Press bm again to stop playback.

Song playback will continue (repeat) until you press bm to stop it. You can cancel song repeat by pressing (“REPEAT” indicator disappears from the display).

Fingering

■ Skip Back

Press 9.

This skips song playback back to the previous measure. Each press of

skips back at high speed until you release it.

• Pressing lesson function phrase skip back (page E-32).

skips back one measure. Holding down

while song playback is stopped performs

E-28

Repeating Playback of Specific Measures

You can use the procedure in this section to repeat particular measures for practice playing along until you master it. You can specify the start measure and the end measure of the section you want to play and practice.

Start End

Playing Built-in Songs

Pressing 8 again returns to normal playback.

Changing the song number clears the start measure and end measure of the repeat operation.

English

These measures are repeated.

Press 8 to temporarily turn off song repeat (“REPEAT” disappears from the display).

When song playback reaches the measure you want to specify as the start measure, press

This specifies the measure as the start measure.

Flashes

When playback reaches the measure you want to select as the end measure, press

This specifies the measure as the end measure and starts repeat playback of the measures in the specified range.

• During repeat play you can use to skip forward, or 9 to skip back.

to pause playback,

again.

Disappears

Changing Playback Speed (Tempo)

You can use the following procedure to change the speed (tempo) in order to slow down playback to practice difficult passages, etc.

Press bo.

Use y (slower) and t (faster) to change the tempo setting. Holding down either button changes the setting at high speed.

• Pressing y and t at the same time will return the

current song to its original default tempo.

• Pressing display. While the tempo value is flashing, you can use

(10-key) to change it. The tempo value will stop

flashing if you do not perform any operation for a short while.

• Changing the song number will return the song to its original default tempo.

causes the tempo value to flash on the

Lights

E-29

Playing Built-in Songs

Adjusting the Song Volume

Use the following procedure to adjust the balance between the volume of what you play on the keyboard and song playback volume.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “Song Vol” (page E-6).

Song Vo l

Use the bs (10-key) [–] and [+] keys to adjust the song volume.

Playing with the Tone as Song Playback

The procedure below lets you select the same keyboard tone as the one being used in the song and play along with your favorite tunes.

After selecting a song, hold down br for about two seconds until the displayed tone name changes to the tone name of the song.

• If your currently selected tone is the same as the song tone, the display contents will not change.

Play along with song playback.

Turning Off the Part of One Hand for Practice (Part Select)

You can turn off the right hand part or the left hand part of a song during playback and practice playing along with the remaining part.

Press bn to select the part you want to turn off.

Each press of bn cycles through the settings shown below.

Right hand part off

Left hand part off

Both hand parts off

Both hand parts on

Press bm.

This starts playback in accordance with the setting you selected in step 1.

• If you select a song that uses different tones for left and right hand play, the right hand part tone is assigned to the keyboard.

• During playback with one part turned off, only the notes of the part that is turned off are shown on the display.

Increasing the Selection of Songs (User Songs)

You can transfer song data from your computer to the Digital Keyboard and assign them to song numbers 153 through 162, which are called “user songs”. After that, you can select user songs for playback and for lessons (page E-31). For information about transferring song data from your computer to Digital Keyboard memory, see page E-62.

• For information about how to delete song data loaded from a computer, see page E-57.

E-30

Using Built-in Songs to Master Keyboard Play

88 99 bkbk bmbm btbt ckck clcl cmcm cncn ctctbnbn

To master a song, it is best to break it up into shorter parts (phrases), master the phrases, and then put everything together. Your Digital Keyboard comes with a Step Up Lesson feature that helps you to do just that.

Phrases

The built-in songs are pre-divided into phrases to help you master keyboard play.

Song start Song end

Phrase 1 Phrase 2 Phrase 3 . . . .

Final

Phrase

brbr

bsbs

Step Up Lesson Flow

Step Up Lesson takes you through practice of the right hand part, left hand part, and both hand parts for each phrase of a song. Master all of the phrases and you master the song.

Phrase 1

• Right Hand Lesson 1, 2, 3

• Left Hand Lesson 1, 2, 3

• Both Hand Lesson 1, 2, 3

Repeat the above to practice phrase 2, 3, 4, and so on, until you reach the final phrase of the song.

English

After mastering all of the phrases, practice the entire song.

Now you have mastered the entire song!

E-31

Using Built-in Songs to Master Keyboard Play

Messages that Appear during Lessons

The following are the messages that appear on the display during Step Lessons.

Message Description

<Phrase> Appears when you select a phrase, when a

lesson starts, etc.

• Note that certain phrases will cause “Wait” to appear instead of “Phrase”.

<Wait> Appears when the lesson starts with an intro

or fill-in phrase that is not included in the phrases to be practiced. Play toll advance automatically to the next phrase after the unincluded phrase plays, so wait until then to start playing on the keyboard.

NextPhrs Appears when advancing automatically to the

next phrase. This message appears following a phrase for which “Wait” (see above) is displayed, and during an Auto Step Up Lesson (page E-36).

From top This message appears during Auto Step Up

Lesson (page E-36) immediately before practice from Phrase 1 up until the phrase currently being practiced.

Complete Appears at the end of Auto Step Up Lesson

(page E-36).

Press cm (or bk) to move forward one phrase, or

to move back one phrase.

• Holding down bk or 9 scrolls through phrases at high speed.

• The Digital Keyboard remembers the last phrase you practiced for up to 20 songs. To recall the last practice phrase for the current song (if it is available), hold down

Phrase number

First measure of the selected phrase

Press bn to select the part you want to practice.

Each press of bn cycles through the settings shown below.

Selecting the Song, Phrase, and Part You Want to Practice

First, select the song, phrase, and part you want to practice.

Select the song you want to practice (page E-28).

This will select the first phrase of the song.

Right hand practice

Left hand practice

Both hand practice

* This indicator (setting) is skipped if you press bn while

a lesson is in progress.

Hold down br for about two seconds.

The same tone used for song playback will be assigned to the keyboard (page E-30).

E-32

Lessons 1, 2, and 3

Now it is time to start the lessons. First, select the song and part you want to practice.

Lesson 1: Listen to the song.

First, listen to the example a few times to familiarize yourself with what it sounds like.

Using Built-in Songs to Master Keyboard Play

Play notes on the keyboard in accordance with the instructions provided on the display and by voice fingering guide.

During this lesson, the display shows the key you need to press next. Voice fingering guide uses a simulate voice to announce which finger you should use.

English

Press bt.

This starts example play.

Lights

To stop Lesson 1, press bt or bm.

Lesson 2: Watch how the song is played.

Play the song on the keyboard. During this lesson, the display shows the key you need to press next. Voice fingering guide also uses a simulate voice to announce which finger you should use. Follow the instructions to press the correct keyboard keys and play the notes. Don’t worry if you play the wrong note. Song playback will wait until you play the correct note. Take your time and play at your own pace.

Press ck.

This starts Lesson 2.

Lights

Flashes

Lights

Master playing the correct note with the correct finger as instructed by the guidance. Practice playing with the correct timing.

Song playback will wait for you to play the correct note.

• Keyboard key goes from flashing to lit.

• Note guide sounds the correct note to be played.

• Voice Fingering Guide tells you what finger to use.

Pressing the correct keyboard key causes song playback to resume and the key for the next note flashes.

To stop Lesson 2, press ck or bm.

● If you complete Lesson 2 play to the end, a score that rates your play appears on the screen.

Lights

Bravo! You pass! Advance to the next lesson. Again! Go back and try again.

E-33

Using Built-in Songs to Master Keyboard Play

Lesson 3: Remember what you learned as you play.

Though song playback stands by waiting for you to press the correct keys as in Lesson 2, the Digital Keyboard does not provide any guidance about what note you need to play next. Remember everything you have learned up to Lesson 2 as you play.

Press cl.

This starts Lesson 3.

Lights

Play the song along with the song playback.

Press the keyboard keys you learned in Lesson 2.

Song playback will wait for you to play the correct note.

• Note guide sounds the correct note to be played.

If you are still unable to press the correct keyboard key, the Digital Keyboard will display keyboard guidance and voice fingering guide will tell you what finger to use, just as in Lesson 2.

Pressing the correct key will cause song playback to resume.

Playing a Particular Song All the Way Through

After you successfully complete all of the phrases in Lessons 1, 2, and 3, it is time to try playing the entire song from beginning to end.

Use bn to turn off both hand parts and then press

Try playing with both hands and find out how the Digital Keyboard evaluates your effort.

Lesson Settings

Playing without Phrase Repeat

You can turn off phrase repeat for Lessons 1, 2, and 3.

Press 8.

This disables phrase repeat play.

Disappears

Turning Off Voice Fingering Guide

Use the following procedure to turn off voice fingering guide, which tells you which finger to use to play each note in Lesson 2 and Lesson 3.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “LESSON” (page E-6).

Flashes

To stop Lesson 3, press cl or bm.

• If you complete Lesson 3 play to the end, a score that rates your play appears on the screen the same as with Lesson 2.

E-34

LESSON

Press bs (10-key) [7] (ENTER) key.

Speak

Press the bs (10-key) [–] key to select the OFF setting.

Indicator disappears

when voice fingering

guide is turned off.

Turning Off Note Guide

Use the following procedure to turn off note guide, which sounds the note to be played next in Lesson 2 and Lesson 3.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “LESSON” (page E-6).

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “NoteGuid”.

Using Built-in Songs to Master Keyboard Play

Changing the Phrase Length

You can use the following procedure to change the length of lesson phrases, or to configure the lesson feature so the song is played all the way through, without being divided into phrases.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “LESSON” (page E-6).

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “PhraseLn”.

PhraseLn

Use the bs (10-key) [–] and [+] keys to select the phrase length you want.

English

NoteGuid

Press the bs (10-key) [–] key to select the OFF setting.

Turning Off Performance Evaluation

Use the following procedure to turn off performance evaluation, which evaluates your performance and displays a score in Lesson 2 and Lesson 3.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “LESSON” (page E-6).

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “Scoring”.

Sco r i n

Press the bs (10-key) [–] key to select the OFF setting.

Off (oFF) The phrase length is from the beginning to

the end of the song.

Preset (PrE) Phrase lengths are as specified in the song.

The following options are available for songs loaded from external sources only.

Short (Ln1) Length of one phrase is one measure. Middle (Ln2) Length of one phrase is two measures. Long (Ln3) Length of one phrase is four measures.

Indicator disappears

when performance

evaluation is turned off.

E-35

Using Built-in Songs to Master Keyboard Play

Using Auto Step Up Lesson

With Auto Step Up Lesson, the Digital Keyboard advances through each lesson automatically.

Select the song and part you want to practice (page E-28).

Press cn.

Listen to the first phrase in Lesson 1.

• In Lesson 1, the sample phrase is played only once before advancing to Lesson 2.

Flashes

Lights

Auto Step Up Lesson stops automatically after you are able to get through all of the lessons successfully.

• In Lesson 2 and Lesson 3, the Digital Keyboard advances to the next lesson if you are able to achieve the “Bravo!” evaluation result.

• To cancel a lesson, press

• You can change the step and phrase during Auto Step Up Lesson using

• Starting Auto Step Up Lesson turns on Phrase Repeat (page E-34), Note Guide (page E-35) and Performance Evaluation (page E-35) automatically. These features cannot be turned off during lessons.

9, bk

, and bt to cm.

or bm.

■ Auto Step Up Lesson Procedure

Phrase 1

Lesson 1

Lesson 2

Lesson 3

Phrase 2

Lesson 1

Lesson 2

Lesson 3

Phrase 1, 2

• Lesson 3*

Phrase 3

Lesson 1

Lesson 2

Lesson 3

Phrase 1, 2, 3

• Lesson 3*

Next phrase practice using the same procedure

Final phrase

Lesson 1

Lesson 2

Lesson 3

From Phrase 1 to the final phrase

• Lesson 3*

E-36

Lesson complete

* Auto Step Up Lesson advances to the next phrase,

regardless of whether the “Bravo!” result is attained.

Music Challenge Keyboard Game

11 bpbp

bmbm coco

Music Challenge is a game that measures your reaction speed as you press keys in response to on-screen keyboard indicators and fingering guide indications.

Press br.

Press co.

This causes a key on the on-screen keyboard to start to flash, and starts the Music Challenge song.

Number of remaining notes

M.CHAL. !

Fingering

Displayed during a game.

brbrbqbq

The game ends when you advance successfully through 20 notes.

• Your playing time appears on the display. After a short while, the playing time display changes to a score. To clear the score from the display, press

• You can cancel a game at any time by pressing

bp, bq

Playing time

Time19.2

Score

S c o r e 8 0

, or br.

English

After the on-screen keyboard indicator changes from flashing to lit, press the indicated key with the indicated finger as quickly as possible.

This causes the on-screen keyboard key to go out to let you know that you cleared the first note. The next onscreen keyboard key starts to flash, so get ready to press the next key.

• The time it takes you to press the keyboard key after the on-screen key lights appears on the display (Unit:

0.1 sec). The shorter the time, the higher your score.

• Pressing a keyboard key before the on-screen key goes from flashing to lit, will not advance to the next note.

Time 0.3sec

M.CHAL . !

• Notes and fingering guide fingers are indicated randomly.

• The tempo of the game songs cannot be changed.

• All buttons except is in progress.

, and co are disabled while a game

1, bm

E-37

Using Auto Accompaniment

88 99 bkbk blbl bmbm crcr ctctbnbn

With Auto Accompaniment, simply select an accompaniment pattern. Each time you play a chord with your left hand the appropriate accompaniment will play automatically. It’s like having a personal backup group along with you wherever you go.

• Auto Accompaniments are made up of the following three parts. (1) Rhythm (2) Bass (3) Harmony

You can have only the rhythm part play, or you can have all three parts play at the same time.

Playing the Rhythm Part Only

The rhythm part is the foundation each Auto Accompaniment. Your Digital Keyboard comes with a variety of built-in rhythms, including 8-beat and waltz. Use the following procedure to play the basic rhythm part.

bqbq

bobo

Starting and Stopping the Rhythm Part Only

Press bq.

Rhythm number Rhythm pattern name

Funk 8Bt

Use bs (10-key) to select the rhythm number you want.

• See the separate “Appendix” for information about individual rhythms.

Press bm or 9.

This starts the rhythm.

This pattern changes with each beat.

bsbs

E-38

Play along with the rhythm.

To stop the rhythm, press bm again.

Playing All Parts

Auto Accompaniment with Chords

Playing a chord with your left hand automatically adds bass and harmony accompaniment parts to the currently selected rhythm. It is just like having your own personal back up group on call.

Start play of the Auto Accompaniment rhythm part.

Press bn.

This enables chord input on the accompaniment keyboard.

Accompaniment keyboard

Lights

Using Auto Accompaniment

Pressing bn again returns to rhythm only accompaniment.

• For information about starting Auto Accompaniment as soon as a chord is played, see “Using Synchro Start” on page E-42.

• You can use the split point to change the size of the accompaniment keyboard range (page E-16).

Selecting a Chord Input Mode

You can select from among the following five chord input modes.

• FINGERED 1

• FINGERED 2

• FINGERED 3

• CASIO CHORD

• FULL RANGE CHORD

Hold down bn until the chord input mode selection screen appears on the display.

Chord input mode

Cho r d

English

Use the accompaniment keyboard to play chords.

This will cause bass and harmony Auto Accompaniment parts to be added to the rhythm part.

Chords (no melody played) Melody

Example: Pressing D-F#-A-C on the accompaniment keyboard

Accompaniment for the D-F

Play other chords with left hand as you play the

-A-C chord (D7) sounds.

melody with your right hand.

Use the bs (10-key) [–] and [+] keys to select the chord input mode you want.

• If you do not perform any operation after the chord input mode selection screen appears, the display will return automatically to the screen that was displayed before you held down

E-39

Using Auto Accompaniment

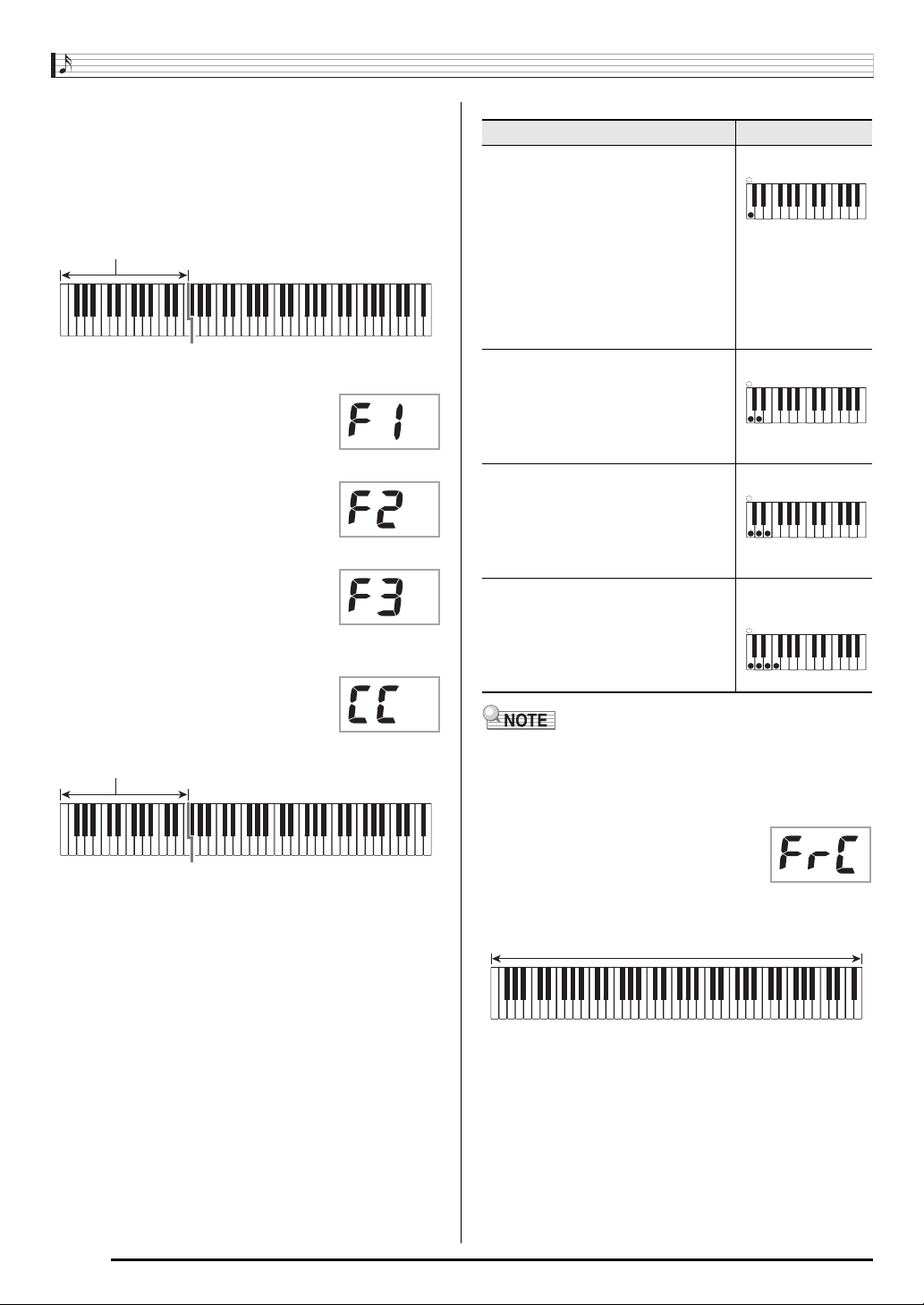

■ FINGERED 1, 2, and 3

With these three input modes, you play chords on the accompaniment keyboard using their normal chord fingerings. Some chord forms are abbreviated, and can be fingered with one or two keys. See the separate “Appendix” for information about chords that are supported and how they are fingered on the keyboard.

Accompaniment keyboard

● FINGERED 1

Play the component notes of the chord on the keyboard.

● FINGERED 2

Unlike FINGERED 1, 6th input is not possible. m7 or m7

5 is input.

● FINGERED 3

Unlike FINGERED 1, allows input of fraction chords with the lowest keyboard note as the bass note.

■ CASIO CHORD

With CASIO CHORD, you can use simplified fingerings to play the four types of chords described below.

Accompaniment keyboard

CASIO CHORD Fingering

Chord Type Example

Major Chords

Letters above the accompaniment

C (C Major)

E#G

DE FF

DE F

keyboard indicate the chord assigned to each key. Pressing a single accompaniment area key in the CASIO CHORD mode will play the major chord whose name is marked above the key. All of the accompaniment area keys that are marked with the same chord name play exactly the same chord.

Minor Chords

To play a minor chord, press the

Cm (C Minor)

E#G

DE FF

DE F

accompaniment area key that corresponds to the major chord, while also pressing one other accompaniment area key to the right.

Seventh Chords

To play a seventh chord, press the

C7 (C Seventh)

E#G

DE F

DE FF

accompaniment area key that corresponds to the major chord, while also pressing two other accompaniment area keys to the right.

Minor Seventh Chords

To play a minor seventh chord, press the accompaniment area key that

Cm7 (C Minor Seventh)

E#G

DE F

DE FF

corresponds to the major chord, while also pressing three other accompaniment area keys to the right.

• When playing a minor, seventh, or minor seventh chord, it makes no different whether the additional keys you press are black or white.

E-40

■ FULL RANGE CHORD

With this mode, you can use the full range of the keyboard to play chords and the melody. See the separate “Appendix” for information about chords that are supported.

Accompaniment keyboard / Melody keyboard

Using Auto Accompaniment

Using Auto Accompaniment Effectively

Auto Accompaniment Pattern Variations

Use the following procedures to play intro and ending patterns, to play fill-in patterns, and to play variations of basic Auto Accompaniment patterns.

■ Auto Accompaniment Variation

Each Auto Accompaniment pattern has a basic “normal pattern” as well as a “variation pattern”.

Press bk.

This starts the variation pattern.

Lights

Pressing 9 returns to normal pattern.

Lights

■ Auto Accompaniment Fill-in

Use the procedure below to play a fill-in pattern during a performance.

• A “fill-in” is a short phrase played where you want to change the mood of a piece. A fill-in pattern can be used to create a link between two melodies or an accent.

• Normal and variation patterns have their own unique fill-in patterns.

● Normal Pattern Fill-in

While a normal pattern is playing, press 9.

This plays the fill-in for the normal pattern.

• Normal pattern play will resume after the fill in pattern is complete.

Lights

● Variation Pattern Fill-in

While a variation pattern is playing, press bk.

This plays the fill-in for the variation pattern.

• Variation pattern play will resume after the fill in pattern is complete.

Lights

English

■ Auto Accompaniment Intro

Use the following procedure to play an intro of a few measures.

Press 8.

This starts the intro pattern. Normal pattern play will start when the intro pattern is finished.

• If you press the variation pattern will start when the intro pattern is finished.

while an intro pattern is being played,

Lights

■ Auto Accompaniment Ending

Use the following procedure to play an ending of a few measures.

While an Auto Accompaniment is playing, press

This will play the ending pattern and then stop Auto Accompaniment play automatically.

Lights

E-41

Using Auto Accompaniment

■ Using Synchro Start

Use the following procedure to configure the Digital Keyboard to start Auto Accompaniment play as soon as you press a keyboard key.

Press bl.

This enters accompaniment start standby.

Flashes

Play a chord on the keyboard.

This will start full part accompaniment (normal).

Any of the following operations can be performed while in synchro standby to start a non-normal pattern.

• To start with intro pattern, press

• To start with variation pattern play, press

Changing Auto Accompaniment Speed (Tempo)

Use the following procedure to change Auto Accompaniment speed to a level that suits you.

Press bo.

Use y (slower) and t (faster) to change the tempo setting. Holding down either button changes the setting at high speed.

•Pressing y and t at the same time will initialize the tempo setting in accordance with the currently selected rhythm.

• While the tempo value is flashing, you also can use (10-key) to change it.

• If you do not perform any operation for a few seconds after the tempo setting screen appears, the display will return to the screen displayed before you pressed

Adjusting the Accompaniment Volume

Use the following procedure to adjust the balance between what you are playing on the keyboard and the volume of the Auto Accompaniment.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “AcompVol” (page E-6).

AcompVo l

Use the bs (10-key) [–] and [+] keys to adjust the accompaniment volume.

Using One-Touch Preset

With One-Touch Preset, the Digital Keyboard automatically configures optimal tone, tempo, and other settings in accordance with the rhythm pattern you select.

Hold down bq until the current tone screen appears on the display.

This will automatically apply the One-Touch Preset settings in accordance with the rhythm pattern that is currently selected.

Play a chord on the keyboard.

This will start accompaniment automatically.

E-42

Flashes

Using Auto Accompaniment

Using Auto Harmonize

Auto Harmonize automatically adds harmony to notes you play with your right hand, which adds rich depth to the melody of your performances. You can select from among 12 types of Auto Harmonize to suit the type of music you are playing.

• Auto Harmonize is controlled using the same button cr as the Arpeggiator (page E-56). Because of this, these two functions cannot be used at the same time.

Press bn to enable Auto Accompaniment with chords (ACCOMP indicator lit) (page E-39).

• Auto Harmonize cannot be used while FULL RANGE CHORD is selected as the chord input mode. Select another mode if you want to use Auto Harmonize.

Hold down cr until the Auto Harmonize or Arpeggiator type number and type name appear on the display.

• If you do not perform any operation for a few seconds, the display will return to previous screen automatically.

Type number Type name

Due t 1

Type

number

001 Duet 1

002 Duet 2

003 Country Adds country style harmony.

004 Octave

005 5th Adds the fifth degree note.

006 3-Way Open

007 3-Way Close

008 Strings

009 4-Way Open

010 4-Way Close

011 Block Adds block chord notes.

012 Big Band Adds big band style harmony.

Type Name Description

Adds close (separated by 2 to 4 degrees) 1-note harmony below the melody note.

Adds open (separated by more than 4 to 6 degrees) 1-note harmony below the melody note.

Adds the note from the next lower octave.

Adds 2-note open harmony, for a total of three notes.

Adds 2-note close harmony, for a total of three notes.

Adds harmony that is optimal for strings.

Adds 3-note open harmony, for a total of four notes.

Adds 3-note close harmony, for a total of four notes.

English

Use the bs (10-key) [–] and [+] keys to select the Auto Harmonize type you want.

• 013 through 102 are Arpeggiator types (page E-56). Do not select them when using the Auto Harmonize.

Due t 2

Press cr to turn on Auto Harmonize.

If you play chords with your left hand and the melody with your right hand, harmony notes will be added to the melody.

• Press

again to turn off Auto Harmonize.

S t G r P n o

Lit when on

E-43

Editing Auto Accompaniment Patterns

88 99 bkbk blbl bmbm ctctbnbn

You can use the procedure in this section to edit the Digital Keyboard’s built-in Auto Accompaniment rhythm patterns and create your own “user rhythms”.

• You can store up to 10 user rhythms in Digital Keyboard memory, using rhythm numbers 181 through 190.

■ Editable Accompaniment Patterns and Instrument Parts

Any of the following parts that make up each rhythm that is assigned a rhythm number can be edited. Accompaniment patterns (intro, fill-in, etc.): 6 types Instrument parts (drum, bass, etc): 8 types

Instrument

Parts

Accompaniment Pattern

NORMAL

INTRO

NORMAL

FILL-IN

VARIATION

ENDING

FILL-IN

66 bqbq

■ Editable Contents

•Rhythm number

•Part on/off

• Tone number

•Volume level

• Left-right speaker balance (panning)

• Reverb depth (reverb send)

• Chorus depth (chorus send)

To edit and save an Auto Accompaniment

Select the number of the rhythm you want to edit.

Press 6.

Button

Instrument part

bsbs

Editable contentRhythm number

INNFVVFE

1 Drum I-1 N-1 NF-1 V-1 VF-1 E-1

2 Percussion I-2 N-2 NF-2 V-2 VF-2 E-2

3 Bass I-3 N-3 NF-3 V-3 VF-3 E-3

4 Chord 1 I-4 N-4 NF-4 V-4 VF-4 E-4

5 Chord 2 I-5 N-5 NF-5 V-5 VF-5 E-5

6 Chord 3 I-6 N-6 NF-6 V-6 VF-6 E-6

7 Chord 4 I-7 N-7 NF-7 V-7 VF-7 E-7

8 Chord 5 I-8 N-8 NF-8 V-8 VF-8 E-8

Button

899bkbkbl

E-44

Drm:Rhy.

Lights Accompaniment Pattern (Flashes)

If the “Err Mem Full” message appears on the display, see page E-68 for information about what you should do.

Press a button from 8 to bl to select the Accompaniment Pattern you want to edit.

The name of the pattern will appear on the display.

Drm:Rhy.

Variation selected

Pattern selected by each button

:Intro

: Normal, Normal Fill-in

(Each press toggles the selection.)

: Variation, Variation Fill-in

(Each press toggles the selection.)

: Ending

Press bn to select the instrument part you want to edit.

The part number of the part you select will flash on the display.

Parts that contain data. Flashing: Part selected for editing.

Part 6 (Chord 3)

Press bq.

This will display the rhythm number.

Use the bs (10-key) [–] and [+] keys to select the rhythm number you want to assign to the instrument part you are editing.

A different rhythm number is assigned for each instrument part.

• You can play the data of the currently selected rhythm number by pressing

• All of the eight instrument parts of an intro (I-1 to 8) must have the same rhythm number. If you assign rhythm 003 to I-1, for example, 003 also will be assigned automatically to parts I-2 through I-8. If you then assign rhythm 004 to part I-2, for example, I-1 and all of the other parts also will change to 004. All of the eight parts of an ending (E-1 to E-8) also must have the same rhythm number.

Editing Auto Accompaniment Patterns

To edit the other contents, press ct to display the screen for the setting you want.

• Each press of ct will cycle through the settings shown below, from 1 through 6.

• Use the currently selected setting.

• You can play the current settings of the editable part by pressing

1 Part on/off Part On/Off

2 Tone number* Tone 001 - 553

3 Volume level Vol. 000 - 127

Left-right speaker

balance (panning)

Reverb depth

(reverb send)

Chorus depth

(chorus send)

* Instrument parts 1 and 2 can be assigned drum set tones

(554 through 570) only.

Repeat steps 4 through 7 as many times as

(10-key) [–] and [+] keys to change the

Setting Type Display Settings

Pan –64 - 0 - +63

Rvb 000 - 127

Cho. 000 - 127

necessary to edit the parts you want for the pattern you selected in step 3.

• If you change the rhythm number in step 6, the editable contents (1 through 6 in the above table) you last configured in step 7 of this procedure will be overwritten with the settings of the newly selected rhythm.

Repeat steps 3 through 8 as many times as necessary to edit the accompaniment patterns you want (intro through ending).

10.

Press 6.

This will display a message asking if you want to save the user rhythm.

11-1.

Press the bs (10-key) [–] key to exit without saving.

This displays the delete confirmation message. Press the

(10-key) [+] key to exit the editing procedure.

English

E-45

Editing Auto Accompaniment Patterns

11-2.

Press the bs (10-key) [+] key to save the data.

Funk 8Bt

•Use bs (10-key) [–] and [+] keys to select the rhythm number you want to save.

• You can edit the user rhythm name. Use the key) [4] (o) and [6] (p) keys to move the cursor to the character you want to change, and then use [+] and [–] to change the character.

(10-

■ Saving User Rhythm Data on an External Device

See page E-62 for details about how to transfer edited accompaniment data to a computer for storage.

■ Maintaining User Rhythm Data in Memory

After you save user rhythm data in memory, it will remain there as long as power is supplied to the keyboard. However, if you disconnect the AC adaptor when there are no batteries loaded, user rhythm data will be deleted.

Tips for Maintaining Data

• Use both batteries and the AC adaptor together.

• Make sure that batteries with sufficient power are loaded whenever you disconnect the AC adaptor.

• Connect the AC adaptor to the keyboard and plug it into a power outlet before replacing batteries.

Before connecting or disconnecting the AC adaptor or replacing batteries, first press

to turn off power.

12.

Press bs (10-key) [7] (ENTER) key.

This will display a message asking if you want to save the user rhythm.

• Press the

• Press the that was displayed before you pressed [7] (ENTER) key.

• If you select a user rhythm number that already contains data, the existing data will be replaced by the new data.

• You cannot change the tone assigned to the keyboard while an Auto Accompaniment editing (rhythm edit) operation is in progress.

(10-key) [+] key to save the data.

(10-key) [–] key to return to the screen

E-46

To delete saved data

The following procedure cannot be performed while an Auto Accompaniment editing (rhythm edit) operation is in progress.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “DELETE” (page E-6).

Flashes

D E L E T E

Used memory (Unit: Kbytes)

Remaining memory capacity

Press the bs (10-key) [7] (ENTER) key.

Press the bs (10-key) [6] (p) key.

User rhythm name

Editing Auto Accompaniment Patterns

English

Use 1

Use the bs (10-key) [–] and [+] keys to select the user rhythm you want to delete.

Press the bs (10-key) [7] (ENTER) key.

This displays a delete confirmation message.

Sure?

Press the bs (10-key) [+] (YES) key.

After the delete procedure is complete, “Complete” will appear followed by the screen in step 2 of the above procedure.

• To cancel the delete operation, press [–] (NO) or [9] (EXIT) in place of [+] (YES).

E-47

Saving Keyboard Setups to Registration Memory

Registration memory lets you store Digital Keyboard setups (tone, rhythm, etc.) for instant recall whenever you need them. Registration memory simplifies performance of complex pieces that require successive tone and rhythm changes.

You can have up to 32 setups in Registration memory at one time.

and ck to cn are used for recording.

bt ck cl cm cn

Area 1 Area 2 Area 3 Area 4

Bank 1 Setup 1-1 Setup 1-2 Setup 1-3 Setup 1-4

Bank 2 Setup 2-1 Setup 2-2 Setup 2-3 Setup 2-4

. .

Bank 8 Setup 8-1 Setup 8-2 Setup 8-3 Setup 8-4

• Each press of bank select button bank numbers, from 1 to 8.

• Pressing a button from area in the currently selected bank.

. .

to cn selects the corresponding

. .

cycles through the

. .

bqbq

btbt ckck clcl cmcm cncn coco

bsbs

ctctcscs

■ Registration Save Example

This example saves the data shown in the table below to the following setups in Bank 1.

• Initial melody setup saved to Setup 1-1.

• Second melody setup saved to Setup 1-2.

• Third melody setup saved to Setup 1-3.

Setup 1–1 Setup 1–2 Setup 1–3

Tone Number 001 062 001

Rhythm Number 118 005 089

Tempo 080 140 089

■ Registration Memory Data

The following is the complete list of data that is saved to a registration memory setup.

• Tone numbers (main, layer, split)

• Rhythm number

• Tempo

• Auto Harmonize

• Transpose

• Split point

• Touch Response

• Octave shift

• Chord fingerings

• Accompaniment volume

• Arpeggiator setting (on, off, type)

• Synchro start

• Reverb (on, off, type)

• Chorus (on, off, type)

• Accomp (on, off)

• Arpeggiator hold (on, off)

• Layer (on, off)

• Split (on, off)

• Pedal effect

E-48

Saving Keyboard Setups to Registration Memory

To save a setup to registration memory

Press bq.

Press cs and ct at the same time to enable registration.

•Pressing cs and ct at the same time again will disable registration.

Lit when on

Bank number

Configure the tone, rhythm, and other settings you can to include in the setup.

Press bt to select the bank you want.

Each press of bt cycles through the bank numbers.

Bank 4

• You also can select a bank by holding down use the number.

While holding down co, press a button from ck to

This will save the settings you configured in step 3 into the applicable setup.

• If there is anything already stored in the setup, it will be replaced (deleted) by the new setup.

(10-key) number buttons to enter a bank

to select an area.

Stored in Setup 4-1

Store

as you

To recall a setup from registration memory

Press bt to select the bank that contains the setup you want to recall.

Bank 6

Use buttons ck to cn to select the area whose setup you want to recall.

This will recall the registration memory setup and automatically configure the Digital Keyboard settings accordingly.

Setup 6-1 recalled

Reca l l

• Notes currently being sounded by the keyboard may stop if you recall a setup that causes a change in octave shift (page E-18). To keep this from happening, either select a setup that does not cause a change in the octave shift setting, or hold down the pedal (which will cause notes currently being played to be sustained).

■ Saving registration Data on an External Device

See page E-62 for details about how to transfer registration data to a computer for storage.

■ Maintaining Data in Registration Memory

After you save data in registration memory, it will remain there as long as power is supplied to the keyboard. However, if you disconnect the AC adaptor when there are no batteries loaded, data in registration memory will be deleted.

Tips for Maintaining Data

• Use both batteries and the AC adaptor together.

• Make sure that batteries with sufficient power are loaded whenever you disconnect the AC adaptor.

• Connect the AC adaptor to the keyboard and plug it into a power outlet before replacing batteries.

Before connecting or disconnecting the AC adaptor or replacing batteries, first press

to turn off power.

English

E-49

Recording Your Keyboard Play

55 brbrbqbq

bmbm btbt ckck clcl cmcm cncn cocobnbn

The recorder feature lets you record your keyboard play.

Recording and Playing Back Keyboard Play

Use the following procedure to record everything you play on the keyboard.

Press bq.

Press 5.

bpbp

Configure the tone, rhythm, and other settings you want to use.

Start playing.

Recording starts as soon as you play something on the keyboard.

• You can use Auto Accompaniment while playing. If you do, Auto Accompaniment also will be recorded.

To stop recording, press bm.

Lights

bsbs

Press 5 again.

This will enter record stnadby.

Flashes

Lights

Flashes

Lights

To play back what you have recorded, press bm again.

Each press of bm starts and stops playback.

E-50

Press 5 twice to exit the recorder mode.

Disappears

• The flashing on the screen shown in step 3 becomes faster when remaining recorder memory capacity becomes less than 100 notes.

• Total recorder memory capacity is approximately 12,000 notes. Recording will stop automatically when there is no more unused recorder memory remaining.

• Each press of below. You can listen to the recorded data as many times as you like by pressing standby.

Recorder Off

Disappears Lights Flashes

cycles through the settings shown

while in playback

Playback

Standby

Record

Standby

Recording Your Keyboard Play

Using Tracks to Record and Mix Parts

You can divide a song according to various types of parts (instrument, left and right hand, etc.), and record each part to a specific track. You can mix up to six tracks (the original track plus five additional tracks) into a final song.

■ About tracks

Tracks are numbered from 1 to 6.

• If you do not specify a track number when recording, recording is performed to Track 1 automatically.

In addition to what you play on the keyboard, the following information also is recorded.

• Track 1

Settings: Tone number, rhythm number, tempo, reverb, chorus, chords, layer/split settings, Auto Harmonize/Arpeggiator setting

Operations: Pedal, INTRO button, SYNCHRO/ENDING button, NORMAL/FILL-IN button, VARIATION/FILL-IN button

• Tracks 2 through 6

Tone number, pedal operation

English

■ To delete recorded data

After step 3 of the above procedure, hold down 5 (without pressing any keyboard key) until the message “Tr.Del?” appears on the display. Press [+] (YES) to delete the data, or [–] (NO) to cancel the delete operation.

• Turning off the Digital Keyboard while recording is in progress will cause any data in recorder memory to be deleted.

• A new recording replaces (deletes) previously recorded contents.

■ Maintaining Data in Recorder Memory

After you save data in recorder memory, it will remain there as long as power is supplied to the keyboard. However, if you disconnect the AC adaptor when there are no batteries loaded, data in recorder memory will be deleted.

Tips for Maintaining Data

• Use both batteries and the AC adaptor together.

• Make sure that batteries with sufficient power are loaded whenever you disconnect the AC adaptor.

• Connect the AC adaptor to the keyboard and plug it into a power outlet before replacing batteries.

Before connecting or disconnecting the AC adaptor or replacing batteries, first press

to turn off power.

E-51

Recording Your Keyboard Play

To record to Tracks 1 through 6

Record the first part to Track 1.

To record to Track 1, perform steps 1 through 6 under “Recording and Playing Back Keyboard Play” (page E-50).

Lights

Press 5.

This will enter record standby.

Flashes

Repeat steps 2 through 5 to record the other tracks.

After you finish recording all of the tracks, press

• This will start playback of the recorded tracks. Press bm

• At this time you can turn off playback of specific tracks

• If you want to re-record a track, press

Example: Tracks 2 and 3 selected

Press 5 twice to exit the recorder mode.

to stop or restart playback.

using buttons of each track on (track number displayed) or off (track number not displayed).

return to step 2 of the above procedure. Only the tracks that are turned on (displayed) above will play as you re-record.

to co. Pressing a key toggles playback

. This will

Disappears

Press a button from ck to co to select the track number of the next track to which you want to record.

This will enter record standby for the track you selected. Example: Track 2

Flashes

• If you want to use a different tone than the one you used in Track 1, press input the tone number.

Press bm.

This will start playback of what you recorded up to this point in other tracks and record what you play on the keyboard to the currently selected track. Play the notes you want on the keyboard.

To stop recording, press bm.

• To play back what you have recorded, press bm again. Each press of

and then use bs (10-key) to

starts and stops playback.

Disappears

■ To delete a recorded track

After step 3 of the above procedure, hold down 5 (without pressing any keyboard key) until the message “Tr.Del?” appears on the display. Press [+] (YES) to delete the track, or [–] (NO) to cancel the delete operation.

E-52

Recording Your Keyboard Play

Recording Two or More Songs, and Selecting One for Playback

You can record up to five songs (numbered 1 through 5) in memory. After that, you can select a specific song for playback.

Press bq.

Press 5.

A song number will appear in the upper left corner of the display for a few seconds. While it is, use specify the number of the song you want to record or play back. The song number will disappear if you do not perform any operation. Example: Song 2

P l a

Press 5 to record, or bm to play back.

To stop recording or playback, press bm.

Press 5 twice to exit the recorder mode.

■ To delete recorded data

After step 2 of the above procedure, hold down 5 (without pressing any keyboard key) until the message “Song Del?” appears on the display. Press [+] (YES) to delete the song, or [–] (NO) to cancel the delete operation.

(10-key) to

N o .

Recording while Playing Along with a Built-in Song

This section explains how to play along and record along with one of the Digital Keyboard’s built-in songs.

● The following operations and settings also are recorded along with your keyboard play.

Tone number, song number, pedal operation, tempo, reverb, chorus, layer/split settings

• There can be only one recording of keyboard play with a built-in song in recorder memory. Making a new recording replaces (deletes) previously recorded data.

Press br.

Press 5.

This will enter playback standby.

Lights

Press 5 again.

This will enter record standby.

English

Flashes

Use bs (10-key) to enter the song number you want to assign to the recording.

E-53

Recording Your Keyboard Play

Press bn to cycle through the parts in the sequence shown below.

Right-hand Recording

Left-hand Recording

Both-hand Recording

Example: Left-hand part recording

Flashes

• Configure tone and tempo settings at this time as well.

Press bm to start built-in song playback and recorder recording.

Play along with the playback.

• To stop recording part way through, press

Saving Recorded Data on an External Device

See page E-62 for details about how to transfer recorded data to a computer for storage.

Recording will stop automatically when the end of the built-in song is reached.

This will enter playback standby.

Lights

Press bm.

This will start playback of what you recorded.

• Each press of

Press 5 twice to exit the recorder mode.

starts and stops playback.

Disappears

■ To delete recorded data

After step 2 of the above procedure, hold down 5 until the message “Song Del?” appears on the display. Press [+] (YES) to delete the song.

E-54

Other Useful Digital Keyboard Functions

Changing the Scale of the Keyboard

You can use the procedure in this section to change the scale (tuning system) of the keyboard from the standard equal temperament to another scale that is more suitable for playing Indian music, Arabic music, ancient classics, etc. You can select from among the 17 preset scales listed below.

No. Scale name Display

00 Equal Temperament Equal

01 Pure Major PureMajr

02 Pure Minor PureMinr

03 Pythagorean Pythagor

04 Kirnberger 3 Kirnbrg3

05 Werckmeister Wercmeis

06 Mean-Tone MeanTone

07 Rast Rast

08 Bayati Bayati

09 Hijaz Hijaz

10 Saba Saba

11 Dashti Dashti

12 Chahargah Chaharga

13 Segah Segah

14 Gurjari Todi GujrTodi

15 Chandrakauns Cndrkuns

16 Charukeshi Carukesi

bqbq

bpbp44

bsbs

crcr ctct

Press bq.

Press 4.

Scale nameScale number

E q u a l

Use the bs (10-key) [–] and [+] keys to select the preset scale you want. After selecting a scale, press the key on the keyboard that you want to use as the root key (C to B).

After you are finished, press 4 to assign the scale to the keyboard.

Using the Current Scale Notes for Auto Accompaniments

You can use the following procedure to reflect the scale you adjusted using the scale fine tune or the quarter tone function, or the preset scale you selected with the preset function in Auto Accompaniments.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “OTHER” (page E-6).

Flashes

OTHER

English

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “AcompScl”.

Use the bs (10-key) [+] key to select on.

E-55

Other Useful Digital Keyboard Functions

Using Music Preset

Selecting a Music Preset instantly changes the Digital Keyboard to a preset setup (tone, rhythm, tempo, etc.) for play of songs of various genres/categories. The press of a button sets up the Digital Keyboard so those songs sound exactly the way you thought they should.

• See the separate “Appendix” for a complete list of the 305 Music Presets that are available.

Hold down bp until the indicator shown below appears on the display.

Preset number Preset name

I L o v e H e r

Lights

Use bs (10-key) to select the preset number you want.

This will change the setup (tone, rhythm, etc.) of the Digital Keyboard.

• At this time the Digital Keyboard will go into Auto Accompaniment synchro start standby (page E-42).

•Pressing displayed before you held down in step 1, above.

Play along on the keyboard with the accompaniment.

, or br will return to the screen that was

bp, bq

Using the Arpeggiator

The Arpeggiator makes it possible to play an arpeggio pattern automatically. There are 90 different arpeggio patterns from which to choose in order to match the music you are playing.

• The Arpeggiator is controlled using the same button cr as Auto Harmonize (page E-43). Because of this, these two functions cannot be used at the same time.

Hold down cr until the Auto Harmonize or Arpeggiator type number and type name appear on the display.

• If you do not perform any operation for a few seconds, the display will return to the previous screen automatically.

Type number Type name

D u e t 1

Use the bs (10-key) [–] and [+] keys to select the Arpeggiator type you want.

• 001 through 012 are Auto Harmonize types (page E-43). Do not select them when using the Arpeggiator.

Octave 1 .. Uses the actual notes played. 2 .. Uses the actual notes played plus the same notes one octave. 4 .. Uses the actual notes played plus the same notes three octaves.

1 U p 1

E-56

Speed (The number of arpeggio notes per beat)

Type

number

013 - 030 Up Rising

031 - 048 Down Falling

049 - 066 U/D A

067 - 084 U/D B

085 - 102 Random

Type Name Description

Repeat pattern alternating between rising and falling (Type A)

Repeat pattern alternating between rising and falling (Type B)

Random arrangement of notes of the pressed keys

Press cr to turn on Arpeggiator.

Playing a chord on the keyboard will start arpeggio play.

•Press

again to turn off Arpeggiator.

Other Useful Digital Keyboard Functions

Deleting User Song Data

You can use the following procedure to delete user song data stored as song numbers 153 through 162.

S t . G r P n o

Lit when on

• The tempo setting of the Arpeggiator is the same as that set for the metronome (page E-12).

Sustaining an Arpeggio (Arpeggiator Hold)

Use the following procedure when you want an arpeggio pattern to keep playing after you release the keyboard keys.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “OTHER” (page E-6).

Press bs (10-key) [7] (ENTER) key.

A r p e g H l d

Press the bs (10-key) [+] key to select the ON setting.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “DELETE” (page E-6).

Flashes

D E L E T E

Used memory (Unit: Kbytes)

Remaining memory capacity

Press the bs (10-key) [7] (ENTER) key.

Press the bs (10-key) [6] (p) button twice.

User song name

U S E R S O N G

Use the bs (10-key) [–] and [+] keys to select the user song you want to delete.

Press the bs (10-key) [7] (ENTER) key.

This displays a delete confirmation message.

English

S u r e ?

Press the bs (10-key) [+] (YES) key.

After the delete procedure is complete, “Complete” will appear followed by the screen in step 2 of the above procedure.

• To cancel the delete operation, press [–] (NO) or [9] (EXIT) in place of [+] (YES).

E-57

Other Useful Digital Keyboard Functions

Deleting All Data in Digital Keyboard Memory

Use the following procedure when you want to delete sampled sounds, user songs and all other data, except for recorded songs, currently in Digital Keyboard memory.

• Performing this procedure also will delete protected sampled sound data (page E-26). It is recommended that you save important data to your computer’s hard disk (page E-59).

• This operation does not delete recorded song data.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “DELETE” (page E-6).

Flashes

D E L E T E

Used memory (Unit: Kbytes)

Remaining memory capacity

Press the bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “All Data”.

Flashes

A l l D a t a

Press the bs (10-key) [7] (ENTER) key.

This displays a delete confirmation message.

S u r e ?

Press the bs (10-key) [+] (YES) key.

After the delete procedure is complete, “Complete” will appear followed by the screen in step 2 of the above procedure.

• To cancel the delete operation, press [–] (NO) or [9] (EXIT) in place of [+] (YES).

E-58

Connecting External Devices

Connecting a Computer

You can connect the Digital Keyboard to a computer and exchange MIDI data between them. You can send play data from the Digital Keyboard to music software running on your computer, or you can send MIDI data from your computer to the Digital Keyboard for playback.

Minimum Computer System Requirements

The following shows the minimum computer system requirements for sending and receiving MIDI data. Check to make sure that your computer complies with these requirements before connecting the Digital Keyboard to it.

• Operating System

Windows Windows Vista® Mac OS® X (10.3.9, 10.4.11 or later, 10.5.2 or later)

*1: Windows XP Home Edition

*2: Windows Vista (32- bit)

XP (SP2 or later)

Windows XP Professional (32- bit)

bsbs

ctctbnbn

Connecting the Digital Keyboard to Your Computer

• Make sure you follow the steps of the procedure below exactly. Connecting incorrectly can make data send and receive impossible.

Turn off the Digital Keyboard and then start up your computer.

• Do not start up the music software on your computer yet!

After starting up your computer, use a commercially available USB cable to connect it to the Digital Keyboard.

Digital Keyboard USB port

USB cable

(A-B type)

English

•USB port

• Never connect to a computer that does not conform to the above requirements. Doing so can cause problems with your computer.

A connector

Turn on the Digital Keyboard.

• If this is the first time you are connecting the Digital Keyboard to your computer, the driver software required to send and receive data will be installed on your computer automatically.

Start up your computer’s music software.

B connector

Computer USB port

E-59

Connecting External Devices

Configure the music software settings to select one of the following as the MIDI device.

CASIO USB-MIDI : (For Windows Vista, Mac OS X) USB Audio Device : (For Windows XP)

• For information about how to select the MIDI device, see the user documentation that comes with the music software you are using.

• Be sure to turn on the Digital Keyboard first before starting up your computer’s music software.

• Once you are able to connect successfully, there is no problem with leaving the USB cable connected when you turn off your computer and/or Digital Keyboard.

• This Digital Keyboard conforms to General MIDI Level 1 (GM).

• For detailed specifications and connections that apply to MIDI data send and receive by this Digital Keyboard, see the latest support information provided by the website at the following URL.

http://world.casio.com/

MIDI Settings

Navigate Channels

The navigate channels can be used to display only the notes of a particular channel (part) as on-screen guide information from among the note information of a tune sent from the computer.

■ Specifying the Navigate Channels

From among the 16 available channels (numbered 01 to 16), you can specify any two neighboring channels (such as 05 and 06) as navigate channels. The smaller numbered channel is the navigate (L) channel, while the larger numbered channel is the navigate (R) channel. Specifying the navigate (R) channel will automatically configure the navigate (L) channel as well.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “MIDI” (page E-6).

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “Navi. Ch”.

N a v i . C h

Keyboard Channel

A keyboard channel is the channel used for sending Digital Keyboard data to a computer. You can select the channel you want for sending Digital Keyboard data to a computer.

• The keyboard channel setting range is 01 to 16.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “MIDI” (page E-6).

Flashes

M I D I

Press bs (10-key) [7] (ENTER) key.

K e y b d C h

Use the bs (10-key) [–] and [+] keys to change the keyboard channel.

Use the bs (10-key) to specify the navigate (R) channel.

This also will automatically configure the next lower channel number as the navigate (L) channel.

E-60

Connecting External Devices

■ Turning Off the Navigate Channel Sound and Playing the Part on the Keyboard

You can turn off the sound on one or both of the navigate channels and play the cancelled part on the keyboard yourself.

Press bn to select the channel setting you want to turn off.

Each press of bn cycles through settings (1) thorough (4) described below.

• If you turn off one channel, you can play the cancelled part on the keyboard using the same tone as the channel you turned off. If you turn off both channels (option (3)), what you play on the keyboard sounds using the tone of the navigate (R) channel.

Selected channel indicator appears.

Navigate (L)

Channel

On-

Sound

(1) R only displayed { ××{

(2) L only displayed × {{ ×

(3) LR displayed × { × {

(4) LR nor displayed {{{{

screen

Guide

Navigate (R)

Channel

Sound

On-

screen

Guide

Local Control

There are times when exchanging data with a computer when you may not want the Digital Keyboard to sound notes you play on its keyboard. The local control setting lets you do just that.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “MIDI” (page E-6).

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “Local”.

L o c a l

Use the bs (10-key) [–] and [+] keys to specify the local control setting.

Accomp Out

Enabling the Accomp Out setting causes Auto Accompaniment data to be sent to the computer.

Press ct and then use the bs (10-key) [4] (o) and [6] (p) keys to display “MIDI” (page E-6).

Press bs (10-key) [7] (ENTER) key.

Use the bs (10-key) [4] (o) and [6] (p) keys to display “AcompOut”.

English

A c o m

Use the bs (10-key) [–] and [+] keys to turn Accomp Out on or off.

O u t

E-61

Connecting External Devices

Storing and Loading Digital Keyboard Memory Data

You can transfer sampled sounds, recorded songs, and other data in Digital Keyboard memory to a computer for storage. You also can load standard MIDI file (SMF) data, and Auto Accompaniment data you download from the CASIO website to the Digital Keyboard, which greatly expands the Song Bank songs and Auto Accompaniment patterns available to you. A special Data Manager application is required in order to transfer data to and from the Digital Keyboard.

Data Types Supported for Data Transfer

You can transfer the types of data listed below between the Digital Keyboard and a computer.

Data Type Description

Sampled sound (page E-19)

User rhythms (page E-44)

User songs (page E-30)

Recorded songs (page E-50)

Registration setups (page E-48)

All data Above data AL7

Sampled sound data

Edited Auto Accompaniment data

Song data loaded from a computer (Cannot be sent from the Digital Keyboard to a computer.)

Recorded song data

Tone and rhythm setup settings

File Name Extension

TW7

DW7

AC7

CM2

MID

SP7

SL7

RM7

Download Data Manager and its user’s guide to your computer.

Follow the procedure in the user’s guide that you downloaded in step 5 to install and use Data Manager.

• You can download accompaniment data from the Internet Data Expansion system of the CASIO MUSIC SITE (http://music.casio.com/) and load it into the memory of this Digital Keyboard. Note that there is not any accompaniment data intended specifically for this model, so you should use data for other models.

• Since the accompaniment data is for other models, you may experience some abnormalities when playing it on this model.

■ Maintaining Data in Memory

After you save data in memory, it will remain there as long as power is supplied to the keyboard. However, if you disconnect the AC adaptor when there are no batteries loaded, saved data will be deleted.

Tips for Maintaining Data

• Use both batteries and the AC adaptor together.

• Make sure that batteries with sufficient power are loaded whenever you disconnect the AC adaptor.

• Connect the AC adaptor to the keyboard and plug it into a power outlet before replacing batteries.

Before connecting or disconnecting the AC adaptor or replacing batteries, first press

to turn off power.

*1: Sampled drum set sounds *2: Standard MIDI file (format 0, 1) *3: Data recorded playing along with built-in song

Downloading Data Manager

Go to the CASIO WORLDWIDE site at the following URL.

http://world.casio.com/

At the site, select a geographic area or country.

After accessing the area site, navigate to the minimum computer system requirements for Data Manager for this product.

• You should be able to find a link to Data Manager information on the product introduction page of this product. If you cannot find such a link, use the search form of the area site where you are located to enter the model name of this product and search for it.

• Note that site contents are subject to change without notice.

Check if your computer system complies with the minimum requirements for Data Manager.

E-62

Connecting External Devices

Connecting to Audio Equipment

This Digital Keyboard can be connected to commercially available stereo, amplifier, or recording equipment, to a portable audio player or other equipment.

Outputting Keyboard Notes to Audio Equipment

Connection requires commercially available connecting cords, supplied by you.

• Turn off the external device when making connections. After connecting, turn down the Digital Keyboard and external device volume levels whenever turning power on or off.

• After connecting, turn on the Digital Keyboard and then the external device.

• If keyboard notes sound distorted when they are sounded from external audio equipment, lower the Digital Keyboard’s volume setting.

Digital Keyboard PHONES/OUTPUT jack

Audio equipment, amplifier, etc.

Playing an External Device from the Digital Keyboard

Connection requires commercially available connecting cords, supplied by you. The connecting cords should have a stereo mini plug on one end and a plug that matches the configuration of the external device on the other end.

• Turn off the Digital Keyboard when making connections. After connecting, turn down the Digital Keyboard and external device volume levels whenever turning power on or off.

• After connecting, turn on the external device and then the Digital Keyboard.

• If notes are distorted when they are sounded on the external device, lower the volume setting of the external device.

Digital Keyboard AUDIO IN jack

Portable audio player, etc.

Stereo mini plug

English

Stereo standard plug

E-63

Reference

Troubleshooting

Symptom Action

Included Accessories

I can’t find something that should be here. Carefully check inside all of the packing materials.

Power Requirements

Power will not turned on. • Check the AC adaptor or make sure that the batteries are facing

correctly (page E-8).

• Replace the batteries with new ones or switch over to AC adaptor power (page E-8).

The Digital Keyboard outputs a loud sound and then suddenly powers down.

The Digital Keyboard suddenly powers down after a few minutes.

Display

The display keeps going out or are flashing. Replace the batteries with new ones or switch over to AC adaptor

On-screen keyboard keys or notes remain on the display.

Screen contents are visible only from straight ahead. This is dues to production limitations. It does not indicate malfunction.

Sound

Nothing happens when I press any keyboard key. • Adjust the main volume setting (page E-9).

Nothing happens or notes do not play normally when I play notes on the left side of the keyboard.

Nothing happens when I start an Auto Accompaniment.

Nothing happens when I start playback of a built-in song.

The metronome does not sound. • Check and adjust the accompaniment volume setting (page E-42).

Replace the batteries with new ones or switch over to AC adaptor power (page E-8).

This happens when Auto Power Off (page E-9) is triggered.

power (page E-8).

A Step Up Lesson is in progress and the Digital Keyboard is waiting for you to play the next note in the song. To stop this from happening, cancel the lesson (page E-33).

• Check if something is plugged into the back of the Digital Keyboard.

• If there is no sampled sound in memory, nothing will play if you press a keyboard key while a tone in the range of 571 to 578 is selected (page E-20).

• Turn power off and then back on to initialize all keyboard settings (page E-9).

Press bn to disable chord input in the accompaniment keyboard area (page E-39).

• With rhythms 170, and 172 to 180, nothing will sound until you play a chord on the keyboard. Try playing a chord (page E-39).

• Check and adjust the accompaniment volume setting (page E-42).

• If there is no user rhythm stored in memory, Auto Accompaniment will not start when you press 190 is selected (page E-44).

• Turn power off and then back on to initialize all Digital Keyboard settings (page E-9).

• It takes a little time after you press the button until the song starts to play. Wait for a moment for the song to start.

• Check and adjust the song volume (page E-30).

• If there is no user song stored in memory, song playback will not start when you press selected (page E-30).

• Turn power off and then back on to initialize all Digital Keyboard settings (page E-9).

• Check and adjust the song volume (page E-30).

• Turn power off and then back on to initialize all Digital Keyboard settings (page E-9).

while a song in the range of 153 to 162 is

(PHONES/OUTPUT jack) on

while a rhythm in the range of 181 to

E-64

Reference

Symptom Action

Notes keep sounding, without stopping. • Turn power off and then back on to initialize all Digital Keyboard

Some notes are cut off while they are playing. Notes are cut off whenever the number of notes being sounded

The volume or tone setting I made has changed. • Adjust the main volume setting (page E-9).

Output volume does not change even though is change my keyboard touch.

In certain keyboard ranges, the volume and tone quality sound are slightly different from those in other keyboard ranges.

With some tones, octaves do not change at the far ends of the keyboard.

The pitch of the notes does not match other accompanying instruments or sounds strange when played long with other instruments.

The reverb of notes seems to change suddenly. • Check and adjust the reverb setting (page E-16).

Operation

When I perform a skip forward or skip back operation, the skip operation moves multiple song measures instead of only a single measure.

Tone, rhythm, and other settings revert to their initial defaults whenever you turn on the Digital Keyboard.

Computer Connection

I can’t exchange data between the Digital Keyboard and a computer.

settings (page E-9).

• Replace the batteries with new ones or switch over to AC adaptor power (page E-8).

exceeds the maximum polyphony value of 48 (24 for some tones). This does not indicate malfunction. See “Maximum Polyphony” in the “Tone List” in the separate “Appendix”.

• Turn power off and then back on to initialize all Digital Keyboard settings (page E-9).

• Replace the batteries with new ones or switch over to AC adaptor power (page E-8).

• Change the Touch Response setting (page E-10).

• Turn power off and then back on to initialize all Digital Keyboard settings (page E-9).

This is due to system limitations. It does not indicate malfunction.

• Check and adjust the transpose (page E-17) and tuning settings (page E-17).

• Turn power off and then back on to initialize all Digital Keyboard settings (page E-9).

While song playback is stopped or a Step Up Lesson is in progress, skip forward and skip back operations are performed in phrase units (page E-28).

Though Digital Keyboard settings reset when you turn off the Digital Keyboard, you can save setups to registration memory for instant recall whenever you need them (page E-48).

• Check to make sure that the USB cable is connected to the Digital Keyboard and computer, and that the device is selected correctly with your computer’s music software settings (page E-59).

• Turn off the Digital Keyboard and then exit the music software on your computer. Next, turn the Digital Keyboard back on and then restart the music software on your computer.

English

E-65

Reference

Specifications

Model WK-210 Keyboard 76 standard-size keys

Touch Response 2 types, Off

Maximum Polyphony 48 notes (24 for certain tones) Tones

Built-in Tones 570

Sampling Tones Up to 8 (Melody Sampling: 5, Drum Sampling: 3)*

Up to 10 seconds

Functions Layer, Split

Reverb 1 to 10, Off Chorus 1 to 5, Off Voice Pad 5 pads × 4 sets

(3 sets for sampled sounds, 1 set for percussion only)

Metronome

Beats per Measure 0, 2 to 6

Tempo Range 30 to 255

Song Bank

Built-in Songs 152

User Songs Up to 10*

Step Up Lesson

Lessons 4 (Listen, Watch, Remember, Auto)

Lesson Part L, R, LR

Functions Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation

Music Challenge 20 notes Auto Accompaniment

Built-in Rhythms 180

User Rhythms Up to 10 (Accompaniment Edit)*

Registration 32 (4 setups × 8 banks) Recorder Real-time recording, playback

Keyboard Play 5 songs, 6 tracks

Playing Along with a Built-in Songs 1 song (L, R, LR)

Memory Capacity Approximately 12,000 notes (total for 6 songs)

Other Functions

Transpose ±1 octaves (–12 to +12 semitones)

Octave Shift Upper/Lower ±2 octaves

Tuning A4 = approx. 440 Hz ±100 cents

Preset Scales 17

Music Preset 305

One Touch Preset 180

Auto Harmonize 12 types

Arpeggiator 90 types

MIDI 16 multi-timbre received, GM Level 1 standard Musical Information Function Tone, Rhythm, Song Bank, numbers and names; staff notation, fingering, pedal operation,

tempo, measure and beat number, chord name, etc.

E-66

Reference

Inputs/Outputs

USB port TYPE B

Sustain/Assignable jack Standard jack (sustain, sostenuto, soft, rhythm start/stop)

Phones/Output jack

Audio In jack Stereo mini jack

Mic In jack Standard jack

Power Jack 9V DC Power Supply 2-way

Batteries 6 D-size zinc-carbon batteries or alkaline batteries

Battery Life Approximately 5 hours continuous operation on zinc-carbon batteries

AC Adaptor AD-5

Auto Power Off Approximately 6 minutes after last key operation (Operates during battery use only)

Speakers 12cm × 2 (Output: 2.5W + 2.5W) Power Consumption 9V = 7.7W Dimensions 118.7 × 40.0 × 15.5 cm (46 Weight Approximately 7.2kg (15.9 lbs) (without batteries)

• Design and specifications are subject to change without notice.

* This data is stored in a shared memory area with a total capacity of approximately 320Kbytes (1Kbyte = 1,024bytes).

Stereo standard jack Output Impedance: 200Ω, Output Voltage: 4.5V (RMS) MAX

Input Impedance: 9kΩ, Input Sensitivity: 200mV

Input Impedance: 3kΩ, Input Sensitivity: 10mV

/4 × 15 3/4 × 6 1/8 inch)

Operating Precautions

English

Be sure to read and observe the following operating precautions.

■ Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high humidity

• Areas subjected to temperature extremes

• Near a radio, TV, video deck, or tuner The above devices will not cause malfunction of the product, but interference from the product can cause audio or video interference of a nearby device.

■ User Maintenance

• Never use benzine, alcohol, thinner, or other chemical agents to clean the product.

• To clean the product or its keyboard, wipe with a soft cloth moistened in a weak solution of water and a mild neutral detergent. Wring all excess moisture from the cloth before wiping.

■ Included and Optional Accessories

Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

■ Weld Lines

Lines may be visible on the exterior of the product. These are “weld lines” that result from the plastic molding process. They are not cracks or scratches.

■ Musical Instrument Etiquette

Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the volume at levels that do not disturb others. Other steps you can take when playing late at night are closing the window and using headphones.

E-67

Reference

Error Messages

Display

Message

Err Exist A sampled drum set sound cannot be copied (page

E-23) to a keyboard key because the key already has a sampled sound assigned to it.

Err Limit The tone number you selected before starting

sampling already has the allowable maximum of eight sampled sounds assigned to it.

Err Mem Full There is not enough memory available for sampling or

Auto Accompaniment editing.

Err No Data There is no data in the selected user area (tone,

rhythm, song number, etc.)

Err Protect Sampled sounds are protected. Unprotect one or more of the sampled sounds, which will

Err SizeOver Auto Accompaniment editing cannot be performed

because the accompaniment pattern or instrument part data is too large.

Cause Action

• Delete the sampled sound that is currently assigned to the key you are copying to (page E-24).

• Copy the sampled sound to another key that does not yet have a sampled sound assigned to it.

• Delete the one or more of the sampled sounds currently assigned to the tone number (page E-24).

• Select another tone number that has less than eight sampled sounds currently assigned to it (page E-22).

Delete some or all of the following user data from memory to make room for new data. Sampled sounds (page E-19), user rhythms (page E-44), user songs (page E-30)

Select a Digital Keyboard user area that contains data.

allow it to be overwritten or deleted.

Select a different accompaniment pattern or instrument parts.

E-68

Song List

SONG BANK

Reference

WORLD

001 TWINKLE TWINKLE LITTLE STAR 002 LIGHTLY ROW 003 LONG LONG AGO 004 ON TOP OF OLD SMOKEY 005 SAKURA SAKURA 006 WHEN THE SAINTS GO MARCHING IN 007 AMAZING GRACE 008 AULD LANG SYNE 009 COME BIRDS 010 DID YOU EVER SEE A LASSIE? 011 MICHAEL ROW THE BOAT ASHORE 012 DANNY BOY 013 MY BONNIE 014 HOME SWEET HOME 015 AURA LEE 016 HOME ON THE RANGE 017 ALOHA OE 018 SANTA LUCIA 019 FURUSATO 020 GREENSLEEVES 021 JOSHUA FOUGHT THE BATTLE OF JERICHO 022 THE MUFFIN MAN 023 LONDON BRIDGE 024 UNDER THE SPREADING CHESTNUT TREE 025 SIPPIN’ CIDER THROUGH A STRAW 026 GRANDFATHER’S CLOCK 027 ANNIE LAURIE 028 BEAUTIFUL DREAMER

IF YOU’RE HAPPY AND YOU KNOW IT, CLAP YOUR

029

HANDS 030 MY DARLING CLEMENTINE 031 LITTLE BROWN JUG 032 HOUSE OF THE RISING SUN 033 SHE WORE A YELLOW RIBBON 034 YANKEE DOODLE 035 MY OLD KENTUCKY HOME 036 SZLA DZIEWECZKA 037 TROIKA 038 WALTZING MATILDA 039 ON THE BRIDGE OF AVIGNON 040 I’VE BEEN WORKING ON THE RAILROAD 041 OH! SUSANNA 042 CAMPTOWN RACES 043 JEANNIE WITH THE LIGHT BROWN HAIR 044 TURKEY IN THE STRAW 045 JAMAICA FAREWELL

EVENT

046 SILENT NIGHT 047 WE WISH YOU A MERRY CHRISTMAS 048 JINGLE BELLS 049 JOY TO THE WORLD 050 O CHRISTMAS TREE

PIANO/CLASSICS

051 MARY HAD A LITTLE LAMB 052 LE CYGNE FROM “LE CARNAVAL DES ANIMAUX” 053 JE TE VEUX 054 SONATA op.13 “PATHÉTIQUE” 2nd Mov.

055 HEIDENRÖSLEIN 056 AIR FROM “SUITE no.3” 057 SPRING FROM “THE FOUR SEASONS” 058 HABANERA FROM “CARMEN” 059 BRINDISI FROM “LA TRAVIATA” 060 HUNGARIAN DANCES no.5 061 MINUET IN G MAJOR 062 MUSETTE IN D MAJOR 063 GAVOTTE (GOSSEC) 064 ARABESQUE (BURGMÜLLER) 065 CHOPSTICKS 066 DECK THE HALL 067 ODE TO JOY 068 AVE MARIA (GOUNOD) 069 SONATINA op.36 no.1 1st Mov. 070 PRELUDE op.28 no.7 (CHOPIN) 071 RÊVERIE 072 GYMNOPÉDIES no.1 073 GOING HOME FROM “FROM THE NEW WORLD” 074 FÜR ELISE 075 TURKISH MARCH (MOZART) 076 SONATA op.27 no.2 “MOONLIGHT” 1st Mov. 077 ETUDE op.10 no.3 “CHANSON DE L’ADIEU” 078 THE ENTERTAINER

WEDDING MARCH FROM “MIDSUMMER NIGHT’S

079

DREAM” 080 AMERICAN PATROL 081 FRÖHLICHER LANDMANN 082 LA CHEVALERESQUE 083 SONATA K.545 1st Mov. 084 LA PRIÈRE D’UNE VIERGE 085 VALSE op.64 no.1 “PETIT CHIEN” 086 LIEBESTRÄUME no.3 087 JESUS BLEIBET MEINE FREUDE 088 CANON (PACHELBEL) 089 SERENADE FROM “EINE KLEINE NACHTMUSIK” 090 MARCH FROM “THE NUTCRACKER” 091 INVENTIONEN no.1 092 PRAELUDIUM no.1 (J.S.BACH) 093 SONATINE op.20 no.1 1st Mov. 094 HUMORESKE (DVO ÁK) 095 DOLLY’S DREAMING AND AWAKENING 096 LA FILLE AUX CHEVEUX DE LIN 097 ARABESQUE no.1 (DEBUSSY) 098 TRÄUMEREI 099 MAPLE LEAF RAG 100 NOCTURNE op.9 no.2 (CHOPIN)

EXERCISE

101 - 150 EXERCISE I / II / III

151 - 152 DEMO TUNES

153 - 162 USER SONGS

DEMO TUNES

USER SONGS

English

E-69

Reference

)

(

AFCC

)

(

)

(

)

(

)

(

Root

Chord Example List

Chord

Type

E-70

dim

aug

sus4

sus2

7sus4

add9

madd9

mM7

dim7

• Since the chord input range is limited, this model may not support some of the chords shown above.

**: no relation

**:sin relación

Bank select

Modulation

Data entry

Volume

Pan

Expression

Hold 1

1 - 16

Mode 3

0 - 127

4 - 127

9nH v = 1 - 127 O

9nH v = 0, 8nH V = X

9nH v = 0 X

MIDI Implementation Chart

Note ON

Note OFF

Key’s

Ch’s

Function Transmitted Recognized Remarks

Default

Changed

Default

Messages

Altered

True voice

(MSB only)

OOOOOOO

OXO

0, 3216, 38

101164

Model: WK-210 Version : 1.0

Basic

Channel

Mode

Note

Number

Velocity

After

Touch

Pitch Bender

Control

Change

Sostenuto

Soft pedal

Reverb send

Chorus send

RPN LSB, MSB

All sound off

OOOOOOO

Reset all controller

0 - 127 O

XXX

O : Yes

X : No

maestra aproximada, tiempo de reverberación, Tipo de coro

GM2 activado, volumen general, afinación maestra precisa, afinación maestra

aproximada, tiempo de reverberación, tipo de coro, tasa de modulación al coro

Implementación MIDI en http://world.casio.com/

*1: Depende del tono.

*2: RPN : Sensibilidad a la inflexión de altura tonal, afinación precisa, afinación aproximada

*3: De acuerdo con el ajuste de efecto de pedal.

*4: Mensajes exclusivos de sistema universal : Afinación maestra precisa, afinación

• Si desea información sobre las notas al pie de página 2, 4, 5, 6, consulte

*5: Mensajes exclusivos de sistema universal : Sistema GM activado/desactivado, sistema

*6: Mensaje exclusivo del sistema de este modelo

*3*

OXO

666791

100, 101

120

121

0 - 127 O

:True #

Program

Change

System Exclusive

XXX

: Song Pos

: Song Sel

: Tune

System

Common

: Clock

: Commands

System

Real Time

XOX

*1: Depends on tone.

: Local ON/OFF

: All notes OFF

: Active Sense

: Reset

Aux

Messages

Master Fine Tuning, Master Coarse Tuning, Reverb Time, Chorus Type

2: RPN : Pitch Bend Sensitivity, Fine Tune, Coarse Tune*3: In accordance with pedal effect setting.*4: Universal System Exclusive Messages :

Remarks

http://world.casio.com/.

GM System On/Off, GM2 System On, Master Volume, Master Fine Tuning, Master

Coarse Tuning, Reverb Time, Chorus Type, Chorus Modulation Rate

• For details about footnotes 2, 4, 5, 6, see MIDI Implementation at

5: Universal System Exclusive Messages :

6: This model’s System Exclusive Message

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se ajusta a la legislación de protección ambiental en Alemania.

MA0901-A Printed in China WK210ES1A

Casio WK-210 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
