USER’S GUIDE

Please keep all information for future reference.

Safety Precautions Before trying to use the Digital Piano, be sure to read the separate “Safety Precautions”.

GUÍA DEL USUARIO

Guarde toda la información para futuras consultas.

Precauciones de seguridad

Antes de intentar usar el piano digital, asegúrese de leer las “Precauciones de seguridad” separadas.

EnglishEspañol

CDP220-ES-1B

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS. When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord. For that purpose, locate the apparatus in a way that secures easy access to the power cord.

Declaration of Conformity

Model Number: CDP-220R Trade Name: CASIO COMPUTER CO., LTD. Responsible party: CASIO AMERICA, INC. Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Important!

Please note the following important information before using this product.

• Before using the AD-A12150LW Adaptor to power the product, be sure to check the AC Adaptor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.

• The product is not intended for children under 3 years.

• Use only CASIO AD-A12150LW adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

English

This mark applies in EU countries only.

Manufacturer: CASIO COMPUTER CO.,LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union: CASIO EUROPE GmbH Casio-Platz 1, 22848 Norderstedt, Germany

● Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal

use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

● IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

● The contents of this manual are subject to change without notice.

● The actual appearance of the product may be different from that shown in the illustrations in this User’s Guide.

● Company and product names used in this manual may be registered trademarks of others.

E-1

Contents

General Guide ............................. E-4

Using the 10-key Pad (br).................................E-7

FUNCTION Button (ck) Functions ....................E-7

Returning the Digital Piano to Its

Factory Default Settings .....................................E-8

Getting Ready to Play ................ E-9

Preparing the Music Stand .................................E-9

Connecting a Pedal Unit.....................................E-9

Power Supply .....................................................E-9

Playing the Digital Piano.......... E-10

Turning on Power and Playing .........................E-10

Using Headphones ...........................................E-10

Changing Keyboard Response to

Touch Pressure (Touch Response)..................E-11

Adjusting Display Contrast ...............................E-11

Using the Metronome .......................................E-12

Controlling the

Keyboard Sounds..................... E-13

Select from a variety of musical

instrument sounds ............................................E-13

Layering Two Tones.........................................E-14

Splitting the Keyboard between

Two Different Tones .........................................E-14

Using Reverb....................................................E-15

Using Chorus....................................................E-15

Using a Pedal ...................................................E-16

Changing the Pitch

(Transpose, Tuning, Octave Shift)....................E-16

Using the Pitch Bend Wheel to

Shift the Pitch of Notes.....................................E-17

Sampling Sounds and Playing

Them on the Digital Piano ....... E-18

Connection and Preparation.............................E-18

Sampling and Playing a Melody Sound

(Melody Sampling) ...........................................E-19

Incorporating a Sampled Sound into a

Drum Set (Drum Sampling) ..............................E-21

Other Sampling Functions................................E-24

Playing Built-in Songs.............. E-26

Playing the Demo Songs .................................E-26

Playing Back a Particular Song........................ E-26

Increasing the Selection of Songs ...................E-29

Using Built-in Songs to

Master Keyboard Play ..............E-30

Phrases............................................................ E-30

Step Up Lesson Flow.......................................E-30

Selecting the Song, Phrase, and

Part You Want to Practice................................E-31

Lessons 1, 2, and 3..........................................E-32

Lesson Settings ............................................... E-33

Using Auto Step Up Lesson.............................E-35

Music Challenge

Keyboard Game ........................ E-36

Using Auto Accompaniment.... E-37

Playing the Rhythm Part only........................... E-37

Playing All Parts............................................... E-38

Using Auto Accompaniment Effectively ........... E-40

Using One-Touch Preset ................................. E-41

Using Auto Harmonize ..................................... E-42

Looking Up the Notes of Chords

(Chord Book).................................................... E-43

Editing Auto Accompaniment

Patterns...................................... E-44

Saving Keyboard Setups to

Registration Memory ................ E-47

To save a setup to registration memory........... E-48

To recall a setup from registration memory ..... E-48

E-2

Contents

Recording Your

Keyboard Play........................... E-49

Recording and Playing Back

Keyboard Play ..................................................E-49

Using Tracks to Record and Mix Parts.............E-50

Recording Two or More Songs, and

Selecting One for Playback ..............................E-52

Recording while Playing Along with a

Built-in Song .....................................................E-52

Saving Recorded Data on an

External Device ................................................E-53

Other Useful Digital Piano

Functions .................................. E-54

Changing the Scale of the Keyboard................E-54

Using Music Preset ..........................................E-55

Using the Arpeggiator.......................................E-56

Deleting User Song Data..................................E-57

Deleting All Data in Digital Piano Memory........E-57

Using a Memory Card............... E-58

Memory Card and Card Slot Precautions.........E-58

Inserting and Removing a Memory Card..........E-59

Formatting a Memory Card...............................E-59

Saving Digital Piano Data to a

Memory Card....................................................E-60

Loading Data from a Memory Card into

Digital Piano Memory .......................................E-61

Deleting Data from a Memory Card..................E-62

Playing Back Data from a Memory Card ..........E-63

Memory Card Error Messages .........................E-63

Connecting External

Devices ...................................... E-64

Connecting a Computer ................................... E-64

MIDI Settings ................................................... E-65

Storing and Loading Digital Piano

Memory Data ................................................... E-67

Connecting to Audio Equipment ...................... E-68

Reference................................... E-69

Troubleshooting ............................................... E-69

Specifications................................................... E-71

Operating Precautions .....................................E-72

Error Messages................................................E-73

Song List ..........................................................E-74

Fingering Guide ............................................... E-75

MIDI Implementation Chart

English

Included Accessories

● Music Stand

● Pedal

● Song Book

● Leaflets

• Safety Precautions

• Appendix

• Other (Warranty, etc.)

Items included as accessories are subject to change without notice.

Separately Available Accessories

• You can get information about accessories that are separately for this product from the CASIO catalog available from your retailer, and from the CASIO website at the following URL.

http://world.casio.com/

E-3

General Guide

• In this manual, the term “Digital Piano” refers to the CDP-220R.

• In this manual, buttons and other controllers are identified using the numbers shown below.

345678 bkblbm92

bobn bp bq bs bt ckbr

E-4

cn cocl cp cs ctcq

crcm

dk dl dk

General Guide

• The following explains the meaning of the $ symbol that appears on the product console and with the key names below.

$ : Indicates a function that is enabled by holding down the button for some time. For example, METRONOME, BEAT $ means that the BEAT

function is enabled by holding down the button for some time.

VOLUME knob ☞E-10

POWER button ☞E-10

INTRO, REPEAT button ☞E-27, 40

NORMAL/FILL-IN, REW button ☞E-27, 40

VARIATION/FILL-IN, FF button ☞E-27, 40

SYNCHRO/ENDING, PAUSE button ☞E-27, 41

START/STOP, PLAY/STOP button ☞E-26, 37

ACCOMP, CHORDS $, PART SELECT button

☞E-28, 38

TEMPO buttons ☞E-12, 28, 41

RECORDER button ☞E-49

RHYTHM EDITOR button ☞E-44

METRONOME, BEAT $ button ☞E-12

SONG BANK, $ button ☞E-26

RHYTHM, ONE TOUCH PRESET $ button

☞E-37, 41

TONE, MUSIC PRESET $ button ☞E-13, 55

CARD, LOAD/SAVE $ button ☞E-59

Number buttons, [–]/[+] keys ☞E-7

PIANO/ORGAN button ☞E-13

CHORD BOOK button ☞E-43

FUNCTION button ☞E-7

BANK, LISTEN button ☞E-32, 47

Area1, WATCH button ☞E-32, 47

Area2, REMEMBER button ☞E-33, 47

Area3, NEXT button ☞E-31, 47

Area4, AUTO button ☞E-35, 47

STORE, MUSIC CHALLENGE button ☞E-36, 48

SPLIT button ☞E-14

LAYER, $ button ☞E-14

AUTO HARMONIZE/ARPEGGIATOR,

TYPE $ button ☞E-42, 56

Speakers

Display

PITCH BEND wheel ☞E-17

CHORD root names ☞E-38

Percussion instrument list ☞E-13

English

E-5

General Guide

■ Back

drdqdp ek el emdtds

SD CARD SLOT ☞E-59

USB port ☞E-64

SUSTAIN/ASSIGNABLE JACK ☞E-9

AUDIO IN jack ☞E-68

DC 12V terminal ☞E-9

PHONES/OUTPUT jack ☞E-10, 68

MIC IN/SAMPLING jack ☞E-18

MIC VOLUME knob ☞E-18

E-6

General Guide

Using the 10-key Pad (br)

Use the number buttons and the [–] and [+] keys to change the settings of the parameters that appear in the upper left area of the display.

Setting

St .GrPno

Number Buttons

Use the number buttons to enter numbers and values.

• Enter the same number of digits as the currently displayed value. Example : To enter tone number 001, input 0 3 0 3 1.

• Negative values cannot be input using the number buttons. Use [–] (decrease) and [+] (increase) instead.

[–] and [+] Keys

You can use the [–] (decrease) and [+] (increase) keys to change the displayed number or value.

• Holding down either key scrolls the displayed setting.

• Pressing both keys at the same time will revert to the initial default setting or the recommended setting.

FUNCTION Button (ck) Functions

You can use the FUNCTION button ( effect, to delete data, and to perform a wide range of other Digital Piano operations.

) to adjust the reverb

Function Display

1 Transpose Trans. E-16

2 Accompaniment Volume AcompVol E-41

3 Song Volume Song Vol E-28

4 Touch Response Touch E-11

5 Tuning Tune E-16

6 Reverb Reverb E-15

7 Chorus Chorus E-15

8 Sampling SAMPLING

Automatic Sampling Start AutoStrt E-24

Automatic Sampling Stop AutoStop E-24

Sampled Tone Protect (Protect) E-25

9 Step Up Lesson LESSON

Voice Fingering Guide Speak E-33

Note Guide NoteGuid E-34

Performance Evaluation Scoring E-34

Phrase Length PhraseLn E-34

10 Preset Scales SCALE E-54

11 Other Settings OTHER

Arpeggiator Hold ArpegHld E-56

Pedal Effect Jack E-16

Pitch Bend Range Bend Rng E-17

Accompaniment Scale AcompScl E-55

LCD Contrast Contrast E-11

12 MIDI Settings MIDI

Keyboard Channel Keybd Ch E-65

Navigate Channels Navi. Ch E-65

Local Control Local E-66

Accomp Out AcompOut E-66

13 Delete DELETE

Sampled Sound Delete (tone name) E-25

User Rhythm Delete (rhythm name) E-46

User Song Delete (song name) E-57

All Data Delete All Data E-57

See

Page

English

To select a function

Press ck (FUNCTION) to display the function menu.

Use the br (10-key) [4] (U) and [6] (I) keys to display the function you want.

• You can exit the function menu by pressing ck (FUNCTION).

• After selecting functions 8 through 13, press the (10-key) [9] (ENTER) key to display the menu item’s submenu. Then use [4] (U) and [6] (I) to select an item. You can exit a submenu by pressing the (10-key) [7] (EXIT) key.

Refer to the indicated pages for details about each function.

• The tone and other parameters revert to their initial defaults whenever you turn on power (page E-10).

E-7

General Guide

Returning the Digital Piano to Its Factory Default Settings

Perform the following procedure when you want to return the Digital Piano’s stored data and settings to their initial factory defaults.

Turn off the Digital Piano.

While holding down bn (SONG BANK) and the [1] 10-key (

• Keep bn (SONG BANK) and the [1] 10-key (br) key depressed until the next step is complete.

When the message “Pls wait” appears on the screen, release 10-key (

• You will be able to use the Digital Piano in a short while after its system is initialized.

• See “Turning on Power and Playing” (page E-10) for information about turning Digital Piano on and off.

) key at the same time, press 2.

(SONG BANK) and the [1]

) key.

E-8

Getting Ready to Play

Preparing the Music Stand

Music stand

Connecting a Pedal Unit

SUSTAIN/ASSIGNABLE JACK

Power Supply

Your Digital Piano runs on standard household power. Be sure to turn off power whenever you are not using the Digital Piano.

Note the following important precautions to avoid damage to the power cord.

During Use

• Never pull on the cord with excessive force.

• Never repeatedly pull on the cord.

• Never twist the cord at the base of the plug or connector.

During Movement

• Before moving the Digital Piano, be sure to unplug the AC adaptor from the power outlet.

During Storage

• Loop and bundle the power cord, but never wind it around the AC adaptor.

• Never connect the AC adaptor (JEITA Standard, with unified polarity plug) that comes with this Digital Piano to any other device besides this Digital Piano. Doing so creates the risk of malfunction.

• Make sure the Digital Piano is turned off before plugging in or unplugging the AC adaptor.

• The AC adaptor will become warm to the touch after very long use. This is normal and does not indicate malfunction.

English

Using the AC Adaptor

Use only the AC adaptor (JEITA Standard, with unified polarity plug) that comes with this Digital Piano. Use of a different type of AC adaptor can cause malfunction of the Digital Piano.

Specified AC Adaptor: AD-A12150LW

• Use the supplied power cord to connect the AC adaptor as shown in the illustration below.

Household power outlet

AC Adaptor

DC 12V terminal Power cord

E-9

Playing the Digital Piano

bmbm

Turning on Power and Playing

Press 2.

This turns on power.

• To turn off the Digital Piano, press

Try playing something on the keyboard. Use 1 to adjust volume.

• If you press 2 only lightly, the display will light up momentarily but power will not turn on. This does not indicate malfunction. Press to turn on power.

• Turning off the Digital Piano causes most current settings to be cleared. The Digital Piano will revert to initial settings the next time you turn it on. This is true for all settings except for sample sound protection. Once you turn it on it remains on until you turn it off again.

• The message “Pls wait” will remain on the display while a data save operation is in progress. Do not perform any other operation while it is displayed. Turning off the Digital Piano or removing the memory card can cause Digital Piano data to be deleted or become corrupted.

firmly and completely

again.

brbrbpbp

ckck

Auto Power Off

If you do not perform any operation for 30 minutes, the Digital Piano will turn off automatically.

■ Disabling Auto Power Off

You can disable Auto Power Off to ensure that power is not turned off automatically during a concert, etc.

While holding down bp (TONE), turn on power.

Auto Power Off will be disabled.

Using Headphones

Using headphones cuts off output from the built-in speakers, which means you can practice playing even late at night without disturbing others.

• Be sure to turn down the volume level before connecting headphones.

PHONES/OUTPUT jack

• Headphones do not come with the Digital Piano.

• Use commercially available headphones. See page E-3 for information about options.

E-10

• Do not listen to very high volume output over headphones for long period. Doing so creates the risk of hearing damage.

• If you are using headphones that require an adaptor plug, make sure you do not leave the adaptor plugged in when removing the headphones.

Playing the Digital Piano

Changing Keyboard Response to Touch Pressure (Touch Response)

Touch Response alters tone volume in accordance with keyboard pressure (speed). This provides you some of the same expressivity you get on an acoustic piano.

Pressing fast produces louder notes.

Pressing slowly produces softer notes.

Do not try to use too much pressure.

Changing Touch Response Sensitivity

Use the procedure below to control how much the volume of played notes change in accordance with playing speed. Select the setting that best matches your playing style.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “Touch” (page E-7).

Touch

Use br (10-key) [–] and [+] keys to select one of the four Touch Response sensitivity settings.

Off (oFF) Touch Response is turned off. Sound

volume is fixed, regardless of key press speed.

Type 1 (1) Normal Touch Response Type 2 (2) More sensitive Touch Response than Type 1 Type 3 (3) Less sensitive Touch Response than Type 1

Adjusting Display Contrast

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “OTHER” (page E-7).

Flashes

English

OTHER

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Contrast”.

Con t r a s t

Use the br (10-key) [–] and [+] keys to adjust the contrast.

• The contrast setting range is 01 to 17.

E-11

Playing the Digital Piano

Using the Metronome

The metronome lets you play and practice along with a steady beat to help keep you on tempo.

Start/Stop

Press bm.

This starts the metronome.

This pattern changes with each beat.

Press bm again to stop the metronome.

Changing the Beats per Measure

You can configure the metronome to use a bell sound for the first beat of each measure of the song you are playing.

• You can specify 0, or a value from 2 to 6 as the number of beat per measure.

• When playing a built-in song, the beats per measure setting (which determines when the bell sounds) is configured automatically for the currently selected song.

Hold down bm until the beats per measure setting screen appears on the display.

Bea t

Changing the Metronome Tempo

Use the following procedure to change the tempo of the metronome.

Press 9.

Use w (slower) and q (faster) to change the tempo setting. Holding down either button changes the setting at high speed.

• Pressing q and w at the same time will initialize the

tempo setting in accordance with the currently selected song or rhythm.

• Pressing display. While the tempo value is flashing, you can use

(10-key) to change it.

Note that you must input leading zeros, so 89 is input as 089.

• The tempo value will stop flashing if you do not perform any operation for a short while.

Tempo value (flashes)

causes the tempo value to flash on the

Changing the Metronome Sound Volume

The metronome volume setting is changed automatically with the volume level of the currently selected Auto Accompaniment or song. The metronome volume cannot be adjusted independently.

• For information about changing the Auto Accompaniment volume, see page E-41.

• For information about changing the song volume, see page E-28.

• If you do not perform any operation for a few seconds after the beats per measure setting screen appears, the display will return to the screen displayed before you pressed

Use br (10-key) to enter the number of beats

per measure.

• The bell will not sound if you specify 0 for this setting. In this case, all beats are indicated by a click sound. This setting lets you practice with a steady beat, without worrying how many beats there are in each measure.

E-12

• You cannot adjust the balance between the metronome and note volume during Auto Accompaniment and built-in tune play.

Controlling the Keyboard Sounds

Select from a variety of musical instrument sounds

Your Digital Piano lets you select tones for a wide variety of musical instrument sounds, including violin, flute, orchestra, and more. Even the same song sound takes on a different feel by changing the instrument type.

To select an instrument for playing

crcr cscs

Try playing something on the keyboard.

The tone of the instrument you selected will sound.

ckckbrbr

bsbsbpbp

English

Press bp (TONE).

Tone nameTone number

St .GrPno

Use br (10-key) to select the tone number you want.

The corresponding tone number and tone name will appear on the screen.

• Use the number buttons to enter the tone number. Specify three digits for the tone number. Example: To select 001, enter 0 3 0 3 1.

• See the separate “Appendix” for a complete list of available tones.

• When one of the drum sets is selected (tone numbers 684 through 700), each keyboard key is assigned a different percussion sound.

Playing with a Piano or Organ Tone

Pressing Each press of tone (Tone Number 001) and an organ tone (Tone Number

089).

In addition to the tone number, you also can configure the settings listed below.

Reverb : “06” Transpose : “00” Touch Response : Off: Returns to initial default

Pedal Effect : SUS Rhythm Number : “181” (When a piano tone is selected)

Accompaniment : Rhythm part only Local Control : On Drum Assign : Off Split : Off Layer : Off Chorus : Off Octave Shift (Upper): “0” Auto Harmonize : Off Arppegiator : Off Scale : Equal

toggles between the piano and organ modes.

toggles the tone setting between a piano

On: No change

“108” (When an organ tone is selected)

E-13

Controlling the Keyboard Sounds

Layering Two Tones

You can use the following procedure to layer two different tones (such as piano and strings) so they sound simultaneously when you press a keyboard key.

Select the first tone you want to use.

Press bp (TONE) and then use br (10-key) to select the tone you want. Example: 038 ELEC.PIANO 1

E.P i ano1

Press cs.

Lights

Use br (10-key) to select the second tone you want.

Example: 238 STRINGS 1

Splitting the Keyboard between Two Different Tones

You can use the procedure below to assign different tones to the right range and left range of the keyboard, so it sounds like you are playing an ensemble between two instruments.

To select the two tones for a split keyboard

Select the tone for the right side range (page E-13).

Press bp (TONE) and then use br (10-key) to select the tone you want. Example: 365 FLUTE 1

Flute 1

Press cr.

Lights

St r ings 1

Play something on the keyboard.

Both tones sound at the same time.

Pressing cs again to unlayer the keyboard (so it plays only the tone you selected in step 1).

• Each press of cs toggles between layered (two tones) and unlayered (one tone).

Use br (10-key) to select the left side range tone you want.

Example: 074 VIBRAPHONE 1

Vibes 1

Play something on the keyboard.

This will sound the tones assigned to the left and right side ranges of the keyboard.

VIBRAPHONE 1 FLUTE 1

Split point

E-14

Pressing cr again to unsplit the keyboard (so it plays only the tone you selected in step 1).

• Each press of cr toggles between split (two tones) and unsplit (one tone).

Controlling the Keyboard Sounds

Using Chorus

Chorus is a function that adds depth and breadth to notes. It makes you sound as if you are playing multiple instruments.

• If you turn on both layer and split, layering will be applied to the right side range of the keyboard only.

To change the split point

While holding down cr, press the keyboard key where you want the split point to be.

The key you press will become the lowest note of the right side range of the split keyboard. Example: Setting middle C (C4) as the split point.

Key name

Using Reverb

Reverb adds reverberation to notes. You can change the duration of the reverb.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “Reverb” (page E-7).

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “Chorus” (page E-7).

Cho r us

Use the br (10-key) [–] and [+] keys to select the chorus type you want.

There are five chorus types, plus an off setting.

Indicator disappears when chorus is turned off.

• The actual effect produced by chorus depends on the tone you are using.

English

Reve r b

Use the br (10-key) [–] and [+] keys to select the reverb setting you want.

Off (oFF) Turns off reverb. 1 to 10 The larger the number selected, the longer

the reverb duration.

Indicator disappears when reverb is turned off.

E-15

Controlling the Keyboard Sounds

Using a Pedal

A pedal can be used to change notes in various ways while playing.

Selecting the Pedal Effect

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “OTHER” (page E-7).

Flashes

OTHER

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Jack”.

Jack

Use the br (10-key) [–] and [+] keys to select the pedal effect you want.

• The following shows the available pedal effects.

Sustain (SUS)

Sostenuto (SoS)

Soft (SFt)

Rhythm (rHy)

Sustains notes played while the pedal is depressed. Organ and other similar tone notes are sustained even if the pedal is not pressed.

Sustains notes that are playing when the pedal is depressed before the keyboard keys are released.

Slightly softens notes played while the pedal is depressed.

Pressing the pedal starts and stops Auto Accompaniment or song playback.

Changing the Pitch (Transpose, Tuning, Octave Shift)

Changing the Pitch in Semitone Steps (Transpose)

The transpose feature lets you change the pitch, in semitone steps. A simple operation lets you instantly change the pitch to match that of a singer.

• The transpose setting range is –12 to +12 semitones.

Press ck (FUNCTION).

Trans.

Use the br (10-key) [–] and [+] keys to select the transpose setting you want.

Fine Tuning (Tuning)

Use the tuning feature when you need to adjust the pitch slightly to play along with another musical instrument. Also, some artists perform their music with slightly altered tuning. You can use the tuning feature to adjust tuning so it exactly matches a performance on a CD.

• The tuning feature specifies the frequency of the A4 note. You can set a frequency within the range of 415.5 to

465.9 Hz. The initial default setting is 440.0 Hz.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “Tune” (page E-7).

Tune

Use the br (10-key) [–] and [+] keys to adjust the tuning.

• Performing this step causes the display to change from “Tune” to a value that indicates the current frequency setting as shown below. You can change the frequency in 0.1 Hz steps.

E-16

440 . 0Hz

• Even if you do not perform a adjust the tuning, the current frequency setting will appear automatically after a few seconds.

(10-key) operation to

Controlling the Keyboard Sounds

Octave Shift

Octave Shift lets you raise or lower the pitch of the keyboard notes in octave units.

• The octave shift setting range is –2 to +2 octaves.

• When using Split (page E-14), you can individually set the left and right keyboard ranges to the pitches you want.

Keep pressing cs until the screen shown below appears on the display.

If you want to use Split, turn on Split before pressing cs.

• If you do not perform any operation for a few seconds after this screen appears, the display will return to the previous screen automatically.

Oc t U

Use the br (10-key) [–] and [+] keys to shift the octave.

• Split On : This step affects the right side keyboard

• Split Off : This step affects the entire keyboard range.

Press cs.

• Split On : The screen shown below will appear. Use the

• Split Off : The screen shown below will appear.

range only.

(10-key) [–] and [+] keys to shift the

octave for the left side keyboard range.

Advance to step 4.

Using the Pitch Bend Wheel to Shift the Pitch of Notes

You can use the pitch bend wheel to slide the pitch of notes smoothly upwards and downwards. This technique makes it possible to produce effects that are similar to sounds produced when bending notes on a saxophone or electric guitar.

To play with the pitch bend wheel

While playing a note on the keyboard, rotate the pitch bend wheel on the left of the keyboard upwards or downwards.

The amount the note bends depends on how much you rotate the pitch bend wheel.

• Do not have the pitch bend wheel rotated as you turn on the Digital Piano.

Specifying the Pitch Bend Range

Use the following procedure to specify how much the pitch of the note changes whenever the pitch bend wheel is rotated upwards or downwards. You can specify a range from 0 to 12 semitones (one octave).

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “OTHER” (page E-7).

Flashes

English

Press cs again.

Oc t Lowe r

OTHER

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Bend Rng”.

Bend Rn

Use the br (10-key) [–] and [+] keys to change the range.

E-17

Sampling Sounds and Playing Them on the Digital Piano

brbrbobo bpbp btbtbsbs ckck

clcl cmcm cncn coco cpcp cqcq

You can use the Digital Piano to sample a sound from a microphone, and then play the sound with keyboard keys. For example, you could sample the bark of your dog and then use the sound in a melody. The sampling feature is a great way to create new sounds that are highly creative.

Connection and Preparation

• Turn off the microphone and the Digital Piano before connecting them.

Connect a microphone.

MIC IN/SAMPLING jack

• Use a commercially available dynamic microphone.

• You cannot sample sounds input from through the AUDIO IN jack.

Turn the volume levels of the Digital Piano down.

Turn on the microphone and then the Digital Piano.

Use em (MIC VOLUME) to adjust the volume level of microphone input.

• It will take a few seconds after you turn on the Digital Piano before you will be able to use the microphone.

• Sampled sounds are recorded in monaural.

E-18

Sampling Sounds and Playing Them on the Digital Piano

Sampling and Playing a Melody Sound (Melody Sampling)

Use the procedures in this section to sample a sound and play it as the melody part on the Digital Piano.

• Up to five sampled sounds can be stored in Digital Piano memory as tone numbers 701 through 705. Simply select the tone number where the sound you want is located to assign the sound to the keyboard.

To sample a sound

Press bp (TONE) and then use br (10-key) to enter the tone number (701 to 705) where you want to store the sampled sound.

No sampled sound stored

No Da t a

Lights

Output the sound in the direction of the microphone.

Sampling will start automatically.

• Sampling will not start if the volume of the sound picked up by the microphone is too low.

Samplin

After the sound you want to sample is finished, press

Sampling will stop.

• Even if you do not press automatically whenever there is no more sound being input from the microphone. Sampling also will stop automatically 10 seconds after it is started.

and bt at the same time.

and bt, sampling will stop

S1 :Orgnl

Sampled sound 1

English

Press bs and bt at the same time.

This enters sampling standby. The allowable sampling time (in seconds) will appear on the display momentarily and then the display will change to the following.

Flashes

ai t in

Used memory

(Unit: Kbytes)

Play something on the Digital Piano.

• You may not be able to get 10 seconds of sampling if Digital Piano memory is low due to storage of other data. If this happens, deleting other memory data you no longer need will free up memory space and you should be able to sample for 10 seconds. See “Deleting a Sampled Sound” on page E-25 for more information.

• Sampling sound and storing it will delete any sound data currently stored under the same tone number. To help ensure that you do not accidentally delete important data, be sure to read “Protecting Against Accidental Deletion of Sampled Sounds” on page E-25.

Remaining memory capacity

E-19

Sampling Sounds and Playing Them on the Digital Piano

■ How sampled sounds are played

Pressing Middle C (C4) will play back the original sound. The keys to the left and right of C4 play the sound at different pitches.

Looping a Sampled Sound

You can use the following procedure to loop a sampled sound so it continues to repeat, as you play on the Digital Piano.

Press bo (RHYTHM).

Press bs and ck (FUNCTION) at the same time.

This enters repeat standby.

Lights

nthPo

Changing the Volume of Sampled Sound Looped Playback

You can use the following procedure to change the volume level of the looped playback of each sampled sound, if you want.

Press the button of the sampled sound whose volume you want to change (

• This will cause the sounds loop to sound.

While the loop is sounding hold down the same sampled sound button ( any keyboard key.

• Pressing the keyboard key quickly will increase sample sound volume, while pressing slowly will decrease volume.

After the sampled sound is at the volume level you want, release its button (

to cq).

to cq) as you press

to cq).

Press the button (cm to cq) that corresponds to the melody sampling tone number you want to select.

This will start looped playback of the selected sound.

To select this tone number: Press this button:

701

702

703

704

705

Press the same button again to stop playback.

Press cl to return to the screen that was displayed before step 2 of this procedure.

cm cn co cp cq

E-20

Sampling Sounds and Playing Them on the Digital Piano

Applying Effects to a Sampled Sound

You can apply various effects to sampled sounds.

Press bp (TONE) and then use br (10-key) to enter the tone number (701 to 705) to which you want to apply effects.

Press bp (TONE) to cycle through the available effects, described below.

Effect Type

(Display)

Original (Orgnl)

Loop 1 (Loop1) Loops the sampled sound.

Loop 2 (Loop2)

Loop 3 (Loop3)

Pitch 1 (Ptch1)

Pitch 2 (Ptch2)

Pitch 3 (Ptch3)

Tremolo (Treml) Alternates volume between high and low.

Funny 1 (Funy1)

Funny 2 (Funy2)

Funny 3 (Funy3)

• Avoid assigning the same sampled sound (tone number 701 to 705) to the keyboard for play along and for looped play. Doing so will cause, the Loop 1 effect to be applied to the keyboard tone while looped play of the sampled sound is being performed.

Normal sampled tone (no looping, no effect).

Loops the sample sound and raises the pitch of the resonating sound when the keyboard key is released.

Loops the sample sound and lowers the pitch of the resonating sound when the keyboard key is released.

Changes the pitch from low to high, at an increasing rate.

Changes the pitch from high to low, at a decreasing rate.

Changes the pitch from high to low, at a decreasing rate, and then raises the pitch when the key is released.

Adds vibrato and changes the pitch by a gradually increasing amount.

Alternates between high pitch and low pitch.

Adds vibrato and changes the pitch from low to high.

Description

Incorporating a Sampled Sound into a Drum Set (Drum Sampling)

You can use the procedure to change the drum sounds that are assigned to each keyboard key.

• You can store up to three drum sets and store them as tone numbers 706, 707, and 708. Simply select the tone number where the drum set you want is located to assign the drum set sounds to the keyboard.

Press bo (RHYTHM).

Press bp (TONE) and then use br (10-key) to enter the tone number (706, 707, or 708) for the drum set whose sounds you want to change.

No Da t a

Lights

Press bs and bt at the same time.

No Da t a

Flashes

English

E-21

Sampling Sounds and Playing Them on the Digital Piano

Press the keyboard key* to which you want to assign the drum sound you are about to sample.

This enters sampling standby. The allowable sampling time (in seconds) will appear on the display momentarily and then the display will change to the following.

After the sound you want to sample is finished, press

and bt at the same time.

SmplDrm1

ai t in

Flashes

* Drum sounds cannot be assigned to these keys.

C2 C7

Output the sound in the direction of the microphone.

Sampling will start automatically.

• Sampling will not start if the volume of the sound picked up by the microphone is too low.

Samplin

Used memory

(Unit: Kbytes)

Sampling will stop.

• Even if you do not press automatically whenever there is no more sound being input from the microphone. Sampling also will stop automatically 10 seconds after it is started.

Press the keyboard key.

• You can repeat steps 3 through 6 to change other sounds that make up the currently selected drum set. There are eight sounds per drum set.

• Sampling a sound will delete any sound data currently assigned to the same keyboard key. To help ensure that you do not accidentally delete important data, be sure to read “Protecting Against Accidental Deletion of Sampled Sounds” on page E-25.

and bt, sampling will stop

Remaining memory capacity

E-22

Sampling Sounds and Playing Them on the Digital Piano

Editing Sampled Drum Set Sounds

You can use the procedures in this section to copy the drum sound assigned to one keyboard key to another key, to change the pitch of a sound, and to delete a sampled sound.

Press bp (TONE) and then use br (10-key) to enter the tone number (706, 707, or 708) for the drum set you want.

Press bs and bt at the same time.

Press ck (FUNCTION).

SmplDrm1

Flashes at high

speed

This is the editing mode.

• While in the editing mode, you can copy a sound, change the pitch of a sound, or delete a sound (each of which is described below). Pressing again exits the editing mode and returns to step 2 of this procedure.

Indicates keyboard keys that have sounds assigned.

■ To copy a sampled sound from one key to another

While holding down the keyboard key to which the sampled sound you want to copy is assigned, press the keyboard key to which you want to copy it.

Example: To copy sampled sound of key C3 to key D3

(FUNCTION)

■ To change the pitch of a sampled sound

While holding down the keyboard key of the sampled sound whose pitch you want to change, use the [+] keys to change the pitch.

• You can change the pitch within a range of –64 to 63 semitones.

(10-key) [–] and

■ To delete a keyboard key’s sampled sound

While holding down the keyboard key whose sound you want to delete, press message that appears, press the delete, or [–] (NO) to cancel the delete operation.

• Deleting a sampled sound will return the key to its initial default built-in sound. Example: To delete the sound assigned to key D3

(RHYTHM). In response to the “DelSure?”

Disappears

(10-key) [+] (YES) key to

Using a Drum Sampling Tone in Auto Accompaniment (Drum Assign)

Use the following procedure to change the rhythm part of an Auto Accompaniment pattern to a drum set sound that you sampled.

Press bo (RHYTHM) and then use br (10-key) to enter the rhythm number of the Auto Accompaniment pattern you want.

You cannot use a Drum Sampling Tone in a user rhythm, so do not select a user rhythm in the above step.

Press bp (TONE) and then use br (10-key) to enter the tone number of the sampling drum set that contains the sound you want to use.

Press bp (TONE).

This changes the rhythm part of the Auto Accompaniment pattern you selected in step 1 to the sampled sound you selected in step 2.

• To change the Auto Accompaniment rhythm part back to its original sound, press

(TONE) again.

English

Indicates the keyboard key whose sound was copied.

• A keyboard key that already has a sampled sound assigned cannot be selected as a copy destination.

• Some rhythm part drum sounds cannot be replaced by sampled sounds.

E-23

Sampling Sounds and Playing Them on the Digital Piano

Other Sampling Functions

Changing to a Manual Sampling Start

Normally when the Digital Piano is in sampling standby, it will start sampling automatically whenever it detects sound input. You can use the following procedure to enable manual sampling start, which will cause sampling to wait until you press a button to start it. You can use this to insert silence before the sampled sound.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “SAMPLING” (page E-7).

Flashes

SAMPL I NG

Press the br (10-key) [9] (ENTER) key.

Au t oS t r t

Press the br (10-key) [–] key to turn off automatic sampling start.

This enables manual sampling start, which operates as described below.

• Melody sampling (page E-19): Sampling starts when you press press in step 2 of the sampling procedure.

• Drum sampling (page E-21): Sampling starts when you release the Digital Piano key you press in step 4 of the sampling procedure.

and bt, which you

Changing to Manual Sampling Stop

Normally the Digital Piano will stop sampling automatically whenever it detects there is no sound input. You can use the following procedure to enable manual sampling stop, which will cause sampling to continue until you press a button to stop it. You can use this to insert silence after the sampled sound.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “SAMPLING” (page E-7).

Press the br (10-key) [9] (ENTER) key.

Press the br (10-key) [6] (I) key.

Au t oS t o

Press the br (10-key) [–] key to turn off automatic sampling stop.

Sampling continues until you perform one of the operations below, even if nothing is being input from the microphone.

• Melody sampling (page E-19)

Press

• Drum sampling (page E-21)

Press keyboard key.

and bt at the same time.

and bt at the same time, or press any

E-24

Sampling Sounds and Playing Them on the Digital Piano

Deleting a Sampled Sound

You can use the following procedure to specify a sampled tone number and delete its data.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “DELETE” (page E-7).

Flashes

DELETE

Press the br (10-key) [9] (ENTER) key.

S1 :Orgnl

Used memory

(Unit: Kbytes)

Use the br (10-key) [–] and [+] keys to select the tone number of the data you want to delete.

Remaining memory capacity

Protecting Against Accidental Deletion of Sampled Sounds

You can use the following procedure to protect each sampled sound against accidental deletion.

Press bp (TONE) and then use br (10-key) to enter the tone number of the sampled tone you want to protect.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “SAMPLING” (page E-7).

Press the br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Protect”.

Protect

Press the br (10-key) [+] key to turn on protection.

Once protected a tone cannot be deleted. A protected tone is indicated as shown below.

English

Press the br (10-key) [9] (ENTER) key.

This displays a delete confirmation message.

Sure?

Press the br (10-key) [+] (YES) key to delete the data, or [–] (NO) or [7] (EXIT) to cancel the delete operation.

• After the delete procedure is complete, “Complete” will appear on the display followed by the screen in step 1 of the above procedure.

• For information about deleting individual drum sounds in a drum sampling set, see “Editing Sampled Drum Set Sounds” on page E-23.

1:Orgnl

Protected

■ Saving Sample Data on an External Device

• Memory card (page E-60)

• Computer (page E-67)

E-25

Playing Built-in Songs

33 44 55 66 77 88 99

ckckbnbn brbr

With this Digital Piano, built-in tune data is referred to as “songs”. You can listen to the built-in songs for your own enjoyment, or you can play along with them for practice.

• In addition to simple listening enjoyment, the built-in songs can be used with the lesson system (page E-30) for practice.

• You can increase the number of tunes using your memory cards (page E-61) or computer (page E-67).

Playing the Demo Songs

Use the following procedure to play back built-in songs.

Press 7 and 8 at the same time.

This will start playback of the demo songs.

• See page E-74 for information about song numbers and the song sequence.

• Demo playback always starts from song number 151.

Tune nameSong numberFlashes

Demo T u n e

To change to another song while demo playback is in progress, use [+] keys to enter the song number you want (page E-7).

This will cause demo playback to jump to the song whose number you entered.

• You cannot use song.

(10-key) number buttons to select a

(10-key) [–] and

Playing Back a Particular Song

Use the procedure below to play back one of the built-in songs. You can play along on the keyboard with song playback.

Start/Stop

Press bn (SONG BANK).

Tune nameSong numberLights

Tw i n k l e

Use br (10-key) to enter the number of the song you want.

• See page E-74 for a complete list of available songs.

• Use the number buttons to enter the song number. Specify three digits for the song number. Example: To select 001, enter 0 3 0 3 1.

Press 7.

This starts playback of the song.

Key

Beat

Sustain pedal

Note

To stop demo playback, press 7.

Demo playback continues until you stop it by pressing 7.

E-26

Tempo

Fingering

Measure

Press 7 again to stop playback.

Song playback will continue (repeat) until you press 7 to stop it. You can cancel song repeat by pressing

Indicator disappears when song repeat is turned off.

Pause, Skip Forward, Skip Back

Use the operations in this section to perform pause, skip forward, and skip back operations.

■ Pause

Press 6.

This pauses song playback.

Press 6 again to resume playback from the point where you paused it.

■ Skip Forward

Press 5.

This skips song playback forward to the next measure. Each press of down

•Pressing lesson function phrase skip forward (page E-31).

skips ahead one measure. Holding

skips forward at high speed until you release it.

while song playback is stopped performs

Playing Built-in Songs

Repeating Playback of Specific Measures

You can use the procedure in this section to repeat particular measures for practice playing along until you master it. You can specify the start measure and the end measure of the section you want to play and practice.

Start End

These measures are repeated.

Press 3 to temporarily turn off song repeat.

Disappears

When song playback reaches the measure you want to specify as the start measure, press

This specifies the measure as the start measure.

Flashes

English

Measure number

■ Skip Back

Press 4.

This skips song playback back to the previous measure. Each press of

skips back at high speed until you release it.

•Pressing lesson function phrase skip back (page E-31).

skips back one measure. Holding down

while song playback is stopped performs

When playback reaches the measure you want to select as the end measure, press

This specifies the measure as the end measure and starts repeat playback of the measures in the specified range.

• During repeat play you can use to skip forward, or 4 to skip back.

to pause playback,

Lights

again.

E-27

Playing Built-in Songs

Pressing 3 again returns to normal playback.

Changing the song number clears the start measure and end measure of the repeat operation.

Disappears

Changing Playback Speed (Tempo)

You can use the following procedure to change the speed (tempo) in order to slow down playback to practice difficult passages, etc.

Press 9.

Use w (slower) and q (faster) to change the tempo setting. Holding down either button changes the setting at high speed.

•Pressing w and q at the same time will return the

current song to its original default tempo.

•Pressing display. While the tempo value is flashing, you can use

(10-key) to change it. The tempo value will stop

flashing if you do not perform any operation for a short while.

• Changing the song number will return the song to its original default tempo.

causes the tempo value to flash on the

Playing with the Tone as Song Playback

The procedure below lets you select the same keyboard tone as the one being used in the song and play along with your favorite tunes.

After selecting a song, hold down bn (SONG BANK) for about two seconds until the displayed tone name changes to the tone name of the song.

• If your currently selected tone is the same as the song tone, the display contents will not change.

Play along with song playback.

• If you select a song that uses different tones for left and right hand play, the right hand part tone is assigned to the keyboard.

Turning Off the Part of One Hand for Practice (Part Select)

You can turn off the right hand part or the left hand part of a song during playback and practice playing along with the remaining part.

Press 8 to select the part you want to turn off.

Each press of 8 cycles through the settings shown below.

Right hand part off

Adjusting the Song Volume

Use the following procedure to adjust the balance between the volume of what you play on the keyboard and song playback volume.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “Song Vol” (page E-7).

Son

Use the br (10-key) [–] and [+] keys to adjust the song volume.

Vo l

Left hand part off

Both hand parts off

Both hand parts on

Press 7.

This starts playback in accordance with the setting you selected in step 1.

• During playback with one part turned off, only the notes of the part that is turned off are shown on the display.

E-28

Increasing the Selection of Songs

You can load song data from an external device and increase the selection of songs available on the keyboard. See the following pages for more information.

• Memory card (page E-61)

• Computer (page E-67)

• For information about how to delete song data loaded from an external device, see page E-57.

Playing Built-in Songs

English

E-29

Using Built-in Songs to Master Keyboard Play

brbrbnbn ckck

clcl cmcm cncn coco cpcp33 44 55 77 88

To master a song, it is best to break it up into shorter parts (phrases), master the phrases, and then put everything together. Your Digital Piano comes with a Step Up Lesson feature that helps you to do just that.

Phrases

The built-in songs are pre-divided into phrases to help you master keyboard play.

Song start Song end

Phrase 1 Phrase 2 Phrase 3 ....

Final

Phrase

Step Up Lesson Flow

Step Up Lesson takes you through practice of the right hand part, left hand part, and both hand parts for each phrase of a song. Master all of the phrases and you master the song.

Phrase 1

• Right Hand Lesson 1, 2, 3

• Left Hand Lesson 1, 2, 3

• Both Hand Lesson 1, 2, 3

Repeat the above to practice phrase 2, 3, 4, and so on, until you reach the final phrase of the song.

After mastering all of the phrases, practice the entire song.

Now you have mastered the entire song!

E-30

Messages that Appear during Lessons

The following are the messages that appear on the display during Step Lessons.

Message Description

<Phrase> Appears when you select a phrase, when a

lesson starts, etc.

• Note that certain phrases will cause “<Wait>” to appear instead of “<Phrase>”.

<Wait> Appears when the lesson starts with an intro

or fill-in phrase that is not included in the phrases to be practiced. Play toll advance automatically to the next phrase after the unincluded phrase plays, so wait until then to start playing on the keyboard.

NextPhrs Appears when advancing automatically to the

next phrase. This message appears following a phrase for which “<Wait>” (see above) is displayed, and during an Auto Step Up Lesson (page E-35).

Listen Watch Remember

From top This message appears during Auto Step Up

Complete Appears at the end of Auto Step Up Lesson

Appears at the start of Auto Step Up lesson 1, 2, or 3 (page E-35).

Lesson (page E-35) immediately before practice from Phrase 1 up until the phrase currently being practiced.

(page E-35).

Using Built-in Songs to Master Keyboard Play

Press co (or 5) to move forward one phrase, or

to move back one phrase.

• Holding down 5 or 4 scrolls through phrases at high speed.

• The Digital Piano remembers the last phrase you practiced for up to 20 songs. To recall the last practice phrase for the current song (if it is available), hold down

Phrase number

First measure of the selected phrase

Press 8 to select the part you want to practice.

Each press of 8 cycles through the settings shown below.

Right hand practice

English

Selecting the Song, Phrase, and Part You Want to Practice

First, select the song, phrase, and part you want to practice.

Select the song you want to practice (page E-26).

This will select the first phrase of the song.

Left hand practice

Both hand practice

* This indicator (setting) is skipped if you press 8 while

a lesson is in progress.

Hold down bn (SONG BANK) for about two seconds.

The same tone used for song playback will be assigned to the keyboard (page E-28).

E-31

Using Built-in Songs to Master Keyboard Play

Lessons 1, 2, and 3

Now it is time to start the lessons. First, select the song and part you want to practice.

Lesson 1: Listen to the song.

First, listen to the example a few times to familiarize yourself with what it sounds like.

Press cl.

This starts example play.

To stop Lesson 1, press cl or 7.

Lesson 2: Watch how the song is played.

Play the song on the keyboard. During this lesson, the display shows the key you need to press next. Voice fingering guide also uses a simulate voice to announce which finger you should use. Follow the instructions to press the correct keyboard keys and play the notes. Don’t worry if you play the wrong note. Song playback will wait until you play the correct note. Take your time and play at your own pace.

Press cm.

This starts Lesson 2.

Play notes on the keyboard in accordance with the instructions provided on the display and by voice fingering guide.

During this lesson, the display shows the key you need to press next. Voice fingering guide uses a simulate voice to announce which finger you should use.

Master playing the correct note with the correct finger as instructed by the guidance. Practice playing with the correct timing.

Song playback will wait for you to play the correct note.

• Keyboard key goes from flashing to lit.

• Note guide sounds the correct note to be played.

• Voice Fingering Guide tells you what finger to use.

Pressing the correct keyboard key causes song playback to resume and the key for the next note flashes.

To stop Lesson 2, press cm or 7.

● If you complete Lesson 2 play to the end, a score that rates your play appears on the screen.

Bravo! You pass! Advance to the next lesson. Again! Go back and try again.

E-32

Flashes

Lights

Using Built-in Songs to Master Keyboard Play

Lesson 3: Remember what you learned as you play.

Though song playback stands by waiting for you to press the correct keys as in Lesson 2, the Digital Piano does not provide any guidance about what note you need to play next. Remember everything you have learned up to Lesson 2 as you play.

Press cn.

This starts Lesson 3.

Play the song along with the song playback.

Press the keyboard keys you learned in Lesson 2.

Song playback will wait for you to play the correct note.

• Note guide sounds the correct note to be played.

If you are still unable to press the correct keyboard key, the Digital Piano will display keyboard guidance and voice fingering guide will tell you what finger to use, just as in Lesson 2.

Pressing the correct key will cause song playback to resume.

Lesson Settings

Playing without Phrase Repeat

You can turn off phrase repeat for Lessons 1, 2, and 3.

Press 3.

This disables phrase repeat play.

Disappears

Turning Off Voice Fingering Guide

Use the following procedure to turn off voice fingering guide, which tells you which finger to use to play each note in Lesson 2 and Lesson 3.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “LESSON” (page E-7).

Flashes

English

To stop Lesson 3, press cn or 7.

• If you complete Lesson 3 play to the end, a score that rates your play appears on the screen the same as with Lesson 2.

Playing a Particular Song All the Way Through

After you successfully complete all of the phrases in Lessons 1, 2, and 3, it is time to try playing the entire song from beginning to end.

Use 8 to turn off both hand parts and then press

Try playing with both hands and find out how the Digital Piano evaluates your effort.

LESSON

Press br (10-key) [9] (ENTER) key.

Press the br (10-key) [–] key to select the OFF setting.

eak

E-33

Using Built-in Songs to Master Keyboard Play

Turning Off Note Guide

Use the following procedure to turn off note guide, which sounds the note to be played next in Lesson 2 and Lesson 3.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “LESSON” (page E-7).

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “NoteGuid”.

No t eGu i d

Press the br (10-key) [–] key to select the OFF setting.

Turning Off Performance Evaluation

Use the following procedure to turn off performance evaluation, which evaluates your performance and displays a score in Lesson 2 and Lesson 3.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “LESSON” (page E-7).

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Scoring”.

Changing the Phrase Length

You can use the following procedure to change the length of lesson phrases, or to configure the lesson feature so the song is played all the way through, without being divided into phrases.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “LESSON” (page E-7).

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “PhraseLn”.

Ph r aseLn

Use the br (10-key) [–] and [+] keys to select the phrase length you want.

Off (oFF) The phrase length is from the beginning

Preset (PrE) Phrase lengths are as specified in the

The following options are available for songs loaded from external sources only.

Short (Ln1) Length of one phrase is one measure. Middle (Ln2) Length of one phrase is two measures. Long (Ln3) Length of one phrase is four measures.

to the end of the song.

song.

Sco r i ng

Press the br (10-key) [–] key to select the OFF setting.

E-34

Using Built-in Songs to Master Keyboard Play

Using Auto Step Up Lesson

With Auto Step Up Lesson, the Digital Piano advances through each lesson automatically.

Select the song and part you want to practice (page E-26).

Press cp.

Listen to the first phrase in Lesson 1.

• In Lesson 1, the sample phrase is played only once before advancing to Lesson 2.

Auto Step Up Lesson stops automatically after you are able to get through all of the lessons successfully.

• In Lesson 2 and Lesson 3, the Digital Piano advances to the next lesson if you are able to achieve the “Bravo!” evaluation result.

• To cancel a lesson, press

• You can change the step and phrase during Auto Step Up Lesson using

• Starting Auto Step Up Lesson automatically turns on phrase repeat (page E-33) and play evaluation (page E-34). These features cannot be turned off during lessons.

4, 5

, and cl to co.

or 7.

■ Auto Step Up Lesson Procedure

Phrase 1

Lesson 1

Lesson 2

Lesson 3

Phrase 2

Lesson 1

Lesson 2

Lesson 3

Phrase 1, 2

• Lesson 3*

Phrase 3

Lesson 1

Lesson 2

Lesson 3

Phrase 1, 2, 3

• Lesson 3*

English

Next phrase practice using the same procedure

Final phrase

Lesson 1

Lesson 2

Lesson 3

From Phrase 1 to the final phrase

• Lesson 3*

Lesson complete

* Auto Step Up Lesson advances to the next phrase,

regardless of whether the “Bravo!” result is attained.

E-35

Music Challenge Keyboard Game

bobo bpbp

bnbn

Music Challenge is a game that measures your reaction speed as you press keys in response to on-screen keyboard indicators and fingering guide indications.

Press bn (SONG BANK).

Press cq.

This causes a key on the on-screen keyboard to start to flash, and starts the Music Challenge song.

Displayed during a game.

M.CHAL . !

Number of remaining notes

Fingering

After the on-screen keyboard indicator changes from flashing to lit, press the indicated key with the indicated finger as quickly as possible.

This causes the on-screen keyboard key to go out to let you know that you cleared the first note. The next onscreen keyboard key starts to flash, so get ready to press the next key.

• The time it takes you to press the keyboard key after the on-screen key lights appears on the display (Unit:

0.1 sec). The shorter the time, the higher your score.

• Pressing a keyboard key before the on-screen key goes from flashing to lit, will not advance to the next note.

Time 0.3sec

cqcq22

The game ends when you advance successfully through 20 notes.

• Your playing time appears on the display. After a short while, the playing time display changes to a score. To clear the score from the display, press BANK),

• You can cancel a game at any time by pressing

(RHYTHM), or bp (TONE).

Playing time

(SONG

Time19.2

Sco r e 80

Score

• Notes and fingering guide fingers are indicated randomly.

• The tempo of the game songs cannot be changed.

• All buttons except game is in progress.

, and cq are disabled while a

2, 7

E-36

M.CHAL . !

Using Auto Accompaniment

66 9933 44 55 88

77 ctct

With Auto Accompaniment, simply select an accompaniment pattern. Each time you play a chord with your left hand the appropriate accompaniment will play automatically. It’s like having a personal backup group along with you wherever you go.

• Auto Accompaniments are made up of the following three parts. (1) Rhythm (2) Bass (3) Harmony

You can have only the rhythm part play, or you can have all three parts play at the same time.

Playing the Rhythm Part only

The rhythm part is the foundation each Auto Accompaniment. Your Digital Piano comes with a variety of built-in rhythms, including 8-beat and waltz. Use the following procedure to play the basic rhythm part.

brbrbobo bqbq btbtbpbpbnbn

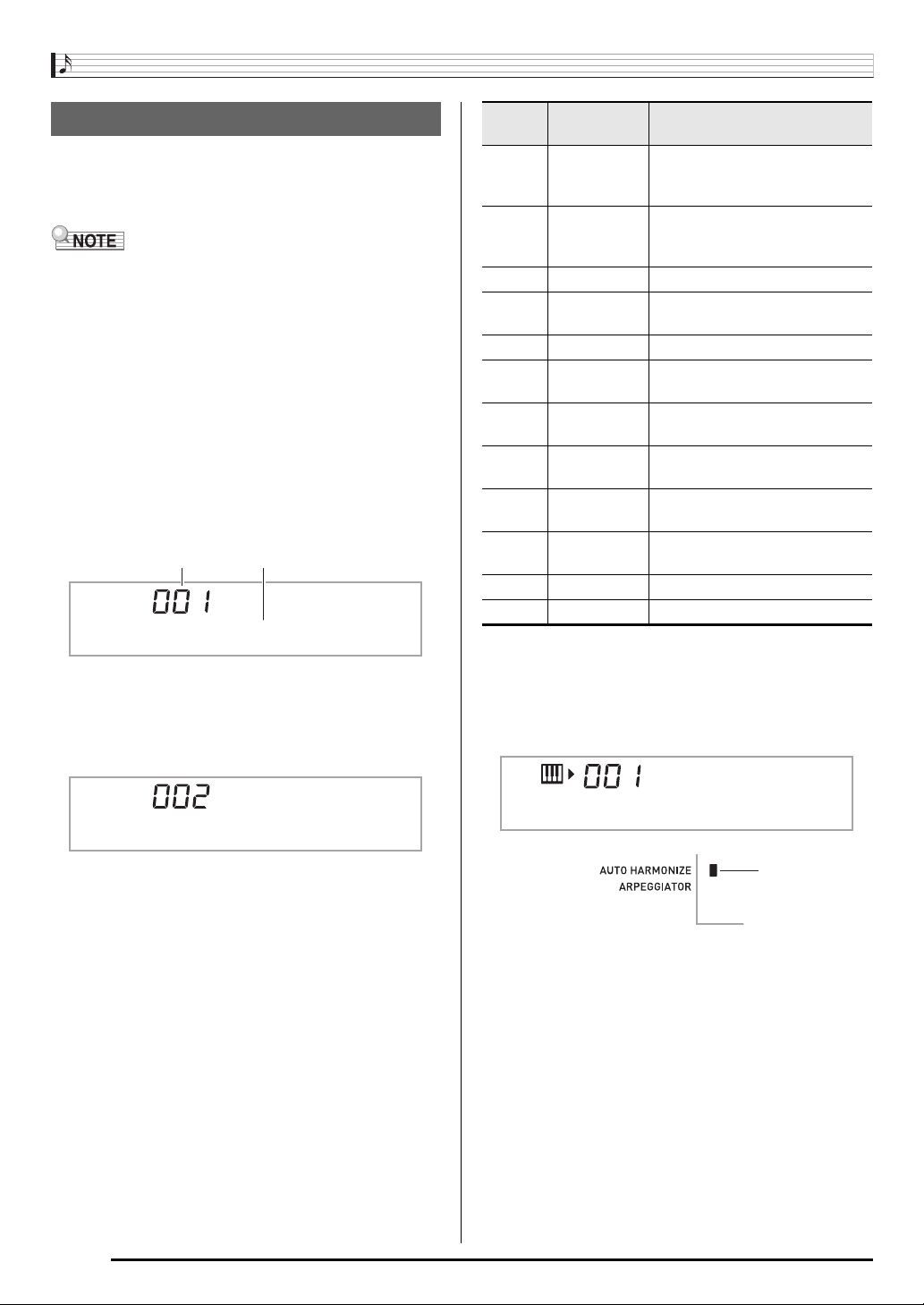

Starting and Stopping the Rhythm Part only

Press bo (RHYTHM).

Rhythm number Rhythm pattern name

Use br (10-key) to select the rhythm number you want.

• See the separate “Appendix” for information about individual rhythms.

• Use the number buttons to enter the rhythm number. Specify three digits for the rhythm number. Example: To select 001, enter 0 3 0 3 1.

Press 7 or 4.

This starts the rhythm.

This pattern changes with each beat.

nthPo

ckck

English

Play along with the rhythm.

To stop the rhythm, press 7 again.

E-37

Using Auto Accompaniment

Playing All Parts

Auto Accompaniment with Chords

Playing a chord with your left hand automatically adds bass and harmony accompaniment parts to the currently selected rhythm. It is just like having your own personal back up group on call.

Start play of the Auto Accompaniment rhythm part.

Press 8.

This enables chord input on the accompaniment keyboard.

Accompaniment keyboard

Pressing 8 again returns to rhythm only accompaniment.

• For information about starting Auto Accompaniment as soon as a chord is played, see “Using Synchro Start” on page E-41.

• You can use the split point to change the size of the accompaniment keyboard range (page E-15).

Selecting a Chord Input Mode

You can select from among the following five chord input modes.

• FINGERED 1

• FINGERED 2

• FINGERED 3

• CASIO CHORD

• FULL RANGE CHORD

Hold down 8 until the chord input mode selection screen appears on the display.

Chord input mode

Lights

Use the accompaniment keyboard to play chords.

This will cause bass and harmony Auto Accompaniment parts to be added to the rhythm part.

Chords (no melody played)

Example: Pressing D-F#-A-C on the accompaniment keyboard

Accompaniment for the D-F

Play other chords with left hand as you play the

Melody

-A-C chord (D7) sounds.

melody with your right hand.

Cho r d

Use the br (10-key) [–] and [+] keys to select the chord input mode you want.

• If you do not perform any operation after the chord input mode selection screen appears, the display will return automatically to the screen that was displayed before you held down

E-38

Using Auto Accompaniment

■ FINGERED 1, 2, and 3

With these three input modes, you play chords on the accompaniment keyboard using their normal chord fingerings. Some chord forms are abbreviated, and can be fingered with one or two keys. See page E-75 for information about chords that are supported and how they are fingered on the keyboard.

Accompaniment keyboard

● FINGERED 1

Play the component notes of the chord on the keyboard.

● FINGERED 2

Unlike FINGERED 1, 6th input is not possible. m7 or m7

is input.

● FINGERED 3

Unlike FINGERED 1, allows input of fraction chords with the lowest keyboard note as the bass note.

■ CASIO CHORD

With CASIO CHORD, you can use simplified fingerings to play the four types of chords described below.

Accompaniment keyboard

CASIO CHORD Fingering

Chord Type Example

Major Chords

Letters above the accompaniment keyboard indicate the chord assigned to each key. Pressing a single accompaniment area key in the CASIO CHORD mode will play the major chord whose name is marked above the key. All of the accompaniment area keys that are marked with the same chord name play exactly the same chord.

Minor Chords

To play a minor chord, press the accompaniment area key that corresponds to the major chord, while also pressing one other accompaniment area key to the right.

Seventh Chords

To play a seventh chord, press the accompaniment area key that corresponds to the major chord, while also pressing two other accompaniment area keys to the right.

Minor Seventh Chords

To play a minor seventh chord, press the accompaniment area key that corresponds to the major chord, while also pressing three other accompaniment area keys to the right.

C (C Major)

E#G

DE F

DE F F

Cm (C Minor)

E#G

DE F

DE F F

C7 (C Seventh)

E#G

DE F

DE F F

Cm7 (C Minor Seventh)

E#G

DE F

DE F F

English

• When playing a minor, seventh, or minor seventh chord, it makes no different whether the additional keys you press are black or white.

■ FULL RANGE CHORD

With this mode, you can use the full range of the keyboard to play chords and the melody. See page E-75 for information about chords that are supported.

Accompaniment keyboard / Melody keyboard

E-39

Using Auto Accompaniment

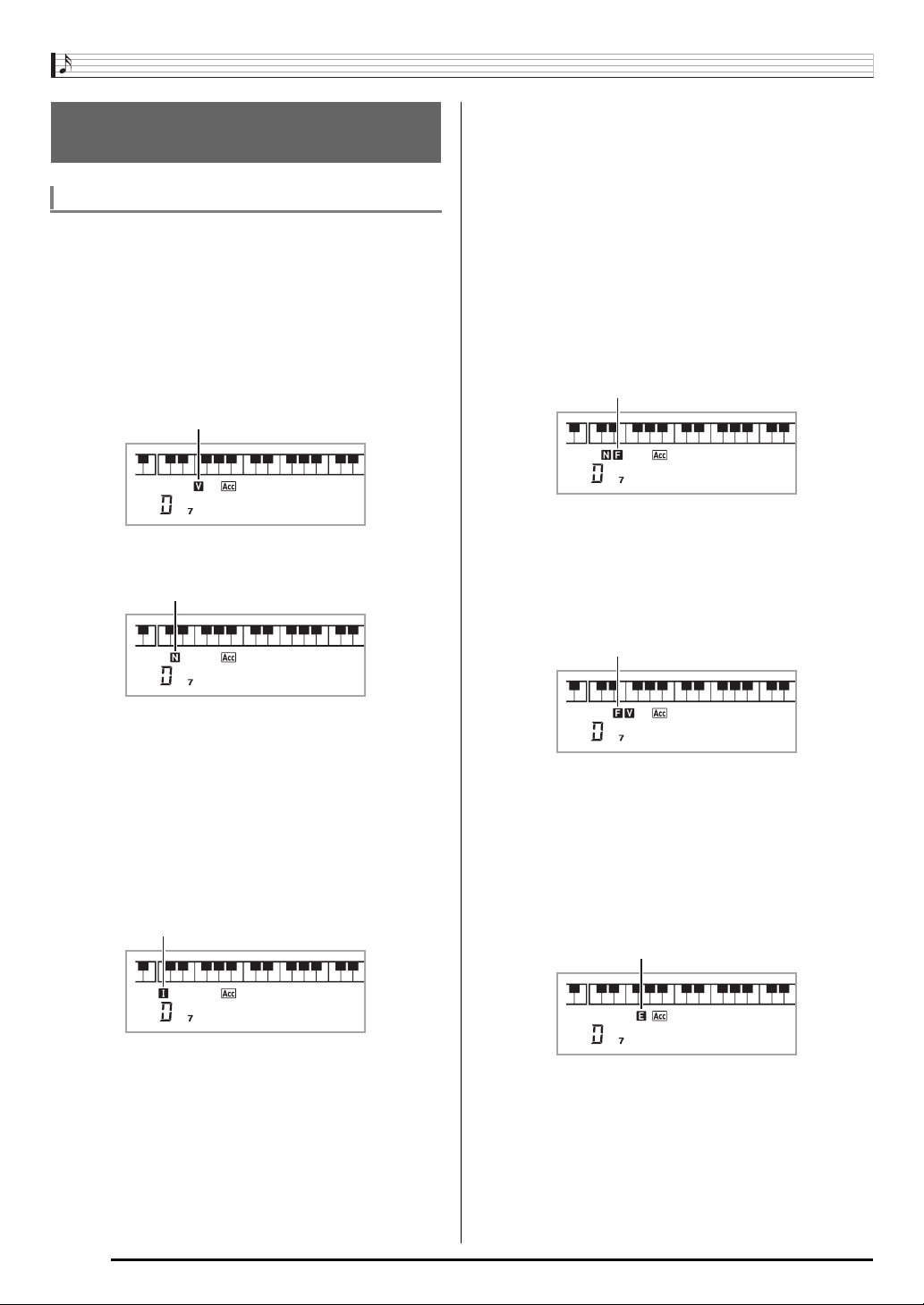

Using Auto Accompaniment Effectively

Auto Accompaniment Pattern Variations

Use the following procedures to play intro and ending patterns, to play fill-in patterns, and to play variations of basic Auto Accompaniment patterns.

■ Auto Accompaniment Variation

Each Auto Accompaniment pattern has a basic “normal pattern” as well as a “variation pattern”.

Press 5.

This starts the variation pattern.

Lights

Pressing 4 returns to normal pattern.

Lights

■ Auto Accompaniment Fill-in

Use the procedure below to play a fill-in pattern during a performance.

• A “fill-in” is a short phrase played where you want to change the mood of a piece. A fill-in pattern can be used to create a link between two melodies or an accent.

• Normal and variation patterns have their own unique fill-in patterns.

● Normal Pattern Fill-in

While a normal pattern is playing, press 4.

This plays the fill-in for the normal pattern.

• Normal pattern play will resume after the fill in pattern is complete.

Lights

● Variation Pattern Fill-in

While a variation pattern is playing, press 5.

This plays the fill-in for the variation pattern.

• Variation pattern play will resume after the fill in pattern is complete.

Lights

■ Auto Accompaniment Intro

Use the following procedure to play an intro of a few measures.

Press 3.

This starts the intro pattern. Normal pattern play will start when the intro pattern is finished.

• If you press the variation pattern will start when the intro pattern is finished.

while an intro pattern is being played,

Lights

■ Auto Accompaniment Ending

Use the following procedure to play an ending of a few measures.

While an Auto Accompaniment is playing, press

This will play the ending pattern and then stop Auto Accompaniment play automatically.

Lights

E-40

Using Auto Accompaniment

■ Using Synchro Start

Use the following procedure to configure the Digital Piano to start Auto Accompaniment play as soon as you press a keyboard key.

Press 6.

This enters accompaniment start standby.

Flashes

Play a chord on the keyboard.

This will start full part accompaniment (normal).

Any of the following operations can be performed while in synchro standby to start a non-normal pattern.

• To start with intro pattern, press

• To start with variation pattern play, press

Changing Auto Accompaniment Speed (Tempo)

Use the following procedure to change Auto Accompaniment speed to a level that suits you.

Press 9.

Use w (slower) and q (faster) to change the tempo setting. Holding down either button changes the setting at high speed.

•Pressing w and q at the same time will initialize the tempo setting in accordance with the currently selected rhythm.

• While the tempo value is flashing, you also can use (10-key) to change it.

• If you do not perform any operation for a few seconds after the tempo setting screen appears, the display will return to the screen displayed before you pressed

Adjusting the Accompaniment Volume

Use the following procedure to adjust the balance between what you are playing on the keyboard and the volume of the Auto Accompaniment.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “AcompVol” (page E-7).

AcompVo l

Use the br (10-key) [–] and [+] keys to adjust the accompaniment volume.

Using One-Touch Preset

With One-Touch Preset, the Digital Piano automatically configures optimal tone, tempo, and other settings in accordance with the rhythm pattern you select.

Hold down bo (RHYTHM) until the current tone screen appears on the display.

This will automatically apply the One-Touch Preset settings in accordance with the rhythm pattern that is currently selected.

Play a chord on the keyboard.

This will start accompaniment automatically.

English

Flashes

E-41

Using Auto Accompaniment

Using Auto Harmonize

Auto Harmonize automatically adds harmony to notes you play with your right hand, which adds rich depth to the melody of your performances. You can select from among 12 types of Auto Harmonize to suit the type of music you are playing.

• Auto Harmonize is controlled using the same button ct as the Arpeggiator (page E-56). Because of this, these two functions cannot be used at the same time.

Press 8 to enable Auto Accompaniment with chords (ACCOMP indicator lit) (page E-38).

• Auto Harmonize cannot be used while FULL RANGE CHORD is selected as the chord input mode. Select another mode if you want to use Auto Harmonize.

Hold down ct until the Auto Harmonize or Arpeggiator type number and type name appear on the display.

• If you do not perform any operation for a few seconds, the display will return to previous screen automatically.

Type number Type name

Type

number

001 Duet 1 Adds close (separated by 2 to 4

002 Duet 2 Adds open (separated by more

003 Country Adds country style harmony.

004 Octave Adds the note from the next lower

005 5th Adds the fifth degree note.

006 3-Way Open Adds 2-note open harmony, for a

007 3-Way Close Adds 2-note close harmony, for a

008 Strings Adds harmony that is optimal for

009 4-Way Open Adds 3-note open harmony, for a

010 4-Way Close Adds 3-note close harmony, for a

011 Block Adds block chord notes.

012 Big Band Adds big band style harmony.

Type Name Description

degrees) 1-note harmony below the melody note.

than 4 to 6 degrees) 1-note harmony below the melody note.

octave.

total of three notes.

strings.

total of four notes.

Due t 1

Use the br (10-key) [–] and [+] keys to select the Auto Harmonize type you want.

• 013 through 102 are Arpeggiator types (page E-56). Do not select them when using the Auto Harmonize.

Due t 2

Press ct to turn on Auto Harmonize.

If you play chords with your left hand and the melody with your right hand, harmony notes will be added to the melody.

• Press

again to turn off Auto Harmonize.

St .GrPno

Lit when on

E-42

Looking Up the Notes of Chords (Chord Book)

You can use the Chord Book to look up chords that you do not know how to play.

Press bt.

Using Auto Accompaniment

Use the br (10-key) [–] and [+] keys to select the type of chord you want.

Selecting a chord type causes the chord to sound, and shows the chord name and its notes on the display.

Example: Selecting M (Major)

Chord type

English

Cho r dBk

On the chord keyboard, press the keyboard key that corresponds to the root note of the chord you want to look up.

Chord keyboard

Example: To look up C

Cho r dBk

Root note

M(Major

Chord name Chord notes

• You can select any one of the following chord types.

M(Major), m(minor), dim, aug, sus4, sus2, 7th, m7,

M7, m7 6th, m6

• To display inverted forms of the chord, use keys [0] through [4] as shown below.

To display this inverted form: Press this key:

Normal form 0

First inversion 1

Second inversion 2

Third inversion 3

Fourth inversion 4

After you are finished looking up what you want, press

• You can also exit the chord book by pressing bn (SONG BANK),

, 7

, 7sus4, add9, madd9, mM7, dim7, 69,

to exit the Chord Book.

)

(RHYTHM), bp (TONE), or bq.

(10-key)

E-43

Editing Auto Accompaniment Patterns

6633 44 55 8877

You can use the procedure in this section to edit the Digital Piano’s built-in Auto Accompaniment rhythm patterns and create your own “user rhythms”.

• You can store up to 10 user rhythms in Digital Piano memory, using rhythm numbers 201 through 210.

blbl

■ Editable Accompaniment Patterns and Instrument Parts

Any of the following parts that make up each rhythm that is assigned a rhythm number can be edited. Accompaniment patterns (intro, fill-in, etc.): 6 types Instrument parts (drum, bass, etc.): 8 types

Accompaniment Pattern

VARIATION

FILL-IN

ENDING

Instrument

Parts

NORMAL

INTRO

FILL-IN

■ Editable Contents

•Rhythm number

•Part on/off

• Tone number

•Volume level

• Left-right speaker balance (panning)

• Reverb depth (reverb send)

• Chorus depth (chorus send)

To edit and save an Auto Accompaniment

Select the number of the rhythm you want to edit.

Press bl.

Button

Lights

Rhythm number

brbrbobo

ckck

INNFVVFE

1 Drum I-1 N-1 NF-1 V-1 VF-1 E-1

2 Percussion I-2 N-2 NF-2 V-2 VF-2 E-2

3 Bass I-3 N-3 NF-3 V-3 VF-3 E-3

4 Chord 1 I-4 N-4 NF-4 V-4 VF-4 E-4

5 Chord 2 I-5 N-5 NF-5 V-5 VF-5 E-5

6 Chord 3 I-6 N-6 NF-6 V-6 VF-6 E-6

7 Chord 4 I-7 N-7 NF-7 V-7 VF-7 E-7

8 Chord 5 I-8 N-8 NF-8 V-8 VF-8 E-8

Button

344556

E-44

Drm:Rhy.

Instrument part

Accompaniment Pattern (Flashes)

If the “Err Mem Full” message appears on the display, see page E-73 for information about what you should do.

Editable content

Press a button from 3 to 6 to select the Accompaniment Pattern you want to edit.

The name of the pattern will appear on the display.

Drm:Rh

Variation selected

Pattern selected by each button

:Intro

: Normal, Normal Fill-in

(Each press toggles the selection.)

: Variation, Variation Fill-in

(Each press toggles the selection.)

: Ending

Press 8 to select the instrument part you want to edit.

The part number of the part you select will flash on the display.

Flashing: Part selected for editing.

Editing Auto Accompaniment Patterns

To edit the other contents, press ck (FUNCTION) to display the screen for the setting you want.

• Each press of ck (FUNCTION) will cycle through the settings shown below, from 1 through 6.

• Use the currently selected setting.

• You can play the current settings of the editable part by pressing

1 Part on/off Part On/Off

2 Tone number* Tone 001 - 683

3 Volume level Vol. 000 - 127

Left-right speaker balance

(panning)

5 Reverb depth (reverb send) Rvb 000 - 127

6 Chorus depth (chorus send) Cho. 000 - 127

* Instrument parts 1 and 2 can be assigned drum set tones

(built-in tones 684 to 700) only.

Repeat steps 4 through 7 as many times as necessary to edit the parts you want for the pattern you selected in step 3.

• If you change the rhythm number in step 6, the editable contents (1 through 6 in the above table) you last configured in step 7 of this procedure will be overwritten with the settings of the newly selected rhythm.

(10-key) [–] and [+] keys to change the

Setting Type Display Settings

Pan –64 - 0 - +63

English

Parts that contain data.

Press bo (RHYTHM).

This will display the rhythm name.

Use the br (10-key) [–] and [+] keys to select the rhythm number you want to assign to the instrument part you are editing.

A different rhythm number is assigned for each instrument part.

• You can play the data of the currently selected rhythm number by pressing

• All of the eight instrument parts of an intro (I-1 to I-8) must have the same rhythm number. If you assign rhythm 003 to I-1, for example, 003 also will be assigned automatically to parts I-2 through I-8. If you then assign rhythm 004 to part I-2, for example, I-1 and all of the other parts also will change to 004. All of the eight parts of an ending (E-1 to E-8) also must have the same rhythm number.

Part 6 (Chord 3)

Repeat steps 3 through 8 as many times as necessary to edit the accompaniment patterns you want (intro through ending).

10.

Press bl.

This will display a message asking if you want to save the user rhythm.

E-45

Editing Auto Accompaniment Patterns

11-1.

Press the br (10-key) [–] key to exit without

saving.

This displays the delete confirmation message. Press the procedure.

11-2.

Press the br (10-key) [+] key to save the data.

(10-key) [+] key to exit the editing

To delete saved data

The following procedure cannot be performed while an Auto Accompaniment editing (rhythm edit) operation is in progress.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “DELETE” (page E-7).

Flashes

•Use br (10-key) [–] and [+] keys to select the rhythm number you want to save.

• You can edit the user rhythm name. Use the (10-key) [4] (U) and [6] (I) keys to move the cursor to the character you want to change, and then use [+] and [–] to change the character.

12.

Press br (10-key) [9] (ENTER) key.

This will display a message asking if you want to save the user rhythm.

• Press the

• Press the that was displayed before you pressed [9] (ENTER) key.

br br

nthPo

(10-key) [+] key to save the data. (10-key) [–] key to return to the screen

DELETE

Press the br (10-key) [9] (ENTER) key.

Press the br (10-key) [6] (I) key.

Used memory (Unit: Kbytes)

Remaining memory capacity

Use 1

User rhythm name

Use the br (10-key) [–] and [+] keys to select the user rhythm you want to delete.

Press the br (10-key) [9] (ENTER) key.

This displays a delete confirmation message.

Su r e?

• If you select a user rhythm number that already contains data, the existing data will be replaced by the new data.

• You cannot change the tone assigned to the keyboard while an Auto Accompaniment editing (rhythm edit) operation is in progress.

■ Saving User Rhythm Data on an External Device

• Memory card (page E-60)

• Computer (page E-67)

E-46

Press the br (10-key) [+] (YES) key.

After the delete procedure is complete, “Complete” will appear followed by the screen in step 2 of the above procedure.

• To cancel the delete operation, press [–] (NO) or [7] (EXIT) in place of [+] (YES).

Saving Keyboard Setups to Registration Memory

Registration memory lets you store Digital Piano setups (tone, rhythm, etc.) for instant recall whenever you need them. Registration memory simplifies performance of complex pieces that require successive tone and rhythm changes.

You can have up to 32 setups in Registration memory at one time.

and cm to cp are used for recording.

cl cm cn co cp

Area 1 Area 2 Area 3 Area 4

Bank 1 Setup 1-1 Setup 1-2 Setup 1-3 Setup 1-4

Bank 2 Setup 2-1 Setup 2-2 Setup 2-3 Setup 2-4

. .

Bank 8 Setup 8-1 Setup 8-2 Setup 8-3 Setup 8-4

• Each press of bank select button bank numbers, from 1 to 8.

• Pressing a button from area in the currently selected bank.

. .

to cp selects the corresponding

. .

cycles through the

. .

brbrbobo

clcl cmcm cncn coco cpcp cqcq

■ Registration Save Example

This example saves the data shown in the table below to the following setups in Bank 1.

• Initial melody setup saved to Setup 1-1.

• Second melody setup saved to Setup 1-2.

• Third melody setup saved to Setup 1-3.

Setup 1–1 Setup 1–2 Setup 1–3

Tone Number 001 062 001

Rhythm Number 118 005 089

Tempo 080 140 089

■ Registration Memory Data

The following is the complete list of data that is saved to a registration memory setup.

• Tone numbers (main, layer, split)

• Rhythm number

• Tempo

• Auto Harmonize

• Transpose

• Split point

• Touch Response

• Octave shift

• Chord fingerings

• Accompaniment volume

• Arpeggiator setting (on, off, type)

• Synchro start

• Reverb (on, off, type)

• Chorus (on, off, type)

• Bend Range

• Accomp (on, off)

• Arpeggiator hold (on, off)

• Layer (on, off)

• Split (on, off)

• Pedal effect

English

E-47

Saving Keyboard Setups to Registration Memory

To save a setup to registration memory

Press bo (RHYTHM).

Bank number

Configure the tone, rhythm, and other settings you can to include in the setup.

Press cl to select the bank you want.

Each press of cl cycles through the bank numbers.

Bank 4

To recall a setup from registration memory

Press cl to select the bank that contains the setup you want to recall.

Bank 6

Use buttons cm to cp to select the area whose setup you want to recall.

This will recall the registration memory setup and automatically configure the Digital Piano settings accordingly.

Reca l l

Setup 6-1 recalled

• You also can select a bank by holding down use the number.

While holding down cq, press a button from cm to

This will save the settings you configured in step 2 into the applicable setup.

• If there is anything already stored in the setup, it will be replaced (deleted) by the new setup.

(10-key) number buttons to enter a bank

to select an area.

Store

Stored in Setup 4-1

as you

• Notes currently being sounded by the keyboard may stop if you recall a setup that causes a change in octave shift (page E-17). To keep this from happening, either select a setup that does not cause a change in the octave shift setting, or hold down the pedal (which will cause notes currently being played to be sustained).

■ Saving registration Data on an External Device

• Memory card (page E-60)

• Computer (page E-67)

E-48

Recording Your Keyboard Play

bpbpbnbn

bobo

brbr

English

8877 clcl cmcm cncn coco cpcp cqcq

The recorder feature lets you record your keyboard play.

bkbk

Recording and Playing Back Keyboard Play

Use the following procedure to record everything you play on the keyboard.

Press bo (RHYTHM).

Press bk.

Lights

Press bk again.

This will enter record standby.

Flashes

Configure the tone, rhythm, and other settings you want to use.

Start playing.

Recording starts as soon as you play something on the keyboard.

• You can use Auto Accompaniment while playing. If you do, Auto Accompaniment also will be recorded.

To stop recording, press 7.

Lights

To play back what you have recorded, press 7 again.

Each press of 7 starts and stops playback.

E-49

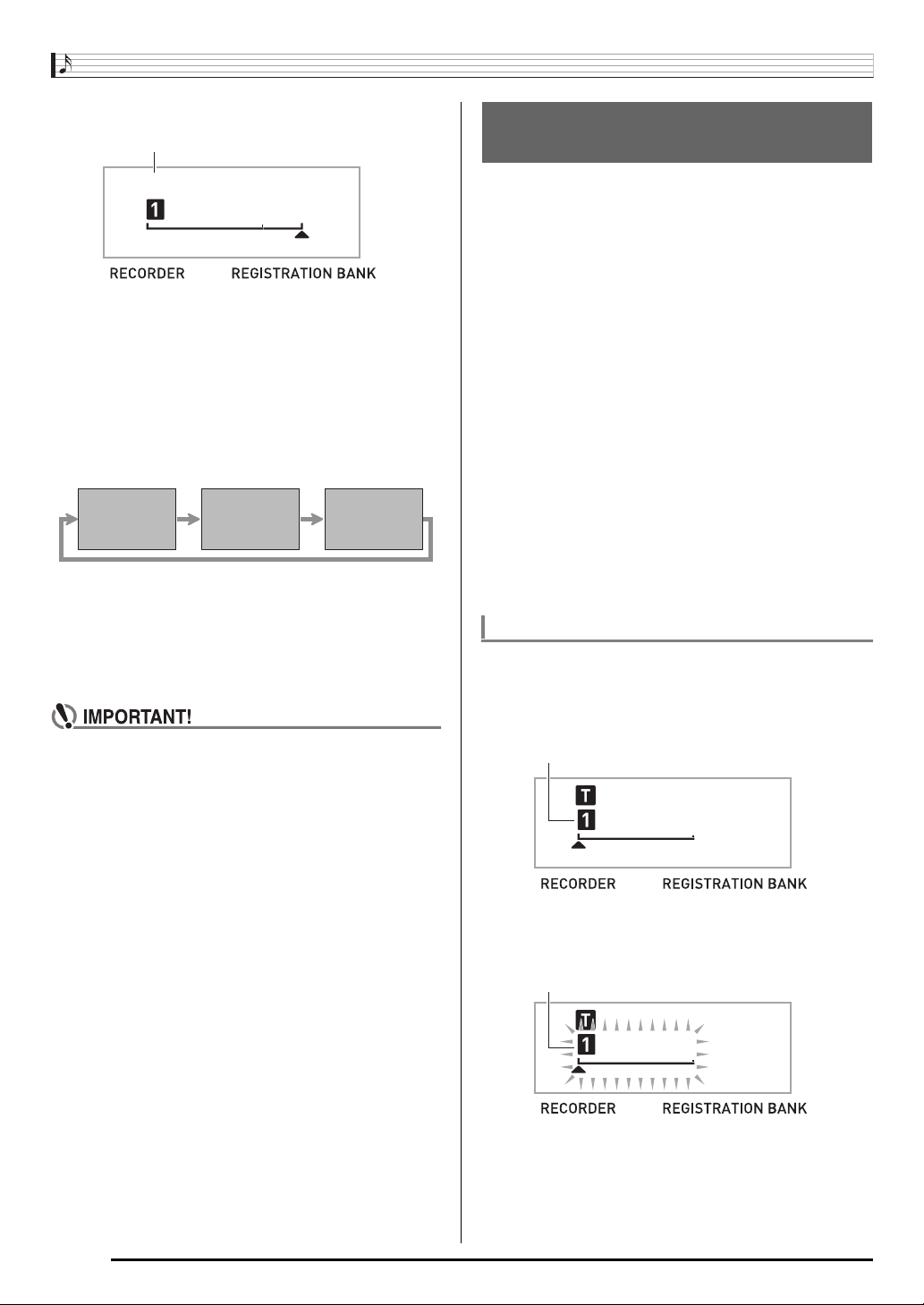

Recording Your Keyboard Play

Press bk twice to exit the recorder mode.

Disappears

• The flashing on the screen shown in step 3 becomes faster when remaining recorder memory capacity becomes less than 100 notes.

• Total recorder memory capacity is approximately 12,000 notes. Recording will stop automatically when there is no more unused recorder memory remaining.

• Each press of below. You can listen to the recorded data as many times as you like by pressing standby.

Recorder Off

cycles through the settings shown

while in playback

Playback

Standby

Record Standby

■ To delete recorded data

After step 3 of the above procedure, do hold down bk (without pressing any keyboard key) until the message “Tr.Del?” appears on the display. Press [+] (YES) to delete the data, or [–] (NO) to cancel the delete operation.

• Turning off the Digital Piano while recording is in progress will cause any data in recorder memory to be deleted.

• A new recording replaces (deletes) previously recorded contents.

Using Tracks to Record and Mix Parts

You can divide a song according to various types of parts (instrument, left and right hand, etc.), and record each part to a specific track. You can mix up to six tracks (the original track plus five additional tracks) into a final song.

■ About tracks

Tracks are numbered from 1 to 6.

• If you do not specify a track number when recording, recording is performed to Track 1 automatically.

In addition to what you play on the keyboard, the following information also is recorded.

• Track 1

Settings: Tone number, rhythm number, tempo, reverb, chorus, chords, layer/split settings, Auto Harmonize/Arpeggiator setting

Operations: Pedal, pitch bend wheel, INTRO button, SYNCHRO/ ENDING button, NORMAL/FILL-IN button, VARIATION/ FILL-IN button

• Tracks 2 through 6

Tone number, pedal operation, pitch bend wheel operation

To record to Tracks 1 through 6

Record the first part to Track 1.

To record to Track 1, perform steps 1 through 4 under “Recording and Playing Back Keyboard Play” (page E-49).

Lights

E-50

Press bk.

This will enter record standby.

Flashes

Press a button from cm to cq to select the track number of the next track to which you want to record.

This will enter record standby for the track you selected. Example: Track 2

Flashes

• If you want to use a different tone than the one you used in Track 1, press (10-key) to input the tone number.

Press 7.

This will start playback of what you recorded up to this point in other tracks and record what you play on the keyboard to the currently selected track. Play the notes you want on the keyboard.

To stop recording, press 7.

• To play back what you have recorded, press 7 again. Each press of

(TONE) and then use br

starts and stops playback.

Recording Your Keyboard Play

After you finish recording all of the tracks, press

• This will start playback of the recorded tracks. Press

• At this time you can turn off playback of specific tracks using buttons playback of each track on (track number displayed) or off (track number not displayed).

• If you want to re-record a track, press return to step 2 of the above procedure. Only the tracks that are turned on (displayed) above will play as you re-record.

Example: Tracks 2 and 3 selected

Press bk twice to exit the recorder mode.

to stop or restart playback.

to cq. Pressing a key toggles

Disappears

. This will

English

Repeat steps 2 through 5 to record the other tracks.

■ To delete a recorded track

After step 3 of the above procedure, do hold down bk (without pressing any keyboard key) until the message “Tr.Del?” appears on the display. Press [+] (YES) to delete the track, or [–] (NO) to cancel the delete operation.

E-51

Recording Your Keyboard Play

Recording Two or More Songs, and Selecting One for Playback

You can record up to five songs (numbered 1 through 5) in memory. After that, you can select a specific song for playback.

Press bo (RHYTHM).

Press bk.

A song number will appear in the upper left corner of the display for a few seconds. While it is, use specify the number of the song you want to record or play back. The song number will disappear if you do not perform any operation. Example: Song 2

Pla

Press bk to record, or 7 to play back.

To stop recording or playback, press 7.

Press bk twice to exit the recorder mode.

■ To delete recorded data

After step 2 of the above procedure, do hold down bk (without pressing any keyboard key) until the message “Song Del?” appears on the display. Press [+] (YES) to delete the song, or [–] (NO) to cancel the delete operation.

(10-key) to

No .

Recording while Playing Along with a Built-in Song

This section explains how to play along and record along with one of the Digital Piano’s built-in songs.

● The following operations and settings also are recorded along with your keyboard play.

Tone number, song number, pedal operation, tempo, reverb, chorus, layer/split settings, pitch bend wheel operation

• There can be only one recording of keyboard play with a built-in song in recorder memory. Making a new recording replaces (deletes) previously recorded data.

Press bn (SONG BANK).

Press bk.

This will enter playback standby.

Lights

Press bk again.

This will enter record standby.

Flashes

E-52

Use br (10-key) to enter the song number you want to assign to the recording.

Press 8 to cycle through the parts in the sequence shown below.

Right-hand Recording

Left-hand Recording

Both-hand Recording

Example: Left-hand part recording

Flashes

• Configure tone and tempo settings at this time as well.

Press 7 to start built-in song playback and recorder recording.

Play along with the playback.

• To stop recording part way through, press

Recording Your Keyboard Play

Saving Recorded Data on an External Device

You can save data you record with the Digital Piano onto a memory card or on your computer’s hard disk. In the case of a memory card, you can save recorded song data as a standard MIDI file (SMF 0 format).

■ To save data to a memory card

See page E-60.

■ To save data on your computer’s hard disk

See page E-67.

English

Recording will stop automatically when the end of the built-in song is reached.

This will enter playback standby.

Lights

Press 7.

This will start playback of what you recorded.

• Each press of

Press bk twice to exit the recorder mode.

■ To delete recorded data

After step 2 of the above procedure, do hold down bk until the message “Song Del?” appears on the display. Press [+] (YES) to delete the song.

starts and stops playback.

E-53

Other Useful Digital Piano Functions

bpbp

bobo brbr ckck

Changing the Scale of the Keyboard

You can use the following procedure to select from among 17 preset scales, including the standard Equal Temperament.

No. Scale name Display

00 Equal Temperament Equal

01 Pure Major PureMajr

02 Pure Minor PureMinr

03 Pythagorean Pythagor

04 Kirnberger 3 Kirnbrg3

05 Werckmeister Wercmeis

06 Mean-Tone MeanTone

07 Rast Rast

08 Bayati Bayati

09 Hijaz Hijaz

10 Saba Saba

11 Dashti Dashti

12 Chahargah Chaharga

13 Segah Segah

14 Gurjari Todi GujrTodi

15 Chandrakauns Cndrkuns

16 Charukeshi Carukesi

cncn coco

Press br (10-key) [9] (ENTER) key.

ctct

E q u a l

Scale Name

Use the br (10-key) [–] and [+] keys to select the preset scale you want. After selecting a scale, press the key on the keyboard that you want to use as the root key (C to B).

After you are finished, press ck (FUNCTION) to assign the scale to the keyboard.

Press bo (RHYTHM).

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “SCALE” (page E-7).

Flashes

S C A L E

E-54

Other Useful Digital Piano Functions

Using the Current Scale Notes for Auto Accompaniments

You can use the following procedure to reflect the preset scale you selected in Auto Accompaniments.

Press ck (FUNCTION) and then use the br (10-key) “

OTHER

[4] (U

” (page

) and

E-7

[6] (I ).

Flashes

) keys to display

O T H E R

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “AcompScl”.

A c o m p S c l

Use the br (10-key) [+] key to select on.

Using Music Preset

Selecting a Music Preset instantly changes the Digital Piano to a preset setup (tone, rhythm, tempo, etc.) for play of songs of various genres/categories. The press of a button sets up the Digital Piano so those songs sound exactly the way you thought they should.

• See the separate “Appendix” for a complete list of the 305 Music Presets that are available.

Hold down bp (TONE) until the indicator shown below appears on the display.

Preset number Preset name

I L o v e H e r

Lights

Use br (10-key) to select the preset number you want.

This will change the setup (tone, rhythm, etc.) of the Digital Piano.

• At this time the Digital Piano will go into Auto Accompaniment synchro start standby (page E-41).

• Pressing (TONE) will return to the screen that was displayed before you held down in step 1, above.

(SONG BANK), bo (RHYTHM), or bp

English

Play along on the keyboard with the accompaniment.

E-55

Other Useful Digital Piano Functions

Using the Arpeggiator

The Arpeggiator makes it possible to play an arpeggio pattern automatically. There are 90 different arpeggio patterns from which to choose in order to match the music you are playing.

• The Arpeggiator is controlled using the same button ct as Auto Harmonize (page E-42). Because of this, these two functions cannot be used at the same time.

Hold down ct until the Auto Harmonize or Arpeggiator type number and type name appear on the display.

• If you do not perform any operation for a few seconds, the display will return to the previous screen automatically.

Type number Type name

D u e t 1

Use the br (10-key) [–] and [+] keys to select the Arpeggiator type you want.

• 001 through 012 are Auto Harmonize types (page E-42). Do not select them when using the Arpeggiator.

Octave

1... Uses the actual notes played.

2... Uses the actual notes played plus the same notes one octave.

4... Uses the actual notes played plus the same notes three octaves.

Type

number

013-030 Up Rising

031-048 Down Falling

049-066 U/D A

067-084 U/D B

085-102 Random

Press ct to turn on Arpeggiator.

Playing a chord on the keyboard will start arpeggio play.

• Press

Type Name Description

Repeat pattern alternating between rising and falling (Type A)

Repeat pattern alternating between rising and falling (Type B)

Random arrangement of notes of the pressed keys

again to turn off Arpeggiator.

St .GrPno

Lit when on

• The tempo setting of the Arpeggiator is the same as that set for the metronome (page E-12).

1 U p 1

Speed (The number of arpeggio notes per beat)

Sustaining an Arpeggio (Arpeggiator Hold)

Use the following procedure when you want an arpeggio pattern to keep playing after you release the keyboard keys.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “OTHER” (page E-7).

Press br (10-key) [9] (ENTER) key.

A r p e g H l d

Press the br (10-key) [+] key to select the ON setting.

E-56

Other Useful Digital Piano Functions

Deleting User Song Data

You can use the following procedure to delete user song data stored as song numbers 153 through 162.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “DELETE” (page E-7).

Flashes

D E L E T E

Used memory

(Unit: Kbytes)

Press the br (10-key) [9] (ENTER) key.

Press the br (10-key) [6] (I) key twice.

Remaining memory capacity

U S E R S O N G

User song name

Use the br (10-key) [–] and [+] keys to select the user song you want to delete.

Press the br (10-key) [9] (ENTER) key.

This displays a delete confirmation message.

Deleting All Data in Digital Piano Memory

Use the following procedure when you want to delete sampled sounds, user songs and all other data, except for recorded songs, currently in Digital Piano memory.

• Performing this procedure also will delete protected sampled sound data (page E-25). It is recommended that you save important data to a memory card (page E-58) or your computer’s hard disk (page E-64).

• This operation does not delete recorded song data.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “DELETE” (page E-7).

Flashes

D E L E T E

Used memory

(Unit: Kbytes)

Press the br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “All Data”.

Flashes

Remaining memory capacity

English

S u r e ?

Press the br (10-key) [+] (YES) key.

After the delete procedure is complete, “Complete” will appear followed by the screen in step 2 of the above procedure.

• To cancel the delete operation, press [–] (NO) or [7] (EXIT) in place of [+] (YES).

A l l D a t a

Press the br (10-key) [9] (ENTER) key.

This displays a delete confirmation message.

S u r e ?

Press the br (10-key) [+] (YES) key.

After the delete procedure is complete, “Complete” will appear followed by the screen in step 2 of the above procedure.

• To cancel the delete operation, press [–] (NO) or [7] (EXIT) in place of [+] (YES).

E-57

Using a Memory Card

bqbq brbr ckck

You can save Digital Piano user area data to a memory card and load data from a memory card to Digital Piano memory. You also can play music files (MIDI files) stored on a memory card on the Digital Piano.

• Use an SD memory card or an SDHC memory card with a capacity of 32GB or less. Use of a memory card with a capacity that is greater than 32GB and other types of memory cards is not supported.

User data that can be saved and loaded

Data Type Description

Sampled sound (page E-19)

User rhythms (page E-44)

User songs (page E-29)

Recorded songs (page E-49)

Registration setups (page E-47)

All data Above data AL7

*1: Sampled drum set sounds *2: Standard MIDI file (format 0, 1) *3: Data recorded playing along with built-in song

Sampled sound data

Edited Auto Accompaniment data

Song data imported from an external device (cannot be saved to a memory card).

Recorded song data

Tone and rhythm setup settings

File Name Extension

TW7

DW7

AC7

CM2

MID

SP7

SL7

RM7

Memory Card and Card Slot Precautions

• When using a memory card, make sure you observe all of the precautions in the instructions that come with it.

• Memory cards have a write-protect switch that you can use to protect against accidental deletion of data.

• Avoid using a memory card under the following conditions. Such conditions can corrupt data stored on the memory card.

• Areas subjected to high temperature, high humidity, and corrosive gas

• Areas subjected to strong electrostatic charge and digital noise

• Never touch the contacts of a memory card when loading it or removing it from the Digital Piano.

• While data is being stored to or recalled from a memory card, never perform any other Digital Piano operation or remove the memory card. Doing so can corrupt the data on the card and damage the card slot.

• Never insert anything besides a memory card into the card slot. Doing so creates the risk of malfunction.

• Electrostatic charge discharging from your fingers or the memory card to the card slot can cause malfunction of the Digital Piano. If this happens, turn the Digital Piano off and then back on again.

• A memory card can become quite warm after very long use in the memory card slot. This is normal and does not indicate malfunction.

• Use only memory cards. Operation is not guaranteed when any other type of memory card is used.

E-58

Using a Memory Card

Inserting and Removing a Memory Card

• Note that the memory card must be oriented correctly when you insert it into the memory card slot. Trying to force the memory card into the slot can damage the card and the slot.

With the top of the memory card facing upwards (so you can see it), carefully insert the card into the Digital Piano’s memory card slot (

) until stops with a click.

Front

Press the memory card into the card slot and then release it.

This will cause the card to disengage and eject partially. Pull the card out of the slot.

Formatting a Memory Card

• Before using a memory card, first be sure to format it on the Digital Piano.

• Before performing the procedure below, check to make sure that the memory card does not contain any data you might need.

• The memory card format performed by the Digital Piano is a “quick format”. If you want to completely delete all of the data on the card, format it on your computer or using some other device.

Insert the memory card you want to format into the Digital Piano’s card slot.

• Make sure that the write-protect switch of the memory card is not in the write-protect position.

Press bq and ck (FUNCTION) at the same time.

F o r m a t

Press the br (10-key) [9] (ENTER) key.

This will display the format confirmation screen.

English

S u r e ?

Press the br (10-key) [+] (YES) key.

The message “Pls wait” will appear on the display. Do not perform any operation while this message is displayed. “Complete” appears on the display after formatting is complete.

• To cancel the format operation, press [–] (NO) or [7] (EXIT) in place of [+] (YES).

P l s w a i t

C o m p l e t e

E-59

Using a Memory Card

Saving Digital Piano Data to a Memory Card

Use the following procedure to save Digital Piano data to a memory card.

On the Digital Piano, select the data you want to save as described below.

To save this type

of data

Sampled sound Select the tone number of the sampled

User rhythm Select the rhythm number of the user

Recorded song Select the song you want to save and

Registration data

All data

• You cannot save a user song (song data loaded from an external device) to a memory card.

• See page E-58 for information about data types.

Insert a memory card into the Digital Piano’s card slot.

Hold down bq until the screen shown below appears on the display.

• To cancel data save, press bq again.

sound you want to save.

rhythm you want to save.

put the Digital Piano in playback standby.

Select one of the Digital Piano’s default built in tones or rhythms.

Do this

Use the br (10-key) [4] (U) and [6] (I) keys to display one of the settings shown below.

• You also could use [–] and [+].

To save this data Display this screen

Sampled sound “SAv” “SmplTone”

User rhythm “SAv” “UserRhy.”

Recorded song “SAv” “Rec.Song”

Recorded song (SMF 0 format)

Registration data “SAv” “Regist.”

All data “SAv” “All Data”

Saving a recording made while playing along with a built-in song in SMF 0 format will save only what was played on the keyboard.

Press the br (10-key) [9] (ENTER) key.

“SAv” “SMF 0”

U S E R N A M E

Flashes

• Enter the file name of the data you are saving. Use the

(10-key) [4] (U) and [6] (I) keys to move the cursor

to the character you want to change, and then use [+] and [–] to change the character.

• Pressing [7] (EXIT) will return to the screen that was displayed before you pressed [9] (ENTER).

Press the br (10-key) [9] (ENTER) key.

This will save the data to the memory card.

C o m p l e t e

• If there is a file with the same name already on the memory card, a message will appear asking if you want to overwrite it. Press the overwrite, or [–] (NO) or [7] (EXIT) to cancel.

(10-key) [+] (YES) key to

R e p l a c e ?

E-60

• You can input the following characters in a file name.

(

)

{

}

• The Digital Piano displays the “~” character as “3”.

■ Memory Card Data (File) Storage Locations

The above procedure stores Digital Piano data in a folder named “MUSICDAT” on the memory card.

• The “MUSICDAT” folder is created automatically when you format the memory card on the Digital Piano (page E-59).

• If you store a file in any location other than inside the “MUSICDAT” folder, you will not be able to recall, delete, or play the file on the Digital Piano. You also will not be able to recall, delete, or play any file you store inside of a subfolder you create inside the “MUSICDAT” folder.

• The message “No File” will appear on the display if you try to perform a recall, delete, or play operation while there is no file inside the “MUSICDAT” folder.

Using a Memory Card

Loading Data from a Memory Card into Digital Piano Memory

Use the following procedure to load data from a memory card into Digital Piano memory.

• Whenever you copy a file to the memory card that you plan to recall on the Digital Piano, be sure to store the file in the memory card’s “MUSICDAT” folder.

On the Digital Piano, select the data you want to load as described below.

To load this type

of data

Sampled sound Select the tone number of the sampled

User rhythm Select the rhythm number of the user

User song Select the song number of the song you

Recorded song Select the song you want to load and

Registration data

All data

sound you want to load.

rhythm you want to load.

want to load.

put the Digital Piano in playback standby.

Select one of the Digital Piano’s default built in tones, songs, rhythms, etc.

Do this

English

Insert the memory card that contains the data into the Digital Piano’s card slot.

Hold down bq until the screen shown below appears on the display.

• To cancel data load, press bq again.

Use the br (10-key) [4] (U) and [6] (I) keys to display one of the settings shown below.

• You also could use [–] and [+].

To load this data Display this screen

Sampled sound “Lod” “SmplTone”

User rhythm “Lod” “UserRhy.”

User song “Lod” “UserSong”

Recorded song “Lod” “Rec.Song”

Registration data “Lod” “Regist.”

All data “Lod” “All Data”

E-61

Using a Memory Card

Press the br (10-key) [9] (ENTER) key.

* * * * * * * *

Flashes

• Pressing [7] (EXIT) will return to the screen that was displayed before you pressed [9] (ENTER).

Use the br (10-key) [–] and [+] keys to select the data (file) you want to load.

Press the br (10-key) [9] (ENTER) key.

This will load the data into Digital Piano memory.

C o m p l e t e

• If there is already data stored in the user area where you are trying to load data, an overwrite confirmation message will appear. Press the key to overwrite, or [–] (NO) or [7] (EXIT) key to cancel.

(10-key) [+] (YES)

Deleting Data from a Memory Card

Use the following procedure to delete data saved on a memory card.

On the Digital Piano, select the data you want to delete as described below.

To delete this

type of data

Sampled sound Select the tone number of the sampled

User rhythm Select the rhythm number of the user

User song Select the song number of the user

Recorded song Select the song and put the Digital

Registration data

All data

Insert a memory card into the Digital Piano’s card slot.

sound.

rhythm.

song.

Piano in playback standby.

Select one of the Digital Piano’s default built in tones, songs.

Do this

R e p l a c e ?

Hold down bq until the screen shown below appears on the display.

• To cancel data delete, press bq again.

Use the br (10-key) [4] (U) and [6] (I) keys to display one of the settings shown below.

• You also could use [–] and [+].

To delete this type

of data

Sampled sound “dEL” “SmplTone”

User rhythm “dEL” “UserRhy.”

User song “dEL” “UserSong”

Recorded song “dEL” “Rec.Song”

Registration data “dEL” “Regist.”

All data “dEL” “All Data”

Display this screen

E-62

Press the br (10-key) [9] (ENTER) key.

* * * * * * * *

Using a Memory Card

Playing Back Data from a Memory Card

You can use the following procedure to play back user song data (page E-58) directly from a memory card.

English

Flashes

• Pressing [7] (EXIT) will return to the screen that was displayed before you pressed [9] (ENTER).

Use the br (10-key) [–] and [+] keys to select the number of the data (file) you want to delete.

Press the br (10-key) [9] (ENTER) key.

This will display the delete confirmation screen.

S u r e ?

Press the br (10-key) [+] (YES) key.

• To cancel the delete operation, press [–] (NO) or [7] (EXIT) in place of [+] (YES).

C o m p l e t e

• Whenever you copy a file to the memory card that you plan to play on the Digital Piano, be sure to store the file in the memory card’s “MUSICDAT” folder (page E-61).

Insert the memory card that contains the data into the Digital Piano’s card slot.

Press bq.

This will display the file numbers and song names for the data stored on the display.

Use br (10-key) to select the song you want to play.

Press 7.

This will start playback.

• Each press of

starts and stops playback.

Memory Card Error Messages

For information about memory card error messages, see page E-73.

E-63

Connecting External Devices

brbr ckck

Connecting a Computer

You can connect the Digital Piano to a computer and exchange MIDI data between them. You can send play data from the Digital Piano to music software running on your computer, or you can send MIDI data from your computer to the Digital Piano for playback.

Minimum Computer System Requirements

The following shows the minimum computer system requirements for sending and receiving MIDI data. Check to make sure that your computer complies with these requirements before connecting the Digital Piano to it.

• Operating System

Windows® XP (SP2 or later) Windows Vista® Windows® 7 Mac OS® X (10.3.9, 10.4.11, 10.5.8 or later, 10.6.6 or later)

*1: Windows XP Home Edition

Windows XP Professional (32-bit)

*2: Windows Vista (32-bit) *3: Windows 7 (32-bit, 64-bit)

•USB port

• Never connect to a computer that does not conform to the above requirements. Doing so can cause problems with your computer.

Connecting the Digital Piano to Your Computer

• Make sure you follow the steps of the procedure below exactly. Connecting incorrectly can make data send and receive impossible.

Turn off the Digital Piano and then start up your computer.

• Do not start up the music software on your computer yet!

After starting up your computer, use a commercially available USB cable to connect it to the Digital Piano.

B connector

USB cable

(A-B type)

A connector

Turn on the Digital Piano.

• If this is the first time you are connecting the Digital Piano to your computer, the driver software required to send and receive data will be installed on your computer automatically.

Digital Piano USB port

Computer USB port

E-64

Start up your computer’s music software.

Configure the music software settings to select one of the following as the MIDI device.

CASIO USB-MIDI : (For Windows 7, Windows Vista,

Mac OS X)

USB Audio Device : (For Windows XP)

• For information about how to select the MIDI device, see the user documentation that comes with the music software you are using.

• Be sure to turn on the Digital Piano first before starting up your computer’s music software.

• Once you are able to connect successfully, there is no problem with leaving the USB cable connected when you turn off your computer and/or Digital Piano.

• This Digital Piano conforms to General MIDI Level 1 (GM).

• For detailed specifications and connections that apply to MIDI data send and receive by this Digital Piano, see the latest support information provided by the website at the following URL.

http://world.casio.com/

Connecting External Devices

MIDI Settings

Keyboard Channel

A keyboard channel is the channel used for sending Digital Piano data to a computer. You can select the channel you want for sending Digital Piano data to a computer.

• The keyboard channel setting range is 01 to 16.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “MIDI” (page E-7).

Flashes

M I D I

Press br (10-key) [9] (ENTER) key.

K e y b d C h

English

Use the br (10-key) [–] and [+] keys to change the keyboard channel.

Navigate Channels

The navigate channels can be used to display only the notes of a particular channel (part) as on-screen guide information from among the note information of a tune sent from the computer.

■ Specifying the Navigate Channels

From among the 16 available channels (numbered 1 to 16), you can specify any two neighboring channels (such as 05 and 06) as navigate channels. The smaller numbered channel is the navigate (L) channel, while the larger numbered channel is the navigate (R) channel. Specifying the navigate (R) channel will automatically configure the navigate (L) channel as well.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “MIDI” (page E-7).

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Navi. Ch”.

N a v i . C h

E-65

Connecting External Devices

Use the br (10-key) to specify the navigate (R) channel.

This also will automatically configure the next lower channel number as the navigate (L) channel.

■ Turning Off the Navigate Channel Sound and Playing the Part on the Keyboard

You can turn off the sound on one or both of the navigate channels and play the cancelled part on the keyboard yourself.

Press 8 to select the channel setting you want to turn off.

Each press of 8 cycles through settings (1) through (4) described below.

• If you turn off one channel, you can play the cancelled part on the keyboard using the same tone as the channel you turned off. If you turn off both channels (option (3)), what you play on the keyboard sounds using the tone of the navigate (R) channel.

Selected channel indicator appears.

Local Control

There are times when exchanging data with a computer when you may not want the Digital Piano to sound notes you play on its keyboard. The local control setting lets you do just that.

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “MIDI” (page E-7).

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “Local”.

L o c a l

Use the br (10-key) [–] and [+] keys to specify the local control setting.

Accomp Out

Enabling the Accomp Out setting causes Auto Accompaniment data to be sent to the computer.

Navigate (L)

Channel

On-

Sound

(1) R only displayed { ××{

(2) L only displayed × {{ ×

(3) LR displayed × { × {

(4) LR nor displayed {{{{

screen

Guide

Navigate (R)

Channel

Sound

screen

Guide

On-

Press ck (FUNCTION) and then use the br (10-key) [4] (U) and [6] (I) keys to display “MIDI” (page E-7).

Press br (10-key) [9] (ENTER) key.

Use the br (10-key) [4] (U) and [6] (I) keys to display “AcompOut”.

A c o m p O u t

Use the br (10-key) [–] and [+] keys to turn Accomp Out on or off.

E-66

Storing and Loading Digital Piano Memory Data

You can transfer sampled sounds, recorded songs, and other data in Digital Piano memory to a computer for storage. You also can load standard MIDI file (SMF) data, and Auto Accompaniment data you download from the CASIO website to the Digital Piano, which greatly expands the Song Bank songs and Auto Accompaniment patterns available to you. A special Data Manager application is required in order to transfer data to and from the Digital Piano.

Data Types Supported for Data Transfer

The same types of data that you can store to or recall from a memory card (page E-58) can be transferred to and from the Digital Piano. Note, that recorded song data can be transferred to a computer in the Digital Piano’s native format only. You cannot save recorded song data to a computer as a standard MIDI file (SMF format).

Downloading Data Manager

Go to the CASIO WORLDWIDE site at the following URL.

http://world.casio.com/

Connecting External Devices

• Since the accompaniment data is for other models, you may experience some abnormalities when playing it on this model.

• For information about accompaniment data compatibility between models, see the Data Manager user’s guide you download in step 5 of the above procedure.

English

At the site, select a geographic area or country.

After accessing the area site, navigate to the minimum computer system requirements for Data Manager for this product.

• You should be able to find a link to Data Manager information on the product introduction page of this product. If you cannot find such a link, use the search form of the area site where you are located to enter the model name of this product and search for it.

• Note that site contents are subject to change without notice.

Check if your computer system complies with the minimum requirements for Data Manager.

Download Data Manager and its user’s guide to your computer.

Follow the procedure in the user’s guide that you downloaded in step 5 to install and use Data Manager.

• You can download accompaniment data from the Internet Data Expansion system of the CASIO MUSIC SITE (http://music.casio.com/) and load it into the memory of this Digital Piano. Note that there is not any accompaniment data intended specifically for this model, so you should use data for other models.

E-67

Connecting External Devices

Connecting to Audio Equipment

This Digital Piano can be connected to commercially available stereo, amplifier, or recording equipment, to a portable audio player or other equipment.

Outputting Digital Piano Notes to Audio Equipment

Connection requires commercially available connecting cords, supplied by you. The connecting cords should have a stereo standard plug on one end and a plug that matches the configuration of the external device on the other end.

• Turn off the external device when making connections. After connecting, turn down the Digital Piano and external device volume levels whenever turning power on or off.

• After connecting, turn on the Digital Piano and then the external device.

• If Digital Piano notes sound distorted when they are sounded from external audio equipment, lower the Digital Piano’s volume setting.

Stereo standard plug

Audio equipment, amplifier, etc

PHONES/OUTPUT jack

Playing an External Device from the Digital Piano

Connection requires commercially available connecting cords, supplied by you. The connecting cords should have a stereo mini plug on one end and a plug that matches the configuration of the external device on the other end.

• Turn off the Digital Piano when making connections. After connecting, turn down the Digital Piano and external device volume levels whenever turning power on or off.

• After connecting, turn on the external device and then the Digital Piano.

• If notes are distorted when they are sounded on the external device, lower the volume setting of the external device.

Stereo mini plug

Portable audio player, etc.

AUDIO IN jack

E-68

Reference

Troubleshooting

Symptom Action

Included Accessories

I can’t find something that should be here. Carefully check inside all of the packing materials.

Power Requirements

Power will not turned on. Correctly attach the AC adaptor (page E-9).

The display lights up momentarily but power does not turn on when I press the POWER button (

Display

On-screen keyboard keys or notes remain on the display.

Screen contents are visible only from straight ahead. This is dues to production limitations. It does not indicate malfunction.

Sound

Nothing happens when I press any keyboard key. • Adjust the volume setting (page E-10).

Nothing happens or notes do not play normally when I play notes on the left side of the keyboard.

Nothing happens when I start an Auto Accompaniment.

Nothing happens when I start playback of a built-in song.

The metronome does not sound. • Check and adjust the accompaniment volume setting (page E-41).

Notes keep sounding, without stopping. Turn power off and then back on to initialize all Digital Piano settings

Some notes are cut off while they are playing. Notes are cut off whenever the number of notes being sounded

The volume or tone setting I made has changed. • Adjust the volume setting (page E-10).

Output volume does not change even though is change my keyboard touch.

Press

A Step Up Lesson is in progress and the Digital Piano is waiting for you to play the next note in the song. To stop this from happening, cancel the lesson (page E-32).

• If there is no sampled sound in memory, nothing will play if you

Press 8 to disable chord input in the accompaniment keyboard area (page E-38).

• With rhythms 191 to 200, nothing will sound until you play a chord

• Check and adjust the accompaniment volume setting (page E-41).

• If there is no user rhythm stored in memory, Auto Accompaniment

• Turn power off and then back on to initialize all Digital Piano

• It takes a little time after you press the button until the song starts to

• Check and adjust the song volume (page E-28).

• If there is no user song stored in memory, song playback will not

• Turn power off and then back on to initialize all Digital Piano

• Check and adjust the song volume (page E-28).

• Turn power off and then back on to initialize all Digital Piano

(page E-10).

exceeds the maximum polyphony value of 48 (24 for some tones). This does not indicate malfunction.

• Turn power off and then back on to initialize all Digital Piano

• Change the Touch Response setting (page E-11).

• Turn power off and then back on to initialize all Digital Piano

firmly and completely to turn on power.

press a keyboard key while a tone in the range of 701 to 705 is selected (page E-19).

on the keyboard. Try playing a chord (page E-38).

will not start when you press to 210 is selected (page E-44).

settings (page E-10).

play. Wait for a moment for the song to start.

start when you press selected (page E-29).

settings (page E-10).

while a rhythm in the range of 201

while a song in the range of 153 to 162 is

English

E-69

Reference

Symptom Action

In certain keyboard ranges, the volume and tone quality sound are slightly different from those in other keyboard ranges.

With some tones, octaves do not change at the far ends of the keyboard.

The pitch of the notes does not match other accompanying instruments or sounds strange when played long with other instruments.

The reverb of notes seems to change suddenly. • Check and adjust the reverb setting (page E-15).

Operation

When I perform a skip forward or skip back operation, the skip operation moves multiple song measures instead of only a single measure.

Tone, rhythm, and other settings revert to their initial defaults whenever you turn on the Digital Piano.

Computer Connection

I can’t exchange data between the Digital Piano and a computer.

This is due to system limitations. It does not indicate malfunction.

• Check and adjust the transpose (page E-16) and tuning settings (page E-16).

• Turn power off and then back on to initialize all Digital Piano settings (page E-10).

While song playback is stopped or a Step Up Lesson is in progress, skip forward and skip back operations are performed in phrase units (page E-27).

Though Digital Piano settings reset when you turn off the Digital Piano, you can save setups to registration memory for instant recall whenever you need them (page E-47).

• Check to make sure that the USB cable is connected to the Digital Piano and computer, and that the device is selected correctly with your computer’s music software settings (page E-64).

• Turn off the Digital Piano and then exit the music software on your computer. Next, turn the Digital Piano back on and then restart the music software on your computer.

E-70

Reference

Specifications

Model CDP-220RBK Keyboard 88-key piano keyboard

Touch Response 3 types, Off

Maximum Polyphony 48 notes (24 for certain tones) Tones

Built-in Tones 700

Sampling Tones Up to 8 (Melody Sampling: 5, Drum Sampling: 3)*

Up to 10 seconds

Functions Layer, Split, Piano/Organ button

Reverb 1 to 10, Off Chorus 1 to 5, Off Metronome

Beats per Measure 0, 2 to 6

Tempo Range 30 to 255

Song Bank

Built-in Songs 152

User Songs Up to 10*

Step Up Lesson

Lessons 4 (Listen, Watch, Remember, Auto)

Lesson Part L, R, LR

Functions Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation

Music Challenge 20 notes Auto Accompaniment

Built-in Rhythms 200

User Rhythms Up to 10 (Accompaniment Edit)*

Chord Book Function Chord Guide Registration 32 (4 setups × 8 banks) Recorder Real-time recording, playback

Keyboard Play 5 songs, 6 tracks

Playing Along with a Built-in Songs 1 song (L, R, LR)

Memory Capacity Approximately 12,000 notes (total for 6 songs)

Other Functions

Transpose ±1 octaves (–12 to +12 semitones)

Octave Shift Upper/Lower ±2 octaves

Tuning A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz)

Preset Scales 17

Music Preset 305

One Touch Preset 200

Auto Harmonize 12 types

Arpeggiator 90 types

MIDI 16 multi-timbre received, GM Level 1 standard Musical Information Function Tone, Rhythm, Song Bank numbers and names, staff notation, fingering, pedal operation,

tempo, measure and beat number, chord name, etc.

Pitch Bend Wheel

Pitch Bend Range 0 to 12 semitones

Memory Cards

Supported Memory Cards SD or SDHC memory cards, 32GB or less

Functions SMF playback, file storage, file recall, file delete, card format

English

E-71

Reference

Inputs/Outputs

USB port TYPE B

Sustain/Assignable jack Standard jack (sustain, sostenuto, soft, rhythm)

Phones/Output jack Stereo standard jack

Audio In jack Stereo mini jack

Mic In/Sampling jack Standard jack

Power Jack 12V DC Power Supply

AC Adaptor AD-A12150LW

Auto Power Off 30 minutes after last key operation

Speakers (12cm × 6cm oval) × 2

Output 8W + 8W

Power Consumption 12V = 18W Dimensions 132.2 × 28.6 × 12.9cm (52 Weight Approximately 12.0kg (26.4 lbs)

• Design and specifications are subject to change without notice.

* This data is stored in a shared memory area with a total capacity of approximately 320Kbytes (1Kbyte = 1,024bytes).

Output Impedance: 3Ω, Output Voltage: 1.5V (RMS) MAX

Input Impedance: 40kΩ, Input Sensitivity: 200mV

Input Impedance: 3kΩ, Input Sensitivity: 10mV

/16 × 11 1/4 × 5 1/16 inch)

Operating Precautions

Be sure to read and observe the following operating precautions.

■ Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high humidity

• Areas subjected to temperature extremes

• Near a radio, TV, video deck, or tuner The above devices will not cause malfunction of the product, but interference from the product can cause audio or video interference of a nearby device.

■ User Maintenance

• Never use benzine, alcohol, thinner, or other chemical agents to clean the product.

• To clean the product or its keyboard, wipe with a soft cloth moistened in a weak solution of water and a mild neutral detergent. Wring all excess moisture from the cloth before wiping.

■ Included and Optional Accessories

Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric shock, and personal injury.

■ Weld Lines

Lines may be visible on the exterior of the product. These are “weld lines” that result from the plastic molding process. They are not cracks or scratches.

■ Musical Instrument Etiquette

Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the volume at levels that do not disturb others. Other steps you can take when playing late at night are closing the window and using headphones.

E-72

Error Messages

Reference

Display

Message

Err CardFull There is not enough room available on the memory

card.

Err Card R/W The memory card is damaged. Use a different memory card. Err Convert There is not enough unused memory available to save

recorded song data to a memory card as an SMF 0 format file.

Err Exist A sampled drum set sound cannot be copied (page

E-23) to a keyboard key because the key already has a sampled sound assigned to it.

Err Format 1. The format of the memory card is not compatible

with this Digital Piano.

2. The memory card is damaged. 2. Use a different memory card.

3. You are trying to use an SDXC card. 3. SDXC cards are not supported. Use an SD or SDHC

Err Limit The tone number you selected before starting sampling

already has the allowable maximum of eight sampled sounds assigned to it.

Err Mem Full 1. There is not enough memory available to play back

song data from a memory card.

2. There is not enough memory available for sampling or Auto Accompaniment editing.

Err No Card 1. The memory card is not set correctly in the card slot. 1. Remove the memory card and reinsert it correctly

2. The memory card was removed part way through a card access operation.

Err No Data There is no data in the selected user area (tone,

rhythm, song number, etc.)

Err No File There is no folder named “MUSICDAT” on the memory

card.

Err NotSMF01 You are attempting to play back SMF Format 2 song

data.

Err Protect 1. The memory card is write protected. 1. Adjust the memory card’s write protect switch to

2. Sampled sounds (Tone Numbers 701 to 708) are protected.

Err ReadOnly You are attempting to save a file using the same name

as an existing read-only file.

Err SizeOver 1. The song data on the memory it too big to play back. 1. This Digital Piano can play back song data files with a

2. Auto Accompaniment editing cannot be performed because the accompaniment pattern or instrument part data is too large.

Err WrongDat 1. The data on the memory card is corrupted. —

2. The data on the memory card is a type that is not supported by this Digital Piano.

Cause Action

• Delete some of the files on the memory card to make room for new data (page E-62).

• Use a different memory card.

Delete some or all of the following user data from memory to make room for new data. Sampled sounds (page E-18), user rhythms (page E-44), user songs (page E-29)

• Delete the sampled sound that is currently assigned to the key you are copying to (page E-23).

• Copy the sampled sound to another key that does not yet have a sampled sound assigned to it.

1. Format the memory card (page E-59).

memory card.

• Delete the one or more of the sampled sounds currently assigned to the tone number (page E-23).

• Select another tone number that has less than eight sampled sounds currently assigned to it (page E-21).

Delete some or all of the following user data from memory to make room for new data. Sampled sounds (page E-18), user rhythms (page E-44), user songs (page E-29)

(page E-59).

2. Never remove a memory card from the card slot while a card access operation is in progress.

Select a Digital Piano user area that contains data.

• Use a computer to create a folder named “MUSICDAT” on the memory card (page E-61).

• Format the memory card on the Digital Piano (page E-59).

Playback of SMF Format 0 or 1 only is supported.

enable data storage.

2. Unprotect one or more of the sampled sounds, which will allow it to be overwritten or deleted.

• Save the new file to a different card or use another name.

• Remove the read-only attribute of the exiting file on the memory card and try again.

• Use a different memory card.

maximum size of about 320Kbytes.

2. Select a different accompaniment pattern or instrument parts.

English

E-73

Reference

Song List

SONG BANK

WORLD

001 TWINKLE TWINKLE LITTLE STAR 002 LIGHTLY ROW 003 LONG LONG AGO 004 ON TOP OF OLD SMOKEY 005 SAKURA SAKURA 006 WHEN THE SAINTS GO MARCHING IN 007 AMAZING GRACE 008 AULD LANG SYNE 009 COME BIRDS 010 DID YOU EVER SEE A LASSIE? 011 MICHAEL ROW THE BOAT ASHORE 012 DANNY BOY 013 MY BONNIE 014 HOME SWEET HOME 015 AURA LEE 016 HOME ON THE RANGE 017 ALOHA OE 018 SANTA LUCIA 019 FURUSATO 020 GREENSLEEVES 021 JOSHUA FOUGHT THE BATTLE OF JERICHO 022 THE MUFFIN MAN 023 LONDON BRIDGE 024 UNDER THE SPREADING CHESTNUT TREE 025 SIPPIN’ CIDER THROUGH A STRAW 026 GRANDFATHER’S CLOCK 027 ANNIE LAURIE 028 BEAUTIFUL DREAMER

IF YOU’RE HAPPY AND YOU KNOW IT, CLAP YOUR

029

HANDS 030 MY DARLING CLEMENTINE 031 LITTLE BROWN JUG 032 HOUSE OF THE RISING SUN 033 SHE WORE A YELLOW RIBBON 034 YANKEE DOODLE 035 MY OLD KENTUCKY HOME 036 SZLA DZIEWECZKA 037 TROIKA 038 WALTZING MATILDA 039 ON THE BRIDGE OF AVIGNON 040 I’VE BEEN WORKING ON THE RAILROAD 041 OH! SUSANNA 042 CAMPTOWN RACES 043 JEANNIE WITH THE LIGHT BROWN HAIR 044 TURKEY IN THE STRAW 045 JAMAICA FAREWELL

EVENT

046 SILENT NIGHT 047 WE WISH YOU A MERRY CHRISTMAS 048 JINGLE BELLS 049 JOY TO THE WORLD 050 O CHRISTMAS TREE

PIANO/CLASSICS

051 MARY HAD A LITTLE LAMB 052 LE CYGNE FROM “LE CARNAVAL DES ANIMAUX” 053 JE TE VEUX 054 SONATA op.13 “PATHÉTIQUE” 2nd Mov. 055 HEIDENRÖSLEIN

056 AIR FROM “SUITE no.3” 057 SPRING FROM “THE FOUR SEASONS” 058 HABANERA FROM “CARMEN” 059 BRINDISI FROM “LA TRAVIATA” 060 HUNGARIAN DANCES no.5 061 MINUET IN G MAJOR 062 MUSETTE IN D MAJOR 063 GAVOTTE (GOSSEC) 064 ARABESQUE (BURGMÜLLER) 065 CHOPSTICKS 066 DECK THE HALL 067 ODE TO JOY 068 AVE MARIA (GOUNOD) 069 SONATINA op.36 no.1 1st Mov. 070 PRELUDE op.28 no.7 (CHOPIN) 071 RÊVERIE 072 GYMNOPÉDIES no.1 073 GOING HOME FROM “FROM THE NEW WORLD” 074 FÜR ELISE 075 TURKISH MARCH (MOZART) 076 SONATA op.27 no.2 “MOONLIGHT” 1st Mov. 077 ETUDE op.10 no.3 “CHANSON DE L’ADIEU” 078 THE ENTERTAINER

WEDDING MARCH FROM “MIDSUMMER NIGHT’S

079

DREAM” 080 AMERICAN PATROL 081 FRÖHLICHER LANDMANN 082 LA CHEVALERESQUE 083 SONATA K.545 1st Mov. 084 LA PRIÈRE D’UNE VIERGE 085 VALSE op.64 no.1 “PETIT CHIEN” 086 LIEBESTRÄUME no.3 087 JESUS BLEIBET MEINE FREUDE 088 CANON (PACHELBEL) 089 SERENADE FROM “EINE KLEINE NACHTMUSIK” 090 MARCH FROM “THE NUTCRACKER” 091 INVENTIONEN no.1 092 PRAELUDIUM no.1 (J.S.BACH) 093 SONATINE op.20 no.1 1st Mov. 094 HUMORESKE (DVO ÁK) 095 DOLLY’S DREAMING AND AWAKENING 096 LA FILLE AUX CHEVEUX DE LIN 097 ARABESQUE no.1 (DEBUSSY) 098 TRÄUMEREI 099 MAPLE LEAF RAG 100 NOCTURNE op.9 no.2 (CHOPIN)

EXERCISE

101 - 150 EXERCISE I / II / III

151 - 152 DEMO TUNES

153 - 162 USER SONGS

DEMO TUNES

USER SONGS

E-74

Reference

Fingering Guide

Fingered 1, Fingered 2 Chords

Cdim

Caug

Csus4

Csus2

Cm7

CM7

Fingered 3, Full Range Chords

In addition to the chords that can be fingered with Fingered 1 and Fingered 2, the following chords also are recognized.

DCECFCGCA

   

GmCAmCBbmCDdimCAb7CF7CFm7CGm7CAbadd9

     

• With Fingered 3, the lowest note fingered is interpreted as the base note. Inverted forms are not supported.

• With Full Range Chord, when the lowest note fingered is a certain distance from the neighboring note, the chord is interpreted as a fraction chord.

• Unlike Fingered 1, 2, and 3, Full Range Chord requires pressing of at least three keys to form a chord.

BCC#mCDm

English

5 *3

Cm7

5 *3

C7sus4

Cadd9

Cmadd9

CmM7

Cdim7

C69

C6 *1

Cm6 *2

*1 With Fingered 2, interpreted as Am7. *2 With Fingered 2, interpreted as Am7 *3 Inverted form not supported in some cases.

E-75

**: no relation

**:sin relación

Bank select

Modulation

Data entry

Volume

Pan

Expression

Hold 1

1 - 16

Mode 3

0 - 127

9nH v = 1 - 127 O

9nH v = 0, 8nH v = X

9nH v = 0 X

MIDI Implementation Chart

Note ON

Note OFF

Key’s

Ch’s

Function Transmitted Recognized Remarks

Default

Changed

Default

Messages

Altered

True voice

OOOOO

(MSB only) O

OXOOOXO

0, 3216, 38

101164

Model: CDP-220R Version : 1.0

Basic

Channel

Mode

Note

Number

Velocity

After

Touch

Pitch Bender

Control

Change

Sostenuto

Soft pedal

Reverb send

Chorus send

OOOOO

RPN LSB, MSB

0 - 127 O

O : Yes

X : No

los mensajes exclusivos del sistema, consulte

Implementación MIDI en

XXX

OXO

*1: Depende del tono.

2: Para obtener información acerca de NRPN, RPN y

http://world.casio.com/

3: De acuerdo con el ajuste de efecto de pedal.

*3*

OXO

666791

100, 101

0 - 127 O

:True #

Program

Change

System Exclusive

XXX

: Song Pos

: Song Sel

: Tune

System

Common

: Clock

: Commands

System

Real Time

XOXOX

: All sound OFF

: Reset all controller

: Local ON/OFF

Aux

Messages

: All notes OFF

: Active Sense

: Reset

exclusive messages, see MIDI Implementation at

2: For details about NRPN, RPN, and system

*1: Depends on tone.

Remarks

http://world.casio.com/.

3: In accordance with pedal effect setting.

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

This recycle mark indicates that the packaging conforms to the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se ajusta a la legislación de protección ambiental en Alemania.

MA1107-B Printed in China CDP220-ES-1B
