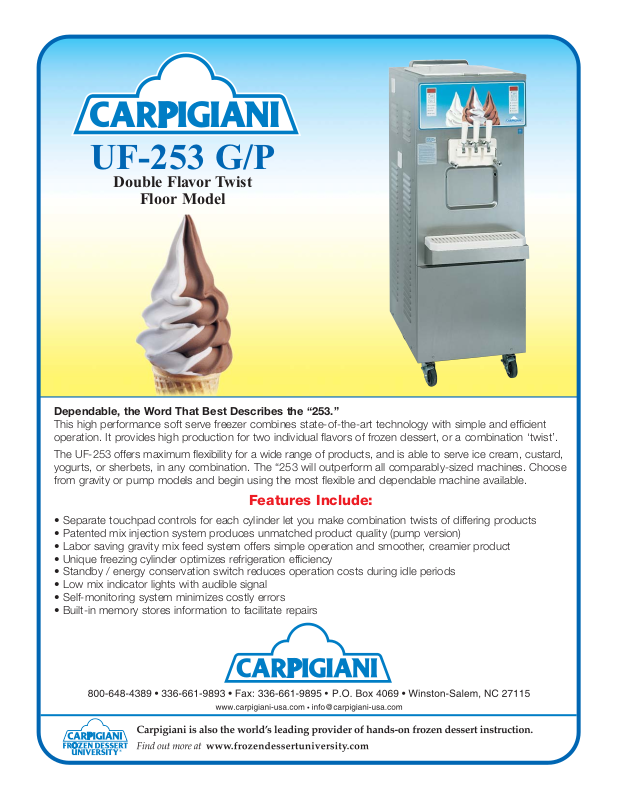

Carpigiani UF253 Specifications

Dependable, the Word That Best Describes the “253.”

This high performance soft serve freezer combines state-of-the-art technology with simple and efficient
operation. It provides high production for two individual flavors of frozen dessert, or a combination ‘twist’.

The UF-253 offers maximum flexibility for a wide range of products, and is able to serve ice cream, custard,
yogurts, or sherbets, in any combination. The “253 will outperform all comparably-sized machines. Choose
from gravity or pump models and begin using the most flexible and dependable machine available.

Features Include:

• Separate touchpad controls for each cylinder let you make combination twists of differing products

• Patented mix injection system produces unmatched product quality (pump version)

• Labor saving gravity mix feed system offers simple operation and smoother, creamier product

• Unique freezing cylinder optimizes refrigeration efficiency

• Standby / energy conservation switch reduces operation costs during idle periods

• Low mix indicator lights with audible signal

• Self-monitoring system minimizes costly errors

• Built-in memory stores information to facilitate repairs

UF-253 G/P

Double Flavor Twist

Floor Model

Distributed by:

All technical data, pictures, and drawings contained in this document are not binding on the manufacturer,
nor can the manufacturer be held liable for any modification of the machine, in part or in whole.

Carpigiani-USA manufactures a complete line of frozen
dessert production equipment: Batch Freezers, Soft Serve
Freezers, Yogurt Freezers, Slush Freezers, Milk Shake
Machines, Granita Machines, Whipped Topping Dispensers,
Frozen Custard Freezers, Specialty and Mix Processing
Equipment, Display Cabinets...

Something for everyone!

ICA 5556 LS 253

rev. 6/2005

PLAN VIEW

SIDE VIEW

FRONT VIEW

REAR VIEW

Plumbing
connections for
rear faucet only

Cold water

Hot water

Electrical
Access

Water

condenser

connections

only
Air
Flow

(Air Models
Only)

Water Inlet

Water Outlet

Drip Chutes
(Reversible)

Condenser
(Air Cooled
Models Only)

UF-253 G/P

Two flavor “twist” floor model. Maximum product
versatility with optimum energy efficiency. Designed
for high volume requirements. Gravity or pump.

Model UF-253 G/P Description:

Overrun Range__________________Up to 40% (Gravity Fed)
Overrun Range __________________Up to 80% (Pump Fed)
Mix Tank Capacity ________________________ 18 qts. each
Mix Tank Refrigeration Control ________________Electronic
Cylinder Refrigeration Control ______________Hard-O-Tronic
Cylinder Type __________________________Helicoidal Path
Beater Construction______________________Stainless Steel
Beater Drive Motor ________________1.5 H.P. each cylinder
Compressor Motor ________________2.0 H.P. each cylinder
Water Connections (water cooled only) ________1/2" M.P.T.
Condenser Cooling ________________________Air or Water
Refrigerant Type ______________________________R-404A
Frame Type ______________________________Floor Model
Frame Construction ______________________Welded Steel
Outer Panels ____________________________Stainless Steel
Width ____________________________22 inches (560 mm)
Depth ____________________________34 inches (840 mm)
Height (w/o legs or casters) ________56 inches (1422 mm)

Caster (swivel type) Height ____________5 inches (127 mm)
Net Weight (w/o accessories) ____________700 lbs. (318 kg)
Gross Weight (w/o accessories)__________792 lbs. (360 kg)

Electrical Requirements

Single Phase, 60 Hz________________________208 - 230 V
Max Breaker / Fuse size ______________________45 Amps
Running Amps ______________________________36 Amps
Three Phase, 60 Hz ________________________208 - 230 V
Max Breaker / Fuse size ______________________40 Amps
Running Amps ______________________________30 Amps
Number of Feeders ________________________________1

Optional Accessories

• Mix Tank Wash Kit

• Self Service Kit (handle closing device)

• Adjustable Legs

SPECIFICATIONS
