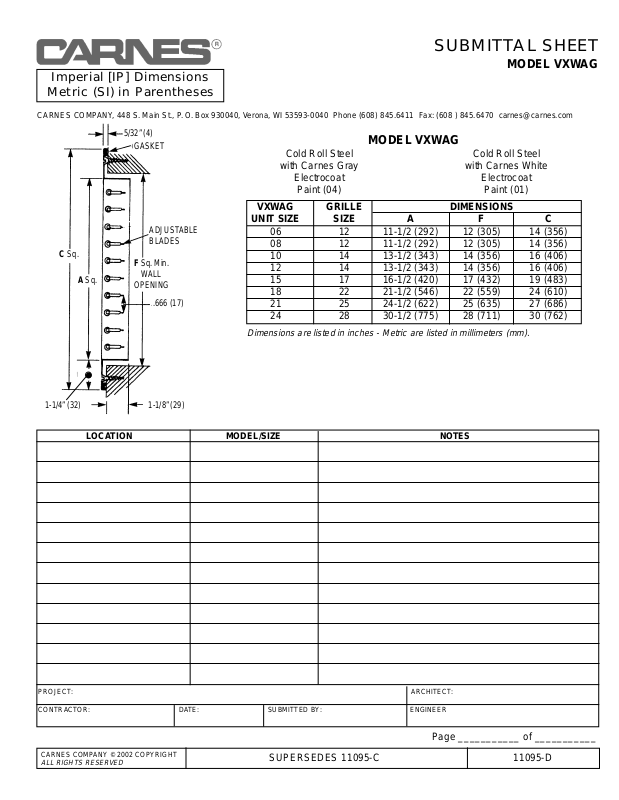

Carnes VXWAG User Manual

Imperial [IP] Dimensions

Metric (SI) in Parentheses

SUBMITTAL SHEET

MODEL VXW A G

CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@car nes.com

SUPERSEDES 11095-C 11095-D

MODEL VXW A G

Cold Roll Steel Cold Roll Steel

with Carnes Gray with Carnes White

Electrocoat Electrocoat

Paint (04) Paint (01)

LOCATION MODEL/SIZE NOTES

PROJECT: ARCHITECT:

CONTRACTOR: DATE: SUBMITTED BY: ENGINEER

Page ___________ of ___________

5/32” (4)

.666 (17)

1-1/4” (32)

1-1/8” (29)

GASKET

ADJUSTABLE BLADES

C Sq.

A Sq.

F Sq. Min.

WALL

OPENING

VXWAG GRILLE DIMENSIONS

UNIT SIZE SIZE A F C

06 12 11-1/2 (292) 12 (305) 14 (356) 08 12 11-1/2 (292) 12 (305) 14 (356) 10 14 13-1/2 (343) 14 (356) 16 (406) 12 14 13-1/2 (343) 14 (356) 16 (406) 15 17 16-1/2 (420) 17 (432) 19 (483) 18 22 21-1/2 (546) 22 (559) 24 (610) 21 25 24-1/2 (622) 25 (635) 27 (686) 24 28 30-1/2 (775) 28 (711) 30 (762)

Dimensions are listed in inches - Metric are listed in millimeters (mm).
