CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2002 CARNES COMPANY
ALL RIGHTS RESERVED
29042

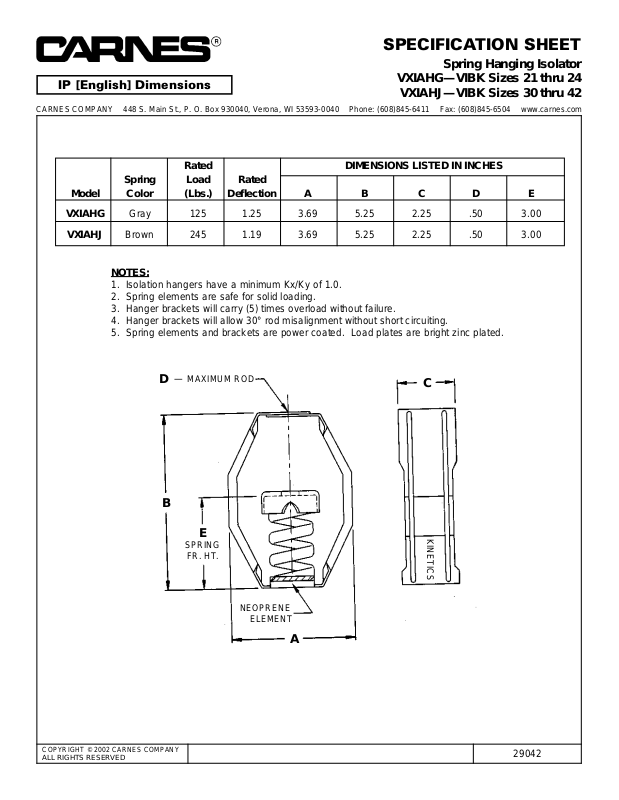

SPECIFICATION SHEET
Spring Hanging Isolator
VXIAHG—VIBK Sizes 21 thru 24
VXIAHJ—VIBK Sizes 30 thru 42
IP [English] Dimensions
Rated DIMENSIONS LISTED IN INCHES
Spring Load Rated
Model Color (Lbs.) Deflection A B C D E
VXIAHG Gray 125 1.25 3.69 5.25 2.25 .50 3.00
VXIAHJ Brown 245 1.19 3.69 5.25 2.25 .50 3.00
NOTES:
1. Isolation hangers have a minimum Kx/Ky of 1.0.
2. Spring elements are safe for solid loading.
3. Hanger brackets will carry (5) times overload without failure.
4. Hanger brackets will allow 30° rod misalignment without short circuiting.
5. Spring elements and brackets are power coated. Load plates are bright zinc plated.
D
—
MAXIMUM ROD
B
C
A
E
SPRING
FR. HT.
NEOPRENE
ELEMENT
KINETICS
