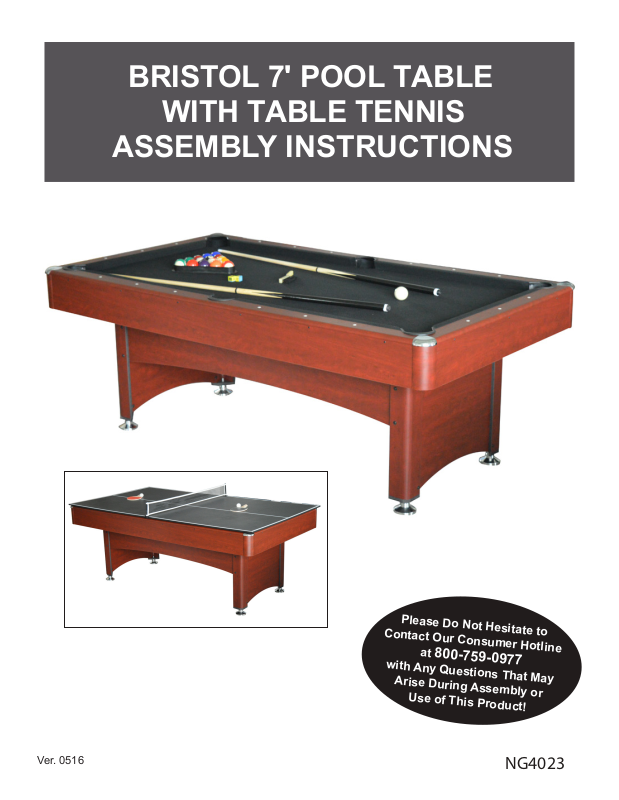

Carmelli NG4023 Assembly Guide
BRISTOL 7' POOL TABLE
WITH TABLE TENNIS
ASSEMBLY INSTRUCTIONS
Ver. 0516
Please Do Not Hesitate to
Contact Our Consumer Hotline
at
800-759-0977
with
Any Questions That May
Arise During Assembly or
Use of This Product!
NG4023
THANK YOU!
Thank you for purchasing this product. We work around the clock and around the globe to ensure
that our products maintain the highest possible quality. However, in the rare case of issues during
assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate
assistance before contacting your retailer. Please read the warranty information at the back of these
assembly instructions for further details.
ASSEMBLY TIPS
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults
work together to assemble this game. You may want to carefully cut or tear the four corners of the box
so that the bottom of the box can be used as your work surface.
2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts
List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.
3. Some figures or drawings may not look exactly like product.
4. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts
in place before final tightening with screwdriver or wrench.
5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use
extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the
electric screwdriver’s torque is set too high.
WARNINGS!
READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY.
CHOKE HAZARD - THIS ITEM MAY CONTAIN SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
CARE AND USE
1. This
2. Do NOT drag the table when moving it, as this will damage the legs.
product is intended for INDOOR use only.
2
BRISTOL 7’ POOL TABLE WITH TABLE TENNIS - NG4023

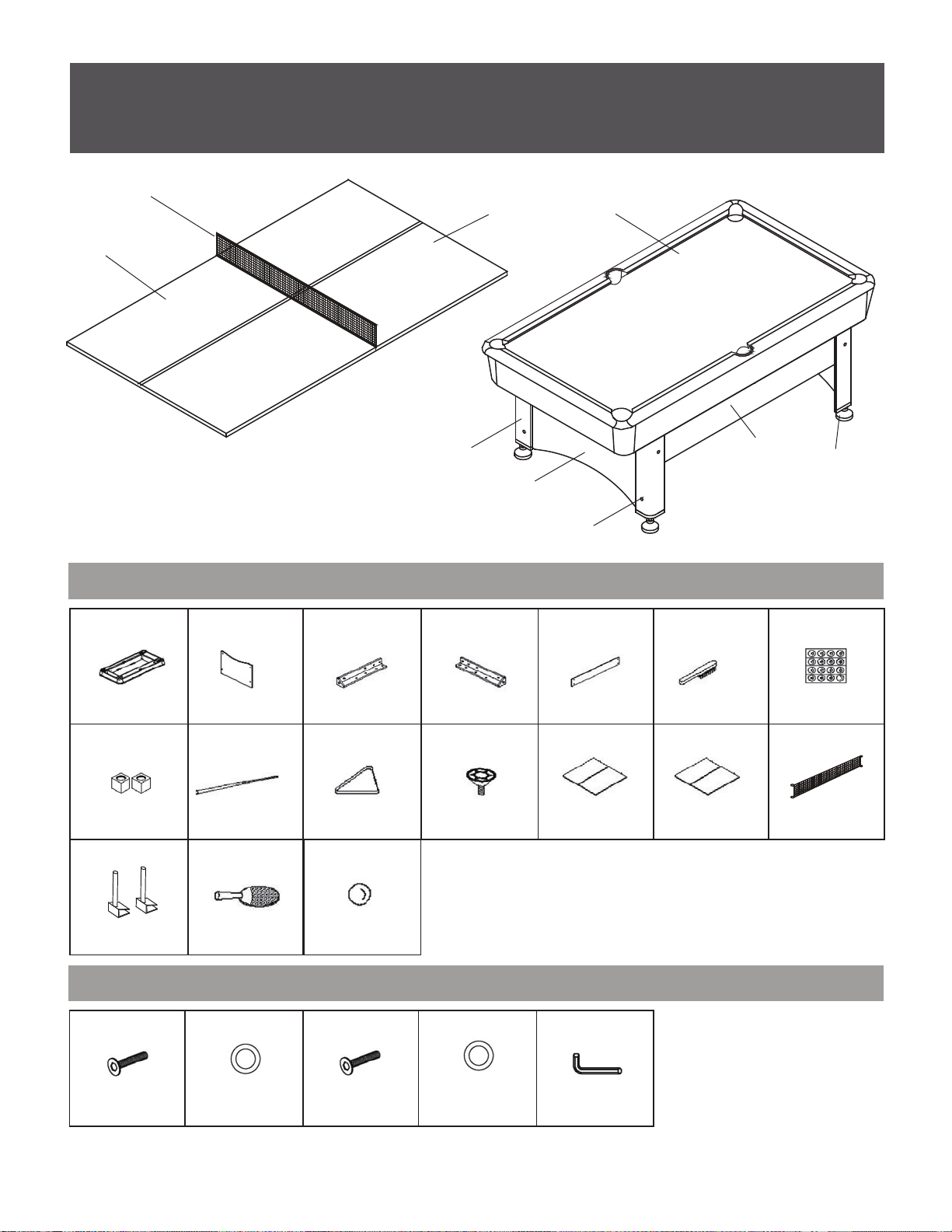

Parts List
19,20
17
5
18
7
6
8
PARTS
#5 NGP2100 #6 NGP2101 #7 NGP2102 #8 NGP2103 #9 NGP2104
#10 NGP5073
9
15
#11 NGP5136
X1 X2
TABLE BODY
LEG END PANEL
X2
LEFT LEG
X2
RIGHT LEG
X2
LEG SIDE PANEL
X1
BRUSH
#12 NGP5077 #13 NGP5191 #14 NGP5135 #15 NGP5121 #17 NGP2105 #18 NGP2106
X2
CHALK
CUE STICK
X2
#20 NGP57821 #21 NGP5138
x2
TABLE TENNIS
POST CLIPS
TABLE TENNIS
RACQUET
x1
TRIANGLE LEG LEVELER
#22 NGP5029
x2
TABLE TENNIS
BALL
x2
x4

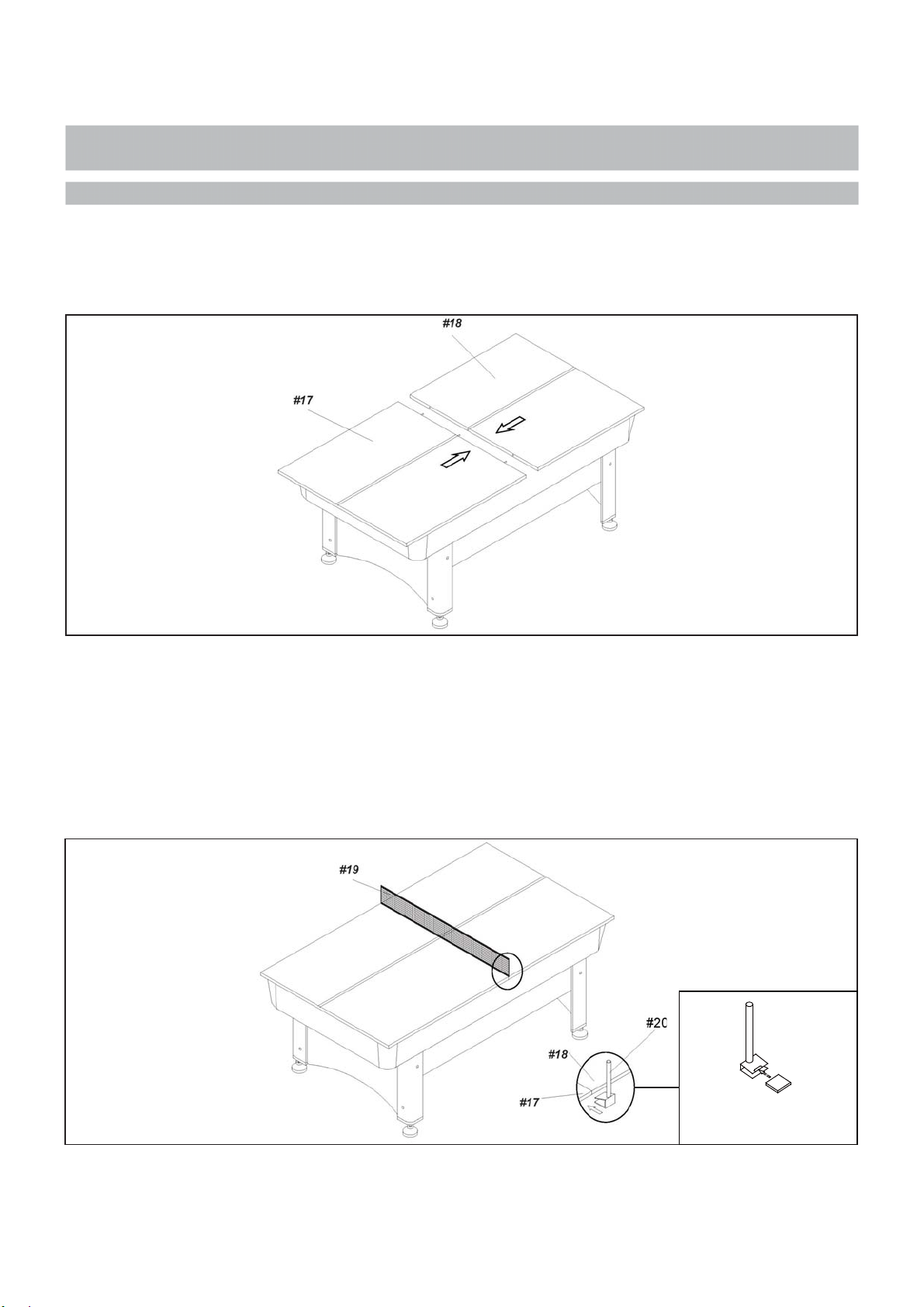

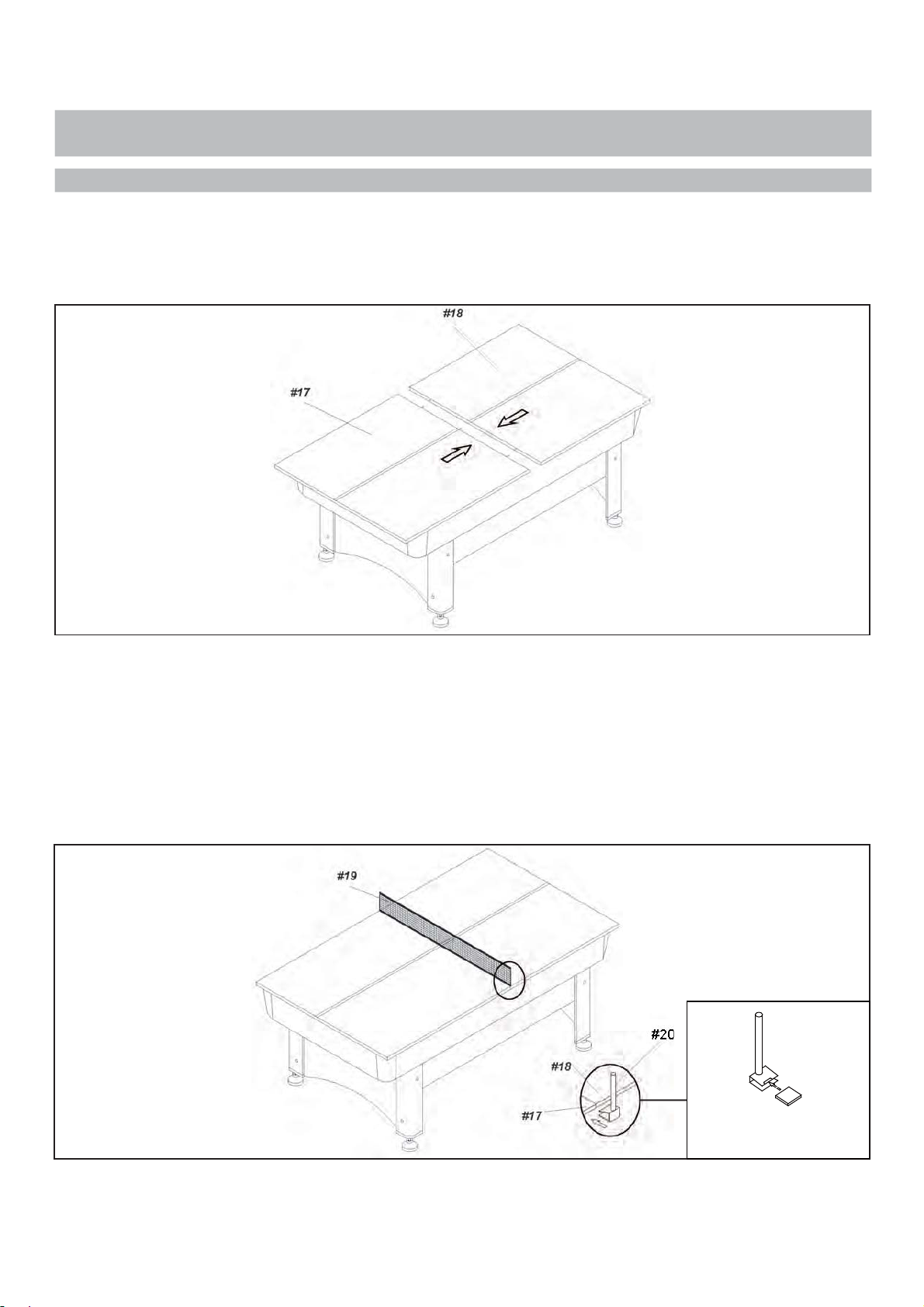

TABLE TENNIS
TOP A
x1
TABLE TENNIS
TOP B
HARDWARE PACK - NGP5112
x16
#16
x1
HEX WRENCH
#1 #2 #3 #4
x16
1-1/4 INCH BOLT
x16
5/16 INCH FLAT
WASHER
1 INCH BOLT
x16
1/4 INCH FLAT
WASHER
X1
BILLIARD SET
#19 NGP51226
x1
TABLE TENNIS
NET
x1
Illustrations Not to Scale
5/16
For replacement parts please call 800-759-0977.
3
ASSEMBLY INSTRUCTIONS

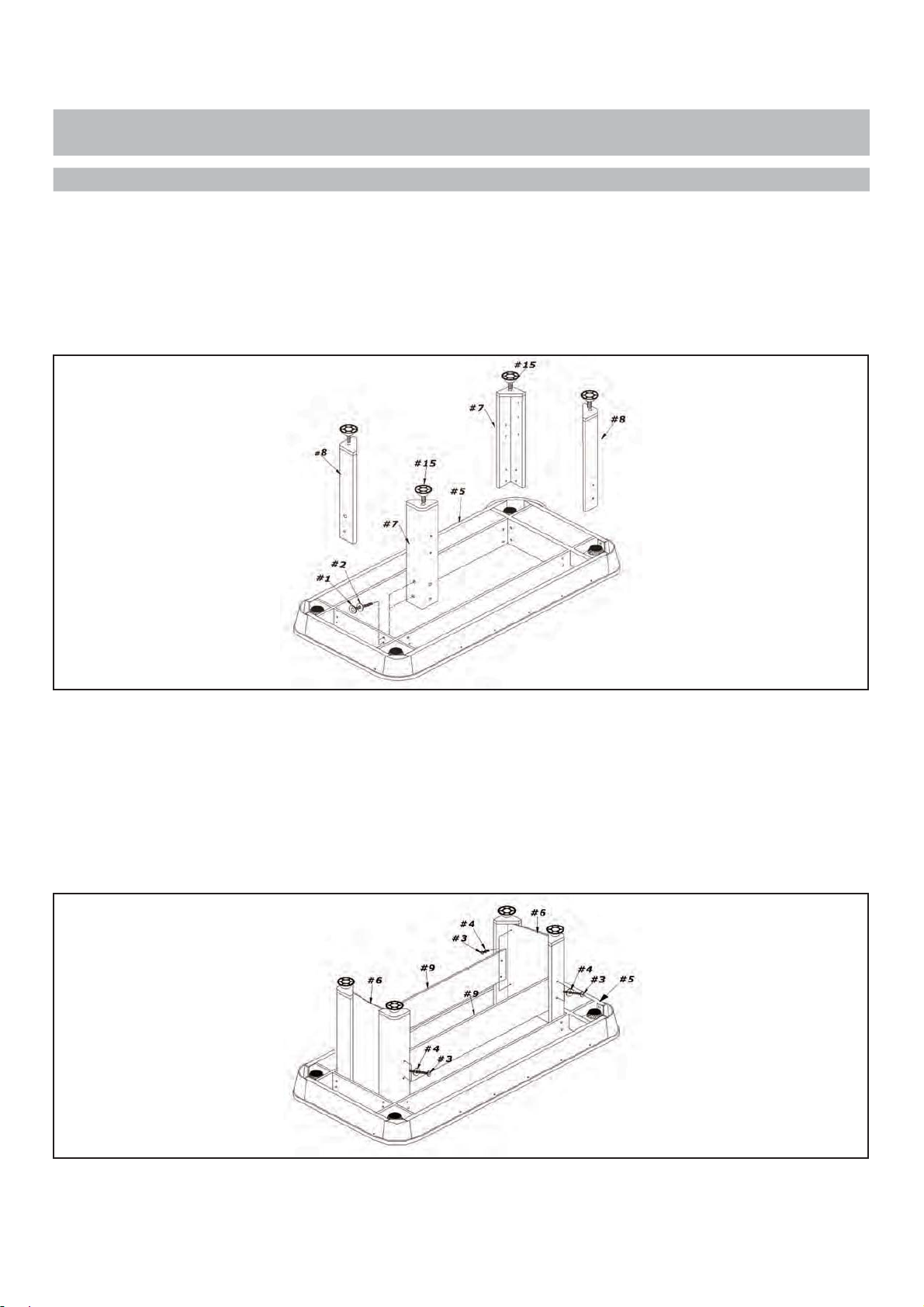

1. Attach LEFT LEGS #7 and RIGHT LEGS #8 to the corners of the TABLE BODY #5 as shown
below using 1-1/4" BOLT #1 and 5/16" FLAT WASHER #2. Note: The table is assembled upside
down.
2. Thread one LEG LEVELER #15 onto each LEG.
3. Attach each LEG END PANEL #6 to LEGS with 1" BOLT #3 and 1/4" FLAT
WASHER #4.
4. Attach each LEG SIDE PANEL #9 to LEGS with 1" BOLT #3 and 1/4" FLAT
WASHER #4. Carefully turn table over.
4
