METROPOLITAN 54-IN
FOOSBALL TABLE
ASSEMBLY INSTRUCTIONS
Please Do Not Hesitate to
Contact Our Consumer Hotline
at
800-759-0977
with Any Questions That May
Arise During Assembly or
Use of This Product!
NG1030F
Page 2
THANK YOU!
Thank you for purchasing this product.
We work around the clock and around the globe to ensure that our products
maintain the highest possible quality. However, in the rare case of issues
during assembly or use of this product, please contact our Consumer Hotline
at 800-759-0977 for immediate assistance before contacting your retailer.
Please read the warranty information at the back of these assembly
instructions for further details.
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS
IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.
2
Page 3
PARTS IDENTIFIER (NOT TO SCALE)
#1 #2 #3 #4
SIDE PANEL
2 pieces
#5 #6 #7 #8
PLAYER FIELD
SUPPORT BRACE
2 pieces
#9 #10
BALL ENTRY CUP
2 pieces 2 pieces
#13
END PANEL
2 pieces
LEG PANEL A
2 pieces
PLAYING FIELD
1 piece
LEG PANEL B
2 pieces
#11 #12
ROD HANDLE
8 pieces
ROD END CAP
8 pieces
#14 #15 #16
LEGS
4 pieces
SOCCER BALL
2 pieces
LEG LEVELER
4 pieces
ROD BUMPER
16 pieces
#17
VISITOR PLAYER
13 pieces
#18
#21 #22
5/16"x1-3/4" BOLT
8 pieces
5/16"x1-1/4" BOLT
ROD WASHER
16 pieces
3 PLAYER ROD
4 pieces
12 pieces
SLIDE SCORER
2 pieces
#19
2 PLAYER ROD 5 PLAYER ROD
2 pieces
#23
5/16" WASHER
20 pieces
HOME PLAYER
13 pieces
#20
2 pieces
#24
1/2" FLAT SCREW
2 pieces
3
Page 4
PARTS IDENTIFIER (NOT TO SCALE)
#25 #26
1-1/8" BOLT
26 pieces
#29
1-1/4" FLAT SCREW
4 pieces
NUT
26 pieces
#27
1-3/4" SCREW
12 pieces
#28
1" FLAT SCREW
10 pieces
4
Page 5
ASSEMBLY TIPS
1. Find a clean, level surface to begin the assembly of your game table. We recommend
that two adults work together to assemble this game. You may want to carefully cut or tear
the four corners of the box so that the bottom of the box can be used as your work surface.
2. Remove all of the contents from box and verify that you have all of the parts shown on
Note: Some parts may be pre-installed
or pre-assembled.
understand the text before beginning each assembly step.
4. When installing parts that have more than one screw or bolt, hand tighten all
5. Electric screwdrivers may be helpful during assembly; however, please set a low torque
and use extreme caution because screws may be stripped or overtightened, resulting in
damaged parts, if the electric screwdriver’s torque is set too high.
WARNINGS!
READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY.
CHOKE HAZARD - THIS TABLE CONTAINS SMALL BALLS AND PARTS
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.
5
Page 6

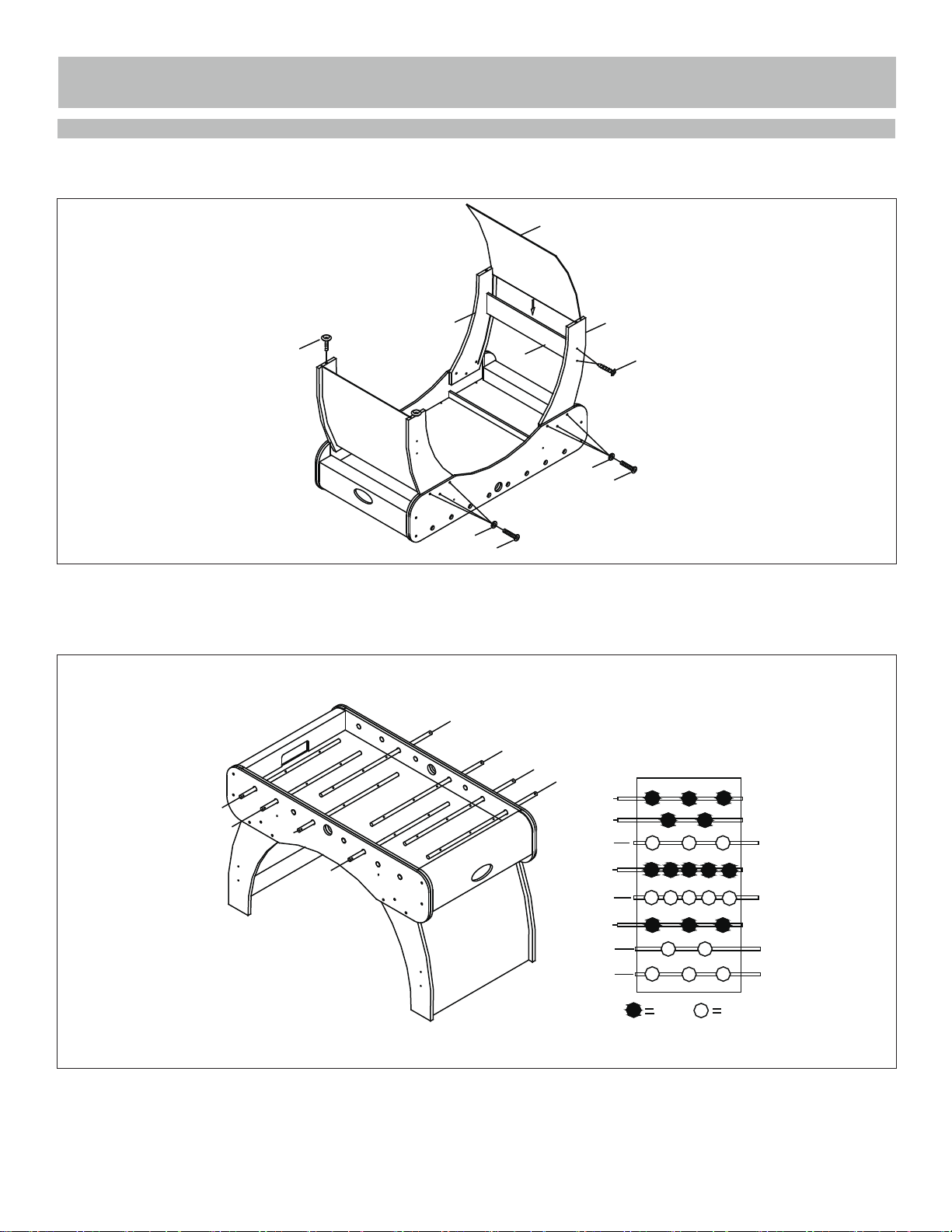

ASSEMBLY INSTRUCTIONS
#3
#23
#21
#2
#23
#21
#1
#28
#23
#5
#21
#28
#1
#23
#21
#27
6
Page 7

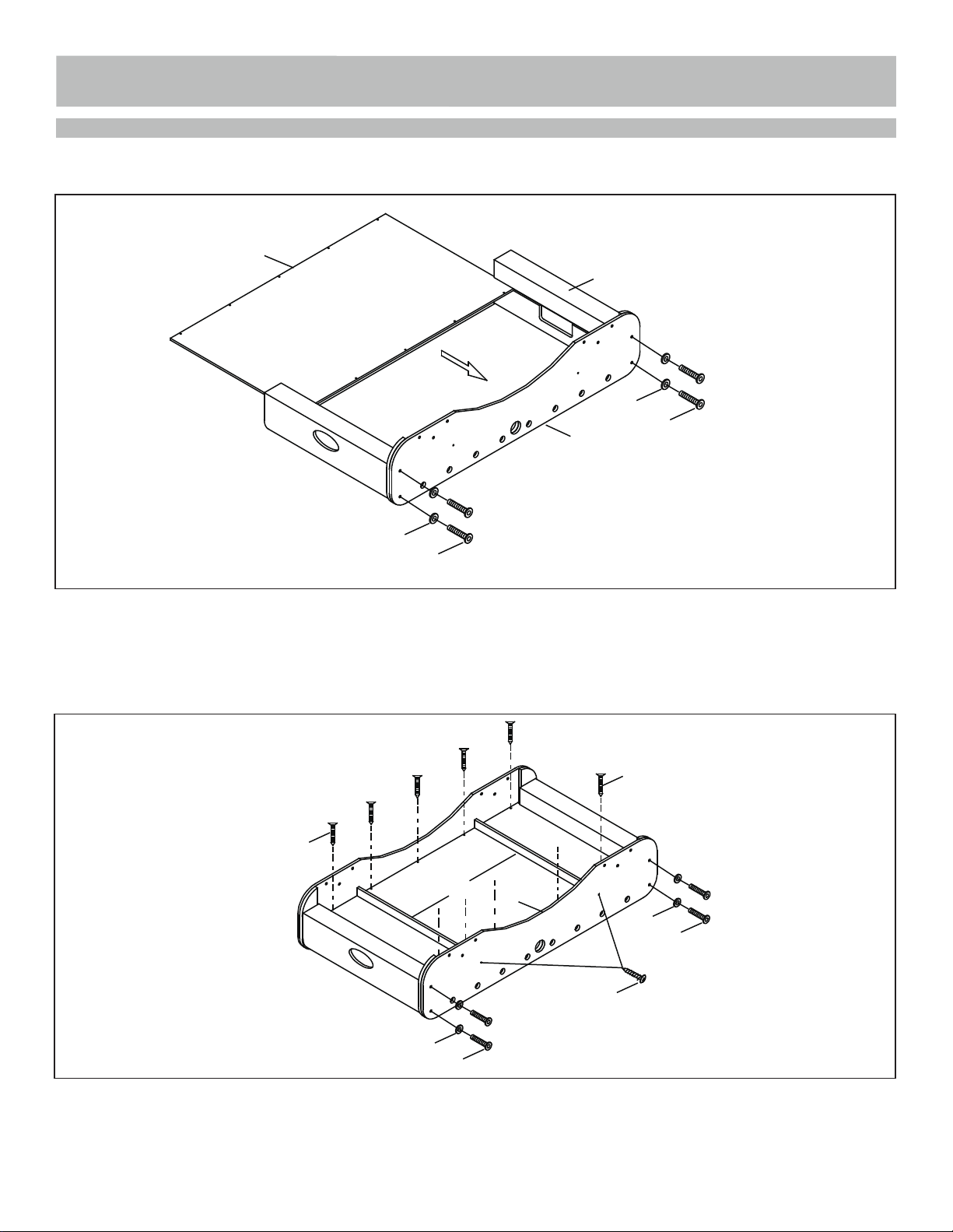

ASSEMBLY INSTRUCTIONS
#6
#18
#19
#12
#20
# 4
#23
#18
#22
#7
#20
#4
#27
#23
#22
#19
#18
#18
#19
#18
#18
#20
#20
#18
#19
#18
HOME
VISITOR
7
Page 8

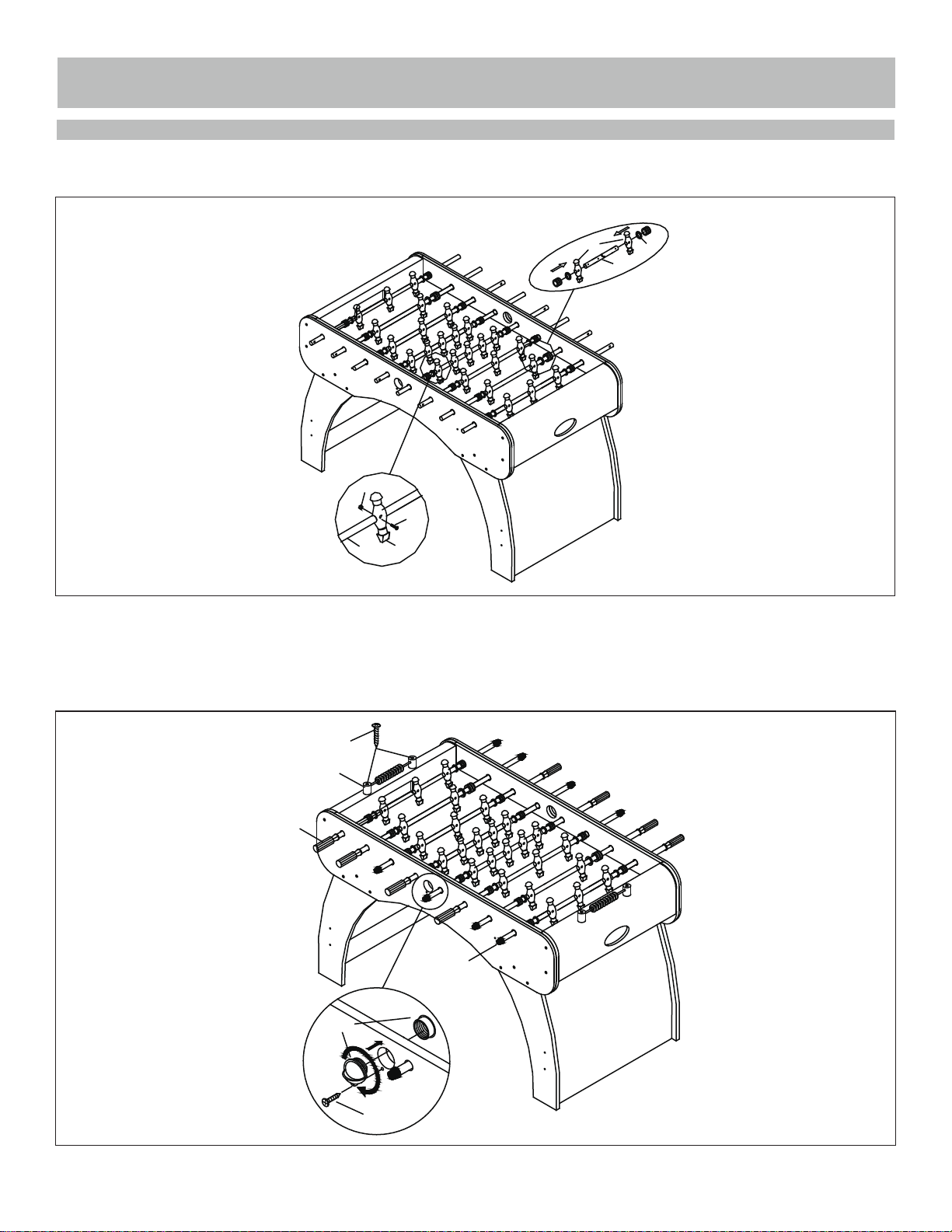

ASSEMBLY INSTRUCTIONS
#26
#25
#17
STEP5 A
#13
#14
#19
#10
#29
#15
#17
#20
STEP5 B
#11
#9
#24
8
Page 9
CONGRATULATIONS!
You have now assembled your Game Table.
Please note the Care and Use instructions below to
ensure years of trouble free use of your game table.
CARE AND USE
1. This product is intended for INDOOR use only.
2. Do NOT sit, climb or lean on the table.
3. Do NOT drag the table when moving it as this will damage the legs.
9
Page 10
180-DAY LIMITED WARRANTY
This product is warranted to the original purchaser to be free from defects in material or workmanship
for a period of 180 days from the date of the original retail purchase.
This warranty does not cover defects or damage due to improper installation, alteration, accident or
any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,
abuse or negligence will void this warranty. This warranty does not cover scratching or damage that
may result from normal usage.
This product is not intended for institutional or commercial use; the manufacturer does not assume
any liability for such use. Institutional or commercial use will void this warranty.
This warranty is nontransferable and is expressly limited to the repair or replacement of the defective
product. During the warranty period, the manufacturer shall repair or replace defective parts at no
cost to the purchaser. Shipping charges and insurance are not covered and are the responsibility of
the purchaser. Labor charges and related expenses for removal, installation or replacement of the
product or components are not covered under this warranty.
The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable
or obsolete.
The manufacturer shall not be liable for loss of use of the product or other consequential or incidental
costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of
injury resulting from the use of this product.
This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of
. Neither the manufac-
turer nor any of its representatives assumes any other liability in connection with this product.
All warranty claims must be made through the retailer where the product was originally
purchased. A purchase receipt or other proof of date of purchase will be required to process
all warranty claims. The model number and part numbers found within the assembly
instructions will be required when submitting any parts requests or warranty claims.
For further warranty information or inquiries, please call 800-759-0977
Page 11

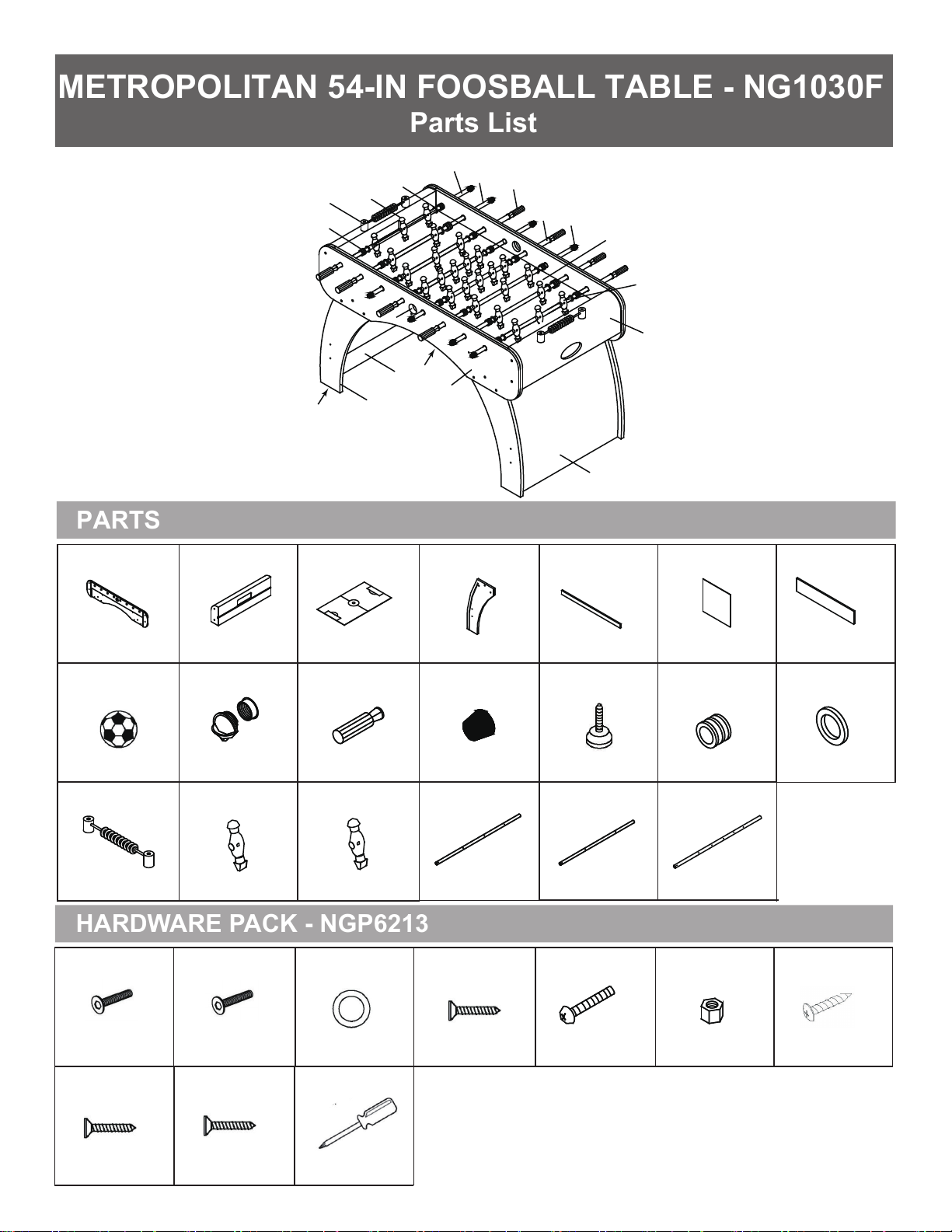

METROPOLITAN 54-IN FOOSBALL TABLE - NG1030F
Parts List
PARTS
HARDWARE PACK - NGP6213
15
13
12
16
18
19
14
10
20
11
3
17
9
2
7
5
1
4
6
#1 NGP6200 #2 NGP6201 #3 NGP6202 #4 NGP6203 #5 NGP6204
SIDE PANEL
#8 NGP5807 #9 NGP5801 #10 NGP6207 #11 NGP51693 #12 NGP6208 #13 NGP51713
SOCCER BALL
#15 NGP6209 #16 NGP5797
SLIDE SCORER
#21 #22 #23 #24 #25 #26
END PANEL
BALL ENTRY CUP
HOME PLAYER
PLAYFIELD LEG
ROD HANDLE
#17 NGP5973
VISITOR PLAYER
ROD END CAP
#18 NGP6210
3 PLAYER ROD
SUPPORT BRACE
LEG LEVELER
#19 NGP6211
2 PLAYER ROD
#6 NGP6205
LEG END
PANEL A
ROD BUMPER
#20 NGP6212
5 PLAYER ROD
#7 NGP6206
LEG END
PANEL B
#14 NGP51723
ROD WASHER
#27
5/16”X1-3/4”BOLT
#28
1” FLAT
SCREW
5/16”X1-1/4”BOLT
#29
1”-1/4 FLAT
SCREW
FLAT WASHER
ADDITIONAL EQUIPMENT
REQUIRED:
PHILLIPS HEAD
SCREWDRIVER
1/2” FLAT
SCREW
1-1/4” BOLT
NUT
1-3/4” SCREW
5/15
