Canon PIXMA SELPHY ES40 User Guide

Printer User Guide
COPY
ENGLISH
Make sure you read this guide before using the printer.
Store this guide safely so that you can use it in the future.
1
Make Printing Fun with SELPHY!
COPY
SELPHY speaks! Learn how to create lasting memories
with your friendly, but powerful, compact printer.
Make more things possible with SELPHY.
Creative Print ................You can make many kinds of decorated prints.
Frames (p. 40) Multi Layout (p. 46)Calendars (p. 44)Clip Art (p. 42)
ID Photos (p. 52)Image Effects (p. 50)Speech Bubbles (p. 48)
Gold and Silver Prints ...
Print Settings ................
When using the Gold or Silver Easy Photo Packs (p. 3), you can print gold and silver frames and clip art (p. 81).
You change print settings to imprint the shooting date, adjust the colors, and make many kinds of prints.
Red-Eye Correction (p. 34)Layouts (pp. 33, 38)
Change the Image Colors
(p. 35)
Trimming ...................... You can trim away unneeded
2
Change the Date Format
(p. 35)
portions of your image (p.36).
Borders (p. 32)Image File Number (p. 32)Date (p. 32)
Optimize the Image (p. 34)
Print Images from a Computer (p. 60)
Border Color (pp. 33, 39)
Adjust the Image’s
Qualities (p. 34)

Package Contents

COPY
Check if the following items are included in your printer package, using the check boxes. If anything is missing, contact the retailer where you purchased the printer.
Remove the contents from the box, and remove the Cleaner Unit from SELPHY.
Slide the cartridge cover lever in the direction of
the arrow to open the cover. Grasp the cleaner unit as shown in the
illustration and remove it.
SELPHY Printer Unit
Beginner’s Guide
CD-ROM:COMPACT
PHOTO PRINTER Solution Disk
Power Cord
Cleaner Unit
Support Guide

Cartridges (Sold Separately)

Before using the printer, be sure to purchase a cartridge (Easy Photo Pack) separately.
Paper Size
Postcard size
(100 x 148mm)
(4 x 6 in.)
L size (89 x 119mm) (3.5 x 4.7 in.)
Card size
(54 x 86mm)
(2.1 x 3.4 in.)
* Card-size label sheet.
No. of
Possible Prints
100 Color Green Easy Photo Pack E-P100
50 Color Green Easy Photo Pack E-P50
20 Color/Gold Gray Easy Photo Pack E-P20G
20 Color/Silver Gray Easy Photo Pack E-P20S
25 BW Gray Easy Photo Pack E-P25BW
100
50 Easy Photo Pack E-L50
25
25 Easy Photo Pack E-C25L*
Ink Type
Color Blue
Color Orange
Color of
Cartridge
Product Name
Easy Photo Pack E-L100
Easy Photo Pack E-C25
Warranty Card
Thin lines and text may be unclear or broken when printing with the gold or silver print supporting
cartridges (Easy Photo Pack E-P20G/E-P20S). Do not apply pressure to or shake the cartridge.
3

Table of Contents

COPY
Package Contents 3
Cartridges (Sold Separately) 3
Read This First 5
For Your Safety 6
Getting Started 7
Turning On SELPHY 9
Setting the Display Language 9
Changing Voice Guidance Settings 10
Compatible Memory Cards and Memory Card
Slots 10
Choosing and Printing Images 12
Storing the Printed Photos 14
Cleaning Up After Printing 14
Printing Recipes 15
Learning More About SELPHY 21
The Names of SELPHY’s Components 22
Information Displayed on the Screen 24
Changing the Way Images Are Displayed 26
Searching Images 27
Printing a Variety of Images 29
Printing All Images 30
Printing a Variety of Images 31
Trimming Images 36
Printing using Layouts 38
Printing with a Colored Border 39
Printing with Frames 40
Printing with Clip Art 42
Printing Calendars 44
Printing using Multi Layouts 46
Printing with Speech Bubbles 48
Printing with Image Effects 50
Printing an ID Photo 52
Using SELPHY with Your Computer 55
What You Can Do with the Supplied
Software 56
System Requirements 57
Install and Start the Software 58
Printing from Your Computer 60
Downloading Frames and Stamps
(Contents Data) 62
Printing Images from your Digital
Camera or Mobile Phone 65
Printing from Your Digital Camera 66
Printing Images Using Digital Camera Specied
Settings (DPOF Print) 67
Printing from Your Mobile Phone 68
Useful Information when
Using SELPHY 69
Personalizing SELPHY 70
Troubleshooting 73
Error Messages 76
Cartridge/Feature Compatibility Table 76
Handling Precautions 77
Specications 78
Index 79
Frames and Clip Art 81
4

Read This First

COPY
Warning Against Copyright Infringement
The images printed with this product should be intended for personal use. Do not print images that infringe upon copyright laws without the prior permission of the copyright holder.
Warranty Limitations
This product’s warranty is only effective in the country of sale. If a problem arises while the printer is in use abroad, please return it to the country of sale before proceeding with a warranty claim to a Canon Customer Support Help Desk.
LCD Monitor
The LCD monitor is produced with extremely high-precision manufacturing techniques. More
than 99.99% of the pixels operate to specication. However, some pixels may occasionally misre or appear as red or black dots. This has no effect on the printed image and does not
constitute a malfunction.
The LCD monitor may be covered with a thin plastic lm for protection against scratches
during shipment. If so, remove the lm before using the printer.
5

For Your Safety

COPY
Before using SELPHY, please ensure that you read this “For Your Safety” section. Always ensure
that SELPHY is operated correctly. The safety precautions noted on the following pages are intended to prevent injuries to yourself and
other persons, or damage to the equipment. Be sure to also check the guides included with any separately sold accessories you use.
WARNING Denotes the possibility of serious injury or death.
CAUTION Denotes the possibility of injury.
CAUTION Denotes the possibility of damage to the equipment.
WARNING
This Printer
Do not attempt to disassemble or alter any part of the equipment in a way that is not
expressly described in this guide. To avoid the risk of injury, do not touch the interior of the printer if it has been dropped or
otherwise damaged. Stop operating the printer immediately if it emits smoke, a strange smell, or otherwise
behaves abnormally. Do not use organic solvents such as alcohol, benzine, or thinner to clean the equipment.
Do not allow liquids or foreign objects to enter the printer.
This could result in electrical shock or re.
Should this occur, immediately turn the printer’s power off and unplug it.
Use only recommended power sources.
Using other power sources could result in electrical shock or re.
Do not touch this printer or the power plug during thunderstorms.
This could result in electrical shock or re. Immediately stop using the equipment and distance yourself from it.
Power
Store this equipment out of the reach of children and infants.
Mistakenly putting the power cord around a child’s neck could result in asphyxiation.
Use only recommended power sources.
Do not cut, damage, alter or place heavy items on the power cord.
Unplug the power cord periodically and wipe away any dust and dirt that has collected on
the plug, the exterior of the power outlet, and the surrounding area with a dry cloth. Do not handle the power cords with wet hands.
Do not use a power cord other than the supplied power cord.
This could result in electrical shock or re.
Other Warnings
Do not play the supplied CD-ROM(s) in any CD player that does not support data CD-ROMs.
Playing the CD-ROM(s) in an audio CD player (music player) could damage the speakers. It is also possible to suffer hearing loss from listening with headphones to the loud sounds of a CD-ROM played on a music CD player.
6
CAUTION
COPY
Do not stick any part of your hand into the printer interior.
Be sure to place SELPHY safely so as to avoid tripping over the power cord.
This could lead to injury or damage the printer.
Do not use the power cord beyond its rated capacity or voltage, or leave the plug partially
inserted into the power outlet. Do not use if the power cord or plug has been damaged. Do not allow metallic pins to touch or allow dust to collect on the power plug.
Do not use the power cord for any other equipment except this printer.
This could result in electrical shock or re.
Avoid using, placing or storing the printer in the following places.
-Places subject to strong sunlight.
-Places subject to temperatures above 40° C (104° F).
-Humid or dusty areas.
-Places subject to strong vibrations.
Electrical shock or heating could result in burn, injury or re. Heat may cause deformation of the printer’s casing.
CAUTION
Unplug the printer when not in use.
Not doing so could result in electrical shock or fire.

Getting Started

This section will prepare you to start printing images. The postcard size cartridge (sold separately)
(p. 3) will be used as an example in this section. However, you can print with other cartridges using the
same steps.
Inserting the Cartridge into SELPHY
Prepare the cartridge.
1
Ink sheet
Clip
protective paper
If there is an orange stopper attached to the
cartridge, remove it as shown in the illustration.
Check that the ink sheet is taut with no slack.
If the ink sheet is slack, insert the cleaner unit
(p. 3) as shown in the illustration and turn it
slowly to take up the slack. If you overwind the ink sheet, it may not be possible to use all the paper for printing and the ink sheet may tear.
Check that the protective paper is correctly
loaded in the cartridge. If the protective sheet has come out from under the clips, use your nger to push it back under the clips.
7
2
COPY
Open the cover.
Slide the cartridge cover lever in the direction of
the arrow to open the cover.
3
Please use only genuine Canon Easy Photo Pack cartridges for SELPHY ES series printers.
Cartridges for the CP series cannot be used. Do not remove the colored protective paper that is installed in the cartridge.
Do not touch or pull on the ink sheet. Do not touch the cartridge with wet or sweaty hands. You
may not be able to print if the ink sheet is damaged, dirty or wet.
protective paper
Insert the cartridge.
With the protective paper facing towards you,
insert the cartridge as shown in the illustration until it clicks into place. Press the area on the cartridge cover marked
PUSH to close.
Setting Up SELPHY
Place SELPHY on a stable and even surface,
such as a table. Never place it on an unstable
or tilted surface.
Keep SELPHY at least 1 m (3 ft.) from devices
emitting electromagnetic waves or strong magnetic elds. Leave more than 15 cm (6 in.) of clearance at
the front and back of SELPHY, and 10 cm (4 in.) on both sides.
Do not block the air vents on the back of the
printer.
10 cm (4 in.)
or more
15 cm (6 in)
or more
air vents
15 cm (6 in)
or more
10 cm (4 in.) or more
Never place SELPHY close to motors or other devices that generate strong electromagnetic elds.
This may damage or cause the printer to malfunction. Do not place near television or radio. This may cause the printer to malfunction.
Connecting SELPHY
Plug the cord into SELPHY.
Fully insert the power cord into SELPHY's
terminal.
Insert the electric plug into an outlet.
8

Turning On SELPHY

COPY
Turn on the power.
Press and hold the q button until the screen on
the left displays. To turn the power off, press and hold the q
button.

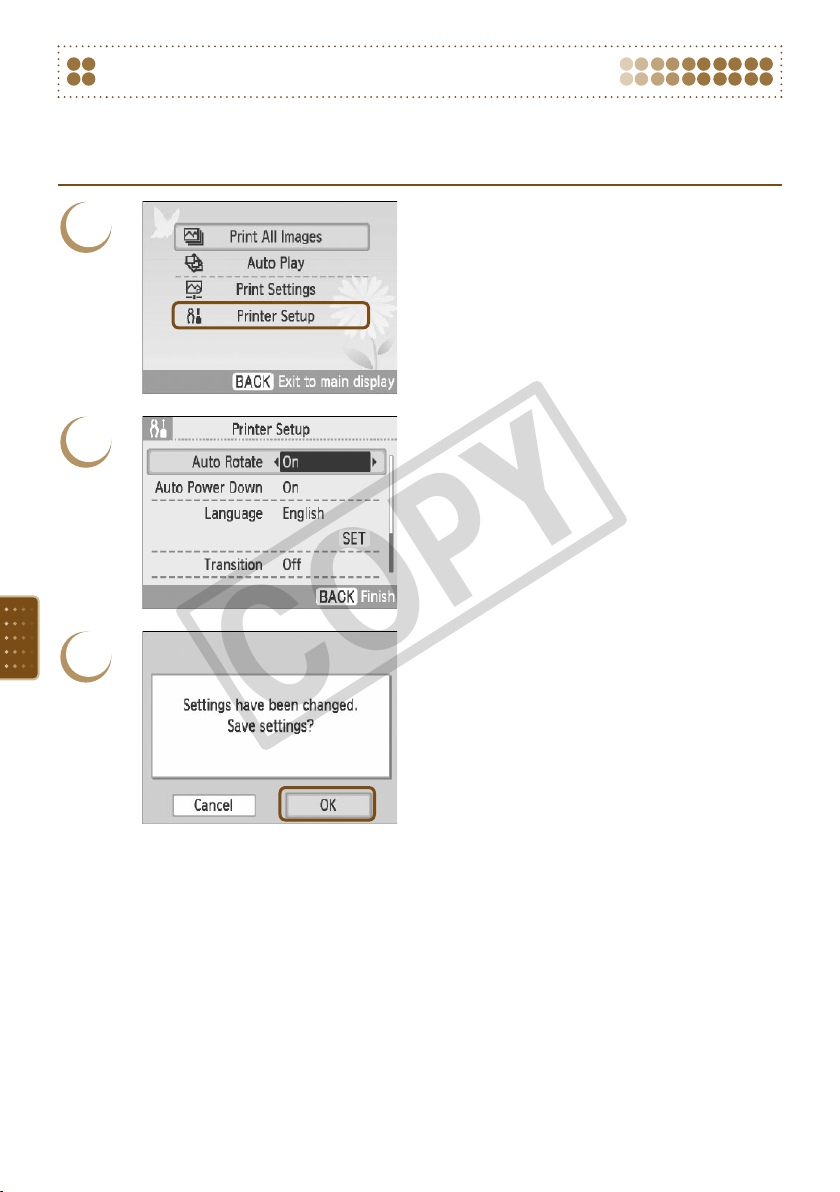

Setting the Display Language

You can change the language displayed in the LCD monitor menus and messages.
Display the language screen.
1
2
Press and hold the o button, then press the
m(MENU) button.
The language screen will display.
Choose a language.
Press the udl r buttons (the area on
the w wheel), or turn the w wheel to choose a language, then press the o button to change
the language.
If a memory card is inserted in SELPHY, the screen in Step 2 will not appear even if the Step 1 is
followed. Please remove the memory card before performing Step 1. You can also change language settings by pressing the m(MENU) button and choosing [Printer
Setup] and then [Language] (pp. 70, 72).
9
Changing Voice Guidance
COPY
Settings
You can turn the voice guidance on or off, and set the volume (5 levels) and language (7 languages).
Display the [Voice Guidance Settings]
1
2
Display language settings (pp. 9, 70, 72) will not affect the voice guidance settings. Each setting must be made separately.
screen.
Press the (voice) button.
The screen from Step 2 will display.
Change the settings.
Press the ud buttons, or turn the w wheel to
choose an item. Press the l r buttons to change the setting.
When you choose [Sounds Only] in the
[Language] menu, only sound effects will play.
Press the b(BACK) button to make the setting
and restore the image display screen.

Compatible Memory Cards and Memory Card Slots

1
2
Sliding Slot Cover Slide the cover to the left or right to switch between
card slots and .
10
Slide the cover in the direction of the arrow to open.
4
3
Card Slots
COPY
Memory Cards That Can Be
Used Without an Adapter
Memory Cards That Require an Adapter
(commercially available)
1
2
3
4
*1 “RS-MMC” is an abbreviation of “Reduced-Size MultiMediaCard”. *2 Purchase the CompactFlash Card Adapter for xD-Picture Card.
For memory cards that require an adapter, be sure to rst insert the memory card into the adapter
before inserting into the appropriate card slot. If you insert the memory card into a card slot without using an adapter, you may not be able to remove the memory card from the printer. Use a memory card formatted in the device used for taking the images. A memory card formatted
on a computer may not be recognized.
SD Memory CardminiSD CardSDHC Memory CardminiSDHC Card
microSD CardmicroSDHC Card
CompactFlash Card Microdrive
Memory Stick Memory Stick PRO Memory Stick Duo Memory Stick PRO Duo
MultiMediaCardMMCplus CardHC MMCplus Card
MMCmobile CardMMCmicro CardRS-MMC Card*
xD-Picture Card*
Memory Stick micro
1
_
2
Refer to the user guide included with your memory card and adapter for handling instructions.
Images That Can Be Printed
The following image types can be printed with SELPHY.
JPEG type data conforming to the Exif standard.
Irregularly sized images, or images that have been edited on a computer may not display or print properly.
11

Choosing and Printing Images

COPY
You can choose an image and specify the number of copies for printing. In this section, an SD memory card will be used as an example, but you can print from other memory cards using the same steps. The voice guidance will announce when printing has nished.
Insert a single memory card into the slot.
1
Label sideLabel side
2
Open the card slot cover. Insert a memory card fully into the appropriate
slot.
The screen from Step 2 (image display screen)
will display.
Choose an image.
Press the udl r (the area on the w
wheel) buttons or turn the w wheel to choose an image, then press the o button to go to single image view.
Press the b(BACK) button to restore 9 image
view.
12
If there are more than 5 images on the memory
card, turning the w wheel quickly while in single image view will display the screen on the
left. Press the l r buttons or turn the w wheel
to choose an image. That image will be shown magnied in the upper left of the screen. Press the o button for single image view. If there are more than 6 images on the memory
card, press the l r buttons or turn the w wheel to scroll through the images in sets of 5.
3
COPY
4
5
Choose the number of copies.
Press the ., buttons to choose the number of
copies to be printed. You can specify 99 copies per image.
To choose other images to print at the same
time, repeat Steps 2 and 3.
Total number of images currently set to be printed Number of copies of the selected image
Print.
Press the p button to start printing.
The print output receptacle cover will open
automatically when an image is printed. During printing, the paper will pass in and out of
SELPHY several times. Do not touch the paper until it has been ejected into the print output receptacle. Do not allow 50 or more sheets to accumulate in
the print output receptacle. To cancel printing, press the b(BACK) button
followed by the o button.
If the paper runs out, remove the
cartridge.
Slide the cover lever up to open the cartridge
cover.
Slide the cartridge lever down.
The cartridge will be ejected.
Insert a new cartridge (p. 7).
6
Do not eject the cartridge, open the cartridge cover, or close the print output receptacle cover right after turning on the power or while printing. It may result in equipment damage.
When the total number of copies for printing is set to 0 and you press the p button, the currently
displayed image will print once. If SELPHY is idle for 5 minutes, the power turns off in order to save energy (pp. 70, 71).
If the [Start DPOF printing] screen displays, refer to “Printing Images Using Digital Camera
Specied Settings (DPOF Print)” (p. 67).
13

Storing the Printed Photos

COPY
When both sides of a print have perforations, you can remove the edges
by bending them. Use an oil-based pen to write on prints.
To prevent discoloration, be sure to store the printed photos so that they
will be protected from humidity, dust, direct sunlight, and temperatures of over 40°C (104°F). Avoid actions that may result in color change, color fading or color
bleeding, such as the following: Sticking any type of adhesive tape on a print surface, allowing print surfaces to come into contact with vinyl or plastic, applying alcohol or other volatile solvents to a print surface, leaving print surfaces tightly pressed against other surfaces or objects for prolonged periods. If you wish to mount prints in an album, choose an album with photo covers made of nylon,
polypropylene or cellophane.
Color may change over time or depending on storage conditions. Canon assumes no liability for
color changes.

Cleaning Up After Printing

After you nish printing, follow the steps below to clean up and store SELPHY.
Turn off the power (p. 9), remove the memory card, and close the card slot cover.
Removed the printed photos from the print output receptacle and close the print output receptacle
cover. Unplug the power cord from the power outlet and disconnect the other end of the cord from
SELPHY. Remove the cartridge from SELPHY, and insert the cleaner unit.
Return the cartridge to its original package and store in a dark place where it will be protected from
dust.
If dust enters the printer or dust sticks to the cartridge, print quality may deteriorate.
Any unused Easy Photo Packs should be stored unopened in a dark place.
14

Printing Recipes

COPY
Use the following recipes
to create original greeting cards,
scrapbooks and more!
Let’s get started!
Voice guidance is available for all the SELPHY features used in these recipes (pp. 16-19). Even
beginners can print easily. For more detailed information, refer to the full instructions for each printer function.
15
Creating a Greeting Card
COPY
Make an impression with gold and silver frames!
Send a unique greeting card.
Ingredients
Instructions
Easy Photo Pack (p. 3)
Marker pen
(For writing addresses or
messages.)
Decorations
[Frames] in [Creative Print]
SELPHY Photo Print
(supplied software)
Make your personalized greeting cards dazzling by using the gold or silver Easy Photo Packs (p. 3).
16
Use the [Frames] feature in [Creative Print] (p. 40)
Press the c button and choose [Frames]
1
Choose an image
2
Choose a frame and print
3

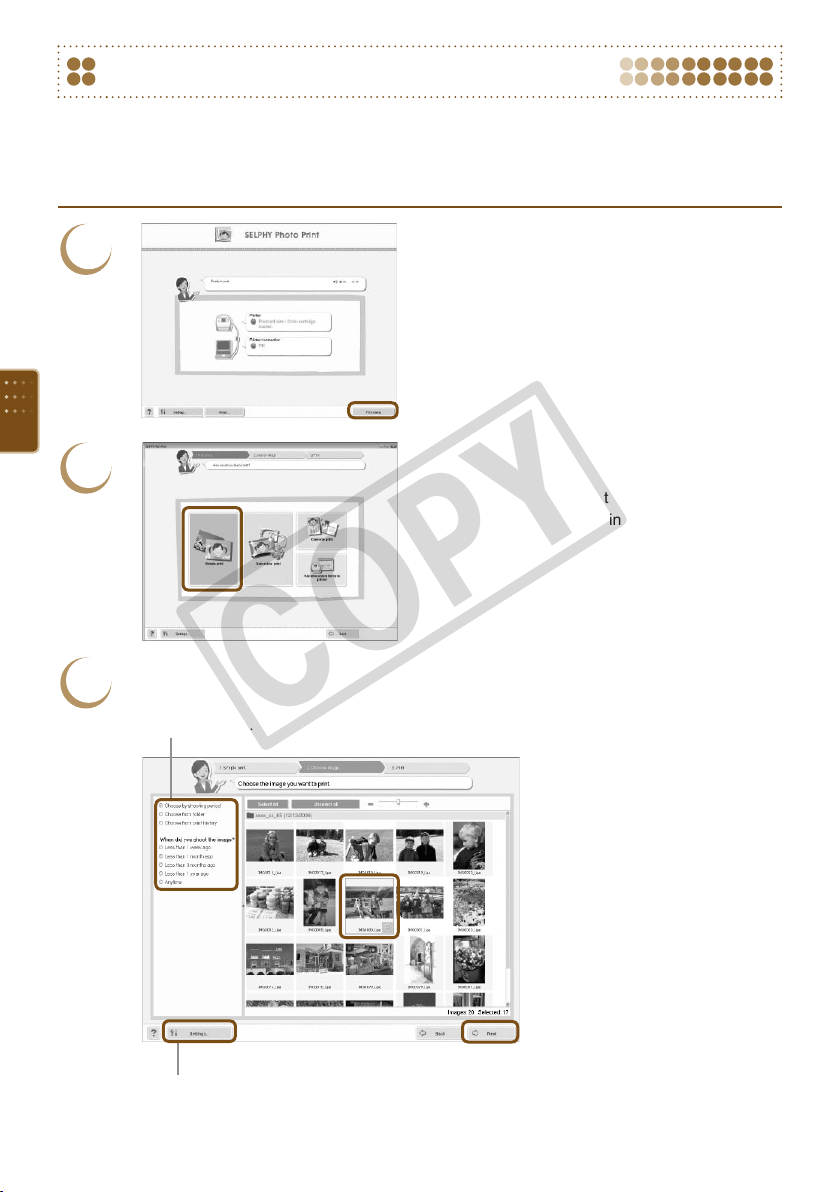

Using SELPHY Photo Print (pp. 56, 60)
Choose an image
1
Choose a frame and print
2
Creating a Photo Diary
COPY
Capture life's little moments
in a handmade photo diary.
Ingredients
Easy Photo Pack (p. 3)
Colored paper
Marker pen
Decorations
Decorations
[Multi Layout] in [Creative Print]
Instructions
Use the [Multi Layout] feature in [Creative Print]
(p. 46)
Press the c button and choose [Multi
1
Layout]
Choose the page layout and background
2
color
Choose images and print
3
Write down your comments with a marker
4
pen
Mount the prints on the colored paper and
5
add decorations to your taste
17
Creating a Photo Calendar
COPY
Turn your birthday and a photo into a calendar.
Create a calendar together as a family.
Ingredients
Easy Photo Pack (p. 3)
Decorations
The [Calendar] setting in
[Creative Print]
18
Instructions

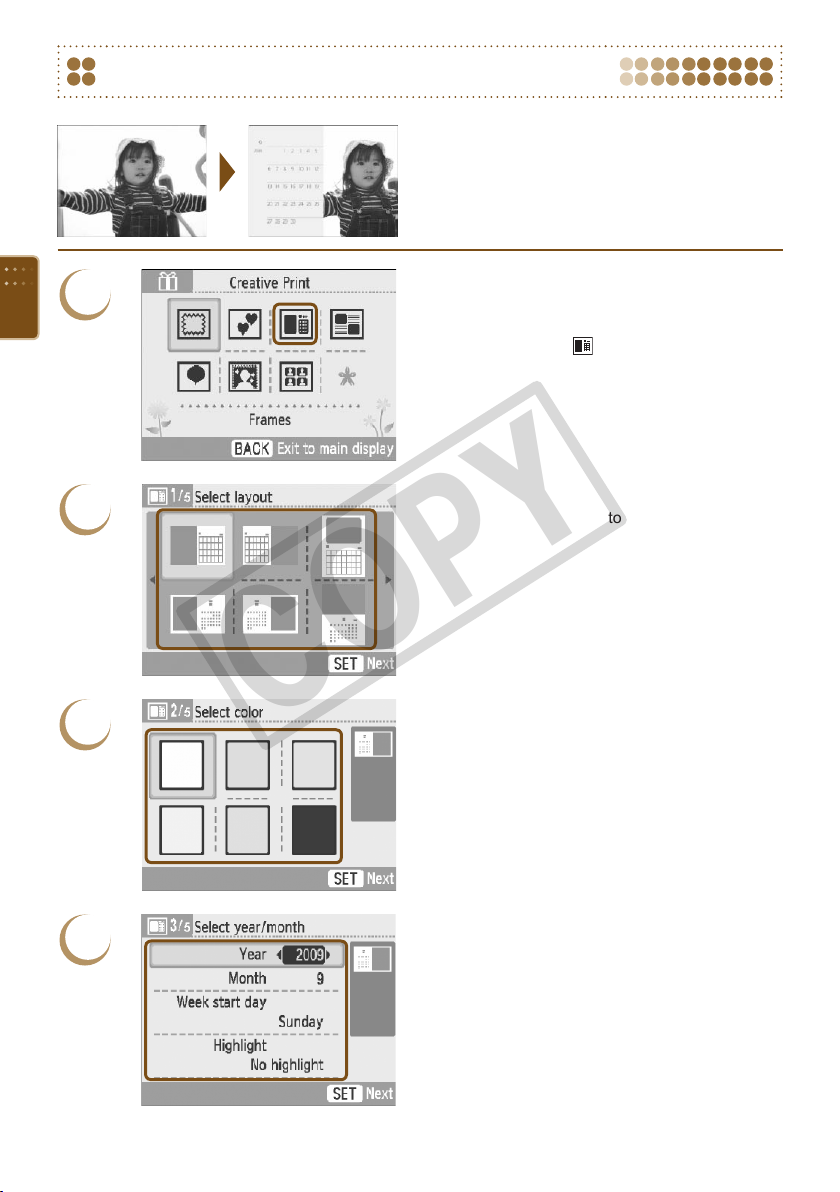

Use the [Calendar] feature in [Creative Print] (p. 44)
Press the c button and choose [Calendar]
1
Choose the page layout and background
2
color
Choose the year and the month and
3
specify holidays or special occasions
Choose an image and print
4
Creating a Scrapbook
COPY
Use your creativity to turn
a fond memory into a scrapbook.
Ingredients Instructions
Easy Photo Pack (p. 3)
Mounting board, colored paper
Scissors, glue, pens
Decorations
Combining different size photos can be visually effective.
Decide on a theme for your page (e.g.
1
summer holiday, birthday party, etc.)
Print your photos based on the theme
2
Choose the color of the mounting board for
3
the background to go with your photos
Design the layout of your page
4
Cut your photos and colored paper and
5
arrange and mount them on the mounting
board
Add decorations and, if desired, write the
6
title and any comments
19
20
COPY
Learning More
COPY
About SELPHY
This chapter will cover basic information to help you learn more about using
SELPHY. The parts of the printer will be described, as well as the information that
displays on the screen and basic operating instructions.
Conventions Used in This Guide
This printer will be referred to as “SELPHY” or “printer”.
The various types of memory cards that can be used in this printer are collectively referred to as
“memory cards”.
The button functions are represented by icons shown on or around the buttons. For a detailed
explanation, refer to "Controls" (p. 23). Language that displays on the screen appears inside [ ] (square brackets).
: Things you should be careful about.
: Supplemental information.
(p. XX) : Reference pages. “XX” stands for page number.
This guide is written assuming that all functions are at their default settings.
21

The Names of SELPHY’s Components

COPY
Print Output Receptacle (p. 13)
Print Output Receptacle Cover (p. 13)
Sliding Slot Cover
(pp. 10, 12)
Card Slots
(pp. 10, 12)
Speaker
Paper-Handling Slot
Carrying Handle
AC IN (Power Input) Terminal
(p. 8)
Cartridge Compartment (p. 8)
Cartridge Cover Lever (p. 8)
Cartridge Lever (p. 13)
Cartridge Cover (p. 8)
Print Output Receptacle Button
Air Vents (p. 8)
USB Terminal for Computer
Connection (p. 59)
USB Terminal for Digital
Camera Connection
(p. 66)
22
Controls
COPY
8
9 14734
1
2
Icons Used in This Guide
m
(DISPLAY)
m
m
o
b
q
c
(MENU)
(EDIT)
_
-
0
.
,
u
d
l
r
w
p
BACK)BACK)
(BACK)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
18
12
15
16
5 6 10 11 1 3 19 17
Name Function
Power Button Turns the power on or off (p. 9).
CREATIVE Button Displays the Creative Print menu (pp. 40-53).
Voice Guidance Button
Menu Button Displays the menu screen (p. 31).
Display Button Displays the properties of the selected image (p. 25).
Edit Button Displays the edit menu (pp. 36-39).
Screen
(LCD Monitor)
Enlarge Button
Reduce Button
Increase Copies Button
Decrease Copies Button
Up Button
Down Button
Left Button
Right Button
Easy Scroll Wheel
Set Button Sets the selected item (p. 9).
Print Button Starts printing (p. 13).
Back Button Restores the previous screen (p. 12), cancels printing (p. 13).
Displays the [Voice Guidance Settings] screen (p. 10).
Display images, settings screens, or error messages (p. 24).
Change the display style (p. 26) or controls the size of the
trimming frame (p. 36).
Specify number of copies, choose setting items (p. 13).
Choose settings (p. 9) and images (p. 12).
Behaves the same as the operations. Also displays 5 image scroll view if turned quickly while in single image view (pp. 12, 26).
udl r
buttons during most
23

Information Displayed on the Screen

COPY
2
1
4
3
8
The image above is a sample image of information that can be displayed using [Image Info] (p. 25).
Explanation
Number of copies of the displayed image
1
Total number of images to be printed
2
The memory card slot currently in use (An SD card is used in this example)
3
4
5
6
7
8
9
10
:SD/MMC+/miniSD Card slot : microSD Card slot
: CF/microdrive Card slot : MS/MS Duo Card slot
File number
Recording pixels
Cartridge currently in use (Postcard Size is used in this example.)
P4x6/10x15: Postcard size L: L size CARD: Card size C Label: Card size full-sized label sheet G: Postcard size (supporting gold printing) S: Postcard size (supporting silver printing) BW: Postcard size (black and white)
Paper Status
: 1/2 full or more. : About 1/4 full or more.
: About 1/8 full or more. : Less than 1/8 full.
: (Displays in red): The cartridge is empty No Display: The status is unknown.
Number of images on the memory card (current image/total number of images)
Time and date
Displays available operations.
5
6
7
910
24
The paper status icon will not display directly after the printer is turned on or after the cartridge
has been replaced. The icon will be restored after one or more images have been printed. The paper status displayed on the screen may differ from the actual number of sheets available
for printing.
Changing the Information Displayed on the Screen
COPY
You can change the information that is displayed on the screen. However, if SELPHY’s power is turned off or the memory card is removed, the setting will return to [Tool Tips].
Change the information displays.
Press the m(DISPLAY) button.
Every time the m(DISPLAY) button is pressed,
the display information will change as shown below.
No information Commands only
(Default setting)
information
Print settings
The current settings
in “Printing a Variety of Images” (pp. 31-
35) will display.
Demo Mode
If the [Auto Power Down] function is set to [Off] (pp. 70, 71), there are no cards in the card slots, and no user operations are performed for 20 sec., SELPHY will enter demo mode and some sample images will be displayed on the screen. If a button is pressed or any user operation is performed, demo mode will be cancelled.
25
Loading...
+ 57 hidden pages
