Canon LBP162dw User Manual

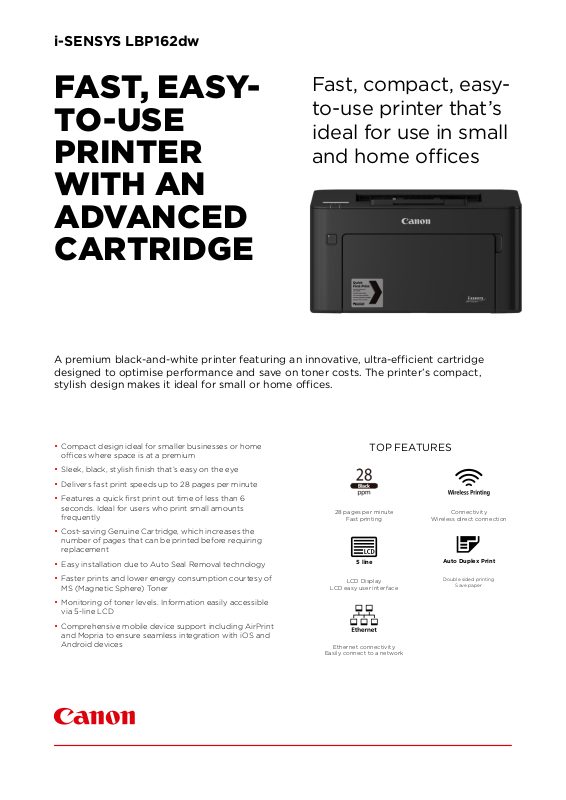

i-SENSYS LBP162dw

FAST, EASY- TO-USE PRINTER WITH AN ADVANCED CARTRIDGE

Fast, compact, easy- to-use printer that’s ideal for use in small and home offices

A premium black-and-white printer featuring an innovative, ultra-efficient cartridge designed to optimise performance and save on toner costs. The printer’s compact, stylish design makes it ideal for small or home offices.

•Compact design ideal for smaller businesses or home offices where space is at a premium

•Sleek, black, stylish finish that’s easy on the eye

•Delivers fast print speeds up to 28 pages per minute

•Features a quick first print out time of less than 6 seconds. Ideal for users who print small amounts frequently

•Cost-saving Genuine Cartridge, which increases the number of pages that can be printed before requiring replacement

•Easy installation due to Auto Seal Removal technology

•Faster prints and lower energy consumption courtesy of

MS (Magnetic Sphere) Toner

TOP FEATURES

28 pages per minute				Connectivity
Fast printing				Wireless direct connection

5 line	Auto Duplex Print
LCD Display	Double sided printing
LCD easy user interface	Save paper

•Monitoring of toner levels. Information easily accessible via 5-line LCD

•Comprehensive mobile device support including AirPrint and Mopria to ensure seamless integration with iOS and Android devices

Ethernet connectivity Easily connect to a network

TECHNICAL	i-SENSYS LBP162dw
SPECIFICATIONS

PRINTER ENGINE
Print speed	Single sided: Up to 28 ppm (A4)
	Double sided: Up to 17.8 ipm (A4)
Printing method	Monochrome laser beam printing
Print quality	Up to 1200 x 1200 dpi
Print resolution	Up to 600 x 600 dpi
Warm-up time	Approx. 15 seconds or less from power on
First Page Out Time	Approx. 5.2 seconds
Recommended Monthly Print	250 - 2,500 pages per month
Volume
Duty cycle	Max. 30,000 pages per month1
Print margins	5 mm-top, bottom, left and right
	10 mm-top, bottom, left and right (Envelope)
Advanced printing features	Google Cloud Print Ready
	iOS: AirPrint, Canon PRINT Business app
	Android; Mopria certified, Canon Print Service Plug-in,
	Canon PRINT Business app
MEDIA HANDLING
Paper input (Standard)	250-sheet cassette
	1-sheet multi-purpose tray
Paper input (Option)
Paper output	50-sheets
Media types	Plain paper, Recycled paper, Heavy Paper, Bond Paper,
	Label, Envelope
Media sizes	Cassette :
	A4, A5, A5(Landscape), B5, A6, Legal, Letter, Executive,
	Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL,
	Foolscap, 16K, Envelop (COM10, DL, C5), Custom sizes: Min.
	76.2 x 127 mm Max. 215.9 x 355.6 mm.
	Multi-purpose tray:
	A4, A5, A5(Landscape), B5, A6, Legal, Letter, Executive,
	Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL,
	Foolscap,16K,Envelope(COM10,Monarch,DL, C5), Custom
	sizes: Min 76.2 x 127 mm Max. 215.9 x 355.6 mm
Media weights	Cassette: 60 to 163 g/m²
	Multi-purpose tray: 60 to 163 g/m²
Double sided printing	Automatic (Only A4/LTR/LGL/
	OFFICIO/B-OFFICIO/M-OFFICIO/FLS, 60 to 105 g/m²)
GENERAL FEATURES
Power requirements	220-240V (±10%) 50/60Hz (±2Hz)
Power consumption	Maximum: Approx. 1120 W or less
	Standby: Approx. 3.4 W or less
	Sleep mode: Approx. 0.7 W
	Power switch off: 0.5W or less
	Typical Electricity Consumption (TEC): 0.7 kWh/week
	Idle time required to enter sleep mode: 1-30 min (default: 1
	min)
	Idle time required to enter Auto Shutdown: 4 hours
	(default)
	Lot 26
	http://www.canon-europe.com/For_Work/Lot26/index.aspx
Noise level	Sound Pressure2:
	Active: 51 dB in B/W printing
	Standby: Inaudible
	Sound Power2:
	Active: 70.7 dB or less in B/W printing
	Standby: N/A
Dimensions (W x D x H)	371 mm x 404 mm x 225 mm
Weight	Approx. 7.5 kg
Operating environment	Temperature: 10 to 30ºC (50 to 86ºF)
	Humidity 20 to 80% RH (no condensation)

Control panel		5 Line LCD
CONTROLLER
Processor Speed		400MHz
Memory		256MB
Printer Languages		UFRII-LT, PCL 5e3, PCL6
Fonts		45 PCL fonts
Interface and connectivity		USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX, Wireless
		802.11b/g/n, Wireless Direct Connection
Software and Printer		Remote User Interface (RUI),
Management		Toner Status Tool
Operating Systems		Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2016 /
Compatibility		Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server®
		2008 /
		Mac OS X version 10.8.5 & up / Mac OS 10.13 & up
		Linux4
CONSUMABLES
All-in-One cartridges		Cartridge 051 (1,700 pages 5)6
		Cartridge 051H (4,100 pages5)6
		Drum Cartridge 051 (23,000 pages5)6
ACCESSORIES/ OPTIONS
Items

Notes:

[1]Duty cycle is defined as the maximum number of printed pages for a single peak month. Any usage above the recommended duty cycle may decrease the life of the product

[2]Inaudible means that the emission sound pressure level for a bystander is lower than absolute standard for background noise in accordance with ISO 7779

[3]A Canon PCL5e driver is not supplied, however PCL5e commands are supported on the device.

[4]Web distribution only Available from December 2018. [5]Based on ISO/IEC 19752

[6]Printer ships with Starter Cartridge (1,000 pages), Drum Cartridge 051 (23,000 pages)
